L7KVTPA-01PCS1900 Base Station

NTC DN999099© Nokia Telecommunications OyInternal Copy1 (34) Issue 1 en DRAFT 3Draft Confidential Nokia MetroSite Base Station Commissioning Nokia MetroSite Base Station Commissioning 2 (34)© Nokia Telecommunications Oy Internal CopyNTC DN999099 ConfidentialIssue 1 en DRAFT 3Draft The information in this document is subject to change without notice and describes only the product defined in the introduction of this documentation. This document is intended for the use of Nokia Telecommunications' customers only for the purposes of the agreement under which the document is submitted, and no part of it may be reproduced or transmitted in any form or means without the prior written permission of Nokia Telecommunications. The document has been prepared to be used by professional and properly trained personnel, and the customer assumes full responsibility when using it. Nokia Telecommunications welcomes customer comments as part of the process of continuous development and improvement of the documentation. The information or statements given in this document concerning the suitability, capacity, or performance of the mentioned hardware or software products cannot be considered binding but shall be defined in the agreement made between Nokia Telecommunications and the customer. However, Nokia Telecommunications has made all reasonable efforts to ensure that the instructions contained in the document are adequate and free of material errors and omissions. Nokia Telecommunications will, if necessary, explain issues which may not be covered by the document. Nokia Telecommunications' liability for any errors in the document is limited to the documentary correction of errors. Nokia Telecommunications WILL NOT BE RESPONSIBLE IN ANY EVENT FOR ERRORS IN THIS DOCUMENT OR FOR ANY DAMAGES, INCIDENTAL OR CONSEQUENTIAL (INCLUDING MONETARY LOSSES), that might arise from the use of this document or the information in it. This document and the product it describes are considered protected by copyright according to the applicable laws. NOKIA logo is a registered trademark of Nokia Corporation. Other product names mentioned in this document may be trademarks of their respective companies, and they are mentioned for identification purposes only. Copyright © Nokia Telecommunications Oy 1999. All rights reserved. NTC DN999099© Nokia Telecommunications OyInternal Copy3 (34) Issue 1 en DRAFT 3DraftConfidential Contents Contents 3 1About this document 7 2Nokia BTS Manager 9 2.1Starting and exiting the BTS Manager9 2.2Using Help10 3Commissioning 11 3.1Commissioning with Nokia BTS Manager’s Wizard11 3.2Allocating transmission capacity with Traffic Manager21 4Commissioning report 25 4.1Test results25 5Troubleshooting and fault reporting 27 6Routing transmission capacity 29 6.1Creating cross-connections manually29 Appendix A. LMP connector description 33 Nokia MetroSite Base Station Commissioning 4 (34)© Nokia Telecommunications Oy Internal CopyNTC DN999099 ConfidentialIssue 1 en DRAFT 3Draft NTC DN999099© Nokia Telecommunications OyInternal Copy5 (34) Issue 1 en DRAFT 3DraftConfidential Summary of changes Updated September 99 Nokia MetroSite Base Station Commissioning 6 (34)© Nokia Telecommunications Oy Internal CopyNTC DN999099 ConfidentialIssue 1 en DRAFT 3Draft About this document NTC DN999099© Nokia Telecommunications Oy Internal Copy7 (34) Issue 1 en DRAFT 3DraftConfidential Caution 1About this document This document describes the commissioning of the Nokia MetroSite GSM 900, 1800 and 1900 Base Station (BTS). The document provides instructions on how to use the Nokia BTS Manager’s commissioning Wizard. Read carefullyNokia MetroSite BTS Warnings and Cautionsbefore starting the commissioning. The document contains the following information: •chapter 2: Nokia BTS Manager •chapter 3: Commissioning •chapter 4: Commissioning Report •chapter 5: Troubleshooting and Fault Reporting •chapter 6: Routing Transmission Capacity Commissioning measures concerning any Nokia Base Transceiver Station (BTS) may be performed only by properly trained and authorised personnel. Nokia MetroSite Base Station Commissioning 8 (34)© Nokia Telecommunications Oy Internal CopyNTC DN999099 ConfidentialIssue 1 en DRAFT 3Draft Nokia BTS Manager NTC DN999099© Nokia Telecommunications Oy Internal Copy9 (34) Issue 1 en DRAFT 3DraftConfidential Note 2Nokia BTS Manager This chapter gives instructions on how to get started with Nokia BTS Manager. It is assumed here that the user knows how to use Windows 95 or NT4.0 software. 2.1Starting and exiting the BTS Manager The installation program of the manager SW creates a Nokia BTS Manager icon on the desktop and defines its parameters. For more information on the installation, refer to the Nokia BTS Manager online Help or the instructions on the Nokia BTS Manager CD-ROM case. Start the BTS Manager as follows: 1.Double-click the BTS Manager icon on the desktop. The Nokia BTS Manager starts with the Supervise and Alarms windows opened. Also, the software checks the BTS configuration and displays it in the Supervision window. 2.Enter the MMI password if MMI password checking is on (this is the case when you work in Windows 95 environment). 3.Enter the BTS password if BTS password checking is on. The software continues execution only if the BTS accepts the entered password. You may enter an invalid password three times before the BTS Manager exits. You can define different Manager options and communications parameters when starting to work with the BTS Manager. The BTS Manager PC must be connected to the BTS in order to make the BTS password checking possible. If no connection exists, password checking is not applicable. Nokia MetroSite Base Station Commissioning 10 (34)© Nokia Telecommunications Oy Internal CopyNTC DN999099 ConfidentialIssue 1 en DRAFT 3Draft To exit the BTS Manager, choose the Exit command on the File menu. 2.2Using Help The Nokia BTS Manager software has a convenient, context-sensitive online Hel…

Text truncated - open the document above for the full version.

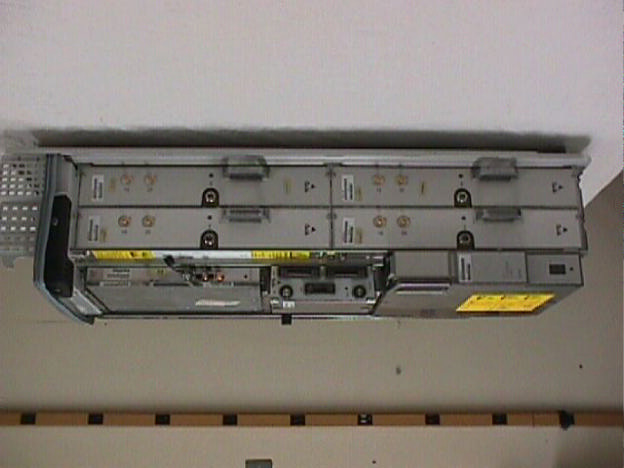

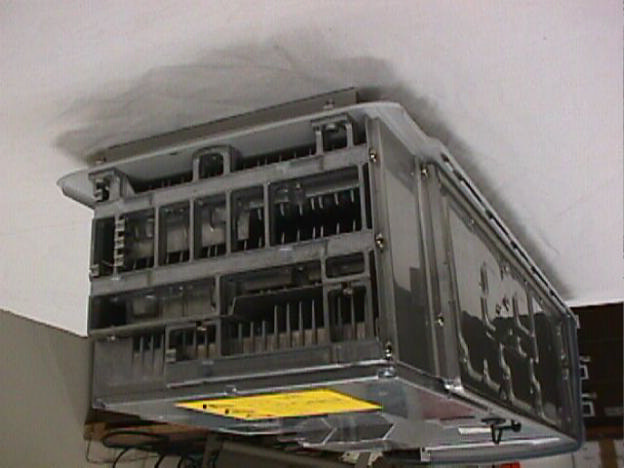

VTPA FRONT VIEW FCC Part 24 Sample Label Exhibit and Location Background color is white Text color is black Complies with Part 24, FCC rules. FCC ID : L7KVTPA-01 200% of Actual Size

NTC DN991444© Nokia Telecommunications OyInternal Copy1 (82) Issue 1 en DRAFT 3Draft Company confidential Nokia MetroSite Base Station Product Description Nokia MetroSite Base Station Product Description 2 (82)© Nokia Telecommunications Oy Internal CopyNTC DN991444 Company confidentialIssue 1 en DRAFT 3Draft The information in this document is subject to change without notice and describes only the product defined in the introduction of this documentation. This document is intended for the use of Nokia Telecommunications' customers only for the purposes of the agreement under which the document is submitted, and no part of it may be reproduced or transmitted in any form or means without the prior written permission of Nokia Telecommunications. The document has been prepared to be used by professional and properly trained personnel, and the customer assumes full responsibility when using it. Nokia Telecommunications welcomes customer comments as part of the process of continuous development and improvement of the documentation. The information or statements given in this document concerning the suitability, capacity, or performance of the mentioned hardware or software products cannot be considered binding but shall be defined in the agreement made between Nokia Telecommunications and the customer. However, Nokia Telecommunications has made all reasonable efforts to ensure that the instructions contained in the document are adequate and free of material errors and omissions. Nokia Telecommunications will, if necessary, explain issues which may not be covered by the document. Nokia Telecommunications' liability for any errors in the document is limited to the documentary correction of errors. Nokia Telecommunications WILL NOT BE RESPONSIBLE IN ANY EVENT FOR ERRORS IN THIS DOCUMENT OR FOR ANY DAMAGES, INCIDENTAL OR CONSEQUENTIAL (INCLUDING MONETARY LOSSES), that might arise from the use of this document or the information in it. This document and the product it describes are considered protected by copyright according to the applicable laws. NOKIA logo is a registered trademark of Nokia Corporation. Other product names mentioned in this document may be trademarks of their respective companies, and they are mentioned for identification purposes only. Copyright © Nokia Telecommunications Oy 1999. All rights reserved. NTC DN991444© Nokia Telecommunications OyInternal Copy3 (82) Issue 1 en DRAFT 3DraftCompany confidential Contents Contents 3 1About this document 7 2Introduction to Nokia MetroSite BTS 9 2.1Base Station System9 2.2Nokia MetroSite BTS10 3Nokia MetroSite BTS features 13 3.1Building capacity with Nokia MetroSite BTS13 3.1.1Four TRX BTS with flexible sectoring and dual band operation13 3.1.2RF power and sensitivity optimised for microcellular applications14 3.1.3Smooth capacity expansion14 3.2High network quality14 3.2.1Receiver diversity14 3.2.2Frequency hopping15 3.2.3Antenna solution15 3.3New and advanced telecom features16 3.4Easy and fast deployment16 3.4.1Installation17 3.4.2Commissioning with Nokia BTS Manager17 3.5Advanced operation and maintenance19 3.5.1Integration of TRX and Base Control Functions (BCF)19 3.5.2BTS diagnostics, alarms and TRX test19 3.5.3Battery backup with Nokia MetroSite BBU20 3.5.4Temperature control20 3.6Future features22 3.6.1Chaining of Nokia MetroSite BTSs22 3.6.2General Packet Radio Service (GPRS)22 4Applications 23 4.1Building microcells with Nokia MetroSite BTS23 4.2Transmission of Nokia MetroSite BTS28 5Nokia MetroSite BTS related software 31 5.1Nokia MetroSite BTS software31 5.2 Nokia BTS Manager software32 5.3BTS software updates33 6General function, construction and units 35 6.1Nokia MetroSite BTS general function35 6.1.1Signalling between network, BTS and MS35 6.1.2Nokia MetroSite BTS internal function37 6.2Cabinet (VMCA)40 6.3Transceiver unit (VTGx, VTDA, VTPA)42 6.3.1Baseband module44 6.3.2RF module46 6.3.3External interfaces49 Nokia MetroSite Base Station Product Description 4 (82)© Nokia Telecommunications Oy Internal CopyNTC DN991444 Company confidentialIssue 1 en DRAFT 3Draft 6.4Interface unit (VIFA)49 6.4.1External interfaces50 6.5Transmission unit (VXEA, VXTx, VXRx)53 6.5.1Unit alternatives for radio link transmission53 6.5.2Unit alternatives for wireline transmission54 6.6Power supply unit (VSAx, VSDA)58 6.6.1Power supply unit alternatives58 6.6.2Output voltages58 6.6.3Connector types58 6.7Fan unit (VMFA)60 7Unit alternatives and other delivery items 63 8Technical specifications 65 8.1Dimensions and weights of plug-in units70 8.1.1Transceiver unit70 8.1.2Interface unit70 8.1.3Transmission unit71 8.1.4Power supply unit71 8.2System requirements for Nokia BTS Manager71 8.3Basic telecom features72 8.4International recommendations73 8.4.1Common standards73 8.4.2Electrical standards73 8.4.3Environment77 8.4.4Mechanical standards78 8.4.5Base station interface equipment - related recommendations and standards79 NTC DN991444© Nokia Telecommunications OyInternal Copy5 (82) Issue 1 en DRAFT 3DraftCompany confidential Summary of changes Pilot version, May 99 Edited for type approval, July 99 Updated, September 99 Nokia MetroSite Base Station Product Description 6 (82)© Nokia Telecommunications Oy Internal CopyNTC DN991444 Company confidentialIssue 1 en DRAFT 3Draft About this document NTC DN991444© Nokia Telecommunications Oy Internal Copy7 (82) Issue 1 en DRAFT 3DraftCompany confidential 1About this document This document describes the hardware, software and function of Nokia MetroSite Base Transceiver Station (BTS). Use this document as a reference for the following information: •Nokia MetroSite BTS features •Nokia MetroSite BTS applications •Nokia MetroSite BTS software •Nokia Site Manager •Nokia MetroSite BTS general function, construction and units •Nokia MetroSite BTS technical data •Nokia MetroSite BTS design standards Nokia MetroSite Base Station Product Description 8 (82)© Nokia Telecommunications Oy Internal CopyNTC DN991444 Company co…

Text truncated - open the document above for the full version.

FCC ID: L7KVTPA-01 December 15, 1999 Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 Attention:Applications Examiner Applicant:Nokia Telecommunications, Inc. 6000 Connection Drive, Irving , Texas 75039 Equipment:PCS Base Transmitter Station (BTS), Model: MetroSite 1900 FCC ID: L7KVTPA-01 Specification:for a 47 CFR 24 Licensed Certification Dear Examiner: The following application for Grant of Equipment Authorization is presented on behalf of Nokia Telecommunications, Inc. for the Licensed Certification of their Model: MetroSite 1900, PCS Base Transmitter Station (BTS). Enclosed, please find a complete data and documentation package demonstrating that this device complies with the technical requirements of 47 CFR 24, for a Base Transmitter Station (BTS). If you have any questions, please contact the undersigned, who is authorized to act as Agent. Sincerely, Chris Harvey, Director EMC Laboratory MET Laboratories, Inc. FCC ID: L7KVTPA-01 EMI9574a- 2 -Dec 15, 1999 MET Laboratories, Inc. Safety Certification - EMI - Telecom Environmental Simulation 914 WEST PATAPSCO AVENUE !! BALTIMORE, MARYLAND 21230-3432 !! PHONE (410) 354-3300 !! FAX (410) 354-3313 ENGINEERING TEST REPORT in support of the Application for Grant of Equipment Authorization EQUIPMENT:PCS Base Transmitter Station (BTS), Model: MetroSite 1900 FCC ID:L7KVTPA-01 Specification:47 CFR 24 On Behalf of the Applicant:Nokia Telecommunications, Inc. 6000 Connection Drive Irving, TX 75039 Manufacturer:Nokia Telecommunications, Inc. 6000 Connection Drive Irving, TX 75039 Manufacturer’s Mr. Steve Mitchell Representative Test Date(s):Aug 12 thru 24, 1999 ENGINEERING STATEMENT I ATTEST: the measurements shown in this report were made in accordance with the procedures indicated, and that the emissions from this equipment were found to be within the limits applicable. I assume full responsibility for the accuracy and completeness of these measurements. On the basis of the measurements made, the equipment tested is capable of operation in accordance with the requirements of Part 24 of the FCC Rules under normal use and maintenance. _____________________________ Liming Xu EMC Engineer, MET Laboratories FCC ID: L7KVTPA-01 EMI9574a- 3 -Dec 15, 1999 1.0INTRODUCTION The following data is presented on behalf of the Applicant, Nokia Telecommunications, Inc., as verification of the compliance of the Nokia PCS Base Transmitter Station (BTS), MetroSite 1900 to the requirements of 47 CFR 24. 2.0TEST SITE All testing was conducted at MET Laboratories, Inc., 914 West Patapsco Avenue, Baltimore, Maryland 21230- 3493. Radiated emissions measurements were performed on a three-meter open area test site (OATS). A complete site description is on file with the FCC Laboratory Division as 31040/SIT/MET. 3.0TEST EQUIPMENT USED ManufacturerEquipmentCalibration Due Date @ time ofCal. Interval testing Hewlett Packard8563A Spectrum Analyzer5/29/00annual EMCOBiconical Antenna 31041/27/00annual EMCOEMCO Log Periodic Antenna3/20/00annual EMCODouble Ridge Guided Horn3/20/00annual Hewlett Packard8594EM Analyzer11/18/99annual SolarLISN6/30/00annual 4.0EQUIPMENT UNDER TEST CONFIGURATION The Base Transmitter Station (BTS) was configured with AC power supply modules and an external PC to program the EUT to output a PCS (i.e.GMSK Modulation type) cellular RF signal. The EUT with host external computer was configured for maximum signal gain and bandwidth. The EUT was operated in a manner representative of the typical usage of the equipment. During all testing, system components were manipulated within the confines of typical usage to maximize each emission. 5.0TEST TYPE(S) 5.1Radiated Emissions: 47 CFR2.1053, , 24.238(a) 5.2Occupied Bandwidth: 47 CFR2.1049 5.3RF Power Output: 47 CFR 2.1046, 24.232(a), (c) 5.4Spurious Emission at Antenna Terminals: 47 CFR 2.1051, 24.238(a) 5.5Spurious Emission at Antenna Terminals at Frequency Block edges +/- 1 MHz, 47 CFR 2.1051, 24.238(b) 5.6Frequency Stability over temperature variations: 47 CFR 2.1055(a)(1) 5.7Frequency Stability over variations in supply voltage: 47 CFR 2.1055(d)(1) 5.8AC Line Conducted Emissions: 47 CFR 15.107 5.9 Modulation Characteristics: 47 CFR 2.1047(a) E(V/m) 1m ' 49.2X1.1 1 E(V/m) 1m '7.357V/mor137.2dbμV/m@1m 43%10Log(1.1)'43.41dB 137.2dBμV/m&43.41dB'93.80dBμV/m@1m E(V/m) 3m ' 49.2X1.1 3 E(V/m) 3m '2.45V/mor127.7dbμV 127.7&43.4'83.3dBμV/m@3m FCC ID: L7KVTPA-01 EMI9574a- 4 -Dec 15, 1999 6.0TEST RESULTS 6.1TEST TYPE: Radiated Emissions 6.1.1TECHNICAL SPECIFICATION:2.1053; 24.238(a) 6.1.2TEST DATE(S):17 Aug. 1999 6.1.3MEASUREMENT PROCEDURES: As required by §2.1053, field strength of spurious radiation measurements were made in accordance with the general procedures of ANSI C63.4-1992 "Methods of Measurement of Radio-Noise Emissions from Low-Voltage Electrical and Electronic Equipment in the Range of 9 kHz to 40 GHz". Preliminary radiated emission measurements were performed inside a shielded chamber with all digital signal generators on and terminated. The frequency list from the preliminary measurements was used as a guide for making final measurements on a 10 meter open area test site. The unit was scanned over the frequency range of the lowest system oscillator value to 9 GHz. The Radiated Spurious Emissions Limit is obtained by the following: Based on an output power (as measured at the output of the Amplifier) of 1.1 watts: P = 1.1 W o As per 2.1053 (a), it is assumed this power is to be fed to a half-wave tuned dipole. Using a conversion formula for distance, the field strength at one meter can be derived: As per 24.238(a), the spurious emissions must be attenuated by 43 + 10log(P) which is: Therefore, the limit for spurious emissions is: At 3 meters measurement distance, the limit is; According to 24.238(a), all signals must be attenuated by 43.41 dB. Therefore, the limit for spurious emissions for a test distance of 3 meters is: FCC ID: L7KVTPA-01 E…
