LOBSBU900Direct Sequence Spread Spectrum

It2 ©2007 Cervis, Inc. SmaRT 902 Remote Control System Manual U007.0-SmaRT902_system-R SmaRT Remote Control System Cervis, Inc. Visit our Web site at: www.cervisinc.com © 2007 Cervis, Inc. All rights reserved. Content is subject to change without notice. This document is the property of Cervis, Inc. and cannot be copied, modified, or reproduced without the express prior written consent of Cervis, Inc. Cervis, Inc. reserves the right to change this manual or edit, delete, or modify any information without prior notification. FCC Statements 15.19 – Two Part Warning This device complies with Part 15 of the FCC rules. Operation is subject to the follow- ing two conditions: (1) This device may not cause harmful interference and (2) This device must accept any interference received, including interference that may cause undesired operation. 15.21 – Unauthorized Modification NOTICE: The manufacturer is not responsible for any unauthorized modifications to this equipment made by the user. Such modifications could void the user’s authority to operate the equipment. User Manual ©2007 Cervis, Inc. i Contents FCC Statements ............................................................................................................................ i 1.0 SmaRT 902 Remote Control System.................................................................................. 1 1.1 Features ............................................................................................................................. 1 1.2 PT0-902 Handheld Remote .............................................................................................. 2 1.3 BU-902F Base Unit............................................................................................................ 2 1.4 Communication Configuration Options ......................................................................... 3 1.4.1 Associate Handheld to Base Unit Procedure ............................................................... 3 1.4.2 Disassociate Handheld to Base Unit Procedure .......................................................... 4 2.0 Handheld Battery Installation or Change .......................................................................... 6 3.0 Base Unit Installation ..........................................................................................................7 4.0 Using the SmaRT PTO-902 Handheld Remote.................................................................. 8 To operate the system:................................................................................................................ 8 5.0 Wiring Harness..................................................................................................................... 9 6.0 Specifications..................................................................................................................... 10 6.1 Handheld.......................................................................................................................... 10 6.2 Base Unit ......................................................................................................................... 11 Figures Figure 1. PTO-902 Handheld Remote and BU-902F Base Unit .................................................. 1 Figure 2. PTO-902 (without bumper) ............................................................................................ 2 Figure 3. Female Twelve (12) Pin Connector............................................................................... 3 Figure 4. BU-902F LEDs ................................................................................................................ 3 Figure 5. Handheld PTO Buttons..................................................................................................4 Figure 6. Handheld Battery Installation ....................................................................................... 6 Figure 7. Base Unit......................................................................................................................... 7 Figure 8. Wiring Harness Cable .................................................................................................... 7 Figure 9. PTO-902 Front Panel Buttons and Diagnostic LEDs.................................................. 8 Tables Table 1 - Handheld Specifications..............................................................................................10 Table 2 - Base Unit Specifications..............................................................................................11 SmaRT 902 Remote Control System U007.0-SmaRT902_system-R ii Notes: Product Name ©2007 Cervis, Inc. 1 1.0 SmaRT 902 Remote Control System The standard SmaRT 902 Remote Control System consists of a 2-button PTO-902 wireless handheld transmitter, a BU-902F base unit, and the wiring harness that is used to connect the base unit to the controlled apparatus. A single base unit is capable of communicating with up to eight PTO-902 Handheld units. The rugged construction, compact size, and multiple output versatility allow for SmaRT Systems to be used for many applications that require remote operation. Figure 1. PTO-902 Handheld Remote and BU-902F Base Unit 1.1 Features • IP65 Enclosure • Operating Temp: -20°C to +55°C • Storage Temp: -40°C to +85°C • PTO-902 Handheld has two Push-to-Operate (PTO) buttons • Handheld powered by three AAA Batteries (+3.6VDC to 4.5VDC) • Base Unit +9VDC to +16VDC Input Power • Two FET high side switching outputs (8A max.) • License Free Frequency, 900MHz Spread Spectrum Technology • 300’ (100m) Range • Rugged high-impact polymer enclosure • Removable rubber bumper (handheld) • Lanyard • Compact Weatherproof Design • Five base unit and three handheld diagnostic LEDs • Single connector interface for ease of wiring SmaRT 902 Remote Control System U007.0-SmaRT902_system-R 2 1.2 PT0-902 Handheld Remote The SmaRT PTO-902 Handheld Remote features a 300’ handheld…

Text truncated - open the document above for the full version.

Letter Of Agency 11/27/2007 American Telecommunications Certification Body, Inc. 6731 Whittier Avenue Suite C110 McLean, VA 22101 To Whom It May Concern: Please be advised that Structured Mining Systems (d.b.a. Cervis Inc.) authorizes Washington Laboratories, Ltd. to act on our behalf, until otherwise notified, for applications submitted to American Telecommunications Certification Body, Inc. (ATCB). We certify that we are not subject to denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse ACT of 1988, U.S.C. 862. Further, no party, as defined in 47 CFR 1.2002(b), to the application is subject to denial of federal benefits, that includes FCC benefits. Thank you for your attention to this matter. Sincerely, Anthony M. Di Tommaso Manager, Engineering Cervis, Inc.

Request for Confidentiality 11/27/2007 American Telecommunications Certification Body, Inc. 6731 Whittier Avenue Suite C110 McLean, VA 22101 RE: Certification Application FCC ID: LOBSBU900 Please be advised that under the provision of 47 CFR 0.459 the following exhibits are to be held confidential on behalf of Structured Mining Systems (d.b.a. Cervis Inc.): • Schematics • Operational Description • Block Diagram • Bill of Material The application contains technical information that Structured Mining Systems (d.b.a. Cervis Inc.) deems to be trade secrets and proprietary. If made public, the information might be used to the disadvantage of the applicant in the market place. Thank you for your attention to this matter. Sincerely, Anthony M. Di Tommaso Manager, Engineering Cervis, Inc.

Subject: Modular Approval Request FCC ID: LOBSBU900 12/05/2007 Dear Application Examiner, Cervis Inc. (aka Structured Mining Systems), would like to have your authorization for modular approval of the radio portion of SmaRT BU-901H, FCC ID: LOBSBU900 so as to be used with other SmaRT base unit 900MHz varieties where the radio electronics will not change, but the input and output electronics may change. The requirements of Public Notice DA00-1407 have been met and shown on the following statements. 1. The modular transmitter must have its own RF shielding. The radio portion of this module has been shielded, please see exhibition External Photo. 2. The modular transmitter must have buffered modulation/data inputs. The SmaRT BU-901H contains buffered data inputs; it is integrated in the radio section of the printed circuit board assembly, part number 07100350. The component with buffered data inputs is a ZMD 44102. 3. The modular transmitter must have its own power supply regulation. The SmaRT BU-901H contains a regulator in the DC input port, a TI TPS70758PWP. 4. The modular transmitter must comply with the antenna requirements of section 15.203 and 15.204(C). The PTO-906 meets the FCC antenna requirements. The spurious emission, unique antenna connector and photo of antennas are shown in the application exhibits. 5. The modular transmitter must be tested in a stand-alone configuration. The BU-901H was tested in a stand-alone configuration via a PCMCIA adapter card. Please see exhibit “Test Setup Photos”. 6. The modular transmitter must be labeled with its own FCC ID number. Please see exhibit “FCC Label” for the FCC ID of this module. 7. The modular transmitter must comply with any specific rule or operating requirements applicable to the transmitter and the manufacturer must provide adequate instructions along with the module to explain any such requirements. The BU-901H is compliant with all applicable FCC rules. Detail instructions for maintaining compliance are given in the Users Manual. 8. The modular transmitter must comply with any applicable RF exposure requirements. The EUT is compliant with all applicable RF exposure requirements. RF Exposure is addressed in the exhibit “MPE Data”. Please contact me if you have any further questions. Thank you for your attention. Sincerely, Anthony M. Di Tommaso Manager, Engineering Cervis, Inc.

Response to ATCB Comments FCC ID: LOBSBU900 1 Washington Laboratories, Ltd. 7560 LINDBERGH DRIVE GAITHERSBURG, MD 20879 (301) 417 – 0220 FAX # (301) 417 - 9069 January 16, 2008 Mr. Doug Noble American Telecommunications Certification Body Inc. 6731 Whittier Ave McLean, VA 22101 RE: Comments for: APPLICATION: LOBSBU900 Structured Mining Systems Inc. Dear Mr. Noble: Below are the comments that you have provided regarding the application for certification referenced above. Our responses to those comments are in bold italic. Many responses refer you to additional exhibit(s) which has been uploaded to the application folder at the ATCB website. Thank you for your attention. Please feel free to contact us for any additional information that you may require. Regards, Steven D. Koster EMC Operations Manager Brian J. Dettling Documentation Specialist WLL Project: 9957 1) For radiated testing please remove the cover and test in stand-alone configuration as required in modular approval statement. R. Please review the Test Setup Photos and External Photos. The first test setup photo shows the unit with its cover removed. 2) Equipment code should be DTS for Direct Sequence Spread Spectrum devices. Please use in the future. R. Noted. The Form 731 has been corrected. Please see “SBU900 Application Form - 731 revised”. Response to ATCB Comments FCC ID: LOBSBU900 2 3) RF Exposure shows the output power below the 60/frequency level therefore please use attached document with the correct values into the proper data findings. R. Please see “SBU900 RF Exposure Info revised”. 4) All portable devices - require X, Y, Z axis positioning. The test report does not include information on whether this positioning was performed during testing. Please put statement in radiated testing description as the test setup photos show this was done. R. The report has been updated accordingly in Section 4.5.1 Test Procedure. Additionally, the test data for >1GHz contains the orientation information. Please see “SBU900 Test Report Rev 1”.

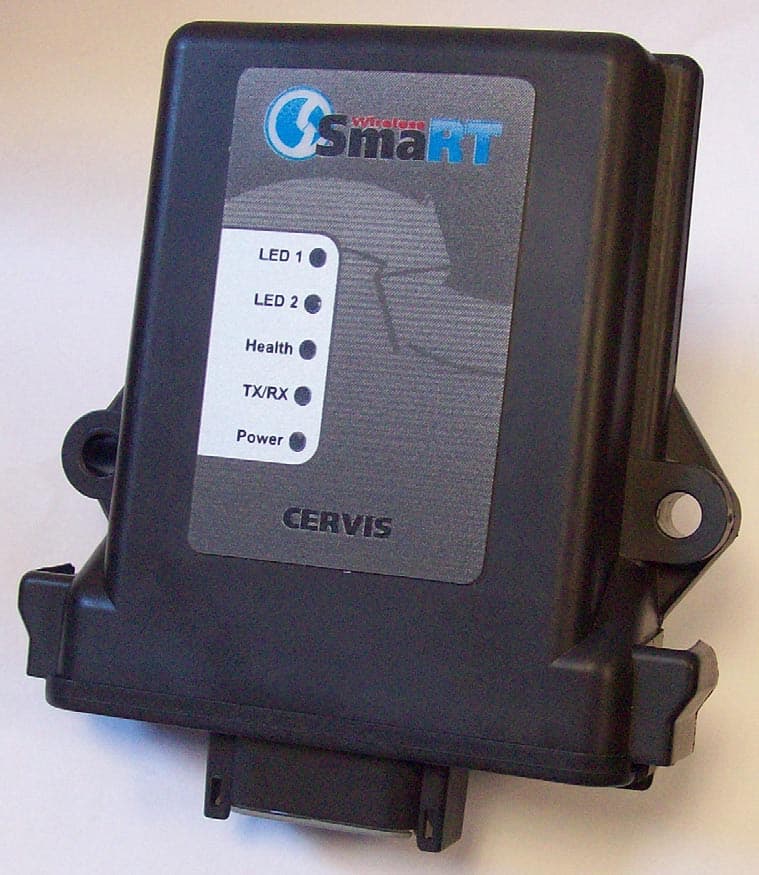

External Photos ©2007 Washington Laboratories, Ltd FCC ID: LOBSBU900 External Photos ©2007 Washington Laboratories, Ltd FCC ID: LOBSBU900 External Photos ©2007 Washington Laboratories, Ltd FCC ID: LOBSBU900

Internal Photos ©2007 Washington Laboratories, Ltd FCC ID: LOBSBU900 Internal Photos ©2007 Washington Laboratories, Ltd FCC ID: LOBSBU900 Internal Photos ©2007 Washington Laboratories, Ltd FCC ID: LOBSBU900

RF Exposure Statement 1. Standard Applicable According to 1.1307 (b)(1), systems operating under the provisions of this section shall be operated in a manner that ensure that the public is not exposed to radio frequency energy level in excess of the Commission’s guideline. This is a portable device. 2. Measurement Result: This is a portable device and the max peak output power is 2.1 dBm (1.62 mW). Lower than the low threshold 60/f GHz = (65 mW), d<2.5 cm general population category. The SAR/MPE measurement is not necessary.

FCC & Industry Canada Certification Test Report For the Structured Mining Systems, Inc SmaRT BU-901H Base Unit FCC ID: LOBSBU900 IC ID: TBD WLL JOB# 9957 October 25, 2007 Prepared for: Structured Mining Systems, Inc 180 Pine Meadow Drive Wexford, PA 15090 Prepared By: Washington Laboratories, Ltd. 7560 Lindbergh Drive Gaithersburg, Maryland 20879 Structured Mining Systems, Inc. SmaRT BU-901H Base Unit FCC Certification Test Report October 2007 FCC & Industry Canada Certification Test Report for the Structured Mining Systems, Inc SmaRT BU-901H Base Unit FCC ID: LOBSBU900 IC ID: TBD October 2007 WLL JOB# 9957 Prepared by: Steven Dovell Compliance Engineer Reviewed by: Steven D. Koster EMC Operations Manager Structured Mining Systems, Inc. SmaRT BU-901H Base Unit FCC Certification Test Report October 2007 WLL Report #8862/3-01 - ii - © 2008 Washington Laboratories, Ltd. Abstract This report has been prepared on behalf of Structured Mining Systems, Inc to support the attached Application for Equipment Authorization. The test report and application are submitted for a Digitally Modulated Transmitter under Part 15.247 of the FCC Rules and Regulations and Spectrum Management and Telecommunications Policy RSS-210 of Industry Canada. This Certification Test Report documents the test configuration and test results for a Structured Mining Systems, Inc SmaRT BU-901H Base Unit. Testing was performed on an Open Area Test Site (OATS) of Washington Laboratories, Ltd, 7560 Lindbergh Drive, Gaithersburg, MD 20879. Site description and site attenuation data have been placed on file with the FCC's Sampling and Measurements Branch at the FCC laboratory in Columbia, MD. The Industry Canada OATS numbers are 3035A-1 and 3035A-2 for Washington Laboratories, Ltd. Site 1 and Site 2, respectively. Washington Laboratories, Ltd. has been accepted by the FCC and approved by NIST NVLAP (NVLAP Lab Code: 200066-0) as an independent FCC test laboratory. The Structured Mining Systems, Inc SmaRT BU-901H Base Unit complies with the limits for a Digitally Modulated Transmitter device under FCC Part 15.247 and Industry Canada RSS-210. Structured Mining Systems, Inc. SmaRT BU-901H Base Unit FCC Certification Test Report October 2007 WLL Report #8862/3-01 - iii - © 2008 Washington Laboratories, Ltd. Table of Contents Abstract ........................................................................................................................................... ii 1 Introduction ..........................................................................................................................1 1.1 Compliance Statement .....................................................................................................1 1.2 Test Scope ........................................................................................................................1 1.3 Contract Inform ation ........................................................................................................1 1.4 Test Dates ........................................................................................................................1 1.5 Test and Support Personnel .............................................................................................1 2 Equipment Under Test .........................................................................................................2 2.1 EUT Identification & Description ...................................................................................2 2.2 Test Configuration ...........................................................................................................2 2.3 Testing Algorithm ............................................................................................................2 2.4 Test Location ...................................................................................................................2 2.5 Measurements ..................................................................................................................3 2.5.1 References ....................................................................................................................3 2.6 Measurement Uncertainty ................................................................................................3 3 Test Equipment ....................................................................................................................3 4 Test Results ..........................................................................................................................5 4.1 RF Power Output: (FCC Part §2.1046/RSS-210) ............................................................5 4.2 Power Spectral Density (FCC Part 15.247/RSS-210) .....................................................9 4.3 Occupied Bandwidth: (FCC Part §2.1049/IC RSS-210) ...............................................11 4.4 Conducted Spurious Em issions at Antenna Terminals (FCC Pt §2.1051/IC RSS-210) 15 4.5 Radiated Spurious Emissions: (FCC Part §2.1053/RSS-210) .......................................30 4.5.1 Test Procedure .........................................................................................................30 4.6 AC Powerline Conducted Em issions: (FCC Part §15.207/RSS-210 Section 9) ............38 List of Tables Table 1. Device Summ ary ............................................................................................................... 2 Table 2: Test Equipment List .......................................................................................................... 4 Table 3. RF Power Output .............................................................................................................. 5 Table 4. Occupied Bandwidth Results .......................................................................................... 15 Table 5: Radiated Emission Test Data, Low Frequency Data (<1GHz) ...................................... 31 Table 6: Radiate…

Text truncated - open the document above for the full version.

FCC & Industry Canada Certification Test Report For the Structured Mining Systems, Inc SmaRT BU-901H Base Unit FCC ID: LOBSBU900 IC ID: TBD WLL Report # 9957-01 Rev 1 February 5, 2008 Prepared for: Structured Mining Systems, Inc 180 Pine Meadow Drive Wexford, PA 15090 Prepared By: Washington Laboratories, Ltd. 7560 Lindbergh Drive Gaithersburg, Maryland 20879 Structured Mining Systems, Inc. SmaRT BU-901H Base Unit FCC Certification Test Report October 2007 FCC & Industry Canada Certification Test Report for the Structured Mining Systems, Inc SmaRT BU-901H Base Unit FCC ID: LOBSBU900 IC ID: TBD WLL Report # 9957-01 Rev 1 February 5, 2008 Prepared by: Steven Dovell Compliance Engineer Reviewed by: Steven D. Koster EMC Operations Manager Structured Mining Systems, Inc. SmaRT BU-901H Base Unit FCC Certification Test Report October 2007 WLL Report #9957-01 Rev 1 - ii - © 2008 Washington Laboratories, Ltd. Abstract This report has been prepared on behalf of Structured Mining Systems, Inc to support the attached Application for Equipment Authorization. The test report and application are submitted for a Digitally Modulated Transmitter under Part 15.247 of the FCC Rules and Regulations and Spectrum Management and Telecommunications Policy RSS-210 of Industry Canada. This Certification Test Report documents the test configuration and test results for a Structured Mining Systems, Inc SmaRT BU-901H Base Unit. Testing was performed on an Open Area Test Site (OATS) of Washington Laboratories, Ltd, 7560 Lindbergh Drive, Gaithersburg, MD 20879. Site description and site attenuation data have been placed on file with the FCC's Sampling and Measurements Branch at the FCC laboratory in Columbia, MD. The Industry Canada OATS numbers are 3035A-1 and 3035A-2 for Washington Laboratories, Ltd. Site 1 and Site 2, respectively. Washington Laboratories, Ltd. has been accepted by the FCC and approved by NIST NVLAP (NVLAP Lab Code: 200066-0) as an independent FCC test laboratory. The Structured Mining Systems, Inc SmaRT BU-901H Base Unit complies with the limits for a Digitally Modulated Transmitter device under FCC Part 15.247 and Industry Canada RSS-210. Structured Mining Systems, Inc. SmaRT BU-901H Base Unit FCC Certification Test Report October 2007 WLL Report #9957-01 Rev 1 - iii - © 2008 Washington Laboratories, Ltd. Table of Contents Abstract ........................................................................................................................................... ii 1 Introduction ..........................................................................................................................1 1.1 Compliance Statement .....................................................................................................1 1.2 Test Scope ........................................................................................................................1 1.3 Contract Inform ation ........................................................................................................1 1.4 Test Dates ........................................................................................................................1 1.5 Test and Support Personnel .............................................................................................1 2 Equipment Under Test .........................................................................................................2 2.1 EUT Identification & Description ...................................................................................2 2.2 Test Configuration ...........................................................................................................2 2.3 Testing Algorithm ............................................................................................................2 2.4 Test Location ...................................................................................................................2 2.5 Measurements ..................................................................................................................3 2.5.1 References ....................................................................................................................3 2.6 Measurement Uncertainty ................................................................................................3 3 Test Equipment ....................................................................................................................3 4 Test Results ..........................................................................................................................5 4.1 RF Power Output: (FCC Part §2.1046/RSS-210) ............................................................5 4.2 Power Spectral Density (FCC Part 15.247/RSS-210) .....................................................9 4.3 Occupied Bandwidth: (FCC Part §2.1049/IC RSS-210) ...............................................11 4.4 Conducted Spurious Em issions at Antenna Terminals (FCC Pt §2.1051/IC RSS-210) 15 4.5 Radiated Spurious Emissions: (FCC Part §2.1053/RSS-210) .......................................30 4.5.1 Test Procedure ...........................................................................................................30 4.6 Conducted Em issions .....................................................................................................38 4.6.1 Requirements .............................................................................................................38 4.6.2 Test Equipment ..........................................................................................................38 4.6.3 Test Procedure ...........................................................................................................38 4.6.4 Test Data ....................................................................................................................38 4.6.5 Conducted Data Reduction and Reporting .................................…

Text truncated - open the document above for the full version.

Test Setup Photos ©2007 Washington Laboratories, Ltd Test Setup Photos ©2007 Washington Laboratories, Ltd Test Setup Photos ©2007 Washington Laboratories, Ltd

Test Setup Photos ©2007 Washington Laboratories, Ltd Test Setup Photos ©2007 Washington Laboratories, Ltd Test Setup Photos ©2007 Washington Laboratories, Ltd Test Setup Photos ©2007 Washington Laboratories, Ltd Test Setup Photos ©2007 Washington Laboratories, Ltd
