LPM4000BSNBB1

Before You Begin Sleep Number App Quick Start If you haven’t already, you will need to get the unique Identifier (UDID) for your iPhone or iPod Touch, and then download and install the Select Number App. The instructions for downloading and installing the application should have already been given to you System Requirements - iPhone or iPod Touch - Software Version 4.0 or later is required - Sleep Number App installed - WiFi turned on - WiFi router - Sleep Number bed with Corolla Pump - Bridge Controller Overview Your Sleep Number App system comes with a Bridge Controller that allows your iPhone or iPod Touch to communicate with the Sleep Number bed pump via your home WiFi network. The following setup diagram illustrates how the various system components should be set up. SELECT COMFORT Corporation *Caution Statement: Per FCC 15.21: Changes or modifications to this product not expressly approved by Select Comfort Corporation could void the user's authority to operate the equipment.. This device complies with: A) Part 15 : Operation is subject to the following two conditions: 1) This device may not cause harmful interference, and 2) This device must accept any interference received Including interference that may cause undesirable operation Caution: To prevent electric shock, Do not remove cover. No user serviceable parts inside. Refer to servicing to qualified personnel. Sleep Number App Quick Start Step 1: Unpack and check contents - Bridge Controller (x1) - Power Supply (x1) - Ethernet Cable (x1) Step 2: Connecting to your home network The Bridge needs to connect to your home WiFi router using an Ethernet cable. A 3-foot cable has been provided for you, however longer cables can be used to give you more flexibility in positioning the Bridge. a) Make sure that the power supply is not plugged into the Bridge yet. b) Plug the Ethernet cable into an available Ethernet port on your wireless router. c) Plug the other end of the Ethernet cable into the Ethernet port on the back of the Bridge. d) Plug the power supply into the power jack on the Bridge and then plug the power cord into the wall. This will power on the Bridge. e) The blue Sleep Number icon on the Bridge will glow blue and blink, and the green and amber lights on the Ethernet port will begin to flash. f) When the blue Sleep Number icon stops flashing and stays lit, the Bridge has been successfully connected to your home network. Troubleshooting Sleep Number App Quick Start Step 3: Connecting your iPhone or iPod Touch to your Sleep Number bed The last step before you can enjoy the benefits of your new Sleep Number App is to connect your iPhone or iPod Touch to your Sleep Number bed. This process is referred to as “binding.” a) To bind a new device, you must first unplug your Sleep Number pump from the power outlet. b) Wait 5 seconds, then plug the pump back into the power outlet. These two steps place the pump into a binding mode that lasts for 60 seconds. c) Launch the Sleep Number App in your iPhone or iPod Touch. d) The application will automatically bind your device with your bed. Step 4: Enjoy. Individualize. Sleep. You can now use your Sleep Number App to control your Sleep Number bed. If you are experiencing difficulties with any of these steps, first navigate to the Diagnostics page in your Sleep Number App: My Bed > The Diagnostics page will show the connection status of each of the system components. Search the troubleshooting scenarios below before pressing the ReBind buttons. Sleep Number App Quick Start My WiFi is not connected: a) Ensure that the WiFi is turned on in your iPhone or iPod Touch: Settings > WiFi > On b) Reboot your WiFi router. Unplug the power to the router > Wait 30 seconds > Plug router back in > Confirm WiFi connection on the Diagnostics page. My Bridge is not binding: a) Ensure that the Bridge is powered on. The Sleep Number icon will glow blue. b) Ensure the Bridge is connected to the WiFi router. a. Check Ethernet cable connections. b. Check that both the Green and Amber lights on the Ethernet port are lit. The Green light should be constant, the Amber light should be blinking. c) Repeat Step 2: Connecting to your home network. d) Press the ReBind button for the Bridge on the Diagnostics page. My Pump is not binding: a) Your Bridge may be out of range to your pump. a. Try moving the Bridge closer to the pump. b. Move the Bridge away from other electronic devices that may be causing signal interference. b) Repeat steps a and b of Step 3: Connecting your iPhone or iPod Touch to your Sleep Number bed. c) Press the ReBind button for the Pump on the Diagnostics page.

Northwest EMC TCB Compliance Opinion Rev. 12/08/09 SECF0002 Information about the Applicant Grantee (Company Name) Select Comfort Corporation FCC Contact Person Jeffery Barnum Address 9800 59th Avenue North City, State, Zip Minneapolis, MN 55442 Job Number SECF0002 Model SNbb1 FCC ID LPM4000B Agent Approval Type Original Equipment Class DTS Digital Transmission System Rule Part 15C Overview Select Comfort Corporation is seeking an original grant for their model SNbb1 transceiver under 47 Cfr 15.247. The FCC ID for the device is LPM4000B. The transceiver is installed in the Bridge Router and is used to communicate with the controller and in-home network for purposes of controlling setting of the Select Comfort Corporation's adjustable foundation for their beds. Confidentiality requested for allowed files. Request is properly addressed and referenced. Short term confidentiality requested. A letter listing the applicable modular requirements was submitted. Recommendation All items have been resolved and completed to my satisfaction; therefore I recommend this application for approval. Signature Dave Tolman, TCB Committee 3/4/2011

Sample Label: Select Comfort Corporation Model: SNBB1 FCC ID:LPM4000B THIS DEVICE COMPLIES WITH PART 15 OF THE FCC RULES: OPERATION IS SUBJECT TO THE FOLLOWING TWO CONDITIONS: (1) THIS DEVICE MAY NOT CAUSE HARMFUL INTERFERENCE, AND (2) THIS DEVICE MUST ACCEPT ANY INTERFERENCE RECEIVED INCLUDING INTERFERENCE THAT MAY CAUSE UNDESIRABLE OPERATION CAUTION: TO PREVENT ELECTRIC SHOCK, DO NOT REMOVE COVER. NO USER SERVICEABLE PARTS INSIDE. REFER TO SERVICING TO QUALIFIED PERSONNEL. Location of Label

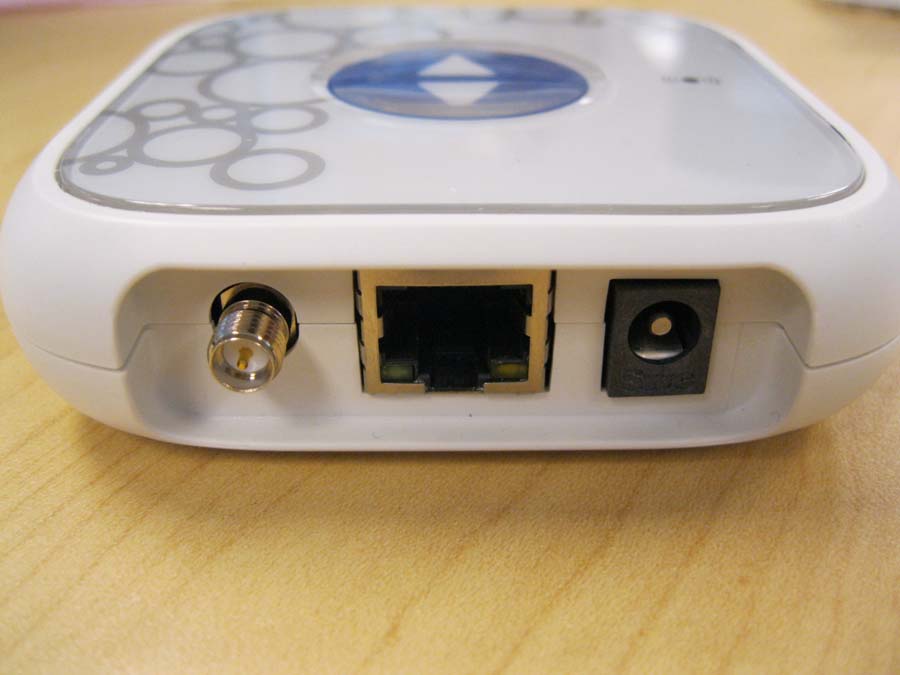

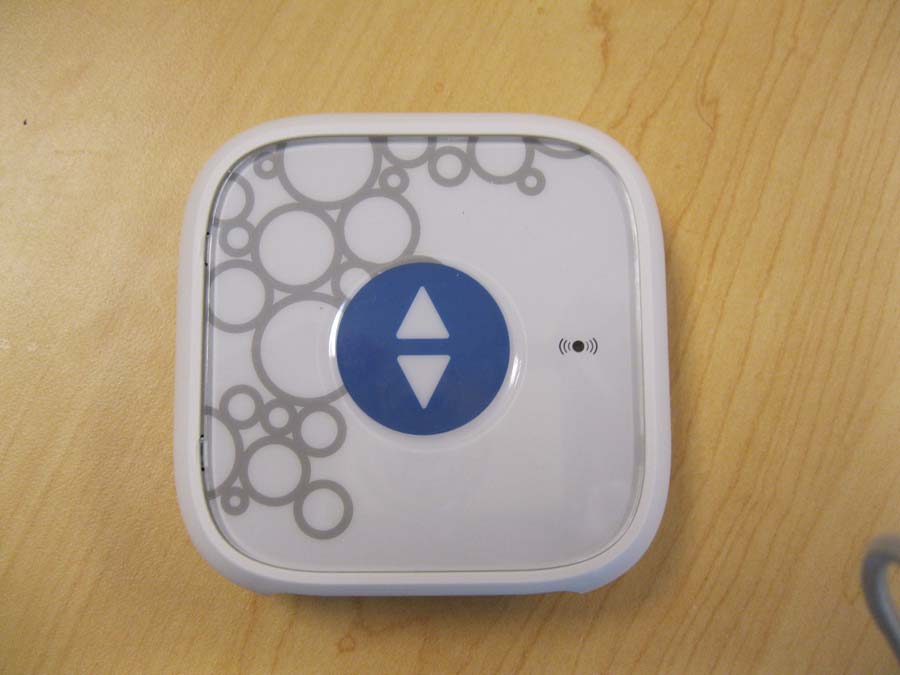

Select Comfort Corporation Bridge Router Model: SNbb1 Report No. SECF0002 Report Prepared By www.nwemc.com 1-888-EMI-CERT © 2011 Northwest EMC, Inc 22975 NW Evergreen Parkway Suite 400 Hillsboro, Oregon 97124 Certificate of Test Last Date of Test: January 19, 2011 Select Comfort Corporation Bridge Router, Model: SNbb1 Emissions Test Description Specification Test Method Pass/Fail Occupied Bandwidth FCC 15.247:2011 ANSI C63.10:2009 Pass Output Power FCC 15.247:2011 ANSI C63.10:2009 Pass Band Edge Compliance FCC 15.247:2011 ANSI C63.10:2009 Pass Spurious Conducted Emissions FCC 15.247:2011 ANSI C63.10:2009 Pass Power Spectral Density FCC 15.247:2011 ANSI C63.10:2009 Pass Spurious Radiated Emissions FCC 15.247:2011 ANSI C63.10:2009 Pass AC Powerline Conducted Emissions FCC 15:207:2011 ANSI C63.10:2009 Pass Modifications made to the product See the Modifications section of this report Test Facility The measurement facility used to collect the data is located at: Northwest EMC, Inc. 9349 W Broadway Ave. Brooklyn Park, MN 55445 Phone: (763) 425-2281 Fax: (763) 424-3469 This site has been fully described in a report filed with and accepted by the FCC (Federal Communications Commission) and Industry Canada (Site filing #2834E-1). Approved By: Tim O'Shea, Operations Manager NVLAP Lab Code: 200881-0 This report must not be used to claim product certification, approval, or endorsement by NVLAP, NIST, or any agency of the federal government of the United States of America. Product compliance is the responsibility of the client, therefore the tests and equipment modes of operation represented in this report were agreed upon by the client, prior to testing. This Report may only be duplicated in its entirety. The results of this test pertain only to the sample(s) tested. The specific description is noted in each of the individual sections of the test report supporting this certificate of test. Northwest EMC Revision History Revision 06/29/09 Barometric Pressure The recorded barometric pressure has been normalized to sea level. Revision Number Description Date Page Number 00 None Accreditations and Authorizations FCC Accredited by NVLAP for performance of FCC radio, digital, and ISM device testing. Our Open Area Test Sites, certification chambers, and conducted measurement facilities have been fully described in reports filed with the FCC and accepted by the FCC in letters maintained in our files. Northwest EMC has been accredited by ANSI to ISO / IEC Guide 65 as a product certifier. We have been designated by the FCC as a Telecommunications Certification Body (TCB). This allows Northwest EMC to certify transmitters to FCC specifications in accordance with 47 CFR 2.960 and 2.962. NVLAP Northwest EMC, Inc. is accredited under the National Voluntary Laboratory Accreditation Program (NVLAP) for satisfactory compliance with the requirements of ISO/IEC 17025 for Testing Laboratories. NVLAP is administered by the National Institute of Standards and Technology (NIST), an agency of the U.S. Commerce Department. The NVLAP accreditation encompasses Electromagnetic Compatibility Testing in accordance with the European Union EMC Directive 2004/108/EC, and ANSI C63.4. Additionally, Northwest EMC is accredited by NVLAP to perform radio testing in accordance with the European Union R&TTE Directive 1999/5/EEC, the requirements of FCC, and the RSS radio standards for Industry Canada. Industry Canada Accredited by NVLAP for performance of Industry Canada RSS and ICES testing. Our Open Area Test Sites and certification chambers comply with RSS-Gen, Issue 2 and have been filed with Industry Canada and accepted. Northwest EMC has been accredited by ANSI to ISO / IEC Guide 65 as a product certifier. We have been designated by NIST and recognized by Industry Canada as a Certification Body (CB) per the APEC Mutual Recognition Arrangement (MRA). This allows Northwest EMC to certify transmitters to Industry Canada technical requirements. (Site Filing Numbers - Hillsboro: 2834D-1, 2834D-2, Sultan: 2834C-1, Irvine: 2834B-1, 2834B-2, Brooklyn Park: 2834E-1) CAB Designated by NIST and validated by the European Commission as a Conformity Assessment Body (CAB) to conduct tests and approve products to the EMC directive and transmitters to the R&TTE directive, as described in the U.S. - EU Mutual Recognition Agreement. Australia/New Zealand The National Association of Testing Authorities (NATA), Australia has been appointed by the ACA as an accreditation body to accredit test laboratories and competent bodies for EMC standards. Accredited test reports or assessments by competent bodies must carry the NATA logo. Test reports made by an overseas laboratory that has been accredited for the relevant standards by an overseas accreditation body that has a Mutual Recognition Agreement (MRA) with NATA are also accepted as technical grounds for product conformity. The report should be endorsed with the respective logo of the accreditation body (NVLAP). Accreditations and Authorizations VCCI Accepted as an Associate Member to the VCCI, Acceptance No. 564. Conducted and radiated measurement facilities have been registered in accordance with Regulations for Voluntary Control Measures, Article 8. (Registration Numbers. - Hillsboro: C-1071, R-1025, G-84, C-2687, T- 1658, and R-2318, Irvine: R-1943, G-85, C-2766, and T-1659, Sultan: R-871, G-83, C-1784, and T-1511, Brooklyn Park: R-3125, G-86, G-141, C-3464, and T-1634). BSMI Northwest EMC has been designated by NIST and validated by C-Taipei (BSMI) as a CAB to conduct tests as described in the APEC Mutual Recognition Agreement (US0017). GOST Northwest EMC, Inc. has been assessed and accredited by the Russian Certification bodies Certinform VNIINMASH, CERTINFO, SAMTES, and Federal CHEC, to perform EMC and Hygienic testing for Information Technology Products. As a result of their laboratory assessment, they will accept test results from Northwest EMC, Inc. for product certification KCC Northwest EMC, I…

Text truncated - open the document above for the full version.

NORTHWEST EMC Direct Con 002.jpg Direct Con 005.jpg OCCUPIED BANDWIDTH XMit 2010.11.03 NORTHWEST EMC Direct Con 002.jpg Direct Con 005.jpg OUTPUT POWER XMit 2010.11.03 NORTHWEST EMC Direct Con 002.jpg Direct Con 005.jpg BAND EDGE COMPLIANCE XMit 2010.11.03 NORTHWEST EMC Direct Con 002.jpg Direct Con 005.jpg SPURIOUS CONDUCTED EMISSIONS XMit 2010.11.03 NORTHWEST EMC Direct Con 002.jpg Direct Con 005.jpg POWER SPECTRAL DENSITY XMit 2010.11.03 NORTHWEST EMC SE 002.jpg SE 003.jpg Spurious Radiated Emissions PSA-ESCI 2010.04.06 NORTHWEST EMC SE 005.jpg SE 007.jpg Spurious Radiated Emissions PSA-ESCI 2010.04.06 NORTHWEST EMC AC 001.jpg AC 002.jpg AC Powerline Conducted Emissions PSA-ESCI 2010.04.06
