MES-SWYSPINPADSmart Card Reader USB & Bluetooth

Gemalto SWYS Pin Pad Important Safety Instructions Disposal and Recycling Information Regulatory and Safety Notices FCC Warning EU (European Union) : European Community declaration of conformity EN 55032:2015 (AC:2016-07) + A11 : 2020 Class B / BS EN 55032: 2015 (AC:2016-07)+A11:2020 Class B Radiated Emission Test EN 55035:2017+A11:2020/ BS EN 55035:2017+A11:2020 EN 61000-4-2:2009/ BS EN 61000-4-2:2009 EN 61000-4-3:2006+A1:2008+A2:2010/ BS EN 61000-4-3:2006+A1:2008+A2:2010 EN 61000-4-8:2010/ BS EN 61000-4-8:2010 UK Electromagnetic Compatibility Regulations 2016 (S.I. 2016/1091) PDM REF : 006-000643-001_B / RECTO Smart Card Reader USB & Bluetooth CANCEL OPERATION CARD INSERTION APPROVE OPERATION POWER ON/OFF THE DEVICE * Only use the USB cable that was supplied with the device and do not transport the device with the USB cable connected. DEVICE INFORMATION 2 sec USB-C Touch Key 0 (Menu) Select 2 BLE ON Pairing first time then connection * The reader will switch automatically in USB-C mode once connected and go back to Bluetooth mode when the USB-C cable is removed. or Bluetooth CONNECT THE DEVICE 2 sec = ON = OFF PDM REF : 006-000643-001_A / VERSO

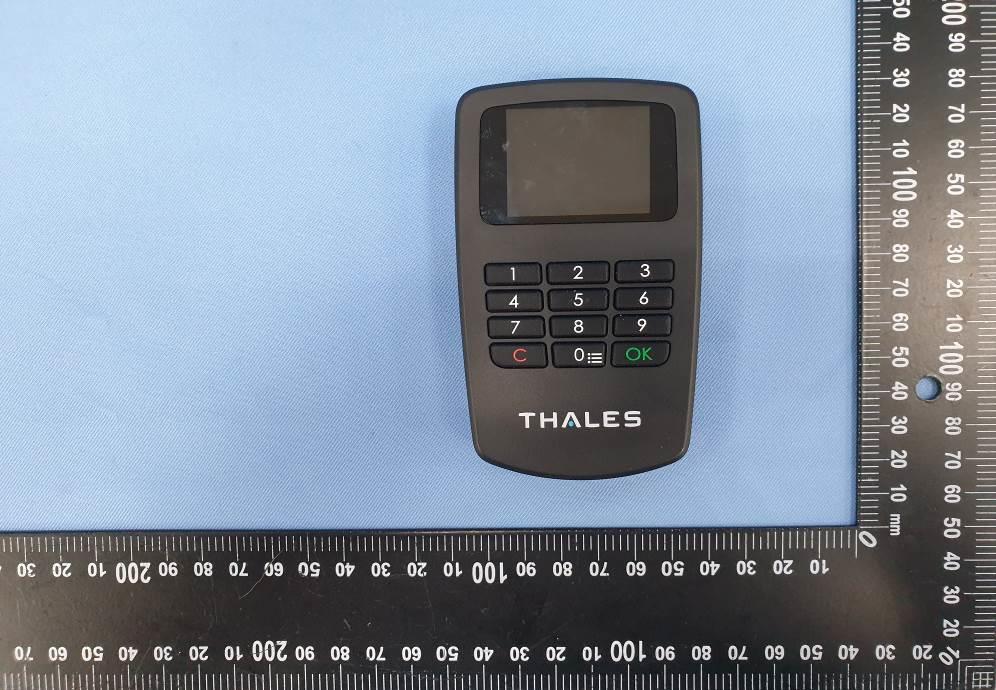

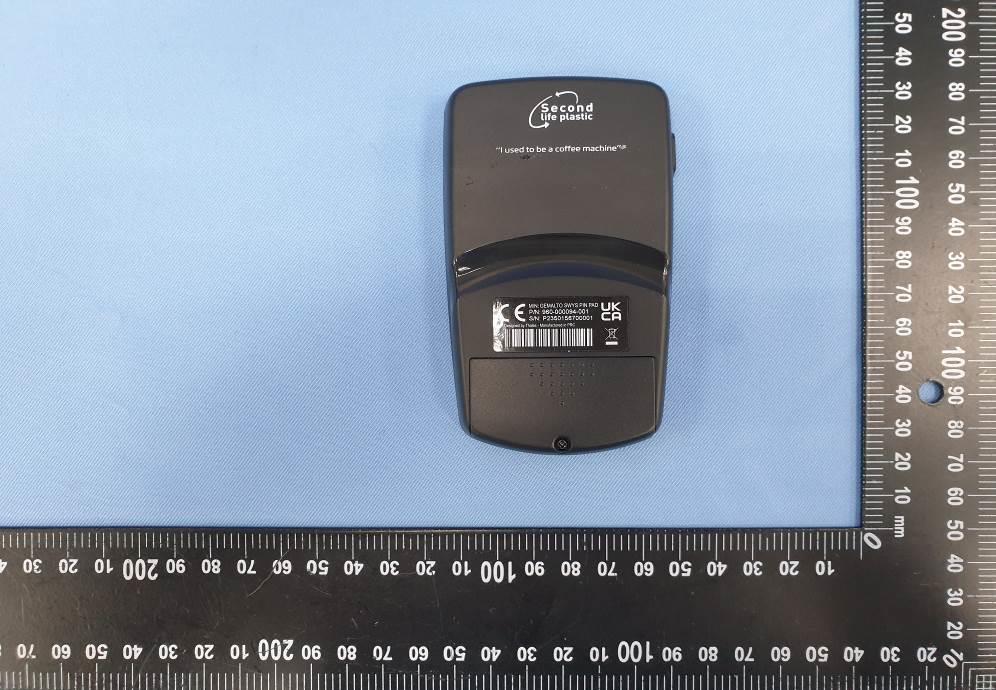

C236068_EUT External Photos Page 1 of 6 External Photos Model Number: Gemalto SWYS PIN PAD C236068_EUT External Photos Page 2 of 6 EUT Photo (1) EUT Photo (2) C236068_EUT External Photos Page 3 of 6 EUT Photo (3) EUT Photo (4) C236068_EUT External Photos Page 4 of 6 EUT Photo (5) EUT Photo (6) C236068_EUT External Photos Page 5 of 6 EUT Photo (7) EUT Photo (8) C236068_EUT External Photos Page 6 of 6 EUT Photo (9)

m m 5 . 4 1 Black PANTONE Black C ® 200% Serial Number structure - S/N : [YAAMLLCCCCXXXX] Y = EMS reference AA = Manufacturing year (example 23 for year 2023) M = Manufacturing month in alphanumeric character, from 1 to C (example 3 for March) LL = Batch number within the month (example 00, first batch of the current month) CCCC = Base line number on 4 digits (example 1234) provided with the product folder definition XXXX = Incremetal number from 0000 to 9999 Label specification: Designed by Thales - Manufactured in PRC P/N: XXX-XXXXXX-XXX S/N: YAAMLLCCCCXXXX M/N: Gemalto SWYS PIN PAD The M/N, P/N & S/N References are provided by Thales PO 5.0 MM 7.0 MM 5.0 MM 5.0 MM FCC ID : MES-SWYSPINPAD Designed by Thales - Manufactured in PRC P/N: XXX-XXXXXX-XXX S/N: YAAMLLCCCCXXXX M/N: Gemalto SWYS PIN PAD FCC ID : MES-SWYSPINPAD C FCC Id added N.Poussin HC.L in JM.Mar�n 17/08/23 B B/N re plac ed by S/N N.Poussin HC.L in JM.Mar�n 09/05/23 A Crea�on N.Poussin HC.L in JM.Mar�n 15/11/22 Version Desc ri p�on Wri�en by Checked by Apro ved by Dat e This document is the property of Thales. It cannot be reproduced, communicated or used without the authoriza�on or special license. Foli o 1/1 THALES S.A. Avenue du Jujubie r, Z.I Atheli a IV, 13705, La Cio tat Cedex, Fra nce www.t hale s.c om Drawn by : Vis a : N.P oussin Date : 07/12/22 Checked by : HC.L in 07/12/22 Appro ved by : JP.Mar�n 07/12/22 Scale : 1 : 1 Tole ra nce : +/- 0.2mm Reference : COS LABEL DEVICE, GEMALTO SWYS PIN PAD THALES REFERENCE 201-001211-001 X Front LOGO Colors LOGO & TEXT color Back X 6.6mm 11mm 4.8mm 1.5mm 17.4mm 32.4mm 31.26mm AA 15.1mm 4.83mm TEXT FONT: Univia Pro ‘‘I used to be a coee machine’’ C OK 1 3 2 4 7 5 8 0 6 9 PANTONE White PANTONE Blue light 3125C ® PANTONE White F FCC Id added in the pro duct label N.Poussin HC.L in JM.Mar�n 28/08/23 E Label device updat e (S/N) N.Poussin HC.L in JM.Mar�n 09/05/23 D Label device updat e N.Poussin HC.L in JM.Mar�n 07/12/22 C Label device updat e (UKCA) N.Poussin HC.L in JM.Mar�n 15/11/22 B Pro duct updat e (Keypad & Label) N.Poussin HC.L in JM.Mar�n 27/09/22 A Crea�on N.Poussin HC.L in JM.Mar�n 15/04/21 Version Desc ri p�on Wri�en by Checked by Apro ved by Dat e This document is the property of Thales. It cannot be reproduced, communicated or used without the authoriza�on or special license. Folio 1/1 THALES S.A. Avenue du Jujubie r, Z.I Athelia IV, 13705, La Cio tat Cedex, France www.t hale s.c om Drawn by : Vis a : N.Poussin Date : 07/12/22 Checked by : HC.L in 07/12/22 Appro ved by : JP.Mar�n 07/12/22 Scale : 1 : 1 Tole ra nce : +/- 0.2mm Reference : COS LOGO DEVICE, GEMALTO SWYS PIN PAD THALES REFERENCE 014-000372-001 Designed by Thales - Manufactured in PRC P/N: XXX-XXXXXX-XXX S/N: YAAMLLCCCCXXXX M/N: Gemalto SWYS PIN PAD FCC ID : MES-SWYSPINPAD

C236068_EUT Internal Photos Page 1 of 6 Internal Photos Model Number: Gemalto SWYS PIN PAD C236068_EUT Internal Photos Page 2 of 6 EUT Photo (1) EUT Photo (2) C236068_EUT Internal Photos Page 3 of 6 EUT Photo (3) EUT Photo (4) C236068_EUT Internal Photos Page 4 of 6 EUT Photo (5) EUT Photo (6) C236068_EUT Internal Photos Page 5 of 6 EUT Photo (7) EUT Photo (8) Bluetooth ANT. C236068_EUT Internal Photos Page 6 of 6 EUT Photo (9)

Page 1 of 9 Report Number: USSC236068001 Version: 00 RF Exposure Exemption Applicant ： Thales DIS France SAS Product Name ： Smart Card Reader USB & Bluetooth Trade Name ： THALES Model Number ： Gemalto SWYS PIN PAD Applicable Standard ： 47 CFR § 2.1093 Received Date ： Jun. 08, 2023 Issued Date ： Sep. 20, 2023 Issued by Approved By ： Eurofins E&E Wireless Taiwan Co., Ltd. No. 140-1, Changan Street, Bade District, Taoyuan City 334025, Taiwan (R.O.C.) Tel：+886-3-2710188 / Fax：+886-3-2710190 Taiwan Accreditation Foundation accreditation number: 1330 Note: 1.The test results are valid only for samples provided by customers and under the test conditions described in this report. 2.This report shall not be reproduced except in full, without the written approval of Eurofins E&E Wireless Taiwan Co., Ltd. 3.The relevant information is provided by customers in this test report. According to the correctness, appropriateness or completeness of the information provided by the customer, if there is any doubt or error in the information which affects the validity of the test results, the laboratory does not take the responsibility. Page 2 of 9 Report Number: USSC236068001 Version: 00 Revision History Version Issued Date Revisions Revised By 00 Sep. 20, 2023 Initial Issue Rowan Hsieh Page 3 of 9 Report Number: USSC236068001 Version: 00 Contents 1. General Information .................................................................................................................... 4 2. Description of Equipment under Test (EUT) ............................................................................ 5 3. RF Exposure Limit ...................................................................................................................... 6 4. RF Exposure Assessment .......................................................................................................... 7 5. Result ........................................................................................................................................... 9 6. Conclusion ................................................................................................................................... 9 Page 4 of 9 Report Number: USSC236068001 Version: 00 1. General Information 1.1 Reference Applicable Standard Standard Description Version IEEE C95.1 American National Standard safety levels with respect to human exposure to radio frequency electromagnetic fields, 300 KHz to 100 GHz, New York. 1992 47 CFR § 2.1093 Radiofrequency radiation exposure evaluation: portable devices. - 47 CFR § 1.1310 Radiofrequency radiation exposure limits. - KDB 447498 D04 RF exposure procedures and equipment authorization policies for mobile and portable devices v01 1.2 Testing Location Lab Name: Eurofins E&E Wireless Taiwan Co., Ltd. Site Address: ■ No. 140-1, Changan Street, Bade District, Taoyuan City 334025, Taiwan (R.O.C.) Site Address: □ No. 2, Wuquan 5th Rd. Wugu Dist., New Taipei City, Taiwan (R.O.C.) Page 5 of 9 Report Number: USSC236068001 Version: 00 2. Description of Equipment under Test (EUT) Applicant Thales DIS France SAS 6 Rue de la Verrerie, MEUDON 92197 France Manufacturer Thales DIS France SAS 6 Rue de la Verrerie, MEUDON 92197 France Product Name Smart Card Reader USB & Bluetooth Trade Name THALES Model Number Gemalto SWYS PIN PAD FCC ID MES-SWYSPINPAD Antenna information Brand: Thales Model: DA14531 PCB Antenna Type: PCB Antenna Gain: -5.1 dBi Note: The above information of DUT was declared by manufacturer. Please refer to the specifications or user's manual for more detailed description. Page 6 of 9 Report Number: USSC236068001 Version: 00 3. RF Exposure Limit For devices that operate at larger distances from persons, where there are minimal RF coupling interactions between a device and the user or nearby persons, RF exposure compliance using maximum permissible exposure (MPE) limits is applied. The limits for MPE is listed as below: Limits for General Population / Uncontrolled Exposure Frequency Range (MHz) Electric Field Strength (E) (V/m) Magnetic Field Strength (H) (A/m) Power Density (S) (mW/cm²) Averaging Time|E|²,|H|² or S (minutes) 0.3-1.34 614 1.63 (100)* 30 1.34-30 824 / f 2.19 / f (180 / f 2 )* 30 30-300 27.5 0.073 0.2 30 300-1500 - - F / 1,500 30 1,500-100,000 - - 1.0 30 Limits for Occupational / Controlled Exposure Frequency Range (MHz) Electric Field Strength (E) (V/m) Magnetic Field Strength (H) (A/m) Power Density (S) (mW/cm²) Averaging Time|E|²,|H|² or S (minutes) 0.3-3.0 614 1.63 (100)* 6 3.0-30 1,842 / f 4.89 / f (900 / f 2 )* 6 30-300 61.4 0.163 1.0 6 300-1,500 - - F / 300 6 1,500-100,000 - - 5 6 f = frequency in MHz. * = Plane-wave equivalent power density. Page 7 of 9 Report Number: USSC236068001 Version: 00 4. RF Exposure Assessment 4.1 Exemption Evaluation Exemption evaluation was performed according to the appendix A and B in KDB447498 D04. The General Sequence for Determination of Procedure demonstrated in Figure A.1 of KDB447498 D04 was applied. Page 8 of 9 Report Number: USSC236068001 Version: 00 4.2 Human Exposure Assessment Due to the design and installation of this product, it is not possible to conduct SAR evaluation. This is because client either manufactures or supplies the antenna(s) that will be used in the installation of this product. Therefore, this product will be evaluated as a mobile device per 47 CFR § 1.1310 titled “Radiofrequency radiation exposure limits”, generally referred to as MPE limits. In 47 CFR § 2.1091, paragraph (b) defines a mobile device as “a transmitting device designed to be used in other than fixed locations and to generally be used in such a way that a separation distance of at least 20 cm is normally maintained between the transmitter’s radiating structure(s) and the body of the user or nearby persons.” Exposure evaluation ( ) 2 2 2 / 4 4 m W d PG d EIRP S eirp   = = Where S: is the input power (W); G: is the antenna gain; d : is the distance between antennas and evaluati…

Text truncated - open the document above for the full version.

Appendix A. Test Data BLE 1M24020.4560.63272.1521.4182.193 Duty Cycle Band Frequency (MHz) On time (ms) On+off time (ms) Duty cycle (%) Duty Factor (dB) 1/T Minimun VBW (kHz) Page 1 of 3 Report Number: USRC236068001 Version: 00 Power Limit dBmWdBmWdBm BLE 1M2402-1.550.0007-1.500.000730.00Default BLE 1M2440-0.880.0008-0.810.000830.00Default BLE 1M2480-0.740.0008-0.650.000930.00Default Note: The relevant measured result has the offset with cable loss already. Maximum Conducted Output Power Measurement Test Mode Frequency (MHz) Test Software Version RF Power setting in Test Software Smartsnippets Toolbox v5.0.10 Peak Power Average Power Page 2 of 3 Report Number: USRC236068001 Version: 00 Frequency99 % Occupied Bandwidth6 dB Bandwidth 6 dB Limit (MHz)(MHz)(kHz)(kHz) BLE 1M24021.0193671.8≧ 500 BLE 1M24401.0273681.1≧ 500 BLE 1M24801.0291671.5≧ 500 FrequencyLimit (MHz)(dBm/3 kHz) BLE 1M2402≦ 8 BLE 1M2440≦ 8 BLE 1M2480≦ 8 Test mode -14.626 6 dB Bandwidth and 99 % Occupied Bandwidth Test mode Maximum Power Density Measurement Reading (dBm/3 kHz) -16.494 -15.239 Page 3 of 3 Report Number: USRC236068001 Version: 00

Appendix B. Test Plots Duty cycle BLE 1M On+off time Page 1 of 7 Report Number: USRC236068001 Version: 00 Out of Band Conducted Spurious Emission BLE 1M Low ch Mid ch High ch Page 2 of 7 Report Number: USRC236068001 Version: 00 Reference level BLE 1M Low ch Mid ch High ch Page 3 of 7 Report Number: USRC236068001 Version: 00 Conducted Band Edge BLE 1M Low ch High ch Page 4 of 7 Report Number: USRC236068001 Version: 00 6 dB Bandwidth BLE 1M Low ch Mid ch High ch Page 5 of 7 Report Number: USRC236068001 Version: 00 99 % Occupied Bandwidth BLE 1M Low ch Mid ch High ch Page 6 of 7 Report Number: USRC236068001 Version: 00 Power Density BLE 1M Low ch Mid ch High ch Page 7 of 7 Report Number: USRC236068001 Version: 00

Page 1 of 36 Report Number: USRC236068001 Version: 00 RF Test Report Applicant ： Thales DIS France SAS Product Name ： Smart Card Reader USB & Bluetooth Trade Name ： THALES Model Number ： Gemalto SWYS PIN PAD Applicable Standard ： FCC 47 CFR PART 15 SUBPART C ANSI C63.10:2013 Received Date ： Jun. 08, 2023 Test Period ： Jun. 27 ~ Jul. 07, 2023 Issued Date ： Sep. 20, 2023 Issued by Eurofins E&E Wireless Taiwan Co., Ltd. No. 140-1, Changan Street, Bade District, Taoyuan City 334025, Taiwan (R.O.C.) Tel：+886-3-2710188 / Fax：+886-3-2710190 Taiwan Accreditation Foundation accreditation number: 1330 Frequency Range: 9 kHz to 325 GHz (Bade test site) Test Firm Registration Number: 226252 Frequency Range: 9 kHz to 40 GHz (Wugu test site) Test Firm Registration Number: 191812 Note: 1.The test results are valid only for samples provided by customers and under the test conditions described in this report. 2.This report shall not be reproduced except in full, without the written approval of Eurofins E&E Wireless Taiwan Co., Ltd. 3.The relevant information is provided by customers in this test report. According to the correctness, appropriateness or completeness of the information provided by the customer, if there is any doubt or error in the information which affects the validity of the test results, the laboratory does not take the responsibility. Page 2 of 36 Report Number: USRC236068001 Version: 00 Revision History Version Issued Date Revisions Revised By 00 Sep. 20, 2023 Initial Issue Abby Hsu Page 3 of 36 Report Number: USRC236068001 Version: 00 Verification of Compliance Applicant : Thales DIS France SAS Product Name : Smart Card Reader USB & Bluetooth Trade Name : THALES Model Number : Gemalto SWYS PIN PAD FCC ID : MES-SWYSPINPAD Applicable Standard : FCC 47 CFR PART 15 SUBPART C ANSI C63.10:2013 Test Result : Complied Performing Lab. : Eurofins E&E Wireless Taiwan Co., Ltd. No. 140-1, Changan Street, Bade District, Taoyuan City 334025, Taiwan (R.O.C.) Tel：+886-3-2710188 / Fax：+886-3-2710190 Taiwan Accreditation Foundation accreditation number: 1330 Eurofins E&E Wireless Taiwan Co., Ltd. tested the above equipment in accordance with the requirements set forth in the above standards. All indications of Pass/Fail in this report are opinions expressed by Eurofins E&E Wireless Taiwan Co., Ltd. based on interpretations and/or observations of test results. The test results show that the equipment tested is capable of demonstrating compliance with the requirements as documented in this report. Approved By ： Page 4 of 36 Report Number: USRC236068001 Version: 00 TABLE OF CONTENTS 1 General Information ........................................................................................................ 5 1.1. Summary of Test Result ............................................................................................ 5 1.2. Testing Location ........................................................................................................ 6 1.3. Measurement Uncertainty ......................................................................................... 6 2 EUT Description............................................................................................................... 7 3 Test Methodology ............................................................................................................ 8 3.1. Mode of Operation ..................................................................................................... 8 3.2. EUT Test Step ........................................................................................................... 8 3.3. Configuration of Test System Details ......................................................................... 9 3.4. Test Instruments ...................................................................................................... 10 3.5. Test Site Environment.............................................................................................. 12 4 Measurement Procedure ............................................................................................... 13 4.1. AC Power Line Conducted Emission Measurement ................................................ 13 4.2. Radiated Emission Measurement ............................................................................ 15 4.3. Maximum Conducted Output Power Measurement ................................................. 18 4.4. 6 dB RF Bandwidth Measurement ........................................................................... 19 4.5. Maximum Power Density Measurement .................................................................. 20 4.6. Out of Band Conducted Emissions Measurement ................................................... 21 4.7. Antenna Measurement ............................................................................................ 21 5 Test Results ................................................................................................................... 22 5.1. Conducted Emission................................................................................................ 22 5.2. Conducted Test Results ........................................................................................... 24 5.3. Radiated Emission Measurement ............................................................................ 25 Appendix A. Test Data Appendix B. Test Plots Appendix C. Test Setup Photographs Page 5 of 36 Report Number: USRC236068001 Version: 00 1 General Information 1.1. Summary of Test Result Standard Item Result Remark 15.207 AC Power Conducted Emission PASS ----- 15.247(d) Transmitter Radiated Emissions PASS ----- 15.247(b)(3) Max. Output Power PASS ----- 15.247(a)(2) 6 dB RF Bandwidth PASS ----- 15.247(e) Maximum Power Spectral Density PASS ----- 15.247(d) Out of Band Conducted Spurious Emission PASS ----- 15.203 Antenna Requirement PASS ----- Decision Rule ■ Uncertainty is not included. □ Uncertainty is included…

Text truncated - open the document above for the full version.

Page 1 of 4 Report Number: USRC236068001 Version: 00 Appendix C. Test Setup Photographs Conducted Emissions Test Configuration: Front View Rear View Page 2 of 4 Report Number: USRC236068001 Version: 00 Radiated Emissions Test Configuration: 9 kHz ~ 30 MHz Page 3 of 4 Report Number: USRC236068001 Version: 00 Below 1 GHz _ Front View Below 1 GHz _ Rear View Page 4 of 4 Report Number: USRC236068001 Version: 00 Above 1 GHz _ Front View Above 1 GHz _ Rear View
