MESPINPADSmart Card Reader

user_manual_pad.doc OFFRE : 200605-3085C FCC ID: MESPINPAD 1 USER’S MANUAL This is a copy of the page where the FCC statement is included; this statement is supplied in the package of the product. Note - Gemplus does not supply user’s manual. The user’s manual is supplied with the product only by the end retailer. Gemplus does supply only a compliance statement page, this statement is supplied in the package of the product. This device complies with part 15 of the FCC rules. Operation is subject to the following two conditions : (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Regulatory Information Notice for the USA: FCC Statement Federal Communications Commission (FCC) Radio Frequency Interference Statement (USA Only) This equipment has been tested and found to comply with the limits for a class B digital device, pursuant to Part 15 of FCC Rules. These limits are designed to provide reasonable protections against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try one of more of the following measures:
Relocate the radio or television antenna.
Plug the equipment away from the radio or television.
Plug the equipment into a different electrical outlet, so that the equipment and the radio or television are on separate electrical circuits.
Make sure that all your peripheral devices ar also FCC Class B certified.
Make sure you use only shielded cables to connect peripheral devices to your equipment.
Consult your equipment dealer, or an experienced radio / television technician for help. WARNING: The system verification tests were conducted with GEMPLUS supported peripheral devices. Cables used with this equipment must be properly shielded to comply with the requirements of the FCC. Changes or modifications not expressly approved by GEMPLUS could void the user's authority to operate the equipment. Canadian Statement: This Class B digital apparatus meets all the requirements of the Canadian Interference-Causing Equipment Regulations. Cet appareil numérique de la classe B respecte toutes les exigences du Règlement sur le matériel brouilleur du Canada. "Accessories for use with UL Listed Computers having limited power or Class 2 output"

Block_diagram_exp.doc OFFRE : 200604-3085C FCC ID:MESPINPAD 1 BLOCK DIAGRAM OF EQUIPMENT 1.1 Clock list of GemPC PinPad product Crystal oscillator: 4MHz Data rate: - USB data link 12MHz - No clock or signal higher than 108 MHz 1.2 Block diagram of GemPocket product CPU CARD Interface 4 MHz Clock USB from / to host 5V from USB 4 MHz USB Interface Full Speed Data Link 12 MHz 2x16 LCD Display 16k keypad EEPROM I²C 256 bytes

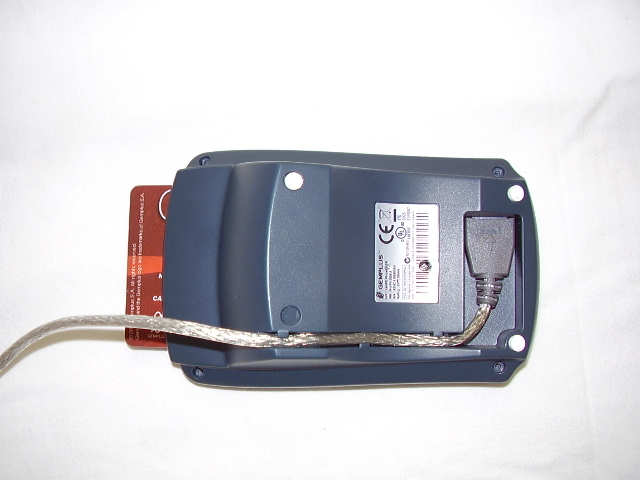

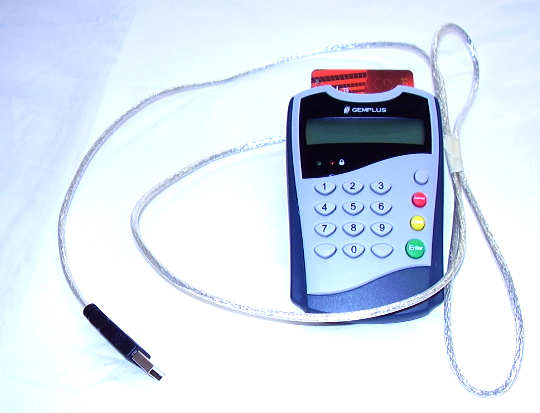

Ext_Photos_pad.doc OFFRE : 200605-3085C FCC ID: MESPINPAD 1 EXTERNAL PHOTOS OF TESTED EUT 1.1 GemPC Pin Pad Front face, keypad side Rear face Ext_Photos_pad.doc OFFRE : 200605-3085C FCC ID: MESPINPAD Smart card slot side

IDLabel-PAD.doc OFFRE : 200604-3085C FCC ID:MESPINPAD Page 1/2 1 PRODUCT LABELING 1.1 FCC ID Label This is the copy of the label stuck on the product. Size is 41X44mm Indelibly printed. IDLabel-PAD.doc OFFRE : 200604-3085C FCC ID:MESPINPAD Page 2/2 1.2 Location of label on EUT Label is stuck on the rear face of the product casing. Label will be stuck at that location

Int_Photos_pad.doc OFFRE : 200605-3085C FCC ID: MESPINPAD 1 INTERNAL PHOTOS OF TESTED EUT 1.1 GemPC Pin Pad Rear face removed, keypad side keypad side, fences removed Int_Photos_pad.doc OFFRE : 200605-3085C FCC ID: MESPINPAD Keypad side, without mother board. Keypad, detailed view Int_Photos_pad.doc OFFRE : 200605-3085C FCC ID: MESPINPAD Rear Side Rear side without fences Int_Photos_pad.doc OFFRE : 200605-3085C FCC ID: MESPINPAD 1.2 PWB Smart side connector side Keypad side Int_Photos_pad.doc OFFRE : 200605-3085C FCC ID: MESPINPAD Keypad side without LCD screen.

Oper_descr_PAD.doc OFFRE : 200604-3085C FCC ID: MESPINPAD 1 GENERAL INFORMATION 1.1 Product description The GemPC Pinpad is a smart card reader featuring a keypad and display, adding Secure PIN Entry (SPE) functionality to the Gemplus PC-Link readers range. GemPC Pinpad provides a highly secure way to enhance your smart card-based application, by protecting the smart card PIN code from unauthorized access. The PIN code is entered locally and safely on the reader and is thus never transmitted to the PC. This is especially relevant for: - E-commerce, - Access card to sensitive site - Online banking service... GemPC Express supports all ISO 7816 class A, B and C cards (5V, 3V and 1.8V), all ISO 7816 TA1 parameters (up to 500kbps), reads from and writes to all ISO 7816-1,2,3,4 microprocessor cards. The GemPC Pinpad is a product developed by the Gemplus Company. For more information, see product's data sheet at section 1.6. 1.2 Related Submittal(s) / Grant(s) All host equipment used in the test configuration are FCC granted, when relevant. 1.3 Tested System Details The FCC IDs for all equipment, plus description of all cables used in the tested system (including inserted cards, which have grants) are : See test report file : 200604-3085C-R1-C-E 1.4 Test Methodology Both conducted and radiated testing was performed according to the procedures in ANSI C63.4-2003, CISPR22-2005+A1 and EN55022:1998+/A1:2000+/A2:2003. Radiated testing was performed at an antenna to EUT distance of 10 meters. During testing, all equipment’s and cables were moved relative to each other in order to identify the worst case set-up. 1.5 Test facility Tests have been performed on May 4 th , 2006. The test facility used to collect the radiated and conducted data is the LCIE (Etablissement Voiron) facility, located ZI des Blanchisseries, 38500 VOIRON, France. This test facility has been fully described in a report and accepted by FCC as compliant with the radiated and AC line conducted test site criteria in ANSI C63.4 in a letter dated July 14, 2005 (registration number 94821). This test facility has also been accredited by COFRAC (French accreditation authority for European Union test lab accreditation organization) according to NF EN ISO/IEC 17025, accreditation number 1-1633 as compliant with test site criteria and competence in 47 CFR Part 15/ANSI C63.4 and EN55022/CISPR22 norms for 89/336/EEC European EMC Directive application. All pertinent data for this test facility remains unchanged. Oper_descr_PAD.doc OFFRE : 200604-3085C FCC ID: MESPINPAD 1.6 Data sheet of the product Technical Specifications Host Interface • Plug and Play • USB 2.0 full speed (12 Mbps) Smart Card Interface GemCore PRO hardware and firmware architecture: • Supports ISO 7816 Class A, B and C cards (5 V, 3 V, 1.8 V) • Supports all ISO 7816 TA1 parameters (up to 344 Kbps) • Reads from and writes to all ISO 7816- 1,2,3,4 microprocessor cards, T=0 and T=1 protocols • Supports memory cards using "Memory Card API for GemCore Twin PRO" • Short circuit detection Smart Card Connector • 8 friction contacts - ISO location • 100,000 insertion cycles • EMV Level 1 mechanically compliant • Embossed Smart Cards supported Human interface • 2x16 alphanumeric display • 2 LEDs: green for transparent mode, orange for Secure PIN Entry • Tactile keypads with 16 (4x4) silicon rubber keys Standards / Certifications • ISO/IEC 7816-1,2,3,4: IC Cards with contacts • EMV terminal Level 1 version 4.0 for GemCore Twin Pro IFM • Microsoft Windows Hardware Quality Labs (WHQL), Windows Logo Program WLP 2.0 • CCID – Chip Card Interface Device 1.0 API • Microsoft PC/SC environment with associated drivers Operating Systems • Windows 98, 98SE, Me, 2000, XP, Server 2003, Xp Pro 64 • Linux ReadHat WS3.0, Debian, Suze Cable/Power Supply • Power supply thru USB port • Operating voltage 5V +/- 10% • USB 2.0 type A connector Environmental • CE, FCC part 15 Class B • EN 60950 / UL 950 / CSA 950 • Operating: +0 °C / +55 °C • Storage: -20 °C / +65 °C Physical Characteristics • Tamper evident case with security marking • LWH 121x79x49mm • 292 grams.

RAPPORT D'ESSAI / TEST REPORT N° Erreur ! Source du renvoi introuvable.Page : 1 / 14 RAPPORT D'ESSAI / TEST REPORT N° Erreur ! Source du renvoi introuvable.Page : 2 / 14 1. TEST PROGRAMME Tests have been performed according to following standards: Standard : EN 55022(1998) +/A1(2000) +/A2(2003) CISPR22(2005) +/A1(2005) Information technology equipment – Radio disturbance characteristics – Limits and methods of measurement Level : Class B 2. SETUP 2.1. Hardware identification: * Equipment under test (EUT) : GemPC PinPad sn: R05C14192699851 - Size: 120x70x40mm - Firmware: not provided - Inputs/Outputs: • USB ports • Smart card slot * Cables : - Power supply cable monitor & PC, unshielded, length: 1.8m; - Power supply cable Printer, unshielded, length: 1.8m; - Video cable with ferrite at each end, shielded, length: 2m; - LAN cable FTP Cat 5e, shielded, length: 2m; - Parallel cable HP#C2950A ,shielded, length, 2m. - Serial cable (graphic calculator adapter), shielded, length : 1.5m - Serial cable, shielded, length: 2m. 2.2. Auxiliaries or control equipement used for test The FCC IDs for all equipment, plus description of all cables used in the tested system (including inserted cards, which have grants) are : Trade Mark – Model Number (Serial number) FCC ID Description Cable description GemPC Pin Pad* (sn: R05C14192699851) MESPINPAD Smart card reader USB cable, length 1.5m Hewlett Packard VL420 (sn: FR1412957) D.o.C. PC Power supply cord is unshielded Hewlett Packard pn:D2846 (sn: JP74001000 D.o.C. Monitor Shielded video cable with ferrite at each end. Hewlett Packard pn:DC4734-60111 (sn: M971168931) GYUR38K Keyboard Shielded cable Hewlett Packard pn:C3751B (sn:LZA62831217) DZL211029 Mouse Shielded cable Labtec LT100 pn:D8387A (sn: none) none Headset Unshielded cable Telex (sn: 700373.000A) none Microphone Unshielded cable Hewlett Packard Deskjet 895CXI (sn: MY9761915S) D.o.C. Parallel printer Shielded cable Hewlett Packard pn: C6409-60014 none AC/DC adapter of Unshielded cable RAPPORT D'ESSAI / TEST REPORT N° Erreur ! Source du renvoi introuvable.Page : 3 / 14 Trade Mark – Model Number (Serial number) FCC ID Description Cable description (sn: 9923R02) printer Hewlett Packard HP48GX (sn: ID83802369) none Graphic calculator Shielded cable * : Equipment under test 2.3. Running mode The system was configured for testing in a typical fashion (as a customer would normally use it). A typical Smart card was introduced in the GemPC Pin Pad, which was itself connected on USB port of a PC. Each port of the PC were loaded with a typical peripheral device or cable. The EUT exercise program (Soft Apitest.exe V.2.2, running under Windows XP professional) used during radiated and conducted testing was designed to exercise the GemPC Pin Pad in a manner similar to a typical use: • Make a comparison of the answer to the reset (ATR) between the GemPC Card and the PC. 2.4. Equipment modifications The four zero ohm resistors are replaced by four ferrites (provided by the manufacturer). See photo below for more details. 3. RADIATED EMISSION DATA 3.1. Setup Mains: 230V@50Hz The EUT and auxiliaries are set on the no-conductive table of 80 cm height. RAPPORT D'ESSAI / TEST REPORT N° Erreur ! Source du renvoi introuvable.Page : 4 / 14 Equipment configuration and running mode: - The Gempc Pin Pad is plug in the USB port; - Parallel printer is connected on the parallel port; - The headphone is connected on the audio output port, and the microphone is connected on the audio input port; - software running in loop. The installation of EUT is identical for pre-characterization measures in a 3 meters full anechoic chamber and for measures on a 10 meters Open site. 3.2. Test sequence and results 3.2.1. Pre-characterization at 3 meters A pre-scan of all the setup has been performed in a 3 meters full anechoic chamber. The distance between EUT and antenna is 3 meters. Test is performed in horizontal (H) and vertical (V) polarization, and on 4 faces of the EUT. See below for a graph example: RBW: 120kHz - VBW: 300kHz RAPPORT D'ESSAI / TEST REPORT N° Erreur ! Source du renvoi introuvable.Page : 5 / 14 3.2.2. Characterization on 10 meters open site from 30MHz to 1GHz The product has been tested according to ANSI C63.4-(2003), CISPR22-2005 +/A1:2005 and EN55022:1998+/A1:2000+/A2:2003. Radiated Emission were measured on an open area test site. A description of the facility is on file with the FCC. The product has been tested with 230V@50Hz power line voltage, at a distance of 10 meters from the antenna and compared to the CISPR 22 Class B limits. Measurement bandwidth was 120kHz from 30MHz to 1GHz. Antenna height search was performed from 1m to 4m for both horizontal and vertical polarization. Continuous linear turntable azimuth search was performed with 360 degrees range. Interconnecting cables and equipment's were moved to position that maximized emission. A summary of the worst case emissions found in all test configurations and modes is shown on clause 3.1. Frequency list has been created with anechoic chamber pre-scan results. No Frequencies (MHz) QPeak Lmt (dBμV/m) QPeak (dBμV/m) QPeak-Lmt (dB) Angle (deg) Pol Hgt (cm) Corr Factor (dB) Comments 1 48.008 30.0 18.6 -11.4 335 V 290 11.3 2 128.000 30.0 22.4 -7.6 250 H 130 14.6 3 132.014 30.0 24.0 -6.0 240 V 210 14.5 4 143.997 30.0 20.8 -9.2 295 V 260 14.3 5 192.333 30.0 20.9 -9.1 315 V 250 18.5 6 299.747 37.0 18.4 -18.6 35 V 120 17.3 3.3. Field Strength Calculation The field strength is calculated by adding the Antenna Factor and Cable Factor, and subtracting the Amplifier Gain (if any) from the measured reading. The basic equation with a sample calculation is as follow: FS = RA + AF + CF – AG Where FS = Field Strength RA = Receiver Amplitude AF = Antenna Factor CF = Cable Factor AG = Amplifier Gain Assume a receiver reading of 52.5dBμV is obtained. The antenna factor of 7.4 and a cable factor of 1.1 is added. The amplifier gain of 29dB is subtracted, giving a field strength of 32…

Text truncated - open the document above for the full version.

SETUP_PAD.doc OFFRE : 200604-3085C FCC ID:MESPINPAD 1 CONDUCTED AND RADIATED MEASUREMENT PHOTOS 1.1 Radiated emissions setup from 30MHz to 1GHz Front view Rear view Detailed view SETUP_PAD.doc OFFRE : 200604-3085C FCC ID:MESPINPAD 1.2 Conducted emission setup Front view Rear view
