MESPROXUTag Reader

GemProx –PU Quick Installation Guide DOC113698A Page 1/4 GemProx –PU: Top View GemProx –PU: Bottom View GemProx –PU with Stand: Top View For installation recommendation please refer to the GemProx –PU installation guide in Gemplus Web Site http://www.gemplus.com 4 LEDs J2J1 Optional Cli p Optional Stand M/N: Ge mP rox -PU P/N: HWP113581A B/N: Y AAML L CCCC FCC ID : ME S xxxxxx GemProx –PU Quick Installation Guide DOC113698A Page 2/4 GemProx –PU connection J1 : RJ45 – Jack Receptacle (Do not use J2 simultaneously) NC: not connected J2 : USB Mini B Receptacle (Do not use J1 simultaneously) NC: not connected Pin Signal Type 1 RI Output 2 - NC 3 DTR Input 4 0V Ground 5 RxD Output 6 TxD Input RS232 Serial Interface EIA-561 compliant 7 PWRGND Power J1 8 PWR5VDC Power +5V DC ± 10% Power Supply RJ45 connector Warning: RS232 levels (Power excepted) Pin Signal Type 1 VBUS Power 2 DM I/O 3 DP I/O 4 - NC J2 5 GND Power USB Serial Interface USB Mini B connector 1 2 3 4 51 2 3 4 5 1 2 3 4 5 6 7 81 2 3 4 5 6 7 8 GemProx –PU Quick Installation Guide DOC113698A Page 3/4 GemProx –PU Mechanical Drawing GemProx –PU GemProx –PU with stand GemProx –PU Quick Installation Guide DOC113698A Page 4/4 Regulatory Information Notice for the USA: FCC Statement The Federal Communications Commission (FCC) Radio Frequency Interference Statement (USA Only) This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: — Relocate the radio or television antenna. — Plug the equipment away from the radio or television. — Plug the equipment into a different electrical outlet, so that the equipment and the radio or television is on separate electrical circuits. — Make sure that all your peripheral devices are also FCC class B certified. — Make sure you use only shielded cables to connect peripheral devices to your equipment. — Consult your equipment dealer or an experienced radio/television technician for help. Warning: The system verification tests were conducted with Gemplus supported peripheral devices. Cables used with this equipment must be properly shielded to comply with the requirements of the FCC. Changes or modifications not expressly approved by Gemplus could void the user’s authority to operate the equipment. To comply with FCC/CE regulations: When using a standard USB cable: clip over the cable a ferrite Würth model 74271142 at 7 cm from the device When using a standard RJ45 cable: clip over the cable a ferrite Würth model 74271132 at 7 cm from the device Déclaration de conformité à la directive R&TTE Nous Société GEMPLUS Sise à: Zone Athélia 3, Voie Antiope, 13705 LA CIOTAT Cedex 01, Déclarons que les produits : Lecteurs de cartes sans contact GemProx –PU satisfont à la Directive 1999/5/CE du Parlement Européen et du conseil et sont conformes aux normes : (Norme radio) : ETSI EN 301 330-2: 2001 (Norme C.E.M) : ETSI 301 489-3: 2000 (Norme DBT) : EN 60950 Fait à La Ciotat, le 17/07/2006 Pierre-André COLLET Responsable Homologations Produits Instructions for Disposal of Waste Equipment by Users in Private Household This symbol on the product or on its packaging indicates that this product must not be disposed of with your other household waste. Instead, it is your responsibility to dispose of your waste equipment by handing it over to a designated collection point for the recycling of waste electrical and electronic equipment. The separate collection and recycling of your waste equipment at the time of disposal will help to conserve natural resources and ensure that it is recycled in a manner that protects human health and the environment. For more information about where you can drop off your waste equipment for recycling, please contact your local city office, your household waste disposal service or the shop where you purchased the product.

FCC ID: MESPROXU Page 1/1 1 BLOCK DIAGRAM OF EQUIPMENT 1.1 Clock list of the GEMPROX PU product In order to determine an eventual spurious source origin, frequencies involved in the GEMPROX-PU reader are listed below: - 29.50MHz - 13.56MHz - 12Mbps (USB interface) 1.2 Block diagram of the GEMPROX PU product

June 29 th , 2006 CONFIDENTIALITY REQUEST Curtis-Straus LLC 527 Great Road Littleton, MA 01460 USA Re: Confidentiality request for a Low Power Communication Device FCC ID: MESPROXU Gentlemen, GEMPLUSrequests, pursuant to 47CFR 0.459, post grant confidentiality for portions of the material contained in this application. The following document regarding this submission for FCC ID: MESPROXUshall be kept confidential: 1.Schematic Diagram of the GEMPROX XU(file: Schematic-1-MESPROXU.pdfandSchematic-2-MESPROXU.pdf) Specifically, these exhibits contain information relating to circuit function and complexity that could be of benefit to competitors. The material contains trade secrets and confidential information that GEMPLUSdoes not customarily release to the public and which is otherwise not generally available to the public. Regards, Pierre André COLLET Mechanical Engineering & Products Certification GEMPLUS ZI ATHELIA 3 Voie Antiope 13705 LA CIOTATCedex - France

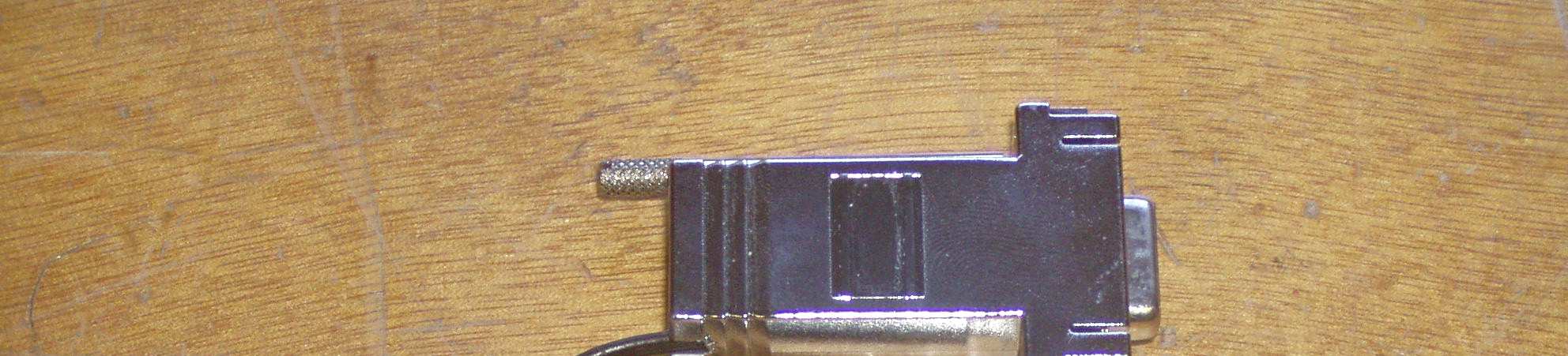

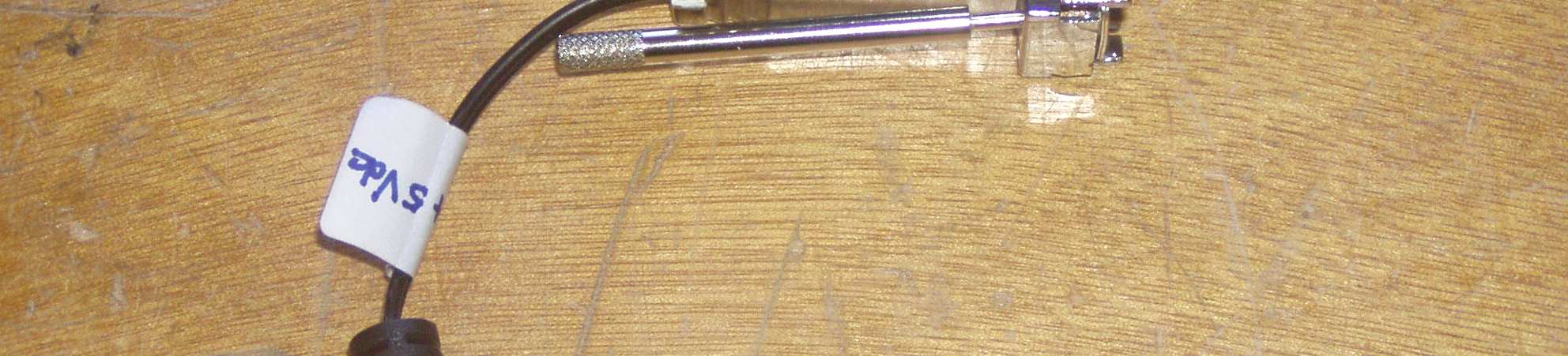

FCC ID: MESPROXU Page 1/4 1 EXTERNAL PHOTOS OF TESTED EUT (GEMPROX-PU) General view (Upper face) Lower face FCC ID: MESPROXU Page 2/4 Connectors (USB and Serial) FCC ID: MESPROXU Page 3/4 2 EXTERNAL PHOTOS OF TESTED EUT (ACCESSORIES) Power connector for RS232 mode Power adapter FCC ID: MESPROXU Page 4/4 USB cable with ferrite Ethernet cable with ferrite

FCC ID: MESPROXU Page 1/2 1 PRODUCT LABELING 1.1 FCC ID Label (GemProx-PU) This is the copy of the label stuck on the product: Material: White Polyester (Permanent adhesive) FCC ID: MESPROXU Page 2/2 1.2 Location of label on GemProx-PU (On rear side of the product)

FCC ID: MESPROXU Page 1/4 1 INTERNAL PHOTOS OF TESTED EUT 1.1 General view (GemProx-PU) FCC ID: MESPROXU Page 2/4 FCC ID: MESPROXU Page 3/4 1.2 PCB view Antenna board FCC ID: MESPROXU Page 4/4 RF board

FCC ID: MESPROXU 1. GENERAL INFORMATION 1.1. Product description of GemProx-PU The GemProx-PU is a desktop reader dedicated to Identity and Payment markets equipped with a USB and RS232 interface. This device is made of a main board embedding the Gemplus GemProx Chip Set, two SAM connectors and two communication ports: RS232 and USB. The other board is the RF antenna which has been particularly dimensioned for Payment cards and e-passports. 1.2. Related Submittal(s) / Grant(s) All host equipment used in the test configuration are FCC granted, when relevant. FCC ID: MESPROXU 1.3. Tested System Details The FCC IDs for all equipment, plus description of all cables used in the tested system are : Trade Mark – Model Number (Serial number) FCC ID Description Cable description GEMPROX-PU * Sn : PROTO N° V2 MESPROXU Contactless smartcard reader Power cord unshielded, USB cable shielded, RS232 cable shielded FRIWO Type: FW7650/05 (sn: none) None AC/DC Power supply Out 5Vdc/1A DC power cord unshielded. Hewlett Packard VECTRA VL420 DT pn: P5755-60201 (sn: FR14122957) DOC Personal computer Power cord unshielded. All other cable shielded. Hewlett Packard pn:D2846 (sn: JP74001000) DOC Monitor Power cord unshielded. Video cable shielded Hewlett Packard pn:C4736A (sn: LZA4000061) DZL211092 MOUSE PS2 cable Hewlett Packard pn:C4774 (sn: M990814763) GYUR73SK Keyboard PS2 cable GEMPLUS GEM COMBI CD Lite None Smartcard ISO 14443 None * : Equipment under test. 1.4. Test Methodology Both conducted and radiated testing were performed according to the procedures in ANSI C63.4-2003, FCC Part 15 Subpart C. Radiated testing was performed at an antenna to EUT distance of 10 meters (F<30MHz) and 3m (F>30MHz). During testing, all equipment’s and cables were moved relative to each other in order to identify the worst case set-up. 1.5. Test facility Tests have been performed on June 6th and 8 th , 2006. This test facility has been fully described in a report and accepted by FCC as compliant with the radiated and AC line conducted test site criteria in ANSI C63.4-2003 in a letter dated July 14, 2005 (registration number 94821). This test facility has also been accredited by COFRAC (French accreditation authority for European union test lab accreditation organization) according to NF EN ISO/IEC 17025, accreditation number 1-1633 as compliant with test site criteria and competence in 47 CFR Part 15/ANSI C63.4 and EN55022/CISPR22 norms for 89/336/EEC European EMC Directive application. All pertinent data for this test facility remains unchanged.

Etablissement de Voiron Z.I. des Blanchisseries 38500 Voiron Siret 408 363 174 00090 Tél. : +33 4 76 65 09 08 Fax : +33 4 76 66 18 30 [email protected] Rapport d’essai / Test report JDE : 60046678 N° 200605-3111CR-R1-E DELIVRE A / ISSUED TO : GEMPLUS ZI AThelia III Voie Antiope 13705 LA CIOTAT - FRANCE Objet / Subject : Essais de compatibilité électromagnétique conformément aux normes FCC CFR 47 Part 15, Subpart C. Electromagnetic compatibility tests according to the standards FCC CFR 47 Part 15, Subpart C. Matériel testé / Apparatus under test : • Produit / Product : Lecteur Carte à Puce Sans Contact / Contactless Smartcard Reader • Marque / Trade mark : GEMPLUS • Constructeur / Manufacturer : GEMPLUS • Type / Model : GEMPROX PU • N° de série / serial number * : Proto n° V2 • FCC ID : MESPROXU * : information donnée par le client / information given by the customer Date des essais / Test date : 6 au 8 juin 2006 / June from 6 th to 8 th , 2006 Lieu d’essai / Test location : LCIE ZI des Blanchisseries 38500 VOIRON - France Test réalisé par / Test performed by : Laurent CHAPUS Ce document comporte /Composition of document : 25 pages. V OIRON, LE 7 AOUT 2006 / AUGUST 7 TH , 2006 Ecrit par / Written by Approuvé par / Approved by, Laurent CHAPUS Jacques LORQUIN La reproduction de ce document n'est autorisée que sous sa forme intégrale. Toute reproduction partielle ou toute insertion de résultats dans un texte d'accompagnement en vue de leur diffusion doit recevoir un accord préalable et formel du LCIE. Ce document résulte d’essais effectués sur un spécimen, un échantillon ou une éprouvette. Il ne préjuge pas de la conformité de l’ensemble des produits fabriqués à l’objet essayé. Il ne préjuge en aucun cas d’une décision de certification. This document shall not be reproduced, except in full, without the written approval of the LCIE. This document contains results related only to the item tested. It does not imply the conformity of the whole production to the item tested. This document does not anticipate any certification decision. RAPPORT D'ESSAI / TEST REPORT N° 200605-3111CR-R1-E Page : 2 / 25 1. TEST PROGRAM Standard : FCC CFR 47, PART 15, Subpart C ANSI C63-4 (2003) Requirements for intentional radiator. Chapter 15.225 (Operation within the band 13.110-14.010MHz) 2. SYSTEM TEST CONFIGURATION 2.1. Justification The system was configured for testing in a typical fashion (as a customer would normally use it). USB and RS232 data transmission modes are evaluated. The GEMPROX-CU is used for the compliance evaluation. (GEMPROX-PU without plastic enclosure) 2.2. HARDWARE IDENTIFICATION * Equipment Under Test (EUT): GEMPROX-PU Sn: Proto n° V2 P/N: HWP113580A * Configuration:
RF transmitter Input/Output: USB port RS232+DC input power (RJ45 connector) (Only one used for normal operation)
Carrier frequency: 13.56MHz
Power supply: USB port: 5V dc from USB RS232 mode: 5V dc from power adapter FRIWO FW7650/05 (5V/1A) Primary rated power source: 110Vac/60Hz (RS232 mode) 2.3. Auxiliaries The FCC IDs for all equipment, more description of all cables used in the tested system are: Trade Mark – Model Number (Serial number) FCC ID Description Cable description GEMPROX-PU * Sn : PROTO N° V2 MESPROXU Contactless smartcard reader Power cord unshielded, USB cable shielded, RS232 cable shielded FRIWO Type: FW7650/05 (sn: none) None AC/DC Power supply Out 5Vdc/1A DC power cord unshielded. Hewlett Packard VECTRA VL420 DT pn: P5755-60201 (sn: FR14122957) DOC Personal computer Power cord unshielded. All other cable shielded. Hewlett Packard pn:D2846 (sn: JP74001000) DOC Monitor Power cord unshielded. Video cable shielded Hewlett Packard pn:C4736A (sn: LZA4000061) DZL211092 MOUSE PS2 cable Hewlett Packard pn:C4774 (sn: M990814763) GYUR73SK Keyboard PS2 cable GEMPLUS GEM COMBI CD Lite None Smartcard ISO 14443 None * : Equipment under test. RAPPORT D'ESSAI / TEST REPORT N° 200605-3111CR-R1-E Page : 3 / 25 2.4. Equipment modifications No equipment modification has been necessary during testing. 2.5. EUT Exercise software The EUT exercise program used during radiated and conducted testing was exercised the GEMPROX-PU in a manner similar to a typical use, with smartcard data readings. PC Software used: GEMPROX UTILITY 2.6. Special accessories The USB or RS232 interface cables used for compliance testing are shielded. Cables are used with ferrites clamps : - USB cable: ferrite WURTH ELEKTRONIK 742 7114 - RS232 cable: ferrite WURTH ELEKTRONIK 742 7113 All these cables with ferrites are normally supplied with the product. 2.7. I/O cables Cables used for the test of the GEMPROX-CU: - 1x USB cable, shielded: 1.2m - 1x RS232 cable, shielded (RJ45 connectors) RAPPORT D'ESSAI / TEST REPORT N° 200605-3111CR-R1-E Page : 4 / 25 3. RADIATED EMISSION DATA 3.1. TEST SETUP The EUT is placed on a non-conducting table of 80cm height. Radiated emission test setup Equipment configuration and running mode: A contactless smartcard is placed on the top side of the reader. The installation of EUT is identical for pre-characterization measurement in a 3 meters full anechoic chamber and for measures on a 3 meters Open site. Mains: 230Vac/50Hz 3.2. TEST SEQUENCE AND RESULTS 3.2.1. Pre-characterization at 3 meters [9kHz-30MHz] A pre-scan of all the setup has been performed in a 3 meters full anechoic chamber. The distance between EUT and antenna is 3 meters. Pre-characterization is performed in vertical (V) polarization and the loop antenna position was rotated during the test for maximized the emission measurement. Frequency band investigated is 9kHz to 30MHz. (No frequency observed between 9kHz to 150KHz) The pre-characterization graphs are obtained in PEAK detection. See graphs examples: USB mode: graph m#1 (see page 11/25) RS232 mode: graph m#2 (see page 12/25) 3.2.2. Pre-characterization at 3 meters [30MHz-1GHz] A pre-scan of all the setup has been performed in a 3 meters full anechoic chamber. The distance between EUT and antenna is 3 …

Text truncated - open the document above for the full version.

FCC ID: MESPROXU Page 1/2 1CONDUCTED AND RADIATED MEASUREMENT PHOTO 1.1Conducted emission Front viewRear view Detail view(RS232 mode)Detail view (USB mode) FCC ID: MESPROXU Page 2/2 1.2Radiated emission Front View Rear View (USB mode) Detail view (RS232 mode)
