MES300GELCard Reader

1/7 ..FCC ID: MES300GEL February 2002 GemEasyLink/Access 3xx User's Guide Version 1.0 2/7 © GEMPLUS Regulatory Information Notice for the USA: FCC Statement Federal Communications Commission (FCC) Radio Frequency Interference Statement (USA Only) This equipment has been tested and found to comply with the limits for a class B digital device, pursuant to Part 15 of FCC Rules. These limits are designed to provide reasonable protections against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try one of more of the following measures: ‡ Relocate the radio or television antenna. ‡ Plug the equipment away from the radio or television. ‡ Plug the equipment into a different electrical outlet, so that the equipment and the radio or television are on separate electrical circuits. ‡ Make sure that all your peripheral devices ar also FCC Class B certified. ‡ Make sure you use only shielded cables to connect peripheral devices to your equipment. ‡ Consult your equipment dealer, or an experienced radio / television technician for help. WARNING: The system verification tests were conducted with GEMPLUS supported peripheral devices and GEMPLUS shielded cables, such as those you received with your system. Cables used with this equipment must be properly shielded to comply with the requirements of the FCC. Changes or modifications not expressly approved by GEMPLUS could void the user's authority to operate the equipment. This device complies with part 15 of the FCC rules. Operation is subject to the following two conditions : (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. 3/7 © GEMPLUS GEMEASYLINK/ACCESS3XX USER'S GUIDE The GemEasyLink/Access3xx device is a contactless proximity card reader combining both the reader and the antenna in one small package. Its main application is access control. The unit utilizes the MIFARE® technology as part of its integrated solution. The device also provides both audio and visual feedback with an internal beeper and LED indicators. The GemEasyLink/Access3xx device is available in a rugged IP65 rated enclosure for direct mounting (GemEasyAccess3xx) or as an OEM version (GemEasyLink3xx) for packaging in a user supplied environment. The main features of the GemEasyLink/Access3xx device are: • Versatile package with easy connection allowing the card reader to be included in equipment mounted indoors or outdoors and on a variety of surfaces, • Front mounted multicolor LED and beeper indicate status and error information, • Standard input / output. This user's guide includes information on the operation of GemEasyLink/Access3xx device. A typical application is depicted in figure 1: Figure 1: GemEasyLink/Access3xx typical application General overview Host controller or Control Panel GemEasyLink/Access3xx Reader Contactless Smart Card Standard Interface 4/7 © GEMPLUS The packaged device is composed of a small package including a reader and an antenna: Front side: A blue LED indicator and a bicolor LED indicator, Rear side: User cable for connection and adhesive fixing. Figure 2: GemEasyAccess3xx Mounting and Indicator Reference The cable is dedicated to the user connection. The adhesive is used to fix the device to a wall. The blue indicator is related to device activity. The bicolor indicator is related to access control activity. An internal beeper is used as audio indicator. GemEasyAccess3xx Overview Blue Indicator Bicolor Indicator Connection cable Adhesive fixing 5/7 © GEMPLUS The OEM device is composed of two assembled boards (Antenna & Reader) with the following user indicators and connectors: Top sideA blue indicator and a bicolor indicator, Bottom sideFour groups of terminal block connectors. Figure 3: GemEasyLink3xx User Interface Component Locations The terminal blocks are dedicated to user connections. The blue indicator is related to device activity. The bicolor indicator is related to access control activity. The internal beeper is used as audio indicator. GemEasyLink3xx Overview Bicolor indicator Green/Red Blue indicator Beeper (under J3 J1 J4 J2 Brass Spacers x Antenna Top side Reader Bottom side 6/7 © GEMPLUS The GemEasyLink/Access3xx device offers the following features: • Up to date architecture, • The ability to communicate with any type of ISO14443A contactless smart card, • The ability to transmit smart card secured information, • Standard +12 V operation, • A friendly user interface with three LEDs and a beeper, • Built-in tamper switch. The GemEasyLink/Access3xx device provides and requires the following conditions for optimal operation. Operating Temperature range-20°C to +70°C (-4°F to 158°F) Humidity Range0% to 95% non condensing Index of protectionIP00 (open case reader) / IP65 (packaged reader) Physical dimensions 82 mm (Height) x 40 mm (Width) x 22 mm (Deep) for open case reader 88 mm (Height) x 46 mm (Width) x 19 mm (Deep) for packaged reader CableAWG24 wire Power Supply Voltage+12 V (+8 V to +13 V) Power Supply Current< 150 mA for +12 V power supply voltage. Table 1: GemEasyLink/Access3xx Technical Specifications Product features Technical Specifications 7/7 © GEMPLUS An example of wiring diagram is depicted in Figure 4: In this example, when the door is required to open, the green indicator and the beeper are activated. Figure 4: Example Wiring Diagram Wiring diagram Door strike + - To controller +12V GROUND Reader DATA0 Reader DATA1 Door Open Tamper input Tamper input Co…

Text truncated - open the document above for the full version.

FCC ID: MES300GEL 1 USER MANUAL This is a copy of the 2 nd page where the FCC statement is included : Regulatory Information Notice for the USA: FCC Statement Federal Communications Commission (FCC) Radio Frequency Interference Statement (USA Only) This equipment has been tested and found to comply with the limits for a class B digital device, pursuant to Part 15 of FCC Rules. These limits are designed to provide reasonable protections against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try one of more of the following measures: ‡ Relocate the radio or television antenna. ‡ Plug the equipment away from the radio or television. ‡ Plug the equipment into a different electrical outlet, so that the equipment and the radio or television are on separate electrical circuits. ‡ Make sure that all your peripheral devices ar also FCC Class B certified. ‡ Make sure you use only shielded cables to connect peripheral devices to your equipment. ‡ Consult your equipment dealer, or an experienced radio / television technician for help. WARNING: The system verification tests were conducted with GEMPLUS supported peripheral devices and GEMPLUS shielded cables, such as those you received with your system. Cables used with this equipment must be properly shielded to comply with the requirements of the FCC. Changes or modifications not expressly approved by GEMPLUS could void the user's authority to operate the equipment. This device complies with part 15 of the FCC rules. Operation is subject to the following two conditions : (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

FCC ID: MES300GEL 1 BLOCK DIAGRAM(S) OF EQUIPMENT 1.1 Clock list of GemEasyLink 680SP product Crystal:14.74 MHz 13.56 MHz 1.2 Block diagram 1.3 PRF The PRF of the device is 106kHz. The following show the kind of signal interface (issue from ISO 14443, Art 7): Linear Power Supply Digital Micro-Controller 14.74 MHz Radio-Frequency Controller 13.56 MHz Digital Inputs/Outputs Visual & Audio Interface LEDs & Beeper Directly Matched Antenna +12V +5V User’s Interface 13.56 MHz Modulated carrier RF Magnetic Field Smart Card GemEasyLink/Access 3xx Block Diagram

July 26 th , 2002 Registration Number : 94821 CONFIDENTIALITY REQUEST Curtis-Straus LLC 527 Great Road Littleton, MA 01460 USA Re : Confidentiality request for a Low Power Communication Device FCC ID : MES300GEL Gentlemen, GEMPLUS requests, pursuant to 47CFR 0.459, post grant confidentiality for portions of the material contained in this application. The following document regarding this submission for FCC ID: MES300GEL be kept confidential 1. Schematic Diagram Specifically, these exhibit contain information relating to circuit function and complexity that could be of benefit to competitors. The material contains trade secrets and confidential information that GEMPLUS does not customarily release to the public and which is otherwise not generally available to the public. Regards, Pierre André COLLET Voie Antiope Athelia III 13705 LA CIOTAT CEDEX 8 – France

FCC ID: MES300GEL 1 EXTERNAL PHOTOS OF TESTED EUT General view (Equipment with case) General internal photos

FCC ID: MES300GEL 1 PRODUCT LABELING 1.1 Equipment without case 1.1.1 FCC ID Label This is the copy of the label stuck on the product (Size in mm) 1.1.2 Location of label on EUT Label is stuck on the upper face of the product (see below). 44.5mm 35mm FCC ID: MES300GEL 1.2 Equipment with case 1.2.1 FCC ID Label This is the copy of the label stuck on the product. Because there is not enough room to set the FCC statement on a conspicuous place on the case, it will be on the second page of documentation. (See §1.2.3) (Size in mm) Note – UL Material (sticker and printing ) Polyester metal 50μm Color : black on silver 1.2.2 Location of label on EUT Label is stuck on the lower face of the product (see below). FCC ID: MES300GEL 1.2.3 User's manuel Just below, is a copy of the 2 nd page of user's manual

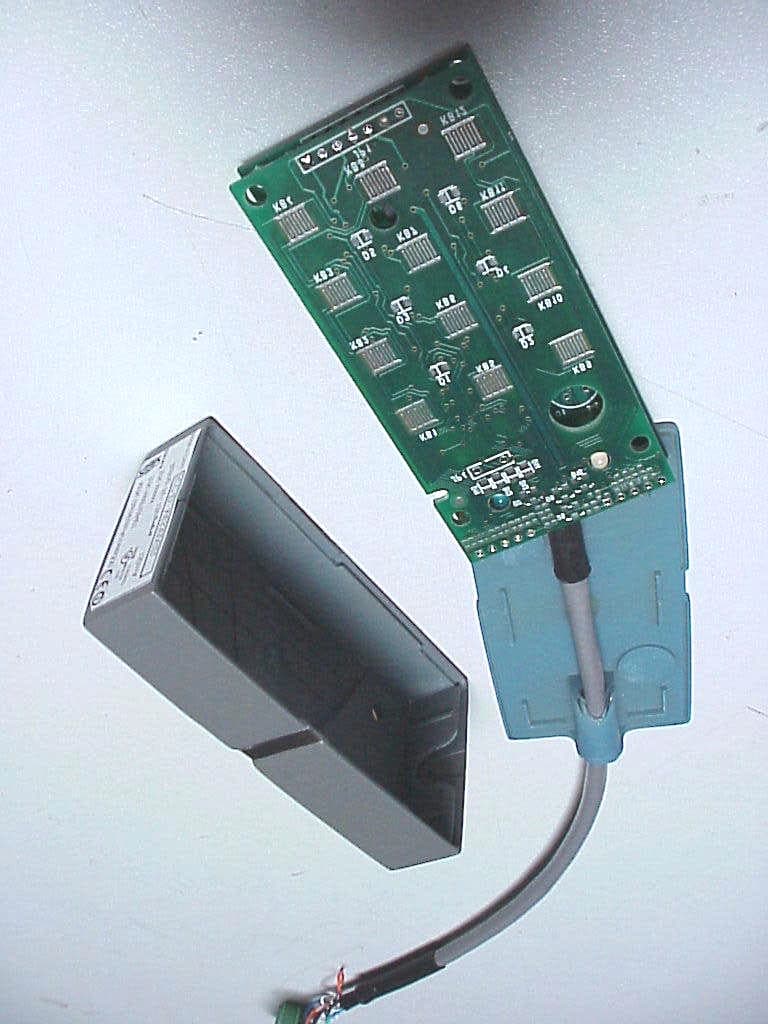

FCC ID: MES300GEL 1 INTERNAL PHOTOS OF TESTED EUT 1 – Internal boards assembling, component side 2 – Internal boards assembling, Label side FCC ID: MES300GEL 3 – Upper board, component side 4 – Upper board, foil side FCC ID: MES300GEL 5 – Antenna board, first side6 – Antenna board, second side

FCC ID: MES300GEL 1 GENERAL INFORMATION 1.1 Product description The GemEasyLink/Access3xx device is a contactless proximity card reader combining both the reader and the antenna in one small package. Its main application is access control. There is tow sort of packaging, with and without case. The GemEasyLink/Access3xx reader is powered by an external 12Vdc power supply. The unit utilizes the MIFARE® technology as part of its integrated solution. The device also provides both audio and visual feedback with an internal beeper and LED indicators. The GemEasyLink/Access3xx contactless reader can communicate to the Personal Computer via the Wiegand port. The directly matched antenna (PCB loop antenna) is tuned in the factory at 13.56 MHz. For more information, see product's data sheet at section 1.6. 1.2 Related Submittal(s) / Grant(s) All host equipment used in the test configuration are FCC granted, when relevant. 1.3 Tested System Details The FCC IDs for all equipment, plus description of all cables used in the tested system are : Trade Mark – Model Number (Serial number) FCC IDDescriptionCable description GEMPLUS GemEasyLink/Access 300xx* (sn: 002) MES680SGELContactless smart card readerShielded cable with ferrite on the cable at 45cm from the device. GEMPLUS (D215302D) noneContactless Smart card with ship PHILIPS none Dell Latitude CPI PN: 0006692D-12800- 03T-3722 (sn: VSRW6) with AC adaptor block 9364U Doc. Of Conf.Personal computerAll data cables are unshielded Power cable unshielded Logitech 334684-007 (sn: F362A0G5BJJ32JV.AW) JNZ201013MouseUnshielded cable HITRON HERO48-316 (sn: 001) nonePower supply of contactless reader Unshielded cable Gemplus HWP 107706A (sn: none) noneInterface RS232/WiegandShielded cable for wiegand Unshielded cable for RS232 and power Comatec AL0030.090.15 (sn: none) nonePower supply of interfaceUnshielded cable *Equipment Under Test FCC ID: MES300GEL 1.4 Test Methodology Both conducted and radiated testing were performed according to the procedures in ANSI C63.4-1992, CISPR22-1993/A1:1995/A2:1996 and EN55022:1994/A1:1995/A2:1997. Radiated testing was performed at an antenna to EUT distance of 10 meters. During testing, all equipment’s and cables were moved relative to each other in order to identify the worst case set-up. 1.5 Test facility Tests have been performed on March 13th, 2000. The test facility used to collect the radiated and conducted data is the SMEE Actions Mesures facility, located ZI des Blanchisseries, 38500 VOIRON, France. This test facility has been fully described in a report and accepted by FCC as compliant with the radiated and AC line conducted test site criteria in ANSI C63.4-1992 in a letter dated August 04, 1999 (registration number 94821). This test facility has also been accredited by COFRAC (French accreditation authority for European union test lab accreditation organization), accreditation number 1-0844 as compliant with test site criteria and competence in EN55022/CISPR22 norms for 89/336/EEC European EMC Directive application. All pertinent data for this test facility remains unchanged. 1.6 Data sheet of the product GemEasyLink/Access3xx User's GUIDE General overview The GemEasyLink/Access3xx device is a contactless proximity card reader combining both the reader and the antenna in one small package. Its main application is access control. The unit utilizes the MIFARE® technology as part of its integrated solution. The device also provides both audio and visual feedback with an internal beeper and LED indicators. The GemEasyLink/Access3xx device is available in a rugged IP65 rated enclosure for direct mounting (GemEasyAccess3xx) or as an OEM version (GemEasyLink3xx) for packaging in a user supplied environment. The main features of the GemEasyLink/Access3xx device are: • Versatile package with easy connection allowing the card reader to be included in equipment mounted indoors or outdoors and on a variety of surfaces, • Front mounted multicolor LED and beeper indicate status and error information, • Standard input / output. This user's guide includes information on the operation of GemEasyLink/Access3xx device. FCC ID: MES300GEL A typical application is depicted in figure 1: Figure 1: GemEasyLink/Access3xx typical application Host controller or Control Panel GemEasyLink/Access3xx Reader Contactless Smart Card Standard Interface FCC ID: MES300GEL GemEasyAccess3xx Overview The packaged device is composed of a small package including a reader and an antenna: Front side: A blue LED indicator and a bicolor LED indicator, Rear side: User cable for connection and adhesive fixing. Figure 2: GemEasyAccess3xx Mounting and Indicator Reference The cable is dedicated to the user connection. The adhesive is used to fix the device to a wall. The blue indicator is related to device activity. The bicolor indicator is related to access control activity. An internal beeper is used as audio indicator. GemEasyLink3xx Overview The OEM device is composed of two assembled boards (Antenna & Reader) with the following user indicators and connectors: Top sideA blue indicator and a bicolor indicator, Bottom sideFour groups of terminal block connectors. Figure 3: GemEasyLink3xx User Interface Component Locations The terminal blocks are dedicated to user connections. The blue indicator is related to device activity. The bicolor indicator is related to access control activity. The internal beeper is used as audio indicator. Blue Indicator Bicolor Indicator Connection cable Adhesive fixing Bicolor indicator Green/Red Blue indicator Beeper (under antenna) J3 J1 J4 J2 Brass Spacers x 4 Antenna Board Top side Reader Board Bottom side FCC ID: MES300GEL Product features The GemEasyLink/Access3xx device offers the following features: • Up to date architecture, • The ability to communicate with any type of ISO14443A contactless smart card, • The ability to transmit smart card secured information, • Standard +12 V operation, • A friendly user interface with three LE…

Text truncated - open the document above for the full version.

FCC ID: MES300GEL 1TEST REPORT 1.1System test configuration 1.1.1 Justification The system was configured for testing in a typical fashion (as a customer would normally use it). A typical smart card was presented to the GemEasyLink / Access 3xx contactless reader, which was itself connected to a personal computer. It has been tested with a Dell Personal computer laptop. Each ports of the contactless reader were loaded with a typical peripheral device. 1.1.2EUT Exercise software The EUT exercise program (Wiegand running under windows 98) used during radiated and conducted testing was designed to exercise the GemEasyLink / Access 3xx contactless reader in a manner similar to a typical use (reading the contactless smart card in loop) 1.1.3Special accessories The cable used to connect the GemEasyLink / Access contactless reader, to RS232/Wiegand ports of interface is shielded. Add on this cable a ferrite WURTH reference 742 712 22 at 45cm from the device. The cable used to connect the RS232/Wiegand interface, to the RS232 port of the PC is shielded. It is connected to Com 1. The smart card used with the GemEasyLink / Access 3xx contactless reader, is a Contactless Smart Card Philips D215302D, manufactured by GEMPLUS. The Power supply block used to power the GemAirLink/Access 3xx contactless reader, is a HITRON mod: HER048-316 block, for 230V/50Hz and 120V/60Hz. As shown in Figure#1, all interfaces cables used for compliance testing are shielded as normally supplied. All these cables are normally recommended to be used with the Personal Computer. 1.1.4Configuration of tested system PC Dell Latitude GemEasyLink /access 3xx RS232/Wiegand interface Contactless card FCC ID: MES300GEL 1.2Conducted emission data 1.2.1 Test procedure The product has been tested according to ANSI C63.4-1992 and FCC PART15, Subpart C, Section 15.207. The product has been tested with 120V / 60Hz power line voltage and compared to the FCC PART 15, Subpart C, Section 15.207 limits. Measurement bandwidth was 9kHz from 450 kHz to 30 MHz. Measurement was initially made with an HP-8591EM Spectrum Analyzer in peak mode. This was followed by a Quasi-Peak, i.e. CISPR measurement with the Rohde&Schwarz ESH3 receiver for any strong signal. An Average measure has also been performed on peak exceeding the limit of 250μ V. The Peak data are shown on the following plots. Quasi-Peak and Average measurements are detailed in a table with frequencies and levels measured. Interconnecting cables and equipment's were moved to position that maximized emission. A summary of the worst case emissions found in all test configurations and modes is shown on the following page. The13.56 MHz frequency, which is the fundamental frequency, exceeds the level when tested in normal configuration. In order to show that the product’s electronic isn’t the cause, we had performed an other test, with the product wrapped up in a conductive aluminium foil (the antenna of the product is integrated in the board, and cannot be replaced by a dummy load). In this configuration, results are FCC compliant; Graphs are shown hereafter. Test equipment : HP 8591EM Spectrum Analyzer Rhode & Schwarz ESH3 Receiver EMCO 3810/2SH LISN N°1 (50Ω/50microhenry LISN measure) TELEMETER NNB-2/16L LISN N°2 FCC ID: MES300GEL 1.2.2Neutral conducted emission data on GemEasyLink / Access 3xx contactless reader Freq.PeakQ-PeakQP limitQP deltaAverage Num. [MHz][dBμV][dBμV][dBμV][dBμV][ dBμ V] 113.5767.93*67.5948 +19.59 63.15 227.1237.9735.1548 -12.85 32.51 * : carrier frequency EMISSIONS CONDUITES - GEMPLUS - Neutral 15 25 35 45 55 65 75 85 95 105 115 0.1110100 Frequency (MHz) Emission [dBμV] Peak [dBuV] FCC ID: MES300GEL 1.2.3Line conducted emission data on GemEasyLink / Access 3xx contactless reader Freq.PeakQ-PeakQP limitQP deltaAverage Num. [MHz][dBμV][dBμV][dBμV][dBμV][ dBμ V] 113.4448.6636.0448 -11.96 14.78 213.57*72.6472.1248 +24.12 68.02 327.1243.4041.2048 -6.8 36.00 * : carrier frequency EMISSIONS CONDUITES - GEMPLUS - Line 15 25 35 45 55 65 75 85 95 105 115 0.1110100 Frequency (MHz) Emissions [dBμV] Peak [dBuV] FCC ID: MES300GEL 1.2.4Neutral conducted emission data on GemEasyLink/Access 3xx contactless reader The product is wrapped up in a conductive aluminium foil 1.2.5Line conducted emission data on GemEasyLink /Access 3xx contactless reader The product is wrapped up in a conductive aluminium foil EMISSIONS CONDUITES - GEMPLUS 15 25 35 45 55 65 75 85 95 105 115 0.1110100 Freqency (MHz) Emission [dBμV Peak [dBuV] EMISSIONS CONDUITES - GEMPLUS 15 25 35 45 55 65 75 85 95 105 115 0.1110100 Frequency (MHz) Emission [dBμV Peak [dBuV] FCC ID: MES300GEL 1.3RADIATED EMISSION DATA 1.3.1Test Procedure (15.225) The product has been tested according to ANSI C63.4-1992 and FCC PART15, Subpart C, Section 15.225. The product has been tested with 230V / 50Hz power line voltage, at a distance of 3 meters from the antenna and compared to the FCC PART15, Subpart C, Section 15.225 limits. Measurement bandwidth was 120 kHz from 30 MHz to 1 GHz, and 9kHz below 30 MHz. Requirements of 15.209 e) have been observed. Above 30MHz, antenna height search was performed from 1m to 4m for both horizontal and vertical polarization. Continuous linear turntable azimuth search was performed with 360 degrees range. Below 30MHz, a loop antenna has been used in 2 polarization (horizontal and vertical axis), according provisions of ANSI C63.4 (measurements distance is 10 meters and then extrapolated to 30 meters). Interconnecting cables and equipment's were moved to position that maximized emission. A summary of the worst case emissions found in all test configurations and modes is shown on the following page. Test Equipment: HP-8574A E.M.I Receiver HP-8568B Analyzer + HP-85650 Quasi-Peak adapter + HP-85685A RF Preselector. EMCO 3104C Biconical Antenna & EMCO 3146 Log Periodic Antenna EMCO-1050, 6 meters height antenna mast & EMCO-1060, 3 meters diameter Turntable. HP-8591EM Spectrum analyzer CHASE CBL6111A Antenna, 30…

Text truncated - open the document above for the full version.

FCC ID: MES300GEL 1 CONDUCTED AND RADIATED MEASUREMENT PHOTO 1.1 Conducted emission Front viewRear view Detailed view FCC ID: MES300GEL 1.2 Radiated emission Front View Rear View
