MES410EMVGCSmart Card Reader

FCC ID: MES433L7GPC Page 1/2 1 USER MANUAL This is a copy of the page where the FCC statement is included. This statement is supplied in the package of the product. FCC ID: MES433L7GPC Page 2/2

FCC ID: MES410EMVGC Page 1/1 1 BLOCK DIAGRAM OF EQUIPMENT 1.1 Clock list of GemCore410-EMV product 14.74 MHz 1.2 Block diagram of GemCore410-EMV product

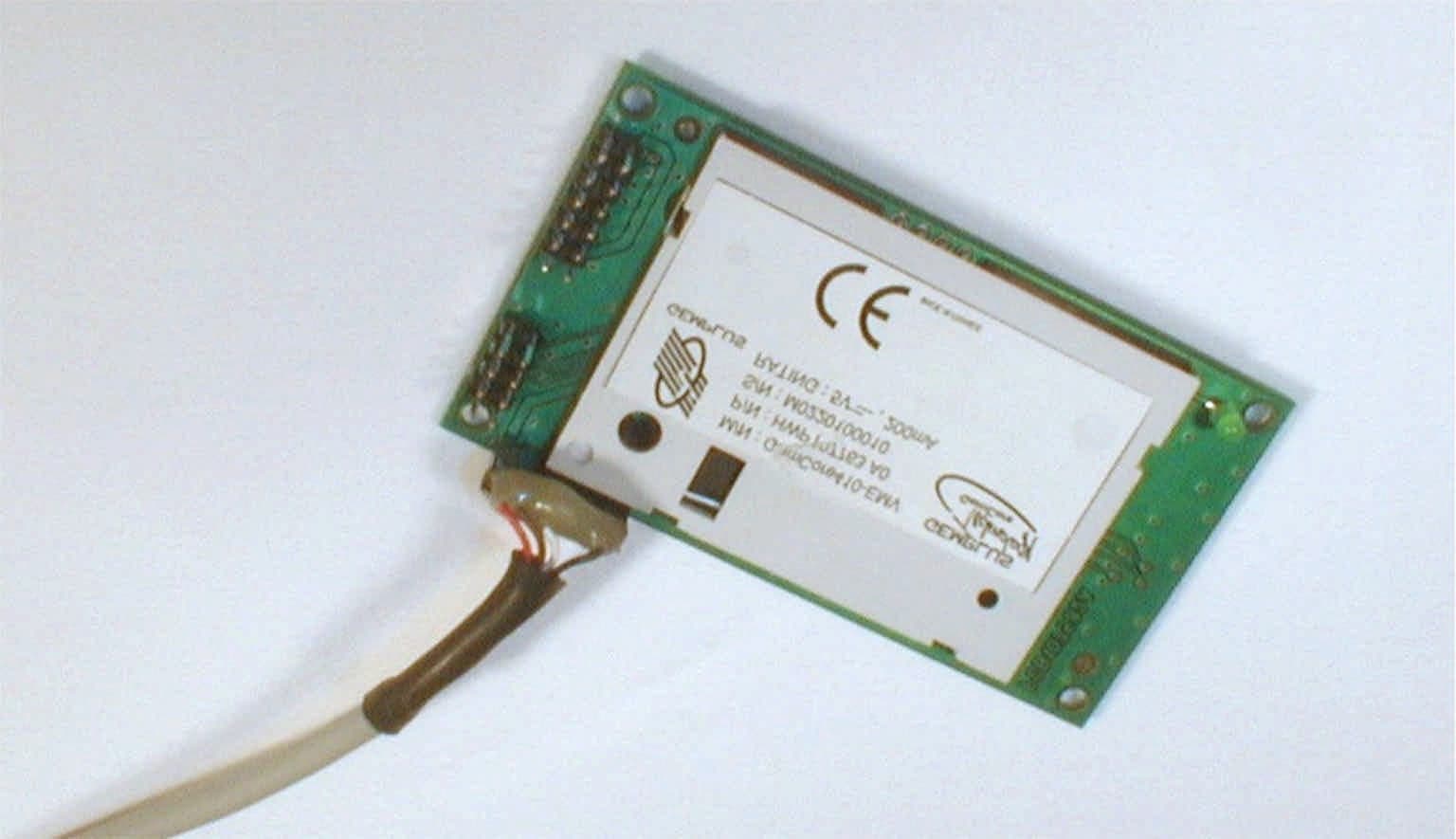

FCC ID: MES410EMVGC Page 1/2 1 EXTRERNAL PHOTOS OF TESTED EUT (GEMCORE-410EMV) General view, smart card inserted (with the serial cable) Top view General view, smart card removed (with the serial cable) Top view FCC ID: MES410EMVGC Page 2/2 General view, with Smart and Sam cards Bottom view General view, without card Bottom view

FCC ID: MES410EMVGC Page 1/2 1 PRODUCT LABELING 1.1 FCC ID Label This is a photo of the label stuck on the product. (Size : 25.5mm x 51mm) FCC ID: MES410EMVGC Page 2/2 1.2 Location of label on EUT Label is stuck on the bottom face of the product (see picture). Label will be at that location

FCC ID: MES410EMVGC Page 1/5 1 INTERNAL PHOTOS OF TESTED EUT (GEMCORE410EMV) Top view (smart card connector) Bottom view (Sam card connector) FCC ID: MES410EMVGC Page 2/5 Top view (without smart card connector) Bottom view (without Sam card connector) Components side. FCC ID: MES410EMVGC Page 3/5 Bottom view of Smart and Sam card connectors FCC ID: MES410EMVGC Page 4/5 2 PHOTOS OF SMART CARDS SAM and Smart cards Rear side of the Smart card SAM card Smart card FCC ID: MES410EMVGC Page 5/5 3 PHOTOS OF CABLES Serial cable with PS2 connector for 5V power supply

FCC ID: MES410EMVGC Page 1/4 1 GENERAL INFORMATION 1.1 Product description The GemCore410-EMV device is a smart card coupler that can be integrated in different types of electronic devices. Smart cards which can be used with the GemCore410-EMV coupler are ISO7816-1/2/3/4 memory and micro processor smart cards. Typical applications are: - Payphones and screen-phones - Payment terminals, kiosks, electronic purse - Vending and game machines - Access control, park meters, - Metering - Others... The GemPC410 is a product developed by the Gemplus company. For more information, see product's data sheet at section 1.6. 1.2 Related Submittal(s) / Grant(s) All host equipment used in the test configuration are FCC granted, when relevant. 1.3 Tested System Details The FCC IDs for all equipment, plus description of all cables used in the tested system (including inserted cards, which have grants) are : Trade Mark – Model Number (Serial number) FCC IDDescriptionCable description GemCore410-EMV* (sn: M0220100010) MES410EMVGCSmart card coupler Serial cable, shielded, ended by SubD9 and PS2 connectors (PS2 is for 5V power supply of the EUT) : 1m Flat cable, 8 wires, unshielded : 1m (for TTL link) GEMPLUS MPC0S64K-3DES sn: TEST-CEM noneSmart cardnone GEMPLUS SAM CARD noneSam cardnone Laptop Dell Latitude CPiAD400XTB series PN: 0006692D-12800-03T-3722 (sn: VSRW6) with AC adapter Dell P/N: 0009364U Dec. Of ConfPersonal computerAll data cables are shielded Power cable unshielded HEWLETT PACKARD D2846A (sn JP74001000) Doc. Of Conf.21" color monitorShielded video cable COMPAQ (Logitech) M/N: M-S48a (sn: 187104-001) JNZ201213MouseShielded cable HEWLETT PACKARD C6410A (sn: MY9761915T) Doc. Of Conf.Parallel printerHP 24542D shielded parallel cable INTEL YC76 sn : 0045143 EDUYC76WebCamShielded cable (USB) *Equipment Under Test FCC ID: MES410EMVGC Page 2/4 1.4 Test Methodology Both conducted and radiated testing were performed according to the procedures in ANSI C63.4-1992, CISPR22-1993/A1:1995/A2:1996 and EN55022:1994/A1:1995/A2:1997. Radiated testing was performed at an antenna to EUT distance of 10 meters. During testing, all equipment’s and cables were moved relative to each other in order to identify the worst case set-up. 1.5 Test facility Tests have been performed on March 18 th , 2002 The test facility used to collect the radiated and conducted data is the SMEE Actions Mesures facility, located ZI des Blanchisseries, 38500 VOIRON, France. This test facility has been fully described in a report and accepted by FCC as compliant with the radiated and AC line conducted test site criteria in ANSI C63.4-1992 in a letter dated August 04, 1999 (registration number 94821). This test facility has also been accredited by COFRAC (French accreditation authority for European union test lab accreditation organization), accreditation number 1-0844 as compliant with test site criteria and competence in EN55022/CISPR22 norms for 89/336/EEC European EMC Directive application. All pertinent data for this test facility remains unchanged. FCC ID: MES410EMVGC Page 3/4 1.6 Data sheet of the product FCC ID: MES410EMVGC Page 4/4

FCC ID: MES410EMVGC Page 1/7 1 TEST REPORT 1.1 System test configuration 1.1.1 Justification The GemCore410-EMV is a modular, very compact coupler. It offers the simplest means of integrated an EMV certified smart card reader into different types of electronic devices. The system was configured for testing in a typical fashion (as a customer would normally use it). A typical smart card was introduced in the GemCore410-EMVreader, which was itself connected to a personal computer with the RS232 link. It has been tested with a Dell Latitude Personal computer laptop. 1.1.2 EUT Exercise software The EUT exercise program (TESTCEM2000.exe) used during radiated and conducted testing was designed to exercise the GemCore410-EMV reader in a manner similar to a typical use . 1.1.3 Special accessories The cable used to connect the GemCore410-EMV reader to the Com and PS2 keyboard ports of the Personal Computer is shielded. The smart card used in the GemPC433 is a ISO 7816 type (Smart card GEMPLUS MPCK-3DES) Figure #1, shows the installation of the GemCore410-EMV. All interfaces cables used for compliance testing are shielded as normally supplied. All these cables are normally recommended to be used with the Personal Computer. 1.1.4 Equipment modifications No equipment modification has been necessary during testing to achieve compliance to Class B levels. The unit tested was representative to a production unit. 1.1.5 Configuration of tested system Fig #1 HP C6410A Printer Monitor D2846 PC Dell Mouse GemCore410-EMV Smart card coupler 80 cm FCC ID: MES410EMVGC Page 2/7 1.2 Conducted emission data 1.2.1 Test procedure The product has been tested according to ANSI C63.4-1992, CISPR22-1993/A1:1995/A2:1996 and EN55022:1994/A1:1995/A2:1997. The product has been tested with 110V / 60Hz power line voltage and compared to the CISPR22 Class B limits. Measurement bandwidth was 9kHz from 150 kHz to 30 MHz. Measurement was initially made with an HP-8591EM Spectrum Analyzer in peak mode. This was followed by a Quasi-Peak, i.e. CISPR measurement with the Rohde & Schwarz ESH3 receiver for any strong signal. If the average limit is met when using a Quasi-Peak detector, the EUT shall be deemed to meet both limits and measurement with the average detector is unnecessary. The Peak data are shown on the following plots. Quasi-Peak and Average measurements are detailed in a table with frequencies and levels measured. Interconnecting cables and equipment's were moved to position that maximized emission. A summary of the worst case emissions found in all test configurations and modes is shown on the following page. Test equipment : HP 8591EM Spectrum Analyzer Rhode & Schwarz ESH3 Receiver EMCO 3810/2SH LISN N°1 TELEMETER NNB-2/16L LISN N°2 FCC ID: MES410EMVGC Page 3/7 1.2.2 Neutral conducted emission data Freq.PeakQ-PeakQP limitQP deltaAverageAVG LimitAVG Delta Num. [MHz][dBμV][dBμV][dBμV][dB][dBμV][dBμV][dB] 10.18051.5849.3464.5 -15.16 37.4554.5 -17.05 24.99041.6038.6856.0 -17.32 34.6046.0 -11.40 FCC ID: MES410EMVGC Page 4/7 1.2.3 Line conducted emission data Freq.PeakQ-PeakQP limitQP deltaAverageAVG LimitAVG Delta Num. [MHz][dBμV][dBμV][dBμV][dB][dBμV][dBμV][dB] 10.18052.5247.1464.5 -17.36 38.5154.5 -16.0 20.49039.7237.6456.1 -18.46 33.5846.1 -12.52 34.79041.5738.2956.0 -17.71 34.5446.0 -11.46 FCC ID: MES410EMVGC Page 5/7 1.3 Radiated emission data 1.3.1 Test Procedure The product has been tested according to ANSI C63.4-1992, CISPR22-1993/A1:1995/A2:1996 and EN55022:1994/A1:1995/A2:1997. The product has been tested with 230V / 50Hz power line voltage, at a distance of 10 meters from the antenna and compared to the CISPR 22 Class B limits. Measurement bandwidth was 120 kHz from 30 MHz to 1 GHz. Antenna height search was performed from 1m to 4m for both horizontal and vertical polarization. Continuous linear turntable azimuth search was performed with 360 degrees range. Interconnecting cables and equipment's were moved to position that maximized emission. A summary of the worst case emissions found in all test configurations and modes is shown on the following page. Test Equipment: HP-8574A E.M.I Receiver (HP-8568B Analyzer + HP-85650 Quasi-Peak adapter + HP-85685A RF Preselector). EMCO 3104C Biconical Antenna & EMCO 3146 Log Periodic Antenna EMCO-1050, 6 meters height antenna mast & EMCO-1060, 3 meters diameter Turntable. FCC ID: MES410EMVGC Page 6/7 1.3.2 Radiated emission data Graph example - 30-1000MHz Final result 30-1000 MHz Frequency (MHz) QPeak Limit (dBμV/m) QPeak (dBμV/m) QPeak-Lmt (dB) Angle (deg) PolHgt (cm) Tot Corr (dB) Comments 32.94130.0 24.1 -5.9126V10412.5 44.26130.0 26.2 -3.894V10811.6 47.92930.0 24.2 -5.863V10211.8 58.97830.0 24.9 -5.176V10811.4 197.00630.0 27.0 -3.013V13619.8 328.31537.0 24.9 -12.196H26318.1 528.05337.0 27.7 -9.34H18922.1 599.23137.0 29.1 -7.9228H10923.8 FCC ID: MES410EMVGC Page 7/7 1.3.3 Field Strength Calculation The field strength is calculated by adding the Antenna Factor and Cable Factor, and subtracting the Amplifier Gain (if any) from the measured reading. The basic equation with a sample calculation is as follow : FS = RA + AF + CF – AG WhereFS = Field Strength RA = Receiver Amplitude AF = Antenna Factor CF = Cable Factor AG = Amplifier Gain Assume a receiver reading of 52.5dBμV is obtained. The antenna factor of 7.4 and a cable factor of 1.1 is added. The amplifier gain of 29dB is subtracted, giving a field strength of 32 dBμV/m. FS = 52.5 + 7.4 + 1.1 – 29 = 32 dBμV/m The 32 dBμV/m value can be mathematically converted to its corresponding level in μV/m. Level in μV/m = Common Antilogarithm [(32dBμV/m)/20] = 39.8 μV/m.

FCC ID: MES410EMVGC Page 1/2 1 CONDUCTED AND RADIATED MEASUREMENT PHOTOS 1.1 Conducted emissions Front view of the setupRear view of the setup Detailed view of EUT with its cables Detailed view of the EUT with its cables (top view) Detailed view of PC with the EUT serial cable (Rear view) FCC ID: MES410EMVGC Page 2/2 1.2 Radiated emission Front View of the setupRear view of the setup Detailed view of EUT with its cables (Rear view) Detailed view of PC with its USB port Detailed view of PC with the EUT serial cable (Rear view)
