MES473GPCSmart Card Reader

FCC ID: MES473GPC 1 USER MANUAL This is a copy of the page where the FCC statement is included; This statement is supplied in the package of the product. This device complies with part 15 of the FCC rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Regulatory Information Notice for the USA: FCC Statement Federal Communications Commission (FCC) Radio Frequency Interference Statement (USA Only) This equipment has been tested and found to comply with the limits for a class B digital device, pursuant to Part 15 of FCC Rules. These limits are designed to provide reasonable protections against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try one of more of the following measures: ‡ Relocate the radio or television antenna. ‡ Plug the equipment away from the radio or television. ‡ Plug the equipment into a different electrical outlet, so that the equipment and the radio or television are on separate electrical circuits. ‡ Make sure that all your peripheral devices are also FCC Class B certified. ‡ Make sure you use only shielded cables to connect peripheral devices to your equipment. ‡ Consult your equipment dealer, or an experienced radio / television technician for help. WARNING: The system verification tests were conducted with GEMPLUS supported peripheral devices. Cables used with this equipment must be properly shielded to comply with the requirements of the FCC. Changes or modifications not expressly approved by GEMPLUS could void the user's authority to operate the equipment. Don’t use USB or SERIAL extension cable with this product. "Accessories for use with UL Listed Computers having limited power or Class 2 output"

FCC ID: MES473GPC 1 BLOCK DIAGRAM OF EQUIPMENT 1.1 Clock list of GemPC Twin product Crystal oscillator : 4 MHz Bits rate : - 12MHz for USB - up to 115.2kHz for serial 1.2 Block diagram of GemPC Twin product CARD Interface 4 MHz Clock USB from / to host 5V from USB 4 MHz Data Link 12 MHz PC Keyboard Serial 9600 bds / 115200 bds 5V from PC Keyboard CPU USB Interface Full Speed RS232 Interface

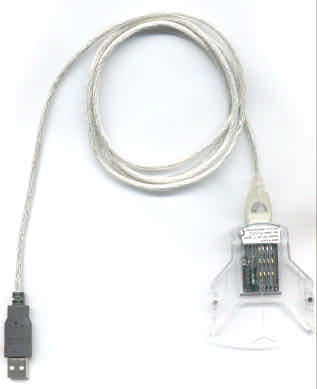

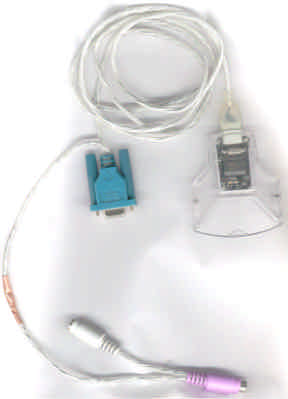

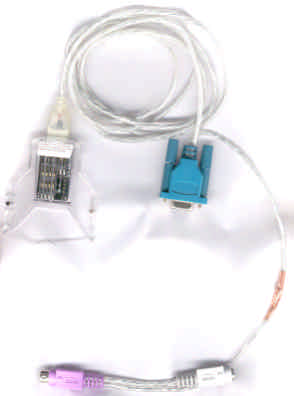

FCC ID: MES473GPC 1 EXTRERNAL PHOTOS OF TESTED EUT 1.1 General view General view, smart card inserted General view, smart card removed FCC ID: MES473GPC 1.2 GemPC Twin with Serial cable Front viewRear view FCC ID: MES473GPC 1.3 GemPC Twin with USB cable Front viewRear view

FCC ID: MES473GPC 1 PRODUCT LABELING 1.1 FCC ID engraving This is a photo of the engraving on the product. Because there is not enough room to set the FCC statement on a conspicuous place on the case, it will be on the second page of documentation. (See §1.2.3) (Size : 21mm x 28mm) engraving thickness: 0.3mm 1.2 Location of the engraving on EUT FCC information are set on the rear face of the product (see picture). engraving will be at that location 28mm 21mm FCC ID: MES473GPC 1.2.1 User's manuel Just below, is a copy of the 2 nd page of user's manual This device complies with part 15 of the FCC rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Regulatory Information Notice for the USA: FCC Statement Federal Communications Commission (FCC) Radio Frequency Interference Statement (USA Only) This equipment has been tested and found to comply with the limits for a class B digital device, pursuant to Part 15 of FCC Rules. These limits are designed to provide reasonable protections against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try one of more of the following measures: ‡ Relocate the radio or television antenna. ‡ Plug the equipment away from the radio or television. ‡ Plug the equipment into a different electrical outlet, so that the equipment and the radio or television are on separate electrical circuits. ‡ Make sure that all your peripheral devices are also FCC Class B certified. ‡ Make sure you use only shielded cables to connect peripheral devices to your equipment. ‡ Consult your equipment dealer, or an experienced radio / television technician for help. WARNING: The system verification tests were conducted with GEMPLUS supported peripheral devices. Cables used with this equipment must be properly shielded to comply with the requirements of the FCC. Changes or modifications not expressly approved by GEMPLUS could void the user's authority to operate the equipment. Don’t use USB or SERIAL extension cable with this product. "Accessories for use with UL Listed Computers having limited power or Class 2 output"

FCC ID: MES473GPC 1 INTERNAL PHOTOS OF TESTED EUT Internal view, case opened Internal board, smart card connector side Internal board, smart card connector removed FCC ID: MES473GPC Internal board, components side

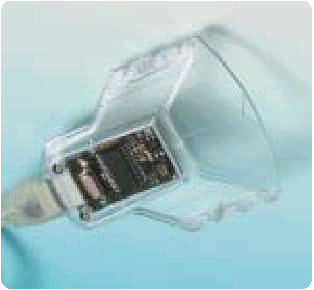

FCC ID: MES473GPC 1 GENERAL INFORMATION 1.1 Product description The GemPC Twin device is a smart card reader (plug and Play) connected to a Personal Computer. Smart cards which can be used with the GemPC Twin reader are ISO7816-1/2/3/4 compatible smart cards. It is introduced in the GemPC Twin reader, and the Personal Computer manages applications; Typical applications are: - Computer access control - Internet shopping - Online banking services - E-purse facilities - Electronic smart card personalization - Development of smart card application software - Others... The GemPC Twin reader is connected with the Personal Computer by either the USB Type A slot or serial terminal. GemPC Twin is provided with either serial or USB cables depending on customer's needs. The power of this reader is supply by either USB connector for USB setup or keyboard connector for serial setup. The GemPC Twin is a product developed by the Gemplus company. For more information, see product's data sheet at section 1.6. 1.2 Related Submittal(s) / Grant(s) All host equipment used in the test configuration are FCC granted, when relevant. 1.3 Tested System Details The FCC IDs for all equipment, plus description of all cables used in the tested system (including inserted cards, which have grants) are : Trade Mark – Model Number (Serial number) FCC IDDescriptionCable description GemPC Twin PN: HWP108760* (sn: none) MES473GPCSmart card readerSerial Shielded cable attached to product (RS232 + Keyboard connector) GemSAFE  Entreprise (sn: 000020004303921) NoneSmart cardnone Dell Latitude CPi PN: Cpi AD400XTB (sn: VSRW6) with AC adaptor block 9364U Doc. Of ConfLaptopAll data cables are shielded Power cable unshielded HEWLETT PACKARD pn: D2846 (sn: JP74001000) Doc. Of Conf.21" color monitorShielded video cable with ferrite at each end HEWLETT PACKARD pn: C3751B (sn: LZA62831261) DZL211029MouseShielded cable HEWLETT PACKARD 895CXI pn: C6410A (sn: MY9761915S) Doc. Of Conf.Parallel printerHP C2950A shielded parallel cable TELEX (sn: 700.373.000A) NoneMicrophoneShielded cable LABTEC LT100 pn: D8387A (sn: none) NoneHeadsetShielded cable *Equipment Under Test FCC ID: MES473GPC 1.4 Test Methodology Both conducted and radiated testing were performed according to the procedures in ANSI C63.4-1992, CISPR22-1997/A1:2000 and EN55022:1998/A1:2000. Radiated testing was performed at an antenna to EUT distance of 10 meters. During testing, all equipment’s and cables were moved relative to each other in order to identify the worst case set-up. 1.5 Test facility Tests have been performed on September 30 th , 2002. The test facility used to collect the radiated and conducted data is the SMEE Actions Mesures facility, located ZI des Blanchisseries, 38500 VOIRON, France. This test facility has been fully described in a report and accepted by FCC as compliant with the radiated and AC line conducted test site criteria in ANSI C63.4-1992 in a letter dated August 04, 1999 (registration number 94821). This test facility has also been accredited by COFRAC (French accreditation authority for European union test lab accreditation organization), accreditation number 1-0844 as compliant with test site criteria and competence in EN55022/CISPR22 norms for 89/336/EEC European EMC Directive application. All pertinent data for this test facility remains unchanged. FCC ID: MES473GPC 1.6 Data sheet of the product The innovative smart card interface Novel design at low-cost – The new reader from the world’s leading provider of smart card enabled solutions. Using its best selling single-chip interface, GemCore Pro, Gemplus has created a new reader, GemPC Twin, that works in tandem with your smart card design, while offering the enduser the choice of a serial or USB connection. GemPC Twin provides an unrivalled, cost effective and secure way to enhance your smart card based applications. This is especially relevant for corporate security, Internet shopping and online banking services where confidentiality is a must. The proven security, reliability and efficiency of this new architecture have made GemCore-based devices such as GemPC Twin world favorites, passing all computing and banking certifications such as Microsoft WHQL (Windows Hardware Quality Labs) and EMV (Europay, MasterCard, Visa). GemPC Twin is also compliant with Microsoft’s soon to be released CCID driver. New transparent design Customization of a smart card reader slows down time to market and increases the cost of production. Gemplus removes both of these issues by providing a fully transparent reader that makes the most your smart card design. By avoiding graphical reader personalization, GemPC Twin allows you to use the smart card as a promotional tool, bringing down overall costs. Ergonomic and compact, the new design of GemPC Twin will be a welcome addition to any workstation. An intelligent approach Companies deploying a smart cardbased solution face the problem of knowing which type of PC connection the end-user needs, either serial or USB. GemPC Twin overcomes this problem by being compliant with both standards and can be provided with either serial or USB cables depending on customers’ needs. The power of this reader is its ability to automatically reconfigure the way it communicates by simply inserting either cable (removing the need for additional software or drivers). FCC ID: MES473GPC Same Gemplus expertise Gemplus designs, develops and delivers industry leading smart card interface technologies backed by a dedicated team to ensure successful and profitable implementation of our products. Choosing Gemplus GemPC smart card readers also provides access to a full range of associated software, services and support which have made Gemplus the undisputed world leader in Smart Card enabled solutions. Working with our Integration and Consulting Services team means that you benefit from many years of experience in the deployment and integration of smart card solutions in telecommunications, finan…

Text truncated - open the document above for the full version.

Actions Mesures Z.I. des Blanchisseries – 38500 VOIRON – France – Tél. +33 (0)4 76 65 76 50 – Fax +33 (0)4 76 66 18 30 S.A. au capital de 152 449,02€/ R.C. de Grenoble B 329 901 888 / SIRET 329 901 888 00035 / code APE 332 B / n°TVA :FR29 329 901 888 This test report applies only on equipment described hereafter. Proposal number : 200209-2031 Date of test...................................:September 23 rd & 30 th , 2002 Location.......................................: SMEE Actions Mesures Laboratory - 38 VOIRON Performed by................................:Jacques LORQUIN Customer.....................................:GemPlus (Mr. COLLET) Z.I. Athélia III Voie Antiope 13705 LA CIOTAT Cedex 8 –France Product........................................:GemPCTwin (USB / RS232) Type of test..................................: Radiated and Conducted Emission Test Applied standards or specification:EN55022 (1999) +/A1: (2000) CISPR22 (1997) +/A1: (2000) ANSI C63-4 (1992+2000) Level............................................:CISPR Class B Test objective................................:Qualification Results........................................:Conducted emissions:Comply Radiated emissions:Comply The reproduction of this test report is authorized only under its entire form. This report contents 15 pages Written by........................:Laurent CHAPUS Approved by....................:Jacques LORQUIN EMC TEST REPORT Nr 2598-FCC FCCID : MES473GPC Nr 2598-FCCSeptember 23rd & 30th , 2002page 2 /15 1. System test configuration 1.1. Justification The system was configured for testing in a typical fashion (as a customer would normally use it). A typical smart card was introduced in the GemPC Twin reader, which was itself connected to a personal computer. It has been tested with a Dell Personal computer laptop. Each ports of the Personal Computer were loaded with a typical peripheral device. 1.2. HARDWARE IDENTIFICATION: Equipment under test (EUT): ÿÿ ÅÅ GemPCTwin(USB)pn: HWP0108760sn: noneFCCID:MES473GPC - Frequency:crystal 4 MHz - Size :70x60x11mm - Input/output: USB cable with USB connector. ÿÿ ÅÅ GemPCTwin(RS232)pn: HWP0108760sn: noneFCCID:MES473GPC - Frequency:crystal 4 MHz - Size :70x60x11mm - Input/output: serial cable with DB9 and PS/2 (keyboard) connector. 1.3. Auxiliaries The FCC IDs for all equipment, plus description of all cables used in the tested system (including inserted cards, which have grants) are : Trade Mark – Model Number (Serial number) FCC IDDescriptionCable description GemSAFE  Entreprise (sn: 000020004303921) NoneSmart cardnone Dell Latitude CPi PN: Cpi AD400XTB (sn: VSRW6) with AC adaptor block 9364U Doc. Of ConfLaptopAll data cables are shielded Power cable unshielded HEWLETT PACKARD pn: D2846 (sn: JP74001000) Doc. Of Conf.21" color monitor Shielded video cable with ferrite at each end HEWLETT PACKARD pn: C3751B (sn: LZA62831261) DZL211029MouseShielded cable HEWLETT PACKARD 895CXI pn: C6410A (sn: MY9761915S) Doc. Of Conf.Parallel printer HP C2950A shielded parallel cable TELEX (sn: 700.373.000A) NoneMicrophoneShielded cable LABTEC LT100 pn: D8387A (sn: none) NoneHeadsetShielded cable 1.4. Equipment modifications No equipment modification has been necessary during testing to achieve compliance to Class B levels. The unit tested was representative to a production unit. FCCID : MES473GPC Nr 2598-FCCSeptember 23rd & 30th , 2002page 3 /15 1.5. EUT Exercise software The EUT exercise program (Apitest.exe, running in loop under Windows 98) used during radiated and conducted testing was designed to exercise the GemPC Twin reader in a manner similar to a typical use : • testing the smart card presence in the reader, • testing the Answer To Reset (ATR), • powering down the smart card. 1.6. Special accessories The cable which connect the GemPC Twin reader to RS232+Keyboard port of the Personal Computer, is shielded and attached to the GemPC Twin. For USB setup, the USB cable connected to the GemPC Twin reader is shielded. The smart card used in the GemPC Twin is a GemSAFE Entrepris ISO 7816-1,2,3 and 4 compliant. 1.7. I/O cables - USB cable, length : 1.5m (used for USB setup) - RS232 cable shielded with keyboard connector, length : 1.5m + 0.3m (see figure 1) - Video cable with ferrite at each end, length : 1.8m. - Parallel cable HP #C2950A, length : 2m. - USB cable LINDY, length : 1m (used for RS232 setup) Figure 1 1.8. Equipment modifications No equipment modification has been necessary during testing to achieve compliance to Class B levels. The unit tested was representative to a production unit. keyboard connector RS232 cable, length : 0.3m EUT RS232 cable, length : 1.5m DB9 connector FCCID : MES473GPC Nr 2598-FCCSeptember 23rd & 30th , 2002page 4 /15 2. Radiated emission data 2.1. SET-UP for USB cable Mains: 230V@50Hz The EUT and auxiliaries are set on the no-conductive table of 80 cm height. Equipment configuration and running mode: - The GemPCTwin is connected on USB connector of the PC; - The smart card is insert in GemPCTwin; - software running in loop; The installation of EUT is identical for pre-characterization measures in a 3 meters full anechoic chamber and for measures on a 10 meters Open site. 2.2. SET-UP for RS232 cable Mains: 230V@50Hz The EUT and auxiliaries are set on the no-conductive table of 80 cm height. FCCID : MES473GPC Nr 2598-FCCSeptember 23rd & 30th , 2002page 5 /15 Equipment configuration and running mode: - The GemPCTwin is connected on serial port and keyboard connector of the PC; - The smart card is insert in GemPCTwin; - software running in loop; The installation of EUT is identical for pre-characterization measures in a 3 meters full anechoic chamber and for measures on a 10 meters Open site. 2.3. TEST EQUIPMENT Test Equipment from 30MHz to 1GHz on 10 meters open site: EquipmentCompanyModelSerialCalibration Due Spectrum AnalyzerHP8568B2732A04140March 22 nd ,2003 Quasi-Peak adapterHP85650A2811A01136March 22 nd ,2003 RF Pre-selectorHP85685A2833A00773March 2…

Text truncated - open the document above for the full version.

FCC ID: MES473GPC 1 CONDUCTED AND RADIATED MEASUREMENT PHOTOS 1.1 Conducted emissions USB setup Front view Rear view FCC ID: MES473GPC 1.2 Conducted emissions Serial setup Front view FCC ID: MES473GPC Rear view Detailed view 1.3 Radiated emission Front View Rear view Detailed view
