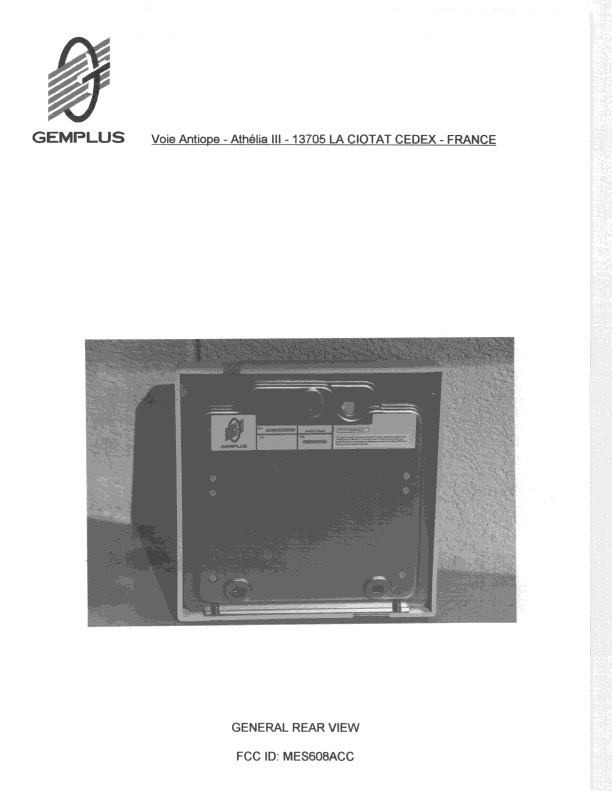

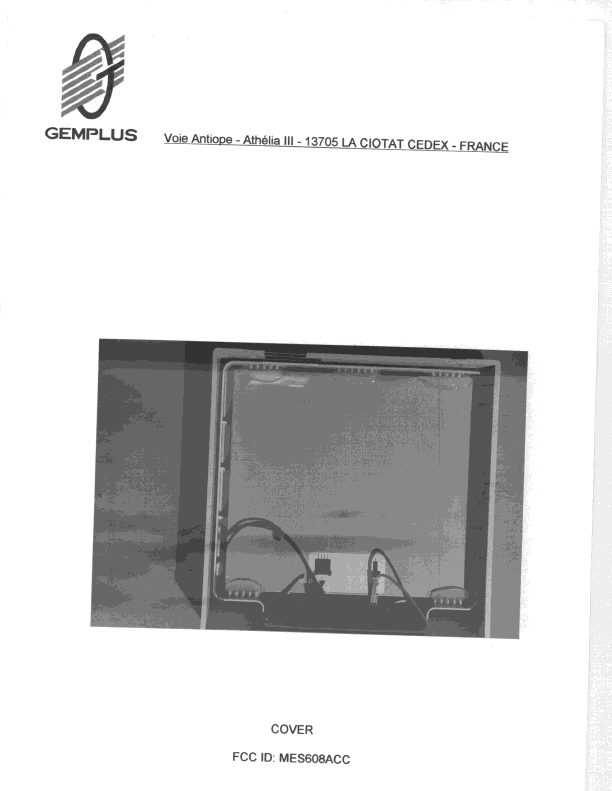

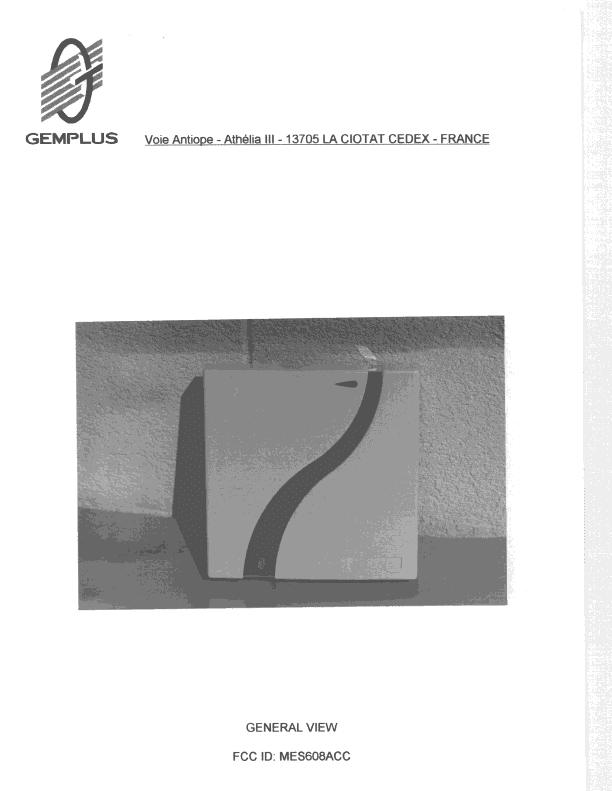

EQUIPMENT PHOTO GemAccess 608 FCC ID: MES608ACC 1 PHOTOS OF TESTED EUT The following photo are attached : 1.1 Internal view of GemAccess 608 1.2 Component side of boards 1.3 Solder side of boards 1.1 Internal view of GemAccess 608 1.2 Component side of boards 1.3 Solder side of boards

EQUIPMENT PHOTO GemAccess 608 FCC ID: MES608ACC 1 PHOTOS OF TESTED EUT The following photo are attached : 1.1 Internal view of GemAccess 608 1.2 Component side of boards 1.3 Solder side of boards 1.1 Internal view of GemAccess 608 1.2 Component side of boards 1.3 Solder side of boards 1.4 Component side without metallic plate (Large view) 1.5 Component side without metallic plate (detailed view)

8 8 7 7 6 6 5 5 4 4 3 3 2 2 1 1 DD CC BB AA GCI680L Validé parVérifié parPréparé par Ph. PORTE le 18/06/97 M. BERTHOZATM. BERTHOZAT le 18/06/97le 18/06/97 P4S03266 B00 SCHEMA DE PRINCIPE GCI680L GEMPLUS VOIE ANTIOPE - ATHELIA III B 17Thursday, October 21, 1999 13705 LA CIOTATTitle SizeDocument NumberRev Date:Sheet of MF1DIFS1 MF1DIFS1 RX RFVDD GND HFOUT MF1DIFS3 MF1DIFS3 HFOUT TXNPAUSE GND CLOCK MF1DIFS5 MF1DIFS5 D[0..3] C[0..8] RFVDD DVDD AD[0..7] GND MF1DIFS4 MF1DIFS4 TXNPAUSERXKOMP GNDRFVDD CLOCKDVDD C[0..8]AD[0..7] MF1DIFS2 MF1DIFS2 RX RFVDD RXKOMP DVDD GND MF1DIFS6 MF1DIFS6 GND D[0..3] DVDD RFVDD AD[0..7] C[0..8] D[0..3] +12V DVDD Z1 PCB1 Z2Z3 SP1 8 8 7 7 6 6 5 5 4 4 3 3 2 2 1 1 DD CC BB AA A IMPLANTER COUCHE 4 AVEC SERIGRAPHIE A IMPLANTER COUCHE 4 SUR RADIATEUR SP2 P4S03266B00 SCHEMA DE PRINCIPE GCI680L MF1DIFS1 GEMPLUS VOIE ANTIOPE - ATHELIA III 13705 LA CIOTAT B 27Thursday, October 21, 1999 Title SizeDocument NumberRev Date:Sheet of +12V +12V R28 2K 13 2 L9 820nH 12 R29 33R 1 2 PT4 1pt 1 C44 NPO 470pF 1 2 C57 NPO 470pF 1 2 L10 820nH 12 C126 NPO 18pF 12 R30 1K 1 2 L11 680nH 12 C127 NPO 6,8pF 12 C121 NPO 270pF 1 2 C28 NPO 150pF 12 Q2 2N3553 1 2 3 C3 ALU LXF 47uF 16V 21 R34 2,2R 1 2 C43 NPO 330pF 1 2 C33 NPO 12pF 1 2 L5 22uH 1 2 R35 562R 1 2 C35 NPO 2,7nF 12 R33 3,32K 1 2 R31 22R1 1 2 R32 221R 1 2 L7 330nH 1 2 C36 NPO 470pF 1 2 C37 NPO 3,3nF 1 2 C122 NPO N.C. 1 2 C39 NPO N.C. 1 2 C38 NPO N.C. 1 2 Q1 BSR17A 2 1 3 L6 1uH 1 2 R27 562R 12 PT16 1pt 1 C41 X7R 100nF 12 C29 NPO 330pF 1 2 C30 NPO 220pF 1 2 C42 X7R 100nF 12 PT3 1pt 1 C31 NPO N.C. 1 2 C32 NPO N.C. 1 2 C53 NPO N.C. 1 2 C40 X7R 100nF 12 PT2 1pt 1 PA PLAGE D'ACCEUIL COAX 1 2 PT1 1pt 1 C56 NPO N.C. 1 2 C120 NPO 56pF 1 2 C124 NPO 56pF 12 C55 NPO 470pF 1 2 C125 NPO 33pF 12 L8 560nH 12 HFOUT RX GND RFVDD 8 8 7 7 6 6 5 5 4 4 3 3 2 2 1 1 DD CC BB AA OU P4S03266B00 SCHEMA DE PRINCIPE GCI680L MF1DIFS2 GEMPLUS VOIE ANTIOPE - ATHELIA III 13705 LA CIOTAT B 37Thursday, October 21, 1999 Title SizeDocument NumberRev Date:Sheet of +12V +12V +5V1 +12V +12V +12V +12V MID MID MID MID +5V1 MID C52 X7R 100nF 12 C1 X7R 100nF 12 D1 BAR43 R25 10K 1 2 R26 3,32K 1 2 C51 NPO 10pF 1 2 C15 NPO 100pF 1 2 D2 BAR43 C16 NPO 2,2pF 1 2 C25 X7R 100nF 1 2 C27 NPO 10pF 1 2 C18 NPO 100pF 12 C26 ALU LXF 47uF 16V 2 1 R6 10K 1 2 PT13 1pt 1 Q4 BC858C 2 1 3 C17 X7R 100nF 12 C20 X7R 100nF 12 R7 33K2 1 2 R37 100R 1 2 R36 22K 1 2 C22 NPO 150pF 1 2 C5 ALU LXF 47uF 16V 2 1 FL2 ZJKD51R1-15 14 23 R8 825R 1 2 C21 NPO 68pF 12 R9 12K1 12 C23 NPO 100pF 12 R11 100R 1 2 U5 CA3046 4 5 2 3 1 R16 100R 1 2 R14 4,75K 1 2 R15 4,75K 1 2 PT5 1pt 1 C48 ALU LXF 47uF 16V 2 1 C49 X7R 100nF 1 2 R10 10K 1 2 R12 2,21K 1 2 R13 1K 1 2 PT8 1pt 1 C6 X7R 100nF 1 2 R17 2,21K 1 2 + - U6A LM319 4 5 12 R39 47K5 1 2 PT6 1pt 1 Q3 BC848C2 1 3 R18 100K 1 2 + - U6B LM319 9 10 7 6 11 38 FL1 ZJKD51R1-15 14 23 C19 NPO 4,7nF 1 2 C11 NPO 6,8pF 12 PT7 1pt 1 L2 47uH 1 2 C12 NPO 39pF 1 2 R38 1M 1 2 L1 6uH 1 3 C13 NPO 27pF 1 2 R24 2,21K 1 2 R23 4,75M 1 2 U7 LP2950 13 2 VIVO GND R22 100K 1 2 C14 NPO 100pF 1 2 C24 X7R 100nF 12 PT11 1pt 1 RX RFVDD GND DVDD RXKOMP DVDD 8 8 7 7 6 6 5 5 4 4 3 3 2 2 1 1 DD CC BB AA P4S03266B00 SCHEMA DE PRINCIPE GCI680L MF1DIFS3 GEMPLUS VOIE ANTIOPE - ATHELIA III 13705 LA CIOTAT B 47Thursday, October 21, 1999 Title SizeDocument NumberRev Date:Sheet of +5V1 +5V1 R5 100R 1 2 U3A 74HC02 2 3 1 U3B 74HC02 5 6 4 7 14 U3C 74HC02 8 9 10 U3D 74HC02 11 12 13 R4 1M 12 PT12 1pt 1 C7 X7R 100nF 12 C8 X7R 100nF 12 C9 NPO 22pF 1 2 C10 NPO 33pF 1 2 U4D 74HCU04 98 14 7 U4E 74HCU04 1110 U4B 74HCU04 34 U4A 74HCU04 1 2 R21 4,75K 12 U4F 74HCU04 1312 U4C 74HCU04 5 6 Y1 13,56MHz 12 TXNPAUSE HFOUT CLOCK GND 8 8 7 7 6 6 5 5 4 4 3 3 2 2 1 1 DD CC BB AA ALE NCS CS USE MODE NWR NRD NIRQ NCS NRD decouplage asic P4S03266B00 SCHEMA DE PRINCIPE GCI680L MF1DIFS4 GEMPLUS VOIE ANTIOPE - ATHELIA III 13705 LA CIOTAT B 57Thursday, October 21, 1999 Title SizeDocument NumberRev Date:Sheet of C2 C7 C1 C2 C3 C4 C5 AD7 AD6 AD5 AD4 AD3 AD2 AD1 AD0 C6 C7 C8 C[0..8] AD[0..7] AD7AD6AD5AD4AD3AD2AD1AD0 U2 SLS-ASIC 18 19 27 28 22 31 32 17 16 15 14 13 12 10 20 21 29 8 7 26 25 23 3536 33 34 38 42 43 39 40 41 44 4 5 1 2 3 37 11 24 CS NCS ALE USEALE MODE IHT IHS D7 D6 D5 D4 D3 D2 D0 NWR NRD NIRQ VDD BP A3 A2 A0 OSC0OSC1 CKOUT FEC SYNC1 MODOUT1 NPAUSE1 GATE1 WKOMP1 KOMP1 SYNC0 MODOUT0 NPAUSE0 GATE0 WKOMP0 KOMP0 VSS D1 A1 R41 RESEAU DE 8 RESISTANCES 5% 8 x 10K 2345678 1 9 PT14 1pt 1 R102 1K 12 D7 BAR43 S1 12 D8 BAS16 C45 NPO 330pF PAS CABLE 1 2 C46 NPO 330pF 1 2 C54 X7R 100nF 12 PT15 1pt 1 J13 N.C. 1 2 BT1 BR2032 DVDD DVDD CLOCK AD[0..7] C[0..8] DVDD DVDD RXKOMP TXNPAUSE 8 8 7 7 6 6 5 5 4 4 3 3 2 2 1 1 DD CC BB AA P1.6 P1.7 TXM RXM P1.6 P1.7 NIRQ NRD NWR ALE NWR NRD MODE CS USE NCS ALE NRD 2000Hex 2100Hex 2200Hex 2300Hex 2400Hex 2500Hex 2600Hex ASIC 2700Hex CONFIG SERIGRAPHIE SERIGRAPHIE CONNECTEUR POUR EXTENSION sur support PLCC44 SP1 condensateurs de decouplage U8,U15,U10,U12 et U13 P4S03266B00 SCHEMA DE PRINCIPE GCI680L MF1DIFS5 GEMPLUS VOIE ANTIOPE - ANTIOPE III 13705 LA CIOTAT B 67Thursday, October 21, 1999 Title SizeDocument NumberRev Date:Sheet of CSEPROM A15 CSRAM A14 A13 AD0 AD1 AD2 AD3 AD4A8 AD5A9 BCFAD6A10 AD7 RESA8A13 A9A14 A10C5A15 INT1A11C1 T0A12C4 T1A13C2 A14 P1.0A15 P1.1 P1.2C7 P1.3C6 INT0P1.4PSE P1.5C3 D0D2 D1D3AD0 AD1 AD2 AD3 AD4 AD5 AD6 AD7 BCFP1.0 P1.1C7 P1.2 A8P1.3 A9P1.4 A10P1.5 A11D0 A12D1 A13CSRAM A14CSEPROM A15T1 AD0T0 AD1INT1 AD2INT0 AD3C3 AD4 AD5PSE AD6C6 AD7C7 RES AD[0..7] D[0..3] C[0..8] C8 VCC VCC VCC+12V VCC VCC +12V VCC DGND VCC 1 2 1 2 C111 X7R 100nF 1 2 U14 UA78M05C INDUSTRIEL monter à plat 13 2 VIVO GND C123 ALU LXF 47uF 16V 2 1 U13 74HC138 1 2 3 6 4 5 15 14 13 12 11 10 9 7 A B C G1 G2A G2B Y0 Y1 Y2 Y3 Y4 Y5 Y6 Y7 R101 1K 1 2 U12 87C51RB-1 35 20 21 10 14 15 16 17 2 3 4 5 6 7 8 9 43 42 41 40 39 38 37 36 24 25 26 27 28 29 30 31 19 18 32 33 13 11 EA/VP X2 X1 RESET P3.2/INT0 P3.3/INT1 P3.4/T0 P3.5/T1 P1.0 P1.1 P1.2 P1.3 P1.4 P1.5 P1.6 P1.7 P0.0 P0.1 P0.2 P0.3 P0.4 P0.5 P0.6 P0.7 P2.0 P2.1 P2.2 P2.3 P2.4 P2.5 P2.6 P2.7 RD…

Text truncated - open the document above for the full version.

TEST REPORT GemAccess 608 FCC ID: MES608ACC 1 SYSTEM TEST CONFIGURATION 1.1 Justification The system was configured for testing in a typical fashion (as a customer would normally use it). The worst case position of the transmitter has been fund in vertical position, as shown on photographs. The card is set up at 5cm from the card reader, which simulates the current position when the card is held by hand. 1.2 EUT Exercise software A read and write software emulates the read and allows to read and write data stored in the contactless card in repetitive way. 1.3 Special accessories No special accessories were necessary to perform the test. 1.4 Equipment modifications No equipment modification has been necessary during testing to achieve compliance to FCC Part15, Subpart C levels. The unit tested was a production unit. 1.5 Configuration of tested system. Card reader GemAccess 608 Video Display HP D2846A // Printer Keyboard Mo u s e Power supply Personal computer Contactless card Serial cable Key board cableMouse cable // cable Video cable 1.6 Tested System Details The FCC IDs for all equipment, plus description of all cables used in the tested system (including inserted cards, which have grants) are : Trade Mark – Model Number (Serial number) FCC IDDescriptionCable description GEMPLUS GemAccess608MES608ACCContactless card readerShielded signal cables COMATEC AL0120-120-ITNALinear Power supply for GemAccess608 (12VDC, 1.2A) Unshielded power cord, 2 poles HP VECTRA 515 Series D4136A (FR62365527) B94VECTRA500TPersonal computerUnshielded power cord HP C3751B (LZA62831289) DZL211029MouseShielded cable HP C2106A (3041S18664) B94C2106XDESKJET 500 Parallel printerHP24542D – Shielded cable HP C4737-60101 (M97060565) GYUR38SKKeyboardShielded cable HP D2846A (2) (JP74001000) NA – DoC procedure21" video monitorShielded video cable (1) EUT submitted for grant 2 RADIATED EMISSION DATA 2.1 Test Procedure (15.225) The product has been tested according to ANSI C63.4-1992 and FCC PART15, Subpart C, Section 15.225. In first, the frequencies are identified in the full anechoic chamber and then are measured on the Open Area Test Site. The plots on the following page shown only the frequency identification. The table just after shown the measured levels. Measured levels are in dBμV/m, then they are corrected in μV/m in order to compare them to the FCC limit. The following conversion is used : L (μV/m) = inv log (L(dBμV/m) / 20) From 30 to 1000 MHz, the product has been tested at a distance of 3 meters from the antenna and compared to the FCC Part15, Subpart C, chapter 15.209 limits. Measurement bandwidth was 120 KHz from 30 MHz to 1 GHz. From 1.705 to 30 MHz, the product has been tested at a distance of 10 meters from the antenna and compared to the FCC Part15, Subpart C, chapter 15.209 limits. Measurement bandwidth was 120 KHz from 30 MHz to 1 GHz. Requirements of 15.209.e) have been observed. Under 1GHz, measurement are Quasi Peak measurements, according to CISPR requirements. Above 30MHz, antenna height search was performed from 0.9m to 4m for both horizontal and vertical polarization. Continuous linear turntable azimuth search was performed with 360 degrees range. Under 30MHz, a rod antenna has been used, according to provisions of ANSI C63.4 A summary of the worst case emissions found in all test configurations and modes is shown on the following page. Test Equipment: HP-8568B Analyzer + HP-85650A Quasi-Peak adapter + HP-85685A RF Preselector HP 8591EM Spectrum analyzer HP 8546A EMI Receiver CHASE CBL6111A Antenna, 30-1000 MHz AILTECH 94607-1, sn119, preamplifier associated with EATON 92197-3 ROD Antenna for frequencies identification. ElectroMetrics Model RVR-30M, sn 593, Passive Rod Antenna for final results measurement. 2.2 Radiated emission data (15.225.b) Plot of frequencies from 1.705 to 30 MHZ No signal appears in the restricted bands from 1.705 to 30 MHz. Plot of frequencies from 30MHz to 1GHZ Final result: Frequency (MHz) Restricted bands Limits (Lmt) (uV/m) Measurement Distance Measure* (Mea) (uV/m) Mea-Lmt (μV/m) Angle (deg) Pol Hgt (cm) Tot Corr (μV/m) Comments 2.57No3030* 1 Not traceable signal 13.56No1000030* 1 124.459875.553V1m14.22 Fundamental - 15.225 limits 40.68No100394.45.6112V 1033.59 15.209 limits 54.268No100321.8778.13125V 1023.84 15.209 limits 67.785No100327.2272.78123V 1023.23 15.209 limits 81.383No100317.9982.01149V 1132.98 15.209 limits 108.480No100313.3386.67103V 1026.45 15.209 limits 144.080No100345.7054.3141V 1296.02 15.209 limits 196.140No150330.20119.8204H 16010.47 15.209 limits 204.143No150342.66107.34213H 1555.13 15.209 limits 212.153No150343.15106.8571H 1215.31 15.209 limits Frequency (MHz) Restricted bands Limits (Lmt) (uV/m) Measurement Distance Measure* (Mea) (uV/m) Mea-Lmt (μV/m) Angle (deg) Pol Hgt (cm) Tot Corr (μV/m) Comments 288.217No150341.21108.7987H 1017.58 15.209 limits 298.842No150324.55125.4591H 1128.03 15.209 limits 595..629No200326174202H 26116.22 15.209 limits * : (A) denotes an average unit, (Q) denotes a Quasi Peak unit, (P) denotes a peak unit. * 1 : Measurement have been done at 10m distance and corrected following requirements of 15.209.e). 2.3 Field Strength Calculation (15.225.a & b) The field strength is calculated by adding the Antenna Factor and Cable Factor, and subtracting the Amplifier Gain (if any) from the measured reading. The basic equation with a sample calculation is as follow : FS = RA + AF + CF – AG WhereFS = Field Strength RA = Receiver Amplitude AF = Antenna Factor CF = Cable Factor AG = Amplifier Gain Assume a receiver reading of 52.5dBμV is obtained. The antenna factor of 7.4 and a cable factor of 1.1 is added. The amplifier gain of 29dB is subtracted, giving a field strength of 32 dBμV/m. FS = 52.5 + 7.4 + 1.1 – 29 = 32 dBμV/m The 32 dBμV/m value can be mathematically converted to its corresponding level in μV/m. Level in μV/m = Common Antilogarithm [(32dBμV/m)/20] = 39.8 μV/m. 2.4 Fundamental field strength (15.225.a) Emission fre…

Text truncated - open the document above for the full version.

TEST REPORT GemAccess 608 FCC ID: MES608ACC 1 SYSTEM TEST CONFIGURATION 1.1 Justification The system was configured for testing in a typical fashion (as a customer would normally use it). The worst case position of the transmitter has been fund in vertical position, as shown on photographs. The card is set up at 5cm from the card reader, which simulates the current position when the card is held by hand. 1.2 EUT Exercise software A read and write software emulates the read and allows to read and write data stored in the contactless card in repetitive way. 1.3 Special accessories No special accessories were necessary to perform the test. 1.4 Equipment modifications No equipment modification has been necessary during testing to achieve compliance to FCC Part15, Subpart C levels. The unit tested was a production unit. 1.5 Configuration of tested system. Card reader GemAccess 608 Video Display HP D2846A // Printer Keyboard Mo u s e Power supply Personal computer Contactless card Serial cable Key board cableMouse cable // cable Video cable 1.6 Tested System Details The FCC IDs for all equipment, plus description of all cables used in the tested system (including inserted cards, which have grants) are : Trade Mark – Model Number (Serial number) FCC IDDescriptionCable description GEMPLUS GemAccess608MES608ACCContactless card readerShielded signal cables COMATEC AL0120-120-ITNALinear Power supply for GemAccess608 (12VDC, 1.2A) Unshielded power cord, 2 poles HP VECTRA 515 Series D4136A (FR62365527) B94VECTRA500TPersonal computerUnshielded power cord HP C3751B (LZA62831289) DZL211029MouseShielded cable HP C2106A (3041S18664) B94C2106XDESKJET 500 Parallel printerHP24542D – Shielded cable HP C4737-60101 (M97060565) GYUR38SKKeyboardShielded cable HP D2846A (2) (JP74001000) NA – DoC procedure21" video monitorShielded video cable (1) EUT submitted for grant 2 RADIATED EMISSION DATA 2.1 Test Procedure (15.225) The product has been tested according to ANSI C63.4-1992 and FCC PART15, Subpart C, Section 15.225. In first, the frequencies are identified in the full anechoic chamber and then are measured on the Open Area Test Site. The plots on the following page shown only the frequency identification. The table just after shown the measured levels. Measured levels are in dBμV/m, then they are corrected in μV/m in order to compare them to the FCC limit. The following conversion is used : L (μV/m) = inv log (L(dBμV/m) / 20) From 30 to 1000 MHz, the product has been tested at a distance of 3 meters from the antenna and compared to the FCC Part15, Subpart C, chapter 15.209 limits. Measurement bandwidth was 120 KHz from 30 MHz to 1 GHz. From 1.705 to 30 MHz, the product has been tested at a distance of 10 meters from the antenna and compared to the FCC Part15, Subpart C, chapter 15.209 limits. Measurement bandwidth was 120 KHz from 30 MHz to 1 GHz. Requirements of 15.209.e) have been observed. Under 1GHz, measurement are Quasi Peak measurements, according to CISPR requirements. Above 30MHz, antenna height search was performed from 0.9m to 4m for both horizontal and vertical polarization. Continuous linear turntable azimuth search was performed with 360 degrees range. Under 30MHz, a rod antenna has been used, according to provisions of ANSI C63.4 A summary of the worst case emissions found in all test configurations and modes is shown on the following page. Test Equipment: HP-8568B Analyzer + HP-85650A Quasi-Peak adapter + HP-85685A RF Preselector HP 8591EM Spectrum analyzer HP 8546A EMI Receiver CHASE CBL6111A Antenna, 30-1000 MHz AILTECH 94607-1, sn119, preamplifier associated with EATON 92197-3 ROD Antenna for frequencies identification. ElectroMetrics Model RVR-30M, sn 593, Passive Rod Antenna for final results measurement. 2.2 Radiated emission data (15.225.b) Plot of frequencies from 1.705 to 30 MHZ No signal appears in the restricted bands from 1.705 to 30 MHz. Plot of frequencies from 30MHz to 1GHZ Final result: Frequency (MHz) Restricted bands Limits (Lmt) (uV/m) Measurement Distance Measure* (Mea) (uV/m) Mea-Lmt (μV/m) Angle (deg) Pol Hgt (cm) Tot Corr (μV/m) Comments 2.57No3030* 1 Not traceable signal 13.56No1000030* 1 124.459875.553V1m14.22Fundamental - 15.225 limits 40.68No100394.45.6112V1033.5915.209 limits 54.268No100321.8778.13125V1023.8415.209 limits 67.785No100327.2272.78123V1023.2315.209 limits 81.383No100317.9982.01149V1132.9815.209 limits 108.480No100313.3386.67103V1026.4515.209 limits 144.080No100345.7054.3141V1296.0215.209 limits 196.140No150330.20119.8204H16010.4715.209 limits 204.143No150342.66107.34213H1555.1315.209 limits 212.153No150343.15106.8571H1215.3115.209 limits 288.217No150341.21108.7987H1017.5815.209 limits Frequency (MHz) Restricted bands Limits (Lmt) (uV/m) Measurement Distance Measure* (Mea) (uV/m) Mea-Lmt (μV/m) Angle (deg) Pol Hgt (cm) Tot Corr (μV/m) Comments 298.842No150324.55125.4591H1128.0315.209 limits 595..629No200326174202H26116.2215.209 limits * : (A) denotes an average unit, (Q) denotes a Quasi Peak unit, (P) denotes a peak unit. * 1 : Measurement have been done at 10m distance and corrected following requirements of 15.209.e). 2.3 Field Strength Calculation (15.225.a & b) The field strength is calculated by adding the Antenna Factor and Cable Factor, and subtracting the Amplifier Gain (if any) from the measured reading. The basic equation with a sample calculation is as follow : FS = RA + AF + CF – AG WhereFS = Field Strength RA = Receiver Amplitude AF = Antenna Factor CF = Cable Factor AG = Amplifier Gain Assume a receiver reading of 52.5dBμV is obtained. The antenna factor of 7.4 and a cable factor of 1.1 is added. The amplifier gain of 29dB is subtracted, giving a field strength of 32 dBμV/m. FS = 52.5 + 7.4 + 1.1 – 29 = 32 dBμV/m The 32 dBμV/m value can be mathematically converted to its corresponding level in μV/m. Level in μV/m = Common Antilogarithm [(32dBμV/m)/20] = 39.8 μV/m. 2.4 Conducted emission data 2.4.1 Test procedure The product has been tested ac…

Text truncated - open the document above for the full version.

FCC ID: MES608ACC TEST REPORT GemAccess 608 FCC ID: MES608ACC Complementary tests following 10805 correspondence. FCC ID: MES608ACC 1.1 Occupied bandwidth The following is the plot of the occupied bandwidth. It shows clearly that there is no spurious frequency in the restricted band ending at 13.41 MHz. 1.2 Pulse width and PRF The PRF of the device is 106KHz. The width of the pulse is between 2 and 3 μs. The following show the kind of signal interface (issue from ISO 14443, Art 7) and the kind of coding (issue from the manufacturer): 13.41 MHz

TEST SETUP PHOTO GemAccess 608 FCC ID: MES608ACC 1 RADIATED MEASUREMENT PHOTO 1.1 Radiated emission Front view Rear View Detailed view
