MESCARDCard Reader/Writer

FCC ID: MESCARD 1 USER MANUAL This is a copy of the user' manual supplied in the package of the product. FCC ID: MESCARD Regulatory Information Notice for the USA: FCC Statement Federal Communications Commission (FCC) Radio Frequency Interference Statement (USA Only) This equipment has been tested and found to comply with the limits for a class B digital device, pursuant to Part 15 of FCC Rules. These limits are designed to provide reasonable protections against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try one of more of the following measures: ‡ Relocate the radio or television antenna. ‡ Plug the equipment away from the radio or television. ‡ Plug the equipment into a different electrical outlet, so that the equipment and the radio or television are on separate electrical circuits. ‡ Make sure that all your peripheral devices ar also FCC Class B certified. ‡ Make sure you use only shielded cables to connect peripheral devices to your equipment. ‡ Consult your equipment dealer, or an experienced radio / television technician for help. WARNING: The system verification tests were conducted with GEMPLUS supported peripheral devices. Cables used with this equipment must be properly shielded to comply with the requirements of the FCC. Changes or modifications not expressly approved by GEMPLUS could void the user's authority to operate the equipment. "Accessories for use with UL Listed Computers having limited power or Class 2 output"

FCC ID: MESCARD 1 BLOCK DIAGRAM OF EQUIPMENT 1.1 Clock list of Gem e-Seal product Crystal oscillator: 16 MHz Data rate: - 20MHz on the bus - Clock 4MHz - No clock or signal higher than 108 MHz 1.2 Block diagram of Gem e-Seal product

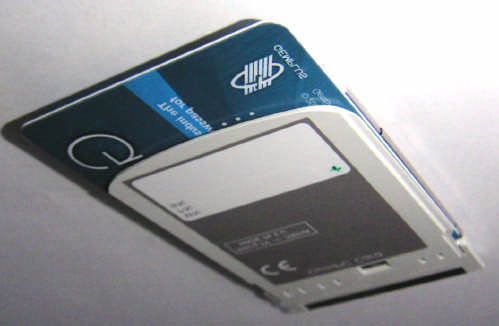

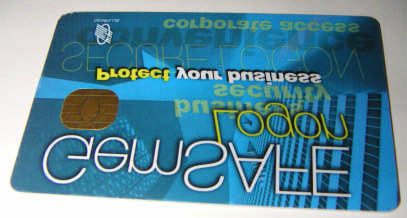

FCC ID: MESCARD 1 EXTRERNAL PHOTOS OF TESTED EUT 1.1 General view of Gempc Card General view, FCC ID: MESCARD Upper face rear face Smart card input side PCMCIA connector view FCC ID: MESCARD 1.2 General view of Smart card

FCC ID: MESCARD 1 PRODUCT LABELING 1.1 FCC ID label This is copy of the label stuck on the product. (Size : 40mm x 60mm) The label materiel is 70μm metal polyester adhesive UL. This adhesive is permanent. Label type : MACTAP CIP1568MP312 FCC ID: MESCARD 1.2 Location of the label on EUT FCC informations are set on the rear face of the product (see picture). label will be at that location

FCC ID: MESCARD 1 INTERNAL PHOTOS OF TESTED EUT Internal board FCC ID: MESCARD Internal board, components side FCC ID: MESCARD Case, External side FCC ID: MESCARD Case, Internal side

FCC ID: MESCARD 1 GENERAL INFORMATION 1.1 Product description The "GemPC Card" device is a compact smart card reader/writer, PC Card Type card format. It's plugged into the PC Card slot (PCMCIA Type II), of a laptop. Smart cards which can be used with the GemPC Card reader are: Reads from or writes to all ISO7816-1/2/3/4 class A, B and C (5V, 3V and 1.8V), all ISO TA1 parameters (up to 344 kbds) and extended APDU. Typical applications are: - Home-banking - Electronic coupons/loyalty - Internet access - Secure download of content - Computer access control - Network security - Personal identification - Others... The GemPC CARD is a product developed by the Gemplus Company. For more information, see product's data sheet at section 1.6. 1.2 Related Submittal(s) / Grant(s) All host equipment used in the test configuration are FCC granted, when relevant. 1.3 Tested System Details The FCC IDs for all equipment, plus description of all cables used in the tested system (including inserted cards, which have grants) are : See test report file : 3021-FCC 1.4 Test Methodology Both conducted and radiated testing was performed according to the procedures in ANSI C63.4-2000, CISPR22-1997+/A1:2000+/A2:2002 and EN55022:1998+/A1:2000+/A2:2003. Radiated testing was performed at an antenna to EUT distance of 10 meters. During testing, all equipment’s and cables were moved relative to each other in order to identify the worst case set-up. 1.5 Test facility Tests have been performed on March 19 th , 2004. The test facility used to collect the radiated and conducted data is the SMEE Actions Mesures facility, located ZI des Blanchisseries, 38500 VOIRON, France. This test facility has been fully described in a report and accepted by FCC as compliant with the radiated and AC line conducted test site criteria in ANSI C63.4-1992 in a letter dated August 04, 1999 (registration number 94821). This test facility has also been accredited by COFRAC (French accreditation authority for European Union test lab accreditation organization) according to NF EN ISO/IEC 17025, accreditation number 1-0844 as compliant with test site criteria and competence in 47 CFR Part 15/ANSI C63.4 and EN55022/CISPR22 norms for 89/336/EEC European EMC Directive application. All pertinent data for this test facility remains unchanged. FCC ID: MESCARD 1.6 Data sheet of the product GemPC Card Engineering Samples Available Compact Smart Card Reader/Writer. Connects to the PC CArd Type II port(PCMCIA) GemPC Card Applications A highly accessible, highly convenient solution. GemPC Card compact smart card reader/writer, designed to plug into a standard PCMCIA Type II PC slot, is the ultimate smart card peripheral for laptop PC and mobile users. It is very simple to use and install. No technical knowledge is needed. If you seek for electronic commerce, home banking or e-purse facilities, secure computer access or any of a multitude of other applications, GemPC Card is the smartest answer. For the first time, a solution is available that offers impressive possibilities at an exceptional price. They will open up many possibilities, including: • Home-banking • Electronic coupons/loyalty • Internet access • Secure download of content • computer access control, • Network security • People identification • and more... 1.6.1 Microsoft certification PC Card Type II Terminal level 1 approval for Gemcore Twin Pro IFM FCC ID: MESCARD GemPC Card Benefits • Strong and reliable casing GemPC Card uses the patented GemPC400's robust steel case, fully compliant to PC Card type II specification, and already selected by major PC actors. • Increased Smart Card peformances: GemPC Card is based on latest GemCore Pro one chip, supporting new ISO7816 class A, B and C (5V, 3V and 1.8V), all ISO7816 TA1 parameters (up to 344 kbds) and extended APDU. • EMV terminal level 1 certified • Easy to install and maintain: GemPC Card re-uses GemPC Serial's PC/SC drivers and GemCore Pro firmware which is already implemented in GemPC Series readers (GemPC Twin, GemPC Key, GemPC USB, GemPC Serial) • Sticker and packaging for easy custom branding One standard reference is available: Model Name Casing Reference GemPC Card PC Card type II HWP110628 PC-Link readers can now be ordered on Gemplus webstore : http://store.gemplus.com Years of Gemplus technological experience, now available to all GemPC Card is based on Gemplus? GemCore ® hardware and firmware, which means it can handle all types of ISO7816- compatible smart cards without compatibility problems. It is user-friendly, and operating or using it requires no technical expertise. GemPC Card will happily blend with all main environments (Windows ® 98, Windows ® 2000, Windows ® Xp, etc.), all types of card, and most makes of computer. It will readily adapt to new smart-card services, as they become available. GemPC Card has successfully passed the Microsoft Windows Hardware Quality Lab (WHQL) test session and is eligible for the "Designed for Microsoft Windows" logo for both Windows 2000, Xp (Server 2003 under processing at printing time). GemPC Card is based on the Gemcore Twin Pro IFM, which has received the EMVCo letter of approval (11607 0103 400 20 LGA) and is listed to support EMV Level 1 compliant 4.0 device in the EMVCo web site. FCC ID: MESCARD GemPC Card Technical Specifications Feature Description Smart-card interface • support ISO7816 Class A, B and C ( 5V, 3V, 1.8V ) • support all ISO7816 TA1 parameters ( up to 344 Kbds ) • reads from and writes to all ISO 7816-1,2,3,4 microprocessor cards, T=0 and T=1. Memory cards support using "Memory Card API for GemCore Twin Pro" • Short circuit detection • smart card connector is 8 friction contacts - ISO location, guarantee for 100,000 insertion cycles - EMV level 1 mechanically compliant. • embossed smart cards are supported. Host Interface • PCMCIA Type II • Plug and Play • power supply thru PCMCIA port • operating voltage 5V +/- 10% • programmable transmission from 9600 to 115,200 bps …

Text truncated - open the document above for the full version.

Actions Mesures Z.I. des Blanchisseries – 38500 VOIRON – France – Tél. +33 (0)4 76 65 76 50 – Fax +33 (0)4 76 66 18 30 S.A. au capital de 152 449,02€/ R.C. de Grenoble B 329 901 888 / SIRET 329 901 888 00035 / code APE 332 B / n°TVA :FR29 329 901 888 This test report applies only on equipment described hereafter. Proposal number : 200403-2380 Date of test...................................: March 19 th & 29 th , 2004 Location.......................................: SMEE Actions Mesures Laboratory - 38 VOIRON Performed by................................: Jacques LORQUIN Customer......................................: Gemplus Z.I. Athélia III - Voie Antiope 13705 LA CIOTAT Cedex 8 France Product.........................................: GemPC Card Type of test..................................: Radiated and Conducted Emission Test Applied standards or specification: EN55022 (1999) +/A1: (2000) +/A2: (2003) CISPR22 (1997) +/A1: (2000) +/A2: (2002) Level............................................: CISPR Class B Test objective...............................: Qualification Results.........................................: Conducted emissions: Comply Radiated emissions: Comply The reproduction of this test report is authorized only under its entire form. This report contents 12 pages Written by.........................: Jacques LORQUIN Approved by.....................: Jacques LORQUIN EMC TEST REPORT Nr 3021-FCC Nr 3021-FCC March 19th & 29th , 2004 page 2 /10 1. System test configuration 1.1. Justification The system was configured for testing in a typical fashion (as a customer would normally use it). A typical Smart card was introduced in the GemPC card reader, which was itself set in place in a PC card slot (PCMCIA) of a laptop. It has been tested with a Thosiba laptop. Each ports of the laptop were loaded with a typical peripheral device. 1.2. HARDWARE IDENTIFICATION: Equipment under test (EUT): ÿ Gempc Card sn: J043001460 - Frequencies: crystal 16 MHz, clock 4MHz (no frequency higher than 108MHz) - Size :85x54x5mm - Input/output: PC card slot. 1.3. Auxiliaries The FCC IDs for all equipment, plus description of all cables used in the tested system (including inserted cards, which have grants) are: Trade Mark – Model Number (Serial number) FCC ID Description Cable description Gempc Card* (sn: J043001460) MESCARD Smart card reader none Thoshiba TECRA PT900E-03SFH-FR Å (sn: Y1080996G ST900-0) None Laptop All data cables are shielded Power cable unshielded Thoshiba TECRA PAT800U Ç (sn: 29435523A-3) DOC Laptop All data cables are shielded Thoshiba PA3083U-IACA Ç (sn: 0108A0001580G) DOC Power supply of laptop Power cable unshielded HEWLETT PACKARD pn: D2846 (sn: JP74001000) DOC 21" color monitor Shielded video cable with ferrite at each end HEWLETT PACKARD pn: C4736-60101 (sn: LZA93024031) JNZ201213 Mouse Shielded cable HEWLETT PACKARD 895CXI pn: C6410A (sn: MY9761915S) DOC Parallel printer HP C2950A shielded parallel cable TELEX (sn: 700.373.000A) None Microphone Shielded cable LABTEC LT100 pn: D8387A (sn: none) None Headset Shielded cable HEWLETT PACKARD 48GX (sn: 83802369) None Graphic Calculator Shielded cable with ferrite Intel YC76 (sn: 0045143) EDUYC76 Web Cam Shielded cable Gemplus GEM-230 (sn: 000020001d02280) None Smart Card * : Equipment under test Å : Auxiliaries used for radiated test only Ç : Auxiliaries used for conducted test only Nr 3021-FCC March 19th & 29th , 2004 page 3 /10 1.4. EUT Exercise software The EUT exercise program (Soft Apitest.exe V.2.0, running under Windows 98) used during radiated and conducted testing was designed to exercise the GemPC Card in a manner similar to a typical use: • Make a comparison of the answer to the reset (ATR) between the GemPC Card and the PC. 1.5. I/O cables - Video cable shielded with ferrite at each end, length : 1.8m; - Parallel cable shielded HP #C2950A, length : 2m; - Serial / graphic adapter cable with ferrite, HP # 8120-6736, length : 1m; - Power cord (PC and monitor), length : 1.8m; - LAN cable CAT5 FTP, shielded, length : 2m; - USB cable, shielded, length: 2.5m. Ç Ç : cable used for radiated test only. 1.6. Equipment modifications No equipment modification has been necessary during testing to achieve compliance to Class B levels. The unit tested was representative to a production unit. Nr 3021-FCC March 19th & 29th , 2004 page 4 /10 2. Radiated emission data 2.1. SET-UP Mains: 230V@50Hz The EUT and auxiliaries are set on the no-conductive table of 80 cm height. Equipment configuration and running mode: - The Gempc card is plug in the PC card slot; - The web Cam is connected on the USB port; - Parallel printer is connected on the parallel port; - Graphic calculator is connected on serial port; - The headphone is connected on the audio output port, and the microphone is connected on the audio input port; - software running in loop. The installation of EUT is identical for pre-characterization measures in a 3 meters full anechoic chamber and for measures on a 10 meters Open site. 2.2. TEST EQUIPMENT Test Equipment from 30MHz to 1GHz on 10 meters open site: Equipment Company Model Serial Spectrum Analyzer HP 8568B 2732A04140 Quasi-Peak adapter HP 85650A 2811A01136 RF Pre-selector HP 85685A 2833A00773 Biconical Antenna EMCO 3104C 9401-4636 Log Periodic Antenna EMCO 3146 2178 Absorbing clamp LÜTHI MDS21 2826 EMCO-1050, 6 meters height antenna mast & EMCO-1060, 3 meters diameter Turntable. A 10 meters Open site located in SMEE Actions Mesures - Voiron (FRANCE). Nr 3021-FCC March 19th & 29th , 2004 page 5 /10 Pre-scan, test Equipment from 30MHz to 1GHz: Equipment Company Model Serial EMC Analyzer HP 8591EM 3536A00384 Amplifier HP 8447F H64 3113A06394 Antenna (30MHz-1GHz) CHASE CBL6111A 1628 Absorbing clamp LÜTHI MDS21 2826 2.3. TEST SEQUENCE AND RESULTS 2.3.1.Pre-characterization at 3 meters A pre-scan of all the setup has been performed in a 3 meters full anechoic chamber. The distance between EUT and antenna is 3 meters. Test is perfor…

Text truncated - open the document above for the full version.

FCC ID: MESCARD 1 CONDUCTED AND RADIATED MEASUREMENT PHOTOS 1.1 Conducted emissions setup Front view Rear view FCC ID: MESCARD 1.2 Radiated emission Front View Rear view Detailed view
