MESGMPSmart Card Reader

FCC ID: MESGMP 1 USER MANUAL This is a copy of the page where the FCC statement is included; this statement is supplied in the package of the product.

FCC ID: MESGMP 1 BLOCK DIAGRAM OF EQUIPMENT 1.1 Clock list of GemPocket product Crystal oscillator: 6 MHz, 32.768kHz Data rate: - Clock 1.5MHz - No clock or signal higher than 108 MHz 1.2 Block diagram of GemPocket product

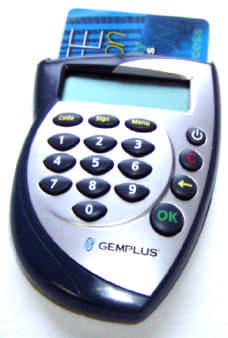

FCC ID: MESGMP Page 1/1 EXTERNAL PHOTOS OF TESTED EUT 1.1 Gem Pocket views General view Front face Rear face FCC ID: MESGMP Page 2/2 Right face Left face Upper face

FCC ID: MESGMP 1 PRODUCT LABELING 1.1 FCC ID label This is a photo of the label stuck on the product. Because there is not enough room to set the FCC statement on a conspicuous place on the case, it will be on the user’s manual Color: Black on silver Material: Aluminum Label 1.2 Location of the label on EUT FCC information are set on the rear face of the product (see picture). label will be stuck at that location FCC ID: MESGMP 1.2.1 User's manuel Just below, is a copy of the FCC statement set inside the user's manual This device complies with part 15 of the FCC rules. Operation is subject to the following two conditions : (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Regulatory Information Notice for the USA: FCC Statement Federal Communications Commission (FCC) Radio Frequency Interference Statement (USA Only) This equipment has been tested and found to comply with the limits for a class B digital device, pursuant to Part 15 of FCC Rules. These limits are designed to provide reasonable protections against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try one of more of the following measures: ‡ Relocate the radio or television antenna. ‡ Plug the equipment away from the radio or television. ‡ Plug the equipment into a different electrical outlet, so that the equipment and the radio or television are on separate electrical circuits. ‡ Make sure that all your peripheral devices ar also FCC Class B certified. ‡ Make sure you use only shielded cables to connect peripheral devices to your equipment. ‡ Consult your equipment dealer, or an experienced radio / television technician for help. Changes or modifications not expressly approved by GEMPLUS could void the user's authority to operate the equipment.

FCC ID: MESGMP 1 INTERNAL PHOTOS OF TESTED EUT 1.1 Gem Pocket Batteries cover removed Rear cover removed (battery side) Fences removed Front cover removed (keypad side) FCC ID: MESGMP keypad side Batteries side

FCC ID : MESGMP 1 GENERAL INFORMATION 1.1 Product description The "GemPocket" device is a portable smart card reader for banking and secure payments. GemPocket reader is handheld device designed to secure the authentication of a cardholder for remote banking, e- commerce or network access control applications. The reader’s main role is to prevent the user to type his/her PIN on the workstation keyboard, which is considered a vulnerable environment. After having inserted the smart card, the GemPocket user is invited to enter his/her PIN code. Then the reader formats and displays the One-Time Password (OTP) computed by the card. The OTP is a unique and non-reusable numeric password that allows the remote server to authenticate both the smart card and its owner. This two-factor authentication is a strong alternative to static password schemes or token devices currently used today. The GemPocket a product developed by the Gemplus Company. For more information, see product's data sheet at section 1.6. 1.2 Related Submittal(s) / Grant(s) All host equipment used in the test configuration are FCC granted, when relevant. 1.3 Tested System Details The FCC IDs for all equipment, plus description of all cables used in the tested system (including inserted cards, which have grants) are : See test report file : 3475-FCC 1.4 Test Methodology Both conducted and radiated testing was performed according to the procedures in ANSI C63.4-2000, CISPR22-2003 and EN55022:1998+/A1:2000+/A2:2003. Radiated testing was performed at an antenna to EUT distance of 10 meters. During testing, all equipment’s and cables were moved relative to each other in order to identify the worst case set-up. 1.5 Test facility Tests have been performed on September 19 th , 2005. The test facility used to collect the radiated and conducted data is the LCIE (Etablissement Voiron) facility, located ZI des Blanchisseries, 38500 VOIRON, France. This test facility has been fully described in a report and accepted by FCC as compliant with the radiated and AC line conducted test site criteria in ANSI C63.4-1992 in a letter dated July 14, 2005 (registration number 94821). This test facility has also been accredited by COFRAC (French accreditation authority for European Union test lab accreditation organization) according to NF EN ISO/IEC 17025, accreditation number 1-1633 as compliant with test site criteria and competence in 47 CFR Part 15/ANSI C63.4 and EN55022/CISPR22 norms for 89/336/EEC European EMC Directive application. All pertinent data for this test facility remains unchanged. FCC ID : MESGMP 1.6 Data sheet of the product Technical specifications Functionality • PIN entry • One-Time Password display • Challenge-response procedure • Reader status display • Last transactions display • E-purse balance (option) Compliance to standards • EMV • MasterCard 3DS CAP, APACS Smart card interface • T=0 and T=1 protocols • Card power supply = 5 V • ISO 7816-1 to –3 asynchronous cards • Communication speed= 9,600bps Smart card connector • Eight ISO location frictio • 10,000 insertion cycles • Embossed cards supported Keypad • Silicon rubber keys • 0 to 9 keys + 6 function keys Display • Graphical LCD screen • Size = 2 lines of 11 alpha numerical characters Physical characteristics • Dimensions = 95 mm x 67 mm x 12 mm • Weight = 70 g Power supply • Replaceable alkaline batteries • Automatic power off after two minutes of inactivity • Low battery symbol display • Five years battery life time Temperature • Operating temperature = +5 °C to +40 °C Storage tem • Storage temperature = -10 °C to +60 °C Certifications • CE • FCC Class B part 15, FCC ID: MESGMP

Etablissement de Voiron Z.I. des Blanchisseries 38500 Voiron Siret 408 363 174 00090 Tél. : +33 4 76 65 09 08 Fax : +33 4 76 66 18 30 [email protected] LCIE 33, av du Général Leclerc Tél : +33 1 40 95 60 60 Société Anonyme Laboratoire Central BP 8 Fax : +33 1 40 95 86 56 au capital de 15 745 984 € Des Industries Electriques 92266 Fontenay-aux-Roses cedex [email protected] RCS Nanterre B 408 363 174 Une société de Bureau Veritas France www.lcie.fr This test report applies only on equipment described hereafter. Proposal number : 200509-2771 Date of test...................................: September 19 th , & November 15 th , 2005 Location.......................................: LCIE Laboratory - 38500 VOIRON France Performed by................................: Jacques LORQUIN Customer......................................: GEMPLUS ZI Athelia III Voie Antiope F- 13705 La Ciotat Cedex 8 FRANCE Product.........................................: Gem Pocket Type of test..................................: Radiated Emission Test Applied standards or specification: EN55022 (1998) +/A1: (2000) +/A2: (2003) CISPR22 (2003) FCC part 15 subpart B Level............................................: Class B Test objective...............................: Qualification Results.........................................: Samples tested in configuration and description presented in this test report complies with prescriptions and limits of EN 55022, CISPR22 and FCC part 15 subpart B standard, in radiated emissions. The reproduction of this test report is authorized only under its entire form. This report contents 16 pages Written by.........................: Jacques LORQUIN Approved by.....................: Jacques LORQUIN Date: November 15 th ,2005 EMC TEST REPORT Nr 3475A-FCC FCC ID : MESGMP Nr 3475A-FCC September 19th, & November 15th, 2005 page 2 /16 1. System test configuration 1.1. Justification The system was configured for testing in a typical fashion (as a customer would normally use it). A typical Gem Pocket is set on the table, a typical smart card is insert into the Gem pocket. The soft CEM. 1.2. HARDWARE IDENTIFICATION: ÿ Equipment Under Test (EUT): Gem Pocket Sn : EPR1 050802#264 ÿ Size : 90x65x15mm ÿ I/O : none ÿ Frequencies : Crystal: 6MHz PLL : 32.768KhZ? 1.5MHz 1.3. Running mode: The EUT exercise program (Soft CEM) used during radiated and conducted testing was designed to exercise the Gem Pocket in a manner similar to a typical use : Read ATR and shut down the power in loop. FCC ID : MESGMP Nr 3475A-FCC September 19th, & November 15th, 2005 page 3 /16 1.4. Auxiliaries The FCC IDs for all equipment, plus description of all cables used in the tested system (including inserted cards, which have grants) are : Trade Mark – Model Number (Serial number) FCC ID Description Cable description Gem Pocket * (sn: EPR1050802#264) MESGMP Smart Card Reader none Gem Pocket ** (sn: R05A071861) MESGMP Smart Card Reader none Gem safe Logon (sn: 000050006a01249) none Smart Card none * : Equipment under test **: Equipment under test for Y & Z Axis 1.5. I/O cables None 1.6. Equipment modifications No modifications are necessary for achieved test. 2. Radiated emission data from 30MHz to 1GHz 2.1. SET-UP Mains: on batteries The equipment under test and auxiliaries are set on a non-conducted table of 80cm height, above the ground plane. The distance between equipement under test and auxiliaries is 10cm. FCC ID : MESGMP Nr 3475A-FCC September 19th, & November 15th, 2005 page 4 /16 2.2. TEST EQUIPMENT Test Equipment from 30MHz to 1GHz on 10 meters open site: The installation of EUT is identical for pre-characterization measures in a 3 meters full anechoic chamber and for measures on a 10 meters Open site. Test Equipment from 30MHz to 1GHz on 10 meters open site: Equipment Company Model Serial Spectrum Analyzer HP 8568B 2732A04140 Quasi-Peak adapter HP 85650A 2811A01136 RF Pre-selector HP 85685A 2833A00773 Biconical Antenna EMCO 3104C 9401-4636 Log Periodic Antenna EMCO 3146 2178 Absorbing clamp LÜTHI MDS21 194.0100.50 Tube ferrite LÜTHI FTC101 4485 Absorbing clamp LÜTHI MDS21 2826 EMCO-1050, 6 meters height antenna mast & EMCO-1060, 3 meters diameter Turntable. A 10 meters Open site located in LCIE - Voiron (FRANCE). Pre-scan, test Equipment from 30MHz to 1GHz: Equipment Company Model Serial EMC Analyzer HP 8591EM 3536A00384 Amplifier HP 8447F H64 3113A06394 Antenna (30MHz-1GHz) CHASE CBL6111A 1628 2.3. TEST SEQUENCE AND RESULTS 2.3.1. Pre-characterization at 3 meters A pre-scan of all the setup has been performed in a 3 meters full anechoic chamber. The distance between EUT and antenna is 3 meters. Test is performed in horizontal (H) and vertical (V) polarization, and on 4 faces of the EUT. See below for graph examples. Azimuth 0° : Polarization H ⇒ graph named \2771\m#1 (see page 9/16) Polarization V ⇒ graph named \2771\m#2 (see page 10/16) Azimuth 90° : Polarization H ⇒ graph named \2771\m#3 (see page 11/16) Polarization V ⇒ graph named \2771\m#4 (see page 12/16) Azimuth 180° : Polarization H ⇒ graph named \2771\m#5 (see page 13/16) Polarization V ⇒ graph named \2771\m#6 (see page 14/16) Azimuth 270° : Polarization H ⇒ graph named \2771\m#7 (see page 15/16) Polarization V ⇒ graph named \2771\m#8 (see page 16/16) FCC ID : MESGMP Nr 3475A-FCC September 19th, & November 15th, 2005 page 5 /16 The prescan has been also performed on Y and Z orthogonal planes. See bellow for graph example: Y plane FCC ID : MESGMP Nr 3475A-FCC September 19th, & November 15th, 2005 page 6 /16 Z plane 2.3.2. Characterization on 10 meters open site from 30MHz to 1GHz The product has been tested according to ANSI C63.4-(2003), CISPR22-2003 and EN55022:1998/A1:2000/A1:2003. Radiated Emission was measured on an open area test site. A description of the facility is on file with the FCC. Interconnecting cables and equipment's were moved to position that maximized emission. The 3 orthogonal planes are measured. A summary of the worst case emissions fo…

Text truncated - open the document above for the full version.

FCC ID: MESGMP 1 CONDUCTED AND RADIATED MEASUREMENT PHOTOS 1.1 Radiated emissions setup from 30MHz to 1GHz Front view FCC ID: MESGMP 1.2 Conducted emission setup Not performed
