MESKEYSmart Card Reader

FCC ID: MESKEY 1 USER MANUAL This is a copy of the page where the FCC statement is included; This statement is supplied in the package of the product. This device complies with part 15 of the FCC rules. Operation is subject to the following two conditions : (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Regulatory Information Notice for the USA: FCC Statement Federal Communications Commission (FCC) Radio Frequency Interference Statement (USA Only) This equipment has been tested and found to comply with the limits for a class B digital device, pursuant to Part 15 of FCC Rules. These limits are designed to provide reasonable protections against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try one of more of the following measures: ‡ Relocate the radio or television antenna. ‡ Plug the equipment away from the radio or television. ‡ Plug the equipment into a different electrical outlet, so that the equipment and the radio or television are on separate electrical circuits. ‡ Make sure that all your peripheral devices ar also FCC Class B certified. ‡ Make sure you use only shielded cables to connect peripheral devices to your equipment. ‡ Consult your equipment dealer, or an experienced radio / television technician for help. WARNING: The system verification tests were conducted with GEMPLUS supported peripheral devices. Cables used with this equipment must be properly shielded to comply with the requirements of the FCC. Changes or modifications not expressly approved by GEMPLUS could void the user's authority to operate the equipment. "Accessories for use with UL Listed Computers having limited power or Class 2 output"

FCC ID: MESKEY 1 BLOCK DIAGRAM OF EQUIPMENT 1.1 Clock list of GemPC Key product Crystal oscillator : 4 MHz Data rate : - 12MHz for USB - up to 115.2kHz for serial 1.2 Block diagram of GemPC Key product CARD Interface 4 MHz Clock USB from / to host 5V from USB 4 MHz Data Link 12 MHz CPU USB Interface Full Speed

FCC ID: MESKEY 1 COVER LETTER Gemplus – GemPC Key FCC ID: MESKEY February 10 th , 2003 This report concerns : Original Grant ___X____Class II change __________ Class B certification ___X____*Class A verification _______Class I change _______ Equipment type : Computing Device Peripheral (Equipment code : JBP) Request issue of grant : ___Immediately upon completion of review ___Defer grant per 47 CFR 0.457(d)(1)(ii) until ____ date _____. Company Name agrees to notify the Commission by _____date_____ of the intended date of announcement of the product so that the grant can be issued on that date. Confidentiality of grant : ___Applicant requests the existence of this grant to be kept confidential until ____date____. The announcement of this product before this date via freedom of information would be detrimental to Company Name, and therefore must be considered a business secret. Public announcement of this product will not be made prior to this date. (Max. 60 days after grant issued). Limits used : (check one) CISPR 22 _______X___________ Part 15 __________________ Measurement procedure used is ANSI C63.4-1992 unless another is specified. Other test procedure : ____________________________________________________ Application for verificationApplicant for this device Prepared by : Mr. Jacques LORQUIN SMEE Actions Mesures ZI des Blanchisseries 38500 VOIRON – France Ph. : 33 4 76 65 76 50 Fax : 33 4 76 66 18 30 e-mail : [email protected] FRN: 0005-0971-18 Mr. Pierre André COLLET Gemplus Voie Antiope Athelia III 13705 LA CIOTAT CEDEX 8 – France Ph. : 33 4 42 36 62 60 Fax : 33 4 42 36 62 98 e-mail: [email protected] FRN: 0007-4245-67 *Not to be filed with Equipment Authorization Branch of FCC unless requested Report format prepared by the Information Technology Industry Council (ITI) ESC-5 and reviewed by FCC staff in 1994

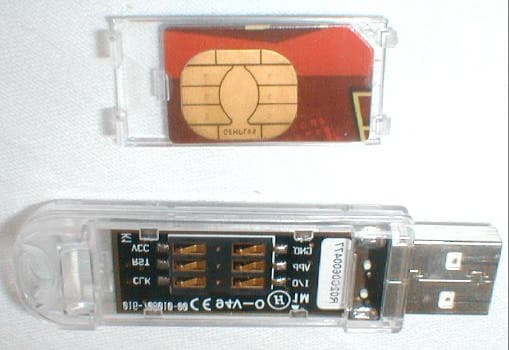

FCC ID: MES473GPC 1 EXTRERNAL PHOTOS OF TESTED EUT 1.1 General view of GemPC Key General view, General view, smart card side FCC ID: MES473GPC 1.2 GemPC Key Front view Rear view Rear view, smart card removed

FCC ID: MESKEY 1 PRODUCT LABELING 1.1 FCC ID label This is a photo of the label stuck on the product. Because there is not enough room to set the FCC statement on a conspicuous place on the case, it will be on the second page of documentation. (See §1.2.3) (Size : 4.4mm x 11mm) 1.2 Location of the label on EUT FCC information are set on the rear face of the product (see picture). label will be at that location 4.4mm 11mm FCC ID: MESKEY 1.2.1 User's manuel Just below, is a copy of the 2 nd page of user's manual This device complies with part 15 of the FCC rules. Operation is subject to the following two conditions : (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Regulatory Information Notice for the USA: FCC Statement Federal Communications Commission (FCC) Radio Frequency Interference Statement (USA Only) This equipment has been tested and found to comply with the limits for a class B digital device, pursuant to Part 15 of FCC Rules. These limits are designed to provide reasonable protections against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try one of more of the following measures: ‡ Relocate the radio or television antenna. ‡ Plug the equipment away from the radio or television. ‡ Plug the equipment into a different electrical outlet, so that the equipment and the radio or television are on separate electrical circuits. ‡ Make sure that all your peripheral devices ar also FCC Class B certified. ‡ Make sure you use only shielded cables to connect peripheral devices to your equipment. ‡ Consult your equipment dealer, or an experienced radio / television technician for help. WARNING: The system verification tests were conducted with GEMPLUS supported peripheral devices. Cables used with this equipment must be properly shielded to comply with the requirements of the FCC. Changes or modifications not expressly approved by GEMPLUS could void the user's authority to operate the equipment. "Accessories for use with UL Listed Computers having limited power or Class 2 output"

FCC ID: MESKEY 1 INTERNAL PHOTOS OF TESTED EUT Internal board, smart card connector side Internal board, smart card connector removed Internal board, components side

FCC ID: MESKEY 1 GENERAL INFORMATION 1.1 Product description The GemPC Key device is a cost-effective reader for Personal Computer logon application and GSM card management. Smart cards which can be used with the GemPC Key are ISO7816-1/2/3/4 compatible smart cards. It is introduced in the GemPC Key, and the Personal Computer manages applications; Typical applications are: - Home-banking - Electronic coupons/loyalty - Internet access - Secure download of content - Computer access control - Network security - People identification - Access to Wlan network - Others... The GemPC Key is a plug & play device, requiring no additional cable or wiring, It's compliant with a USB 2.0 full speed. The power of the GemPC Key is supply by USB connector. The GemPC Key is a product developed by the Gemplus company. For more information, see product's data sheet at section 1.6. 1.2 Related Submittal(s) / Grant(s) All host equipment used in the test configuration are FCC granted, when relevant. 1.3 Tested System Details The FCC IDs for all equipment, plus description of all cables used in the tested system (including inserted cards, which have grants) are : Trade Mark – Model Number (Serial number) FCC IDDescriptionCable description GemPC Key PN:016-708010-00* (sn: R02C0600477) MESKEYSmart card readernone GemSAFE  Entreprise NoneSmart cardnone HEWLETT PACKARD Vectra VLi8 pn:D7963A (sn: FR9402053) Doc. Of Conf.Personal computerAll data cables are shielded Power cable unshielded HEWLETT PACKARD pn: D2846 (sn: JP74001000) Doc. Of Conf.21" color monitorShielded video cable with ferrite at each end HEWLETT PACKARD pn: C4736-60101 (sn: LZA693024031) JNZ201213MouseShielded cable HEWLETT PACKARD pn: C4734-60111 (sn: M971168931) GYUR385KKeyboardShielded cable HEWLETT PACKARD 895CXI pn: C6410A (sn: MY9761915S) Doc. Of Conf.Parallel printerHP C2950A shielded parallel cable HEWLETT PACKARD deskjet500 pn: C2106A (sn: 3110S58792) B94C2106XSerial printerHP 24542G shielded serial cable TELEX (sn: 700.373.000A) NoneMicrophoneShielded cable LABTEC LT100 pn: D8387A (sn: none) NoneHeadsetShielded cable HEWLETT PACKARD 48GX (sn: 83802369) Graphic CalculatorUnshielded cable with ferrite *Equipment Under Test FCC ID: MESKEY 1.4 Test Methodology Both conducted and radiated testing were performed according to the procedures in ANSI C63.4-1992, CISPR22-1997/A1:2000 and EN55022:1998/A1:2000. Radiated testing was performed at an antenna to EUT distance of 10 meters. During testing, all equipment’s and cables were moved relative to each other in order to identify the worst case set-up. 1.5 Test facility Tests have been performed on February 10 th , 2003. The test facility used to collect the radiated and conducted data is the SMEE Actions Mesures facility, located ZI des Blanchisseries, 38500 VOIRON, France. This test facility has been fully described in a report and accepted by FCC as compliant with the radiated and AC line conducted test site criteria in ANSI C63.4-1992 in a letter dated August 04, 1999 (registration number 94821). This test facility has also been accredited by COFRAC (French accreditation authority for European union test lab accreditation organization) according to NF EN ISO/IEC 17025, accreditation number 1-0844 as compliant with test site criteria and competence in 47 CFR Part 15/ANSI C63.4 and EN55022/CISPR22 norms for 89/336/EEC European EMC Directive application. All pertinent data for this test facility remains unchanged. FCC ID: MESKEY 1.6 Data sheet of the product FCC ID: MESKEY

Actions Mesures Z.I. des Blanchisseries – 38500 VOIRON – France – Tél. +33 (0)4 76 65 76 50 – Fax +33 (0)4 76 66 18 30 S.A. au capital de 152 449,02€/ R.C. de Grenoble B 329 901 888 / SIRET 329 901 888 00035 / code APE 332 B / n°TVA :FR29 329 901 888 This test report applies only on equipment described hereafter. Proposal number : 200302-2146 Date of test...................................:February 10 th , 2003 Location.......................................: SMEE Actions Mesures Laboratory - 38 VOIRON Performed by................................:Jacques LORQUIN Customer......................................:Gemplus Z.I. Athélia III - Voie Antiope 13705 LA CIOTAT Cedex 8 France Product.........................................:GemPC Key Type of test..................................: Radiated and Conducted Emission Test Applied standards or specification:EN55022 (1999) +/A1: (2000) CISPR22 (1997) +/A1: (2000) Level............................................:CISPR Class B Test objective...............................:Qualification Results.........................................:Conducted emissions:Comply Radiated emissions:Comply The reproduction of this test report is authorized only under its entire form. This report contents 11 pages Written by.........................:Jacques LORQUINApproved by.....................:Jacques LORQUIN EMC TEST REPORT Nr 2662-FCC Nr 2662-FCCFebruary 10th , 2003page 2 /11 1. System test configuration 1.1. Justification The system was configured for testing in a typical fashion (as a customer would normally use it). A typical GemPC Key was connected onto the USB port of a personal computer. It has been tested with a HP Personal computer. Each ports of the Personal Computer were loaded with a typical peripheral device. 1.2. HARDWARE IDENTIFICATION: Equipment under test (EUT): ÿÿ GemPC KeyPCB: 016-708010-00sn: R02C0600477 - Frequency:crystal 4 MHz - Size :15x65x7mm (lxLxh) - Input/output: USB connector. 1.3. Auxiliaries The FCC IDs for all equipment, plus description of all cables used in the tested system (including inserted cards, which have grants) are : Trade Mark – Model Number (Serial number) FCC IDDescriptionCable description GemPC Key PN:016-708010-00* (sn: R02C0600477) MESKEYSmart card readernone GemSAFE  Entreprise NoneSmart cardnone HEWLETT PACKARD Vectra VLi8 pn:D7963A (sn: FR9402053) Doc. Of Conf.Personal computerAll data cables are shielded Power cable unshielded HEWLETT PACKARD pn: D2846 (sn: JP74001000) Doc. Of Conf.21" color monitorShielded video cable with ferrite at each end HEWLETT PACKARD pn: C4736-60101 (sn: LZA693024031) JNZ201213MouseShielded cable HEWLETT PACKARD pn: C4734-60111 (sn: M971168931) GYUR385KKeyboardShielded cable HEWLETT PACKARD 895CXI pn: C6410A (sn: MY9761915S) Doc. Of Conf.Parallel printerHP C2950A shielded parallel cable HEWLETT PACKARD deskjet500 pn: C2106A (sn: 3110S58792) B94C2106XSerial printerHP 24542G shielded serial cable TELEX (sn: 700.373.000A) NoneMicrophoneShielded cable LABTEC LT100 pn: D8387A (sn: none) NoneHeadsetShielded cable HEWLETT PACKARD 48GX (sn: 83802369) Graphic Calculator Unshielded cable with ferrite Nr 2662-FCCFebruary 10th , 2003page 3 /11 1.4. EUT Exercise software The EUT exercise program (Soft Apitest.exe V.2.0, running under Windows 98) used during radiated and conducted testing was designed to exercise the GemPC Key in a manner similar to a typical use : • Make a comparison of the answer to the reset (ATR) between the GemPC Key and the PC. 1.5. I/O cables - USB cable, length : 3m - Video cable with ferrite at each end, length : 1.8m. - Parallel cable shielded HP #C2950A, length : 2m. - Serial cable shielded HP #24542G, length : 3m. - Serial / graphic adapter cable with ferrite, HP # 8120-6736, length : 1m - Power cord (PC and monitor), length : 1.8m 1.6. Equipment modifications No equipment modification has been necessary during testing to achieve compliance to Class B levels. The unit tested was representative to a production unit. Nr 2662-FCCFebruary 10th , 2003page 4 /11 2. Radiated emission data 2.1. SET-UP Mains: 230V@50Hz The EUT and auxiliaries are set on the no-conductive table of 80 cm height. Equipment configuration and running mode: - The GemPC Key is plug in the USB port of the PC; - software running in loop; The installation of EUT is identical for pre-characterization measures in a 3 meters full anechoic chamber and for measures on a 10 meters Open site. 2.2. TEST EQUIPMENT Test Equipment from 30MHz to 1GHz on 10 meters open site: EquipmentCompanyModelSerialCalibration Due Spectrum AnalyzerHP8568B2732A04140March 22 nd ,2003 Quasi-Peak adapterHP85650A2811A01136March 22 nd ,2003 RF Pre-selectorHP85685A2833A00773March 22 nd ,2003 Biconical AntennaEMCO3104C9401-4636April 4 th ,2003 Log Periodic AntennaEMCO31462178April 4 th ,2003 Absorbing clampLÜTHIMDS212826September 25 th ,2003 Absorbing clampR&S85024A194.0100.50September 25 th ,2003 Tube ferriteLÜTHIMDS1014485September 25 th ,2003 OATSApril 9 th ,2003 EMCO-1050, 6 meters height antenna mast & EMCO-1060, 3 meters diameter Turntable. Nr 2662-FCCFebruary 10th , 2003page 5 /11 A 10 meters Open site located in SMEE Actions Mesures - Voiron (FRANCE). Pre-scan, test Equipment from 30MHz to 1GHz: EquipmentCompanyModelSerialCalibration Due EMC AnalyzerHP8591EM3536A00384March 29 th ,2003 AmplifierHP8447F H643113A06394March 28 th ,2003 Antenna (30MHz-1GHz)CHASECBL6111A1628March 29 th ,2003 Absorbing clampLÜTHIMDS212826September 25 th ,2003 Absorbing clampR&S85024A194.0100.50September 25 th ,2003 Tube ferriteLÜTHIMDS1014485September 25 th ,2003 2.3. TEST SEQUENCE AND RESULTS 2.3.1. Pre-characterization at 3 meters A pre-scan of all the setup has been performed in a 3 meters full anechoic chamber. The distance between EUT and antenna is 3 meters. Test is performed in horizontal (H) and vertical (V) polarization, and on 4 faces of the EUT. See below for a graph example: RBW: 120kHz - VBW: 300kHz Nr 2662-FCCFebruary 10th , 2003page 6 /11…

Text truncated - open the document above for the full version.

FCC ID: MESKEY 1 CONDUCTED AND RADIATED MEASUREMENT PHOTOS 1.1 Conducted emissions setup Front viewRear view FCC ID: MESKEY 1.2 Radiated emission Front ViewRear view Detailed view
