MESOTPSecure USB Flash Drive

FCC ID: MESOTP Page 1/1 USER MANUAL This is a copy of the FCC statement which is included with the equipment: This device complies with part 15 of the FCC rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Regulatory Information Notice for the USA: FCC Statement Federal Communications Commission (FCC)Radio Frequency Interference Statement (USA Only) This equipment has been tested and found to comply with the limits for a class B digital device, pursuant to Part 15 of FCC Rules. These limits are designed to provide reasonable protections against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try one of more of the following measures: Relocate the radio or television antenna. Plug the equipment away from the radio or television. Plug the equipment into a different electrical outlet, so that the equipment and the radio or television are on separate electrical circuits. Make sure that all your peripheral devices ar also FCC Class B certified. Make sure you use only shielded cables to connect peripheral devices to your equipment. Consult your equipment dealer, or an experienced radio / television technician for help. WARNING:The system verification tests were conducted with Manufacturer supported peripheral devices. Cables used with this equipment must be properly shielded to comply with the requirements of the FCC. Changes or modifications not expressly approved by the manufacturer could void the user's authority to operate the equipment. "Accessories for use with UL Listed Computers having limited power or Class 2 output"

FCC ID: MESOTP Page 1/2 BLOCK DIAGRAM OF EQUIPMENT 1.1Clock list of the OTP TOKENproduct 12MHz, 6 MHz, 1.5MHz FCC ID: MESOTP Page 2/2 1.2Block diagram of the OTP TOKENproduct

Response to TCB Findings Please clarify if the USB extension cord used during testing was shielded or unshielded. The USB extension cord is shielded (USB 1.1). Attached is a picture of the cable used during the test.

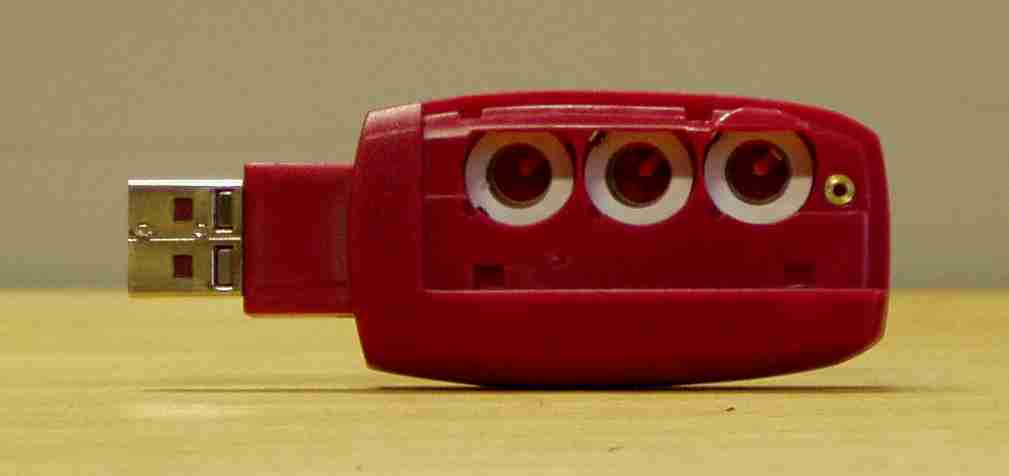

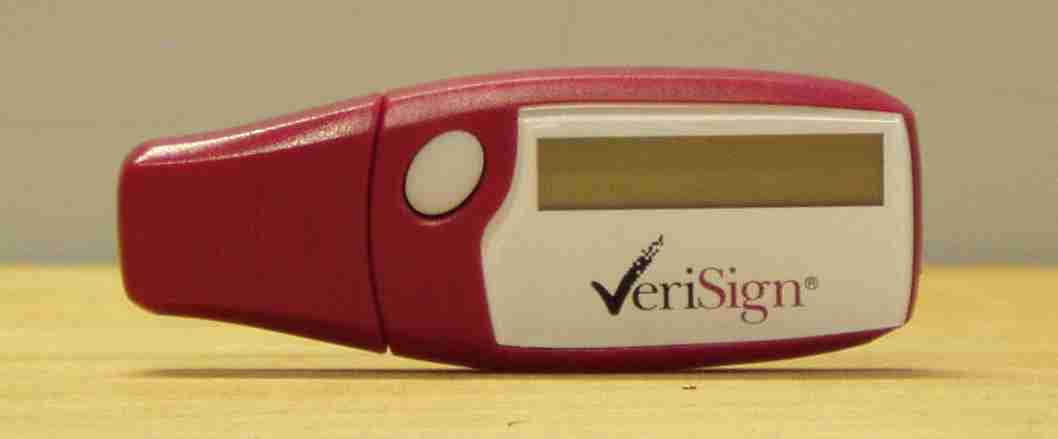

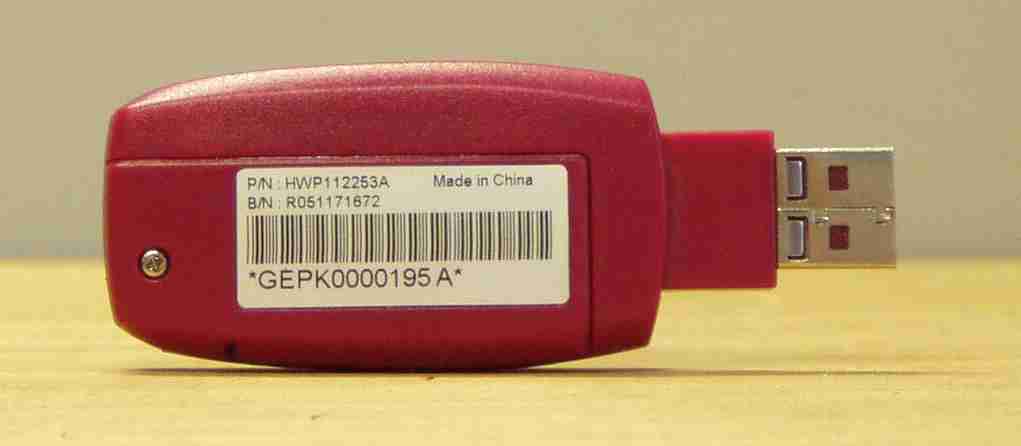

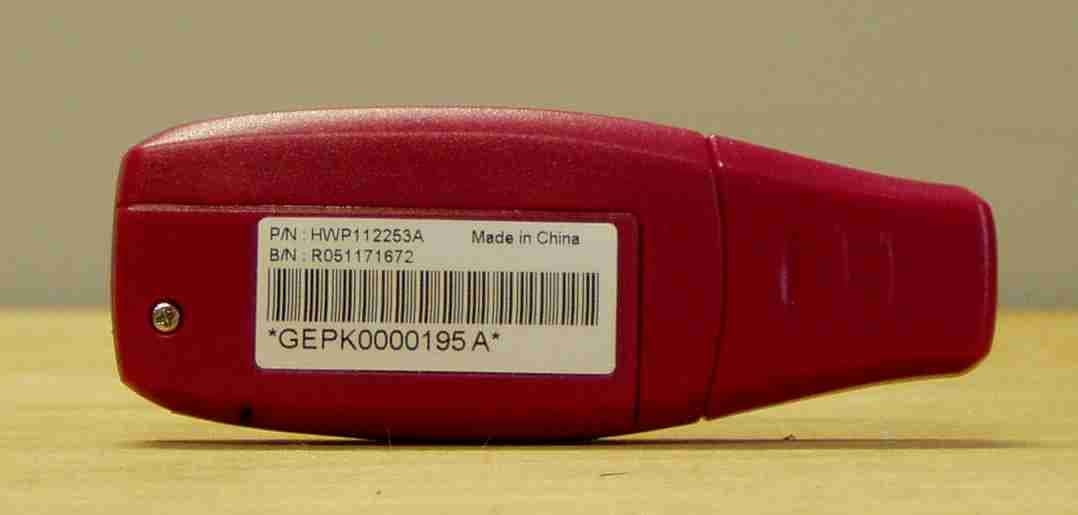

FCC ID: MESOTP Page 1/3 EXTERNAL PHOTOS OF TESTED EUT OTP TOKENphotos General view, front face General view, rear face Detail view, left and right sides FCC ID: MESOTP Page 2/3 Rear side, USB cover removed Front side, USB cover removed Left side, USB cover removed FCC ID: MESOTP Page 3/3 Rear side, batteries cover removed

FCC ID: MESOTP Page 1/1 1PRODUCT LABELING 1.1FCC ID label This is copy of the label: Dimensions: 14x33mm Color: Black on silver Material: Aluminium label 1.2Location of the label on EUT Thelabel is set on the rear side of the equipment.

FCC ID: MESOTP Page 1/2 INTERNAL PHOTOS OF TESTED EUT 1.1General view General view, cover opened (USB PCB copper side) General view, cover opened. 1.2PCB views USB PCBcomponent side(without Flash memory) USB PCB component side (with Flash memory) FCC ID: MESOTP Page 2/2 Display/Key/Batteries PCB Display/Key/Batteries PCB

FCC ID: MESOTP Page 1/2 OPERATIONAL DESCRIPTION 1.1.Description of the OTP TOKEN FCC ID: MESOTP Page 2/2 1.2.Related Submittal(s) / Grant(s) All host equipment used in the test configuration are FCC granted, when relevant. 1.3.Tested System Details The FCC IDs for all equipment, plus description of all cables used in the tested system are: *:Equipment under test 1.4.Test Methodology Radiated testing wasperformed according to the procedures in ANSI C63.4-2003, FCC Part 15 Subpart B. Radiated testing was performed at an antenna to EUT distance of 10 meters.Radiated testing was performed at an antenna to EUT distance of 10 meters. During testing, all equipment’s and cables were moved relative to each other in order toidentify the worst case set-up. 1.5.Test facility Tests have been performed on March 14 th and 25 th , 2005. The test facility used to collect all the test data is the SMEE Actions Mesuresfacility, located ZI des Blanchisseries, 38500 VOIRON, France. This test facility has been fully described in a report and accepted by FCC as compliant with the radiated and AC line conducted test site criteria in ANSI C63.4-2000 in a letter dated July 19, 2002 (registration number 94821). This test facility has also been accredited by COFRAC (French accreditation authority for European union test lab accreditation organization) according to NF EN ISO/IEC 17025, accreditation number 1-0844 as compliant with test site criteria and competence in 47 CFR Part 15/ANSI C63.4 and EN55022/CISPR22 norms for 89/336/EEC European EMC Directive application. All pertinent data for this test facility remains unchanged. Trade Mark – Model Number (Serial number) FCC IDDescriptionCable description OTP TOKEN* (sn:none ) Without Flash memory MESOTPPersonal Mobile Security device USB extension cord (1.1 standard): 1m OTP TOKEN * (sn:none ) With 128Mo Flash memory MESOTPPersonal Mobile Security device (with secure storage) USB extension cord (1.1 standard): 1m TOSHIBA T9000 PIII Model: PT9000E-03SFH-FR (sn: Y1081087G ST900-0 CJ6PA3070W L Laptop PC DC power supply cable, unshielded: 1.8m TOSHIBA AC adaptor Model: PA3215U-1ACA (sn: 03410994) NoneAC/DC adapter (100V-240V / 15Vdc) AC power cable, 2 wires: 2m

Actions Mesures Z.I. des Blanchisseries – 38500 VOIRON – France – Tél. +33 (0)4 76 65 76 50 – Fax +33 (0)4 76 66 18 30 www.smee.fr S.A. au capital de 152 449,02€/ R.C. de Grenoble B 329 901 888 / SIRET 329 901 888 00035 / code APE 332 B / n°TVA :FR29 329 901 888 This test report applies only on equipment described hereafter. Proposal number:200502-2637 Date of test...................................: March 14 th and 25 th , 2005 Location........................................: SMEE Actions MesuresLaboratory - 38 VOIRON Performed by................................: Laurent CHAPUS Customer......................................: GEMPLUS(Represented by Mr. Pierre André Collet) ZIAthelia III – Voie Antiope 13705 LA CIOTAT FRANCE Product.........................................: OTP TOKEN (FCC ID: MESOTP) Type of test.................................. : Radiated and conducted emission Test Applied standards or specification: FCC Part 15, Subpart B CISPR22 (2003) ANSI C63-4 (2003) Level............................................: CISPR 22 Class B Test objective...............................: Qualification Results.........................................: Sample tested in configuration and description presented in this test report complies with prescriptions and limits of CISPR22 standards (class B). The reproduction of this test report is authorized only under its entire form. This report contents 10pages Written by.........................: Date : March 25 th , 2005 Laurent CHAPUSApproved by....................: Jean-Pierre ORY EMC TEST REPORT Nr 3351-FCC FCC ID : MESOTP Nr3351-FCCMarch14th and25th, 2005page 2 /10 1. System test configuration 1.1. JUSTIFICATION: The system was configured for testing in a typical fashion (as a customer would normally use it). The equipment OTP TOKEN may be used as a USB flash drive connected to a PC or in a standalone mode for One Time Password (OTP) and PKI authentication. 1.2. HARDWARE IDENTIFICATION: * Equipment Under Test (EUT):OTP Token (without flash memory)Sn: none OTP Token (with 128Mo flash memory)Sn: none Input/output : USB 1.1 port Frequencies: 12MHz-6MHz-1.5MHz Powersupply: 3x 1.5V batteries (LR44) 1.3. AUXILIARIES: The FCC IDs for all equipment, plus description of all cables used in the tested system are: Trade Mark – Model Number (Serial number) FCC IDDescriptionCable description OTP TOKEN * (sn: none ) WithoutFlash memory MESOTPPersonal Mobile Security device USB extension cord (1.1 standard): 1m OTP TOKEN * (sn: none ) With 128Mo Flash memory MESOTPPersonal Mobile Security device (with secure storage) USB extension cord (1.1 standard): 1m TOSHIBA T9000 PIII Model: PT9000E-03SFH-FR (sn: Y1081087G ST900-0 CJ6PA3070W L Laptop PC DC power supply cable, unshielded: 1.8m TOSHIBA AC adaptor Model: PA3215U-1ACA (sn: 03410994) NoneAC/DC adapter (100V-240V / 15Vdc) AC power cable, 2 wires: 2m *: Equipment undertest 1.4. RUNNING MODE: For testing the OTP TOKEN, it is connected to the USB port of a PC laptop running under Windows 2000 Professional. The program APITEST.EXE V2 is running in loop with data access to the EUT (ATR data control performed at each loop). In the standalone mode, the EUT is generated password in loop (OTP). 1.5. I/O CABLES: - USB 1.1 extension cord:1m - AC power cord: 2m (for power supply of the PC) - DC power cable (attached on PC’s AC/DC adapter): 1.8m FCC ID : MESOTP Nr3351-FCCMarch14th and25th, 2005page 3 /10 1.6. EQUIPMENT MODIFICATIONS: No equipment modification has been necessary during testing to achieve compliance to CIRPR22 Class B levels. The unit tested was representative to a production unit. 2. Radiated emission data 2.1. TEST SET-UP: The equipment under testand auxiliariesareset on a non-conducted table of 80cm height, above the ground plane. Test is performed with EUT directly plugged into the USB port and with a 1m USB extension cord. For the standalone mode, new batteries are used during the test. The installation of EUT is identical for pre-characterization measures in a 3 meters full anechoic chamber and for measures on a 10 meters Open site. 2.2. TEST EQUIPMENT: Test Equipment from 30MHz to 1GHz on the 10 meters open site: EquipmentCompany ModelSerial Spectrum AnalyzerHP8568B 2732A04140 Quasi-Peak adapterHP85650A2811A01136 RF Pre-selectorHP85685A2833A00773 Biconical AntennaEMCO3104C9401-4636 Log Periodic AntennaEMCO31462178 OATS EMCO-1050, 6 meters height antenna mast & EMCO-1060, 3 meters diameter Turntable. A 10 meters Open site located in SMEE Actions Mesures- Voiron (FRANCE). Pre-scan, test Equipment from 30MHz to 1GHz: EquipmentCompany ModelSerial EMC Analyzer HP8591EM3536A00384 AmplifierHP8447F H643113A06394 Antenna (30MHz-1GHz)CHASECBL6111A1628 2.3. TEST SEQUENCE AND RESULTS: 2.3.1. Pre-characterization at 3 meters A pre-scan of all the setup has been performed in a 3 meters full anechoic chamber. The distance between EUT and antenna is 3 meters. Test is performed in horizontal (H) and vertical (V) polarization, and on 4 faces of the EUT. See below for graph example. A pre-characterization is performed for followings configuration: - USB mode without extension cord - USB mode with extension cord - USB mode with flash memory. - Standalone mode FCC ID : MESOTP Nr3351-FCCMarch14th and25th, 2005page 4 /10 Graphs are obtained in PEAK detection. Graph [30MHz-1GHz] – EUT without USB extension cord (RBW is 120kHz; VBW is 300kHz) Graph [30MHz-1GHz] – EUT with USB extension cord (RBW is 120kHz; VBW is 300kHz) FCC ID : MESOTP Nr3351-FCCMarch14th and25th, 2005page 5 /10 Graph [30MHz-1GHz] – EUT (128Mo memory) with USB extension cord (RBW is 120kHz; VBW is 300kHz) Graph [30MHz-1GHz] – EUT in standalonemode (RBW is 120kHz; VBW is 300kHz) FCC ID : MESOTP Nr3351-FCCMarch14th and25th, 2005page 6 /10 2.3.2.Characterization on 10 meters open site from 30MHz to 1GHz The product has beentested according to ANSI C63.4 (2003) and CISPR22 (2003). Radiated emissions were measured on an open area test site. A description of …

Text truncated - open the document above for the full version.

FCC ID: MESOTP Page 1/3 1RADIATED MEASUREMENTPHOTO 1.1Radiated emission EUT 80cm above the ground reference plane without USB extension cable Detail view (EUT directly plugged into the USB port of the PC) FCC ID: MESOTP Page 2/3 Detail view (EUT used with the USB extension cord) Standalone mode, rear side (measurement at 3 meters) FCC ID: MESOTP Page 3/3 1.2Conducted emission Test setup Detail view
