MESXCARDCard Reader

user's_manual.doc OFFRE : 200604-3054C FCC ID: MESXCARD 1 USER MANUAL This is a copy of the page where the FCC statement is included; this statement is supplied in the package of the product. Regulatory Information Notice for the USA: FCC Statement Federal Communications Commission (FCC) Radio Frequency Interference Statement (USA Only) This equipment has been tested and found to comply with the limits for a class B digital device, pursuant to Part 15 of FCC Rules. These limits are designed to provide reasonable protections against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try one of more of the following measures:
Relocate the radio or television antenna.
Plug the equipment away from the radio or television.
Plug the equipment into a different electrical outlet, so that the equipment and the radio or television are on separate electrical circuits.
Make sure that all your peripheral devices ar also FCC Class B certified.
Make sure you use only shielded cables to connect peripheral devices to your equipment.
Consult your equipment dealer, or an experienced radio / television technician for help. WARNING: The system verification tests were conducted with GEMPLUS supported peripheral devices. Cables used with this equipment must be properly shielded to comply with the requirements of the FCC. Changes or modifications not expressly approved by GEMPLUS could void the user's authority to operate the equipment. Canadian Statement: This Class B digital apparatus meets all the requirements of the Canadian Interference-Causing Equipment Regulations. Cet appareil numérique de la classe B respecte toutes les exigences du Règlement sur le matériel brouilleur du Canada. "Accessories for use with UL Listed Computers having limited power or Class 2 output"

Block_diagram_exp.doc OFFRE : 200604-3054C FCC ID:MESXCARD 1 BLOCK DIAGRAM OF EQUIPMENT 1.1 Clock list of GemPocket product Crystal oscillator: 4MHz Data rate: - USB data link 12MHz - No clock or signal higher than 108 MHz 1.2 Block diagram of GemPocket product CPU CARD Interface 4 MHz Clock USB from / to host 5V 4 MHz USB Interface Full Speed Data Link 12 MHz Step Up from PCI Express 3.3 V

Response to TCB Q: Please supply the entire user's manual for the GemPC Express card reader. A: Gemplus does not supply user’s manual. The user’s manual is supplied with the product only by the end retailer. Gemplus does supply only a compliance statement page, this statement is supplied in the package of the product.

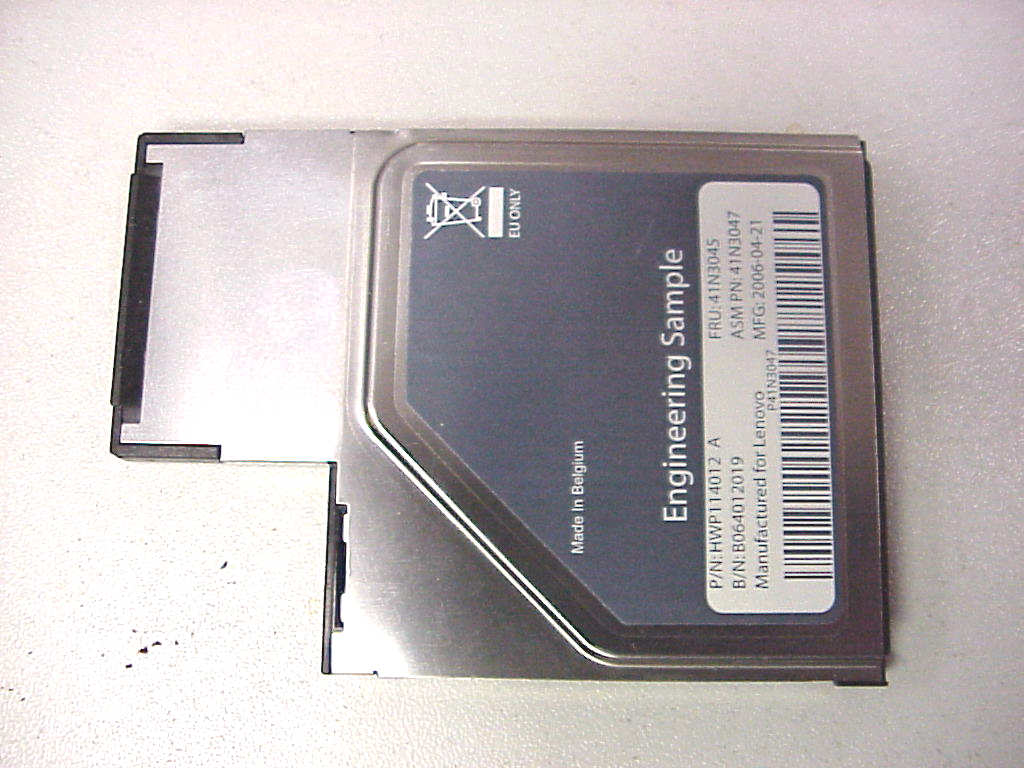

Ext_Photos-EXP.doc OFFRE : 200604-3054C FCC ID:MESXCARD Page 1/3 EXTERNAL PHOTOS OF TESTED EUT 1.1 GemPC Express Upper face Ext_Photos-EXP.doc OFFRE : 200604-3054C FCC ID:MESXCARD Page 2/3 lower face Ext_Photos-EXP.doc OFFRE : 200604-3054C FCC ID:MESXCARD Page 3/3 express slot face Smart card slot face

IDLabel-exp.doc OFFRE : 200604-3054C FCC ID:MESXCARD Page 1/2 1 PRODUCT LABELING 1.1 FCC ID Label This is the copy of the label stuck on the product. Size is 41X44mm Indelibly printed. IDLabel-exp.doc OFFRE : 200604-3054C FCC ID:MESXCARD Page 2/2 1.2 Location of label on EUT Label is stuck on the product casing.

Int_Photos_exp.doc OFFRE : 200604-3054C FCC ID: MESXCARD 1 INTERNAL PHOTOS OF TESTED EUT 1.1 GemPC Express Smart card connector side components side

Oper_descr_exp.doc OFFRE : 200604-3054C FCC ID: MESXCARD 1 GENERAL INFORMATION 1.1 Product description The GemPC express is a smart card reader for laptops and mobile users, fitting into an ExpressCard/54 slot. Application: - E-commerce, - Access card to sensitive site - E-signature of documents... GemPC Express supports all ISO 7816 class A, B and C cards (5V, 3V and 1.8V), all ISO 7816 TA1 parameters (up to 344kbps) and extended PDU commands. The GemPC express is a product developed by the Gemplus Company. For more information, see product's data sheet at section 1.6. 1.2 Related Submittal(s) / Grant(s) All host equipment used in the test configuration are FCC granted, when relevant. 1.3 Tested System Details The FCC IDs for all equipment, plus description of all cables used in the tested system (including inserted cards, which have grants) are : See test report file : 200604-3054C-R1-C-E 1.4 Test Methodology Both conducted and radiated testing was performed according to the procedures in ANSI C63.4-2003, CISPR22-2003 and EN55022:1998+/A1:2000+/A2:2003. Radiated testing was performed at an antenna to EUT distance of 10 meters. During testing, all equipment’s and cables were moved relative to each other in order to identify the worst case set-up. 1.5 Test facility Tests have been performed on April 24 th , 2006. The test facility used to collect the radiated and conducted data is the LCIE (Etablissement Voiron) facility, located ZI des Blanchisseries, 38500 VOIRON, France. This test facility has been fully described in a report and accepted by FCC as compliant with the radiated and AC line conducted test site criteria in ANSI C63.4 in a letter dated July 14, 2005 (registration number 94821). This test facility has also been accredited by COFRAC (French accreditation authority for European Union test lab accreditation organization) according to NF EN ISO/IEC 17025, accreditation number 1-1633 as compliant with test site criteria and competence in 47 CFR Part 15/ANSI C63.4 and EN55022/CISPR22 norms for 89/336/EEC European EMC Directive application. All pertinent data for this test facility remains unchanged. Oper_descr_exp.doc OFFRE : 200604-3054C FCC ID: MESXCARD 1.6 Data sheet of the product Technical Specifications Host Interface • PCMCIA ExpressCard/54 • Plug and Play • USB 2.0 full speed (12 Mbps) Smart Card Interface GemCore PRO hardware and firmware architecture: • Supports ISO 7816 Class A, B and C cards (5 V, 3 V, 1.8 V) • Supports all ISO 7816 TA1 parameters (up to 344 Kbps) • Reads from and writes to all ISO 7816- 1,2,3,4 microprocessor cards, T=0 and T=1 protocols • Supports memory cards using "Memory Card API for GemCore Twin PRO" • Short circuit detection Smart Card Connector • 8 friction contacts - ISO location • Guaranteed for 100,000 insertion cycles • EMV Level 1 mechanically compliant • Embossed Smart Cards supported Power Consumption • Suspend mode: 1mA • Typical operating: 55mA • Maximum operating: 200mA Standards / Certifications • ISO/IEC 7816-1,2,3,4: IC Cards with contacts • EMVCo terminal Level 1 approval for GemCore Twin Pro IFM • Microsoft Windows Hardware Quality Labs (WHQL), Windows Logo Program WLP 2.0 API • Microsoft PC/SC environment with associated drivers • Other environments (OCF, CT-API) upon request Operating Systems • Windows 2000, XP, Server 2003, Xp 64bit editions, Vista 32 and 64 bits • Linux Power Supply • Power supply thru ExpressCard port • Rating 3.3V 1A primary supply voltage Environmental • CE, FCC part 15 Class B • VCCI, c-Tick, BSMI • EN 60950 / UL 950 / CSA 950 • Operating: +0 °C / +55 °C • Storage: -20 °C / +65 °C • ROHS compliant, WEEE marking OEM • Custom stickers for branding Physical Characteristics • 75 mm x 54 mm x 5 mm • ExpressCard 54 format • 30 g.

RAPPORT D'ESSAI / TEST REPORT N° 200604-3054C-R1-C-E Page : 2 / 14 1. TEST PROGRAM Tests have been performed according to following standards: Standard : EN 55022(1998) +/A1(1999) +/A2(2003) CISPR22(2005) +/A1(2005) Information technology equipment – Radio disturbance characteristics – Limits and methods of measurement Level : Class B 2. SETUP 2.1. Hardware identification: * Equipment under test (EUT) : GemPC Express sn: proto - Size: 90x55X3mm - Soft: none - Inputs/Outputs: • PC express port • Smart card slot * Cables : - Power supply cable, unshielded, length: 1.8m; - Video cable with ferrite at each end, shielded, length: 2m; - LAN cable FTP Cat 5e, shielded, length: 2m; - Parallel cable HP#24542D ,shielded, length, 2m. 2.2. Auxiliaries or control equipement used for test The FCC IDs for all equipment, plus description of all cables used in the tested system (including inserted cards, which have grants) are : Trade Mark – Model Number (Serial number) FCC ID Description Cable description GemPC Express* (sn: proto) Smart card reader none IBM Thinkkpad (2668) (sn:L3-WZHKO) D.o.C. Laptop IBM AA21131 pn:02K6669 (sn:11S02K6657Z1Z0ZA036074) - Power supply of laptop Hewlett Packard pn:D2846 (sn: JP74001000 D.o.C. Monitor Shielded video cable with ferrite at each end. Labtec pn851980-0000 (sn: CCC32028007) D.o.C. Optical Mouse Shielded cable Hewlett Packard pn:D8387A (sn: none) none Headset Telex (sn: 700373.000A) none Microphone Hewlett Packard Deskjet 895CXI (sn: MY9761915S) D.o.C. Parallel printer Shielded cable * : Equipment under test RAPPORT D'ESSAI / TEST REPORT N° 200604-3054C-R1-C-E Page : 3 / 14 2.3. Running mode The system was configured for testing in a typical fashion (as a customer would normally use it). A typical Smart card was introduced in the GemPC Express card reader, which was itself set in place in a PC card slot of a laptop. It has been tested with a IBM laptop. Each ports of the laptop were loaded with a typical peripheral device. The EUT exercise program (Soft Apitest.exe V.2.0, running under Windows XP) used during radiated and conducted testing was designed to exercise the GemPC Express in a manner similar to a typical use: • Make a comparison of the answer to the reset (ATR) between the GemPC Card and the PC. 2.4. Equipment modifications No equipment modification has been necessary during testing to achieve compliance to Class B levels. The unit tested was representative to a production unit. 3. RADIATED EMISSION DATA 3.1. Setup Mains: 230V@50Hz The EUT and auxiliaries are set on the no-conductive table of 80 cm height. Equipment configuration and running mode: - The Gempc card is plug in the PC card slot; - Parallel printer is connected on the parallel port; - The headphone is connected on the audio output port, and the microphone is connected on the audio input port; - software running in loop. The installation of EUT is identical for pre-characterization measures in a 3 meters full anechoic chamber and for measures on a 10 meters Open site. Note – No ferrite clamps on mains cables in conformity with the CISPR22 Ed 5.1. RAPPORT D'ESSAI / TEST REPORT N° 200604-3054C-R1-C-E Page : 4 / 14 3.2. Test sequence and results 3.2.1. Pre-characterization at 3 meters A pre-scan of all the setup has been performed in a 3 meters full anechoic chamber. The distance between EUT and antenna is 3 meters. Test is performed in horizontal (H) and vertical (V) polarization, and on 4 faces of the EUT. See below for a graph example: RBW: 120kHz - VBW: 300kHz RAPPORT D'ESSAI / TEST REPORT N° 200604-3054C-R1-C-E Page : 5 / 14 3.2.2. Characterization on 10 meters open site from 30MHz to 1GHz The product has been tested according to ANSI C63.4-(2003), CISPR22-2005 +/A1:2005 and EN55022:1998+/A1:2000+/A2:2003. Radiated Emission were measured on an open area test site. A description of the facility is on file with the FCC. The product has been tested with 230V@50Hz power line voltage, at a distance of 10 meters from the antenna and compared to the CISPR 22 Class B limits. Measurement bandwidth was 120kHz from 30MHz to 1GHz. Antenna height search was performed from 1m to 4m for both horizontal and vertical polarization. Continuous linear turntable azimuth search was performed with 360 degrees range. Interconnecting cables and equipment's were moved to position that maximized emission. A summary of the worst case emissions found in all test configurations and modes is shown on clause 3.1. Frequency list has been created with anechoic chamber pre-scan results. No Frequencies (MHz) QPeak Lmt (dBμV/m) QPeak (dBμV/m) QPeak-Lmt (dB) Angle (deg) Pol Hgt (cm) Corr Factor (dB) Comments 1 54.596 30.0 20.1 -9.9 180 V 400 11.1 2 108.812 30.0 27.3 -2.7 290 H 400 14.9 3 132.973 30.0 24.4 -5.6 250 V 120 14.4 4 169.248 30.0 23.0 -7.0 235 H 360 17.2 5 181.331 30.0 24.5 -5.5 245 H 350 18 6 211.599 30.0 28.9 -1.1 275 H 350 15.1 3.3. Field Strength Calculation The field strength is calculated by adding the Antenna Factor and Cable Factor, and subtracting the Amplifier Gain (if any) from the measured reading. The basic equation with a sample calculation is as follow: FS = RA + AF + CF – AG Where FS = Field Strength RA = Receiver Amplitude AF = Antenna Factor CF = Cable Factor AG = Amplifier Gain Assume a receiver reading of 52.5dBμV is obtained. The antenna factor of 7.4 and a cable factor of 1.1 is added. The amplifier gain of 29dB is subtracted, giving a field strength of 32 dBμV/m. FS = 52.5 + 7.4 + 1.1 – 29 = 32 dBμV/m The 32 dBμV/m value can be mathematically converted to its corresponding level in μV/m. Level in μV/m = Common Antilogarithm [(32dBμV/m)/20] = 39.8 μV/m. RAPPORT D'ESSAI / TEST REPORT N° 200604-3054C-R1-C-E Page : 6 / 14 4. CONDUCTED EMISSION DATA The product has been tested according to ANSI C63.4-(2003), CISPR22-2005 +/A1:2005 and EN55022:1998 +/A1:2000 +/A2:2003. The product has been tested with 110V@60Hz power line voltage and compared to the CISPR22 Class B limits. Measurement bandwidth was …

Text truncated - open the document above for the full version.

SETUP_exp.doc OFFRE : 200604-3054C FCC ID:MESXCARD 1 CONDUCTED AND RADIATED MEASUREMENT PHOTOS 1.1 Radiated emissions setup from 30MHz to 1GHz Front view Rear view Detailed view SETUP_exp.doc OFFRE : 200604-3054C FCC ID:MESXCARD 1.2 Conducted emission setup Front view Rear view Detailed view
