SATELLINE-M3-TR1 User Guide, Version 1.4 1 SATELLINE-M3-TR1 Transceiver Radio Modem User Guide SATELLINE-M3-TR1 User Guide, Version 1.4 2 IMPORTANT NOTICE All rights to this manual are owned solely by SATEL OY (referred to in this user guide as SATEL). All rights reserved. The copying of this manual (without the written permission from the owner) by printing, copying, recording or by any other means, or the full or partial translation of the manual to any other language, including all programming languages, using any electrical, mechanical, magnetic, optical, manual or other methods or devices is forbidden. SATEL reserves the right to change the technical specifications or functions of its products, or to discontinue the manufacture of any of its products or to discontinue the support of any of its products, without any written announcement and urges its customers to ensure, that the information at their disposal is valid. SATEL software and programs are delivered ”as is”. The manufacturer does not grant any kind of warranty including guarantees on suitability and applicability to a certain application. Under no circumstances is the manufacturer or the developer of a program responsible for any possible damages caused by the use of a program. The names of the programs as well as all copyrights relating to the programs are the sole property of SATEL. Any transfer, licensing to a third party, leasing, renting, transportation, copying, editing, translating, modifying into another programming language or reverse engineering for any intent is forbidden without the written consent of SATEL. SATEL PRODUCTS HAVE NOT BEEN DESIGNED, INTENDED NOR INSPECTED TO BE USED IN ANY LIFE SUPPORT RELATED DEVICE OR SYSTEM RELATED FUNCTION NOR AS A PART OF ANY OTHER CRITICAL SYSTEM AND ARE GRANTED NO FUNCTIONAL WARRANTY IF THEY ARE USED IN ANY OF THE APPLICATIONS MENTIONED. Salo, FINLAND 2009 Copyright: 2009 SATEL Oy No part of this document may be reproduced, transmitted or stored in a retrieval system in any form or by any means without the prior written permission of SATEL Oy. This document is provided in confidence and must not be distributed to third parties without the express permission of SATEL Oy. SATELLINE-M3-TR1 User Guide, Version 1.4 3 RESTRICTIONS ON USE SATELLINE-M3-TR1 radio modem has been designed to operate on 403...473 MHz, the exact use of which differs from one region and/or country to another. The user of a radio modem must take care that the said device is not operated without the permission of the local authorities on frequencies other than those specifically reserved and intended for use without a specific permit. WARNING! Users of SATELLINE-M3-TR1 radio modem in North America should be aware, that due to the allocation of the frequency band 406.0 – 406.1 MHz for government use only, the use of radio modem on this frequency band without a proper permit is strictly forbidden. SATELLINE-M3-TR1 User Guide, Version 1.4 4 PRODUCT CONFORMITY SATELLINE-M3-TR1 SATEL Oy hereby declares that SATELLINE-M3-TR1 radio modems are in compliance with the essential requirements (radio performance, electromagnetic compatibility and electrical safety) and other relevant provisions of Directive 1999/5/EC. Therefore the equipment is labelled with the following CE-marking. The notification sign informs users that the operating frequency range of the device is not harmonised throughout the market area, and the local spectrum authority should be contacted before the usage of the radio modem is used. SATELLINE-M3-TR1 User Guide, Version 1.4 5 WARRANTY AND SAFETY INSTRUCTIONS Read these safety instructions carefully before using the product: o Warranty will be void, if the product is used in any way that is in contradiction with the instructions given in this manual, or if the radio modem housing has been opened or tampered with. o The radio modem is only to be operated at frequencies allocated by local authorities, and without exceeding the given maximum allowed output power ratings. SATEL and its distributors are not responsible, if any products manufactured by it are used in unlawful ways. o The devices mentioned in this manual are to be used only according to the instructions described in this manual. Faultless and safe operation of the devices can be guaranteed only if the transport, storage, operation and handling of the devices is appropriate. This also applies to the maintenance of the products. o To prevent damage it is recommended that both the radio modem and any terminal devices are switched OFF before connecting or disconnecting the serial connection cable. It should be ascertained that different devices used have the same ground potential. Before connecting any power cables the output voltage of the power supply should be checked. NOTE! When selecting a suitable location for the radio modem it must be ensured that no water can get into the radio modem under any conditions. Direct sunlight is also to be avoided. It is not recommendable to install the radio modem on a strongly vibrating surface. Suitable dampening and/or isolation materials should be used in cases where the installation surface will be subjected to vibration. SATELLINE-M3-TR1 User Guide, Version 1.4 6 TABLE OF CONTENTS IMPORTANT NOTICE ............................................................................................. 2 RESTRICTIONS ON USE ......................................................................................... 3 PRODUCT CONFORMITY ........................................................................................ 4 WARRANTY AND SAFETY INSTRUCTIONS ............................................................. 5 TABLE OF CONTENTS ............................................................................................ 6 INTRODUCTION .................................................................................................... 9 1 TECHNICAL SPECIFICATIONS ........................................…

Text truncated - open the document above for the full version.

ATTESTATION LETTER According to KDB 634817... SATEL OY, as a manufacturer of SATEL-TA13 applies the certification to contiguous frequency range based on the facts below. 1. All devices delivered to USA do not end to usage in US markets. The local Satel distributor delivers SATEL-TA35 also further to third countries. 2. SATEL Oy acknowledges that it is violation of FCC rules if the device operates on unauthorized frequencies. Also end users are informed about this in user manuals. 3. The operation within frequency band 406-406.1 MHz is disabled by the manufacturer. 4. The list of frequencies covering applied frequency range and their authorized/non- authorized use. SATEL-TA13 complies with part 90 rules. 400.05 - 400.15 - time-signal only 401 - 402 - no conflict with other service rules 402 - 406 - part 95 406 - 406.1 - parts 95,87,80 locators only 406.1 - 410 - part 90 (FCC may be fixed only) 410 - 420 - part 90 (FCC may be fixed only) 420 - 450 - parts 90 and 97 450 - 454 - parts 90 and 74 454 - 455 - parts 22 and 80 455 - 456 - part 74 456 - 462.5375 - parts 90,80,22 462.5375 - 462.7375 - part 95 462.7375 - 467.5375 - part 90 467.5375 - 467.7375 - part 95 467.7375 - 470 - part 90 Salo, Finland, January 21 st , 2010 Marita Latovehmas SATEL Oy Type Approval Engineer

Request for confidential 29.10.2009 / MaritaL Reference: Equipment Authorization Application (confirmation number: EA618844) of SATELLINE-M3-TR1 radio data modem (FCC Identification code: MRBSATEL-TA13). Background: According to the 47CFR/ §0.457/ (d)/ (ii), materials relating to applications for equipment authorizations are not routinely available for public inspection prior to the effective date of the authorization. However, at the moment any person has access via the internet to all of the exhibits attached to our pending application. Therefore we would like to request according to 47CFR/ §0.459, that part of the material will be withheld from public inspection. REQUEST FOR CONFIDENTIALITY §0.459/ (b)/ (1) Identification of the material: The following attachment files of the application no. EA618844 - TA13_block_diagram_logic.pdf - TA13_block_diagram_radio.pdf - TA13_parts_list.pdf - TA13_PCB_layout_bot.pdf - TA13_PCB_layout_top.pdf - TA13_schematic.pdf - Operational_description_M3-TR1.pdf - Internal photos of SATEL-TA13.pdf (2) Identification of the Commission proceeding: The confidential information mentioned above has been submitted via Electronic Filing Site to FCC / Office of Engineering and Technology on the 19 th of October 2009, as attachments to our application no. EA618844. (3), (4) Degree of information The confidential files mentioned above contain technical details of the electronic circuitry of the product. (5) Possible harm caused by disclosure of the information Disclosure of the confidential information of the files mentioned above may result in easier ‘reverse engineering’ by the competitors, and therefore cause significant financial losses in business. (6) Preventing measures of the submitting party Request for confidential 29.10.2009 / MaritaL The applicant for the equipment authorization (SATEL Oy) has relied on the standard way how the telecommunication authorities in various states handle the product documentation in connection with equipment authorization procedures. (7) Availability of the information The confidential information mentioned above is available only to the telecommunication authorities and to the specially authorized parties e.g. local service etc. (8) Period of non-disclosure The material should be withheld from public inspection as long as the product is on the market. Yours Sincerely, SATEL Oy Marita Latovehmas Type Approval Engineer

Equipment Autorisation Division Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 Application number: EA618844 FCC ID: MRBSATEL-TA13 Product Name: SATEL-TA13 Request for Short Term Confidentiality Pursuant to Sections 0.457 and 0.459 of the commissions rules, we hereby request that the following documents be held confidential for 45 days: • External Photos of SATEL-TA13 • User Guide_SATELLINE-M3-TR1_1.4 These materials contain trade secrets and proprietary information and are not customarily released to the public. The public disclosure of this information might be harmful to the company and provide unjustified benefits to our competitors. Dated 30 th of October 20 09 By: Marita Latovehmas Signature Printed Title: Type Approval Engineer On behalf of : SATEL Oy Telephone: +358 2 777 7800

PRODUCT INFORMATION SATELLINE-M3-TR1 v.1.0 05.10.2009/Ksu SATEL Oy, P.O.Box 142, FIN-24101 Salo, Finland Street: Meriniitynkatu 17, FIN-24100 Salo, Finland Tel: +358 2 777 7800, Fax: +358 2 777 7810, E-mail: [email protected] www.satel.com Calculation of the Necessary Bandwidth for SATELLINE-M3-TR1 UHF Radio Data Modem Transmitter (Transceiver) SATELLINE-M3-TR1 radio modem uses frequency modulation and the signal is modulated with digital information. Based on these facts, the necessary bandwidth is calculated according to the formula in the section §2.202 (g) part III-A/1. Calculation for 12.5 kHz channel spacing B n = 2M+2DK , M = B/2 , K = 1.2 B = 4800 bauds => M = 2400 s -1 D = 3.3 kHz B n = 2 x 2400 Hz + 2 x 3300 Hz x 1.2 = 12.7 kHz Calculation for 25 kHz channel spacing B n = 2M+2DK , M = B/2 , K = 1.2 B = 9800 bauds => M = 4800 s -1 D = 6 kHz B n = 2 x 4800 Hz + 2 x 6000 Hz x 1.2 = 24.0 kHz Note! Due to the fact that the maximum deviation never occurs simultaneously with the maximum modulation frequency, the real bandwidth of the emitted signal is lower than the ones calculated according to the formula above.

PRODUCT INFORMATION SATELLINE-M3-TR1 v.1.0 05.10.2009/Ksu SATEL Oy, P.O.Box 142, FIN-24101 Salo, Finland Street: Meriniitynkatu 17, FIN-24100 Salo, Finland Tel: +358 2 777 7800, Fax: +358 2 777 7810, E-mail: [email protected] www.satel.com Modulation Characteristics of SATELLINE-M3-T1 UHF Radio Data Modem Transmitter (Transceiver) SATELLINE-M3-TR1 radio data modem uses CML FX919B integrated circuit for encoding the data to the Tx modulator and further to the other stages of the transmitter. The encoder block of the FX919B circuit translates the binary data to 4-level symbols. Each symbol contains the information of two bits. After encoding, the data symbols are passed through a linear-phase lowpass filter with a ‘Root Raised Cosine’ (RRC) frequency response defined by the function H(f) = 1 for 0 ≤ f < (1-b)/(2T) = square root of {0.5 [1 – sin(πT (f – 0.5/T)/b)]} for (1-b)/(2T) ≤ f ≤ (1+b)/(2T) = 0 for (1+b)/(2T) < f , where b = 0.2 and T = 1/symbol rate, to eliminate the high frequency components of the modulating signal. Source of information: Document no. D/919B/1 July 1997, CML Semiconductor Products Ltd.

Correspondence 38378 23.11.2009 / MaritaL P.O.Box 142, FIN-24101 SALO, Finland Street: Meriniitynkatu 17, FIN-24100 SALO, Finland Tel +358 2 777 7800, Fax +358 2 777 7810, E-mail [email protected] www.satel.com Correspondence Reference Number: 38378 Form 731 Confirmation Number: EA618844 Dear Mr. Carlos Bonilla Thanks for your email addressed to Mrs Marita Latovehmas at SATEL Oy. Referring to the items of your request, the following documents/test reports have been attached: 1. 131691A TRF Radio TX 2. 131691B TRF Radio TX 3. 131691C TRF EMC 4. 131691D TRF EMC If any further information is needed for the application procedure, please do not hesitate to contact us at Satel. Kind Regards, Satel Oy Marita Latovehmas

Correspondence 38433 9.12.2009 MaritaL FCC ID: MRBSATEL-TA13 Correspondence Reference Number: 38433 Form 731 Confirmation Number: EA618844 Dear Mr. Carlos Bonilla Thank you for your email addressed to Mrs Marita Latovehmas at SATEL Oy. Referring to the items of your request, the following information has been prepared. SATEL Oy, as a manufacturer of SATELLINE-M3-TR1 (SATEL-TA13) radio modems, states that this equipment is designed for operation in the 403 - 473 MHz band. The frequencies 406.0 – 406.1 MHz can be rejected by the manufacturer. When ordering modems from SATEL Oy, the customer needs to advice the country where it is going to be shipped. When the country code is US, the production does not adjust the operation frequency within frequencies 406.0 – 406.1 MHz. The end user can’t program and transmit on frequencies, other than those programmed by the manufacturer, service or maintenance personnel. It is a violation of FCC rules if the device operates on unauthorized frequencies. Salo, Finland, December 9 th , 2009 Marita Latovehmas SATEL Oy Type Approval Engineer

Correspondence 38462 13.1.2010 MaritaL FCC ID: MRBSATEL-TA13 Correspondence Reference Number: 38462 Form 731 Confirmation Number: EA618844 Dear Mr. Carlos Bonilla Thanks for your email addressed to undersigned. Referring to the items of your request, the following information has been prepared. According to KDB 634817... SATEL OY, as a manufacturer of SATEL-TA13 applies the certification to contiguous frequency range based on the facts below. 1. All devices delivered to USA do not end to usage in US markets. The local Satel distributor delivers SATEL-TA13 also further to third countries. 2. SATEL Oy acknowledges that it is violation of FCC rules if the device operates on unauthorized frequencies. Also end users are informed about this in user manuals. 3. The operation within frequency band 406-406.1 MHz is disabled by the manufacturer. Salo, Finland, January 13 th , 2010 Marita Latovehmas SATEL Oy Type Approval Engineer

Correspondence 38551 21.1.2010 MaritaL FCC ID: MRBSATEL-TA13 Correspondence Reference Number: 38551 Form 731 Confirmation Number: EA618844 Dear Mr. Carlos Bonilla Thank you for your email addressed to undersigned. Referring to the items of your request, the following information has been prepared. According to correspondence 38551 we have completed the application with the attestation letter dated January 21 st , 2010. Best Regards, Marita Latovehmas SATEL Oy Type Approval Engineer

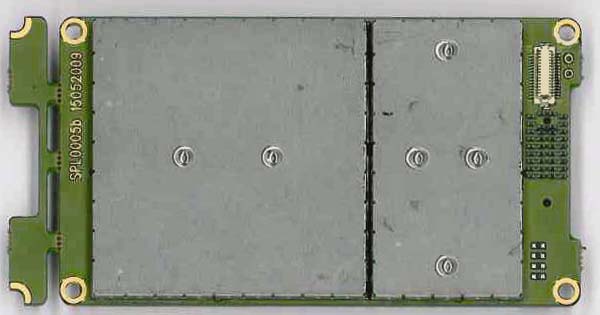

External Photos of SATEL‐TA13 30.10.2009/MaritaL Photo1: SATELLINE‐M3‐TR1 external view from top Photo2: SATELLINE‐M3‐TR1 external view from bottom

Type na Marketi Board o Port2 in With di f Packag e me: SATEL‐T ng name: SA nly, no hous formation ( c fferent housi e label: TA13 ATELLINE‐M3 ing: connection) c ing (= stainle 3‐TR1 can also be: ess steel or a LVTTL, TTL, R aluminium): RS‐422 Descript 30.10.2 tion of labels 009/MaritaL s L

Labels in SATEL‐TA13 modem module:

WARNINGS FOR USERS SATEL-TA13 radio modem module FCC ID: MRB-SATEL-TA13 INFO LETTER October 29 th , 2009 / MaritaL Page 1 of 3 Warnings to be added to the user guide of SATEL-TA13 radio modem module° WARNING! Users of SATELLINE-M3-TR1 radio modem module in North America should be aware, that due to the allocation of the frequency band 406.0 – 406.1 MHz for government use only, the use of radio modem on this frequency band without a proper permit is strictly forbidden. Warning – RF Exposure "Warning: To comply with FCC RF exposure compliance requirements, a separation distance of at least xx cm must be maintained between the antenna of this device and all persons. This device must not be co-located or operating in conjunction with any other antenna or transmitter." Modification warning statement "Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment." Class B digital device statement "Note: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: -Reorient or relocate the receiving antenna. -Increase the separation between the equipment and receiver. -Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. -Consult the dealer or an experienced radio/TV technician for help." WARNINGS FOR USERS SATEL-TA13 radio modem module FCC ID: MRB-SATEL-TA13 INFO LETTER October 29 th , 2009 / MaritaL Page 2 of 3 Safe distances for General Public Use () 2 150/4mWf PG R π = Due to numerous different applications, it is reasonable that users are not always aware of parameters of all components in a SATEL-TA13 radio modem system. However, obeying the safe distances in the table below, every user can easily fulfil the FCC limit (depends on the frequency in use) for human exposure to radio frequency radiation in general public use. Radio Modem Model Minimum safe distance to the antenna For General Public use SATEL-TA13 F 87 cm Safe distances for Controlled Use Calculated by formula below: () 2 30/4mWf PG R π = Minimum distance however being always at least 20 cm. Advanced users and system designers who are fully aware of key parameters of SATEL-TA13 radio modem system are allowed to follow the safe distances for controlled use listed in the table below. Tx output power [W] Antenna system gain [dBi / numeric] Tx duty cycle [%], 6 min. average Frequency [MHz] Minimum safe distance [cm] 1.0 14 / 25.12 100 403/473 38.6/35.7 50 403/473 27.3/25.3 20 403/473 20 10 403/473 20 8 / 6.310 100 403/473 20 50 403/473 20 20 403/473 20 10 403/473 20 6 / 3.981 100 403/473 20 50 403/473 20 20 403/473 20 10 403/473 20 2 / 1.585 100 403/473 20 WARNINGS FOR USERS SATEL-TA13 radio modem module FCC ID: MRB-SATEL-TA13 INFO LETTER October 29 th , 2009 / MaritaL Page 3 of 3 50 403/473 20 20 403/473 20 10 403/473 20 0 / 1.000 100 403/473 20 50 403/473 20 20 403/473 20 10 403/473 20 0.5 6 / 3.981 100 403/473 20 50 403/473 20 20 403/473 20 10 403/473 20 0 / 1.000 100 403/473 20 50 403/473 20 20 403/473 20 10 403/473 20 0.2 6 / 3.981 100 403/473 20 50 403/473 20 20 403/473 20 10 403/473 20 0 / 1.000 100 403/473 20 50 403/473 20 20 403/473 20 10 403/473 20 0.1 0 / 1.000 100 403/473 20 50 403/473 20 20 403/473 20 10 403/473 20 †

TEST REPORT 28.10.2009 TiM C:\Documents and Settings\Timoteus\My Documents\TA13\FCC\TEST_REPORT_TA13_Frequency_Stability.doc Page 1 of 2 SATEL Oy, P.O.Box 142, FIN-24101 Salo, Finland Street: Meriniitynkatu 17, FIN-24100 Salo, Finland Tel: +358 2 777 7800, Fax: +358 2 777 7810, E-mail: [email protected] www.satel.fi TEST REPORT REPORT NO: SATEL-TR-TiM TEST PERIOD: 26.10.2009 TEST SITE: Satel / R&D Dept., Salo DEVICE UNDER TEST: SATEL-TA13 TESTS PERFORMED: Frequency Stability vs. temperature and voltage variations TEST STANDARD: acc. to 47 CFR 2.1055. LIST OF MEASURING EQUIPMENT: • Power supply Thurlby Thandar Instruments EX354T Serial nro. 140816 • Temperature test chamber Vötsch VT4002 Serial nro. 58566085500010 • Spectrum analyzer Rohde & Schwarz FSEA Serial nro. 826029/013 TESTS PERFORMED BY: Timoteus Marttila TEST REPORT 28.10.2009 TiM C:\Documents and Settings\Timoteus\My Documents\TA13\FCC\TEST_REPORT_TA13_Frequency_Stability.doc Page 2 of 2 SATEL Oy, P.O.Box 142, FIN-24101 Salo, Finland Street: Meriniitynkatu 17, FIN-24100 Salo, Finland Tel: +358 2 777 7800, Fax: +358 2 777 7810, E-mail: [email protected] www.satel.fi TEST RESULTS Test performed at transmitter frequency 460.000 MHz. a) Frequency stability vs. voltage variations Temperature Voltage Frequency ppm error +20 °C 5,5 V 459.99999 -0.02ppm +20 °C 6,5 V 459.99999 -0.02ppm +20 °C 7,5 V 459.99998 -0.04ppm +20 °C 10,2 V 459.99998 -0.04ppm +20 °C 12,0 V 459.99999 -0.02ppm +20 °C 13,8 V 459.99999 -0.02ppm +20 °C 23,8V 460.00000 0.00ppm +20 °C 28,0 V 460.00000 0.00ppm +20 °C 32,2 V 460.00000 0.00ppm b) Frequency stability vs. temperature variations Temperature Voltage Frequency ppm error -30°C 12,0 V 460.00047 1.02ppm -20°C 12,0 V 460.00006 0.13ppm -10°C 12,0 V 460.99999 -0.02ppm ± 0°C 12,0 V 460.99992 -0.17ppm +10°C 12,0 V460.99984-0.35ppm +20°C 12,0 V 460.99995 -0.11ppm +30°C 12,0 V 460.00006 0.13ppm +40°C 12,0 V 460.00012 0.26ppm +50°C 12,0 V 460.00012 0.26ppm

TEST REPORT 28.10.2009 TiM C:\Documents and Settings\Timoteus\My Documents\TA13\FCC\TEST_REPORT_TA13_Occupied_Bandwidth.doc Page 1 of 3 SATEL Oy, P.O.Box 142, FIN-24101 Salo, Finland Street: Meriniitynkatu 17, FIN-24100 Salo, Finland Tel: +358 2 777 7800, Fax: +358 2 777 7810, E-mail: [email protected] www.satel.fi TEST REPORT REPORT NO: SATEL-TR-TiM TEST PERIOD: 27.10.2009 TEST SITE: Satel / R&D Dept., Salo DEVICE UNDER TEST: SATEL-TA13 TESTS PERFORMED: • Occupied bandwidth at 12.5 kHz channel spacing (page 2, figure 1) • Occupied bandwidth at 25 kHz channel spacing (page 3, figure 2) LIST OF MEASURING EQUIPMENT: • Power supply Thurlby Thandar Instruments EX354T Serial nro. 140816 • Spectrum analyzer Rohde & Schwarz FSP Serial nro. 100428 TESTS PERFORMED BY: Timoteus Marttila TEST REPORT 28.10.2009 TiM C:\Documents and Settings\Timoteus\My Documents\TA13\FCC\TEST_REPORT_TA13_Occupied_Bandwidth.doc Page 2 of 3 SATEL Oy, P.O.Box 142, FIN-24101 Salo, Finland Street: Meriniitynkatu 17, FIN-24100 Salo, Finland Tel: +358 2 777 7800, Fax: +358 2 777 7810, E-mail: [email protected] www.satel.fi TEST RESULTS #1 Test at 12.5 kHz channel spacing Offset 10 dB A LVL Ref 30 dBmAtt 50 dB Center 460 MHzSpan 50 kHz5 kHz/ SWT 1.15 s * * RBW 300 Hz VBW 300 Hz 1 SA AVG PRN -70 -60 -50 -40 -30 -20 -10 0 10 20 30 Temp 1 [T1 OBW] -57.63 dBm 459.975000000 MHz Marker 1 [T1 OBW] 17.41 dBm 460.000600000 MHz OBW 7.900 kHz Temp 2 [T1 OBW] 1.83 dBm 460.004100000 MHz Temp 1 [T1 OBW] 4.57 dBm 459.996200000 MHz Temp 2 [T1 OBW] 1.83 dBm 460.004100000 MHz T1 1 T2 T1 T2 Date: 27.OCT.2009 09:57:57 Figure 1. Occupied bandwidth at 12.5 kHz. OBW = 7.9 kHz. TEST REPORT 28.10.2009 TiM C:\Documents and Settings\Timoteus\My Documents\TA13\FCC\TEST_REPORT_TA13_Occupied_Bandwidth.doc Page 3 of 3 SATEL Oy, P.O.Box 142, FIN-24101 Salo, Finland Street: Meriniitynkatu 17, FIN-24100 Salo, Finland Tel: +358 2 777 7800, Fax: +358 2 777 7810, E-mail: [email protected] www.satel.fi #2 Test at 25 kHz channel spacing Offset 10 dB A LVL Ref 30 dBmAtt 50 dB Center 460 MHzSpan 50 kHz5 kHz/ SWT 1.15 s * * RBW 300 Hz VBW 300 Hz 1 SA AVG PRN -70 -60 -50 -40 -30 -20 -10 0 10 20 30 Temp 1 [T1 OBW] -55.71 dBm 459.975000000 MHz Marker 1 [T1 OBW] 12.67 dBm 460.000600000 MHz OBW 15.800 kHz Temp 2 [T1 OBW] -1.72 dBm 460.007800000 MHz Temp 1 [T1 OBW] 0.01 dBm 459.992000000 MHz Temp 2 [T1 OBW] -1.72 dBm 460.007800000 MHz T1 1 T2 T1 T2 Date: 27.OCT.2009 09:59:43 Figure 2. Occupied bandwidth at 25 kHz. OBW = 15.8 kHz.

TEST REPORT 28.10.2009 TiM Page 1 of 3 SATEL Oy, P.O.Box 142, FIN-24101 Salo, Finland Street: Meriniitynkatu 17, FIN-24100 Salo, Finland Tel: +358 2 777 7800, Fax: +358 2 777 7810, E-mail: [email protected] www.satel.com TEST REPORT REPORT NO: SATEL-TR-TiM TEST PERIOD: 27.-28.10.2009 TEST SITE: Satel / R&D Dept., Salo DEVICE UNDER TEST: SATEL-TA13 TESTS PERFORMED: Sideband Spectrum: • 12.5 kHz channel spacing, transmitter frequency 420 MHz (page 2, figure 1) • 12.5 kHz channel spacing, transmitter frequency 460 MHz (page 3, figure 2) • 25 kHz channel spacing, transmitter frequency 420 MHz (pages 4-5, figures 3-4) • 25 kHz channel spacing, transmitter frequency 460 MHz (pages 6-7, figures 5-6) Note: transmitter modulated with pseudorandom data TEST STANDARD: TIA/EIA-603, clause 2.2.11. LIST OF MEASURING EQUIPMENT: • Power supply Thurlby Thandar Instruments EX354T Serial nro. 140816 • Spectrum analyzer Rohde & Schwarz FSP Serial nro. 100428 TESTS PERFORMED BY: Timoteus Marttila TEST REPORT 28.10.2009 TiM Page 2 of 3 SATEL Oy, P.O.Box 142, FIN-24101 Salo, Finland Street: Meriniitynkatu 17, FIN-24100 Salo, Finland Tel: +358 2 777 7800, Fax: +358 2 777 7810, E-mail: [email protected] www.satel.com TEST RESULTS Test at 12.5 kHz channel spacing Ref 30 dBmAtt 50 dB RBW 300 Hz VBW 300 Hz SWT 1.15 s * * Offset 10 dB Center 420 MHzSpan 50 kHz5 kHz/ 1 AP CLRWR A LVL PRN -70 -60 -50 -40 -30 -20 -10 0 10 20 30 Marker 1 [T1] -60.02 dBm 420.025000000 MHz 1 FCCMASKD Date: 28.OCT.2009 07:46:49 Figure 1. Sideband spectrum at 12.5 kHz channel spacing, transmitter frequency 420.000MHz, showing compliance with the emission mask D. TEST REPORT 28.10.2009 TiM Page 3 of 3 SATEL Oy, P.O.Box 142, FIN-24101 Salo, Finland Street: Meriniitynkatu 17, FIN-24100 Salo, Finland Tel: +358 2 777 7800, Fax: +358 2 777 7810, E-mail: [email protected] www.satel.com Offset 10 dB A LVL Ref 30 dBmAtt 50 dB CLRWR 1 AP Center 460 MHzSpan 50 kHz5 kHz/ * * RBW 300 Hz VBW 300 Hz SWT 1.15 s PRN -70 -60 -50 -40 -30 -20 -10 0 10 20 30 FCCMASKD Date: 27.OCT.2009 09:53:13 Figure 2. Sideband spectrum at 12.5 kHz channel spacing, transmitter frequency 460.000MHz, showing compliance with the emission mask D. TEST REPORT 28.10.2009 TiM Page 4 of 3 SATEL Oy, P.O.Box 142, FIN-24101 Salo, Finland Street: Meriniitynkatu 17, FIN-24100 Salo, Finland Tel: +358 2 777 7800, Fax: +358 2 777 7810, E-mail: [email protected] www.satel.com Test at 25 kHz channel spacing Ref 30 dBmAtt 50 dB RBW 300 Hz VBW 300 Hz SWT 1.15 s * * Offset 10 dB Center 420 MHzSpan 50 kHz5 kHz/ 1 AP CLRWR A LVL PRN -70 -60 -50 -40 -30 -20 -10 0 10 20 30 Marker 1 [T1] -53.25 dBm 420.025000000 MHz 1 FCCMASKC Date: 28.OCT.2009 06:50:24 Figure 3. Sideband spectrum at 25 kHz channel spacing, transmitter frequency 420.000MHz, showing compliance with the emission mask C, span 50kHz TEST REPORT 28.10.2009 TiM Page 5 of 3 SATEL Oy, P.O.Box 142, FIN-24101 Salo, Finland Street: Meriniitynkatu 17, FIN-24100 Salo, Finland Tel: +358 2 777 7800, Fax: +358 2 777 7810, E-mail: [email protected] www.satel.com Offset 10 dB A LVL Ref 30 dBm 1 AP CLRWR Center 420 MHzSpan 150 kHz15 kHz/ Att 50 dB * * RBW 300 Hz VBW 300 Hz SWT 3.4 s PRN -70 -60 -50 -40 -30 -20 -10 0 10 20 30 Marker 1 [T1] -51.25 dBm 420.025000000 MHz 1 FCCMASKC Date: 27.OCT.2009 10:04:32 Figure 4. Sideband spectrum at 25 kHz channel spacing, transmitter frequency 420.000MHz, showing compliance with the emission mask C, span 150kHz TEST REPORT 28.10.2009 TiM Page 6 of 3 SATEL Oy, P.O.Box 142, FIN-24101 Salo, Finland Street: Meriniitynkatu 17, FIN-24100 Salo, Finland Tel: +358 2 777 7800, Fax: +358 2 777 7810, E-mail: [email protected] www.satel.com Offset 10 dB A LVL Ref 30 dBmAtt 50 dB CLRWR 1 AP Center 460 MHzSpan 50 kHz5 kHz/ * * RBW 300 Hz VBW 300 Hz SWT 1.15 s PRN -70 -60 -50 -40 -30 -20 -10 0 10 20 30 FCCMASKC Date: 27.OCT.2009 09:50:21 Figure 5. Sideband spectrum at 25 kHz channel spacing, transmitter frequency 460.000MHz, showing compliance with the emission mask C, span 50kHz TEST REPORT 28.10.2009 TiM Page 7 of 3 SATEL Oy, P.O.Box 142, FIN-24101 Salo, Finland Street: Meriniitynkatu 17, FIN-24100 Salo, Finland Tel: +358 2 777 7800, Fax: +358 2 777 7810, E-mail: [email protected] www.satel.com Offset 10 dB A LVL Ref 30 dBmAtt 50 dB CLRWR Center 460 MHzSpan 150 kHz15 kHz/ * * RBW 300 Hz VBW 300 Hz SWT 3.4 s 1 AP PRN -70 -60 -50 -40 -30 -20 -10 0 10 20 30 FCCMASKC Date: 27.OCT.2009 09:49:44 Figure 6. Sideband spectrum at 25 kHz channel spacing, transmitter frequency 460.000MHz, showing compliance with the emission mask C, span 150kHz

TEST REPORT 28.10.2009 TiM Page 1 of 10 SATEL Oy, P.O.Box 142, FIN-24101 Salo, Finland Street: Meriniitynkatu 17, FIN-24100 Salo, Finland Tel: +358 2 777 7800, Fax: +358 2 777 7810, E-mail: [email protected] www.satel.fi TEST REPORT REPORT NO: SATEL-TR-TiM TEST PERIOD: 23.-27.10.2009 TEST SITE: Satel / R&D Dept., Salo DEVICE UNDER TEST: SATEL-TA13 TESTS PERFORMED: • Transient frequency behavior of the transmitter on various temperatures (-30, -20, - 10, ±0, +10, +20, +30, +40, +50 O C). TEST STANDARD: TIA-603-C clause 2.2.19.2. LIST OF MEASU…
