MRBSATEL-TA21CGR10, CGR15

SATEL-TA21_CGR10_CGR15 User manual v.1.0 1 CGR10/15 Complement to the user quide of terminal equipment Copyright: 2011 SATEL Oy No part of this document may be reproduced, transmitted or stored in a retrieval system in any form or by any means without the prior written permission of SATEL Oy. This document is provided in confidence and must not be distributed to third parties without the express permission of SATEL Oy. SATEL-TA21_CGR10_CGR15 User manual v.1.0 2 1 CONTENTS 1 CONTENTS ................................................................................................................................................ 2 2 INTRODUCTION ........................................................................................................................................ 3 2.1 Description of the product ..................................................................................................................... 3 3 TECHNICAL SPECIFICATIONS ..................................................................................................................... 4 3.1.1 Power supply ................................................................................................................................. 5 3.2 Pin order of the main connector ............................................................................................................. 6 4 DEFAULT VALUES ........................................................................................................................................ 7 5 FUNCTIONAL DESCRIPTION ....................................................................................................................... 9 5.1 Flash update ................................................................................................ Error! Bookmark not defined. 5.2 Flash file for Windows CE .............................................................................. Error! Bookmark not defined. 5.3 Functional delays .................................................................................................................................. 9 SATEL-TA21_CGR10_CGR15 User manual v.1.0 3 2 INTRODUCTION 2.1 Description of the product CGR10/15 is a 4-level FSK/GMSK UHF radio modem receiver, which provides a transparent data received from SATELLINE compatible radio modems manufactured by SATEL Oy. CGR10/15 is to be integrated in the CS10/15 land survey system, which is a third party product. The applications of the device are in the field of surveying, engineering and constructional applications. The housing for the CGR10/15 and the related mechanics are supplied by third party. Assembly of the mechanics can be done either by SATEL Oy or by third party. SATEL Oy is responsible for the required level of EMC characteristics related to the shielding of the radio modem. The implementation of CGR10/15 is based on the SLR5 radio modem – the radio communication and the user interface is mostly similar. Main differences to SLR5 are: 1. The modem is a receiver instead of a transceiver. 2. CGR10/15 is delivered with a specific housing 3. User interface connector is USB instead of D-15 female. 4. User interface is USB instead of RS-232. 5. The operating voltage is 5 V instead of 6 V. 6. Antenna connector is external SMB instead of a D-connector combo SMB. SATEL-TA21_CGR10_CGR15 User manual v.1.0 4 3 TECHNICAL SPECIFICATIONS SATELLINE-CGR10/15 radio receiver modem module complies with the following international standards: EN 300 113-2V.1.4.1 EN 301 489 (EMC-requirements) EN 60950 (Safety Standard) FCC CFR47 Part 15 RECEIVER TRANSMITTER Note! Frequency Range 403...473MHz See Note 1 Channel Spacing 12.5 kHz/ 20 kHz / 25kHz Tuning range 70MHz Spurious Radiations < 2nW Frequency error tolerance < 1kHz Sensitivity - 114 dBm @ 12.5 kHz -110 dBm @ 25 kHz (BER < 10 E-3) FEC On Co-channel Rejection > 12 dB FEC On Adjacent Channel Selectivity > 47 dB @ 12.5 kHz > 52 dB @ 25 kHz FEC On Intermodulation Attenuation > 60dB FEC On Blocking 86dB FEC On Spurious Rejection 60dB FEC On Spurious Emission < -100 dBm Power Consumption, typical 1.2W Power Consumption, Sleep ON 0.24W typical DATA MODEM Timing RS-232 Electrical Interface USB 5V (RD, TD, +VCC, GND) Data speed of I/O-interface 300 – 38400bps Data speed of Radio Interface 19200bps ( 25kHz channel) / 9600 bps (12.5kHz / 20 kHz channel) Data Formats Asynchronous data Modulation 4FSK, GMSK SATEL-TA21_CGR10_CGR15 User manual v.1.0 5 GENERAL Operating Voltage + 5.0 Vdc Temperature Ranges -25°C...+55°C. Complies with standards -30°C...+70°C. Functional -40°C ...+85°C Storage Antenna Connector 50ohm, D-sub Combo-RF, Female OTHER MEASURES ESD-failure threshold 8kV contact, 15kV air discharge Note 1 Due to radio electronic design, the receiver is about 6-15dB less sensitive on the following frequencies: 403.000MHz, 416.000MHz, 429.000MHz, 442.000MHz, 455.000MHz, 468.000MHz, 409.5875MHz and 469.2MHz. 3.1.1 Power supply No separate power supply. The module gets the 5 V operating voltage directly from the CS10/15 The modem withstands a live insertion or removal from the CS10/15 without switching the power OFF. SATEL-TA21_CGR10_CGR15 User manual v.1.0 6 3.2 Pin order of the main connector SIGNAL NAME DIRECTION DESCRIPTION + 5 V IN Operation Power USB + IN/OUT I/O USB - IN/OUT I/O GND IN Ground GND IN Ground SATEL-TA21_CGR10_CGR15 User manual v.1.0 7 4 DEFAULT VALUES The radio receiver modem is shipped with the following default settings (unless otherwise specifically ordered): DEFAULT VALUES OF THE ADJUSTABLE SETTINGS ( the user can change these settings later on ) Setting Default value Range Radio frequency Operating RX frequency 438.000 MHz Range: 403-473 MHz Reference Frequency 438.000 MHz Range: 403-473 MHz Channel Spacing 25 kHz Range:12.5 kHz, 20 kHz, or 25 kHz Radio settings Signal threshold -115 dBm 80-118 dBm Radio Compatibility SATEL 3AS SATEL 3AS, Option1=PCC 4-FSK, Option 2=PCC GMSK, 3=TrimTalk Addressing RX Address OFF …

Text truncated - open the document above for the full version.

SATEL-TA21: External pictures and Label location information 01.11.2011 MaritaL Labels:

SATEL-TA21: External pictures and Label location information 01.11.2011 MaritaL Labels:

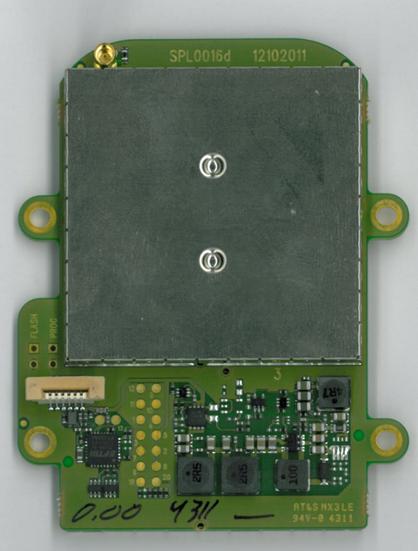

SATEL-TA21 Internal pictures 01.11.2011 MaritaL Bottom: SATEL-TA21 Internal pictures 01.11.2011 MaritaL Top:

Nemko Oy  P.O. Box 19, FI-02601 Espoo, Finland Street address: Perkkaantie 11, FI-02600 Espoo Telephone +358 424 5454 1  Telefax +358 9 5489 6371 TEST REPORT Date: ESPOO 21.10.2011 Page: 1 (13) Appendices  Date of handing in: 08.08.2011 Number: 180488A No. 1 / 1 Tested by: Pekka Kälviäinen, Test Engineer Reviewed by: Timo Leismala, Test Manager SORT OF EQUIPMENT: UHF Radio Modem Receiver MARKETING NAME: CGR10 and CGR15 TYPE: SATEL-TA21 MANUFACTURER: Satel Oy SERIAL NUMBER: - CLIENT: Satel Oy ADDRESS: P.O. Box 142 (Meriniitynkatu 17), FI-24101 Salo, Finland TELEPHONE: +358 (0)50 5998411 / Marita Latovehmas TEST SPECIFICATION: EN 301 489-1, v.1.8.1, EN 301 489-5, v.1.3.1, EN 300 113-2 v.1.6.1 SUMMARY: In regard to the performed tests the EUT fulfils the requirements defined in the test specifications EN 301 489-1, v.1.8.1, EN 301 489-7, v.1.3.1, EN 300 113-1 v.1.6.1. All tests have not been performed, see page 2 for details. According to the standards the emission measurement results have been compared directly with the limit lines without considering measurement uncertainties. The test results are valid for the tested unit only. Without a written permission of Nemko Oy it is allowed to copy this report as a whole, but not partially. Version e2.07 Type: SATEL-TA21 EN 301 489-1, v.1.8.1, EN 301 489-5, v.1.3.1, EN 300 113-2 v.1.6.1 S/N: - Test report: 180488A Page 2 (13) Date 21.10.2011 Summary of performed tests and test results Immunity tests according to the test specifications EN 301 489-1 and EN 301 489-5: Immunity test Test method Conclusion Radiated radio-frequency electromagnetic field EN 61000-4-3 Pass Electrostatic discharge (ESD) EN 61000-4-2 Pass Emission tests according to the test specification EN 300 113-2: Emission test Test method Conclusion Radiated spurious emissions 30-4000 MHz EN 300 113-1 Pass Type: SATEL-TA21 EN 301 489-1, v.1.8.1, EN 301 489-5, v.1.3.1, EN 300 113-2 v.1.6.1 S/N: - Test report: 180488A Page 3 (13) Date 21.10.2011 Contents 1. General ............................................................................................................................................... 4 2. System Configuration .......................................................................................................................... 4 2.1 Test set-up ................................................................................................................................ 4 2.2 Operating conditions of the EUT .............................................................................................. 5 2.3 Performance criteria for immunity tests .................................................................................... 5 3. Test procedures .................................................................................................................................. 6 3.1 Emission tests ........................................................................................................................... 6 3.1.1 Radiated spurious emission test ............................................................................................... 6 3.2 Immunity tests ........................................................................................................................... 6 3.2.1 Radiated radio-frequency electromagnetic field immunity test ................................................. 6 3.2.2 Electrostatic discharge (ESD) immunity test ............................................................................ 7 4. Test results .......................................................................................................................................... 8 4.1 Emission tests ........................................................................................................................... 8 4.1.1 Radiated spurious emission test ............................................................................................... 8 4.2 Immunity tests ........................................................................................................................... 9 4.2.1 Radiated radio-frequency immunity test ................................................................................... 9 4.2.2 Electrostatic discharge (ESD) immunity test ............................................................................ 9 5. List of test equipment ........................................................................................................................ 10 6. Photographs ...................................................................................................................................... 12 Type: SATEL-TA21 EN 301 489-1, v.1.8.1, EN 301 489-5, v.1.3.1, EN 300 113-2 v.1.6.1 S/N: - Test report: 180488A Page 4 (13) Date 21.10.2011 1. General The equipment under test (EUT) was a UHF Radio Modem Receiver. The purpose of the performed tests was to see if in regard to these tests the EUT fulfils the EMC requirements defined in the EC Council Directives 2004/108/EC and 1999/5/EC. The tests were performed according to the test specifications EN 301 489-1, v.1.8.1, EN 301 489-5, v.1.3.1 and EN 300 113-2 v.1.6.1 by using accredited test methods. 2. System Configuration 2.1 Test set-up Equipment under test (EUT):  UHF Radio Modem Receiver, type: SATEL-TA21, s/n: - Ancillary units:  Leica Viva, s/n: -  Satel radio modem (placed outside of the test area) Operating voltage of the EUT during the tests:  5.0 V DC. Type: SATEL-TA21 EN 301 489-1, v.1.8.1, EN 301 489-5, v.1.3.1, EN 300 113-2 v.1.6.1 S/N: - Test report: 180488A Page 5 (13) Date 21.10.2011 2.2 Operating conditions of the EUT The EUT was connected to the Leica Viva unit. During the test the transmitter was sending continuously the text to the EUT. The received data was monitored from the display of Leica Viva unit. The receiver frequency was 438 MHz. 2.3 Performance criteria for immunity tests Criterion CR Four messages of five or 90…

Text truncated - open the document above for the full version.

This Test Report , when bearing the Nemko name and logo is only valid when issued by a Nemko laboratory, or by a laboratory having special agreement with Nemko. Test Report issued under the responsibility of: www.nemko.com TEST REPORT IEC 60950-1: 2005 (2nd Edition) Information technology equipment – Safety – Part 1: General requirements Report Reference No. ..................... : 180488B Date of issue..................................... : 2011-10-21 Total number of pages ...................... 45 + pages as indicated in part “List of attachments” CB/CCA Testing Laboratory .......... : Nemko Oy Address ............................................ : Perkkaantie 11, FI-02601 Espoo, Finland Applicant’s name ............................ : Satel Oy Address ............................................ : Meriniitynkatu 17, FI-24100 Salo, Finland Manufacturer’s name ..................... : Same as applicant Address ............................................ : Factory’s name ............................... : Same as applicant Address ............................................ : Test specification: Standard ........................................... : IEC 60950-1:2005 (2nd Edition) + A1:2009 Test procedure ................................. : CB CCA National Non-standard test method..............: N/A Test Report Form No. ..................... : IECEN60950_1C Test Report Form(s) Originator ........ : SGS Fimko Ltd (edited by Nemko Oy) Master TRF ...................................... : Dated 2009-09 (2010-02) Copyright © 2009 IEC System for Conformity Testing and Certification of Electrical Equipment (IECEE), Geneva, Switzerland. All rights reserved. This publication may be reproduced in whole or in part for non-commercial purposes as long as the IECEE is acknowledged as copyright owner and source of the material. IECEE takes no responsibility for and will not assume liability for damages resulting from the reader's interpretation of the reproduced material due to its placement and context. If this Test Report Form is used by non-IECEE members, the IECEE/IEC logo and the reference to the CB Scheme procedure shall be removed. This report is not valid as a CB Test Report unless signed by an approved CB Testing Laboratory and appended to a CB Test Certificate issued by an NCB in accordance with IECEE 02. Test item description ..................... : Radio modem receiver for building-in Trade Mark ....................................... : SATEL-TA21 Manufacturer .................................... : Satel Oy Model/Type reference ....................... : CGR10 and CGR15 Ratings ............................................. : No electrical ratings (the EUT is not connected to a mains supply) Page 2 of 49 Report No. 180488B TRF No. IEC60950_1A Testing procedure and testing location: CB/CCA Testing Laboratory: Testing location/ address ...................... : See page 1. Tested by (name + signature) ..... : Erja Hägert Approved by (name + signature) . : Timo Leismala Testing procedure: TMP Tested by (name + signature) ..... : Approved by (name + signature) .. : Testing location/ address ...................... : Testing procedure: WMT Tested by (name + signature) ..... : Witnessed by (name + signature) : Approved by (name + signature) . : Testing location/ address ...................... : Testing procedure: SMT Tested by (name + signature) ..... : Approved by (name + signature) .. : Supervised by (name + signature): Testing location/ address ................ : Testing procedure: RMT Tested by (name + signature) ..... : Approved by (name + signature) .. : Supervised by (name + signature): Testing location/ address ...................... : Page 3 of 49 Report No. 180488B TRF No. IEC60950_1A Summary of testing (SOT): The receiver CGR10 is working inside the Leica Viva CS10/15 unit. During the test the transmitter is sending continuously the text to the CGR10 receiver. The numbers of receiver data can be seen in the display of Leica Viva unit. The receiver frequencies are 403-473 MHz. Clause 4.7; The equipment is for building-in. The flammability properties of the end product enclosure have not been evaluated. Fire enclosure requirements have to be considered in end product. The product fulfils / does not fulfill the requirements of EN 60950-1:2006 + A11:2009. Tests performed (name of test and test clause): All tests as indicated in the test report: Testing location: See page 1. Summary of compliance with National Differences: The product fulfils / does not fulfill the requirements of EN 60950-1:2006 + A11:2009 (+ A1:2010): CENELEC common modifications NO SE FI DK UK IE DE CH ES US CA KR other: - According to Online CB-Bulletin dated 2011-10-21 no SNC have been informed for the following countries: China, Japan. SNC for Germany: Manuals have to be provided in German language before marketing in Germany. Copy of marking plates Receiver model CGR10 Receiver model CGR15 Page 4 of 49 Report No. 180488B TRF No. IEC60950_1A Name and address of production-sites (Factories): Satel Oy Meriniitynkatu 17 P.O. Box 142 FI-24101 Finland List of attachments: The test report includes following additional documentation: Technical Annex: 13 pages Photographs: 5 pages Page 5 of 49 Report No. 180488B TRF No. IEC60950_1A Test item particulars (TIP): Equipment mobility .................................................... : movable hand-held transportable stationary for building-in direct plug-in Supply(s) ................................................................... : a.c. mains d.c. mains SELV TNV battery operated LPS secondary hazardous voltage ? other: Connections per IEC 62102: Connection to the supply .......................................... : pluggable equipment: type A type B permanent connection detachable power supply cord non-detachable power supply cord not directly connected to the mains Operating condition .................................................. : continuous rated operating / resting time: A…

Text truncated - open the document above for the full version.

Satel Oy Measurement report for CGR10 modems: 406,1 MHz ... 473 MHz Kari Jokinen 9/9/2011 Page 2 of 4 SATEL Oy, P.O.Box 142, FIN-24101 Salo, Finland Street: Meriniitynkatu 17, FIN-24100 Salo, Finland Tel: +358 2 777 7800, Fax: +358 2 777 7810, E-mail: [email protected] www.satel.fi Contents CONTENTS 2 RECEIVER SPURIOUS EMISSIONS 3 Spectrum analyzer settings 3 Measurement setup 3 MEASURING EQUIPMENT SUMMARY 4 TEST SUMMARY 4 Page 3 of 4 SATEL Oy, P.O.Box 142, FIN-24101 Salo, Finland Street: Meriniitynkatu 17, FIN-24100 Salo, Finland Tel: +358 2 777 7800, Fax: +358 2 777 7810, E-mail: [email protected] www.satel.fi Receiver Spurious Emissions Test time Test site Measured frequencies S/N Standard Performed by 09.09.2011 Satel Oy 403MHz, 438MHz, 473MHz 1136000009 RSS119 Issue 11 (5.11) KJo List of measuring equipment  Spectrum analyzer Rohde & Schwarz FSP Serial no. 837619/003 Spurious frequencies were measured while EUT was in a RX mode. Spectrum analyzer settings RBW: 300Hz, VBW: 1kHz, Sweep time: 1150ms, Span: 100kHz Measurement setup ROHDE & SCHWARZSPEKTRUM ANALYZER 9 kHz ... 3 GHz FSP 1 2 3 4 56 7 8 9 0 . - TRACE LINES DISP FILE RF INPUT GEN OUTPUT 50 PC RX frequency Start/MHz Stop/MHz Largest spurious signal/MHz Largest spurious signal/dBm Limit/dBm 406,1 MHz 10 1000 586,6 -65 -57 406,1 MHz 1000 3000 2933,0 -81 -53 438 MHz 10 1000 621,6 -64 -57 438 MHz 1000 3000 2486,4 -81 -53 473 MHz 10 1000 656,6 -69 -57 473 MHz 1000 3000 2626,4 -76 -53 Page 4 of 4 SATEL Oy, P.O.Box 142, FIN-24101 Salo, Finland Street: Meriniitynkatu 17, FIN-24100 Salo, Finland Tel: +358 2 777 7800, Fax: +358 2 777 7810, E-mail: [email protected] www.satel.fi Measuring Equipment Summary Equipment Model Serial no. Spectrum analyzer Rohde & Schwarz FSP 837619/003 Test Summary Test FCC Standard Pass/Fail Receiver Spurious Emissions RSS119 Issue 11 (5.11) Pass

Satel Oy Measurement report for CGR15 modems: 406,1 MHz ... 473 MHz Kari Jokinen 9/9/2011 Page 2 of 4 SATEL Oy, P.O.Box 142, FIN-24101 Salo, Finland Street: Meriniitynkatu 17, FIN-24100 Salo, Finland Tel: +358 2 777 7800, Fax: +358 2 777 7810, E-mail: [email protected] www.satel.fi Contents CONTENTS 2 RECEIVER SPURIOUS EMISSIONS 3 Spectrum analyzer settings 3 Measurement setup 3 MEASURING EQUIPMENT SUMMARY 4 TEST SUMMARY 4 Page 3 of 4 SATEL Oy, P.O.Box 142, FIN-24101 Salo, Finland Street: Meriniitynkatu 17, FIN-24100 Salo, Finland Tel: +358 2 777 7800, Fax: +358 2 777 7810, E-mail: [email protected] www.satel.fi Receiver Spurious Emissions Test time Test site Measured frequencies S/N Standard Performed by 09.09.2011 Satel Oy 403MHz, 438MHz, 473MHz 1136000010 RSS119 Issue 11 (5.11) KJo List of measuring equipment  Spectrum analyzer Rohde & Schwarz FSP Serial no. 837619/003 Spurious frequencies were measured while EUT was in a RX mode. Spectrum analyzer settings RBW: 300Hz, VBW: 1kHz, Sweep time: 1150ms, Span: 100kHz Measurement setup ROHDE & SCHWARZSPEKTRUM ANALYZER 9 kHz ... 3 GHz FSP 1 2 3 4 56 7 8 9 0 . - TRACE LINES DISP FILE RF INPUT GEN OUTPUT 50 PC RX frequency Start/MHz Stop/MHz Largest spurious signal/MHz Largest spurious signal/dBm Limit/dBm 406,1 MHz 10 1000 586,6 -65 -57 406,1 MHz 1000 3000 2933,0 -81 -53 438 MHz 10 1000 621,6 -64 -57 438 MHz 1000 3000 2486,4 -81 -53 473 MHz 10 1000 656,6 -69 -57 473 MHz 1000 3000 2626,4 -76 -53 Page 4 of 4 SATEL Oy, P.O.Box 142, FIN-24101 Salo, Finland Street: Meriniitynkatu 17, FIN-24100 Salo, Finland Tel: +358 2 777 7800, Fax: +358 2 777 7810, E-mail: [email protected] www.satel.fi Measuring Equipment Summary Equipment Model Serial no. Spectrum analyzer Rohde & Schwarz FSP 837619/003 Test Summary Test FCC Standard Pass/Fail Receiver Spurious Emissions RSS119 Issue 11 (5.11) Pass
