SATEL-TR4+ TRANSCEIVER MODULE INTEGRATION GUIDE Version 1.7 SATEL-TR4+ Integration Guide, Version 1.7 1 IMPORTANT NOTICE All rights to this manual are owned solely by SATEL Oy (referred to in this user guide as SATEL). All rights reserved. The copying of this manual (without the written permission from the owner) by printing, copying, recording or by any other means, or the full or partial translation of the manual to any other language, including all programming languages, using any electrical, mechanical, magnetic, optical, manual or other methods or devices is forbidden. SATEL reserves the right to change the technical specifications or functions of its products, or to discontinue the manufacture of any of its products or to discontinue the support of any of its products, without any written announcement and urges its customers to ensure, that the information at their disposal is valid. SATEL software and programs are delivered ”as is”. The manufacturer does not grant any kind of warranty including guarantees on suitability and applicability to a certain application. Under no circumstances is the manufacturer or the developer of a program responsible for any possible damages caused by the use of a program. The names of the programs as well as all copyrights relating to the programs are the sole property of SATEL. Any transfer, licensing to a third party, leasing, renting, transportation, copying, editing, translating, modifying into another programming language or reverse engineering for any intent is forbidden without the written consent of SATEL. SATEL PRODUCTS HAVE NOT BEEN DESIGNED, INTENDED NOR INSPECTED TO BE USED IN ANY LIFE SUPPORT RELATED DEVICE OR SYSTEM RELATED FUNCTION NOR AS A PART OF ANY OTHER CRITICAL SYSTEM AND ARE GRANTED NO FUNCTIONAL WARRANTY IF THEY ARE USED IN ANY OF THE APPLICATIONS MENTIONED. Salo, FINLAND 2020 Copyright: 2020 SATEL Oy No part of this document may be reproduced, transmitted or stored in a retrieval system in any form or by any means without the prior written permission of SATEL Oy. SATEL-TR4+ Integration Guide, Version 1.7 2 RESTRICTIONS ON USE – SATEL-TR4+ SATEL-TR4+ radio transceiver module has been designed to operate on 403-473 MHz, the exact use of which differs from one region and/or country to another. The user of a radio transceiver module must take care that the said device is not operated without the permission of the local authorities on frequencies other than those specifically reserved and intended for use without a specific permit. SATEL-TR4+ is allowed to be used in the following countries. More detailed information is available at the local frequency management authority. Countries: AE, AT, AU, BE, BG, BR, CA, CH, CY, CZ, DE, DK, EE, ES, FI, FR, GB, GR, HU, HR, IE, IS, IT, JP, KR, LT, LU, LV, MT, NL, NO, PL, PT, RU, RO, SE, SI, SK, TR, US WARNING – RF Exposure! To comply with RF exposure compliance requirements in Europe, USA and Canada maximum antenna gain is 14dBi and a separation distance listed in a table below must be maintained between the antenna of this device and all persons. This device must not be co-located or operating in conjunction with any other antenna or transmitter. Antenna Gain [dBi] Separation distance [cm] 0 23 4 36 6 45 8 56 10 71 12 89 14 112 Host product labeling requirements SATEL-TR4+ is intended to be integrated into a host device. Therefore, the SATEL-TR4+ product related FCC ID and IC ID must be visible in the host device chassis: FCC ID: MRBSATEL-TA40 IC: 2422A-SATELTA40 WARNING! Users of SATEL-TR4+ radio transceiver module in North America should be aware, that due to the allocation of the frequency band 406.0 – 406.1 MHz for government use only, the use of radio transceiver module on this frequency band without a proper permit is strictly forbidden. SATEL-TR4+ Integration Guide, Version 1.7 3 NOTE! According to the requirements of the FCC, the integrator should make sure that the SATEL-TR4+ is compliant to part 90 while integrated in the host device. Output power and spurious emissions should be verified. NOTE! This device complies with Part 15 of the FCC Rules. Operation is subject to the condition that this device does not cause harmful interference SATEL-TR4+ Integration Guide, Version 1.7 4 PRODUCT CONFORMITY Under the sole responsibility of manufacturer SATEL Oy declares that SATEL-TR4+ radio transceiver module is in compliance with the essential requirements (radio performance, electromagnetic compatibility and electrical safety) and other relevant provisions of Directives 2014/53/EU and 2011/65/EU and Council recommendation 1999/519/EC. Therefore, the equipment is labeled with the following CE-marking. The operating frequency range of the device is not harmonized throughout the market area, and the local spectrum authority should be contacted before the usage of the radio module. SATEL-TR4+ Integration Guide, Version 1.7 5 WARRANTY AND SAFETY INSTRUCTIONS Read these safety instructions carefully before using the product: -Warranty will be void, if the product is used in any way that is in contradiction with the instructions given in this manual -The radio transceiver module is only to be operated at frequencies allocated by local authorities, and without exceeding the given maximum allowed output power ratings. SATEL and its distributors are not responsible, if any products manufactured by it are used in unlawful ways. -The devices mentioned in this manual are to be used only according to the instructions described in this manual. Faultless and safe operation of the devices can be guaranteed only if the transport, storage, operation and handling of the device are appropriate. This also applies to the maintenance of the products. SATEL-TR4+ Integration Guide, Version 1.7 6 HOST INTEGRATION To ensure compliance with all non-transmitter functions the host manufacturer is responsible for ensuring compliance with the module(s) installed and fully operational. For example, if a host was previousl…

Text truncated - open the document above for the full version.

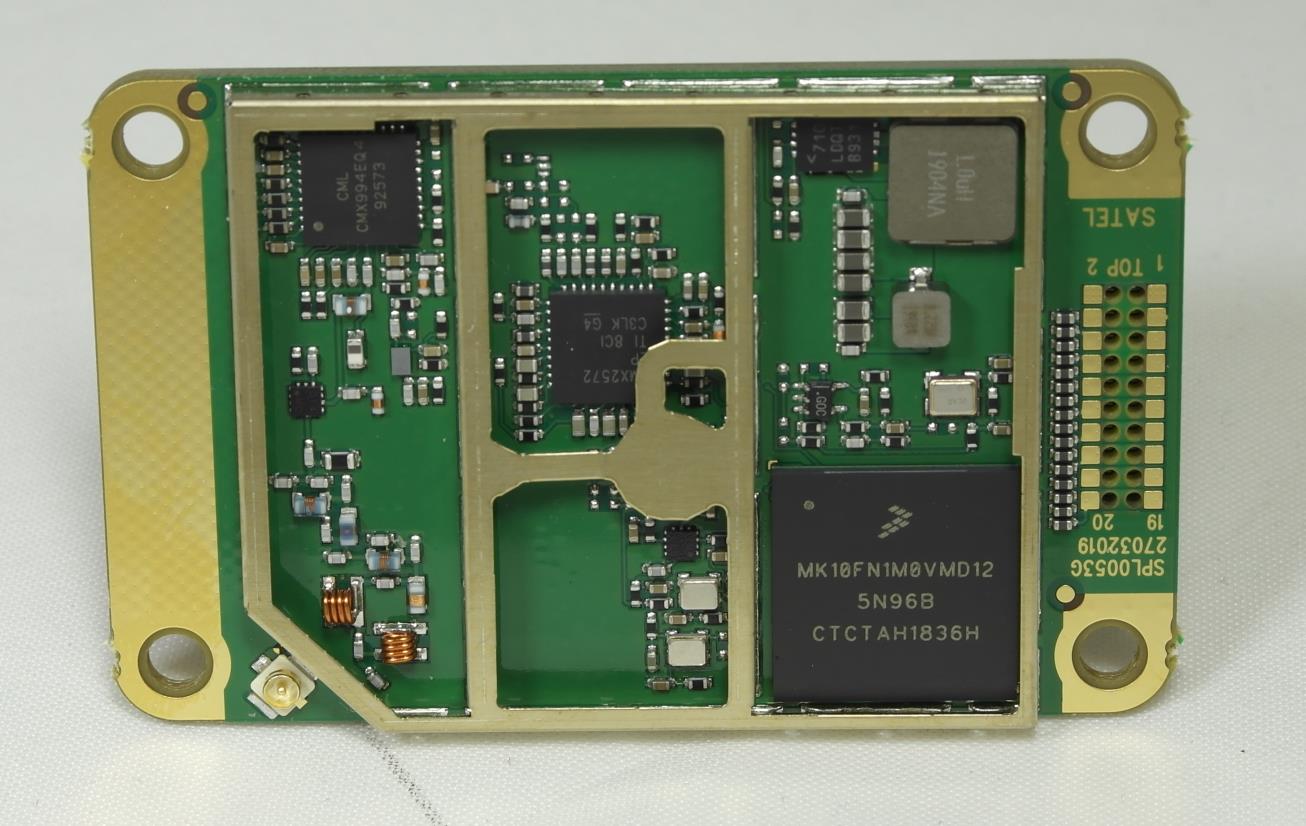

Top with shield Bottom with shield Top Bottom

Top with shield Bottom with shield Top Bottom

REPORT Document ID: Click here to enter text. Classification: Confidential Date: 7.5.2020 Author: JPu Reviewed: Click here to enter text. Approved: Click here to enter text. Version: 0.6 Project: Click here to enter text. SATEL-TR4+ RF Exposure Limits and Approximation of Safety Distances Applicable to Radio Modem Systems RF Exposure Limits on VHF/UHF Frequency Range On VHF/UHF frequency range the most significant mechanism of action of RF exposure is tissue warming. Other physiological mechanisms have not yet been proven by scientific research. Basic restrictions for RF exposure on VHF/UHF band are based on SAR (Specific Absorption Rate) limits. Basic restrictions are set in a way that a person is well protected against all verified adverse effects. ICNIRP (International Commission on Non-Ionizing Radiation, www.icnirp.de) has 1998 set the following limits for SAR on VHF/UHF frequency range (actually covering 10 MHz – 10 GHz), based on 6-minute exposure average per 10 g tissue mass. However, local legislation and standards are to be respected always when preparing an RF exposure analysis. European Council has set the recommendation 1999/519/EC on the limitation of exposure of the general public to electromagnetic fields (0 Hz to 300 GHz). ICNIRP Basic Restrictions on VHF/UHF for SAR SAR, work-related exposure [W/kg] SAR, population exposure [W/kg] whole body average 0.4 0.08 head and torso 10 2 extremities 20 4 Due to the practical difficulties of measuring SAR inside a body, equivalent reference levels are used for RF power density or electric or magnetic field strength outside the body. The reference levels have been set so that the basic restrictions are not exceeded at any circumstances. ICNIRP has 1998 set the following reference limits for RF power density [W/m2] on VHF/UHF frequency range (10-400 MHz or 400-2000 MHz), based on 6-minute exposure average. ICNIRP Reference Values on VHF/UHF for RF Power Density Equivalent RF power density, work-related exposure [W/m 2 ] Equivalent RF power density, population exposure [W/m 2 ] 10 – 400 MHz 10 2 400 – 2000 MHz 2.5E-8 x f 0.5E-8 x f f is given in [Hz] Satel 2020, All rights reserved. 2 Approximation of Safety Distances in Order to Meet ICNIRP Reference Values for RF Exposure Electro-magnetic wave carries energy, which is expressed as power density S. It depends on electric and magnetic field strength according to their vector product. 푆 ⃗ =퐸 ⃗⃗ ×퐻 ⃗⃗⃗ (1) The direction of S vector gives the direction of propagation of power. The amplitude of S vector defines the power per unit area carried by the wave. In case of a sinusoidal TEM (Transverse Electro-Magnetic) wave, the amplitude of the power density S at a distance r from the radiator antenna can be calculated by the formula below 푆= 푃퐺 4 휋푟 2 (2) where: P = RF signal power fed to the antenna, [W], in this case 6-minute average G = isotropic gain of the antenna, [numeric] r = observation distance from the transmitter antenna, [m] π ≈ 3.14 The formula (2) is not valid in the near field conditions when r < 2D 2 /λ (Rayleigh’s criteria). D is the maximum dimension of an antenna and λ is the wavelength of the RF signal. In free space λ = c/f, where c = velocity of light and f = frequency. The signal power fed to the antenna can be determined by starting with transmitter output power (in this case 6-minute average value is used), and then subtracting insertion loss or adding gain of each RF component on the feeder line up to the antenna. The formula (2) we can solve for the distance r, in order to find out the minimum distance to meet the limit set for maximum RF power density. 푟= √ 푃퐺/4휋푆 (3) Calculation • Transmitter output power of radio modem is max 1.0 W • Transmit frequency = 403 MHz • Antenna gain = 0 dBi including all signal losses of cables, attenuators etc. The radio specification states that the effective radiated power from the antenna must not be more than 1 W. Antenna gain can be converted to a numeric gain with the formula below. 퐺= 10 퐺[푑퐵푖] 10 (4) Satel 2020, All rights reserved. 3 By substituting the above values to the formula (3) we can determine minimum safety distances acc. to ICNIRP reference values... ...for work-related Exposure a) 푟= √ 푃퐺/4휋푆 Work-related Exposure (400-2000 MHz) f/Hz P/W G[dBi] G S [W/m 2 ] r/m r/cm 403000000 1 0 1.0 10.075 0.089 8.9 4 2.5 10.075 0.141 14.1 6 4.0 10.075 0.177 17.7 8 6.3 10.075 0.223 22.3 10 10.0 10.075 0.281 28.1 12 15.8 10.075 0.354 35.4 ...and for population Exposure b) 푟= √ 푃퐺/4휋푆 Population Exposure (400-2000 MHz) f/Hz P/W G[dBi] G S [W/m 2 ] r/m r/cm 403000000 1 0 1.0 2.015 0.199 19.9 4 2.5 2.015 0.315 31.5 6 4.0 2.015 0.397 39.7 8 6.3 2.015 0.499 49.9 10 10.0 2.015 0.628 62.8 12 15.8 2.015 0.791 79.1 Satel 2020, All rights reserved. 4 CFR Part 47, §1.1310 In accordance to CFR Part 47, §1.1310 Frequency Range /MHz RF power density, occupational/controlled [mW/cm 2 ] RF power density, general population/uncontrolled [mW/cm 2 ] 300 – 1500 MHz f/300 f/1500 f = frequency in MHz Limits for power density according to table above: Frequency Range /MHz RF power density, occupational/controlled [W/m 2 ] RF power density, general population/uncontrolled [W/m 2 ] 300 – 1500 MHz 13.4 2.7 Calculations Occupational/Controlled f/Hz P/W G[dBi] G S [W/m 2 ] r/m r/cm 403000000 1 0 1.0 13.400 0.077 7.7 4 2.5 13.400 0.122 12.2 6 4.0 13.400 0.154 15.4 8 6.3 13.400 0.194 19.4 10 10.0 13.400 0.244 24.4 12 15.8 13.400 0.307 30.7 14 25.1 13.400 0.386 38.6 Population/Uncontrolled f/Hz P/W G[dBi] G S [W/m 2 ] r/m r/cm 403000000 1 0 1.0 2.700 0.172 17.2 4 2.5 2.700 0.272 27.2 6 4.0 2.700 0.343 34.3 8 6.3 2.700 0.431 43.1 10 10.0 2.700 0.543 54.3 12 15.8 2.700 0.683 68.3 Satel 2020, All rights reserved. 5 14 25.1 2.700 0.860 86.0 RSS-102 Issue 5 In accordance to RSS-102 Issue 5 Frequency Range /MHz RF power density, controlled environment [W/m 2 ] RF power density, general public/uncontrolled environment [W/m 2 ] 300 – 6000 MHz 0.6455*f 0.5 (1 0.02619*f …
