SATELLINE-M3-TR1 User Guide, Version 3.0 1 SATELLINE-M3-TR1 Transceiver Radio Modem User Guide SATELLINE-M3-TR1 User Guide, Version 3.0 2 IMPORTANT NOTICE All rights to this manual are owned solely by SATEL OY (referred to in this user guide as SATEL). All rights reserved. The copying of this manual (without the written permission from the owner) by printing, copying, recording or by any other means, or the full or partial translation of the manual to any other language, including all programming languages, using any electrical, mechanical, magnetic, optical, manual or other methods or devices is forbidden. SATEL reserves the right to change the technical specifications or functions of its products, or to discontinue the manufacture of any of its products or to discontinue the support of any of its products, without any written announcement and urges its customers to ensure, that the information at their disposal is valid. SATEL software and programs are delivered ”as is”. The manufacturer does not grant any kind of warranty including guarantees on suitability and applicability to a certain application. Under no circumstances is the manufacturer or the developer of a program responsible for any possible damages caused by the use of a program. The names of the programs as well as all copyrights relating to the programs are the sole property of SATEL. Any transfer, licensing to a third party, leasing, renting, transportation, copying, editing, translating, modifying into another programming language or reverse engineering for any intent is forbidden without the written consent of SATEL. SATEL PRODUCTS HAVE NOT BEEN DESIGNED, INTENDED NOR INSPECTED TO BE USED IN ANY LIFE SUPPORT RELATED DEVICE OR SYSTEM RELATED FUNCTION NOR AS A PART OF ANY OTHER CRITICAL SYSTEM AND ARE GRANTED NO FUNCTIONAL WARRANTY IF THEY ARE USED IN ANY OF THE APPLICATIONS MENTIONED. Salo, FINLAND 2013 Copyright: 2013 SATEL Oy No part of this document may be reproduced, transmitted or stored in a retrieval system in any form or by any means without the prior written permission of SATEL Oy. This document is provided in confidence and must not be distributed to third parties without the express permission of SATEL Oy. SATELLINE-M3-TR1 User Guide, Version 3.0 3 RESTRICTIONS ON USE SATELLINE-M3-TR1 radio modem module has been designed to operate on 403...473 MHz, the exact use of which differs from one region and/or country to another. The user of a radio modem must take care that the said device is not operated without the permission of the local authorities on frequencies other than those specifically reserved and intended for use without a specific permit. This user manual is universal; please notice the FCC 25 kHz requirements in US. . SATELLINE-M3-TR1 is allowed to be use in the following countries, either on licence free channels or on channels where the operation requires a licence. More detailed information is available at the local frequency management authority. Countries: AT, AU, BE, BG, CA, CH, CY, CZ, DE, DK, EE, ES, FI, FR, GB, GR, HU, IE, IS, IN, IT, KZ, LT, LU, LV, MT, NL, NO, PL, PT, RU, RO, SE, SG, SI, SK, TR, UA, US and ZA. WARNING! Users of SATELLINE-M3-TR1 in North America should be aware, that due to the allocation of the frequency band 406.0 – 406.1 MHz for government use only, the use of radio modem on this frequency band without a proper permit is strictly forbidden. WARNING! Under Industry Canada regulations, this radio transmitter may only operate using an antenna of a type and maximum (or lesser) gain approved for the transmitter by Industry Canada. To reduce potential radio interference to other users, the antenna type and its gain should be so chosen that the equivalent isotropically radiated power (e.i.r.p.) is not more than that necessary for successful communication. Conformément à la réglementation d'Industrie Canada, le présent émetteur radio peut fonctionner avec une antenne d'un type et d'un gain maximal (ou inférieur) approuvé pour l'émetteur par Industrie Canada. Dans le but de réduire les risques de brouillage radioélectrique à l'intention des autres utilisateurs, il faut choisir le type d'antenne et son gain de sorte que la puissance isotrope rayonnée équivalente (p.i.r.e.) ne dépasse pas l'intensité nécessaire à l'établissement d'une communication satisfaisante. SATELLINE-M3-TR1 User Guide, Version 3.0 4 PRODUCT CONFORMITY SATELLINE-M3-TR1 SATEL Oy hereby declares that SATELLINE-M3-TR1 radio modem modules are in compliance with the essential requirements (radio performance, electromagnetic compatibility and electrical safety) and other relevant provisions of Directive 1999/5/EC. Therefore the equipment is labelled with the following CE-marking. The notification sign informs users that the operating frequency range of the device is not harmonised throughout the market area, and the local spectrum authority should be contacted before the usage of the radio modem is used . SATELLINE-M3-TR1 User Guide, Version 3.0 5 WARRANTY AND SAFETY INSTRUCTIONS Read these safety instructions carefully before using the product: -Warranty will be void, if the product is used in any way that is in contradiction with the instructions given in this manual, or if the radio modem housing has been opened or tampered with. -The radio modem is only to be operated at frequencies allocated by local authorities, and without exceeding the given maximum allowed output power ratings. SATEL and its distributors are not responsible, if any products manufactured by it are used in unlawful ways. -The devices mentioned in this manual are to be used only according to the instructions described in this manual. Faultless and safe operation of the devices can be guaranteed only if the transport, storage, operation and handling of the devices is appropriate. This also applies to the maintenance of the products. -To prevent damage it is recommended that both the radio modem and any terminal devices are switched OFF before con…

Text truncated - open the document above for the full version.

EF grant note 08.03.2013/ML FCC ID: MRBSATEL-TA13G Form 731 Confirmation Number: EA947137 According to KDB 634817, For radio modem module SATELLINE-M3-TR1 (type name SATEL-TA13G) has been applied the FCC ID with extended frequencies. This is the reason for EF grant note: EF: This device may contain functions that are not operational in U.S Territories except as noted in the filing. This grant has extended frequencies as noted in the filing and section 2.927 (b) applies to this authorization. Salo, Finland, March 8 th , 2013 Marita Latovehmas SATEL Oy Type Approval Engineer

PRODUCT INFORMATION SATELLINE-M3-TR1 v.1.1 07.03.2013/ML SATEL Oy, P.O.Box 142, FIN-24101 Salo, Finland Street: Meriniitynkatu 17, FIN-24100 Salo, Finland Tel: +358 2 777 7800, Fax: +358 2 777 7810, E-mail: [email protected] www.satel.com Calculation of the Necessary Bandwidth for SATELLINE-M3-TR1 UHF Radio Data Modem Transmitter (Transceiver) SATELLINE-M3-TR1 radio modem uses frequency modulation and the signal is modulated with digital information. Based on these facts, the necessary bandwidth is calculated according to the formula in the section §2.202 (g) part III-A/1. Calculation for 12.5 kHz channel spacing B n = 2M+2DK , M = B/2 , K = 1.2 B = 4800 bauds => M = 2400 s -1 D = 3.3 kHz B n = 2 x 2400 Hz + 2 x 3300 Hz x 1.2 = 12.7 kHz Note! Due to the fact that the maximum deviation never occurs simultaneously with the maximum modulation frequency, the real bandwidth of the emitted signal is lower than the ones calculated according to the formula above.

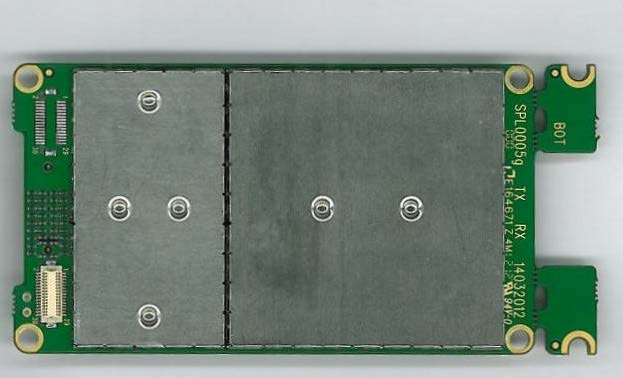

External photos of SATEL-TA13G 07.03.2013/MaritaL External photo, bottom view External photo, top view

Labels in SATEL-TA13G 08.03.2013/ML

Internal Photos of SATEL-TA13G 07.03.2013/MaritaL Photo1: SATELLINE-M3-TR1 internal view from bottom Photo2: SATELLINE-M3-TR1 internal view from top

WARNINGS FOR USERS SATEL-TA13G radio modem module FCC ID: MRBSATEL-TA13G INFO LETTER March 6 th , 2013 / MaritaL Page 1 of 3 Warnings to be added to the user guide of SATEL-TA13G radio modem module WARNING! Users of SATELLINE-M3-TR1 radio modem module in North America should be aware, that due to the allocation of the frequency band 406.0 – 406.1 MHz for government use only, the use of radio modem on this frequency band without a proper permit is strictly forbidden. Warning – RF Exposure "Warning: To comply with FCC RF exposure compliance requirements, a separation distance of at least xx cm must be maintained between the antenna of this device and all persons. This device must not be co-located or operating in conjunction with any other antenna or transmitter." Modification warning statement "Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment." Class B digital device statement "Note: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: -Reorient or relocate the receiving antenna. -Increase the separation between the equipment and receiver. -Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. -Consult the dealer or an experienced radio/TV technician for help." WARNINGS FOR USERS SATEL-TA13G radio modem module FCC ID: MRBSATEL-TA13G INFO LETTER March 6 th , 2013 / MaritaL Page 2 of 3 Safe distances for General Public Use () 2 150/4mWf PG R π = Due to numerous different applications, it is reasonable that users are not always aware of parameters of all components in a SATEL-TA13G radio modem system. However, obeying the safe distances in the table below, every user can easily fulfil the FCC limit (depends on the frequency in use) for human exposure to radio frequency radiation in general public use. Radio Modem Model Minimum safe distance to the antenna For General Public use SATEL-TA13G  87 cm Safe distances for Controlled Use Calculated by formula below: ( ) 2 30 /4 mW f PG R π = Minimum distance however being always at least 20 cm. Advanced users and system designers who are fully aware of key parameters of SATEL-TA13G radio modem system are allowed to follow the safe distances for controlled use listed in the table below. Tx output power [W] Antenna system gain [dBi / numeric] Tx duty cycle [%], 6 min. average Frequency [MHz] Minimum safe distance [cm] 1.0 14 / 25.12 100 403/473 38.6/35.7 50 403/473 27.3/25.3 20 403/473 20 10 403/473 20 8 / 6.310 100 403/473 20 50 403/473 20 20 403/473 20 10 403/473 20 6 / 3.981 100 403/473 20 50 403/473 20 20 403/473 20 10 403/473 20 2 / 1.585 100 403/473 20 WARNINGS FOR USERS SATEL-TA13G radio modem module FCC ID: MRBSATEL-TA13G INFO LETTER March 6 th , 2013 / MaritaL Page 3 of 3 50 403/473 20 20 403/473 20 10 403/473 20 0 / 1.000 100 403/473 20 50 403/473 20 20 403/473 20 10 403/473 20 0.5 6 / 3.981 100 403/473 20 50 403/473 20 20 403/473 20 10 403/473 20 0 / 1.000 100 403/473 20 50 403/473 20 20 403/473 20 10 403/473 20 0.2 6 / 3.981 100 403/473 20 50 403/473 20 20 403/473 20 10 403/473 20 0 / 1.000 100 403/473 20 50 403/473 20 20 403/473 20 10 403/473 20 0.1 0 / 1.000 100 403/473 20 50 403/473 20 20 403/473 20 10 403/473 20

Nemko Oy  P.O.Box 19, FI-02601 Espoo, Finland Street address: Perkkaantie 11, FI-02600 Espoo Telephone +358 424 5454 1  Telefax +358 9 5489 6371 Versio n R3.03 09092003 TEST REPORT TEST REPORT Date: ESPOO 10.01.2013 Page: 1 (11) Appendices - Date of handing in: 05.11.2012 Number: 224551A No. 1 / 1 Tested by: Pekka Kälviäinen, Test Engineer Reviewed by: Janne Nyman, Compliance Specialist SORT OF EQUIPMENT: Radio modem (PCB-unit) MODEL: SATELLINE-M3-TR1 TYPE: SATEL-TA13 (* MANUFACTURER: Satel Oy, Finland and SERIAL NUMBER: 1235 72065 CLIENT: Satel Oy ADDRESS: Meriniitynkatu 17, FI-24100 Salo, Finland TELEPHONE: +358 2 777 7800 / Marita Latovehmas TEST SPECIFICATION EN 300 113-2 V1.5.1 (2011-11) REMARKS: *) This test report includes the results of the version of the supply voltage 12 VDC. The test results are valid for the tested unit only. Without a written permission of Nemko Oy it is allowed to copy this report as a whole, but not partially. Type: SATEL-TA13 S/N: 1235 72065 EN 300 113-2 V1.5.1 (2011-11) Test report: 224551A Page 2 (11) Date 10.01.2013 Contents 1. General ............................................................................................................................................... 3 2. Summary of performed tests and test results ..................................................................................... 4 3. Test results .......................................................................................................................................... 5 3.1 Unwanted emissions in the spurious domain Clause 7.5 Transmitter Spurious Emissions (Conducted) 7.5.1 a ........................................................................................................................ 5 3.2 Unwanted emissions in the spurious domain Clause 7.5 Transmitter Spurious Emissions (Radiated) 7.5.1 b ........................................................................................................................... 6 3.3 Receiver spurious radiation Clause 8.10 Conducted Clause 8.10.1 a) ......................... 7 3.4 Receiver spurious radiation Clause 8.10 Radiated Clause 8.10.1 b) ............................. 8 4. Photographs ........................................................................................................................................ 9 5. List of measuring equipment: ............................................................................................................ 11 Type: SATEL-TA13 S/N: 1235 72065 EN 300 113-2 V1.5.1 (2011-11) Test report: 224551A Page 3 (11) Date 10.01.2013 Eq. 2 Ch. 4) 1. General Type: SATEL-TA13 Alignment range: 403 – 473 MHz Switching range: One channel Category: AR3 Measurement Serial no. 7 1235 72065 Serial no. Serial no. Frequencies: 1) 403,000 MHz 3) 4) 2) 473,000 MHz Voltages: 12,0 VDC Temperatures: 23,0 ± 1,5C Humidity: 30 % ± 8 % Effective radiated power: 1 W / 100 mW Antenna: 50 ohm (two SMA-connector) Number of channels: 1 Production model: Pre-production model Channel separation: 12,5, 20,0 Modulation: Multilevel State FM and 25,0 kHz (12,5 kHz: 9600 bps and 25 kHz: 19200 bps) 7.1 Frequency error 7.2 Transmitter power (conducted) 7.3 Maximum Effective radiated power 7.4 Adjacent channel power x x 7.5.1 a Spurious emissions (conducted) x x 7.5.1 b Spurious emissions (radiated) 7.6 Intermodulation attenuation 7.7 Transmitter attack time 7.8 Transmitter release time 7.9.3.1 Time domain measurements of power and frequency 7.9.3.3 Adjacent channel transient power measurements 8.1 Maximum useable sensitivity (digital, conducted) 8.2 Average usable sensitivity (digital, field strength) 8.3 Level of the wanted signal for the degradation measurements 8.4 Error behaviour at high input levels 8.5 Co-channel rejection 8.6 Adjacent channel selectivity 8.7 Spurious response rejection 8.8 Intermodulation response rejection 8.9 Blocking or desensitization x x 8.10.1 a Spurious radiations (conducted) x x 8.10.1 b Spurious radiations (radiated) 9.1 Receiver desensitization 9.2 Receiver spurious response rejection Normal Minimum Maximum Equipment 1 Equipment 1 Equipment 1 Eq. 1 and 1 Freq 1) 2) The following measurements have been performed according to EN 300 113-1 V1.7.1 (2011-11) standard: REMARKS: Eq 1 Freq 3) Eq. 1 Freq 4) Duplex operation Type: SATEL-TA13 S/N: 1235 72065 EN 300 113-2 V1.5.1 (2011-11) Test report: 224551A Page 4 (11) Date 10.01.2013 2. Summary of performed tests and test results (This interpretation of the test report’s results does not belong to the scope of our accreditation.) ETSI EN 300 113-1 V1.6.1 (2007-07) Result 7.5.1 a Spurious emissions (conducted) PASS 7.5.1 b Spurious emissions (radiated) PASS 8.10.1 a Receiver spurious radiations (conducted) PASS 8.10.1 b Receiver spurious radiations (radiated) PASS According to the standard the measurement results have been compared directly with the limits without considering measurement uncertainties. Explanations: PASS The EUT passed that particular test. FAIL The EUT failed that particular test. Type: SATEL-TA13 S/N: 1235 72065 EN 300 113-2 V1.5.1 (2011-11) Test report: 224551A Page 5 (11) Date 10.01.2013 3. Test results 3.1 Unwanted emissions in the spurious domain Clause 7.5 Transmitter Spurious Emissions (Conducted) 7.5.1 a Date: 06.11.2012 Method of measurement: Clause 7.5.2 Rated output power: Low: 100 mW and high: 1W Frequency 1 Frequency 2 Frequency (MHz) Results / dBm (P: low) Results / dBm (P: high) Frequency (MHz) Results / dBm (P: low) Results / dBm (P: high) Tx operating Tx operating 533 -41,6 -41,7 387 -49,0 -37,7 678 -51,7 -49,7 553 -48,3 -37,5 806 -45,6 -40,1 943 -58,6 -51,5 3629 -50,1 -46,9 2835 -64,4 -58,7 3782 -59,4 -60,8 Others 30 MHz to 4.0 GHz < -60,0 < -60,0 Others 30 MHz to 4.0 GHz < -60,0 < -60,0 All 4 GHz to 12,75 GHz < -50,0 < -50,0 Tx on standby Tx on standby 553 -66,1 606 -72,1 others 9 kHz to 4,0 GHz < -75,0 others 9 kHz to 4,0 GHz < -75,0 all 1 GHz to 12,75 GHz < -70,0 Measurement uncertain…

Text truncated - open the document above for the full version.

Nemko Oy  P.O.Box 19, FI-02601 Espoo, Finland Street address: Perkkaantie 11, FI-02600 Espoo Telephone +358 424 5454 1  Telefax +358 9 5489 6371 Versio n R3.03 09092003 TEST REPORT TEST REPORT Date: ESPOO 10.01.2013 Page: 1 (11) Appendices - Date of handing in: 05.11.2012 Number: 224551B No. 1 / 1 Tested by: Pekka Kälviäinen, Test Engineer Reviewed by: Janne Nyman, Compliance Specialist SORT OF EQUIPMENT: Radio modem (PCB-unit) MODEL: SATELLINE-M3-TR1 TYPE: SATEL-TA13 (* MANUFACTURER: Satel Oy, Finland and SERIAL NUMBER: 1235 72066 CLIENT: Satel Oy ADDRESS: Meriniitynkatu 17, FI-24100 Salo, Finland TELEPHONE: +358 2 777 7800 / Marita Latovehmas TEST SPECIFICATION EN 300 113-2 V1.5.1 (2011-11) REMARKS: *) This test report includes the results of the version of the supply voltage 6 VDC. The test results are valid for the tested unit only. Without a written permission of Nemko Oy it is allowed to copy this report as a whole, but not partially. Type: SATEL-TA13 S/N: 1235 72066 EN 300 113-2 V1.5.1 (2011-11) Test report: 224551B Page 2 (11) Date 10.01.2013 Contents 1. General ............................................................................................................................................... 3 2. Summary of performed tests and test results ..................................................................................... 4 3. Test results .......................................................................................................................................... 5 3.1 Unwanted emissions in the spurious domain Clause 7.5 Transmitter Spurious Emissions (Conducted) 7.5.1 a ........................................................................................................................ 5 3.2 Unwanted emissions in the spurious domain Clause 7.5 Transmitter Spurious Emissions (Radiated) 7.5.1 b ........................................................................................................................... 6 3.3 Receiver spurious radiation Clause 8.10 Conducted Clause 8.10.1 a) ......................... 7 3.4 Receiver spurious radiation Clause 8.10 Radiated Clause 8.10.1 b) ............................. 8 4. Photographs ........................................................................................................................................ 9 5. List of measuring equipment: ............................................................................................................ 11 Type: SATEL-TA13 S/N: 1235 72066 EN 300 113-2 V1.5.1 (2011-11) Test report: 224551B Page 3 (11) Date 10.01.2013 Eq. 2 Ch. 4) 1. General Type: SATEL-TA13 Alignment range: 403 – 473 MHz Switching range: One channel Category: AR3 Measurement Serial no. 7 1235 72066 Serial no. Serial no. Frequencies: 1) 403,000 MHz 3) 4) 2) 473,000 MHz Voltages: 6,0 VDC Temperatures: 23,0 ± 1,5C Humidity: 30 % ± 8 % Effective radiated power: 1 W / 100 mW Antenna: 50 ohm (two SMA-connector) Number of channels: 1 Production model: Pre-production model Channel separation: 12,5, 20,0 Modulation: Multilevel State FM and 25,0 kHz (12,5 kHz: 9600 bps and 25 kHz: 19200 bps) 7.1 Frequency error 7.2 Transmitter power (conducted) 7.3 Maximum Effective radiated power 7.4 Adjacent channel power x x 7.5.1 a Spurious emissions (conducted) x x 7.5.1 b Spurious emissions (radiated) 7.5 Intermodulation attenuation 7.7 Transmitter attack time 7.8 Transmitter release time 7.9.3.1 Time domain measurements of power and frequency 7.9.3.3 Adjacent channel transient power measurements 8.1 Maximum useable sensitivity (digital, conducted) 8.2 Average usable sensitivity (digital, field strength) 8.3 Level of the wanted signal for the degradation measurements 8.4 Error behaviour at high input levels 8.5 Co-channel rejection 8.6 Adjacent channel selectivity 8.7 Spurious response rejection 8.8 Intermodulation response rejection 8.9 Blocking or desensitization x x 8.10.1 a Spurious radiations (conducted) x x 8.10.1 b Spurious radiations (radiated) 9.1 Receiver desensitization 9.2 Receiver spurious response rejection Normal Minimum Maximum Equipment 1 Equipment 1 Equipment 1 Eq. 1 and 1 Freq 1) 2) The following measurements been performed according EN 300 113-1 V1.7.1 (2011-11) standard: REMARKS: Eq 1 Freq 3) Eq. 1 Freq 4) Duplex operation Type: SATEL-TA13 S/N: 1235 72066 EN 300 113-2 V1.5.1 (2011-11) Test report: 224551B Page 4 (11) Date 10.01.2013 2. Summary of performed tests and test results (This interpretation of the test report’s results does not belong to the scope of our accreditation.) ETSI EN 300 113-1 V1.6.1 (2007-07) Result 7.5.1 a Spurious emissions (conducted) PASS 7.5.1 b Spurious emissions (radiated) PASS 8.10.1 a Receiver spurious radiations (conducted) PASS 8.10.1 b Receiver spurious radiations (radiated) PASS According to the standard the measurement results have been compared directly with the limits without considering measurement uncertainties. Explanations: PASS The EUT passed that particular test. FAIL The EUT failed that particular test. Type: SATEL-TA13 S/N: 1235 72066 EN 300 113-2 V1.5.1 (2011-11) Test report: 224551B Page 5 (11) Date 10.01.2013 3. Test results 3.1 Unwanted emissions in the spurious domain Clause 7.5 Transmitter Spurious Emissions (Conducted) 7.5.1 a Date: 04.01.2013 Method of measurement: Clause 7.5.2 Rated output power: Low: 100 mW and high: 1W Frequency 1 Frequency 2 Frequency (MHz) Results / dBm (P: low) Results / dBm (P: high) Frequency (MHz) Results / dBm (P: low) Results / dBm (P: high) Tx operating Tx operating 377,0 - 46,1 390,3 - -47,2 390,3 -49,0 -39,0 402,9 - -44,0 415,7 -48,2 -37,9 408,0 - -44,6 428,8 - -43,8 428,7 - -42,7 455,2 - -47,2 447,2 - -42,1 533,6 - -38,6 499,3 - -43,9 545,8 - -48,3 516,7 - -44,2 679 -57,0 -54,7 537,7 - 43,8 806 -47,2 -42,2 543,5 -49,2 -42,4 1209 - -56,7 556,2 -49,0 -45,4 3624 -55,4 -56,5 605 - -58,5 946 -57,9 - 2835 -57,8 -55,0 3784 -46,7 -47,8 Others 30 MHz to 4.0 GHz < -60,0 < -60,0 Others 30 MHz to 4.0 GHz < -6…

Text truncated - open the document above for the full version.

TEST REPORT 30.1.2013 TiM Page 1 of 2 SATEL Oy, P.O.Box 142, FIN-24101 Salo, Finland Street: Meriniitynkatu 17, FIN-24100 Salo, Finland Tel: +358 2 777 7800, Fax: +358 2 777 7810, E-mail: [email protected] www.satel.com TEST REPORT REPORT NO: SATEL-TR-13122012-TiM TEST PERIOD: 13.12.2012 TEST SITE: Satel / R&D Dept., Salo DEVICE UNDER TEST: SATEL-TA13 (PCB:SPL0005g PSN:1223000148) TESTS PERFORMED: Frequency Stability vs. temperature and voltage variations TEST STANDARD: acc. to 47 CFR 2.1055. LIST OF MEASURING EQUIPMENT: • Power supply Thurlby Thandar Instruments EX354T Serial nro. 140816 • Temperature test chamber Vötsch VT4002 Serial nro. 58566085500010 • Spectrum analyzer Rohde & Schwarz FSEA Serial nro. 826029/013, Calibrated 2012-Jun-28 TESTS PERFORMED BY: Timoteus Marttila TEST REPORT 30.1.2013 TiM Page 2 of 2 SATEL Oy, P.O.Box 142, FIN-24101 Salo, Finland Street: Meriniitynkatu 17, FIN-24100 Salo, Finland Tel: +358 2 777 7800, Fax: +358 2 777 7810, E-mail: [email protected] www.satel.com TEST RESULTS Test performed at transmitter frequency 460.000 MHz. a) Frequency stability vs. voltage variations Temperature Voltage Frequency ppm error +20 °C 5,5 V 459.99997 -0.07ppm +20 °C 6,5 V 459.99996 -0.09ppm +20 °C 7,5 V 459.99996 -0.09ppm +20 °C 10,2 V 459.99996 -0.09ppm +20 °C 12,0 V 459.99997 -0.07ppm +20 °C 13,8 V 459.99997 -0.07ppm +20 °C 23,8V 459.99997 -0.07ppm +20 °C 28,0 V 459.99998 -0.04ppm +20 °C 32,2 V 459.99998 -0.04ppm b) Frequency stability vs. temperature variations Temperature Voltage Frequency ppm error -30°C 12,0 V 460.00045 0.98ppm -20°C 12,0 V 460.00018 0.39ppm -10°C 12,0 V 460.00015 0.33ppm ± 0°C 12,0 V 459.99999 -0.02ppm +10°C 12,0 V 459.99996 -0.09ppm +20°C 12,0 V 459.99997 -0.07ppm +30°C 12,0 V 459.99996 -0.09ppm +40°C 12,0 V 459.99992 -0.17ppm +50°C 12,0 V 459.99988 -0.26ppm

TEST REPORT 30.1.2013 TiM Page 1 of 3 SATEL Oy, P.O.Box 142, FIN-24101 Salo, Finland Street: Meriniitynkatu 17, FIN-24100 Salo, Finland Tel: +358 2 777 7800, Fax: +358 2 777 7810, E-mail: [email protected] www.satel.com TEST REPORT REPORT NO: SATEL-TR-30012013-TiM TEST PERIOD: 30.1.2013 TEST SITE: Satel / R&D Dept., Salo DEVICE UNDER TEST: SATEL-TA13 (PCB:SPL0005g PSN:1223000148) TESTS PERFORMED: • Occupied bandwidth at 12.5 kHz channel spacing (pages 2-4, figures 1- 3) • Occupied bandwidth at 25 kHz channel spacing (pages 5- 7, figures 4-6) LIST OF MEASURING EQUIPMENT: • Power supply Thurlby Thandar Instruments EX354T Serial nro. 140816 • Spectrum analyzer Rohde & Schwarz FSEA Serial nro. 826029/013, Calibrated 2012-Jun-28 TESTS PERFORMED BY: Timoteus Marttila TEST REPORT 30.1.2013 TiM Page 2 of 3 SATEL Oy, P.O.Box 142, FIN-24101 Salo, Finland Street: Meriniitynkatu 17, FIN-24100 Salo, Finland Tel: +358 2 777 7800, Fax: +358 2 777 7810, E-mail: [email protected] www.satel.com TEST RESULTS #1 Test at 12.5 kHz channel spacing Figure 1. Occupied bandwidth, frequency 410MHz, channel 12.5 kHz. OBW = 7.9 kHz. TEST REPORT 30.1.2013 TiM Page 3 of 3 SATEL Oy, P.O.Box 142, FIN-24101 Salo, Finland Street: Meriniitynkatu 17, FIN-24100 Salo, Finland Tel: +358 2 777 7800, Fax: +358 2 777 7810, E-mail: [email protected] www.satel.com Figure 2. Occupied bandwidth, frequency 430MHz, channel 12.5 kHz. OBW = 7.9 kHz. TEST REPORT 30.1.2013 TiM Page 4 of 3 SATEL Oy, P.O.Box 142, FIN-24101 Salo, Finland Street: Meriniitynkatu 17, FIN-24100 Salo, Finland Tel: +358 2 777 7800, Fax: +358 2 777 7810, E-mail: [email protected] www.satel.com Figure 3. Occupied bandwidth, frequency 460MHz, channel 12.5 kHz. OBW = 7.7 kHz. TEST REPORT 30.1.2013 TiM Page 5 of 3 SATEL Oy, P.O.Box 142, FIN-24101 Salo, Finland Street: Meriniitynkatu 17, FIN-24100 Salo, Finland Tel: +358 2 777 7800, Fax: +358 2 777 7810, E-mail: [email protected] www.satel.com #2 Test at 25 kHz channel spacing Figure 4. Occupied bandwidth, frequency 410MHz, channel 25 kHz. OBW = 15.7 kHz. TEST REPORT 30.1.2013 TiM Page 6 of 3 SATEL Oy, P.O.Box 142, FIN-24101 Salo, Finland Street: Meriniitynkatu 17, FIN-24100 Salo, Finland Tel: +358 2 777 7800, Fax: +358 2 777 7810, E-mail: [email protected] www.satel.com Figure 5. Occupied bandwidth, frequency 430MHz, channel 25 kHz. OBW = 15.7 kHz. TEST REPORT 30.1.2013 TiM Page 7 of 3 SATEL Oy, P.O.Box 142, FIN-24101 Salo, Finland Street: Meriniitynkatu 17, FIN-24100 Salo, Finland Tel: +358 2 777 7800, Fax: +358 2 777 7810, E-mail: [email protected] www.satel.com Figure 6. Occupied bandwidth, frequency 460MHz, channel 25 kHz. OBW = 15.5 kHz.

TEST REPORT 30.1.2013 TiM Page 1 of 3 SATEL Oy, P.O.Box 142, FIN-24101 Salo, Finland Street: Meriniitynkatu 17, FIN-24100 Salo, Finland Tel: +358 2 777 7800, Fax: +358 2 777 7810, E-mail: [email protected] www.satel.com TEST REPORT REPORT NO: SATEL-TR-30012013-TiM TEST PERIOD: 30.1.2013 TEST SITE: Satel / R&D Dept., Salo DEVICE UNDER TEST: SATEL-TA13 (PCB:SPL0005g PSN:1223000148) TESTS PERFORMED: Sideband Spectrum: • 12.5 kHz channel sp acing, transmitter frequency 420 MHz (page 2, figure 1) • 12.5 kHz channel spacing, transmitter frequency 460 MHz (page 3, figure 2) • 25 kHz channel spacing, transmitter frequency 420 MHz (pages 4- 5, figures 3-4) • 25 kHz channel spacing, transmitter frequency 460 MHz (pages 6-7, figures 5-6) Note: transmitter modulated with pseudorandom data TEST STANDARD: TIA/EIA-603, clause 2.2.11. LIST OF MEASURING EQUIPMENT: • Power supply Thurlby Thandar Instruments EX354T Serial nro. 140816 • Spectrum analyzer Rohde & Schwarz FSEA Serial nro. 826029/013, Calibrated 2012-Jun-28 TESTS PERFORMED BY: Timoteus Marttila TEST REPORT 30.1.2013 TiM Page 2 of 3 SATEL Oy, P.O.Box 142, FIN-24101 Salo, Finland Street: Meriniitynkatu 17, FIN-24100 Salo, Finland Tel: +358 2 777 7800, Fax: +358 2 777 7810, E-mail: [email protected] www.satel.com TEST RESULTS Test at 12.5 kHz channel spacing Figure 1. Sideband spectrum at 12.5 kHz channel spacing, transmitter frequency 420.000MHz, showing compliance with the emission mask D. TEST REPORT 30.1.2013 TiM Page 3 of 3 SATEL Oy, P.O.Box 142, FIN-24101 Salo, Finland Street: Meriniitynkatu 17, FIN-24100 Salo, Finland Tel: +358 2 777 7800, Fax: +358 2 777 7810, E-mail: [email protected] www.satel.com Figure 2. Sideband spectrum at 12.5 kHz c…
