SATELLINE-M3-TR3 TRANSCEIVER MODULE INTEGRATION GUIDE v.1.2 SATELLINE-M3-TR3 Integration Guide, Version 1.2 1 IMPORTANT NOTICE All rights to this manual are owned solely by SATEL OY (referred to in this user guide as SATEL). All rights reserved. The copying of this manual (without the written permission from the owner) by printing, copying, recording or by any other means, or the full or partial translation of the manual to any other language, including all programming languages, using any electrical, mechanical, magnetic, optical, manual or other methods or devices is forbidden. SATEL reserves the right to change the technical specifications or functions of its products, or to discontinue the manufacture of any of its products or to discontinue the support of any of its products, without any written announcement and urges its customers to ensure, that the information at their disposal is valid. SATEL software and programs are delivered ”as is”. The manufacturer does not grant any kind of warranty including guarantees on suitability and applicability to a certain application. Under no circumstances is the manufacturer or the developer of a program responsible for any possible damages caused by the use of a program. The names of the programs as well as all copyrights relating to the programs are the sole property of SATEL. Any transfer, licensing to a third party, leasing, renting, transportation, copying, editing, translating, modifying into another programming language or reverse engineering for any intent is forbidden without the written consent of SATEL. SATEL PRODUCTS HAVE NOT BEEN DESIGNED, INTENDED NOR INSPECTED TO BE USED IN ANY LIFE SUPPORT RELATED DEVICE OR SYSTEM RELATED FUNCTION NOR AS A PART OF ANY OTHER CRITICAL SYSTEM AND ARE GRANTED NO FUNCTIONAL WARRANTY IF THEY ARE USED IN ANY OF THE APPLICATIONS MENTIONED. Salo, FINLAND 2014 Copyright: 2014 SATEL Oy No part of this document may be reproduced, transmitted or stored in a retrieval system in any form or by any means without the prior written permission of SATEL Oy. This document is provided in confidence and must not be distributed to third parties without the express permission of SATEL Oy. SATELLINE-M3-TR3 Integration Guide, Version 1.2 2 RESTRICTIONS ON USE SATELLINE-M3-TR3 radio transceiver module has been designed to operate on 403-473 MHz, the exact use of which differs from one region and/or country to another. The user of a radio transceiver module must take care that the said device is not operated without the permission of the local authorities on frequencies other than those specifically reserved and intended for use without a specific permit. SATELLINE-M3-TR3 is allowed to be used in the following countries, either on license free channels or on channels where the operation requires a license. More detailed information is available at the local frequency management authority. Countries: AT, BE, BG, CA, CH, CY, CZ, DE, DK, EE, ES, FI, FR, GB, GR, HU, IE, IS, IT, LT, LU, LV, MT, NL, NO, PL, PT, RU, RO, SE, SI, SK, US WARNING! Users of SATELLINE-M3-TR3 radio transceiver modules in North America should be aware, that due to the allocation of the frequency band 406.0 – 406.1 MHz for government use only, the use of radio transceiver module on this frequency band without a proper permit is strictly forbidden. Host product labeling requirements SATELLINE-M3-TR3 is intended to be integrated into a host device. Therefore the SATELLINE-M3- TR3 product related FCC ID and IC ID must be visible in the host device chassis: FCC ID: MRBSATEL-TA23 IC ID: 2422A-SATELTA23 This integration guide applies to the combination of Firmware version/Hardware version listed in the table below. See www.satel.com for the newest firmware and Integration Guide version. Firmware version Hardware version Note! 07.22.2.0.2.4 SPL0020d,6 Since 12.08.2013 07.22.2.0.3.2 SPL0020d,7 01.10.2013 WARNING - RF Exposure To comply with FCC and IC RF exposure compliance requirements, maximum antenna gain is 14 dBi and separation distance of at least 1 meter must be maintained between the antenna of this device and all persons. This device must not be co-located or operating in conjunction with any other antenna or transmitter. SATELLINE-M3-TR3 Integration Guide, Version 1.2 3 PRODUCT CONFORMITY Hereby, SATEL Oy declares that SATELLINE-M3-TR3 radio transceiver module is in compliance with the essential requirements (radio performance, electromagnetic compatibility and electrical safety) and other relevant provisions of Directive 1999/5/EC. Therefore the equipment is labeled with the following CE-marking. The notification sign informs user that the operating frequency range of the device is not harmonized throughout the market area, and the local spectrum authority should be contacted before the usage of the radio module. SATELLINE-M3-TR3 Integration Guide, Version 1.2 4 WARRANTY AND SAFETY INSTRUCTIONS Read these safety instructions carefully before using the product: -Warranty will be void, if the product is used in any way that is in contradiction with the instructions given in this manual -The radio transceiver module is only to be operated at frequencies allocated by local authorities, and without exceeding the given maximum allowed output power ratings. SATEL and its distributors are not responsible, if any products manufactured by it are used in unlawful ways. -The devices mentioned in this manual are to be used only according to the instructions described in this manual. Faultless and safe operation of the devices can be guaranteed only if the transport, storage, operation and handling of the device are appropriate. This also applies to the maintenance of the products. SATELLINE-M3-TR3 Integration Guide, Version 1.2 5 TABLE OF CONTENTS IMPORTANT NOTICE ............................................................................................. 1 RESTRICTIONS ON USE .........................................................................................…

Text truncated - open the document above for the full version.

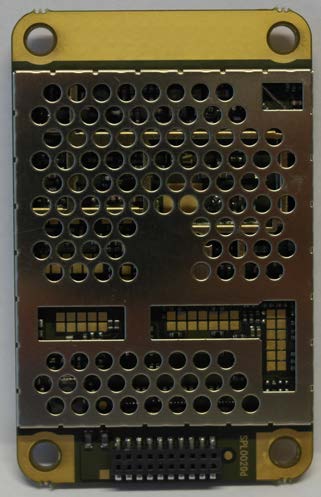

Type name: SATEL-TA23 Model name: SATELLINE-M3-TR3 FCC ID: MRBSATEL-TA23 IC ID: 2422A-SATELTA23 Both sides of the module with RF shielding: Both sides of the module without RF shielding:

Type name: SATEL-TA23 Model name: SATELLINE-M3-TR3 FCC ID: MRBSATEL-TA23 IC ID: 2422A-SATELTA23 Both sides of the module with RF shielding: Both sides of the module without RF shielding: Sticker:

Type name: SATEL-TA23 Model name: SATELLINE-M3-TR3 FCC ID: MRBSATEL-TA23 IC ID: 2422A-SATELTA23 Both sides of the module with RF shielding: Both sides of the module without RF shielding:

Nemko Oy  P.O.Box 19, FI-02601 Espoo, Finland Street address: Perkkaantie 11, FI-02600 Espoo Telephone +358 424 5454 1  Telefax +358 9 5489 6371 Versio n R3.03 09092003 TEST REPORT TEST REPORT Date: ESPOO 13.09.2013 Page: 1 (27) Appendices - Date of handing in: 23.05.2013 Number: 240161B No. 1 / 1 Tested by: Pekka Kälviäinen, Test Engineer Reviewed by: Timo Hietala, Test Specialist SORT OF EQUIPMENT: Radio modem module MODEL: SATELLINE-M3-TR3 TYPE: SATEL-TA23 MANUFACTURER: SATEL Oy, Finland and SERIAL NUMBER: 1320000190 CLIENT: SATEL Oy ADDRESS: Meriniitynkatu 17, FIN-24100 Salo, Finland TELEPHONE: +358 2 777 7800 / Janne Pulkkinen TEST LABORATORY Nemko Oy FCC REG. NO. 359859 October 20, 2011 IC FILE NO. 2040F-1 November 22, 2012 REMARKS: Tested to FCC Part 90 and RSS-119 Issue 11. The test results are valid for the tested unit only. Without a written permission of Nemko Oy it is allowed to copy this report as a whole, but not partially. Type: SATEL-TA23 FCC Part 2 & 90, RSS119 S/N: 1320000190 Test report: 240161B Page 2 (27) Date 13.09.2013 Contents 1. General ............................................................................................................................................... 3 2. Summary of performed tests and test results ..................................................................................... 3 3. RF Power output ................................................................................................................................. 4 4. 99% Occupied bandwidth ................................................................................................................... 5 5. Spectrum emission mask .................................................................................................................... 9 6. Transmitter spurious emissions (Conducted) ................................................................................... 13 7. Transmitter spurious emissions (Radiated) ...................................................................................... 20 8. Transient behaviour of the transmitter .............................................................................................. 22 9. Frequency stability ............................................................................................................................ 26 10. List of measuring equipment: ............................................................................................................ 27 Type: SATEL-TA23 FCC Part 2 & 90, RSS119 S/N: 1320000190 Test report: 240161B Page 3 (27) Date 13.09.2013 1. General Type: SATEL-TA23 Alignment range: 406.1 – 430.0 MHz and 450.0 – 470.0 MHz Switching range: One channel Measurement Serial no. 1320000190 Serial no. Serial no. Frequencies: 1) 408.0 MHz (403.000 MHz) 2) 428.0 MHz (426.325 MHz) 3) 468.0 MHz (473.000 MHz) Voltages: 4.0 VDC 4.1 VDC 3.9 VDC Temperatures: +22 - 24C -30,0C +50,0C Humidity: 34 - 57 % Effective radiated power: 1 W / 100 mW Antenna: HIROSE U.FL, (Test jig: SMA-connector) Production model: Production model Number of channels: Modulation: Multilevel State FM (4FSK) Channel separation: 12.5 and 25 kHz (12,5 kHz: 9600 bps 25 kHz: 19200 bps) The transmitter was tested in a standalone configuration. 2. Summary of performed tests and test results (This interpretation of the test report’s results does not belong to the scope of our accreditation.) Section in CFR 47 Section in RSS- 119, Issue 11 Result 90.205 & 2.1046 5.4 Transmitter power (conducted) PASS 90.210 & 2.1049 5.5 99% Occupied bandwidth PASS 90.210 & 2.1049 5.5 Spectrum emission mask PASS 90.210, 2.1057 & 2.1051 5.8 Spurious emissions (conducted) PASS 90.210, 2.1057 & 2.1053 5.8 Spurious emissions (radiated) PASS 90.214 5.9 Transient frequency behavior PASS 90.213 & 2.1055 5.3 Frequency stability PASS According to the standard the measurement results have been compared directly with the limits without considering measurement uncertainties. Explanations: PASS The EUT passed that particular test. FAIL The EUT failed that particular test. Normal Minimum Maximum Equipment 1 Equipment 2 Equipment 3 Type: SATEL-TA23 FCC Part 2 & 90, RSS119 S/N: 1320000190 Test report: 240161B Page 4 (27) Date 13.09.2013 3. RF Power output NAME OF TEST: RF Power Output FCC PARA.NO.: 2.1046 RSS119: 5.4 TESTED BY: Risto Hietanen DATE: 27/06/2013 Test Results: Complies. Rated power: highest 1W = 30.0 dBm. lowest 100mW = 20.0 dBm Limit: ± 1.0 dB from rated power. Measurement Data: Modulation Type Frequency Measured Output (MHz) Power Power (dBm) (mW) FM 408.0 30.25 1060 FM 428.0 29.91 980 FM 468.0 29.03 800 FM 408.0 20.76 119 FM 428.0 20.45 111 FM 468.0 19.45 88 Equipment used: 1530-0007, 218, 328, 316, 577 Measurement Uncertainty: ± 0.7 dB. Temperature: 24 °C. Relative Humidity: 57 %. Type: SATEL-TA23 FCC Part 2 & 90, RSS119 S/N: 1320000190 Test report: 240161B Page 5 (27) Date 13.09.2013 4. 99% Occupied bandwidth NAME OF TEST: Occupied Bandwidth PARA.NO.: 2.1049 RSS119: 5.5 TESTED BY: Pekka Kälviäinen DATE: 10/09/2013 Test Results: Complies. Test Data: See attached plot(s). Frequency Measured 99% Channel spacing (MHz) Occupied Bandwidth (kHz) 12.5 kHz 408.0 7.7 12.5 kHz 428.0 8.1 12.5 kHz 468.0 7.8 25 kHz 408.0 15.1 25 kHz 428.0 15.1 25 kHz 468.0 14.8 Equipment used: 566, 328, 316, 341 Measurement Uncertainty: ± 85 Hz Temperature: 22 °C. Relative Humidity: 49 %. The 99% occupied bandwidth of the carrier emission is measured using a spectrum analyzer with Resolution Bandwidth set to 1% of the necessary bandwidth of the transmitted carrier. Transmitter was set to transmit random data file 19200 bps 25 kHz channel and 9600 bps 12.5 kHz channel. Type: SATEL-TA23 FCC Part 2 & 90, RSS119 S/N: 1320000190 Test report: 240161B Page 6 (27) Date 13.09.2013 12.5 kHz channel spacing, 408 MHz 12.5 kHz channel spacing, 428 MHz Type: SATEL-TA23 FCC Part 2 & 90, RSS119 S/N: 1320000190 Test report: 240161B Page 7 (27) Date 13.09.2013 12.5 kHz chan…
