MRBSATEL-TA18SATELLINE-EASy Pro 35W

SATELLINE-EASy Pro 35W User Guide v.0.2 1 IMPORTANT NOTICE All rights to this manual are owned solely by SATEL OY (referred to in this user guide as SATEL). All rights reserved. The copying of this manual (without the written permission from the owner) by printing, copying, recording or by any other means, or the full or partial translation of the manual to any other language, including all programming languages, using any electrical, mechanical, magnetic, optical, manual or other methods or devices is forbidden. SATEL reserves the right to change the technical specifications or functions of its products, or to discontinue the manufacture of any of its products or to discontinue the support of any of its products, without any written announcement and urges its customers to ensure, that the information at their disposal is valid. SATEL software and programs are delivered ”as is”. The manufacturer does not grant any kind of warranty including guarantees on suitability and applicability to a certain application. Under no circumstances is the manufacturer or the developer of a program responsible for any possible damages caused by the use of a program. The names of the programs as well as all copyrights relating to the programs are the sole property of SATEL. Any transfer, licensing to a third party, leasing, renting, transportation, copying, editing, translating, modifying into another programming language or reverse engineering for any intent is forbidden without the written consent of SATEL. SATEL PRODUCTS HAVE NOT BEEN DESIGNED, INTENDED NOR INSPECTED TO BE USED IN ANY LIFE SUPPORT RELATED DEVICE OR SYSTEM RELATED FUNCTION NOR AS A PART OF ANY OTHER CRITICAL SYSTEM AND ARE GRANTED NO FUNCTIONAL WARRANTY IF THEY ARE USED IN ANY OF THE APPLICATIONS MENTIONED. Salo, FINLAND 2010 Copyright: 2010 SATEL Oy No part of this document may be reproduced, transmitted or stored in a retrieval system in any form or by any means without the prior written permission of SATEL Oy. This document is provided in confidence and must not be distributed to third parties without the express permission of SATEL Oy. SATELLINE-EASy Pro 35W User Guide v.0.2 2 RESTRICTIONS ON USE SATELLINE-EASy Pro 35W radio modems have been designed to operate on frequency ranges, the exact use of which differs from one region and/or country to another. The user of a radio modem must take care that the said device is not operated without the permission of the local authorities on frequencies other than those specifically reserved and intended for use without a specific permit. SATELLINE-EASy Pro 35W is allowed to be use only in countries where FCC approval is valid. It does not fulfil the ETSI specification. WARNING! Users of SATELLINE-EASy Pro 35W radio modems in North America should be aware, that due to the allocation of the frequency band 406.0 – 406.1 MHz for government use only, the use of radio modem on this frequency band without a proper permit is strictly forbidden. SATELLINE-EASy Pro 35W User Guide v.0.2 3 PRODUCT CONFORMITY Hereby, SATEL Oy declares that SATELLINE-EASy Pro 35W conforms to the requirements of Code of Federal Regulations, Title 47, Part 90 (Federal Communications Commission, FCC). SATELLINE-EASy Pro 35W User Guide v.0.2 4 WARRANTY AND SAFETY INSTRUCTIONS Read these safety instructions carefully before using the product: o Warranty will be void, if the product is used in any way that is in contradiction with the instructions given in this manual, or if the radio modem housing has been opened or tampered with. o The radio modem is only to be operated at frequencies allocated by local authorities, and without exceeding the given maximum allowed output power ratings. SATEL and its distributors are not responsible, if any products manufactured by it are used in unlawful ways. o The devices mentioned in this manual are to be used only according to the instructions described in this manual. Faultless and safe operation of the devices can be guaranteed only if the transport, storage, operation and handling of the devices are appropriate. This also applies to the maintenance of the products. o To prevent damage both the radio modem and any terminal devices must always be switched OFF before connecting or disconnecting the serial connection cable. It should be ascertained that different devices used have the same ground potential. Before connecting any power cables the output voltage of the power supply should be checked. SATELLINE-EASy Pro 35W User Guide v.0.2 5 TABLE OF CONTENTS IMPORTANT NOTICE ......................................................................................... 1 RESTRICTIONS ON USE ..................................................................................... 2 PRODUCT CONFORMITY .................................................................................... 3 WARRANTY AND SAFETY INSTRUCTIONS ......................................................... 4 TABLE OF CONTENTS ........................................................................................ 5 INTRODUCTION ................................................................................................ 9 1 SATELLINE-EASY PRO 35 W TECHNICAL SPECIFICATIONS .................... 10 Default settings ............................................................................................... 12 2 OTHER FEATURES .................................................................................... 14 3 SATELLINE-EASY PRO 35W SPECIAL FEATURES .......................................... 15 3.1 Call Sign ............................................................................................... 15 3.2 Temperature protection of RF power amplifier ................................... 15 3.3 Protection of current ............................................................................ 16 4 SERIAL INTERFACE ................................................................................. 17 5 USER INTERFACE ..............…

Text truncated - open the document above for the full version.

Request for confidential 18.10.2010 / MaritaL Reference: Equipment Authorization Application of SATELLINE-EASy Pro 35W radio data modem (FCC Identification code: MRBSATEL-TA18). Background: According to the 47CFR/ §0.457/ (d)/ (ii), materials relating to applications for equipment authorizations are not routinely available for public inspection prior to the effective date of the authorization. However, at the moment any person has access via the internet to all of the exhibits attached to our pending application. Therefore we would like to request according to 47CFR/ §0.459, that part of the material will be withheld from public inspection. REQUEST FOR CONFIDENTIALITY §0.459/ (b)/ (1) Identification of the material: The following attachment files - Block diagrams - Part lists - Schematics - Operational description (2) Identification of the Commission proceeding: The confidential information mentioned above has been submitted via Electronic Filing Site to FCC / Office of Engineering and Technology on the 18 th of October 2010. (3), (4) Degree of information The confidential files mentioned above contain technical details of the electronic circuitry of the product. (5) Possible harm caused by disclosure of the information Disclosure of the confidential information of the files mentioned above may result in easier ‘reverse engineering’ by the competitors, and therefore cause significant financial losses in business. (6) Preventing measures of the submitting party The applicant for the equipment authorization (SATEL Oy) has relied on the standard way how the telecommunication authorities in various states handle the product documentation in connection with equipment authorization procedures. (7) Availability of the information The confidential information mentioned above is available only to the telecommunication authorities and to the specially authorized parties e.g. local service etc. Request for confidential 18.10.2010 / MaritaL (8) Period of non-disclosure The material should be withheld from public inspection as long as the product is on the market. Yours Sincerely, SATEL Oy Marita Latovehmas Type Approval Engineer

PRODUCT INFORMATION SATELLINE-EASy Pro 35W v.1.0 13.9.2010/TJo SATEL Oy, P.O.Box 142, FIN-24101 Salo, Finland Street: Meriniitynkatu 17, FIN-24100 Salo, Finland Tel: +358 2 777 7800, Fax: +358 2 777 7810, E-mail: [email protected] www.satel.com Modulation Characteristics of SATELLINE-EASy Pro 35W UHF Radio Data Modem Transmitter (Transceiver) SATELLINE-EASy Pro 35W radio data modem uses CML FX919B integrated circuit for encoding the data to the Tx modulator and further to the other stages of the transmitter. The encoder block of the FX919B circuit translates the binary data to 4-level symbols. Each symbol contains the information of two bits. After encoding, the data symbols are passed through a linear-phase lowpass filter with a ‘Root Raised Cosine’ (RRC) frequency response defined by the function H(f) = 1 for 0 f < (1-b)/(2T) = square root of {0.5 [1 – sin(T (f – 0.5/T)/b)]} for (1-b)/(2T) f (1+b)/(2T) = 0 for (1+b)/(2T) < f , where b = 0.2 and T = 1/symbol rate, to eliminate the high frequency components of the modulating signal. Source of information: Document no. D/919B/1 July 1997, CML Semiconductor Products Ltd.

ATTESTATION LETTER: FREQUENCY LISTING LETTER According to KDB 634817... SATEL OY, as a manufacturer of SATEL-TA18 applies the certification to contiguous frequency range based on the facts below. 1. All devices delivered to USA do not end to usage in US markets. The local Satel distributor delivers SATEL-TA18 also further to third countries. 2. SATEL Oy acknowledges that it is violation of FCC rules if the device operates on unauthorized frequencies. Also end users are informed about this in user manuals. 3. The operation within frequency band 406-406.1 MHz is disabled by the manufacturer. 4. The list of frequencies covering applied frequency range and their authorized/non- authorized use. SATEL-TA18 complies with part 90 rules. 400.05 - 400.15 - time-signal only 401 - 402 - no conflict with other service rules 402 - 406 - part 95 406 - 406.1 - parts 95,87,80 locators only 406.1 - 410 - part 90 (FCC may be fixed only) 410 - 420 - part 90 (FCC may be fixed only) 420 - 450 - parts 90 and 97 450 - 454 - parts 90 and 74 454 - 455 - parts 22 and 80 455 - 456 - part 74 456 - 462.5375 - parts 90,80,22 462.5375 - 462.7375 - part 95 462.7375 - 467.5375 - part 90 467.5375 - 467.7375 - part 95 467.7375 - 470 - part 90 Salo, Finland, October 19 th , 2010 Marita Latovehmas SATEL Oy Type Approval Engineer

Correspondence 39297 16.11.2010 MaritaL FCC ID: MRBSATEL-TA18 Correspondence Reference Number: 39297 731 Confirmation Number: EA392352 Dear Ms. Diane Poole Thank you for your email addressed to undersigned. Referring to the items of your request, the following information has been prepared. According to KDB 634817... SATEL OY, as a manufacturer of SATEL-TA18 applies the certification to contiguous frequency range based on the facts below. 1. All devices delivered to USA do not end to usage in US markets. The local Satel distributor delivers SATEL-TA18 also further to third countries. 2. SATEL Oy acknowledges that it is violation of FCC rules if the device operates on unauthorized frequencies. Also end users are informed about this in user manuals. 3. The operation within frequency band 406-406.1 MHz is disabled by the manufacturer. 4. The list of frequencies covering applied frequency range and their authorized/non- authorized use. SATEL-TA18 complies with part 90 rules. 400.05 - 400.15 MHz 401 - 402 MHz 406.1 - 410 MHz 410 - 420 MHz 420 - 450 MHz 450 - 454 MHz 456 - 462.5375 MHz 462.7375 - 467.5375 MHz 467.7375 - 470 MHz Salo, Finland, November 16 th , 2010 Marita Latovehmas SATEL Oy Type Approval Engineer

Correspondence 39301 18.11.2010 MaritaL FCC ID: MRBSATEL-TA18 Correspondence Reference Number: 39301 Form 731 Confirmation Number: EA392352 Dear Mrs Diane Poole Thank you for your email addressed to Mrs Marita Latovehmas at SATEL Oy. Referring to the items of your request, the following information has been prepared. SATEL Oy, as a manufacturer of SATELLINE-EASy Pro 35W (SATEL-TA18) radio modems, states that this equipment is designed for operation in the 403 - 473 MHz band. The frequencies 406.0 – 406.1 MHz can be rejected by the manufacturer. When ordering modems from SATEL Oy, the customer needs to advice the country where it is going to be shipped. When the country code is US, the production does not adjust the operation frequency within frequencies 406.0 – 406.1 MHz. The end user can’t program and transmit on frequencies, other than those programmed by the manufacturer, service or maintenance personnel. It is a violation of FCC rules if the device operates on unauthorized frequencies. Salo, Finland, November 18 th , 2010 Marita Latovehmas SATEL Oy Type Approval Engineer

EF grant note 22.11.2010/MaritaL FCC ID: MRBSATEL-TA18 Form 731 Confirmation Number: EA392352 According to KDB 634817, For radio modem SATELLINE-EASy Pro 35W (type name SATEL-TA18) has been applied the FCC ID with extended frequencies. This is the reason for EF grant note: EF: This device may contain functions that are not operational in U.S Territories except as noted in the filing. This grant has extended frequencies as noted in the filing and section 2.927 (b) applies to this authorization. Salo, Finland, November 22 th , 2010 Marita Latovehmas SATEL Oy Type Approval Engineer

Correspondence 39307 22.11.2010 MaritaL FCC ID: MRBSATEL-TA18 Correspondence Reference Number: 39307 Form 731 Confirmation Number: EA392352 Dear Mrs Diane Poole Thank you for your email addressed to Mrs Marita Latovehmas at SATEL Oy. Referring to the items of your request, the following information has been prepared. 1. The confidential box was marked by mistake. In document Reguest for confidential _SATEL- TA18.pdf the internal photos are not mentioned. 2. The Short-Term Confidential is not needed. 3. The EF grant Note and Comment has been added to application Form 731 Salo, Finland, November 22 th , 2010 Marita Latovehmas SATEL Oy Type Approval Engineer

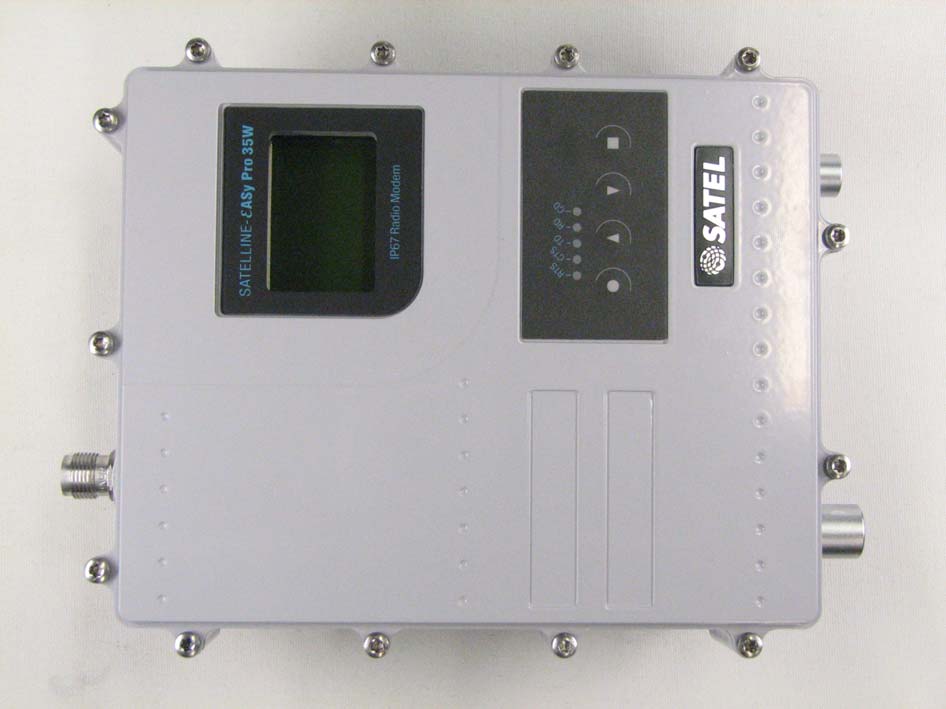

Product photos/External SATELLINE-EASy Pro 35W 15.10.2010 SATEL Oy, P.O.Box 142, FIN-24101 Salo, Finland Street: Meriniitynkatu 17, FIN-24100 Salo, Finland Tel: +358 2 777 7800, Fax: +358 2 777 7810, E-mail: [email protected] www.satel.com Product photos/External SATELLINE-EASy Pro 35W 15.10.2010 SATEL Oy, P.O.Box 142, FIN-24101 Salo, Finland Street: Meriniitynkatu 17, FIN-24100 Salo, Finland Tel: +358 2 777 7800, Fax: +358 2 777 7810, E-mail: [email protected] www.satel.com Serial number label Distributor label Type Approval label: FCC ID: MRBSATEL-TA18

Product photos/External SATELLINE-EASy Pro 35W 15.10.2010 SATEL Oy, P.O.Box 142, FIN-24101 Salo, Finland Street: Meriniitynkatu 17, FIN-24100 Salo, Finland Tel: +358 2 777 7800, Fax: +358 2 777 7810, E-mail: [email protected] www.satel.com Product photos/External SATELLINE-EASy Pro 35W 15.10.2010 SATEL Oy, P.O.Box 142, FIN-24101 Salo, Finland Street: Meriniitynkatu 17, FIN-24100 Salo, Finland Tel: +358 2 777 7800, Fax: +358 2 777 7810, E-mail: [email protected] www.satel.com Serial number label Distributor label Type Approval label: FCC ID: MRBSATEL-TA18

Product photos / Internal SATELLINE-EASy Pro 35W 20.9.2010 SATEL Oy, P.O.Box 142, FIN-24101 Salo, Finland Street: Meriniitynkatu 17, FIN-24100 Salo, Finland Tel: +358 2 777 7800, Fax: +358 2 777 7810, E-mail: [email protected] www.satel.com

RF EXPOSURE STATEMENT SATELLINE-EASy Pro 35W radio modem FCC ID: MRBSATEL-TA18 STATEMENT October 18 th , 2010 / MaritaL Page 1 of 3 Prediction of human exposure to RF radiation during operation of SATELLINE-EASy Pro 35W radio modem Background information FCC guidelines to evaluate the environmental impact of human exposure to radiofrequency radiation are specified in the federal rules 47 CFR §1.1307(b), except portable devices that shall be evaluated according to §2.1093. Limits for maximum permissible exposure are set in the federal rules 47 CFR §1.1310. Further information on evaluating compliance with these limits is found in the FCC’s OST/OET Bulletin Number 65. Prediction methods applied Minimum safe distances have been calculated for controlled / occupational exposures and for uncontrolled / general population exposures. The following formulas are used in calculations. 2 4R PG S   where: S = power density [mW/cm 2 ] P = power input to the antenna [mW] G = power gain of the antenna in direction of interest, relative to an isotropic radiator [numeric] R = distance to the centre of radiation of the antenna [cm] S PG R R PG S   4 4 2  Applicable limits for maximum permissible exposure The operating frequency range of SATELLINE-EASy Pro 35W radio modem is 403-473 MHz, and the transmitter output power range is 1W to 35 W. Tx duty cycle, which is determined by the terminal device, can be up to 100 %. Based on the above technical parameters and the Table 1 in the federal rules 47 CFR §1.1310, the following limits of power density shall apply: a) Occupational/Controlled Exposures: f/300 mW/cm 2 (averaging time 6 minutes) b) General population/Uncontrolled Exposure: f/1500 mW/cm 2 (averaging time 30 minutes) RF EXPOSURE STATEMENT SATELLINE-EASy Pro 35W radio modem FCC ID: MRBSATEL-TA18 STATEMENT October 18 th , 2010 / MaritaL Page 2 of 3 Calculations for the minimum safe distances Minimum distance to the antenna in case of General population/Uncontrolled situation:  9375.31500/4704 PGPG R  Tx power can be corrected with the 30-minute average value of the Tx duty cycle. The antennas in the list have been defined to be used with SATELLINE-EASy Pro 35W radio modem. *The values of power have been calculated: [W]*=(P_rated + 20% ) Tx output power [W]* Antenna system gain [dBi / numeric] Tx duty cycle [%], 30 min. average Frequency [MHz] Minimum safe distance [cm] 42 8 / 6.310 100 470 259.40 50 470 183.40 20 470 116.00 6 / 3.981 100 470 206.10 50 470 145.70 20 470 92.20 2 / 1.585 100 470 130.00 50 470 91.90 20 470 58.10 30 8 / 6.310 100 470 219.30 50 470 155.00 20 470 98.10 6 / 3.981 100 470 174.20 50 470 123.20 20 470 77.90 2 / 1.585 100 470 109.90 50 470 77.70 20 470 49.10 18 8 / 6.310 100 470 169.80 50 470 120.10 20 470 76.0 6 / 3.981 100 470 134.90 50 470 95.40 20 470 60.30 2 / 1.585 100 470 85.10 50 470 60.20 20 470 38.10 12 8 / 6.310 100 470 138.70 50 470 98.10 20 470 62.0 6 / 3.981 100 470 110.20 50 470 77.90 20 470 49.30 2 / 1.585 100 470 69.50 50 470 49.10 20 470 31.10 RF EXPOSURE STATEMENT SATELLINE-EASy Pro 35W radio modem FCC ID: MRBSATEL-TA18 STATEMENT October 18 th , 2010 / MaritaL Page 3 of 3 6 8 / 6.310 100 470 98.10 50 470 69.30 20 470 43.90 6 / 3.981 100 470 77.90 50 470 55.10 20 470 34.80 2 / 1.585 100 470 49.10 50 470 34.70 20 470 22.0 Conclusion Users of SATELLINE-EASy Pro 35W radio modem shall be advised of the above safe distances in the appropriate documentation.

RF EXPOSURE WARNINGS TO USERS SATEL-TA18 radio modem FCC ID: MRBSATEL-TA18 INFO LETTER October 18 th , 2010 / MaritaL Page 1 of 3 Warnings to be added to the user guide of SATEL-TA18 radio modem module WARNING! Users of SATELLINE-EASy Pro 35W radio modems in North America should be aware, that due to the allocation of the frequency band 406.0 – 406.1 MHz for government use only, the use of radio modem on this frequency band without a proper permit is strictly forbidden. Warning – RF Exposure "Warning: To comply with FCC RF exposure compliance requirements, a separation distance of at least xx cm must be maintained between the antenna of this device and all persons. This device must not be co-located or operating in conjunction with any other antenna or transmitter." Modification warning statement "Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment." Class B digital device statement "Note: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: -Reorient or relocate the receiving antenna. -Increase the separation between the equipment and receiver. -Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. -Consult the dealer or an experienced radio/TV technician for help." RF EXPOSURE WARNINGS TO USERS SATEL-TA18 radio modem FCC ID: MRBSATEL-TA18 INFO LETTER October 18 th , 2010 / MaritaL Page 2 of 3 Safe distances for General Public Use  2 150/4mWf PG R   Due to numerous different applications, it is reasonable that users are not always aware of parameters of all components in a SATEL-TA35 radio modem system. However, obeying the safe distances in the table below, every user can easily fulfil the Canadian authority limit (depends on the frequency in use) for human exposure to radio frequency radiation in general public use. Radio Modem Model Minimum safe distance to the antenna For General Public use SATEL-TA18  105.9 cm Safe distances for Controlled Use Calculated by formula below:  2 30/4mWf PG R   Minimum distance however being always at least 20 cm. Advanced users and system designers who are fully aware of key parameters of SATEL-TA35 radio modem system are allowed to follow the safe distances for controlled use listed in the table below. Tx output power [W] Antenna system gain [dBi / numeric] Tx duty cycle [%], 6 min. average Frequency [MHz] Minimum safe distance [cm] 35 8 / 6.310 100 470 236.8 50 470 167.5 20 470 105.9 10 470 74.9 6 / 3.981 100 470 188.1 50 470 133.0 20 470 84.1 10 470 59.5 2 / 1.585 100 470 118.7 50 470 83.9 20 470 53.1 10 470 37.5 25 8 / 6.310 100 470 200.2 50 470 141.5 20 470 89.5 10 470 63.3 RF EXPOSURE WARNINGS TO USERS SATEL-TA18 radio modem FCC ID: MRBSATEL-TA18 INFO LETTER October 18 th , 2010 / MaritaL Page 3 of 3 6 / 3.981 100 470 159.0 50 470 112.4 20 470 71.1 10 470 50.3 2 / 1.585 100 470 100.3 50 470 70.9 20 470 44.9 10 470 31.7 15 8 / 6.310 100 470 155.0 50 470 109.6 20 470 69.3 10 470 49.0 6 / 3.981 100 470 123.2 50 470 87.1 20 470 55.1 10 470 38.9 2 / 1.585 100 470 77.7 50 470 54.9 20 470 34.7 10 470 24.6 10 8 / 6.310 100 470 126.6 50 470 89.5 20 470 56.6 10 470 40.0 6 / 3.981 100 470 100.6 50 470 71.1 20 470 45.0 10 470 31.8 2 / 1.585 100 470 63.4 50 470 44.9 20 470 28.4 10 470 20.1 5 8 / 6.310 100 470 89.5 50 470 63.3 20 470 40.0 10 470 28.3 6 / 3.981 100 470 71.1 50 470 50.3 20 470 31.8 10 470 22.5 2 / 1.585 100 470 44.9 50 470 31.7 20 470 20.1 10 470 20

TEST REPORT 16.9.2010 TiM Page 1 of 2 SATEL Oy, P.O.Box 142, FIN-24101 Salo, Finland Street: Meriniitynkatu 17, FIN-24100 Salo, Finland Tel: +358 2 777 7800, Fax: +358 2 777 7810, E-mail: [email protected] www.satel.com TEST REPORT REPORT NO: SATEL-TiM-2010-3 TEST PERIOD: 13.9.2010 TEST SITE: Satel / R&D Dept., Salo DEVICE UNDER TEST: TA18 TEST PERFORMED: Conducted spurious emissions (47 CRF: 90.210, 2.1057 & 2.1051) LIST OF MEASURING EQUIPMENT: • Power supply GW Instek SPS-1820 Serial nro. EG181338 • Spectrum analyzer Rohde & Schwarz FSEA Serial nro. 826029/013 TESTS PERFORMED BY: Timoteus Marttila TEST REPORT 16.9.2010 TiM Page 2 of 2 SATEL Oy, P.O.Box 142, FIN-24101 Salo, Finland Street: Meriniitynkatu 17, FIN-24100 Salo, Finland Tel: +358 2 777 7800, Fax: +358 2 777 7810, E-mail: [email protected] www.satel.com TEST RESULTS Tests with transmitter frequency 420MHz: FrequencyLevel 367.2MHz ‐34.8dBm 472.8MHz ‐34.1dBm 1260.0MHz ‐25.4dBm Others <‐40dBm Table 1: unwanted spurious from 9kHz to 4GHz, transmitter frequency 420MHz Tests with transmitter frequency 460MHz: Table 2: unwanted spurious from 9kHz to 4GHz, transmitter frequency 460MHz Tests with transmitter off: All unwanted spurious signals from 9kHz to 4GHz < -80dBm FrequencyLevel 437.05MHz ‐39.7dBm 1380.0MHz ‐32.5dBm Others <‐40dBm

TEST REPORT 16.9.2010 TiM Page 1 of 3 SATEL Oy, P.O.Box 142, FIN-24101 Salo, Finland Street: Meriniitynkatu 17, FIN-24100 Salo, Finland Tel: +358 2 777 7800, Fax: +358 2 777 7810, E-mail: [email protected] www.satel.com TEST REPORT REPORT NO: SATEL-TiM-2010-6 TEST PERIOD: 15.9.2010 TEST SITE: Satel / R&D Dept., Salo DEVICE UNDER TEST: TA18 TESTS PERFORMED: Emission mask (CRF47: 90.210 & 2.1049) • 12.5 kHz channel spacing, transmitter frequency 420 MHz (page 2, figure 1) • 12.5 kHz channel spacing, transmitter frequency 460 MHz (page 3, figure 2) • 25 kHz channel spacing, transmitter frequency 420 MHz (pages 4-5, figures 3-4) • 25 kHz channel spacing, transmitter frequency 460 MHz (pages 6-7, figures 5-6) Note: transmitter modulated with pseudorandom data LIST OF MEASURING EQUIPMENT: • Power supply GW Instek SPS-1820 Serial nro. EG181338 • Spectrum analyzer Rohde & Schwarz FSP Serial nro. 837619/003 TESTS PERFORMED BY: Timoteus Marttila TEST REPORT 16.9.2010 TiM Page 2 of 3 SATEL Oy, P.O.Box 142, FIN-24101 Salo, Finland Street: Meriniitynkatu 17, FIN-24100 Salo, Finland Tel: +358 2 777 7800, Fax: +358 2 777 7810, E-mail: [email protected] www.satel.com TEST RESULTS Test at 12.5 kHz channel spacing Ref 46 dBmAtt 60 dB Offset 20.5 dB A LVL Center 420 MHzSpan 50 kHz5 kHz/ RBW 100 Hz VBW 100 Hz * * SWT 10 s EXT 1 PK MAXH PRN -50 -40 -30 -20 -10 0 10 20 30 40 D_35W Date: 15.SEP.2010 17:06:56 Figure 1. Sideband spectrum at 12.5 kHz channel spacing, transmitter frequency 420.000MHz, showing compliance with the emission mask D. TEST REPORT 16.9.2010 TiM Page 3 of 3 SATEL Oy, P.O.Box 142, FIN-24101 Salo, Finland Street: Meriniitynkatu 17, FIN-24100 Salo, Finland Tel: +358 2 777 7800, Fax: +358 2 777 7810, E-mail: [email protected] www.satel.com Ref 46 dBmAtt 60 dB Offset 20.5 dB A LVL EXT Center 460 MHzSpan 50 kHz5 kHz/ SWT 10 s RBW 100 Hz VBW 100 Hz * * 1 PK MAXH PRN -50 -40 -30 -20 -10 0 10 20 30 40 D_35W Date: 15.SEP.2010 17:04:45 Figure 2. Sideband spectrum at 12.5 kHz channel spacing, transmitter frequency 460.000MHz, showing compliance with the emission mask D. TEST REPORT 16.9.2010 TiM Page 4 of 3 SATEL Oy, P.O.Box 142, FIN-24101 Salo, Finland Street: Meriniitynkatu 17, FIN-24100 Salo, Finland Tel: +358 2 777 7800, Fax: +358 2 777 7810, E-mail: [email protected] www.satel.com Test at 25 kHz channel spacing Ref 46 dBmAtt 60 dB Offset 20.5 dB A LVL Center 420 MHzSpan 50 kHz5 kHz/ RBW 100 Hz VBW 100 Hz * * SWT 10 s EXT 1 PK MAXH PRN -50 -40 -30 -20 -10 0 10 20 30 40 C_35W Date: 15.SEP.2010 17:14:12 Figure 3. Sideband spectrum at 25 kHz channel spacing, transmitter frequency 420.000MHz, showing compliance with the emission mask C, span 50kHz TEST REPORT 16.9.2010 TiM Page 5 of 3 SATEL Oy, P.O.Box 142, FIN-24101 Salo, Finland Street: Meriniitynkatu 17, FIN-24100 Salo, Finland Tel: +358 2 777 7800, Fax: +358 2 777 7810, E-mail: [email protected] www.satel.com Ref 46 dBmAtt 60 dB Offset 20.5 dB A LVL 1 PK MAXH Center 420 MHzSpan 125 kHz12.5 kHz/ RBW 100 Hz VBW 100 Hz * * SWT 25 s EXT PRN -50 -40 -30 -20 -10 0 10 20 30 40 C_35W Date: 15.SEP.2010 17:23:37 Figure 4. Sideband spectrum at 25 kHz channel spacing, transmitter frequency 420.000MHz, showing compliance with the emission mask C, span 125kHz TEST REPORT 16.9.2010 TiM Page 6 of 3 SATEL Oy, P.O.Box 142, FIN-24101 Salo, Finland Street: Meriniitynkatu 17, FIN-24100 Salo, Finland Tel: +358 2 777 7800, Fax: +358 2 777 7810, E-mail: [email protected] www.satel.com Ref 46 dBmAtt 60 dB Offset 20.5 dB A LVL 1 PK MAXH Center 460 MHzSpan 50 kHz5 kHz/ RBW 100 Hz VBW 100 Hz * * SWT 10 s EXT PRN -50 -40 -30 -20 -10 0 10 20 30 40 C_35W Date: 15.SEP.2010 17:16:27 Figure 5. Sideband spectrum at 25 kHz channel spacing, transmitter frequency 460.000MHz, showing compliance with the emission mask C, span 50kHz TEST REPORT 16.9.2010 TiM Page 7 of 3 SATEL Oy, P.O.Box 142, FIN-24101 Salo, Finland Street: Meriniitynkatu 17, FIN-24100 Salo, Finland Tel: +358 2 777 7800, Fax: +358 2 777 7810, E-mail: [email protected] www.satel.com Ref 46 dBmAtt 60 dB Offset 20.5 dB A LVL 1 PK MAXH Center 460 MHzSpan 125 kHz12.5 kHz/ RBW 100 Hz VBW 100 Hz * * SWT 25 s EXT PRN -50 -40 -30 -20 -10 0 10 20 30 40 C_35W Date: 15.SEP.2010 17:21:40 Figure 6. Sideband spectrum at 25 kHz channel spacing, transmitter frequency 460.000MHz, showing compliance with the emission mask C, span 125kHz

TEST REPORT 16.9.2010 TiM Page 1 of 2 SATEL Oy, P.O.Box 142, FIN-24101 Salo, Finland Street: Meriniitynkatu 17, FIN-24100 Salo, Finland Tel: +358 2 777 7800, Fax: +358 2 777 7810, E-mail: [email protected] www.satel.com TEST REPORT REPORT NO: SATEL-TiM-2010-4 TEST PERIOD: 10.9.2010 TEST SITE: Satel / R&D Dept., Salo DEVICE UNDER TEST: TA18 TESTS PERFORMED: Frequency Stability vs. temperature and voltage variations (47 CFR: 90.213 & 2.1055) LIST OF MEASURING EQUIPMENT: • Power supply GW Instek SPS-1820 Serial nro. EG181338 • Temperature test chamber Vötsch VT4002 Serial nro. 58566060340010 • Spectrum analyzer Rohde & Schwarz FSEA Serial nro. 826029/013 TESTS PERFORMED BY: Timoteus Marttila TEST REPORT 16.9.2010 TiM Page 2 of 2 SATEL Oy, P.O.Box 142, FIN-24101 Salo, Finland Street: Meriniitynkatu 17, FIN-24100 Salo, Finland Tel: +358 2 777 7800, Fax: +358 2 777 7810, E-mail: [email protected] www.satel.com TEST RESULTS Test performed at transmitter frequency 460.000 MHz. a) Frequency stability vs. voltage variations Temperature Voltage Frequency ppm error +20 °C 11,2 V 460.00012 0.26ppm +20 °C 13,2 V 460.00009 0.20ppm +20 °C 15,2 V 4…

Text truncated - open the document above for the full version.
