MRBSATELLINE-EPICSATELLINE-3AS Epic

SATELLINE-3AS User Guide, Version 2.2 1 IMPORTANT NOTICE All rights to this manual are owned solely by SATEL OY (referred to in this user guide as SATEL). All rights reserved. The copying of this manual (without the written permission from the owner) by printing, copying, recording or by any other means, or the full or partial translation of the manual to any other language, including all programming languages, using any electrical, mechanical, magnetic, optical, manual or other methods or devices is forbidden. SATEL reserves the right to change the technical specifications or functions of its products, or to discontinue the manufacture of any of its products or to discontinue the support of any of its products, without any written announcement and urges its customers to ensure, that the information at their disposal is valid. SATEL software and programs are delivered ”as is”. The manufacturer does not grant any kind of warranty including guarantees on suitability and applicability to a certain application. Under no circumstances is the manufacturer or the developer of a program responsible for any possible damages caused by the use of a program. The names of the programs as well as all copyrights relating to the programs are the sole property of SATEL. Any transfer, licensing to a third party, leasing, renting, transportation, copying, editing, translating, modifying into another programming language or reverse engineering for any intent is forbidden without the written consent of SATEL. SATEL PRODUCTS HAVE NOT BEEN DESIGNED, INTENDED NOR INSPECTED TO BE USED SATEL PRODUCTS HAVE NOT BEEN DESIGNED, INTENDED NOR INSPECTED TO BE USED SATEL PRODUCTS HAVE NOT BEEN DESIGNED, INTENDED NOR INSPECTED TO BE USED SATEL PRODUCTS HAVE NOT BEEN DESIGNED, INTENDED NOR INSPECTED TO BE USED IN ANY LIFE SUPPORT RELATED DEVICE OR SYSTEM RELATED FUNCTION NOR AS A PART IN ANY LIFE SUPPORT RELATED DEVICE OR SYSTEM RELATED FUNCTION NOR AS A PART IN ANY LIFE SUPPORT RELATED DEVICE OR SYSTEM RELATED FUNCTION NOR AS A PART IN ANY LIFE SUPPORT RELATED DEVICE OR SYSTEM RELATED FUNCTION NOR AS A PART OF ANY OTHER CRITICAL SYSTEM AND ARE GRANTED NO FUNCTIONAL WARRANTY IF OF ANY OTHER CRITICAL SYSTEM AND ARE GRANTED NO FUNCTIONAL WARRANTY IF OF ANY OTHER CRITICAL SYSTEM AND ARE GRANTED NO FUNCTIONAL WARRANTY IF OF ANY OTHER CRITICAL SYSTEM AND ARE GRANTED NO FUNCTIONAL WARRANTY IF THEY ARE USED THEY ARE USEDTHEY ARE USED THEY ARE USED IN ANY OF THE APPLICATIONS MENTIONED. IN ANY OF THE APPLICATIONS MENTIONED. IN ANY OF THE APPLICATIONS MENTIONED. IN ANY OF THE APPLICATIONS MENTIONED. Salo, FINLAND 2002 SATELLINE-3AS User Guide, Version 2.2 2 RESTRICTIONS ON USE SATELLINE-3AS(d) radio modems have been designed to operate on frequency ranges, the exact use of which differs from one region and/or country to another. The user of a radio modem must take care that the said device is not operated without the permission of the local authorities on frequencies other than those specifically reserved and intended for use without a specific permit. For this reason, the notice mark has been attached to the radio modem. The model SATELLINE-3AS(d) 869 MHz is designed to operate on the licence free frequency band of 869.400 – 869.650 MHz according to recommendation CEPT/ERC/REC 70-03. This recommendation has been drawn up by the European Radiocommunications Committee (ERC) under CEPT. The transmit/receive duty cycle of the individual unit is limited to 10% on this band, and a single transmission period must not exceed 36 s. In addition, the maximum allowed radiated output power is 500 mW ERP . WAR WARWAR WARNING! NING!NING! NING! Users of SATELLINE-3AS (d) radio modem in North America should be aware, that due to the allocation of the frequency band 406.0 – 406.1 MHz for government use only, the use of radio modem on this frequency band without a proper permit is strictly forbidden. SATELLINE-3AS User Guide, Version 2.2 3 WARRANTY AND SAFETY INSTRUCTIONS Read these safety instructions carefully before using the product: • Warranty will be void, if the product is used in any way, that is in contradiction with the instructions given in this manual, or if the radio modem housing has been opened or tampered with. • The radio modem is only to be operated at frequencies allocated by local authorities, and without exceeding the given maximum allowed output power ratings. SATEL and its distributors are not responsible, if any products manufactured by it are used in unlawful ways. • The devices mentioned in this manual are to be used only according to the instructions described in this manual. Faultless and safe operation of the devices can be guaranteed only if the transport, storage, operation and handling of the devices is appropriate. This also applies to the maintenance of the products. • To prevent damage both the radio modem and any terminal devices must always be switched OFF before connecting or disconnecting the serial connection cable. It should be ascertained that different devices used have the same ground potential. Before connecting any power cables the output voltage of the power supply should be checked. SATELLINE-3AS User Guide, Version 2.2 4 TABLE OF CONTENTS IMPORTANT NOTICE.............................................................................................. 1 RESTRICTIONS ON USE.......................................................................................... 2 WARRANTY AND SAFETY INSTRUCTIONS.............................................................. 3 TABLE OF CONTENTS............................................................................................. 4 INTRODUCTION..................................................................................................... 9 1 SATELLINE-3AS(D)/869 MHZ/EPIC RADIO DATA MODEMS ....................... 11 1.1 SATELLINE-3AS(d) Technical specifications (380...470 MHz) ....................11 1.2 SATELLINE-3AS(d) Technical specifications (869 MHz) .........…

Text truncated - open the document above for the full version.

SATEL Oy, P.O.Box 142, FIN-24101 Salo, Finland Street: Meriniitynkatu 17, FIN-24100 Salo, Finland Tel: +358 2 777 7800, Fax: +358 2 777 7810, E-mail: [email protected] www.satel.fi Reference: Equipment Authorization Application (confirmation number: EA942856) of SATELLINE-3AS Epic radio data modem (FCC Identification code: MRBSATELLINE-EPIC) Background: According to the 47CFR/ §0.457/ (d)/ (ii), materials relating to applications for equipment authorizations are not routinely available for public inspection prior to the effective date of the authorization. However, at the moment any person has access via the internet to all of the exhibits attached to our pending application. Therefore we would like to request according to 47CFR/ §0.459, that part of the material will be withheld from public inspection. REQUEST FOR CONFIDENTIALITY §0.459/ (b)/ (1) Identification of the material: The following attachment files of the application no. EA942856 - BlockDiagram_Satelline3ASEpic.pdf - BlockDiagram_TC4i.pdf - BlockDiagram_uCFX.pdf - BlockDiagram_uC10WD.pdf - BlockDiagram_PSHPb.pdf - Schematics_Tc4i.pdf - Schematics_uCFXi.pdf - Schematics_Diversity_Receiver.pdf - Schematics_Booster.pdf - Schematics_PSHPb.pdf - Internal_Photos_Satelline3ASEpic-pdf (2) Identification of the Commission proceeding: The confidential information mentioned above has been submitted via Electronic Filing Site to FCC / Office of Engineering and Technology on the 9 th of January 2001, as attachments to our application no. EA942856. (3), (4) Degree of information The confidential files mentioned above contain technical details of the electronic circuitry of the product. (5) Possible harm caused by disclosure of the information Disclosure of the confidential information of the files mentioned above may result in easier ‘reverse engineering’ by the competitors, and therefore cause significant financial losses in business. (6) Preventing measures of the submitting party The applicant for the equipment authorization (Satel Oy) has relied on the standard way how the telecommunication authorities in various states handle the product documentation in connection with equipment authorization procedures. (7) Availability of the information The confidential information mentioned above is available only to the telecommunication authorities and to the specially authorized parties e.g. local service etc. (8) Period of non-disclosure The material should be withheld from public inspection as long as the product is on the market. Yours Sincerely, SATEL Oy Tapio Malmivaara Type Approval Engineer

Version #2 29 February, 2001 SATEL Oy, P.O.Box 142, FIN-24101 Salo, Finland Street: Meriniitynkatu 17, FIN-24100 Salo, Finland Tel: +358 2 777 7800, Fax: +358 2 777 7810, E-mail: [email protected] www.satel.fi Reference: Equipment Authorization Application (confirmation number: EA942856) of SATELLINE-3AS Epic radio data modem (FCC Identification code: MRBSATELLINE-EPIC) Version Status: This version (#2) replaces the original version submitted to the FCC on the 10 th of January, 2002. Background: According to the 47CFR/ §0.457/ (d)/ (ii), materials relating to applications for equipment authorizations are not routinely available for public inspection prior to the effective date of the authorization. However, at the moment any person has access via the internet to all of the exhibits attached to our pending application. Therefore we would like to request according to 47CFR/ §0.459, that part of the material will be withheld from public inspection. REQUEST FOR CONFIDENTIALITY §0.459/ (b)/ (1) Identification of the material: The following attachment files of the application no. EA942856 - BlockDiagram_Satelline3ASEpic.pdf - BlockDiagram_TC4i.pdf - BlockDiagram_uCFX.pdf - BlockDiagram_uC10WD.pdf - BlockDiagram_PSHPb.pdf - Schematics_Tc4i.pdf - Schematics_uCFXi.pdf - Schematics_Diversity_Receiver.pdf - Schematics_Booster.pdf - Schematics_PSHPb.pdf (2) Identification of the Commission proceeding: The confidential information mentioned above has been submitted via Electronic Filing Site to FCC / Office of Engineering and Technology on the 9 th of January 2001, as attachments to our application no. EA942856. (3), (4) Degree of information The confidential files mentioned above contain technical details of the electronic circuitry of the product. (5) Possible harm caused by disclosure of the information Disclosure of the confidential information of the files mentioned above may result in easier ‘reverse engineering’ by the competitors, and therefore cause significant financial losses in business. (6) Preventing measures of the submitting party The applicant for the equipment authorization (Satel Oy) has relied on the standard way how the telecommunication authorities in various states handle the product documentation in connection with equipment authorization procedures. (7) Availability of the information The confidential information mentioned above is available only to the telecommunication authorities and to the specially authorized parties e.g. local service etc. (8) Period of non-disclosure The material should be withheld from public inspection as long as the product is on the market. Yours Sincerely, SATEL Oy Tapio Malmivaara Type Approval Engineer

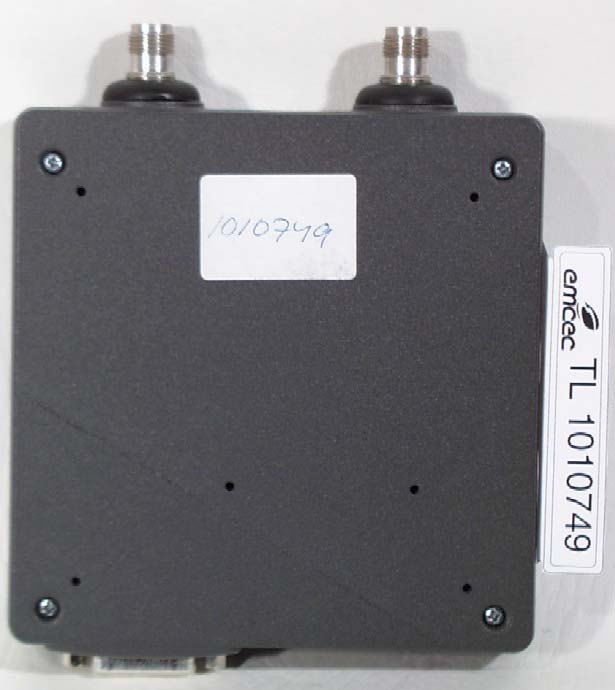

Satelline-3ASd/125/10W/DIV S/N: see the cover page ETS EN 300 113-1 Test Report Reference: TL 1010749 Page 56 (74) Date 27.02.2001 Satelline-3ASd/125/10W/DIV S/N: see the cover page ETS EN 300 113-1 Test Report Reference: TL 1010749 Page 57 (74) Date 27.02.2001 Satelline-3ASd/125/10W/DIV S/N: see the cover page ETS EN 300 113-1 Test Report Reference: TL 1010749 Page 58 (74) Date 27.02.2001 Satelline-3ASd/125/10W/DIV S/N: see the cover page ETS EN 300 113-1 Test Report Reference: TL 1010749 Page 59 (74) Date 27.02.2001 Satelline-3ASd/125/10W/DIV S/N: see the cover page ETS EN 300 113-1 Test Report Reference: TL 1010749 Page 60 (74) Date 27.02.2001

PRODUCT INFORMATION 09.10.2001 TaM C:\TAPIO\TYYPPIHV\USA\Epic\Description_of_Labelling-Epic.doc SATEL Oy, P.O.Box 142, FIN-24101 Salo, Finland Street: Meriniitynkatu 17, FIN-24100 Salo, Finland Tel: +358 2 777 7800, Fax: +358 2 777 7810, E-mail: [email protected] www.satel.fi SATELLINE-3AS Epic Radio Modem DESCRIPTION OF LABELLING for U.S. market LCD Display LED Indicators & Push Buttons Type Designation & Serial Number Manufacturer or Dealer Information Type Designation & FCC Identification Code SATELLINE-3AS/125/10W/DIV EQUIPMENT AUTHORIZATION U.S.A. FCC ID: MRBSATELLINE-EPIC

Satelline-3ASd/125/10W/DIV S/N: see the cover page ETS EN 300 113-1 Test Report Reference: TL 1010749 Page 68 (74) Date 27.02.2001 Satelline-3ASd/125/10W/DIV S/N: see the cover page ETS EN 300 113-1 Test Report Reference: TL 1010749 Page 69 (74) Date 27.02.2001

PRODUCT INFORMATION 14.11.2001 TaM C:\TAPIO\TYYPPIHV\USA\Epic\Calculation_of_Necessary_Bandwidth-Epic.doc SATEL Oy, P.O.Box 142, FIN-24101 Salo, Finland Street: Meriniitynkatu 17, FIN-24100 Salo, Finland Tel: +358 2 777 7800, Fax: +358 2 777 7810, E-mail: [email protected] www.satel.fi Calculation of the Necessary Bandwidth for SATELLINE-3AS(d) Epic Radio Modem SATELLINE-3AS Epic and SATELLINE-3ASd Epic (version with LCD) radio modem uses frequency modulation and the signal is modulated with digital information. Based on these facts, the necessary bandwidth is calculated according to the formula in the section §2.202 (g) part III-A/1. Calculation for 12.5 kHz channel spacing B n = 2M+2DK , M = B/2 , K = 1.2 B = 4800 bauds => M = 2400 s -1 D = 3.3 kHz B n = 2 x 2400 Hz + 2 x 3300 Hz x 1.2 = 12.7 kHz -> 12K7 Calculation for 25 kHz channel spacing B n = 2M+2DK , M = B/2 , K = 1.2 B = 9600 bauds => M = 4800 s -1 D = 6 kHz B n = 2 x 4800 Hz + 2 x 6000 Hz x 1.2 = 24 kHz -> 24K0 Note! Due to the fact that the maximum deviation never occurs simultaneously with the maximum modulation frequency, the real bandwidth of the emitted signal is lower than the ones calculated according to the formula above.

SATEL OyNov 5, 2001 / TaM Emission Mask - specifying the limits for the occupied bandwidth and spurious emissions specifying the limits for the occupied bandwidth and spurious emissions specifying the limits for the occupied bandwidth and spurious emissions specifying the limits for the occupied bandwidth and spurious emissions -20-10 0 1020304050 -55 -50 -45 -40 -35 -30 -25 -20 -15 -10 -5 0 5 10 15 20 25 30 35 40 45 50 55 Frequency - Fc [kHz] Frequency - Fc [kHz] Frequency - Fc [kHz] Frequency - Fc [kHz] Signal Level [dBm] Signal Level [dBm] Signal Level [dBm] Signal Level [dBm] ± (5 ... 10 kHz) 40 - [83 lg (f d /5)] dBm ± (10 ... 50 kHz) (50kHz=250%x20kHz) 40 - [29 lg (f d 2 2 2 2 /11) dBm but no need to be below -10 dBm (=40dBm-50dB) Emission Mask C (§90.210) " For transmitters that are not equipped with an audio low-pass filter pursuant to §90.211(b)." P = unmodulated carrier output power = 10 W = 40 dBm Authorized Bandwidth = 20 kHz > ± 50 kHz 40 - [43 + 10 lg (P)] dBm = -13 dBm

SATEL OyNov 5, 2001 / TaM Emission Mask - specifying the limits for the occupied bandwidth and spurious emissions -30-20-10 0 1020304050 -55 -50 -45 -40 -35 -30 -25 -20 -15 -10 -5 0 5 10 15 20 25 30 35 40 45 50 55 Frequency - Fc [kHz] Signal Level [dBm] ± (0 ... 5.625 kHz) 40 dBm ± (5.625 ... 12.5 kHz) 40 - 7.27 (f d - 2.88 kHz) dBm > ± 12.5 kHz 40 - [50 + 10 lg (P)] dBm = -20 dBm Emission Mask D (§90.210) " For transmitters designed to operate with a 12.5 kHz channel bandwidth" P = unmodulated carrier output power = 10 W = 40 dBm Authorized Bandwidth = 11.25 kHz

PRODUCT INFORMATION 14.11.2001 TaM C:\TAPIO\TYYPPIHV\USA\Epic\Preventing_Measures_for_406-Band.doc SATEL Oy, P.O.Box 142, FIN-24101 Salo, Finland Street: Meriniitynkatu 17, FIN-24100 Salo, Finland Tel: +358 2 777 7800, Fax: +358 2 777 7810, E-mail: [email protected] www.satel.fi List of the measures that Satel Oy has taken in preventing the unauthorised operation of SATELLINE-3AS Epic radio modem at 406.0 – 406.1 MHz band 1. The following text has been added to the user's manual. WARNING! WARNING!WARNING! WARNING! Users of SATELLINE-3AS (d) radio modem in North America should be aware, that due to the allocation of the frequency band 406.0 – 406.1 MHz for government use only, the use of radio modem on this frequency band without a proper permit is strictly forbidden. 2. The production personal has been informed to set the lower and upper frequency limits of the equipment so that a customer will not be able to change the operating frequency to the band 406.0-406.1 MHz.

PRODUCT INFORMATION SATELLINE-3AS Epic 06.02.2002 C:\TAPIO\TYYPPIHV\USA\Epic\Necessary_Bandwidth_Epic_A1.doc SATEL Oy, P.O.Box 142, FIN-24101 Salo, Finland Street: Meriniitynkatu 17, FIN-24100 Salo, Finland Tel: +358 2 777 7800, Fax: +358 2 777 7810, E-mail: [email protected] www.satel.fi Calculation of the Necessary Bandwidth for SATELLINE-3AS(d) Epic Radio Modem ANNEX 1 Technical Clarification on the Underlying Factors to the Calculation of the Necessary Bandwidth SATELLINE-3AS Epic radio data modem uses CML FX919B integrated circuit for encoding the data to the Tx modulator and further to the other stages of the transmitter. The encoder block of the FX919B circuit translates the binary data to 4-level symbols. Each symbol contains the information of two bits. As a consequence, the maximum deviation step does not occur very often. After encoding, the data symbols are passed through a linear-phase lowpass filter with a ‘Root Raised Cosine’ frequency response defined by the function H(f) = 1 for 0 ≤ f < (1-b)/(2T) = square root of {0.5 [1 – sin(πT (f – 0.5/T)/b)]} for (1-b)/(2T) ≤ f ≤ (1+b)/(2T) = 0 for (1+b)/(2T) < f , where b = 0.2 and T = 1/symbol rate, to eliminate the high frequency components of the modulating signal. As a result, SATELLINE-3AS Epic radio modem meets the requirements of EN 300 113-1 and EN 300 220-1 standards for the adjacent channel power, i.e. - 70 dB below the carrier (no need to be below 0.2 uW=–37 dBm) @25 kHz channel spacing, and - 60 dB below the carrier (no need to be below 0.2 uW) @12.5 kHz channel spacing and the radio modem also complies with the emission masks outlined in §90.210 of FCC rules. Source of information: Document no. D/919B/1 July 1997, CML Semiconductor Products Ltd.

PRODUCT INFORMATION SATELLINE-3AS Epic 07.02.2002 C:\TAPIO\TYYPPIHV\USA\Epic\Modulation_Characteristics_Epic.doc SATEL Oy, P.O.Box 142, FIN-24101 Salo, Finland Street: Meriniitynkatu 17, FIN-24100 Salo, Finland Tel: +358 2 777 7800, Fax: +358 2 777 7810, E-mail: [email protected] www.satel.fi Modulation Characteristics of SATELLINE-3AS(d) Epic Radio Modem SATELLINE-3AS Epic radio data modem uses CML FX919B integrated circuit for encoding the data to the Tx modulator and further to the other stages of the transmitter. The encoder block of the FX919B circuit translates the binary data to 4-level symbols. Each symbol contains the information of two bits. After encoding, the data symbols are passed through a linear-phase lowpass filter with a ‘Root Raised Cosine’ (RRC) frequency response defined by the function H(f) = 1 for 0 ≤ f < (1-b)/(2T) = square root of {0.5 [1 – sin(πT (f – 0.5/T)/b)]} for (1-b)/(2T) ≤ f ≤ (1+b)/(2T) = 0 for (1+b)/(2T) < f , where b = 0.2 and T = 1/symbol rate, to eliminate the high frequency components of the modulating signal. Source of information: Document no. D/919B/1 July 1997, CML Semiconductor Products Ltd.

TEST REPORT 18.02.2002 TaM C:\TAPIO\TYYPPIHV\USA\Epic\TEST_REPORT-0015-Epic_Occupied_Bandwidth.doc Page 1 of 2 SATEL Oy, P.O.Box 142, FIN-24101 Salo, Finland Street: Meriniitynkatu 17, FIN-24100 Salo, Finland Tel: +358 2 777 7800, Fax: +358 2 777 7810, E-mail: [email protected] www.satel.fi TEST REPORT REPORT NO: SATEL-TR-0015-TaM TEST PERIOD: 18. February 2002 TEST SITE: Satel / R&D Dept., Salo DEVICE UNDER TEST: SATELLINE-3AS Epic TESTS PERFORMED: • Occupied Bandwidth #1: at 12.5 kHz channel spacing (page 2, figure 1) #2: at 25 kHz channel spacing (page 2, figure 2) TESTS PERFORMED BY: Juha Heikkilä TEST REPORT 18.02.2002 TaM C:\TAPIO\TYYPPIHV\USA\Epic\TEST_REPORT-0015-Epic_Occupied_Bandwidth.doc Page 2 of 2 SATEL Oy, P.O.Box 142, FIN-24101 Salo, Finland Street: Meriniitynkatu 17, FIN-24100 Salo, Finland Tel: +358 2 777 7800, Fax: +358 2 777 7810, E-mail: [email protected] www.satel.fi TEST RESULTS Figure 1. Occupied bandwidth (20 dB) at 12.5 kHz. Bandwidth = 9.25 kHz. Figure 1. Occupied bandwidth (20 dB) at 25 kHz. Bandwidth = 18.7 kHz. Att 60 dB A Ref 30 dBm AVG *1 RM Center 450 MHzSpan 25 kHz2.5 kHz/ RBW 300 Hz VBW 1 kHz * * SWT 280 ms SGL PRN -70 -60 -50 -40 -30 -20 -10 0 10 20 30 SWP 100 of 1 Temp 1 [T1 ndB] -61.57 dBm 449.987500000 MHz Marker 1 [T1] 13.93 dBm 450.000000000 MHz ndB [T1] 20.00 dB BW 9.250000000 kHz Temp 2 [T1 ndB] -6.21 dBm 450.004400000 MHz Temp 1 [T1 ndB] -5.95 dBm 449.995150000 MHz Temp 2 [T1 ndB] -6.21 dBm 450.004400000 MHz T1 1 T2 T1 T2 Date: 12.FEB.2002 10:21:07 Att 60 dB A Ref 30 dBm Center 425 MHzSpan 50 kHz5 kHz/ SWT 560 ms AVG SGL RBW 300 Hz VBW 1 kHz * * *1 RM PRN -70 -60 -50 -40 -30 -20 -10 0 10 20 30 SWP 100 of 1 Temp 1 [T1 ndB] -59.35 dBm 424.975000000 MHz Marker 1 [T1] 11.22 dBm 425.000000000 MHz ndB [T1] 20.00 dB BW 18.700000000 kHz Temp 2 [T1 ndB] -8.42 dBm 425.009800000 MHz Temp 1 [T1 ndB] -9.26 dBm 424.991100000 MHz Temp 2 [T1 ndB] -8.42 dBm 425.009800000 MHz T1 1 T2 T1 T2 Date: 12.FEB.2002 10:11:28

TEST REPORT 05.11.2001 TaM C:\TAPIO\TYYPPIHV\USA\Epic\TEST_REPORT-0012-Epic_Transients.doc Page 1 of 19 SATEL Oy, P.O.Box 142, FIN-24101 Salo, Finland Street: Meriniitynkatu 17, FIN-24100 Salo, Finland Tel: +358 2 777 7800, Fax: +358 2 777 7810, E-mail: [email protected] www.satel.fi TEST REPORT REPORT NO: SATEL-TR-0012-TaM TEST PERIOD: 29.-30. October 2001 TEST SITE: Satel / R&D Dept., Salo DEVICE UNDER TEST: SATELLINE-3AS Epic TESTS PERFORMED: • Transient Frequency Behaviour of the transmitter #1: at 12.5 kHz channel spacing (pages 2 to 10, figures 1-18) and #2: at 25 kHz channel spacing (pages 11 to 19, figures 19-36) on various temperatures (-30, -20, -10, ±0, +10, +20, +30, +40, +50 O C) TEST STANDARD: TIA/EIA-603, clause 4.2.19. TESTS PERFORMED BY: Juha Heikkilä TEST REPORT 05.11.2001 TaM C:\TAPIO\TYYPPIHV\USA\Epic\TEST_REPORT-0012-Epic_Transients.doc Page 2 of 19 SATEL Oy, P.O.Box 142, FIN-24101 Salo, Finland Street: Meriniitynkatu 17, FIN-24100 Salo, Finland Tel: +358 2 777 7800, Fax: +358 2 777 7810, E-mail: [email protected] www.satel.fi TEST RESULTS #1 Tests at 12.5 kHz channel spacing Fig. 1. Transmitter switched ON at –30 O C. (12.5 kHz ch. sp.) Fig. 2. Transmitter switched OFF at –30 O C. (12.5 kHz ch. sp.) TEST REPORT 05.11.2001 TaM C:\TAPIO\TYYPPIHV\USA\Epic\TEST_REPORT-0012-Epic_Transients.doc Page 3 of 19 SATEL Oy, P.O.Box 142, FIN-24101 Salo, Finland Street: Meriniitynkatu 17, FIN-24100 Salo, Finland Tel: +358 2 777 7800, Fax: +358 2 777 7810, E-mail: [email protected] www.satel.fi Fig. 3. Transmitter switched ON at –20 O C. (12.5 kHz ch. sp.) Fig. 4. Transmitter switched OFF at –20 O C. (12.5 kHz ch. sp.) TEST REPORT 05.11.2001 TaM C:\TAPIO\TYYPPIHV\USA\Epic\TEST_REPORT-0012-Epic_Transients.doc Page 4 of 19 SATEL Oy, P.O.Box 142, FIN-24101 Salo, Finland Street: Meriniitynkatu 17, FIN-24100 Salo, Finland Tel: +358 2 777 7800, Fax: +358 2 777 7810, E-mail: [email protected] www.satel.fi Fig. 5. Transmitter switched ON at –10 O C. (12.5 kHz ch. sp.) Fig. 6. Transmitter switched OFF at –10 O C. (12.5 kHz ch. sp.) TEST REPORT 05.11.2001 TaM C:\TAPIO\TYYPPIHV\USA\Epic\TEST_REPORT-0012-Epic_Transients.doc Page 5 of 19 SATEL Oy, P.O.Box 142, FIN-24101 Salo, Finland Street: Meriniitynkatu 17, FIN-24100 Salo, Finland Tel: +358 2 777 7800, Fax: +358 2 777 7810, E-mail: [email protected] www.satel.fi Fig. 7. Transmitter switched ON at 0 O C. (12.5 kHz ch. sp.) Fig. 8. Transmitter switched OFF at 0 O C. (12.5 kHz ch. sp.) TEST REPORT 05.11.2001 TaM C:\TAPIO\TYYPPIHV\USA\Epic\TEST_REPORT-0012-Epic_Transients.doc Page 6 of 19 SATEL Oy, P.O.Box 142, FIN-24101 Salo, Finland Street: Meriniitynkatu 17, FIN-24100 Salo, Finland Tel: +358 2 777 7800, Fax: +358 2 777 7810, E-mail: [email protected] www.satel.fi Fig. 9. Transmitter switched ON at +10 O C. (12.5 kHz ch. sp.) Fig. 10. Transmitter switched OFF at +10 O C. (12.5 kHz ch. sp.) TEST REPORT 05.11.2001 TaM C:\TAPIO\TYYPPIHV\USA\Epic\TEST_REPORT-0012-Epic_Transients.doc Page 7 of 19 SATEL Oy, P.O.Box 142, FIN-24101 Salo, Finland Street: Meriniitynkatu 17, FIN-24100 Salo, Finland Tel: +358 2 777 7800, Fax: +358 2 777 7810, E-mail: [email protected] www.satel.fi Fig. 11. Transmitter switched ON at +20 O C. (12.5 kHz ch. sp.) Fig. 12. Transmitter switched OFF at +20 O C. (12.5 kHz ch. sp.) TEST REPORT 05.11.2001 TaM C:\TAPIO\TYYPPIHV\USA\Epic\TEST_REPORT-0012-Epic_Transients.doc Page 8 of 19 SATEL Oy, P.O.Box 142, FIN-24101 Salo, Finland Street: Meriniitynkatu 17, FIN-24100 Salo, Finland Tel: +358 2 777 7800, Fax: +358 2 777 7810, E-mail: [email protected] www.satel.fi Fig. 13. Transmitter switched ON at +30 O C. (12.5 kHz ch. sp.) Fig. 14. Transmitter switched OFF at +30 O C. (12.5 kHz ch. sp.) TEST REPORT 05.11.2001 TaM C:\TAPIO\TYYPPIHV\USA\Epic\TEST_REPORT-0012-Epic_Transients.doc Page 9 of 19 SATEL Oy, P.O.Box 142, FIN-24101 Salo, Finland Street: Meriniitynkatu 17, FIN-24100 Salo, Finland Tel: +358 2 777 7800, Fax: +358 2 777 7810, E-mail: [email protected] www.satel.fi Fig. 15. Transmitter switched ON at +40 O C. (12.5 kHz ch. sp.) Fig. 16. Transmitter switched OFF at +40 O C. (12.5 kHz ch. sp.) TEST REPORT 05.11.2001 TaM C:\TAPIO\TYYPPIHV\USA\Epic\TEST_REPORT-0012-Epic_Transients.doc Page 10 of 19 SATEL Oy, P.O.Box 142, FIN-24101 Salo, Finland Street: Meriniitynkatu 17, FIN-24100 Salo, Finland Tel: +358 2 777 7800, Fax: +358 2 777 7810, E-mail: [email protected] www.satel.fi Fig. 17. Transmitter switched ON at +50 O C. (12.5 kHz ch. sp.) Fig. 18. Transmitter switched OFF at +50 O C. (12.5 kHz ch. sp.) TEST REPORT 05.11.2001 TaM C:\TAPIO\TYYPPIHV\USA\Epic\TEST_REPORT-0012-Epic_Transients.doc Page 11 of 19 SATEL Oy, P.O.Box 142, FIN-24101 Salo, Finland Street: Meriniitynkatu 17, FIN-24100 Salo, Finland Tel: +358 2 777 7800, Fax: +358 2 777 7810, E-mail: [email protected] www.satel.fi #2 Tests at 25 kHz channel spacing Fig. 19. Transmitter switched ON at –30 O C. (25 kHz ch. sp.) Fig. 20. Transmitter switched OFF at –30 O C. (25 kHz ch. sp.) TEST REPORT 05.11.2001 TaM C:\TAPIO\TYYPPIHV\USA\Epic\TEST_REPORT-0012-Epic_Transients.doc Page 12 of 19 SATEL Oy, P.O.Box 142, FIN-24101 Salo, Finland Street: Meriniitynkatu 17, FIN-24100 Salo, Finland Tel: +358 2 777 7800, Fax: +358 2 777 7810, E-mail: [email protected] www.satel.fi Fig. 21. Transmitter switched ON at –20 O C. (25 kHz ch. sp.) Fig. 22. Transmitter switched OFF at –20 O C. (25 kHz ch. sp.) TEST REPORT 05.11.2001 TaM C:\TAPIO\TYYPPIHV\USA\Epic\TEST_REPORT-0012-Epic_Transients.doc Page 13 of 19 SATEL Oy, P.O.Box 142, FIN-24101 Salo, Finland Street: Meriniitynkatu 17, FIN-24100 Salo, Finland Tel: +358 2 777 7800, Fax: +358 2 777 7810, E-mail: [email protected] www.satel.fi Fig. 23. Transmitter switched ON at –10 O C. (25 kHz ch. sp.) Fig. 24. Transmitter switched OFF at –10 O C. (25 kHz ch. sp.) TEST REPORT 05.11.2001 TaM C:\TAPIO\TYYPPIHV\USA\Epic\TEST_REPORT-0012-Epic_Transients.doc Page 14 of 19 SATEL Oy, P.O.Box 142, FIN-24101 Salo, Finland Street: Meriniitynkatu 17, FIN-24100 Salo, Finland Tel: +358 2 777 7800, Fax: +358 2 777 …

Text truncated - open the document above for the full version.

TEST REPORT 08.11.2001 TaM C:\TAPIO\TYYPPIHV\USA\Epic\TEST_REPORT-0013-Epic_Sideband_Spectrum.doc Page 1 of 5 SATEL Oy, P.O.Box 142, FIN-24101 Salo, Finland Street: Meriniitynkatu 17, FIN-24100 Salo, Finland Tel: +358 2 777 7800, Fax: +358 2 777 7810, E-mail: [email protected] www.satel.fi TEST REPORT REPORT NO: SATEL-TR-0013-TaM TEST PERIOD: 30. October 2001 TEST SITE: Satel / R&D Dept., Salo DEVICE UNDER TEST: SATELLINE-3AS Epic TESTS PERFORMED: • Sideband Spectrum of the transmitter #1: at 12.5 kHz channel spacing (page 2, figure 1) and #2: at 25 kHz channel spacing (pages 3, figure 2) TEST STANDARD: TIA/EIA-603, clause 2.2.11. TESTS PERFORMED BY: Juha Heikkilä ANNEXES: 1. Emission mask D, applied for the decive under test (page 4) 2. Emission mask C. applied for the device under test (page 5) TEST REPORT 08.11.2001 TaM C:\TAPIO\TYYPPIHV\USA\Epic\TEST_REPORT-0013-Epic_Sideband_Spectrum.doc Page 2 of 5 SATEL Oy, P.O.Box 142, FIN-24101 Salo, Finland Street: Meriniitynkatu 17, FIN-24100 Salo, Finland Tel: +358 2 777 7800, Fax: +358 2 777 7810, E-mail: [email protected] www.satel.fi TEST RESULTS #1 Test at 12.5 kHz channel spacing Figure 1. Sideband spectrum of the transmitter at 12.5 kHz channel spacing, showing compliance with the emission mask D. Additional 10 dB attenuator connected to the RF input of the spectrum analyser. Ref 30 dBmAtt 50 dB * A 1AP CLRWR 2AP CLRWR Center 458.6 MHzSpan 100 kHz10 kHz/ * * RBW 100 Hz VBW 3 kHz SWT 12 s PRN -70 -60 -50 -40 -30 -20 -10 0 10 20 30 Marker 1 [T1] -56.50 dBm 458.550000000 MHz 1 Date: 30.OCT.2001 15:29:27 Emission Mask D TEST REPORT 08.11.2001 TaM C:\TAPIO\TYYPPIHV\USA\Epic\TEST_REPORT-0013-Epic_Sideband_Spectrum.doc Page 3 of 5 SATEL Oy, P.O.Box 142, FIN-24101 Salo, Finland Street: Meriniitynkatu 17, FIN-24100 Salo, Finland Tel: +358 2 777 7800, Fax: +358 2 777 7810, E-mail: [email protected] www.satel.fi #1 Test at 25 kHz channel spacing Figure 2. Sideband spectrum of the transmitter at 25 kHz channel spacing, showing compliance with the emission mask C. Additional 10 dB attenuator connected to the RF input of the spectrum analyser. Ref 30 dBmAtt 50 dB * A 1AP CLRWR 2AP CLRWR Center 458.6 MHzSpan 100 kHz10 kHz/ * * RBW 100 Hz VBW 3 kHz SWT 12 s PRN -70 -60 -50 -40 -30 -20 -10 0 10 20 30 Marker 1 [T1] -60.30 dBm 458.550000000 MHz 1 Date: 30.OCT.2001 14:03:38 Emission Mask C TEST REPORT 08.11.2001 TaM C:\TAPIO\TYYPPIHV\USA\Epic\TEST_REPORT-0013-Epic_Sideband_Spectrum.doc Page 4 of 5 SATEL Oy, P.O.Box 142, FIN-24101 Salo, Finland Street: Meriniitynkatu 17, FIN-24100 Salo, Finland Tel: +358 2 777 7800, Fax: +358 2 777 7810, E-mail: [email protected] www.sat…

Text truncated - open the document above for the full version.
