N5OG5CUR2.4 GHz Transceiver

Instruction Manual 66063 A English DocumentRevisionLanguage G5 CU R AttributeInformation Document TypeInstruction Manual TitleSCANRECO G5 CU R Document No.66063 LanguageEnglish Release date2013-05-20 OriginalEnglish Release date (original)2013-05-20 AuthorSCANRECO CompanySCANRECO AB, SWEDEN RevisionDateNote A2013-05-20First release Document information Revision history All rights reserved Design, equipment, technical data and specifications are subject to change or improvement without prior notice. The text in this instruction manual, or any part of it may not be reproduced or transmitted in any form or by any means, including electronic, mechanical, photocopying, recording, storage in an information retrieval system, or otherwise, without prior written permis- sion of SCANRECO AB, SWEDEN. Document typeDocument numberPageRev Instruction Manual66063 A 2 of 8 G5 receiver Product description The Central Unit (CU) is manufactured in robust plastic housing and provides contacts for the connection of power supply and electro-hydraulic valves. Several of the outputs can also be used as digital inputs. Depending on the version of the G5 Central unit, it can either be equipped with MOSFET outputs and Deutsch connectors or can have relay outputs with terminal block. Since the central unit can be exposed to very tough environments, the box is encapsulated to give protection from damp, heat, cold, dust, vibration and corrosive environments. The Central unit has short circuit protected inputs and outputs and has protection against reverse polarity, over-voltage, large incoming voltage transients and EMC/RF. Label Relay output The Relay output connectors are separated from the rest of the electronics in the central unit to create an electrically isolated output. The maximum load for each output is 10A. Through the terminal block, both the normally open and the normally closed connection points are available. Document typeDocument numberPageRev Instruction Manual66063 A 3 of 8 17 15 1 1 Terminal schematics G5 CU R5 and G5 CU R10 ATTENTION! After assembly make sure you tighten the housing screws with 0,8 Nm to avoid any water ingress. The main board may be used stand alone or together with one expansion board. There are several different expansion boards. All expansions boards have the same mechanical outline. They may have different funcionalities depending on customers application. The differnt functions are exemplified in the table below: Expansion boards Models 1 = GND 2 = Power Supply + 3 = REL1, common 4 = REL1, normally closed 5 = REL1, normally open 6 = REL2, common 7 = REL2, normally closed 8 = REL2, normally open 9 = REL3, common 10 = REL3, normally closed 11 = REL3, normally open 12 = REL4, common 13 = REL4, normally closed 14 = REL4, normally open 15 = REL5, common 16 = REL5, normally closed 17 = REL5, normally open 1 = REL6, common 2 = REL6, normally closed 3 = REL6, normally open 4 = REL7, common 5 = REL7, normally closed 6 = REL7, normally open 7 = REL8, common 8 = REL8, normally closed 9 = REL8, normally open 10 = REL9, common 11 = REL9, normally closed 12 = REL9, normally open 13 = REL10, common 14 = REL10, normally closed 15 = REL10, normally open Document typeDocument numberPageRev Expansion board (49839) Main board Description of expansion functionsNumber of exspansion function Relays1-5 Analog inputs1-10 Analog outputs1-5 Digital I/O1-20 PWM1-5 ModelFunctions G5CU R5Two cable glands. 5 Relay outputs. G5CU R10Two cable glands. 10 Relay outputs. Instruction Manual66063 A 4 of 8 127mm 57mm 186mm 117mm Size: approx. ~ 127 x 117 x 57 mm / ~ 5,0 x 4,6 x 2,2 in. Technical Data Central Unit AttributeInformation Housing materialPlastic PC IP-classIP67 (for versions with cable glands IP65) Ambient temperature-25 ̊C to +70 ̊C Supply voltage9-36VDC FuseNot required. Current consumption at idle<30mA Relay Output loadMax 10 A Housing screw torque0,8 Nm WeightApprox. 0,35Kg Document typeDocument numberPageRev Instruction Manual66063 A 5 of 8 AttributeInformation Frequency2,400 - 2,4835 GHz Channels management FHSS DSSS THSS Channel orderPseudorandom Channel capacity Duplex System address/ID <16777216 unique system addresses available RedundancyCRC-16 Range100 meters Technical information The G5 system family incorporates an automated frequency jumping technology, a reliable radio transmission highly resistant to interference. The radio transmission takes place within the ISM-band used at pre-defined channels. The channel switching takes place multiple times per second following a pseudorandom se- quence. This ensures that transmission takes place on an optimal frequency at all times! No transmitter uses the same pseudorandom sequence order when switching channels; this minimizes the risk of two G5 systems interfering with each other. The G5 Pocket is approved to transmit on the ISM band. The radio is license free for the end user. Radio information Document typeDocument numberPageRev Instruction Manual66063 A 6 of 8 This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment. This equipment generates,uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instruction manual, may cause harmful interference to radio communications. Operation of this equipment in a residential area is likely to cause harmful interference in which case the user will be required to correct the interference at his own expense. This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. This device complies with Industry Canada licence-exempt RSS st…

Text truncated - open the document above for the full version.

Postal adressTelephone+46 8 556 32 800VAT NoSE556245004801 Box 47144/Årsta Skolgränd 22Telefax+46 8 556 32 828Org No556245-0048 SE-100 74 Stockholm, [email protected] Attention: Application Examiner Re:Request for confidentiality Applicant: Scanreco Industrielektronik AB FCC ID: N5OG5CUR Product Name:G5 CU R5, G5 CU R10 To whom it may concern, Permanent Confidentiality Request is hereby submitted by Scanreco Industrielektronik AB to withhold permanently from public review certain portions of the application for equipment certification for the referenced FCC identifiers. This request for confidentiality is made pursuant to 47 CFR 0.457(d) and 0.459 of the FCC Rules. In particular, the following sections of the application are to be kept permanently confidential: • Schematics • Detailed Block diagrams • Detailed Operational/Functional Description • Parts list • Internal photos - since this is non-consumer device serviceable only by designated tech. Rationale for request for confidentiality: Scanreco Industrielektronik AB has invested considerable time and materials in research and development to produce the referenced product. Disclosure of the permanently confidential portions of this application to competitors would not only give them significant competitive advantages in developing similar products, but would also disclose successful implementation of unpublished, leading edge technology developed by us. If you have questions or need further information, please contact the undersigned. Stockholm, Sweden, 2014-02-04 Sincerely, Andrei Sazonov, PhD Senior RF Specialist Scanreco Industrielektronik AB

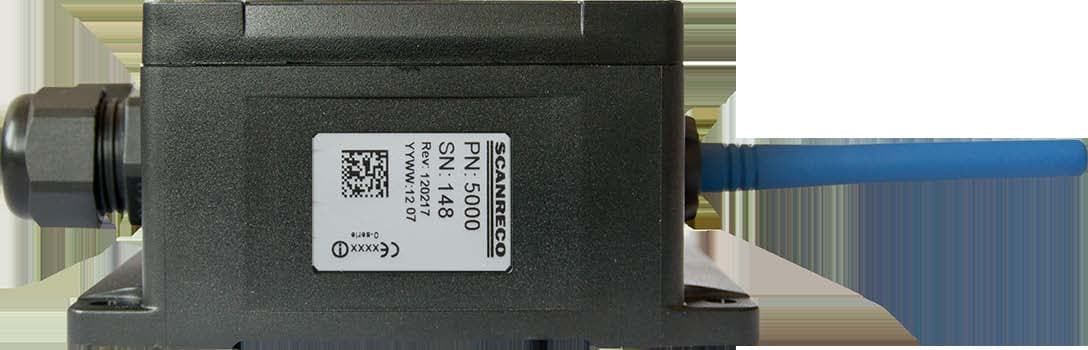

Postal adressTelephone+46 8 556 32 800VAT NoSE556245004801 Box 47144/Årsta Skolgränd 22Telefax+46 8 556 32 828Org No556245-0048 SE-100 74 Stockholm, [email protected] G5 CU R Label Format and Location Postal adressTelephone+46 8 556 32 800VAT NoSE556245004801 Box 47144/Årsta Skolgränd 22Telefax+46 8 556 32 828Org No556245-0048 SE-100 74 Stockholm, [email protected] 32 mm 22.5 mm

SORT OF EQUIPMENT: 2.4 GHz Transceiver TRADE MARK: TYPE: MANUFACTURER: CLIENT: Scanreco Industrielektronik AB ADDRESS: Årsta Skolgränd 22, S – 100 74 Stockholm, Sweden TEST LABORATORY: Nemko Oy FCC REG. NO. 359859 October 20, 2011 IC FILE NO. 2040F-1 November 22, 2012 Nemko Oy P.O.Box 19, FI-02601 Espoo, Finland Street address: Perkkaantie 11, FI-02600 Espoo Telephone +358 (0)424 5454 1 Telefax +358 (0)9 5489 6371 SUMMARY: Only the type of G5 P8A was tested since the electrical circuit design, layout, components used and internal wiring were identical for all types of the product. In regard to the performed tests the equipment under test fulfils the requirements defined in the test specifications, see page 2 for details. The test results are valid for the tested unit only. Without a written permission of Nemko Oy it is allowed to copy this report as a whole, but not partially. TEST REPORT Date: ESPOO 02.10.2013 Page: 1 (29) Appendices  Date of handing in: 23.11.2012 Number: No. 1 / 1 224568H Tested by: Pekka Kälviäinen, Test Engineer Reviewed by: Timo Leismala, Test Manager SCANRECO G5 P1, G5 P2, G5 P3, G5 P4, G5 P, G5 P7, G5 P7, G5 P8 Scanreco Industrielektronik AB Version f1.00 Type: G5 Test report: 224568H 2 (29) 02.10.2013 Page Date Summary of performed tests and test results Section in CFR 47 Section in RSS-GEN or RSS-210, Issue 8 Result 15.247 (b)(1) A8.4 (2) Conducted peak output power PASS 15.247 (d) A8.5 Band-edge compliance of RF emissions PASS 15.247 (d) A8.5 Spurious RF conducted emissions PASS 15.247 (d) 15.209 A8.5 Spurious radiated emissions PASS 15.207 7.2.2 AC power line conducted emissions N.A. 15.247 (a)(1) A8.1 (a) 20 dB bandwidth X 15.247 (a)(1) A8.1 (b) Carrier frequency separation PASS 15.247 (a)(1)(iii) A8.1 (d) Number of hopping frequencies PASS 15.247 (a)/1)(iii) A8.1 (d) Time of occupancy PASS Explanations: PASS The EUT passed that particular test. FAIL The EUT failed that particular test. N.A. The test not applicable, battery operated equipment X The measurement was done, but there is no applicable performance criteria. Type: G5 Test report: 224568H 3 (29) 02.10.2013 Page Date Contents Summary of performed tests and test results ........................................................................................... 2 1. EUT and Accessory Information ......................................................................................................... 4 1.1 EUT description ........................................................................................................................ 4 1.2 EUT and accessories ................................................................................................................ 4 1.3 Additional information related to testing.................................................................................... 4 2. Test setups .......................................................................................................................................... 5 3. Standards and measurement methods ............................................................................................... 6 4. Test results .......................................................................................................................................... 6 4.1 Conducted peak output power .................................................................................................. 6 4.1.1 EUT operation mode ................................................................................................................. 6 4.1.2 Test method and limit ................................................................................................................ 6 4.1.3 Test results................................................................................................................................ 6 4.2 Band-edge compliance of RF emissions .................................................................................. 8 4.2.1 EUT operation mode ................................................................................................................. 8 4.2.2 Test method and limit ................................................................................................................ 8 4.2.3 Test results................................................................................................................................ 9 4.3 Spurious RF conducted emission ........................................................................................... 12 4.3.1 EUT operation mode ............................................................................................................... 12 4.3.2 Test method and limit .............................................................................................................. 12 4.3.3 Test results.............................................................................................................................. 12 4.4 Spurious radiated emission ..................................................................................................... 16 4.4.1 EUT operation mode ............................................................................................................... 16 4.4.2 Test method and limit .............................................................................................................. 16 4.4.3 Test results.............................................................................................................................. 18 4.5 20 dB bandwidth ..................................................................................................................... 19 4.5.1 EUT operation mode ............................................................................................................... 19 4.5.2 Test method and limit .............................................................................................................. 19 4.5.3 Test results...........…
