N5OTR052.4 GHz Transceiver

T R 0 5 U s e r m a n u a l D e v e l o p e d f o r d e m a n d i n g e n v i r o n m e n t s Scanreco ́s TR05 is built and designed for the toughest and most demanding of environments. Scanreco can hereby offer the market of crane and machine operators an extremely easy to use radio remote control retaining speed, precision, and control with the maximum of safety. Behind the development of the radio transeivers lies the idea of providing a product with a high degree of reliability, user-friendliness, and easy upgrade for cable systems or other data radio applications. The product family includes different transeivers and receivers offering a variety of choice depending on the area of use. These products are based on a modular architecture, which makes them extremely flexible to customize and adapt according to the customer’s needs. The products – which are in high demand – are mainly mounted on cranes and mobile machines. Our customers are some of the world’s largest and most challenging crane and machinery manufacturers. Thousands of cranes and machines containing Scanreco’s radio products are in use worldwide. Our products are deployed everywhere, from truck cranes laying heating pipes in Stockholm to lifting oil pipelines in Russia and setting in place concrete sections in Singapore.  TR05 The radio module is designed for use in Scanreco industrial remote controls only that are permanently installed to provide a separation distance of at least 20 cm from the user and in hand-held / hand-operated remote control devices. This module is not for resale to the general public, installers, OEM integrators. This module is designed for use in Scanreco products only and is installed by or under the control of Scanreco. T R 0 5 U s e r m a n u a l www.scanreco.se T e c h n i c a l i n f o r m a t i o n T h e c o n t r o l a n d p o w e r c o n n e c t o r i s a s t a n d a r d 2 . 5 4 m m , 1 6 w a y p i n r o w . T h e f u n c t i o n s o f t h e p i n s a r e a s f o l l o w s : P i n 1 : P o w e r s u p p l y a n d s i g n a l g r o u n d . P i n 2 : P o w e r s u p p l y p o s i t i v e t e r m i n a l . A c c e p t s 5 t o 8 V D C . 7 , 2 V D C n o m i n a l . P i n 3 : D a t a i n p u t / o u t p u t / I S O . P i n 4 : D a t a i n p u t / o u t p u t / M O S I P i n 5 : D a t a i n p u t / o u t p u t / S C L K P i n 6 : D a t a i n p u t / o u t p u t P i n 7 : D a t a i n p u t / o u t p u t P i n 8 : D a t a i n p u t / o u t p u t P i n 9 : D a t a i n p u t / o u t p u t / I 2 C D a t a P i n 1 0 : D a t a i n p u t / o u t p u t / I 2 C C l o c k P i n 1 1 : D a t a i n p u t / o u t p u t P i n 1 2 : D a t a i n p u t / o u t p u t P i n 1 3 : D a t a i n p u t / o u t p u t / U A R T T X P i n 1 4 : D a t a i n p u t / o u t p u t / U A R T R X P i n 1 5 : D a t a i n p u t / o u t p u t P i n 1 6 : P o w e r s u p p l y a n d s i g n a l g r o u n d T h e r e a r e t w o a n t e n n a o u t p u t s , w h i c h c a n n o t b e u s e d s i m u l t a n e o u s l y . I t m a y b e u s e d t h e i n t e g r a l a n t e n n a ( s ) o r d i f f e r e n t t y p e s o f a n t e n n a s w i t h a n i m p e d a n c e o f 5 0 O h m n o m i n a l l y c o n n e c t e d t o S M A c o n t a c t . T R 0 5 U s e r m a n u a l www.scanreco.se R a d i o S p e c i f i c a t i o n AttributeInformation Frequency 2400–2480MHz Channels 16 Channels management FHSS DSSS THSS Channel order Pseudorandom Channel capacity Duplex Channel bandwidth 2,7 MHz RF Power +18dBm typical Modulation QPSK System address/I D <16777216 unique system addresses available Redundancy CRC-16 Range 100 meter Duty cycle Maximum duty cycle set by the factory: -for permanently installed equipment with 20 cm separation distance from users72,36%; -for hand-held / hand operated remote controls10%. T R 0 5 U s e r m a n u a l www.scanreco.se FCC information This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment. This equipment generates,uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instruction manual, may cause harmful interference to radio communications. Operation of this equipment in a residential area is likely to cause harmful interference in which case the user will be required to correct the interference at his own expense. Warning Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. Industry Canada Information This device complies with Industry Canada licence-exempt RSS standard(s). Operation is subject to the following two conditions: (1) this device may not cause interference, and (2) this device must accept any interference, including interference that may cause undesired operation of the device. Le présent appareil est conforme aux CNR d’Industrie Canada applicables aux appareils radio exempts de licence. L’exploitation est autorisée aux deux conditions suivantes : (1) l’appareil ne doit pas produire de brouillage, et (2) l’utilisateur de l’appareil doit accepter tout brouillage radioélectrique subi, même si le brouillage est susceptible d’en compromettre le fonctionnement. CAN ICES-3 (A)/NMB-3(A) The antenna(s) used for this transmitter must be installed to provide a separation distance of at least 20 cm from all persons and must not be co-located or operating in conjunction with any other antenna or transmitter. L’antenne (s) utiliseé pour cet émetteur doit être installé pour fourni…

Text truncated - open the document above for the full version.

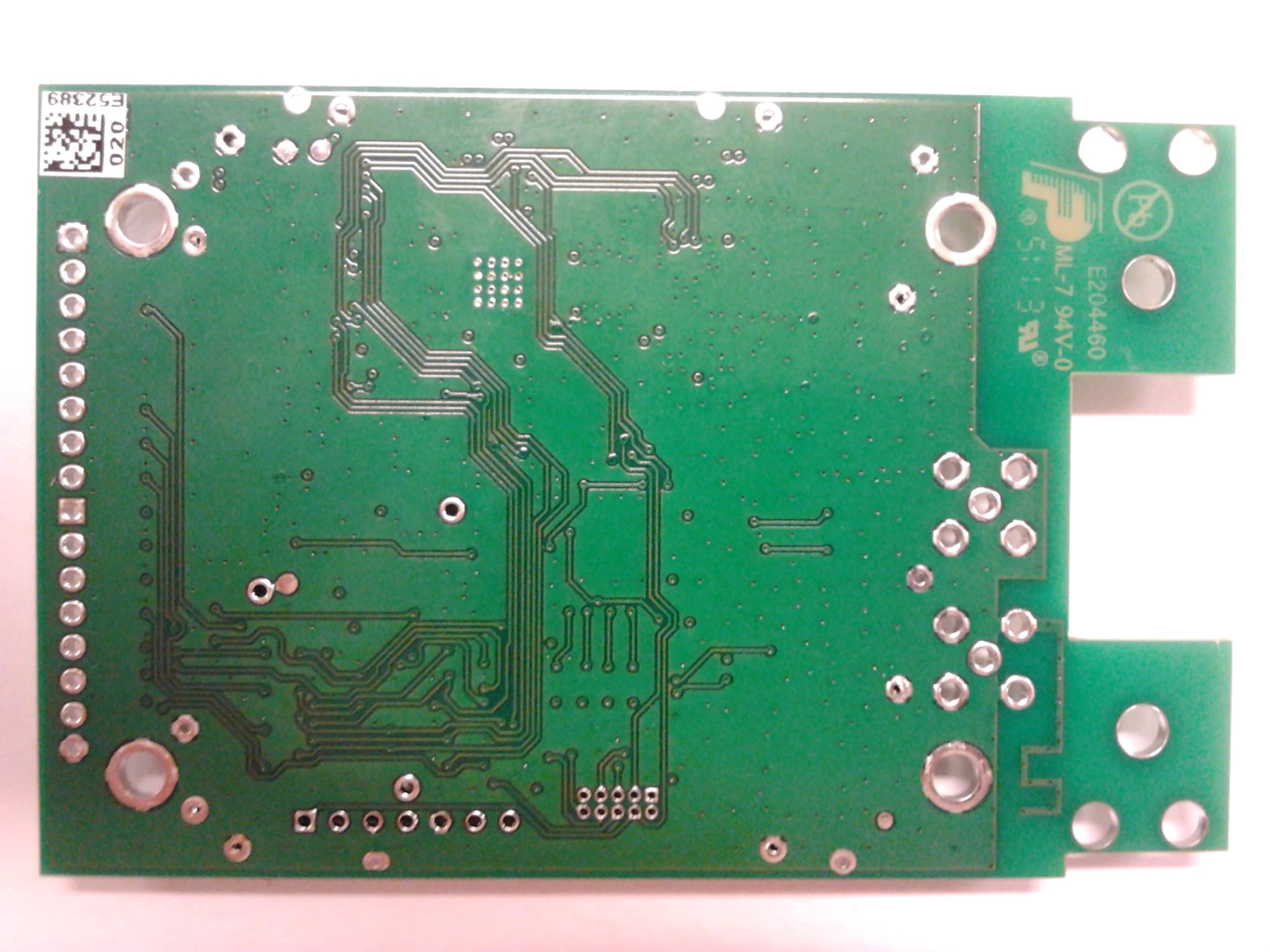

Postal adressTelephone+46 8 556 32 800VAT NoSE556245004801 Box 47144/Årsta Skolgränd 22Telefax+46 8 556 32 828Org No556245-0048 SE-100 74 Stockholm, [email protected] Single Limited Modular Approval Cover Letter according to requirement of 15.212 FCC ID: N5OTR05 Following characteristics applies to TR05 radio transceiver module designed and manufactured by Scanreco Industrielektronik AB 1.The module has its own shielding - one box on the front side and one on the back side. 2.All the inputs including data modulator input are buffered. 3.The module has its own power supply regulator. 4.The module is intended to work with listed antennas by using two of its antenna contacts, both of which may have the permanently attached antennas, but not active at the same time. There are one type of integral antennas and three types of external antennas. All antennas were approved with the module. The integral antenna is the pcb IFA antenna. The external antennas (dipole, λ/4 antenna, planar antenna) have their connection point inside the final product. The connection point for external antennas is the hole in the pcb or the special contact RP-SMA and not user accessible for standard antennas. The product professionally installs by the Scanreco or its representatives under Scanreco control. 5.The module is fully tested in a stand-alone test fixture. The test fixture uses unmodified commercially available instrument to test the module. The module is just battery powered. 6.The module is labelled with its own FCC ID number. Below is an example of label attached to the final product containing the module. 7.There are no specific rules for operating the module. The module is fully automatic. 8.The module complies to the RF exposure requirements. Andrei Sazonov, PhD Senior RF Specialist 2014-04-07

Postal adressTelephone+46 8 556 32 800VAT NoSE556245004801 Box 47144/Årsta Skolgränd 22Telefax+46 8 556 32 828Org No556245-0048 SE-100 74 Stockholm, [email protected] TR05 Attestation Letter Product:2,4 GHz Radio module TR05, TR05-2, TR05-3, TR05-4, TR05-5, TR05-6, TR05-7, TR05-8 Company:ScanrecoIndustrielektronik AB, Box 47144/ÅrstaSkolgränd 22, S-10074, Stockholm, Sweden Hereby declares that the devices TR05, TR05-2, TR05-3, TR05-4, TR05-5, TR05-6, TR05-7, TR05-8 are incapable of transmitting higher than the duty factors supported by the information provided in the equipment certification filing: -maximum 10% duty cycle as hand-held/hand operated radio remote controls, -maximum 72,36% duty cycle in permanently installed equipment with separation distance of at least 20 cm from the user. June 26, 2014 Andrei Sazonov, PhD Senior RF Specialist

Postal adressTelephone+46 8 556 32 800VAT NoSE556245004801 Box 47144/Årsta Skolgränd 22Telefax+46 8 556 32 828Org No556245-0048 SE-100 74 Stockholm, [email protected] TR05 Model Differences Letter Model NameDescription TR05Antenna connector N 1 used alone TR05-2Integral Antenna N 1 used alone TR05-3Antenna connector N 2 used alone TR05-4Integral Antenna N 2 used alone TR05-5Antenna connectors N 1 and N 2 used TR05-6Integral Antennas N 1 and N 2 used TR05-7Antenna connector N 1 and Integral Antenna N 2 used TR05-8Antenna connector N 2 and Integral Antenna N 1 used

Postal adressTelephone+46 8 556 32 800VAT NoSE556245004801 Box 47144/Årsta Skolgränd 22Telefax+46 8 556 32 828Org No556245-0048 SE-100 74 Stockholm, [email protected] TR05 Label Format and Location Postal adressTelephone+46 8 556 32 800VAT NoSE556245004801 Box 47144/Årsta Skolgränd 22Telefax+46 8 556 32 828Org No556245-0048 SE-100 74 Stockholm, [email protected] 35 mm 40 mm

Postal adressTelephone+46 8 556 32 800VAT NoSE556245004801 Box 47144/Årsta Skolgränd 22Telefax+46 8 556 32 828Org No556245-0048 SE-100 74 Stockholm, [email protected] TR05 RF Exposure Exemption Analysis Product:2,4 GHz Radio module TR05, TR05-2, TR05-3, TR05-4, TR05-5, TR05-6, TR05-7, TR05-8 Company:Scanreco Industrielektronik AB, Box 47144/Årsta Skolgränd 22, S-10074, Stockholm, Sweden The radio module is designed for use in Scanreco industrial remote controls that are permanently installed to provide a separation distance of at least 20 cm from the user and in hand-held / hand-operated remote control devices. MPE for permanently installed equipment For permanently installed equipment with a separation distance of at least 20 cm the max duty cycle is 72,36%. From the pictures below the duty cycle is : (4,32ms/95,5ms)*16channels = 72,36%. Postal adressTelephone+46 8 556 32 800VAT NoSE556245004801 Box 47144/Årsta Skolgränd 22Telefax+46 8 556 32 828Org No556245-0048 SE-100 74 Stockholm, [email protected] Postal adressTelephone+46 8 556 32 800VAT NoSE556245004801 Box 47144/Årsta Skolgränd 22Telefax+46 8 556 32 828Org No556245-0048 SE-100 74 Stockholm, [email protected] Prediction of MPE limit at a given distance S = power density P = power input to the antenna G = antenna gain R = distance Conducted output power: 18.04 (dBm) Tune up tolerance 0.5 (dB) Number of carriers 1 (N) 71.4 (mW) 0.0714 (W) P Average 0.0517 (W) Antenna gain: 4.0 (dBi) Maximum antenna gain: 2.51 (numeric) EIRP Average 0.130 (W) ERP Average 0.0794 (W) Distance: 20 (cm) Duty Cycle: 72.36 (%) Frequency: 2400 (MHz) MPE Limit: 1 (mW/cm^2) Power density: 0.0258 (mW/cm^2) 0.258 (W/m^2) Margin 15.9 (dB) 2 4R PG S p = Postal adressTelephone+46 8 556 32 800VAT NoSE556245004801 Box 47144/Årsta Skolgränd 22Telefax+46 8 556 32 828Org No556245-0048 SE-100 74 Stockholm, [email protected] SAR Exclusion Analyses for use in Hand Held / Hand Operated Devices In hand-held / hand-operated devices the distance from the user to the antenna is at least 20 cm. Therefore body SAR is not required. For hand-held/hand operated radio remote controls the max duty cycle is 10%. The duty cycle is hard coded in the firmware under production and cannot be changed by the user. From the pictures below: (0,73ms/117ms)*16channels = 10%. 20 cm Postal adressTelephone+46 8 556 32 800VAT NoSE556245004801 Box 47144/Årsta Skolgränd 22Telefax+46 8 556 32 828Org No556245-0048 SE-100 74 Stockholm, [email protected] Postal adressTelephone+46 8 556 32 800VAT NoSE556245004801 Box 47144/Årsta Skolgränd 22Telefax+46 8 556 32 828Org No556245-0048 SE-100 74 Stockholm, [email protected] FCC SAR Exclusion Analysis for use in hand-held / hand-operated industrial remote controls Section 4.3.1 of 447498 D01 General RF Exposure Guidance v05r02 Extremity SAR exclusion based on 5 mm separation distance and 10%maximum duty cycle for this hand-hand operated device is documented below. P18.00dBm Tune-up tolerance0.50dB Duty Cycle10.00% P average7.08mW d5mm f2480MHz x7.5for 1-g SAR SAR exclusion*2.23<7.5 Limit7.5 Pmax24mW * calculated using 447498 D01 General RF Exposure Guidance v05r02 section 4.3.1 1) [(max. power of channel, including tune-up tolerance, mW)/(min. test ƐĞƉĂƌĂƟŽŶĚŝƐƚĂŶĐĞ͕ŵŵͿ΁ͼ΀яĨ;' , njͿ 5.5.2 1) of 447498 D01 General RF Exposure Guidance v05r02 “When the standalone SAR test Exclusion of section 4.3.1 applies and no SAR test is required or highestreported1-g SAR is ≤ 0.4 W/kg, modules and peripheral transmitters may be approved to operate in qualified portable host exposure conditions with no restriction for most host platform configurations.44This applies to both OEM installed and user accessible external peripheral transmitters. Atest separation distanceof 5 mm must be applied to determine test exclusion according to theSAR Test Exclusion Thresholdrequirements. “ Postal adressTelephone+46 8 556 32 800VAT NoSE556245004801 Box 47144/Årsta Skolgränd 22Telefax+46 8 556 32 828Org No556245-0048 SE-100 74 Stockholm, [email protected] Industry Canada SAR Exclusion Analysis for use in hand-held / hand- operated industrial remote controls RSS-102 Issue 4 2.5.1 Exemption from Routine Evaluation Limits – SAR Evaluation SAR evaluation is required if the separation distance between the user and the radiating element of the device is less than or equal to 20 cm, except when the device operates as follows: above 2.2 GHz and up to 3 GHz inclusively, and with output power (i.e. the higher of the conducted or radiated (e.i.r.p.) source-based, time-averaged output power) that is less than or equal to 20 mW for general public use and 100 mW for controlled use; The maximum radiated (e.i.r.p) source-based time averaged output power is 7.08 x 2.14 = 15.2 mW. This is based on 10% duty cycle and 3.3 dBi max gain Pcb Inverted F Antenna.

Type: TR05 250332 Test setup photographs Page 1 (3) Date 03.01.2014 Test setup photographs for test report 250332 Photograph 1. Spurious radiated emissions test setup (setup4) Photograph 2. AC power line conducted emissions test setup (setup4) Type: TR05 250332 Test setup photographs Page 2 (3) Date 03.01.2014 Photograph 3. setup1, without power supply Photograph 4. setup2, without power supply Type: TR05 250332 Test setup photographs Page 3 (3) Date 03.01.2014 Photograph 5. setup3, without power supply Photograph 6. setup4, without power supply
