Pre l iminar y 0 5/1 6/ 02 MDE-4017B Mat Reader Assembly Kit C00016-XXX Installation Manual • May 2002Page 1 Introduction Purpose of this Manual This manual provides instruction for installing Mat Reader Assembly Kit C00016-XXX. The Mat Reader allows customers to automatically authorize sales using a hand-held transponder tag. Important Notice This equipment has been tested and found to comply with the limits for a Class A digital device pursuant to Part 15 of the Federal Communications Commission (FCC) Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment. This equipment generates, uses and can radiate radio frequency energy, and if not installed and used in accordance with the instruction manual, may cause harmful interference to radio communications. Operation of this equipment in a residential area is likely to cause harmful interference in which case the user will be required to correct the interference at his own expense. Changes or modifications not expressly approved by the manufacturer could void the user’s authority to operate this equipment. The long term characteristics or the possible physiological effects of radio frequency electromagnetic fields have not been investigated by Underwriters’ Laboratories, Inc. (UL ® ). Required Reading Before installing the equipment, the installer must read, understand, and follow: •this manual •NFPA 70, The National Electrical Code (orderable at www.nfpa.org) •applicable federal, state and local codes and regulations Failure to do so may adversely effect the safe use and operation of the equipment. MDE-4017B Mat Reader Assembly Kit C00016-XXX Installation Manual May 2002 Pre l iminar y 0 5/1 6/ 02 Important Safety Information Page 2MDE-4017B Mat Reader Assembly Kit C00016-XXX Installation Manual • May 2002 Important Safety Information This section introduces the hazards and safety precautions associated with installing, inspecting, maintaining or servicing this product. Before performing any task on this product, read this safety information and the applicable sections in this manual, where additional hazards and safety precautions for your task will be found. Electrical shock could occur and cause death or serious injury if these safe service procedures are not followed. Preliminary Precautions Read, understand and follow this manual and any other labels or related materials supplied with this equipment. Follow the Regulations There is applicable information in: NFPA 70: National Electrical Code (NEC); OSHA regulations; and federal, state, and local codes which must be followed. Failure to install, maintain or service this equipment in accordance with these codes, regulations and standards may lead to legal citations with penalties or affect the safe use and operation of the equipment. Pre l iminar y 0 5/1 6/ 02 Page 3MDE-4017B Mat Reader Assembly Kit C00016-XXX Installation Manual • May 2002 Important Safety Information Safety Symbols and Warning Words Alert Symbol This safety alert symbol is used in this manual and on warning labels to alert you to a precaution which must be followed to prevent potential personal safety hazards. Obey safety directives that follow this symbol to avoid possible injury or death. Signal Words These signal words used in this manual and on warning labels tell you the seriousness of particular safety hazards. The precautions that follow must be followed to prevent death, injury or damage to the equipment. Proper Grounding is Required Proper grounding is required for safe operation. See installation manual and applicable NEC, NFPA and local electrical codes for requirements. Avoid Pinched Wires Pinched or cut wires (cables) may damage components. Exposed wires could create sparks and electrical shorts when applying power. Other Useful Safety Information Replacement Parts Use only genuine Gilbarco replacement parts. Using parts other than genuine Gilbarco replacement parts could create a safety hazard, violate national, state and local regulations or void warranty. This signal word designates a hazard or unsafe practice which may result in minor injury. This signal word is used to alert you to a hazard or unsafe practice which will result in death or serious injury. This alerts you to a hazard or unsafe practice that could result in death or serious injury. CAUTION When used by itself, CAUTION designates a hazard or unsafe practice which may result in property or equipment damage. CAUTION DANGER WARNING Pre l iminar y 0 5/1 6/ 02 Reference Information Page 4MDE-4017B Mat Reader Assembly Kit C00016-XXX Installation Manual • May 2002 Reference Information Related Documents Installer must obtain, read and understand all site preparation documentation provided by the point of sale company authorizing the installation before attempting to install this equipment. In addition, the installer must be familiar with the information in the following documents: Required Tools The following equipment is needed to install all Mat Reader kits: •drill motor and bits •needle nose pliers •screwdriver, Phillips ® head •Zircon ® stud/bracket finder Coaxial Cable and SMA Connector Handling Requirements Coaxial antenna cables are more flexible and have a smaller diameter than more familiar coaxial cable, such as that used for cable television. However, all coaxial cables share this characteristic: turns or bends in coaxial cables must be gradual loops, no sharper than a 1-inch radius or 2-inch diameter (2.54 centimeter radius or 5 centimeter diameter). An SMA connector is a type of connector that uses a threaded mount and connects one optical fiber. Due to its small size, use care when connecting the coaxial cable to as to not damage the SMA connector on the Interface Box or the coaxial cable. Document NumberTitleGOLD SM Library MDE-3110PC-Based G-SITE ® System Installation ManualG-SITE MDE-3111PC-Based G-SITE System Start-Up and Service…

Text truncated - open the document above for the full version.

Gilbarco Inc. 7300 W. Friendly Avenue P. O. Box 22087 Greensboro, NC 27420-2087 USA Telephone: 336 547 5000 Fax: 336 292 8871 Telex: 4949970 Web site: www.gilbarco.com Manufacturer’s Letter Date 6/10/2002 American Telecommunications Certification Body, Inc. 6731 Whittier Avenue Suite C110 McLean, VA 22101 RE: Certification Application FCC ID: N6SGBIR13 To Whom It May Concern: Please be advised that the manufacturer will ensure that the above-referenced model will be manufactured in accordance with the FCC Rules and Regulations. Thank you for your attention to this matter. Sincerely, Lester Ward (Manager of Reliability Engineering)

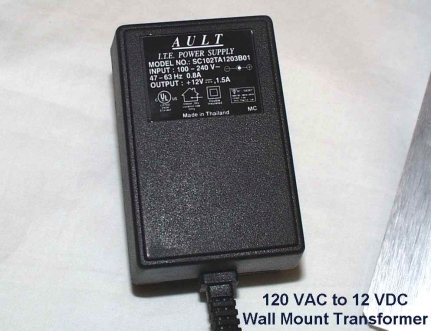

FCC ID: N6SGBIR13 Figure 1: Gilbarco Inc. LF Mat Reader Radio Frequency Identification (RFID) Functional Block Diagram M01878B001 POWER SUPPLY Gilbarco Inc. LF Mat Reader Interface Board M01803 JDC1 J1 (IN) J2 (OUT) P3 +12VDC 115VAC RS-232 Controller (POS/HOST) to other RFID device (sync) R S - 2 3 2 LCD Shutter/Beeper Control and 134.2kHz LF Signal Antenna/Beeper Assembly M02497A001 RI-STU-MRD1 Micro-Reader (134kHz Intentional Radiator) M01872A002 (CABLE) Q13482-XX (CABLE) Q13482-XX(CABLE) 19.66MHz uP Oscillator J1

Gilbarco Inc. 7300 W. Friendly Avenue P. O. Box 22087 Greensboro, NC 27420-2087 USA Telephone: 336 547 5000 Fax: 336 292 8871 Telex: 4949970 Web site: www.gilbarco.com Request for Confidentiality Date 6/10/2002 American Telecommunications Certification Body, Inc. 6731 Whittier Avenue Suite C110 McLean, VA 22101 RE: Certification Application FCC ID: N6SGBIR13 To Whom It May Concern: In reference to FCC ID N6SMRIR11, Gilbarco is requesting confidentiality for schematic diagrams. Gilbarco posted file: TRIND Mini Mat Reader Electrical Schematics N6SGBIR13.pdf Texas Instruments posted files on behalf of Gilbarco as follows: • Electrical schematics of MicroReader RI-STU-MRD1 *** When their confidential files are posted, Texas Instruments will submit a more detailed letter of confidentiality for the documents that they wish to have kept confidential *** This request is being made under the provisions of Section 0.457(d) of the Commission’s rules, and Section 552(b)(4) of the Freedom of Information Act. These schematic diagrams are proprietary and not customarily released to the public. As a matter of fact, those schematics involving the Texas Instruments series 5000 components were posted directly by TI (even Gilbarco is not privileged to view them). These schematic diagrams should fall within the scope of Section 552(b)(4) as trade secrets, Under the provisions of Section 0.457(d), these schematic diagrams should not be routinely available for public inspection. The application contains technical information, which Gilbarco deems to be trade secrets and proprietary. If made public, the information might be used to the disadvantage of the applicant in the market place. Thank you for your attention to this matter. Sincerely, Lester Ward (Manager of Reliability Engineering)

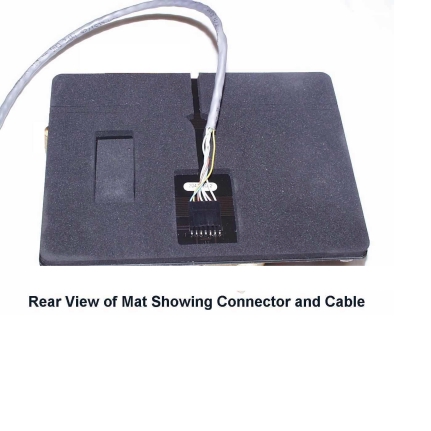

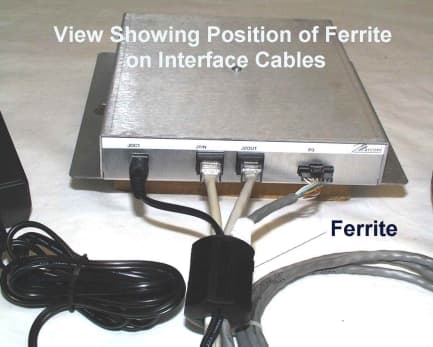

M01814A001 Interface Box M01868A003 Label 50.0 mm X152.4mm Gilbarco Inc. Mat Reader label contents and location

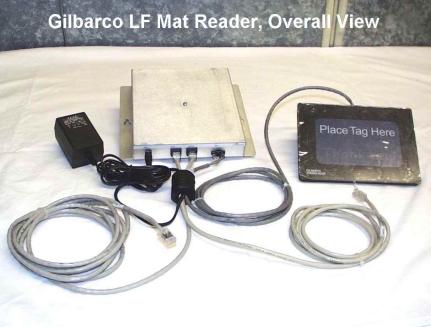

Functional Description 1.0 Overview of Product Operation The use of the Mat Reader device may be illustrated through an example application. A customer enters a Quick Serve Restaurant (QSR) and places an order. Typically, the customer would present a handheld transponder to the Mat Reader that would be on the counter top. The 134 kHz signal from the Reader “illuminates” the transponder. The transponder then transmits the Customer’s ID. The Reader subsequently passes the Customer ID to a Point of Sale Controller via an RS232 port where the customer billing takes place. The 134 kHz signal originates in the MicroReader (Texas Instruments part number RI-STU-MRD1), which is on the M01803 Assembly. Subsequently, this signal travels over the antenna cable (M01872B002) to the antenna (M02497), where it is radiated. The customer transponder replies on the upper and lower sidebands of 134 kHz with the customer ID once the Reader energizes it. The same antenna that transmitted the reader signal receives the transponder reply. The transponder’s reply signal is routed from the antenna to the MicroReader (RI-STU-MRD1) and then to the M01803 Assembly where the signal is interpreted to determine the customer ID. The customer ID is then relayed via RS232 to a Point o f Sale Controller for customer billing. Page 1 of 4 Product Description Gilbarco Inc.'s product (for which this submittal is being filed) allows customers wishing to purchase products to interface directly with a Point-Of-Sale via a handheld transponder. The product is called the Low Frequency (LF) Mat Reader System. The LF Mat Reader transmits at 134.2kHz, which provides energy to the handheld tag. The handheld tags contain a unique and secure ID code so each customer can be identified by their individually registered tag. The low frequency antennas of the system create magnetic charge-up fields, known as "read-zones". As soon as a tag enters the "read-zone" (the magnetic charge-up field created by the antenna) the reader receives the unique ID code. The Gilbarco Inc. LF Mat Reader System (Part # C00016-XXX) is a Radio Frequency Identification Device (RFID) which is designed for use in conjunction with handheld battery-less transponders (Texas Instruments Part # RI-TRP-Series). The user carries the handheld transponder. The transmitter portion of the LF Mat Reader operates at 134.2kHz and is subject to FCC Part 15, Subpart C, "Intentional Radiator"; paragraphs 15.207 and 15.209. The digital electronics portion of the LF Mat Reader is subject to FCC Part 15, Subpart B, "Unintentional Radiator", paragraph 15.109, under the Class A limits and as such, the LF Mat Reader is incorporated into an application that is subject to Class A limits. Tested System Details The Gilbarco Inc. Low Frequency (LF) Mat Reader System is mounted into an application such as a POS terminal counter or other similar retail/industrial applications. The system includes one Mat Reader Interface Board (M01803), one mat reader assembly (MR01003GXXX), which includes one 134.2kHz low 'Q' printed circuit board antenna (M02497A001), a 2700Hz, 90dB beeper and one LCD shutter. The system also includes a 120 VAC to +12VDC LPS Wall Mounted Transformer for input power. These components are listed in Table 1.1, and the functional relationship is provided in Figure 1: Gilbarco Inc. LF Mat Reader Functional Block Diagram. The 134.2 kHz transmit signal originates on the MicroReader located on the LF Mat Reader Interface Board and travels via the M01872A002 cable to the antenna where it is intentionally radiated. These components are assembled per the drawings in the TIRIS Mat Reader Electrical Schematics file. The Gilbarco Inc. Low Frequency Mat Reader System operates from 120VAC converted to +12VDC using a step-down transformer. The +12VDC is then converted to +26VDC and +5VDC by means of switching power supply circuits located on the LF Mat Reader Interface Board. The system functional block diagram is located at the end of this file. Page 2 of 4 Circuit Board Descriptions • The Low Frequency Mat Reader Interface Board Assembly (M01803A001) has digital interface and RS-232 conversion circuitry, a +12VDC to +26VDC boost switcher, a +12VDC to +5VDC buck switcher, beeper control and LCD drive circuitry. The Gateway interface portion of this board manages RFID processing and provides simple, generic event messages to the POS electronics via RS-232. The MicroReader is also located on this board and is the origination point of the intentionally radiated 134.2kHz LF signal. This board also has a 19.66MHz oscillator, which is used by the microprocessor. • The MicroReader, (Texas Instruments part number RI-STU-MRD1), is soldered on the Mat Reader Interface Board Assembly. It has a serial communications interface (SCI), which supports RS-232 protocol communication and TTL data communication. It provides radio frequency (RF) 134 kHz control functions to read and program TIRIS™ transponders. • The Gilbarco Inc. Mat Reader (M02497A001) antenna is a 47 μ H, low 'Q' (10-20) antenna that works with the MicroReader. It is energized by the MicroReader at 132kHz to generate the exciter frequency of 134.2kHz. Because of its’ low 'Q', it does not need to be tuned any further in this application. Table 1. 1 TESTED SYSTEM COMPONENTS Component DescriptionGilbarco Inc. Part Number Texas Instruments Part Number LF Mat Reader Interface Board (1) M01803A001NA MicroReader (1) (one per M01803) Q13551-01RI-STU-MRD1 LF Mat Reader Antenna/Beeper Board M02497A001NA Snap-On Ferrite BeadQ11433-107NA +12VDC Wall Mounted Power Supply M01878B001NA Page 3of 4 Page 4of 4 FCC ID: N6SGBIR13 Figure 1: Gilbarco Inc. LF Mat Reader Radio Frequency Identification (RFID) Functional Block Diagram M01878B001 POWER SUPPLY Gilbarco Inc. LF Mat Reader Interface Board M01803 JDC1 J1 (IN) J2 (OUT) P3 +12VDC 115VAC RS-232 Controller (POS/HOST) to other RFID device (sync) RS-232 LCD Shutter/Beeper Control and 134.2kHz LF Signal Antenna/Beep…

Text truncated - open the document above for the full version.

Gilbarco Inc. 7300 W. Friendly Avenue P. O. Box 22087 Greensboro, NC 27420-2087 USA Telephone: 336 547 5000 Fax: 336 292 8871 Telex: 4949970 Web site: www.gilbarco.com Federal Communications Commission 6/10/2002 445 Twelfth St., S.W. Washington, D.C. 20554 To Whom It May Concern: Since recently questions regarding operation in restricted bands have received a great deal of scrutiny, this to specifically point out claims that the N6SGBIR13 device does not violate restricted bands. The measurement report specifically states that the 90-110 kHz restricted band was investigated “Scans were performed starting at 110 kHz to verify that neither the fundamental emission, nor any harmonic emission was in the 90-110 kHz restricted band.” This confirmed that the fundamental 134 kHz is not in the restricted band 90-110 kHz. Regarding the tag emissions, they are very small. The tag emissions are included in the measurements made in the restricted band 90-110 kHz as referenced in the paragraph above because a tag is needed to fully exercise the N6SGBIR13 device. For added assurance that the main lobes of the tag signals do not enter the restricted band, the tag data frequencies and their corresponding pulse widths are provided below. DataTransmit Frequency (kHz)Pulse Width micro-sec Low Bit134.2119.9 High Bit123.2129.2 Sincerely, Lester Ward (Manager of Reliability Engineering)

Page 0 of 52 MEASUREMENT AND TECHNICAL REPORT ON THE GILBARCO INCORPORATED LOW FREQUENCY MAT READER SYSTEM RADIO FREQUENCY IDENTIFICATION DEVICE Southwest Research Institute 6220 Culebra Road San Antonio, Texas 78228-0510 Project 10.04897.01.002 Report Number EMCR 02/024 Prepared for: Gilbarco Incorporated 7300 West Friendly Avenue P.O. Box 22087 Greensboro, NC 27420-2087 Prepared by: David A. Carmony May 2002 The results of this test report apply only to the specific samples tested. If the manufacturer extends the test results to apply to other samples of the same model, or from the same lot or batch, the manufacturer should ensure the additional samples are manufactured using identical electrical and mechanical components. This test report shall not be reproduced, except in full, without written approval of the Electromagnetic Compatibility Research Section, Southwest Research Institute. FCC ID: N6SGRIR13 P:\10-04897.01.002\rpt24.doc 1 of 27 MEASUREMENT AND TECHNICAL REPORT ON THE GILBARCO INCORPORATED LOW FREQUENCY MAT READER SYSTEM RADIO FREQUENCY IDENTIFICATION DEVICE Southwest Research Institute 6220 Culebra Road San Antonio, Texas 78228-0510 Project 10.04897.01.002 Report Number EMCR 02/024 Prepared for: Gilbarco Incorporated 7300 West Friendly Avenue P.O. Box 22087 Greensboro, NC 27420-2087 Prepared by: David A. Carmony May 2002 Reviewed by:Approved by: ______________________________________ Ismael Martinez, Jr.James J. Polonis Sr. Engineering TechnologistManager Electromagnetic Compatibility Research SectionElectromagnetic Compatibility Research Section Communications Engineering DepartmentCommunications Engineering Department FCC ID: N6SGRIR13 P:\10-04897.01.002\rpt24.doc 2 of 27 TABLE OF CONTENTS Page List of Tables................................................................................................................................................. 3 1.0General Information.............................................................................................4 1.1Product Description.............................................................................................4 1.2Related Grants.......................................................................................................................... ......4 1.3Tested System Details ...................................................................................................................... 4 1.4Test Methodology ............................................................................................................................ 5 1.5Test Facility...................................................................................................................................... 5 2.0Product Labeling .............................................................................................................................. 6 2.1FCC ID Label.................................................................................................................................. 6 2.2Location of Label on EUT............................................................................................................... 6 2.3Supplemental Information to be in the Reader Manual .................................................................... 6 3.0System Test Configuration .............................................................................................................. 7 3.1Justification ..................................................................................................................................... 7 3.2EUT Exercise ................................................................................................................................... 7 3.3Special Accessories .......................................................................................................................... 7 3.4Equipment Modification .................................................................................................................. 7 3.5 Configuration of Tested System ....................................................................................................... 7 4.0Block Diagram of the Gilbarco Low Frequency Mat Reader System............................................... 8 5.0Conducted and Radiated Measurement Photos ................................................................................ 9 6.0Conducted Emission Data ............................................................................................................. 10 6.1Conducted Measurement Data ....................................................................................................... 10 6.2Conducted Test Instrumentation..................................................................................................... 10 7.0Radiated Emission Data ................................................................................................................ 11 7.1Radiated Measurement Data .......................................................................................................... 11 7.2Test Instrumentation for Radiated Measurements .......................................................................... 12 7.3Field Strength Calculation............................................................................................................. 12 Appendix A: Conducted Measurement Plots .............................................................................................. 13 Appendix B: Radiated Signature Scan Plots and OATS Data Sheets ......................................................... 17 Appendix C: Test Instrumentation .............................................................................................................. 25 Appendix D: Photos of Tested EUT............................................................................................................ 27 Appendix E: Photos of Test Setups ................................…

Text truncated - open the document above for the full version.

Radiated Emissions Pre-scan (Anechoic) Test Setup Radiated Emissions OATS Test Setup (110 kHz to 30 MHz) Radiated Emissions OATS Test Setup (30 MHz to 1 GHz) Conducted Emissions Test Setup
