N6SLFMATMat Reader

Gilbarco Inc.

Click to zoom

Application Details

Equipment Class: DCD - Part 15 Low Power Transmitter Below 1705 kHz
Date of Grant: Aug 12, 2013
Application Purpose: Original Equipment
Date of Application: Aug 12, 2013

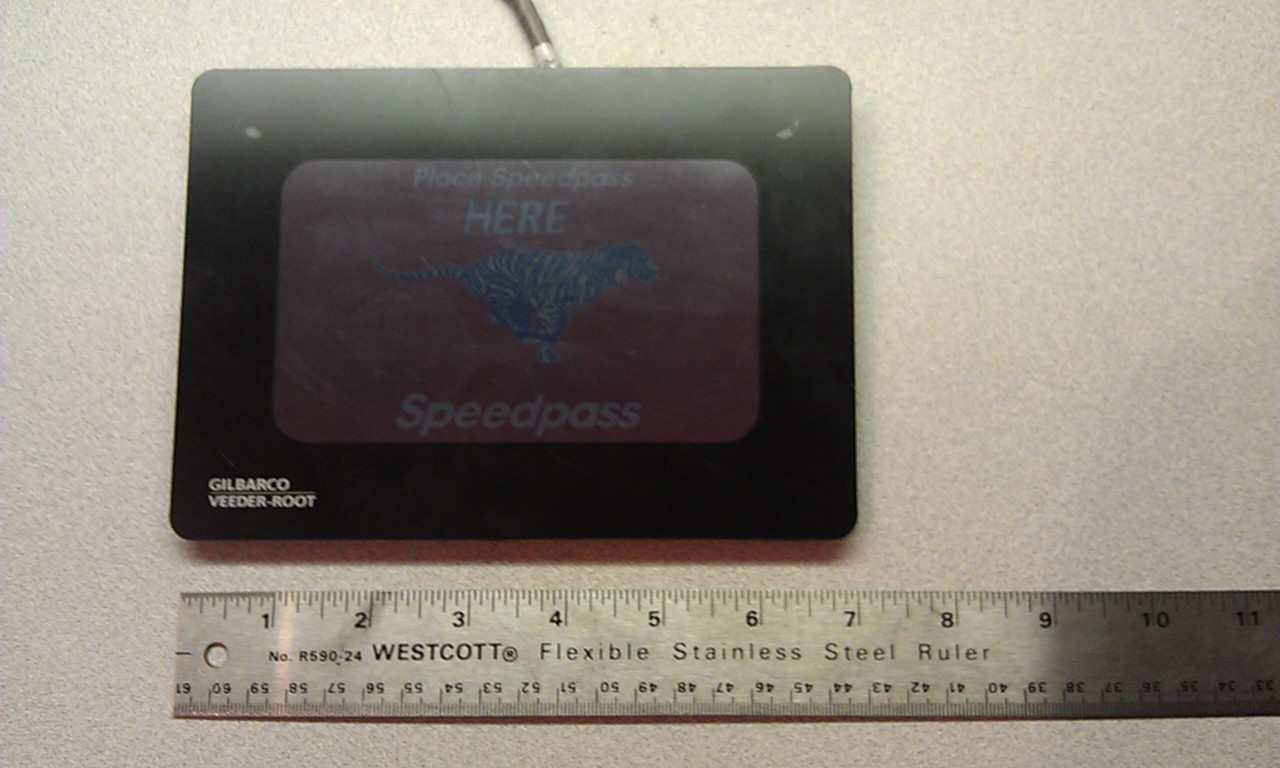

Equipment Note: Mat Reader
Frequency Range: 0.13400000 - 0.13400000
Company: Gilbarco Inc.
Country: United States

Documents & Files

Select a file to view

Document Text

Text extracted from the exhibit documents filed with the FCC. Open a document above to read the original.

Users Manual

5015 B.U. Bowman Drive Buford, GA 30518 USA Voice: 770-831-8048 Fax: 770-831-8598 Certification Exhibit FCC ID: N6SLFMAT IC: 827B-LFMAT FCC Rule Part: 15.209 IC Radio Standards Specification: RSS-210 ACS Project Number: 13-0278 Manufacturer: Gilbarco Inc. Models: C00016-011, C00016-010 Manual MDE-4017E Mat Reader Assembly Kit C00016-XXX Installation Manual · June 2013Page 1 Pre l iminar y 0 6 /05 / 13 Introduction Purpose This manual provides instructions for installing the Mat Reader Assembly Kit C00016-XXX on the Passport System. The Mat Reader allows customers to automatically authorize sales using a hand-held transponder tag (also known as a keytag). Table of Contents TopicPage Introduction1 Important Safety Information5 Installing Mat Reader Assembly7 Commissioning and Warranty Information30 Important Notice This equipment has been tested and found to comply with the limits for a Class A digital device pursuant to Part 15 of the Federal Communications Commission (FCC) Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment. This equipment generates, uses and can radiate radio frequency energy, and if not installed and used in accordance with the instruction manual, may cause harmful interference to radio communications. Operation of this equipment in a residential area is likely to cause harmful interference in which case the user will be required to correct the interference at his own expense. Changes or modifications not expressly approved by the manufacturer could void the user’s authority to operate this equipment. The long term characteristics or the possib le physiological effects of radio frequency electromagnetic fields have not been investigated by Underwriters’ Laboratories, Inc. (UL ® ). Industry Canada Warning This device complies with Industry Canada licence-exempt Radio Standards Specification (RSS) standard(s). Operation is subject to the following two conditions: • This device may not cause interference. • This device must accept any interference, including interference that may cause undesi red operation of the device. Le présent appareil est conforme aux CNR d’Industrie Cana da applicables aux appareils radio exempts de licence. L’exploitation est autorisée aux deux conditions suivantes: • l’appareil ne doit pas produire de brouillage. • l’utilisateur de l’appareil doit accepter tout brouillage radioélectri que subi, même si le brouillage est susceptible d’en compromettre le fonctionnement. MDE-4017E Mat Reader Assembly Kit C00016-XXX Installation Manual June 2013 Introduction Page 2MDE-4017E Mat Reader Assembly Kit C00016-XXX Installation Manual · June 2013 P rel i m i nary Under Industry Canada regulations, this radio transmitter may only operate using an antenna of a type and maximum (or lesser) gain approved for the transmitter by Industry Canada. To reduce potential radio interference to other users, the antenna type and its gain should be so chosen that the equivalent isotropically radiated power (e.i.r.p.) is not more than that necessary for successful communication. Conformément à la réglementation d’Industrie Canada, le présent émetteur radio peut fonctionn er avec une antenne d’un type et d’un gain maximal (ou inférieur) approuvé pour l’émetteur par Industrie Canada. Dans le but de réduire les risques de brouillage radioélectrique à l’intention des autres utilisateurs, il faut choisir le type d’antenne et son gain de sorte que la puissance isotrope rayonnée équivalente (p.i.r.e.) ne dépasse pas l’intensité nécessaire à l’établissement d’une communication satisfaisante. Note: To ensure compliance with Electro-magnetic Compatibility (EMC) standar ds, do not remove the ferrite beads from cable assemblies provided with them. Required Tools Following tools are required to install Mat Reader kits: • Drill Motor and Bits • Needle Nose Pliers • Phillips ® Screwdriver •Zircon ® Stud/bracket Finder Parts Lists Following table lists the parts included in the C00016-010 Kit - Low Frequency (Mini Mat): DescriptionPart NumberQuantity Assembly, Interface Box, Mat ReaderM01814A0011 Tape, Neoprene FoamM02498B0011 Cable, Mat Reader Drive 6 feet (1.8 m)M01872A0021 Ferrite, Snap-onQ11433-1071 Power Supply, Wall-mountM01878B0011 Jack, JumpQ11011-011 Cable, Data, CAT-5, 6 feet (1.8 m)Q13850-061 Clamp, Flat Cable, Stick on, SmallQ13459-013 Ferrite, Snap-onQ11433-110<<Please provide the r equired information.>> Screw, Thread Forming, 8-32 X 3/8”K85736-062 Tape, Pressure SensitiveN23290-021 Note: For component additions to this kit, refer to “Additions to Mat Reader Kits” on page 3. MDE-4017E Mat Reader Assembly Kit C00016-XXX Installation Manual · June 2013Page 3 Introduction Pre l imina ry Following table lists the parts included in the C00016-011 Kit - Low Frequency [Personal Identification Number (PIN) Pad]: DescriptionPart NumberQuantity Assembly, Interface Box, Mat ReaderM01814A0011 Cable, Mat Reader Drive 6 feet (1.8 m)M01872A0021 Ferrite, Snap-onQ11433-1071 Ferrite, Clip-onQ11433-1102 Power Supply, Wall-mountM01878B0011 Jack, JumpQ11011-011 Clamp, Flat Cable, Stick On, SmallQ13459-011 Cable, Data, CAT-5, 6 feet (1.8 m)Q13850-061 Label, Pressure SensitiveN23290-021 Screw, Thread Forming, 8-32 X 3/8”K85736-062 Adapter Plate, PIN PadM03182B0011 Cable-tieQ10178-013 Nut, Clinch, 4-40Q10227-063 Screw, Machine, Pan Head, Phillips 4-40 X 1/2”Q11270-213 Screw, Machine, Pan Head, Phillips 6-32 X 5/8”Q11270-383 Bumper, Rubber, Hemisphere, Adhe sive-backed, (Black)Q12226-014 Gender Mender, Modular Jack To 9-pin D-subminiature, (Black)Q13180-20B1 Notes: 1) The PIN Pad and Pedestal are not included with this kit. 2) For component additions to this kit, refer to “Additi ons to Mat Reader Kits”. Additions to Mat Reader Kits Following table lists the parts required in addition to the C00016-XXX Kit: DescriptionPart Number (see Note)Applicable Kit(s)Quantity Mat Reader, MiniMR01003GXXXC00016-0…

Text truncated - open the document above for the full version.
