N6SMRIR12MAT Reader Assembly

MDE-4017A Mat Reader Assembly Kit C00016-XXX Installation • September 2001Page 1 Pre l iminar y 09/13/0 1 Introduction Purpose of this Manual This manual provides instruction for installing Mat Reader Assembly Kit C00016-XXX. The Mat Reader allows customers to automatically authorize sales using a hand-held transponder tag. Important Notice This equipment has been tested and found to comply with the limits for a Class A digital device pursuant to Part 15 of the Federal Communications Commission (FCC) Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment. This equipment generates, uses and can radiate radio frequency energy, and if not installed and used in accordance with the instruction manual, may cause harmful interference to radio communications. Operation of this equipment in a residential area is likely to cause harmful interference in which case the user will be required to correct the interference at his own expense. Changes or modifications not expressly approved by the manufacturer could void the user’s authority to operate this equipment. The long term characteristics or the possible physiological effects of radio frequency electromagnetic fields have not been investigated by Underwriters’ Laboratories, Inc. (UL ® ). Required Reading Before installing the equipment, the installer must read, understand, and follow: •this manual •NFPA 70, The National Electric Code •applicable federal, state and local codes and regulations Failure to do so may adversely effect the safe use and operation of the equipment. MDE-4017A Mat Reader Assembly Kit C00016-XXX Installation September 2001 Important Safety Information Page 2MDE-4017A Mat Reader Assembly Kit C00016-XXX Installation • September 2001 Pre l iminar y 09/13/0 1 Important Safety Information This section introduces the hazards and safety precautions associated with installing, inspecting, maintaining or servicing this product. Before performing any task on this product, read this safety information and the applicable sections in this manual, where additional hazards and safety precautions for your task will be found. Electrical shock could occur and cause death or serious injury if these safe service procedures are not followed. Preliminary Precautions Read, understand and follow this manual and any other labels or related materials supplied with this equipment. Follow the Regulations There is applicable information in: NFPA 70: National Electrical Code (NEC); OSHA regulations; and federal, state, and local codes which must be followed. Failure to install, maintain or service this equipment in accordance with these codes, regulations and standards may lead to legal citations with penalties or affect the safe use and operation of the equipment. Page 3MDE-4017A Mat Reader Assembly Kit C00016-XXX Installation • September 2001 Important Safety Information Pre l iminar y 09/13/0 1 Safety Symbols and Warning Words Alert Symbol This safety alert symbol is used in this manual and on warning labels to alert you to a precaution which must be followed to prevent potential personal safety hazards. Obey safety directives that follow this symbol to avoid possible injury or death. Signal Words These signal words used in this manual and on warning labels tell you the seriousness of particular safety hazards. The precautions that follow must be followed to prevent death, injury or damage to the equipment. Proper Grounding is Required Proper grounding is required for safe operation. See installation manual and applicable NEC, NFPA and local electrical codes for requirements. Avoid Pinched Wires Pinched or cut wires (cables) may damage components. Exposed wires could create sparks and electrical shorts when applying power. Other Useful Safety Information Replacement Parts Use only genuine Marconi replacement parts. Using parts other than genuine Marconi replacement parts could create a safety hazard, violate national, state and local regulations or void warranty. This signal word designates a hazard or unsafe practice which may result in minor injury. This signal word is used to alert you to a hazard or unsafe practice which will result in death or serious injury. This alerts you to a hazard or unsafe practice that could result in death or serious injury. CAUTION When used by itself, CAUTION designates a hazard or unsafe practice which may result in property or equipment damage. CAUTION DANGER WARNING Reference Information Page 4MDE-4017A Mat Reader Assembly Kit C00016-XXX Installation • September 2001 Pre l iminar y 09/13/0 1 Reference Information Related Documents Installer must obtain, read and understand all site preparation documentation provided by the point of sale company authorizing the installation before attempting to install this equipment. In addition, the installer must be familiar with the information in the following documents: Required Tools The following equipment is needed to install all Mat Reader kits: •drill motor and bits •needle nose pliers •screwdriver, Phillips ® head •Zircon ® stud/bracket finder Coaxial Cable and SMA Connector Handling Requirements Coaxial antenna cables are more flexible and have a smaller diameter than more familiar coaxial cable, such as that used for cable television. However, all coaxial cables share this characteristic: turns or bends in coaxial cables must be gradual loops, no sharper than a 1-inch radius or 2-inch diameter (2.54 centimeter radius or 5 centimeter diameter). An SMA connector is a type of connector that uses a threaded mount and connects one optical fiber. Due to its small size, use care when connecting the coaxial cable to as to not damage the SMA connector on the Interface Box or the coaxial cable. Document NumberTitleGOLD SM Library MDE-3110PC-Based G-SITE ® System Installation ManualG-SITE MDE-3111PC-Based G-SITE System Start-Up and Service Manual•G-SITE •Service Manual MDE-3620Gilbar…

Text truncated - open the document above for the full version.

FCC ID: N6SMRIR12 Figure 1: Marconi 13.563MHz Mat Reader Radio Frequency Identification (RFID) Functional Block Diagram Q13698-01 UL 1950 Approved Plug In Power Supply 115VAC to 12VDC@1A PCA Integrated RFID Gateway M01803A002 JDC1 J1IN J2OUTP3 +12VDC 115VAC to other RFID device (sync) RS-232 M01872A001 (Shutter/Beeper Control) LCD Shutter/ Beeper/Antenna Assembly (M01556) M01787B002 RS-232 Point of Sale Controller RI-STU-TRDB-01 Multi-Protocol Reader 13.563MHz Generator J13 M02033A001 (13.563MHz Signal)

Marconi Commerce Systems Inc. 7300 W. Friendly Avenue P. O. Box 22087 Greensboro, NC 27420-2087 USA Telephone: 336 547 5000 Fax: 336 292 8871 Telex: 4949970 Web site: www.marconicommerce.com Request for Confidentiality Date 9/11/2001 American Telecommunications Certification Body, Inc. 6731 Whittier Avenue Suite C110 McLean, VA 22101 RE: Certification Application FCC ID: N6SMRIR12 To Whom It May Concern: In reference to FCC ID N6SMRIR12, Marconi Commerce Systems is requesting confidentiality for schematic diagrams.
Marconi Commerce Systems posted file: TRIND Mat Reader Electrical Schematics N6SMRIR12.pdf
Texas Instruments will post files on behalf of Marconi Commerce Systems as follows:
Multi-Protocol Reader - RI-STU-TRDB-01 This request is being made under the provisions of Section 0.457(d) of the Commission’s rules, and Section 552(b)(4) of the Freedom of Information Act. These schematic diagrams should fall within the scope of Section 552(b)(4) as trade secrets, Under the provisions of Section 0.457(d), these schematic diagrams should not be routinely available for public inspection. The application contains technical information, which Marconi Commerce Systems deems to be trade secrets and proprietary. If made public, the information might be used to the disadvantage of the applicant in the market place. Thank you for your attention to this matter. Sincerely, Lester Ward (Manager of Reliability Engineering)

Marconi Commerce Systems Inc. 7300 W. Friendly Avenue P. O. Box 22087 Greensboro, NC 27420-2087 USA Telephone: 336 547 5000 Fax: 336 292 8871 Telex: 4949970 Web site: www.marconicommerce.com Letter Of Agency Date 9/11/2001 American Telecommunications Certification Body, Inc. 6731 Whittier Avenue Suite C110 McLean, VA 22101 To Whom It May Concern: Please be advised that Marconi Commerce Systems authorizes American Telecommunications Certification Body, Inc.to act on our behalf, until otherwise notified, for applications submitted to American Telecommunications Certification Body, Inc. (ATCB). We certify that we are not subject to denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse ACT of 1988, U.S.C. 862. Further, no party, as defined in 47 CFR 1.2002(b), to the application is subject to denial of federal benefits, that includes FCC benefits. Thank you for your attention to this matter. Specifically N6SMRIR12 (13.56 MHz Intentional Radiator – Mat Reader) Sincerely, Lester Ward (Manager of Reliability Engineering)

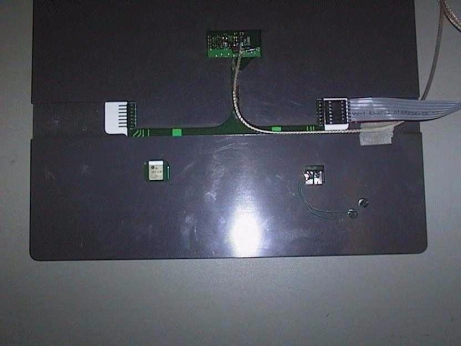

External Photographs for N6SMRIR12 - 13.56 MHz Mat Reader Page 1 of 3 Ferrites Antenna Cable Mat (LCD shutter and beeper cable) N6SMRIR12 Mat Reader 13.56 MHz - Overall Product View. Interface Box Power Supply Mat (Includes graphics, LCD shutter, beeper, and antenna) Page 2 of 3 N6SMRIR12 Mat Reader 13.56 MHz - Back of Mat View Page 3 of 3 Mat (LCD shutter and beeper cable) Antenna Cable

M01814A002 Interface BoxM01814A002 Interface Box M01868A002 LabelM01868A002 Label 50.0 mm X152.4mm50.0 mm X152.4mm N6SMRIR12 Mat Reader label contents and location Marconi Commerce Systems N6SMRIR12 M01868A002

Functional Description 1.0 Overview of Product Operation The use of the Mat Reader device may be illustrated through an example application. A customer enters a fast serve restaurant and places an order. Typically, the customer would present a handheld transponder to the Mat Reader that would be on the counter top. The 13.56 MHz signal from the Reader “illuminates” the transponder. The transponder then transmits the Customer’s ID. If added security is needed, the Reader makes a challenge (transmission to the transponder) which forces the transponder to transmit additional information to prove that the transponder is legitimate. The Reader subsequently passes the Customer ID to a Point of Sale Controller via an RS232 port where the customer billing takes place. The 13.56 MHz signal originates in the Multi-Protocol Reader (Texas Instruments part number RI-STU-TRDB-01) which is on the M01803A002 Interface Board. Subsequently, this signal travels over the antenna cable (M02033A001) to the antenna (M01566A001) where it is radiated. The customer transponder replies at 13.56 MHz with the customer ID, once it is energized by the Reader and the proper protocol between the Reader and the transponder is established. The same antenna that transmitted the reader signal receives the transponder reply. The transponder’s reply signal is routed from the antenna to the Multi-Protocol Reader (RI-STU-TRDB-01) and then to the M01803A002 Interface Board where the signal is interpreted to determine the customer ID. The customer ID is then relayed via RS232 to a Point of Sale Controller for customer billing. Page 1 of 4 Product Description Marconi Commerce Systems Inc.'s product (for which this submittal is being filed) allows customers wishing to purchase products to interface directly with a Point-Of-Sale via a handheld transponder. The product is called Marconi TIRIS™ Mat Reader (TIRIS: Texas Instruments Registration and Identification System). The Marconi TIRIS™ Mat Reader transmits at 13.563MHz, which provides energy to the handheld tag. The handheld tags contain a unique and secure ID code so each customer can be identified by their individually registered tag. The high frequency antenna of the system creates a magnetic charge-up field, known as "read-zone". As soon as a tag enters the "read-zone" (the magnetic charge-up field created by the antenna) the reader receives the unique ID code. The Marconi TIRIS™ Mat Reader (Part # C00016-XXX) is a Radio Frequency Identification Device (RFID) which is designed for use in conjunction with handheld battery-less transponders (Texas Instruments Part # RI-TRP-Series). The user carries the handheld transponder. The transmitter portion of the Marconi TIRIS™ Mat Reader operates at 13.563MHz and is subject to FCC Part 15, Subpart C, "Intentional Radiator"; paragraph 15.225 (13.553-13.567MHz). The digital electronics portion of the Marconi TIRIS™ Mat Reader is subject to FCC Part 15, Subpart B, "Unintentional Radiator", paragraph 15.109, under the Class A limits and as such, the TIRIS™ Mat Reader is incorporated into an application that is subject to Class A limits. Tested System Details The Marconi TIRIS™ Mat Reader System is mounted into an application such as a POS terminal counter or other similar industrial applications. The system includes one Integrated RFID Gateway Board (M01803A002), one Multi-Protocol Reader board (Q13786-02), one M01787B002 mat reader assembly, which includes one 13.563MHz low 'Q' printed circuit board antenna (M01566A001) and one LCD shutter. The system also includes a 120 VAC to +12VDC Class II Wall Mounted Transformer for input power. These components are listed in Table 1.1, and the functional relationship is provided in Figure 1: Marconi TIRIS™ Mat Reader RFID Functional Block Diagram. The 13.56 MHz transmit signal originates on the Multi-Protocol Reader board (Marconi part number Q13786-02/ Texas Instruments part number RI-STU-TRDB-01) from which the signal is sent via the Antenna Signal/Ground cable to the Mat Reader Antenna where it is intentionally radiated. These components are assembled per the drawings in TRIND Mat Reader Electrical Schematics N6SMRIR12. The Marconi TIRIS™ Mat Reader operates from 120VAC converted to +12VDC using a Class II step-down transformer. The +12VDC is then converted to +26VDC and +5VDC by means of a switching power supply located on the Board. The system functional block diagram is located on page 4 below. Page 2 of 4 Circuit Board Descriptions • The Integrated RFID Gateway Board (M01803A002) has digital interface and RS-232 conversion circuitry, a +12VDC to +26VDC boost switcher, a +12VDC to +5VDC buck switcher, and LCD drive circuitry. The Multi-Protocol Reader is also located on this board and is the origination point of the intentionally radiated 13.563MHz HF signal. • The Multi-Protocol Reader, (Marconi Part Number Q13786-02, Texas Instruments part number RI-STU-TRDB-01), is socketed on the Integrated RFID Gateway Board Assembly. It has a serial communications interface (SCI), which supports RS-232 protocol communication and TTL data communication. It provides radio frequency (RF) 13.563MHz control functions to read and program TIRIS™ tags and works together with a 13.563MHz low 'Q' antenna; therefore, the system does not need further tuning. • The Marconi TIRIS™ Mat Reader (M01566A001) antenna is a low 'Q' antenna that works with the Multi-Protocol Reader. The Multi-Protocol Reader energizes it at 13.563MHz. Because of its’ low 'Q', it does not need to be tuned any further in this application. Table 1. 1 TESTED HF SYSTEM COMPONENTS Component DescriptionMarconi Part Number Texas Instruments Part Number Integrated RFID Gateway Board Assembly (1) M01803A002NA Multi-Protocol Reader (1) (one per M01803A002) Q13786-02RI-STU-TRDB-01 Marconi TIRIS™ Mat Reader Antenna (1) M01566A001NA Page 3 of 4 FCC ID: N6SMRIR12 Figure 1: Marconi 13.563MHz Mat Reader Radio Frequency Identification (RFID) Functional Block D…

Text truncated - open the document above for the full version.

N6SMRIR12 - Parts Lists C00016-006 Kit C00016-006 Kits contain the following parts: Description Part Number Quantity box, interface assembly M01814A001 1 tape, neoprene foam M01870B001 2 channel, plastic filler M01871B001 1 cable, mat reader drive M01872A001 1 ferrite half Q11433-08 2 steel clip for Q11433-08 M01994B001 2 ferrite, snap-on Q11433-107 1 tape, acrylic foam K85492-72 1 power supply M01878B001 1 jack, jump, push-to-start Q11011-01 1 cable, data, CAT-5 Q13482-06 1 clamp, cable, stick on, small Q13459-01 3 decal, UL/FCC M01868A001 1 document, installation (this document) MDE-4017 1 screw, thread forming, 8-32x3/8” K85736-06 2 C00016-008 Kit C00016-008 Kits contain the following parts: box, interface assembly M01814A002 1 tape, neoprene foam M01870B002 1 channel, plastic filler M01871B002 1 cable, mat reader drive M01872A001 1 transient suppressor, magnetically coupled Q11433-110 2 ferrite, snap-on Q11433-106 1 ferrite, snap-on Q11433-107 1 tape, acrylic foam K85492-72 1 power supply M01878B001 1 jack, jump, push-to-start Q11011-01 10 cable, data, CAT-5 Q13482-06 1 clamp, cable, stick on, small Q13459-01 3 decal, UL/FCC M01868A002 1 document, installation (this document) MDE-4017 1 screw, thread forming, 8-32x3/8” K85736-06 2

FCC ID: N6SMRIR12 P:\10-04025.01.007\rpt45.doc 1 of 26 MEASUREMENT AND TECHNICAL REPORT ON THE MARCONI COMMERCE SYSTEMS TIRIS™ MAT READER RADIO FREQUENCY IDENTIFICATION DEVICE Southwest Research Institute 6220 Culebra Road San Antonio, Texas 78228-0510 Project 10.04025.01.007 Report Number EMCR 01/045 Prepared for: Marconi Commerce Systems 7300 West Friendly Avenue P.O. Box 22087 Greensboro, NC 27420-2087 Prepared by: David A. Carmony August 2001 Reviewed by:Approved by: Ismael Martinez, Jr.James J. Polonis Sr. Engineering TechnologistManager Electromagnetic Compatibility Research SectionElectromagnetic Compatibility Research Section Communications Engineering DepartmentCommunications Engineering Department FCC ID: N6SMRIR12 P:\10-04025.01.007\rpt45.doc 2 of 26 TABLE OF CONTENTS Page List of Tables................................................................................................................................................ 3 1.0General Information ........................................................................................................................ 4 1.1Product Description......................................................................................................................... 4 1.2Related Grants................................................................................................................................. 4 1.3Tested System Details ..................................................................................................................... 4 1.4Test Methodology ........................................................................................................................... 5 1.5Test Facility..................................................................................................................................... 5 2.0Product Labeling ............................................................................................................................. 6 2.1FCC ID Label.................................................................................................................................. 6 2.2Location of Label on EUT............................................................................................................... 6 2.3Supplemental Information to be in the Reader Manual .................................................................... 6 3.0System Test Configuration .............................................................................................................. 7 3.1Justification ..................................................................................................................................... 7 3.2EUT Exercise ................................................................................................................................ 7 3.3Special Accessories ......................................................................................................................... 7 3.4Equipment Modification ................................................................................................................. 7 3.5 Configuration of Tested System ...................................................................................................... 7 4.0Block Diagram of the TIRIS™ Mat Reader System ........................................................................ 8 5.0Conducted and Radiated Measurement Photos ............................................................................... 9 6.0Conducted Emission Data ............................................................................................................. 10 6.1Conducted Measurement Data ...................................................................................................... 10 6.2Conducted Test Instrumentation ................................................................................................... 10 7.0Radiated Emission Data ................................................................................................................ 11 7.1Radiated Measurement Data ......................................................................................................... 11 7.2Test Instrumentation for Radiated Measurements ......................................................................... 12 7.3Field Strength Calculation............................................................................................................. 12 Appendix A: Conducted Measurement Plots ............................................................................................. 13 Appendix B: Radiated Signature Scan Plots and OATS Data Sheets ......................................................... 16 Appendix C: Test Instrumentation ............................................................................................................. 23 Appendix D: Photos of Tested EUT............................................................................................................ 25 Appendix E: Photos of Test Setups ............................................................................................................ 26 Attachment 1: Functional Description and Block Diagram Attachment 2: Installation Instructions Attachment 3: FCC ID Label Attachment 4: Schematics FCC ID: N6SMRIR12 P:\10-04025.01.007\rpt45.doc 3 of 26 LIST OF TABLES TablePage 1.1 TIRIS™ Mat Reader Components ................................................................................................... 4 6.1Worst Case Conducted Emission Levels ........................................................................................ 10 7.1Measurement of Fundamental Frequency ......................................................................................11 7.2Measurement of Spurious Emissions ............................................................................................. 11 FCC ID: N6SMRIR12 P:\10-04025.01.007\rpt45.doc 4 of 26 1.0 …

Text truncated - open the document above for the full version.

Marconi Commerce Systems Inc. 7300 W. Friendly Avenue P. O. Box 22087 Greensboro, NC 27420-2087 USA Telephone: 336 547 5000 Fax: 336 292 8871 Telex: 4949970 Web site: www.marconicommerce.com Federal Communications Commission 9/12/2001 445 Twelfth St., S.W. Washington, D.C. 20554 To Whom It May Concern: Since recently questions regarding operation in restricted bands have received a great deal of scrutiny, this to specifically point out claims that the N6SMRIR12 device does not violate restricted bands. The measurements report specifically states (page 11) that “Scans were performed starting at 13 MHz to verify that neither the fundamental emission, nor any harmonic emission was in the 13.36 – 13.41 MHz restricted band.” This confirmed that the N6SMRIR12 device does not violate the 13.36 MHz to 13.41 MHz restricted band. Regarding the handheld tag emissions, they are very small. The tag emissions are included in the measurements made in the restricted band the 13.36 – 13.41 MHz as referenced in the paragraph above because a tag is needed to fully exercise the N6SMRIR12device. For added assurance that the main lobes of the tag signals do not enter the restricted band, minimum pulse width (time between transitions) is provided below: Calculation derived from data rate described in the referenced Tag-it specification (http://www.ti.com/tiris/docs/manuals/pdfSpecs/RI-I03-110A.pdf). 1 transition ------------------------------------------- = 18.7266 microseconds pulse width minimum (26,700 bits/sec * 2 transitions/bit) Sincerely, Lester Ward (Manager of Reliability Engineering)

Radiated Emissions Pre-scan (Anechoic) Test Setup Radiated Emissions OATS Test Setup (Below 30 MHz) Radiated Emissions OATS Test Setup (30 MHz to 1 GHz) Conducted Emissions Test Setup
