NAHCTR433Remote Control Car Starter

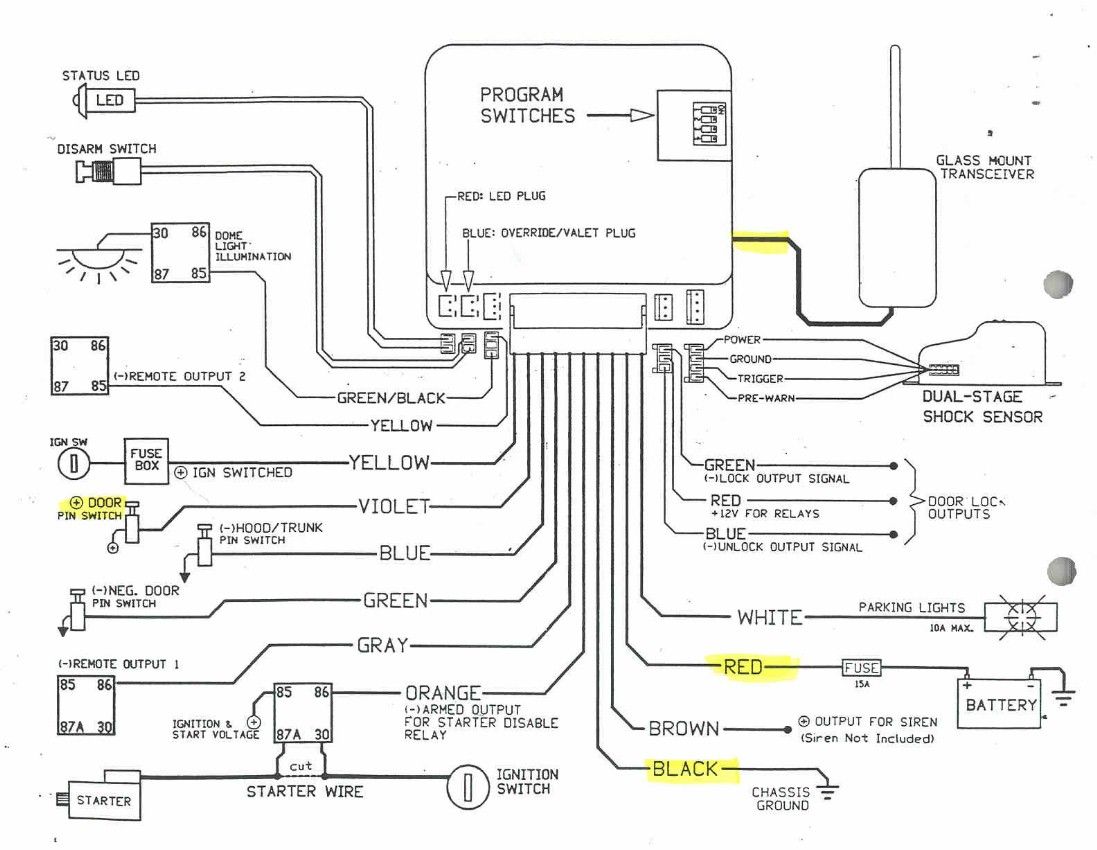

Please review the installation guide before beginning the installation, particularly the wiring diagram and the list of programming options. Prior to installation please be sure that all hardware components required to install the AS-1200 are in the box. This is a list of components included in the AS-1200 kit: • 1 - AS-1200 control unit • 1 - 2 button / 3 channel remote transmitter • 1 - 5 Pin 14 AWG harness (Ignition harness) • 1 - 7 Pin 18 AWG harness (Main harness) • 1 - 4 Pin / 2 Wire 18 AWG harness (Accessories) • 1 Antenna • 1 Parts Bag (hood switch, valet switch, connector, wires) • User guide, tech bulletins. NOTICE: THE MANUFACTURER IS NOT RESPONSIBLE FOR ANY RADIO OR TV INTERFERENCE CAUSED BY UNAUTHORIZED MODIFICATIONS TO THIS EQUIPMENT. SUCH MODIFICATIONS COULD VOID THE USER’S AUTHORITY TO OPERATE THE EQUIPMENT. INSTALLATION POINTS TO REMEMBER • When working on a vehicle always leave a window open. • Remove courtesy light fuse if possible to prevent battery drain. • Never Install control unit where it could interfere with normal operation or obstruct service technicians. • Do not disconnect the battery on vehicles equipped with air bags and anti-theft radios. • Always use a grommet when running wires into the engine compartment. Never run wires through bare or sharp metal. • Always solder and tape all connections. • Never ground control unit to vehicle steering column. • Make sure that vehicles equipped with automatic transmission do not start while in any of the drive gears. (If it will start in gear please install a manual transmission starter) FEATURES ß Dual 12 volt power lines. ß 12 volt parking light output. ß 2 Button / 3 channel transmitter. ß Factory alarm control. ß Gasoline or Diesel engine ready. ß Positive and Negative door lock output. ß Cold weather timer. ß Negative trunk output. ß Up to 600 feet range. ß 300 milliamp ground output (pulsed or constant) ß 300 milliamp ground when armed output. ß External trigger control (From external receiver. e.g.: alarm) OPTIONS • Remote keyless entry • Remote Trunk release • Engine kill • Flashing LED • Pager Ready • 3 YEAR LIMITED WARRANTY PROGRAMMABLE OPTIONS • Door lock pulse duration ( 1 sec, 4 sec, or two ¼ sec unlock pulses). • Ignition controlled door locks. • Constant or pulsed Groundout when running. • Run time (5,15, or 25 minutes) • Maximum crank duration (6,8, or 12 seconds). • Childproof operation. • Gasoline or Diesel engine operation. TRANSMITTER CODE LEARNING AS-1200 transmitters do not come pre- programmed. They must be “CODE LEARNED” at the time of installation. The unit will hold up to 4 transmitter codes in memory. To program a new transmitter: 1. Raise the hood 2. Turn valet switch “off”. 3. Turn ignition “on”. 4. Turn valet switch “on”.Parking lights will turn on for 5 seconds. 5. Press either button on transmitter within 5 seconds of step 4. (lights will flash 5 times fast, and 2 times slow)

TELEPHONE: (352) 472-5500 (888) 472-2424 FAX: (352) 472-2030 E-MAIL: [email protected] Engineering, Inc.WEBSITE: www.timcoengr.com TIMCO ENGINEERING, INC.
849 N. W. STATE ROAD 45
P.O. BOX 370
NEWBERRY, FL 32669 9/30/99 TO: George Tanahill FCC Subject: FCCID: NAHCTR433 REFERENCE: EA94503 Dear George: This unit does not transmit data, it sends a specific address code. Each code has a seperate input. The alarm chip generates a pulse train for each address which in turn varies the frequency of the crystal controlled oscillator. As best as I can tell the only difference in this unit and most pulse modulated transmitters is that this one is FM. Attached is a corrected Declaration of Conformity with a phone number. Attached is wiring diagram that shows the ralationship between the RF portion and the Logic & Power Module. BEST REGARDS, Sid Sanders CHECK OUT OUR WEBSITE @www.timcoengr.com T:\CUS\A\AUTOSTAR\AUT216A9\gt90930o.doc

AA BB CC DD EE 4 4 3 3 2 2 1 1 423.220MHz 141.0733MHz 47.02444MHz SOUNDERGNDGNDDATASWITCH+3VTX GNDRX ONLVARX DATA+1.5V(AF) TX (433.920MHz) (144.640MHz) C64R47J4-7 Not used. R433.DSN 1.02 REMOTE, 433.920 MHz C 11 Wednesday, July 14, 1999 TitleSize Document Number Rev Date: Sheet of +1.5V +1.5V C722pF L5100nH R847K R947K C155-20pF R647K R1330 R3100K Y148.21333 MHz L147nHQ1BFR92A 1 23 R210 C86.8pF D1MMBV3401 1 3 C193.3pF Q6BFR92A 1 23 Q8 MMBTH10 1 23 Q9BFR92A 1 23 Q10 BFR92A 1 23 Q5BFR92A 1 2 3 L1312nH L1982nH L1515nH L1447nH C27100pF C24100pF C283.3pF C320.1uF C3310nF C30 10nF R192.7K R21150 R17330 R1456K C5722pFC58150pF C2610nF R3333K C4922pFC512.0pF R30470 R3182K C486.8pF C410.5pF C44100pF Y3CDBM455C28C6110nF C3756pFQ7MMBT2907 1 23 J3RX 123456 J2 123456 R35390K C102.0pF C1110pFC1722pF L215nH R29100 C2910nF R221K D3MMBV3401 1 3 C4710pF J1CON2 1 2 Y4CRYSTAL FLT1SFE107MS2 1 2 3 R281.5K R34390K C4310nF C2110nF J4CON11J5CON11J6CON11J7CON11 C60Not Used C5322pF L1647nH C14 10nF C162.0pF U1KA8513BD 1 2 3 4 5 6 7 8 9 1011 12 13 14 15 16 17 18 19 20 R37470 + C4210uF C20150pF C640.1uF C450.1uf C3822pF C63560pF R36 390K R15 470K LS1 DB MDX01C C120.5pF C185.0pF + C5410uF R415K C360.1uF C66pF L415nH R131K L12 100nH R2310 C4220pF C595.0pF L315nH C95-20pF C65 5-20pF Q3 BFR92A 1 23 C133.3pF C665.0pF L810nHL1127nH FLT2CFWM455E 1 3 2 45 R20100K R16330 L1082nH C623300pF Y2 10.245MHz L647nH C3510nF C4610nF Q4BFR92A 1 23 Q2BFR92A 1 23 D2MMBV105G 13 L715nH C5100pF C10.1uF C31nF C4056pF R39100 R40220 R41220 R4222K R47OMIT R46100K R451K D4 MMBD914 13 Q11MMBT2907 1 23 C670.1uF L18100nH GND +1.5VGND

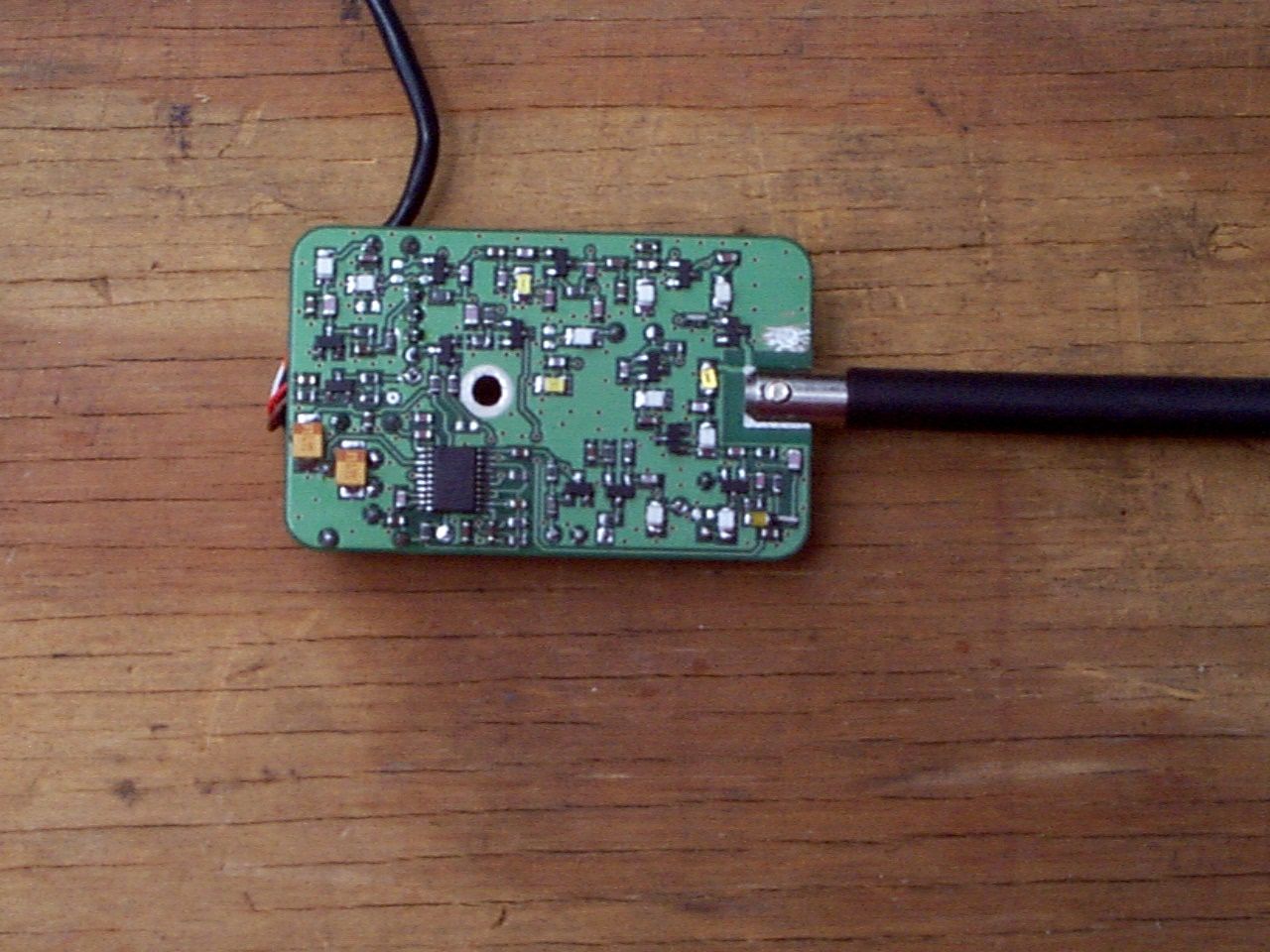

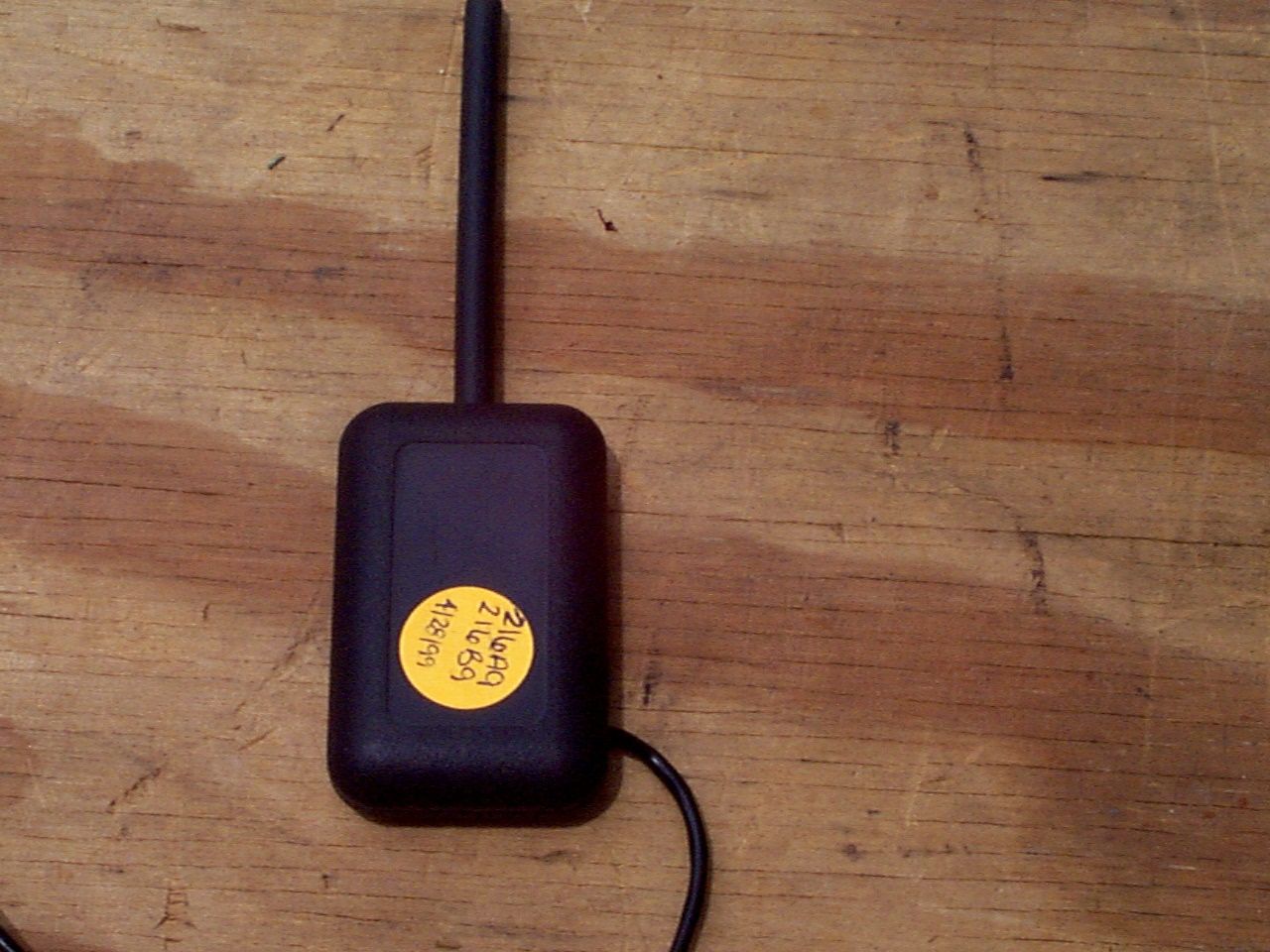

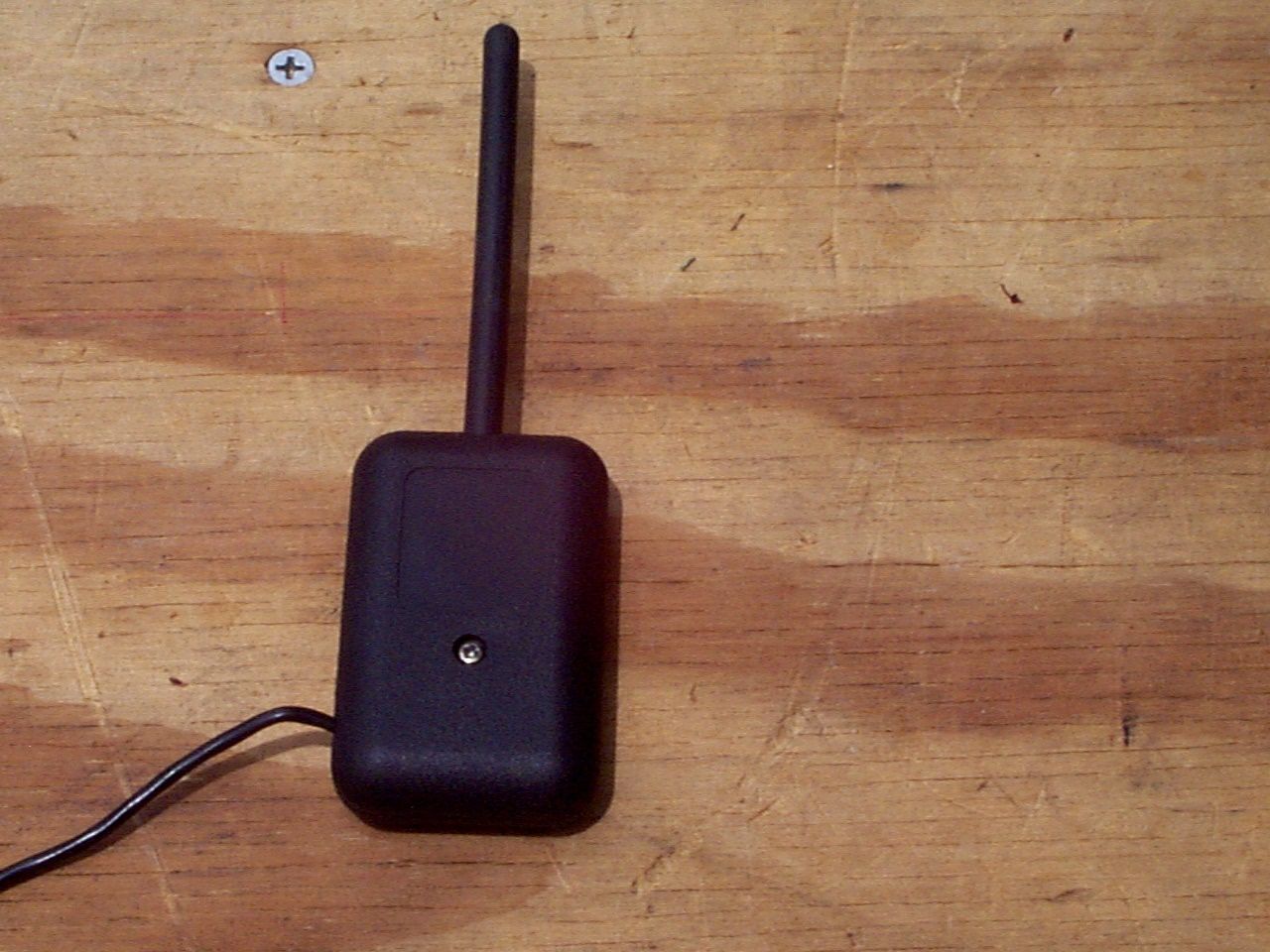

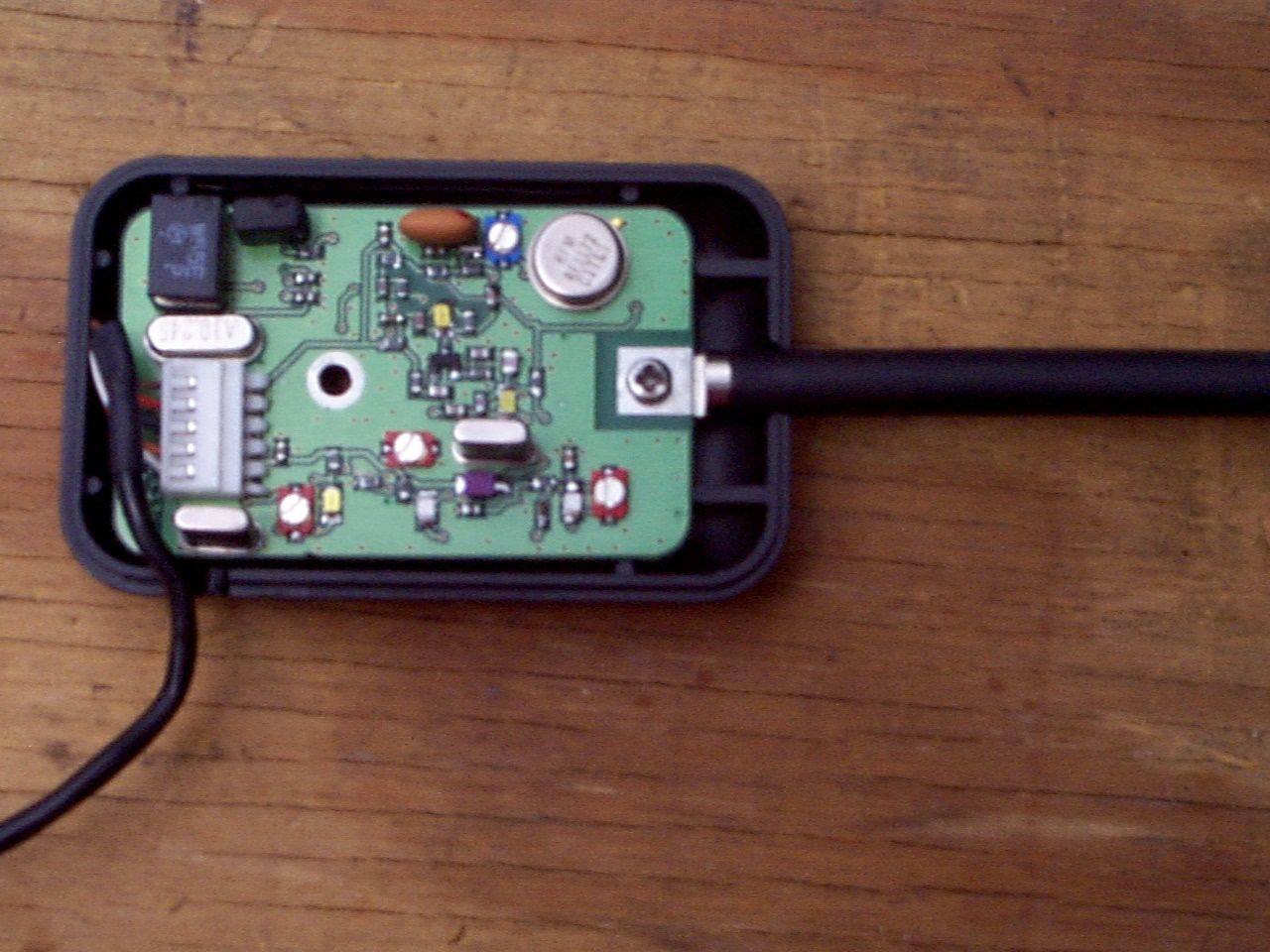

TABLE OF CONTENTS APPLICANT: AUTOSTART FCC ID: NAHCTR433 TEST REPORT CONTAINING: PAGE 1.............TEST PROCEDURE PAGE 2.............CIRCUIT DESCRIPTION & TEST PROCEDURE PAGE 3.............RADIATION INTERFERENCE TEST DATA PAGE 4.............CALCULATION OF DUTY CYCLE PAGE 5.............OCCUPIED BANDWIDTH EXHIBIT ATTACHMENTS: EXHIBIT 1...........POWER OF ATTORNEY LETTER EXHIBIT 2...........BLOCK DIAGRAM EXHIBIT 3...........SCHEMATIC EXHIBIT 4A-4B.......PARTS LIST EXHIBIT 5A-5B.......INSTRUCTION MANUAL EXHIBIT 6...........FCC ID LABEL SMPL AND SKETCH OF LOCATION EXHIBIT 7...........OCCUPIED BANDWIDTH PLOT EXHIBIT 8A..........FRONT VIEW EXTERNAL PHOTO EXHIBIT 8B..........REAR VIEW EXTERNAL PHOTO EXHIBIT 8C..........COMPONENT SIDE INTERNAL PHOTO EXHIBIT 8D..........COPPER SIDE INTERNAL PHOTO APPLICANT: AUTOSTART FCC ID: NAHCTR433 REPORT #: F:\CUS\A\AUTOSTART\AUT216A9.RPT PAGE: TABLE OF CONTENTS LIST APPLICANT: AUTOSTART FCC ID: NAHCTR433 TEST EQUIPMENT LIST 1. Spectrum Analyzer: Hewlett Packard 8566B - Opt 462, w/ preselector 85685A, & Quasi-Peak Adapter HP 8565OA, & HP 8449B - OPT H02 Cal. 6/26/98 2. Signal Generator, Hewlett Packard 8640B, cal. 10/1/98 3. Signal Generator, HP 8614A Serial No.2015A07428 cal. 5/27/99 3. Eaton Biconnical Antenna Model 94455-1 20-200 MHz Serial No. 0997 Cal. 10/30/98 4. Electro-Metric Dipole Kit, 20-1000 MHz, Model TDA-30 10/31/98 5. Electro-Metric Horn 1-18 GHz, Model RGA-180, Cal. 10/30/98 6. Electro-Metric Antennas Model TDA-30/1-4,Cal. 10/15/98 7. Electro-Metric Line Impedance Stabilization Network Model No. EM-7821, Serial No. 101; 100KHz-30MHz 50uH. Cal.11/19/98 8. Electro-Metric Line Impedance Stabilization Network Model No. EM-7820, Serial No. 2682; 10KHz-30MHz 50uH. Cal. 11/19/98 9. Special low loss cable was used above 1 GHz 10. Tenney Temperature Chamber TEST PROCEDURE GENERAL: This report shall NOT be reproduced except in full without the written approval of TIMCO ENGINEERING, INC. RADIATION INTERFERENCE: The test procedure used was ANSI STANDARD C63.4-1992 using a HEWLETT PACKARD spectrum analyzer with a prese- lector. The bandwidth of the spectrum analyzer was 100 kHz with an appropriate sweep speed. The analyzer was calibrated in dB above a microvolt at the output of the antenna. The resolution bandwidth was 100KHz and the video bandwidth was 300KHz. The ambient temperature of the UUT was 82.3oF with a humidity of 40%. FORMULA OF CONVERSION FACTORS: The Field Strength at 3m was estab- lished by adding the meter reading of the spectrum analyzer (which is set to read in units of dBuV) to the antenna correction factor sup- plied by the antenna manufacturer. The antenna correction factors are stated in terms of dB. The gain of the Preselector was accounted for in the Spectrum Analyzer Meter Reading. Example: Freq (MHz) METER READING + ACF = FS 33 20 dBuV + 10.36 dB = 30.36 dBuV/m @ 3m APPLICANT: AUTOSTART FCC ID: NAHCTR433 REPORT #: F:\CUS\A\AUTOSTART\AUT216A9.RPT PAGE #: 1 TEST PROCEDURES CONTD. ANSI STANDARD C63.4-1992 10.1.7 MEASUREMENT PROCEDURES: The UUT was placed on a table 80 cm high and with dimensions of 1m by 1.5m. The UUT was placed in the center of the table. The table used for radiat- ed measurements is capable of continuous rotation. The spectrum was scanned from 30 MHz to 10th harmonic of the fundamental. Peak readings were taken in three (3) orthogonal planes and the high- est readings were converted to average readings based on the duration of "ON" time. Measurements were made by TIMCO ENGINEERING INC. at the registered open field test site located at 6051 N.W. 19th Lane, Gainesville, Fl 32605. When an emission was found, the table was rotated to produce the maximum signal strength. At this point, the antenna was raised and lowered from 1m to 4m. The antenna was placed in both the horizontal and vertical planes. RULES:2.1033(b)(4) CIRCUIT DESCRIPTION This unit is a low power security device transciever. In the receive mode the signal comes into the dual conversion super hetrodyne receiver to the RF amplifier Q6/Q5. From the RF amplifier the signal is coupled through a tuned circuit L13/C28 and is coupled through C24 to the base of the mixer Q4. The injection for the 1st mixer starts with the crystal oscillator Q10. The output of Q10 is coupled through a bandpass network to the base of the X3 multiplier Q9. Q9 drives a tuned circuit L15/C48 and is coupled to the mixer through C41. The output of the mixer is connected to a 10.7MHz crystal fliter and the output of the filter is connected to ta IF amplifier Q8. Q8 drives the intregrated circuit receiver U1. When the transmitter is manually turned onwith the pushbutton the data FM modulates the crystal oscillator Q1. Q1 is connected to the tuned circuit L1/C7 with a coupling cap C10 to the tuned circuit L6/C17 and then through C11 to the base 3X multiplier Q2. The output of Q2 is fed through a double tuned circuit to the base of the 2nd 3X multipli- er Q3. From Q3 is fed through a tuned circuit L3/C9 to a low pass filter C6, L4, and L8 to the aantenna. ANTENNA & GROUND: This unit uses the small inductor as the antenna. There is no provision for an external antenna. APPLICANT: AUTOSTART FCC ID: NAHCTR433 REPORT #: F:\CUS\A\AUTOSTART\AUT216A9.RPT PAGE #: 2 APPLICANT: AUTOSTART FCC ID: NAHCTR433 NAME OF TEST: RADIATION INTERFERENCE RULES PART NO.: 15.231 REQUIREMENTS: Fundamental Field Strength Field Strength of Frequency of Fundamental Harmonics and Spurious MHz dBuV Emissions (dBuV/m @ 3m) 40.66 to 40.70 67.04 47.04 70 to 130 61.94 41.94 130 to 174 61.94 to 71.48 41.94 to 51.48 174 to 260 71.48 51.48 260 to 470 71.48 to 81.94 51.48 to 61.94 470 and above 81.94 61.94 THE LIMIT FOR AVERAGE FIELD STRENGTH dBuV/m FOR THE FUNDAMENTAL FREQUENCY= 80.82 dBuV/m dBuV/m. NO FUNDAMENTAL IS ALLOWED IN THE RESTRICTED BANDS. THE LIMIT FOR AVERAGE FIELD STRENGTH dBuV/m FOR THE HARMONICS AND SPURIOUS FREQUENCIES = 60.82 dBuV/m dBuV/m. SPURIOUS IN THE RESTRICTED BANDS MUST BE LESS THAN 54dBuV/m OR 15.209.…

Text truncated - open the document above for the full version.

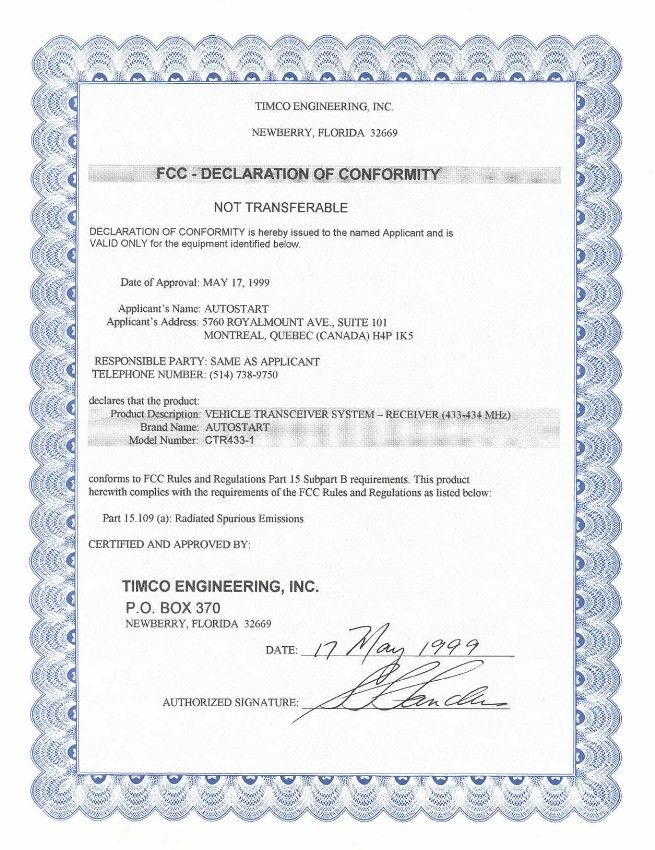

TIMCO ENGINEERING, INC. NEWBERRY, FLORIDA 32669 FCC - DECLARATION OF CONFORMITY NOT TRANSFERABLE DECLARATION OF CONFORMITY is hereby issued to the named Applicant and is VALID ONLY for the equipment identified below. Date of Approval: MAY 17, 1999 Applicant’s Name: AUTOSTART Applicant’s Address: 5760 ROYALMOUNT AVE., SUITE 101 MONTREAL, QUEBEC (CANADA) H4P 1K5 Manufacturer’s Name: SAME AS APPLICANT Manufacturer’s Address: declares that the product: Product Description: VEHICLE TRANSCEIVER SYSTEM – RECEIVER (433-434 MHz) Brand Name: AUTOSTART Model Number: CTR433-1 conforms to FCC Rules and Regulations Part 15 Subpart B requirements. This product herewith complies with the requirements of the FCC Rules and Regulations as listed below: Part 15.109 (a): Radiated Spurious Emissions CERTIFIED AND APPROVED BY: TIMCO ENGINEERING, INC. P.O. BOX 370 NEWBERRY, FLORIDA 32669 DATE: _______________________________________ AUTHORIZED SIGNATURE: ______________________________________
