NATRX433-RV-1Tire Monitoring System-Display Receiver

SmarTire Systems Inc. Tire Monitor System Owner’s Manual Draft 2/25/2003 Page 1 This manual is under review by SmarTire Tire Monitor System Owner Manual PN 710.xxxx RV Tow-behind Draft Editors Notes 1. Application; North America, English 2. Prior to issue this manual to be examined and approved by; a. Engineering b. Marketing c. Customer Service 3. Footnotes in this manual refer to the file names for the graphics. Original high resolution graphics are in photoshop format and this manual uses jpg versions of the same graphics. SmarTire Systems Inc. Tire Monitor System Owner’s Manual Draft 2/25/2003 Page 2 This manual is under review by SmarTire Table of Contents Notices..............................................................................................................................................3 FCC Notice.................................................................................................................................................................................3 System Scope of Use and Warnings.....................................................................................................................................3 The SmarTire™ System and Tire Maintenance..............................................................................................................3 System Installation and Usage............................................................................................................................................3 Reacting to Alerts..................................................................................................................................................................3 Getting Started..................................................................................................................................4 Operation..........................................................................................................................................5 How It Works.........................................................................................................................................................................5 Installation........................................................................................................................................6 Transmitter Installation........................................................................................................................................................6 Tools Required.................................................................................................................................................................6 Installing Transmitter on a Wheel.................................................................................................................................7 Mounting Tire with Transmitter on Wheel.................................................................................................................8 De-mounting the Tire with Transmitter Installed.......................................................................................................9 Receiver PN 200.0087........................................................................................................................................................10 Full Function Display PN 200.0068................................................................................................................................11 Service and Warranty......................................................................................................................12 Component Part numbers...................................................................................................................................................12 Troubleshooting...................................................................................................................................................................13 System Default Settings.....................................................................................................................................................13 Technical Specifications....................................................................................................................................................13 Strap Mount Transmitter..............................................................................................................................................13 Receiver...........................................................................................................................................................................13 SmarTire Service Policy – Handling Returned Materials............................................................................................13 US Warranty........................................................................................................................................................................14 Appendix........................................................................................................................................15 Glossary................................................................................................................................................................................15 SmarTire Systems Inc. Tire Monitor System Owner’s Manual Draft 2/25/2003 Page 3 This manual is under review by SmarTire Notices FCC Notice This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installatio…

Text truncated - open the document above for the full version.

SmarTire Systems Inc. Tire Monitor System Owner’s Manual Draft 2/25/2003 Page 9 This manual is under review by SmarTire De-mounting the Tire with Transmitter Installed Remove the tire/wheel assembly from vehicle and deflate completely. Loosen both beads with the bead loosener shoe opposite the valve stem (away from the transmitter which is located near the valve stem). Verify the transmitter location. Orient the wheel to place the transmitter 3 in. to the left of the bead guiding shoe so that the mounting bar will clear the transmitter. When lifting the top bead the tire must be clear of the transmitter. Remove the top bead. Set the wheel once more with the transmitter 3 in. to the left of the bead guiding shoe and remove the bottom bead. This will expose the transmitter, which should be checked for correct positioning and a properly snug fit. Transmitter Valve SmarTire Systems Inc. Tire Monitor System Owner’s Manual Draft 2/25/2003 Page 10 This manual is under review by SmarTire Receiver PN 200.0087

SmarTire Systems Inc. Tire Monitor System Owner’s Manual Draft 2/25/2003 Page 11 This manual is under review by SmarTire Full Function Display PN 200.0068 SmarTire Systems Inc. Tire Monitor System Owner’s Manual Draft 2/25/2003 Page 12 This manual is under review by SmarTire Service and Warranty Component Part numbers Bill of Material 101.1404 TMS TOW-BEHIND GENII -------------------------------------------------------------------------------- 1 200.0068 DISPLAY FFD D-2 - REMOTE 1 200.0087 RECEIVER GENII - SHIELDED 4 200.0100 TRANSMITTER - STRAP TS-2 1 260.0150 CONNECTOR PLUG-JACK-JACK AMPHENOL:21900 1 260.0157 CABLE RECEIVER-FFD FOR RV 1 260.0158 POWER CABLE FOR RV RECEIVER 4 264.0115 STRAP - STAINLESS STEEL CLAMP BREEZE:600 356 H 476 B SmarTire Systems Inc. Tire Monitor System Owner’s Manual Draft 2/25/2003 Page 13 This manual is under review by SmarTire Troubleshooting Problem Cause and actions System Default Settings Low Pressure Alert 22 PSI Change in factory only Low Pressure Warning 15 PSI Change in factory only Wheel color codes Right front Green Left front Red Right rear Blue Left rear Yellow Technical Specifications Strap Mount Transmitter Battery Life (Projected) 8.5 Years (normal vehicle use) Operating temperature range -40° F to 257° F (-40° C to 125° C) Storage temperature Range -40° F to 257° F (-40° C to 125° C) Operating humidity 100% Data transmitted Pressure, temperature, battery voltage Data transmission rate Upon startup, then every 3 to 5 minutes (more frequently during a pressure loss incident) Every 15 minutes if pressure is 18 PSI or lower when vehicle is parked. Weight To be determined Size 3-1/4” x 1-1/8” x 1” Frequency 433.92 Mhz Pressure Range 50 to 637.5 kPa (absolute) (7 – 93 PSI) Pressure accuracy +/- 2 PSI Temperature accuracy +/- 3 ºC Start-stop mode Vehicle motion greater than 10kph Method of mounting Strap around the drop center well of the wheel Receiver Power Consumption 125 ma. maximum during alert Operating Temperature Range -40° F to 185° F (-40° C to 85°C) Storage Temperature Range -40° F to 185° F (-40° C to 85° C) Frequency 433.92 MHZ ± 75 kHz Size 2.85” H x 3.08” D x .87” W Weight 67 gm Operating Humidity 100 % non condensing SmarTire Service Policy – Handling Returned Materials To return any materials, call SmarTire Service for a Returned Material Authorization number (RMA). Follow instructions given by the service department for packaging and shipping the product in your area. SmarTire Systems Inc. Tire Monitor System Owner’s Manual Draft 2/25/2003 Page 14 This manual is under review by SmarTire US Warranty This Warranty covers substantial manufacturer’s defects in workmanship and materials. It does not cover any unit that is damaged beyond normal usage, was not properly installed, was subjected to chemical contact, or other acts or omissions not sanctioned by the Owner’s Manual. All components are covered for one (1) years and 50,000 miles following the date of installation. The SmarTire warranty will be honoured by any authorized SmarTire dealer. The owner is required to provide dated proof of purchase. The authorized dealer will determine if there is a warrantable condition associated with materials and/or manufacturing workmanship. If a warrantable condition exists, the component will be replaced free of charge, shipping prepaid. The owner is responsible for any labor and installation charges. A completed Warranty Claim Form must be sent, postage prepaid, with the defective unit to SmarTire USA Inc., 3873C Airport Way, Bellingham, WA 98227-9754. Phone 330-497-0236 The Warranty does not include any further obligation whatsoever, including but not limited to actual installation of the replacement unit on the customer’s vehicle. All other Warranties, express or implied, are disclaimed. All collateral agreements, which purport to modify this Limited Warranty are of no effect. The absolute limit of liability is the purchase price of the unit. SmarTire Systems Inc. is not liable for any direct, consequential, indirect or punitive damages of any kind. SOME STATES DO NOT ALLOW LIMITATIONS ON THE VALIDITY OR LENGTH OF IMPLIED WARRANTIES, SO THE ABOVE LIMITATIONS MAY NOT APPLY TO YOU. SOME STATES DO NOT ALLOW THE EXCLUSION OR LIMITATION OF INCIDENTAL OR CONSEQUENTIAL DAMAGES, SO THE ABOVE LIMITATION OR EXCLUSION MAY NOT APPLY TO YOU. THIS WARRANTY GIVES YOU SPECIFIC LEGAL RIGHTS, AND YOU MAY HAVE OTHER RIGHTS WHICH VARY FROM STATE TO STATE. SmarTire Systems Inc. Tire Monitor System Owner’s Manual Draft 2/25/2003 Page 15 This manual is under review by SmarTire Appendix Glossary Actual Pressure The value of tire air pressure measured by the Transmitter and transmitted to the Receiver. This value is compared to the Required Pressure to active an alert or warning if needed. Cold Pressure The recommended inflation pressure of a tire at ambient temperature (64º F). Low Pressure Alert The audible and visual alert activated when the tire’s Actual Pressure drops to the programmed value. Low Pressure Warning The audible and visual alert activated when the tire’s Actual Pressure drops to the programmed value. This value is lower than the Low Pressure Alert. Receiver The electronic module that receives data from the transmitter and displays tire pressure alerts. Transmitter The wheel mounted electronic module that measures contained air pressure and temperature and transmits this data to the receiver.

Record ID: Technical Specifications of the Road Voice Receiver By Robert Patterson Vincent Chan The information presented in this document is believed to be accurate and reliable and may be changed without notice. This document and the information contained therein are not to be disclosed to others for any purpose, except as specifically authorized in writing, by SmarTire Systems Inc. Technical Description of the SmarTire Road Voice Receiver The SmarTire Receiver receives wireless signals transmitted from the sensor modules (which are mounted inside the tires of the automobile. The signal is demodulated by the receiver and processed by a microprocessor. The information is sent to RS232 interface. The following outlines the specifications of the receiver. 1. Frequency: 433.92 MHZ ??75 kHz 2. Bandwidth (3dB): 500 kHz (??250 kHz) 3. IF Frequency: 500 kHz 4. LO Frequency: 433.35 MHZ ??74 kHz 5. Sensitivity (12 dB SINAD): -111 dBm ??2 dBm 6. LO emissions: < 200 uv/m @ 3 meters 7. Temperature Range: -40 to 85 ?C Functional Block Diagram of the 433 MHZ Road Voice Receiver Antenna 2 way splitter Saw Filter & LNA SuperHet Receiver Microprocessor RS232 Interface Diagram 1. Block Diagram of Road Voice Receiver Theory of operation As can be seen from the block diagram, the radio portion of the receiver consists of a SuperHet Receiver circuit, front-end filter and LNA and a detector circuit. The RF signal Received by the antenna is mixed with the local oscillator, which converts the signal to an IF of 500 kHz. The signal is then passed through a filter and detected. The digital signal is then processed by a microprocessor. The microprocessor sends data through the RS232 interface.

PROPOSED FCC ID LABEL AND LOCATION SmarTire Systems Inc. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. FCC ID: NATRX433-RV-1 FCC ID LABEL

ELECTROMAGNETIC EMISSIONS COMPLIANCE REPORT CERTIFICATION TO FCC PART 15 REQUIREMENTS for UNINTENTIONAL RADIATOR 433.92 MHz TIRE MONITORING SYSTEM-DISPLAY RECEIVER MODEL: 200.0087 & 200.0088 FCC ID NO: NATRX433-RV-1 REPORT NO: 03U1837-1 ISSUE DATE: March 19, 2003 Prepared for SMARTIRE SYSTEM INC. #150 13151 VANIER PLACE RICHMOND, BC CANADA Prepared by COMPLIANCE ENGINEERING SERVICES, INC. d.b.a. COMPLIANCE CERTIFICATION SERVICES 561 F MONTEREY ROAD MORGAN HILL, CA 95037 TEL: 408-463-0885 FAX: 408-463-0888 REPORT NO: 03U1837-1 DATE: March 19, 2003 EUT: 433.92 MHz TIRE MONITORING SYSTEM-DISPLAY RECEIVER FCC ID: NATRX433-RV-1 Page 2 of 12 COMPLIANCE CERTIFICATION SERVICES CCS DOCUMENT NO: CCSUP4021B 561 F MONTEREY ROAD, MORGAN HILL, CA 95037 TEL:(408) 463-0885 FAX:(408) 463-0888 This report shall not be reproduced except in full, without written approval from CCS. TABLE OF CONTENTS 1. VERIFICATION OF COMPLIANCE...............................................................................3 2. PRODUCT DESCRIPTION................................................................................................4 3. TEST FACILITY..................................................................................................................4 4. MEASUREMENT EQUIPMENT USED...........................................................................4 5. TEST CONFIGURATION..................................................................................................5 6. TESTS CONDUCTED.........................................................................................................5 7. RADIATED EMISSION TEST PROCEDURE.................................................................6 8 EQUIPMENT MODIFICATIONS.....................................................................................6 9. TEST CONFIGURATION PHOTOS (RADIATED EMISSION TEST).......................7 REPORT NO: 03U1837-1 DATE: March 19, 2003 EUT: 433.92 MHz TIRE MONITORING SYSTEM-DISPLAY RECEIVER FCC ID: NATRX433-RV-1 Page 3 of 12 COMPLIANCE CERTIFICATION SERVICES CCS DOCUMENT NO: CCSUP4021B 561 F MONTEREY ROAD, MORGAN HILL, CA 95037 TEL:(408) 463-0885 FAX:(408) 463-0888 This report shall not be reproduced except in full, without written approval from CCS. 1. VERIFICATION OF COMPLIANCE COMPANY NAME : SMARTIRE SYSTEMS, INC. #150 13151 VANIER PLACE RICHMOND, BC CANADA CONTACT PERSON : ROBERT PATTERSON EUT DESCRIPTION : 433.92 MHz TIRE MONITORING SYSTEM- DISPLAY RECEIVER MODEL NAME/NUMBER : 200.0087 & 200.0088 DATE TESTED : 02/20/2003 – 03/14/2003 REPORT NUMBER : 03U1837-1 TYPE OF EQUIPMENT SECURITY EQUIPMENT (UNINTENTIONAL RADIATOR) EQUIPMENT TYPE 433.92 MHz SUPER HETERPDYNE RECEIVER MEASUREMENT PROCEDURE ANSI 63.4 / 2001 LIMIT TYPE CERTIFICATION FCC RULE CFR 47, PART 15.109 The above equipment was tested by Compliance Engineering Services, Inc. for compliance with the requirements set forth in CFR 47, PART 15. This said equipment in the configuration described in this report shows that maximum emission levels emanating from equipment are within the compliance requirements. Tested By: CHIN PANG EMC TECHNICIAN COMPLIANCE CERTIFICATION SERVICES Approved & Released By: THU CHAN EMC SUPERVISOR COMPLIANCE CERTIFICATION SERVICES REPORT NO: 03U1837-1 DATE: March 19, 2003 EUT: 433.92 MHz TIRE MONITORING SYSTEM-DISPLAY RECEIVER FCC ID: NATRX433-RV-1 Page 4 of 12 COMPLIANCE CERTIFICATION SERVICES CCS DOCUMENT NO: CCSUP4021B 561 F MONTEREY ROAD, MORGAN HILL, CA 95037 TEL:(408) 463-0885 FAX:(408) 463-0888 This report shall not be reproduced except in full, without written approval from CCS. 2. PRODUCT DESCRIPTION The SmarTire Receiver 200.0087 receives wireless signals transmitted from the sensor modules (which are mounted inside the tires of the automobile. The signal is demodulated by the receiver and processed by a microprocessor. The information is then displayed on either the LCD display. The SmarTire Receiver 200.0088 receives wireless signals transmitted from the sensor modules (which are mounted inside the tires of the automobile. The signal is demodulated by the receiver and processed by a microprocessor. The information is sent to RS232 interface. On 200.0088 there is a no change in mechanical or pcb layout or electrical. There is a schematic change though. On 200.0087 these parts are not populated. There is no change to the receiver in either design. The receiver then communicates to the display. In 200.0088 these parts are populated. The device will now able to communicate to a computer instead of the Display. The parts are a chip to change the data to RS232 format to be able to communicate to the RS232. 3. TEST FACILITY The 3 meter open area test site and conducted measurement facility used to collect the radiated data is located at 561F Monterey Road, Morgan Hill, California, U.S.A. A detailed description of the test facilities was submitted to the Commission on May 27, 1994. The measuring instrument which was utilized in performing the tests documented herein has been calibrated in accordance with the manufacturer's recommendations for utilizing calibration equipment which is traceable to recognized national standards. 4. MEASUREMENT EQUIPMENT USED TEST EQUIPMENT LIST Name of Equipment Manufacturer Model No. Serial No. Due Date Bilog Antenna AR LPB-25201A 1185 3/28/03 EMI Receiver HP 8542E 3942A00280 11/20/03 RF Filter Section HP 85420E 3705A00256 11/20/03 REPORT NO: 03U1837-1 DATE: March 19, 2003 EUT: 433.92 MHz TIRE MONITORING SYSTEM-DISPLAY RECEIVER FCC ID: NATRX433-RV-1 Page 5 of 12 COMPLIANCE CERTIFICATION SERVICES CCS DOCUMENT NO: CCSUP4021B 561 F MONTEREY ROAD, MORGAN HILL, CA 95037 TEL:(408) 463-0885 FAX:(408) 463-0888 This report shall not be reproduced except in full, without written approval from CCS. 5. TEST CONFIGURATION Turn on the EUT and set all the wires are placed on the turn table to their maximum length to simulate the worse emission conditions. 6. TESTS CONDUCTED CFR 47, 15.109 RADIATED EMISSION TESTS…

Text truncated - open the document above for the full version.

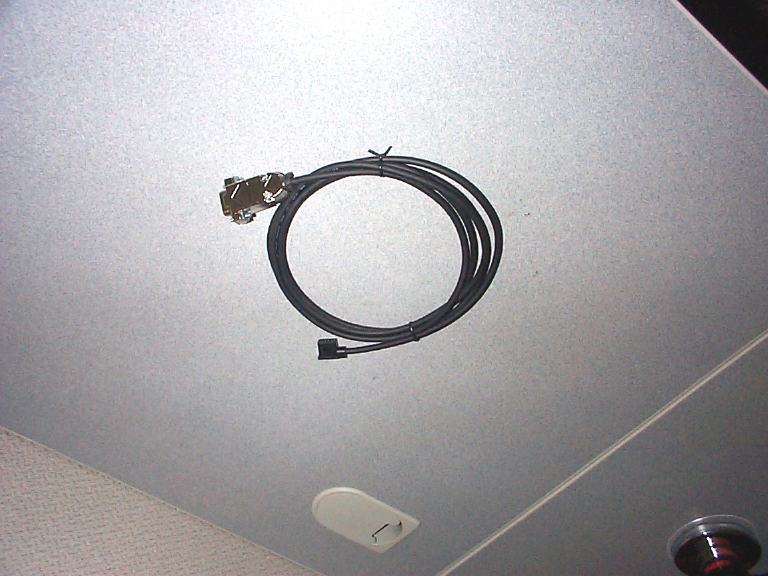

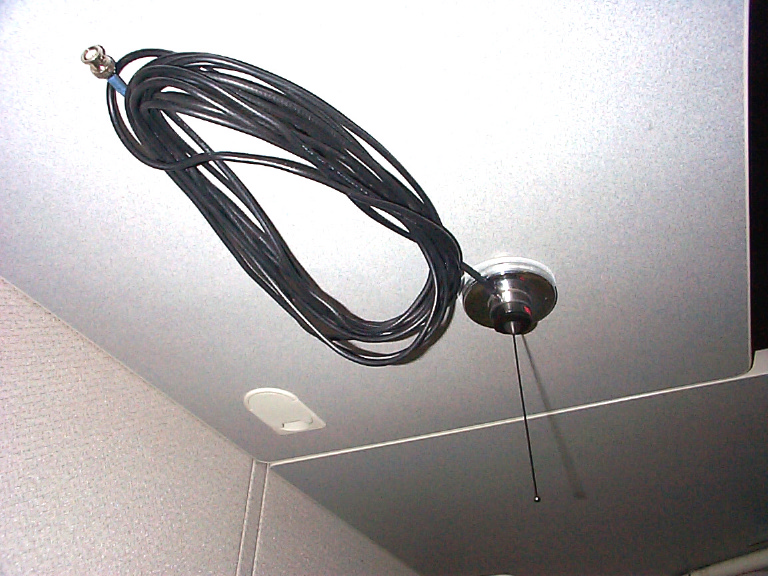

REPORT NO: 03U1837-1 DATE: FEBUARY 20, 2003 EUT: 433.92 MHz CAR ALARM RECEIVER FCC ID: NATRX433RV-1 PAGE NO: 7 COMPLIANCE CERTIFICATION SERVICES CCS DOCUMENT NO: CCSUP4021B 1366 BORDEAUX DRIVE, SUNNYVALE CA 94089 TEL:(408)752-8166 FAX:(408)752-8168 This report shall not be reproduced except in full, without written approval from CCS. 9. TEST CONFIGURATION PHOTOS (Radiated Emission Test) REPORT NO: 03U1837-1 DATE: FEBUARY 20, 2003 EUT: 433.92 MHz CAR ALARM RECEIVER FCC ID: NATRX433RV-1 PAGE NO: 8 COMPLIANCE CERTIFICATION SERVICES CCS DOCUMENT NO: CCSUP4021B 1366 BORDEAUX DRIVE, SUNNYVALE CA 94089 TEL:(408)752-8166 FAX:(408)752-8168 This report shall not be reproduced except in full, without written approval from CCS.
