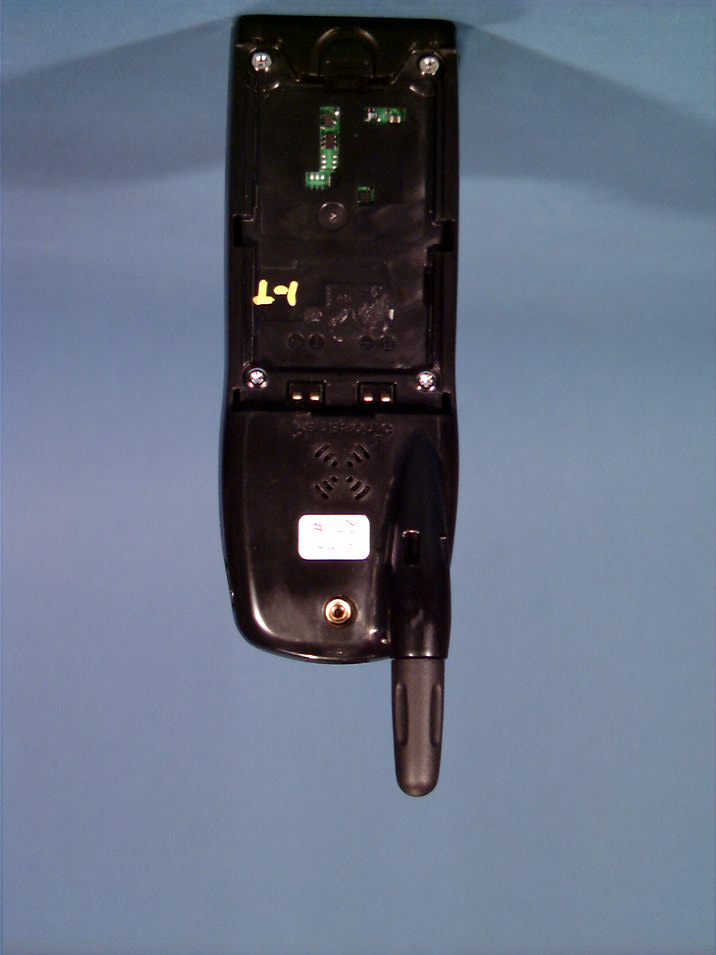

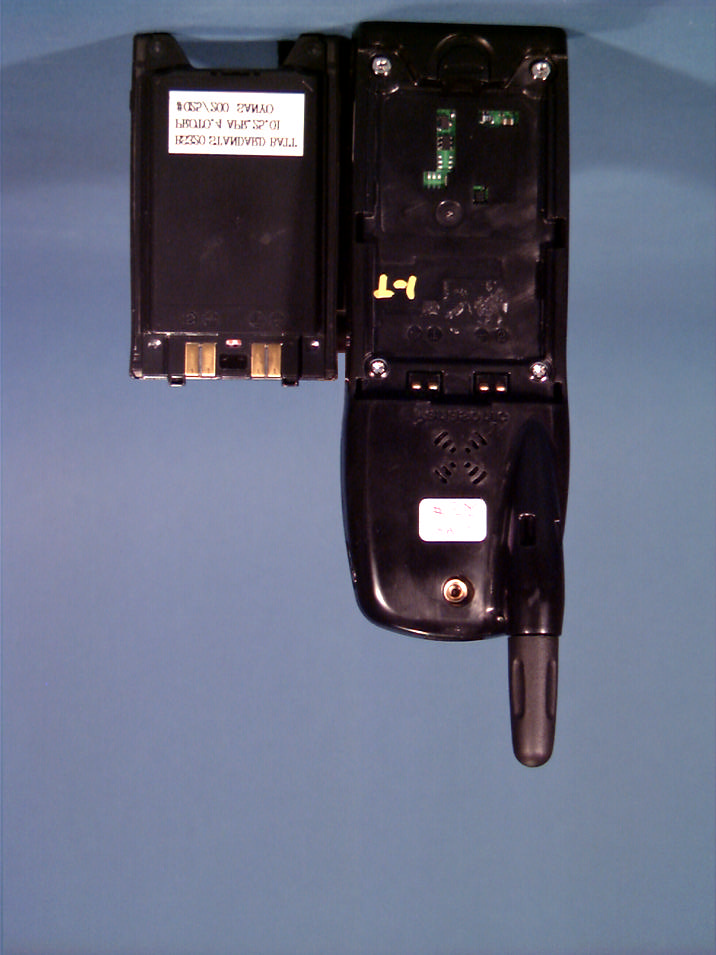

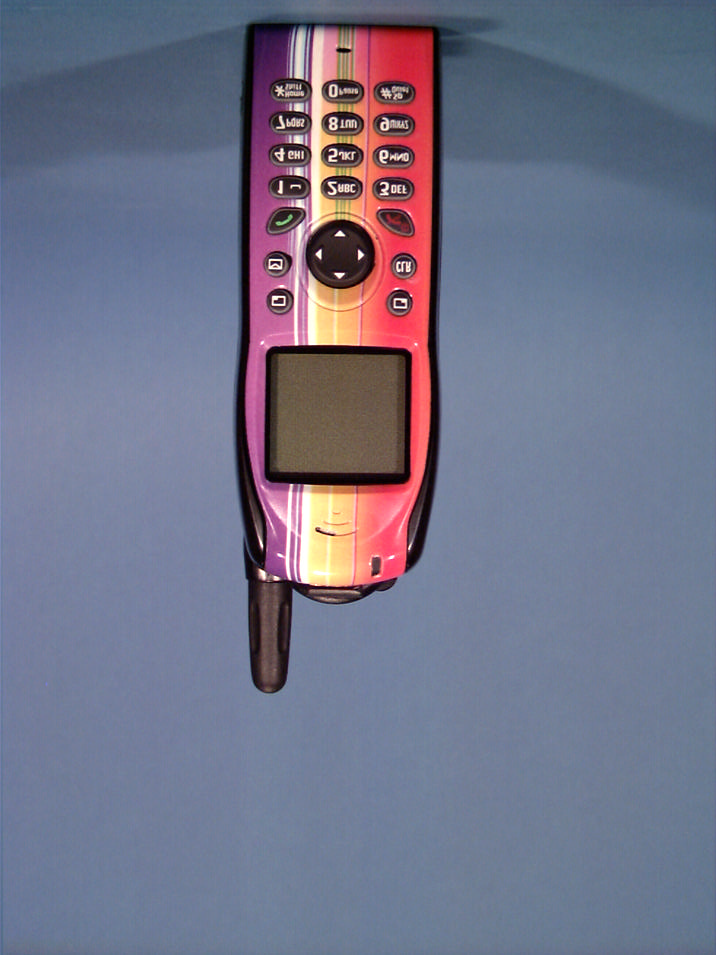

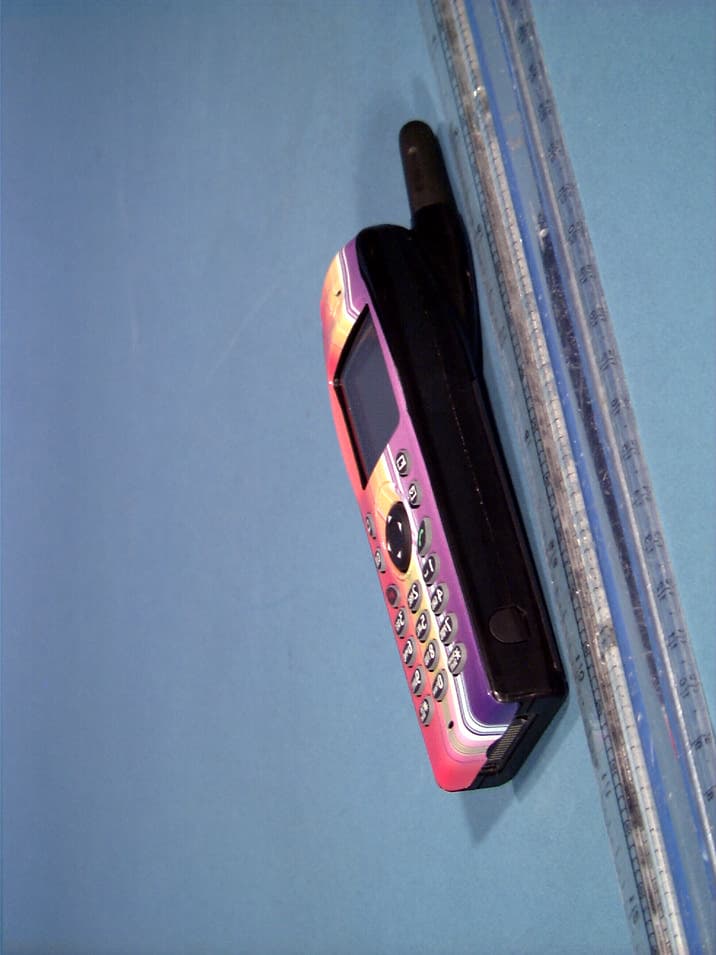

i Introduction.......................................................................... vii About This Manual ............................................................. vii Icons Used in This Manual ............................................... viii Chapter 1: Safety First ......................................................... 1 Batteries................................................................................ 1 Charging Devices................................................................. 1 General.................................................................................. 1 Availability of Service .......................................................... 2 Emergency (911) Service .................................................... 2 Safety Tips ............................................................................ 2 Chapter 2: Getting Started................................................... 5 Battery Use ........................................................................... 5 Attaching the Battery.............................................................. 5 Charging the Battery .............................................................. 5 Recharging Tips .............................................................. 6 Battery Specifications............................................................. 6 Removing the Battery............................................................. 6 Low-Battery Warning.............................................................. 6 Phone Description ............................................................... 7 Phone Specifications.............................................................. 7 Function Keys ...................................................................... 8 Display Icons ........................................................................ 9 Master Display and Icons....................................................... 9 Phonebook Icons ................................................................. 10 Powering Phone On and Off ............................................. 10 Powering ON........................................................................ 10 Powering OFF ...................................................................... 10 Standby Display ................................................................. 11 Moving through the Menu ................................................. 11 Shortcut Keys....................................................................... 11 Setting Date and Time ....................................................... 11 Adjusting Date and Time Settings........................................ 11 Changing the Date Format................................................... 12 Selecting 24-hour or 12-hour Mode ..................................... 12 Contents ii Setting Ring Volume .......................................................... 12 Selecting a Ring Alert ........................................................ 13 Vibration Alert .......................................................................13 Using the Private Handsfree Headset .............................. 14 Chapter 3: Everyday Operations ...................................... 15 Placing Calls....................................................................... 15 Dialing from the Keypad .......................................................15 Dialing from the Phonebook .................................................15 Dialing a Phonebook Entry from the Menu ....................16 Super Dial ......................................................................16 Speed Dial .....................................................................16 Answering Calls ................................................................. 17 In-Call Features .................................................................. 17 Adjusting Voice Volume........................................................17 Viewing Your Own Phone Number During a Call .................18 Muting the Mouthpiece .........................................................18 Using the Display as a Scratchpad.......................................18 Turning the Speakerphone On and Off.................................19 Missed Calls ....................................................................... 19 Answer Key Options .......................................................... 20 Voice Mail............................................................................ 20 Listening to New Voice Mail..................................................20 Redialing Numbers ............................................................ 21 Redialing One of the Last 10 Numbers Dialed .....................21 Automatic Redial...................................................................21 Key Lock ............................................................................. 22 Turning On Key Lock ............................................................22 Turning Off Key Lock ............................................................22 Chapter 4: Text Entry Operations ..................................... 23 Letter Entry ......................................................................... 23 Using Letter Entry (ABC) Mode ............................................23 Word Entry (Word T9) Mode.............................................. 24 Using Word Entry (Word T9) Mode ......................................24 Numbers (NUM) Mode........................................................ 25 Symbols (SYM) Mode......................................................... 25 Key Entry Table .................................................................. 25 iii Chapter 5: Phonebook Features ....................................... 27 Creating a Phonebook Entry............................................. 27 Creating a Super Dial Entry ................................................. 29 Changin…

Text truncated - open the document above for the full version.

Everyday Operations 15 Everyday Operations Your phone comes with a variety of features. In most cases, however, you will use only some of these features on a daily basis. This chapter will familiarize you with most of those “everyday” operations. Descriptions of more advanced features are covered in additional chapters. Placing Calls To place a call, power on your phone and confirm that you have a strong signal indication. If you are in a digital service area, the icon appears. Dialing from the Keypad 1 From standby, enter the phone number (up to 32 digits). 2 Press to place the call. Caution: During a call, if you press and hold , the speakerphone feature is activated. Do not hold the phone next to your ear when speakerphone is activated. • If the outgoing phone number matches an entry in the Phonebook, the corresponding name is also displayed with the number. 3 When the call connects, Voice Call is displayed. • The call timer is displayed if the Current Call timer is on. (See “Call Timers” on page 38 for more information.) 4 Press to end the call. Dialing from the Phonebook To use Super Dial and Speed Dial, you must first program entries into the Phonebook. See Chapter 5, “Phonebook Features” . 1 From standby, press or to scroll through the Phonebook entries. • Depending on your phone’s search method setting, the display shows entries alphabetically by first or last name, or by memory location number. To change, see “Selecting a Phonebook Search Method” on page 32 . • To “jump” to a specific section of the alphabet, press the number key that has the corresponding letter on it. 2 When the arrow points to the entry you want, press (VIEW) to view the Phonebook entry. 3 Press or to scroll to the appropriate phone number and press to place the call. 3 Chapter 3 16 Everyday Operations Dialing a Phonebook Entry from the Menu 1 From standby, press () to enter the Phonebook. 2 Press (OK) to select Search . • Depending on your phone’s search method setting, the display prompts you to enter First Name , Last Name , or Location # . (To change the search method setting, see “Selecting a Phonebook Search Method” on page 32 .) 3 Enter the name, a portion of the name, or the memory location number and press (FIND or OK). Note: If you do not enter anything for the first or last name, the display goes to the first letter of the alphabet for which you have a Phonebook entry. 4 If needed, press or to scroll to the number you want to call. • When the list of names appears, the following indicates there is no name entry for a number saved in the Phonebook: "----,----". 5 When the arrow points to the entry of your choice, press (VIEW) to view the Phonebook entry. 6 Press or to scroll to the phone number you want to call, and press to place the call. Super Dial Super Dial lets you quickly dial a phone number by pressing and holding a digit key on your keypad. Before you can use Super Dial, you must create entries in your Phonebook and then assign them to Super Dial keys. See “Creating a Super Dial Entry” on page 29 . Note: When you purchase your phone, the key is programmed as a Super Dial key to call the emergency number 911. However, you have to enable this key assignment before you can use it. See “Emergency Call” on page 45 . 1 From standby, press and hold the key ( - ) you have assigned to a number in your Phonebook. • The number is dialed and the name is displayed as it is listed in your Phonebook entry. • If there is no phone number assigned to the digit key, Super Dial Not Assigned is displayed. Speed Dial To call a Speed Dial number directly from standby (without going to a menu), enter the memory location number that contains the phone number you want to call, and press . To view a Speed Dial number before placing the call, follow these steps: 1 From standby, enter the memory location number that contains the phone number you want to call, then press . (For example, to dial a number stored in location 25, press .) Chapter 3 Everyday Operations 17 • The display shows the Phonebook entry with an arrow () pointing to the speed dial number. • If the entered memory location is empty, the display shows the entered digits and the # sign. 2 Press to place the call. OR If necessary, press or to scroll to another phone number and press to place the call. Answering Calls The phone must be on to receive calls. It will not ring or vibrate when powered off. When a call is received, the phone rings and/or vibrates. • If you have Caller ID, the caller’s phone number is displayed under Incoming Call . • If the caller’s phone number matches an entry in the Phonebook, the corresponding name appears and the backlight changes color (unless the call was placed through a PBX). 1 To answer, press or any key except . (See “Answer Key Options” on page 20 .) • Quickly pressing will stop the ringing and/or vibration alert, but not answer the call. 2 When you are ready to end the call, press to disconnect. In-Call Features While you are in a call, you can increase or decrease the volume of the other person’s voice, mute the mouthpiece, display your own phone number, enter a phone number on the display, or switch to Speakerphone operation. Adjusting Voice Volume 1 During a call, press to increase the volume of the other person’s voice, or press to decrease the volume of the other person’s voice. • The volume level is displayed. 2 Release the key when a satisfactory volume is reached. Chapter 3 18 Everyday Operations Viewing Your Own Phone Number During a Call During a call, you can view your own phone number. 1 During a call, press (MENU) to enter the Main Menu. 2 Scroll to Phonebook and press (OK). 3 Scroll to Own Number and press (OK) to view your phone number. 4 Press (OK) and the display returns to standby. Note: If your phone is programmed with more than one phone number, only the number currently being used is displayed. If you would like to have a second phone number programmed for your phone, contact your wireless servic…

Text truncated - open the document above for the full version.

Text Entry Operations 23 Text Entry Operations Whenever you store an entry in your Phonebook, compose or reply to a message, or create reminders, you use the phone’s keypad to enter the text. There are two methods for entering text: •Letter Entry (ABC) •Word Entry (Word T9 ® ) Note: To change your text entry mode, press when , , , , , , or is displayed. Letter Entry Letter Entry (ABC) mode is the traditional method of entering text in mobile phones. This method is best for names of people or places. Using Letter Entry (ABC) Mode You are in Letter Entry mode when or is displayed in the bottom right corner. The default for Letter Entry is uppercase (). To switch between uppercase and lowercase, press . When using Letter Entry mode, press a key once to enter the first letter on the key, press the key twice to enter the second letter on the key, and so on. For example, press once for the letter “ D ”, press twice for the letter “ E ”, and so on. • Press once to delete the last-entered character. Press and hold to delete the entire entry. •Press or to scroll across characters, to move to the next character space, or to add a blank space. • In Letter Entry mode, the key is used to enter a space or the number “1”. For a complete list of characters, see the Key Entry Table on page 25 . 4 Chapter 4 24 Text Entry Operations Word Entry (Word T9) Mode Word Entry (Word T9) mode allows you to quickly type text with the aid of a built-in dictionary. By pressing the key that corresponds to the character needed, the built-in dictionary suggests probable word choices. Using Word Entry (Word T9) Mode You are in Word Entry (Word T9) mode when , , or is displayed in the bottom right corner. To select one of the Word Entry modes, press until the appropriate mode is displayed. Once in Word Entry mode, you can switch between initial capitals, uppercase, and lowercase by pressing . For example, to enter the word “first” in Word Entry mode: •Press once. •Press once. •Press once. •Press once. •Press once. The word “first” should appear on the screen. Keep in mind... • As letters are entered, the dictionary displays probable words. Several different words can appear on the display during the entering process. Don’t be distracted by the words displayed—they may not resemble your intended word. Just keep typing until you see the word you want. • If the word displayed when you have finished entering the letters does not match your intended word, press to scroll through other words with the same key sequence. • Press (OK), , or to select it and move to the next word. • Press (OK) a second time to return to the Compose menu. • Press once to delete the last-entered character or an entered word. Press and hold to delete the entire entry. • The key enters a space only. Note: If you have changed your phone’s language option, the Word Entry dictionary changes to agree with the selected language. Chapter 4 Text Entry Operations 25 Numbers (NUM) Mode You are in Numbers mode when is displayed in the bottom right corner. Use Numbers mode to insert numbers in a text entry. To select Numbers mode, press until appears. Then key in the required number. Symbols (SYM) Mode You are in Symbols mode when is displayed in the bottom right corner. To select Symbols mode, press until appears. Each number key is associated with several symbols. To select a specific symbol, enter the corresponding number on the keypad. To scroll through additional screens of symbols, press , , or . The following table shows the letters, numbers, and symbols associated with each keypad key. Key Entry Table Mode Key Letter entry ABC Letter entry abc NUM SYM Screen 1 Screen 2 Screen 3 Screen 4 (space)1 * * Press to enter a space or press twice to enter a “1”. 1.= ~ ABC2abc22,-% DEFÉÈ3deféè33;_$^ GHI4ghi44:(<| JKL5jkl55?)>\ MNO6mno66!{ PQRS7pqrs77@} TUV8tuv88/&[ WXYZ9wxyz99#+] 000N/A Switches between upper- case and lowercase N/A Moves to next Symbol display .,;:?!@/# -_ N/AN/A Chapter 4 26 Text Entry Operations Phonebook Features 27 Phonebook Features Phonebook Features The Phonebook has 100 memory locations. In each location you can store a first and last name, up to four associated phone numbers, an email address, picture, and a distinctive ring tone. You can also associate a backlight color with the entry. If a caller’s phone number matches an entry in the Phonebook, the corresponding name is displayed and the backlight changes color (if you have specified a different color than the standby color in that caller’s Phonebook entry.) This chapter contains information about creating, saving, searching, and accessing your Phonebook entries. For an overview of how to move through the menus and use the shortcut keys, see Chapter 2 , “Getting Started” . Note: You can also create Phonebook entries on a PC, using a synchronization software application, and then transfer them to your phone via the data cable (see “EB-TX320 Accessories” on page 65 ). Creating a Phonebook Entry 1 From standby, press () to enter the Phonebook. 2 Scroll to Create and press (OK). • For each entry, you can enter any or all of the following information: • If all memory locations are full, Phonebook Full is displayed. You must delete an entry before adding another one. See “Editing/Deleting a Phonebook Entry” on page 31 for more information. First: (name)Enter the first name here. Last: (name)Enter the last name here. : Home Phone Enter the home number here. : Work Phone Enter the work phone number here. : Cell Phone Enter the cell phone number here. : Other # Enter an alternate phone number here. : Speed Dial Select the source to be used as the speed dialing number. See “Speed Dial” on page 16 . : Email Address Enter the Email address here. See “Text Messaging” on page 50 . : Special Ring Select one of the Ring Alerts for when this person calls you. See “Selecting a Ring Alert” on page 13 . : Backlight Select one of the backlight colors to flash when this person calls. See “Backlight” on page 4…

Text truncated - open the document above for the full version.

Service Provider Features 49 Service Provider Features Service Provider Features Several features on your phone are available only if you sign up for them with your wireless service provider. If you do not have one of the services listed below, contact your wireless service provider for more information. Caller ID This feature displays the phone number of the person calling you. If the caller’s phone number matches an entry in the Phonebook, the backlight changes color and the corresponding name is displayed. The ring tone, and color depend on the settings you selected in the Phonebook. Call Waiting 1 An alert sounds when you receive an incoming call during a conversation. • The display indicates that a call is waiting. • If the caller’s phone number matches an entry in the Phonebook, the backlight changes color and the corresponding name is displayed. 2 Press (ACCEPT) to connect with the incoming call and place the first call on hold. OR Press (IGNORE) to silence the ring and continue your current call. 3 Press to switch between the two calls. 4 Press to end the current call. Three-Way Calling This feature lets you dial a third person while you are in a call. You can continue your conversation with one person when the other one hangs up. 1 While in a call, enter a phone number or recall it from the Phonebook. 2 Press . • The phone call you are in is temporarily placed on hold. 3 When the third person answers, press again to connect all three parties. 4 Press to end all calls. Note: This feature may not be available in all areas. Contact your wireless service provider for more information. 7 Chapter 7 50 Service Provider Features Text Messaging Composing a Text Message You can type a text message (up to 160 characters including the e-mail address). Entering the Send To Information 1 From the Text Message menu, scroll to Compose and press (OK). 2 Press (SELECT) to select Send To . 3 From the Send To screen, select From Phonebook , Phone# , or E-mail Address . Follow the display prompts or enter characters. (See Chapter 4 , “Text Entry Operations” .) Press (OK). If you decide to change the phone number or e-mail address you entered, reselect the check-marked Send To: entry, and press (CHANGE). Repeat the first part of this step. OR If you have created a group list, you can send the message to several people at once, by selecting Group Lists and pressing (OK). Select an entry from your group lists and press (OK). (See “Creating a Group List” on page 55 for information on how to set up group lists.) • The Compose menu is displayed with a check mark next to Send To , indicating that this field has been completed. Entering the Text of Your Message 4 Scroll to Message and press (SELECT). 5 Enter the text of your message and press (OK). (See Chapter 4 , “Text Entry Operations” .) • The Compose menu is displayed with a check mark next to Send To and Message , indicating that both these fields have been completed. Message Options 6 Do one of the following: - To send the message, press (OK). - To store the message in the outbox before sending it, scroll to Save and press (OK). • The outbox holds up to 20 unsent messages. If the outbox is full, delete or send an outbox message to make more room in the outbox. - To delete the message and return to the Text Message menu, scroll to Exit and press (OK). Accessing Text Messages 1 From standby, press . OR From standby, press (MENU), scroll to Messages , and press (OK) 2 Scroll to Text Message , and press (OK). Chapter 7 Service Provider Features 51 3 Do one of the following: - To look at messages in the Inbox , press (OK). See “Viewing Inbox Messages” on page 53 . - To compose a message, scroll to Compose and press (OK). See “Composing a Text Message” on page 50 . - To create a group list so that you can send a message to several people at once, scroll to Group Lists and press (OK). See “Creating a Group List” on page 55. - To delete all messages in the Inbox or Outbox, scroll to Delete All and press (OK). See “Deleting All Inbox or Outbox Messages” on page 54 . - To look at messages in the Outbox, scroll to Outbox and press (OK). See “Viewing Outbox Messages” on page 53. Reading New Text Messages When a new text message is received, an alert sounds and appears on the top of the display. • If you have received 40 messages, the oldest read message will be overwritten when you receive a new message. • If the envelope icon is dark (), you have 40 unread (including locked) messages waiting and the inbox is full. See “Deleting a Text Message” on page 54 and delete a message. • The display indicates how many new text messages you have received. 1 Press (VIEW) to view the inbox message list. • The display icons indicate the message status: :Unread message :Locked message :Read message • The urgency level of the received message is also displayed: !! :Very urgent message ! :Urgent message :Normal message :Bulk message Chapter 7 52 Service Provider Features 2 If you have one new message, press or to scroll through the message, sender, and reception time. OR If you have more than one message, press or to scroll through the list of messages. When the arrow points to the message you want to read, press or to scroll through the message, sender, and reception time. 3 Once you read a message, you can do any of the following: - To reply to the message, see “Replying to a Text Message (Inbox Only)” on page 52 . - To lock the message, see “Locking a Text Message” on page 52 . - To forward the message, see “Forwarding a Text Message” on page 52 . - To call a number shown in the message, see “Calling Back a Text Message” on page 53 . - To delete the message, see “Deleting a Text Message” on page 54 . Replying to a Text Message (Inbox Only) 1 With a message displayed, press (OPTION). • The OPTIONS menu is displayed. 2 Press (OK) to select Reply . • The Compose screen appears with a check mark next to Send To , indicating that this field is already completed. 3 Scroll to Messa…

Text truncated - open the document above for the full version.

Panasonic Matsushita Mobile Communications Development Corporation of U.S.A. FCC ID: NWJ10A007A COVER LETTERS Page 1 of 1 1225 Northbrook Parkway • Suite 2-400 • Suwanee, GA 30024 • Phone (770)338-6000 • Fax (770)338-6210 MATSUSHITA MOBILE COMMUNICATIONS DEVELOPMENT CORPORATION OF U.S.A. Application for Type Acceptance Panasonic Handheld Portable Cellular Telephone FCC ID: NWJ10A007A THIS COVER PAGE IS FOR FILING IDENTIFICATION ONLY Panasonic Matsushita Mobile Communications Development Corporation of U.S.A. FCC ID: NWJ10A007A COVER LETTERS Page 2 of 2 1225 Northbrook Parkway • Suite 2-400 • Suwanee, GA 30024 • Phone (770)338-6000 • Fax (770)338-6210 Date: 5.25.2001 Authorization & Evaluation Division. Federal Communications Commission Laboratory. 7435 Oakland Mills Road. Columbia, MD 21045. Subject: Application for Type Acceptance of Transmitter with FCC ID: NWJ10A007A Gentlemen: Matsushita Mobile Communications Development Corporation of U.S.A. in Suwanee, Ga., herein submits application for type acceptance of the subject transmitter. This transmitter is intended for use in a dual mode – dual band cellular telephone application with capabilities for clear communications with a maximum transmit power of 27.2 dBm (Variable Power) down to as low as 0.16 mWatts in TDMA 800 MHz mode, 22.4 dBm down to as low as 4.8 mWatts in AMPS 800 MHz mode, and 26.7 dBm down to as low as 0.17 mWatts in PCS TDMA 1900 MHz mode. The subject transmitter complies with Section 90.203 of the rules in that the operator cannot directly program transmit frequencies using only the unit's normally accessible external controls. Enclosed is a complete Type Acceptance Application. Contact me (770) 338-6270 if you require any additional information. Best Regards, Pieter C. Seidel Technical Group Leader Systems Test Phone: 770-338-6270 Fax: 770-338-6210 Panasonic Matsushita Mobile Communications Development Corporation of U.S.A. FCC ID: NWJ10A007A COVER LETTERS Page 3 of 3 1225 Northbrook Parkway • Suite 2-400 • Suwanee, GA 30024 • Phone (770)338-6000 • Fax (770)338-6210 Date: 5.25.2001 Authorization & Evaluation Division. Federal Communications Commission Laboratory. 7435 Oakland Mills Road. Columbia, MD 21045. Subject: REQUEST FOR CONFIDENTIALITY Pursuant to sections 0.457 (d) (1) (ii) and 0.459 of the commission’s rules, the applicant hereby requests confidential treatment of some of the information accompanying this application for FCC ID: NWJ10A007A as outlined below: • Block Diagram • Schematics • Theory of operation and circuit descriptions This information contains trade secrets and proprietary information not customarily released to the public. The public disclosure of this information might be harmful to the applicant and provide unjust benefits to its competitors. The applicant understands that pursuant to rule 0.457d, disclosure of this application and all accompanying documentation will not be made before the date of the grant for this application. MMCD Panasonic Best Regards, Pieter C. Seidel Technical Group Leader Systems Test Phone: 770-338-6270 Fax: 770-338-6210 Panasonic Matsushita Mobile Communications Development Corporation of U.S.A. FCC ID: NWJ10A007A COVER LETTERS Page 4 of 4 1225 Northbrook Parkway • Suite 2-400 • Suwanee, GA 30024 • Phone (770)338-6000 • Fax (770)338-6210 LIST OF EXHIBITS DESCRIPTION FCC REFERENCE Cover Letters 1. Cover 2. Letter of Intent 3. Confidentiality statement 4. List of Exhibits I. Attestation Statement 2.983(a) II. Identification label information 2.983-(f) III. Block Diagrams 2.983(d7) IV. Operational Description 1. General Information 2.983-(a,b,c) 1. Production Plans 2.981-(c) 2. Application References 2.1061 2. Technical Characteristics 2.983-(d1,2,3,4,5) 3. Function of Active devices 2.983-(d6) 4. Circuit Description 1. Frequency Stabilizing 2.983-(d10) 3.Harmonic Suppression 2.983-(d11) 2. Modulation Limiting 2.983-(d11) 4.Power Limiting 2.983-(d11) 5.Attenuating Higher Audio Freq. 2.983-(d11) 6.Digital Modulation Techniques 2.983-(d12) 7.ESN Protection 22.919 V. Schematics 2.983-(d7) VI. Tune Procedure / Parts Lists 2.983-(d9) VII. Test Report 2.983-(e) 1.Data Index 2.RF Output-Data 2.985 3.Modulation Characteristics 2.987, 22.915 A. Audio Response 2.987(a) B. Low Pass Filter Response 2.987(a) C. Modulation Limiting 2.987(b) 4. Occupied Bandwidth 2.989, 22.917 5. Conducted Spurious Emissions 2.991, 24.238, 22.917(e,f) 6. Radiated Spurious Emissions 2.993, 24.238, 22.917(e,f) 7. Frequency Stability (Temp & Supply Volt) 2.995 8. Radiated Power 22.913, 24.232(b) VIII. RF Exposure - SAR 2.1093 IX. Internal Photograph(s) 2.983-(g) X. External Photograph(s) 2.983-(g) XI. User Manual 2.983-(d8) XII. Test System and Measurement Procedure 2.999 & 2.947

Panasonic Matsushita Mobile Communications Development Corporation of U.S.A. FCC ID: NWJ10A007A COVER LETTERS Page 1 of 3 1225 Northbrook Parkway • Suite 2-330 • Suwanee, GA 30024 • Phone (770)338-6000 • Fax (770)338-6253 Correspondence Reference Number: 19872 Reply 731 Confirmation Number: EA101138 1.) The ERP and EIRP values listed on FCC Form 731 do not correspond to the measured values. Please submit revised ratings to be placed on the Grant of Certification. Following this page, on page 3, a copy of the request for Bette Taube to correct the Form 731 has this change. This was a mistake and was not recorded in ERP and EIRP. 2.) The power rating shown in the “Technical Characteristics” Section is .6 W for all three modes. Please correct this. Below is an excerpt of the change made to the Operational Description. The new Operational Description exhibit has been uploaded and named NWJ10A007A Operational Description 2.pdf. 6. Power Rating -- Pursuant 2.983 (d3) AMPS: 0.285 ERP Watts NADC: 0917 ERP Watts PCS: 0.664 EIRP Watts 3.) Please indicate compliance with the E-911 provisions of Section 22.921 of the Commission’s R&R. We meet this requirement. All Panasonic phones disregard forbidden SIDs and SOCs and will place a call r…
