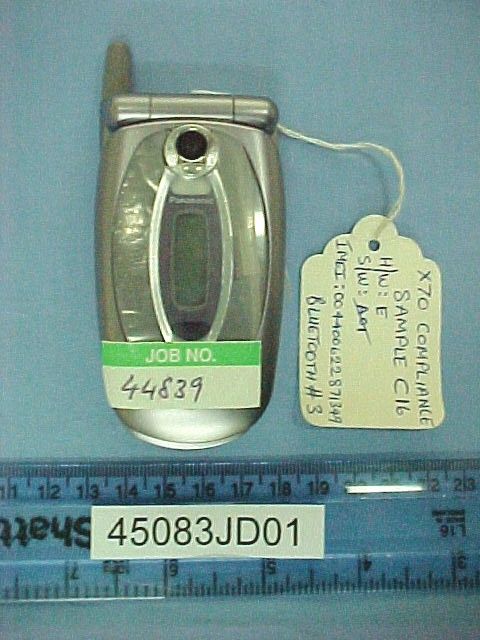

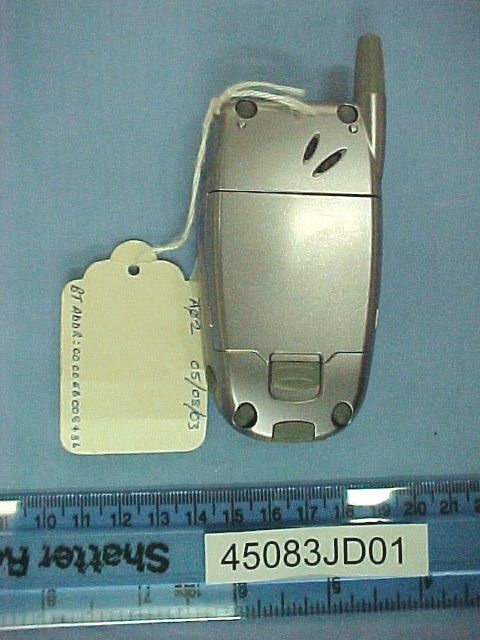

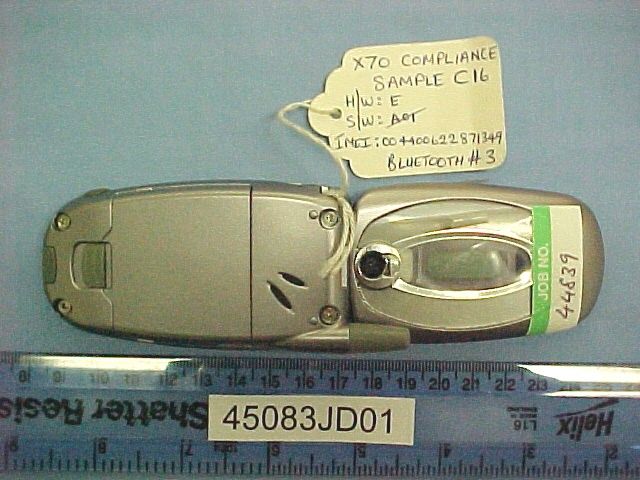

72 Messaging Messaging From the Messaging menu you can send and receive MMS, SMS and e- mail messages. The nine menus are as follows: MMS MMS stands for Multimedia Message Service. With MMS you can attach images and music to text messages. The recipient can play the images and music as a slide show. Settings Use Settings to set up MMS to suit your requirements. Settings 1MMS 2SMS 3e-mail Inbox 1MMS 2SMS 3e-mail Broadcasts 1 Receive 2 Message List 3 Topics 4 Languages Voice Mail 1 Voice Mailbox Create 1 MMS 2SMS 3e-mail e-mail 1 Send/Receive Data Folders 1 My Pictures 2 My Sounds 3My Themes 4 User 1 - 5 Outbox 1MMS 2SMS 3e-mail SMS Chat Settings Send Options Receive Options Player Mode Server ListFont SizeDisplay Restore Defaults MMS Menu > Messaging > Settings > MMS X70DPK11B1.book Page 72 Thursday, September 18, 2003 5:12 PM 73 Messaging Messaging Configuring MMS You must configure your MMS before you can send or receive MMS messages. You can create up to three server profiles on the phone. For Circuit Switch, select Set, then select Edit and set: zDigital Dial number zAnalog Dial number zCircuit Type. Select from Digital and Analog. zUser ID zUser Password For GPRS, select Set, then select Edit and set: zAccess Point Name zUser ID zUser Password zAuthentication. Select from Normal, Encrypted and None. Note: Your MMS settings may have been pre-configured by your service provider. MMS may not work if you change these settings. Server List <1> to <3> Server Auto Edit Profile Name Gateway IP Bearer Type Server URL Circuit Switch GPRS Menu > Messaging > Settings > MMS X70DPK11B1.book Page 73 Thursday, September 18, 2003 5:12 PM 74 Messaging Messaging Setting send options You set send options to determine what happens to messages that you send. Req. Deliv. Recpt. Decide whether or not you want confirmation that your message has been delivered. Select Yes or No. Req. Read Recpt. Decide whether or not you want confirmation that your message has been read. Select Yes or No. Send Own Addr. Choose whether or not to let the recipient see your address. You can only show your address if your service provider allows. Select Show or Hide. Lifetime. Set the time limit for the lifetime for sent messages. Select Maximum or Manual. If you select Manual, you need to enter the number of hours (1 - 99). Setting receive options When you have selected a message type, you can select how you want to deal with it. Setting the player mode Player Mode determines whether an audio attachment is played automatically, or manually. Select Player Mode. Select Automatic or Manual. Message typeOptions Auto ReceptionAuto Retrieve, Ask Anon. SenderAccept, Reject AdvertisementAccept, Reject Delivery RecptPermit, Reject Read ReceiptPermit, Reject Roaming RetrieveAsk, Pending, Off Send Options Req. Read Recpt Send Own Addr. Req. Deliv. Recpt Lifetime Receive options Auto Reception Anon. Sender AdvertisementDelivery Recpt Roaming Retrieve Read Receipt Menu > Messaging > Settings > MMS X70DPK11B1.book Page 74 Thursday, September 18, 2003 5:12 PM 75 Messaging Messaging Setting the font size You can set the font size to use in your messages. Select Font Size. Select from Large, Standard and Small. Setting what is displayed You can decide whether to display the subject or the address in your inbox and outbox. Select Display. Select Inbox or Outbox. Select Subject or Address. Restoring defaults To cancel all the options that you have set select RestoreDefaults. Creating an MMS message Use Create to create an MMS message. Select Create > MMS. Press Q. Select the item that you want to enter. When your message is complete, select Ok. Select Addr:. Select Edit to enter an address. Enter an address. Select Subj:. Select Edit to enter a subject. Enter a subject. Create OkPictureTextSoundPlaySlideOption MMS Camera Background CancelSlide TimeText Colour Menu > Messaging > Settings > MMS Menu > Messaging > Create X70DPK11B1.book Page 75 Thursday, September 18, 2003 5:12 PM 76 Messaging Messaging To send your message, press A or press Q and select Send. To save your message press Q and select Save. Your message is stored in the Outbox, so you can send it or edit it later. You can send a camera image, text, a picture from a data folder and/or a sound from a data folder. To send a camera image: Select Camera as your item in Creating an MMS message. Take a picture. Press A to return to the MMS message. To send a picture: Select Picture as your item in Creating an MMS message. Select a folder. Select the picture. To enter text: Select Text as your item in Creating an MMS message. Enter the text. Select Ok or Cancel. To attach an audio file: Select Sound as your item in Creating an MMS message. Select a folder. Select the audio file. User messages While entering text, you can enter one of the predefined user message in your MMS message: Select Menu > User Msg. A list of the user defined messages is displayed. Select the message you require. Press Q. To edit a user message, see Editing user messages on page 41. Menu > Messaging > Create X70DPK11B1.book Page 76 Thursday, September 18, 2003 5:12 PM 77 Messaging Messaging Retrieving received messages The messages you receive are stored in the Inbox. Select Inbox > MMS. If there are messages waiting, a number appears by Waiting. You need to retrieve these messages before you can play any audio files attached to them. Retrieving a message Select Waiting. Highlight a message. Press A to retrieve the message. When you have retrieved a message it is available in Receive. The number of retrieved messages appears by Receive. When you select a message from the Waiting menu, you can choose from: Read. Displays the message header. Press A to retrieve the message. Reject. Do not retrieve the selected message. Retrieve. Retrieves the selected message. Retrv All. Retrieves all waiting messages. Save Addr. Saves the address of the selected message. Call. Call the person who sent th…

Text truncated - open the document above for the full version.

Safety First Your new phone is a convenient and effective communications tool, but it can be hazardous when used improperly. To avoid harming yourself or anyone else, please review the following information before using your phone. Batteries Batteries can cause property damage, injury, or burns if the terminals are touched with a conductive material (for example, metal jewelry, keys, and so on). Therefore, use caution when handling a charged battery. Additional precautions and notes are listed below: • Never throw a battery into a fire; it may explode. • Fully recharge the battery if the battery is low or as soon as the low-battery alert beeps. • Do not drop the battery. • Do not bridge battery contacts together with metallic objects. • Do not remove the battery from the phone while the phone is powered on. Settings you have changed may revert to their previous settings. A recyclable lithium ion/polymer battery powers your phone. Please call 1-800-8-BATTERY for information on how to recycle the battery. Charging Devices Use only Genuine Panasonic charging accessories. Use of attachments not recommended by Panasonic or your wireless service provider may result in fire, electrical shock, or injury. Panasonic is not responsible for damage caused by using non-Panasonic accessories. • Do not expose charging adapters to moisture, water, or the weather. • Do not use an adapter with a damaged cord. When using a DC adapter in an automobile, a small amount of electricity flows through the adapter, even if the phone is turned off. Remove the plug from the cigarette lighter whenever the phone will be left in the vehicle for long periods of time. Caution:The cigarette lighter must have a 12V negative ground socket. Do not use the adapter in a vehicle that has a positive ground system. Safety First1 PRELIMINARY General • Do not use the phone in extreme temperature or humidity. The specified operating temperature range is -22°F to +140°F (-30°C to +60°C). • Do not expose the phone (particularly the display) to direct sunlight for extended periods of time. • Do not attempt to disassemble the phone. There are no user-serviceable parts inside. • Do not expose the phone to rain or spill liquids on it. • Do not carry the phone by holding the antenna. • Do not use any accessories other than those designed for use with your phone. • Use of attachments not recommended or sold by your wireless service provider may result in fire, electrical shock, or injury. • Panasonic cannot be held responsible for damages caused by using non-Panasonic accessories. Availability of Service This phone, like any wireless phone, operates using radio signals, wireless and landline networks, and user-programmed functions. Because of this, connection in all conditions cannot be guaranteed. Therefore, you should never rely solely on any wireless phone for essential communications (for example, medical emergencies). When operating in analog mode, the service area where you can place and receive calls will be smaller than with other phones. Emergency (911) Service If you need to make an emergency (911) call, power the phone on, dial 911, and press SEND. Emergency calls can be made regardless of lock setting. Note:When you purchase your phone, the 9 key is programmed as a Super Dial key to call the emergency number 911. However, you have to enable this key assignment before you can use it. Remember, to make or receive any call, the phone must be switched on and in a service area that has adequate signal strength. Emergency calls might not be possible on all wireless phone networks or when certain network service and/or phone features are in use. 2Safety First PRELIMINARY Safety Tips Following the suggestions in this section will help ensure safe and efficient operation of your Panasonic phone. This Model Phone Meets The Government’s Requirements For Exposure To Radio Waves. Your wireless phone is a radio transmitter and receiver. It is designed and manufactured not to exceed the emission limits for exposure to radiofrequency (RF) energy set by the Federal Communications Commission of the U.S. Government. These limits are part of comprehensive guidelines and establish permitted levels of RF energy for the general population. The guidelines are based on standards that were developed by independent scientific organizations through periodic and thorough evaluation of scientific studies. The standards include a substantial safety margin designed to assure the safety of all persons, regardless of age and health. The exposure standard for wireless mobile phones employs a unit of measurement known as the Specific Absorption Rate, or SAR. The SAR limit set by the FCC is 1.6W/kg. Tests for SAR are conducted using standard operating positions specified by the FCC with the phone transmitting at its highest certified power level in all tested frequency bands. Although the SAR is determined at the highest certified power level, the actual SAR level of the phone while operating can be well below the maximum value. This is because the phone is designed to operate at multiple power levels so as to use only the power required to reach the network. In general, the closer you are to a wireless base station antenna, the lower the power output. Before a phone model is available for sale to the public, it must be tested and certified to the FCC that it does not exceed the limit established by the government-adopted requirement for safe exposure. The tests are performed in positions and locations (e.g., at the ear and worn on the body) as required by the FCC for each model. The highest SAR value for this model phone when tested for use at the ear is 0.682 W/kg and when worn on the body, as described in this user guide, is 0.757 W/kg. (Body-worn measurements differ among phone models, depending upon available accessories and FCC requirements). While there may be differences between the SAR levels of various phones and at various positions, they all meet the gov…

Text truncated - open the document above for the full version.

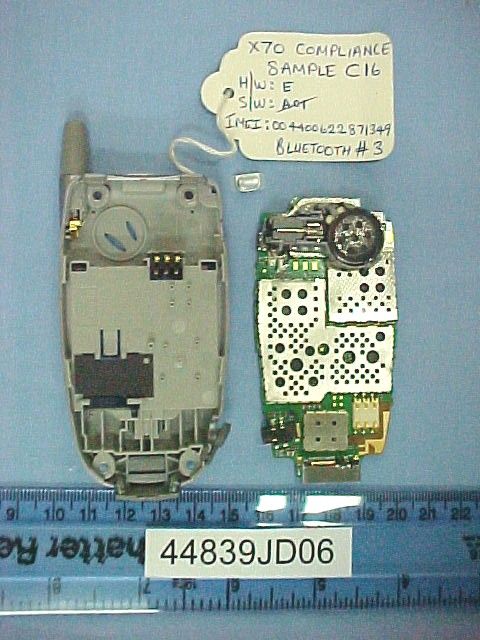

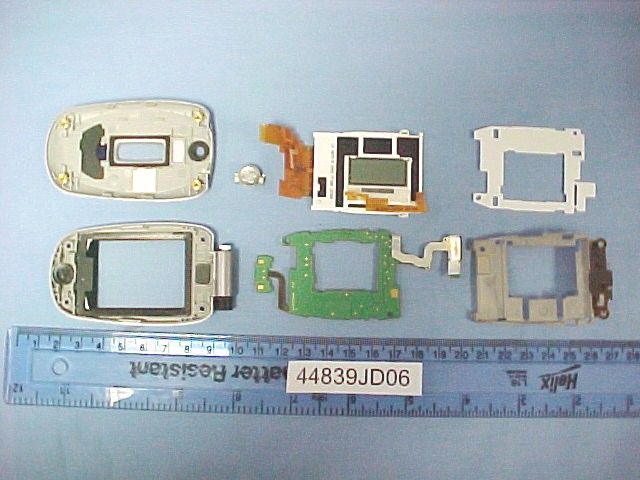

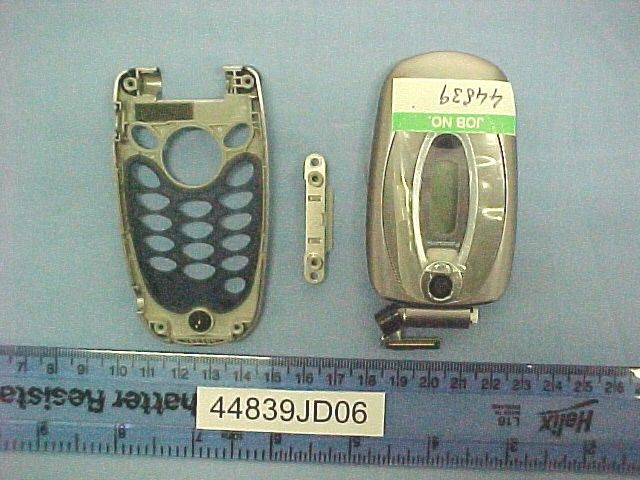

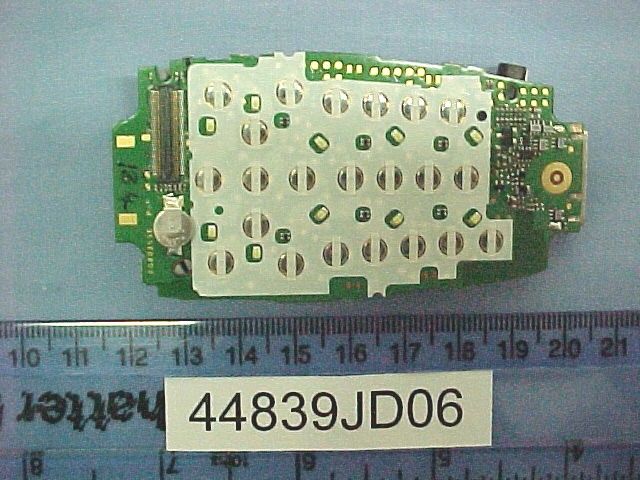

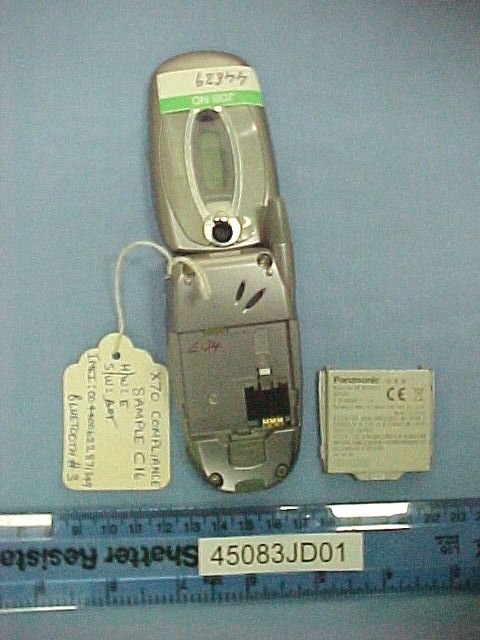

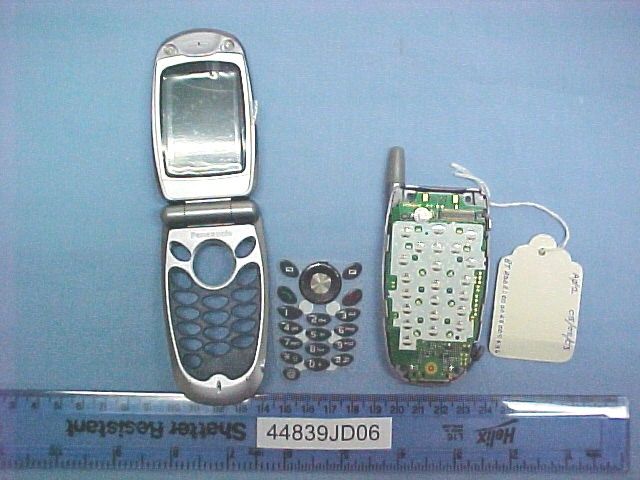

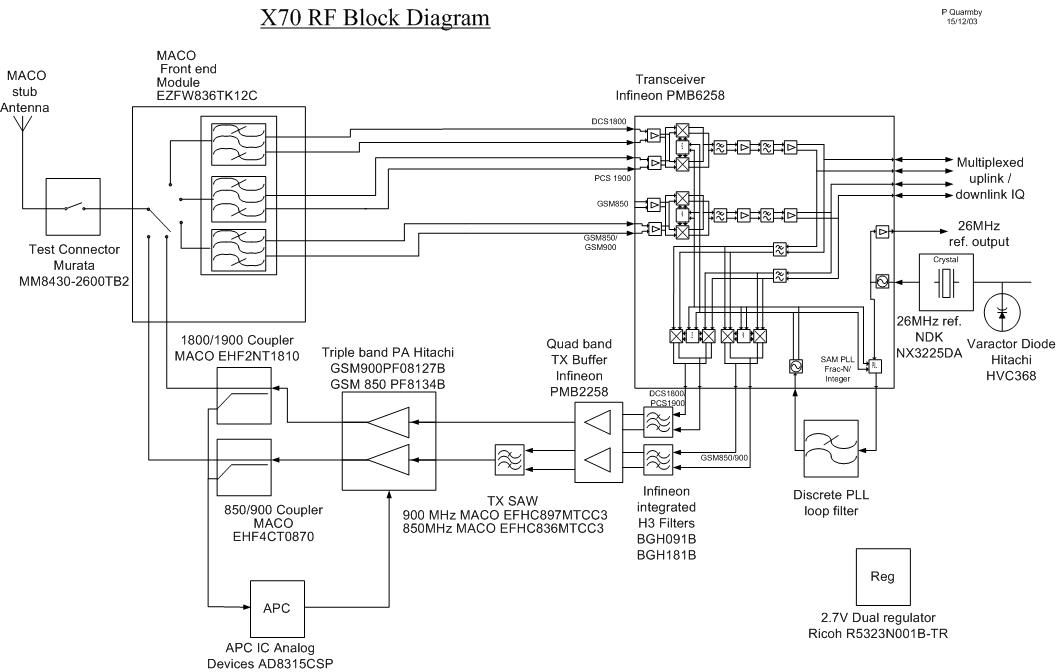

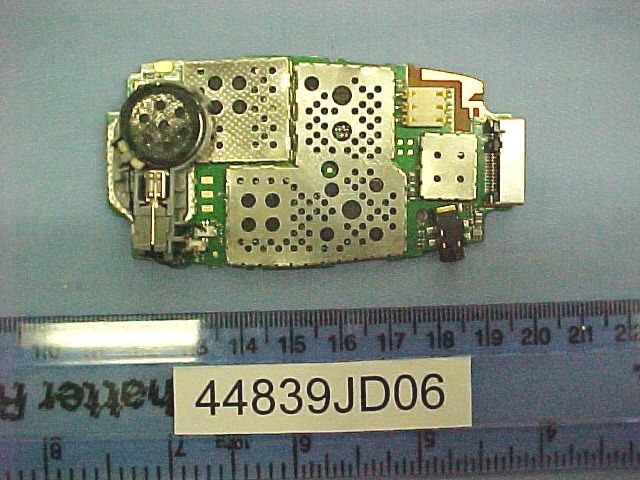

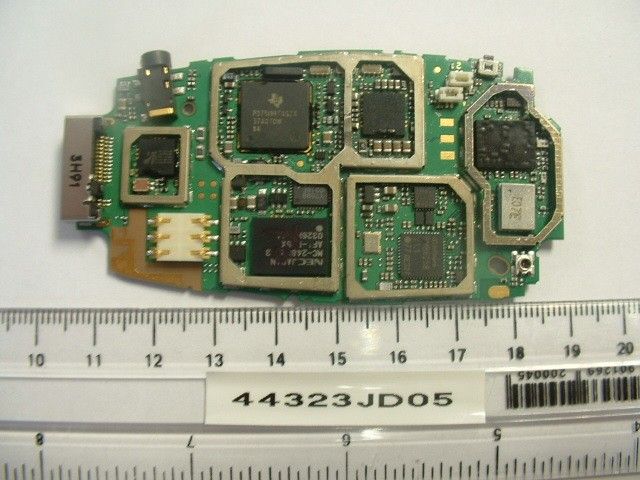

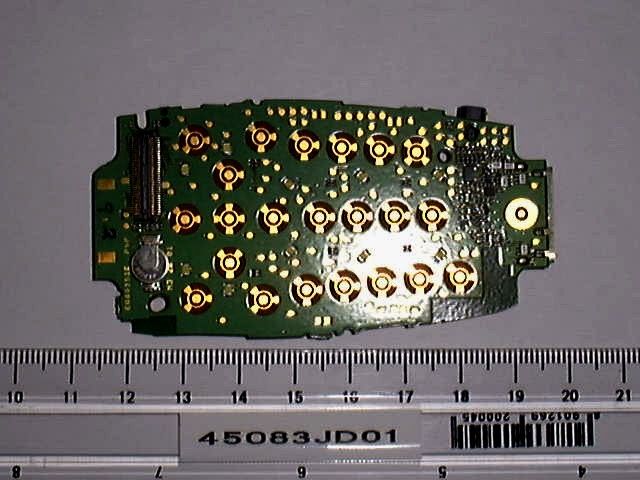

22 nd January 2004 Telecommunication Certification Body Radio Frequency Investigation Ltd. Ewhurst Park Ramsdell Basingstoke Hampshire RG26 5RQ England Subject: Certification Application FCC ID: NWJ22B002A It is requested that the following information is to be held confidential on behalf of Panasonic Mobile Communications Development of Europe Ltd. FCC Rules Part 0.459 refers. Schematic Diagrams 2 files C17E0001_G4 = 6pages, EF80066E = 2 pages Layout Diagrams 4 files C22E0009G4 side A & B, C22E0010E side 1 & 2, All 1 page each Bill of Materials 3 files X70EU-SMT1, X70EU-SMT2, X70LCD-SMT, All CSV lists Product Specs inc cct descriptions 2 files X70 RF Product Spec 25 pgs, X70 BB Spec 46 pgs The above information contains trade secrets and proprietary information not customarily released to the public. The public disclosure of this information might be harmful to the applicant and provide unjust benefits to its competitors. Yours sincerely Mike Hargreaves SENIOR COMPLIANCE ENGINEER Panasonic Wireless Design (PMCDE)

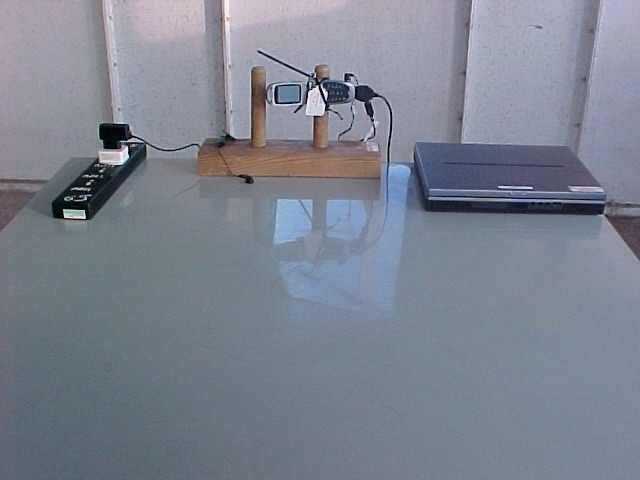

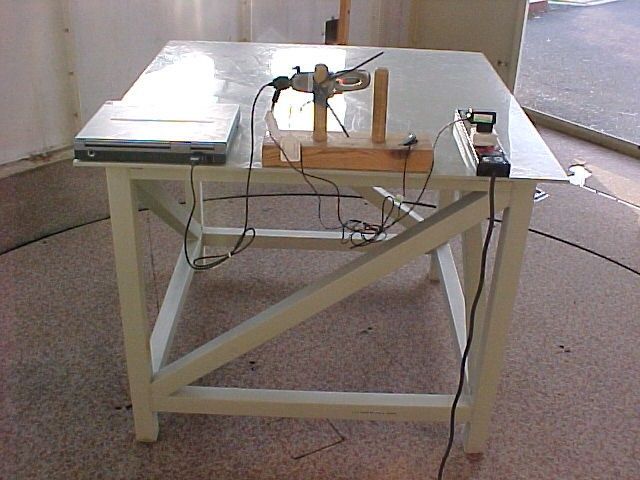

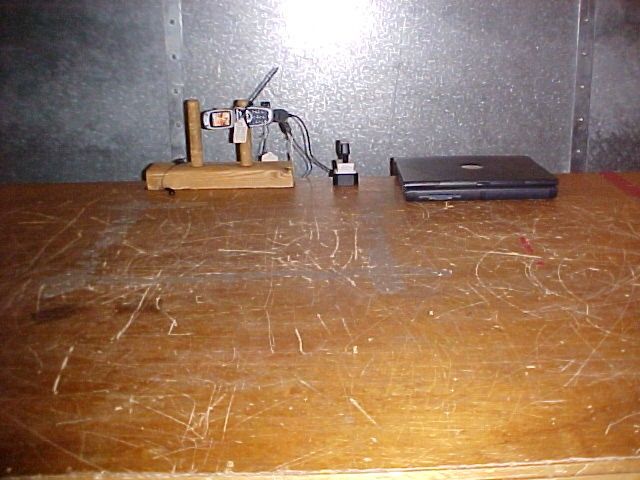

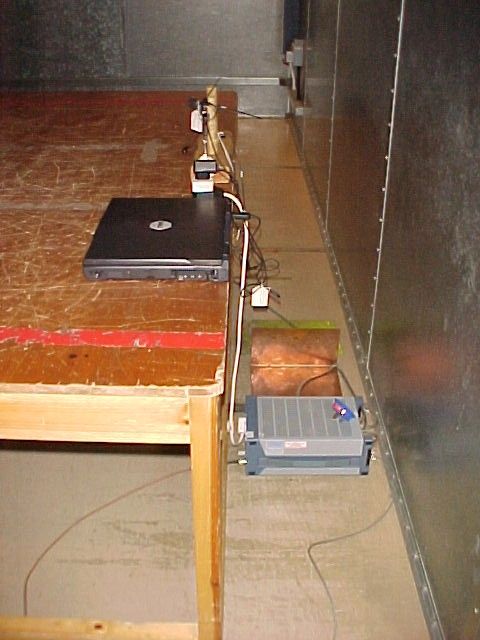

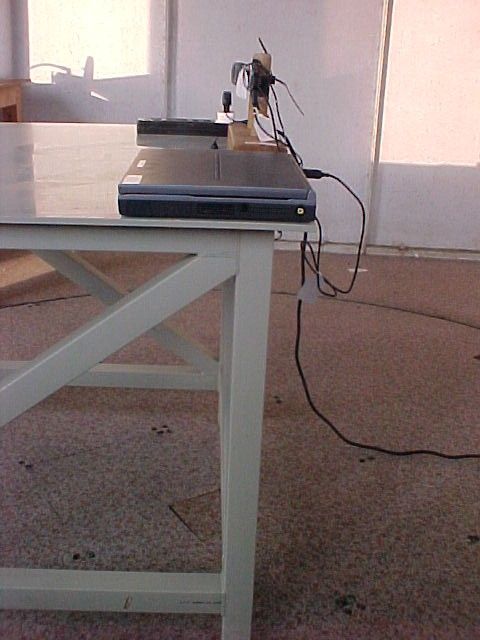

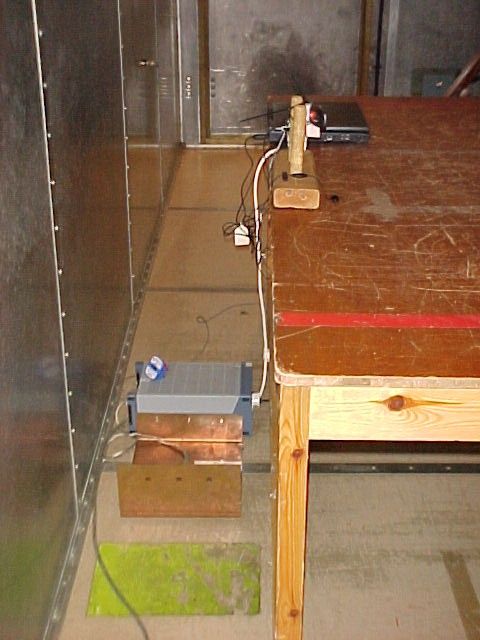

TTI-P-G 158 DASY Test-Report, Panasonic_6575_368a Page 1 of 41 Report Dosimetric Assessment of the Portable Device Panasonic X70U (FCC ID: NWJ22B002A) According to the FCC Requirements February 25, 2004 IMST GmbH Carl-Friedrich-Gauß-Str. 2 D-47475 Kamp-Lintfort Customer Panasonic (PMCDE) 2 Gables Way, Colthrop, Thatcham Berks-RG19 4ZB United Kingdom The test results only relate to the items tested. This report shall not be reproduced except in full without the written approval of the testing laboratory. dasy_report_fcc_supplement_c _3.3.doc/28.10..2003/CH DASY Test-Report, Panasonic_6575_368a Page 2 of 41 dasy_report_fcc_supplement_c _3.3.doc/28.10..2003/CH Executive Summary The X70U is a mobile phone (Portable Device) from Panasonic operating in the 800 MHz, 1800 MHz and 1900 MHz frequency range. The device has an helix antenna. The system concepts used are the GSM 850, GSM 1800 and PCS 1900 standards including Bluetooth and GPRS capability with 1 TX slot. The objective of the measurements done by IMST was the dosimetric assessment of one device in the GSM 850 and PCS 1900 standards with open flip (to establish a call in the head position with closed flip is not possible). The examinations have been carried out with the dosimetric assessment system „DASY4“. The measurements were made according to the Supplement C to OET Bulletin 65 of the Federal Communications Commission (FCC) Guidelines [FCC 2001] for evaluating compliance of mobile and portable devices with FCC limits for human exposure (general population) to radiofrequency emissions. All measurements have been performed in accordance to the recommendations given by SPEAG. The Panasonic X70U mobile phone (FCC ID: NWJ22B002A) is in compliance with the Federal Communications Commission (FCC) Guidelines [FCC 2001] for uncontrolled exposure. The phone was tested in the Body Worn configuration with the following accessories and combinations: • Carry case, with and without headset prepared by: ........................................... reviewed by: .............................................. André van den Bosch Dipl.-Ing. Christoph Hennes test engineer quality assurance engineer IMST GmbH Carl-Friedrich-Gauß-Straße 2 D-47475 Kamp-Lintfort Tel. +49- 2842-981 373 Fax +49- 2842-981 399 email: [email protected] DASY Test-Report, Panasonic_6575_368a Page 3 of 41 dasy_report_fcc_supplement_c _3.3.doc/28.10..2003/CH Table of Contents 1 SUBJECT OF INVESTIGATION ................................................................................................................... 4 2 THE IEEE STANDARD C95.1 AND THE FCC EXPOSURE CRITERIA................................................. 4 2.1 DISTINCTION BETWEEN EXPOSED POPULATION, DURATION OF EXPOSURE AND FREQUENCIES...................... 4 2.2 DISTINCTION BETWEEN MAXIMUM PERMISSIBLE EXPOSURE AND SAR LIMITS................................................ 5 2.3 SAR LIMIT................................................................................................................................................... 5 3 THE FCC MEASUREMENT PROCEDURE ................................................................................................ 6 3.1 GENERAL REQUIREMENTS............................................................................................................................ 6 3.2 DEVICE OPERATING NEXT TO A PERSON’S EAR............................................................................................. 6 3.3 BODY-WORN AND OTHER CONFIGURATIONS................................................................................................. 9 4 THE MEASUREMENT SYSTEM ................................................................................................................ 10 4.1 PHANTOM.................................................................................................................................................. 12 4.2 PROBE....................................................................................................................................................... 12 4.3 MEASUREMENT PROCEDURE...................................................................................................................... 13 4.4 UNCERTAINTY ASSESSMENT........................................................................................................................ 14 5 SAR RESULTS ................................................................................................................................................ 15 6 EVALUATION ................................................................................................................................................ 19 7 APPENDIX ...................................................................................................................................................... 21 7.1 ADMINISTRATIVE DATA.............................................................................................................................. 21 7.2 DEVICE UNDER TEST AND TEST CONDITIONS.............................................................................................. 21 7.3 TISSUE RECIPES......................................................................................................................................... 22 7.4 MATERIAL PARAMETERS............................................................................................................................. 22 7.5 SIMPLIFIED PERFORMANCE CHECKING...................................................................................................... 23 7.6 ENVIRONMENT........................................................................................................................................... 29 7.7 TEST EQUIPMENT....................................................................................................................................... 29 7.8 CERTIFICATES OF CONFORMITY...........................................…
