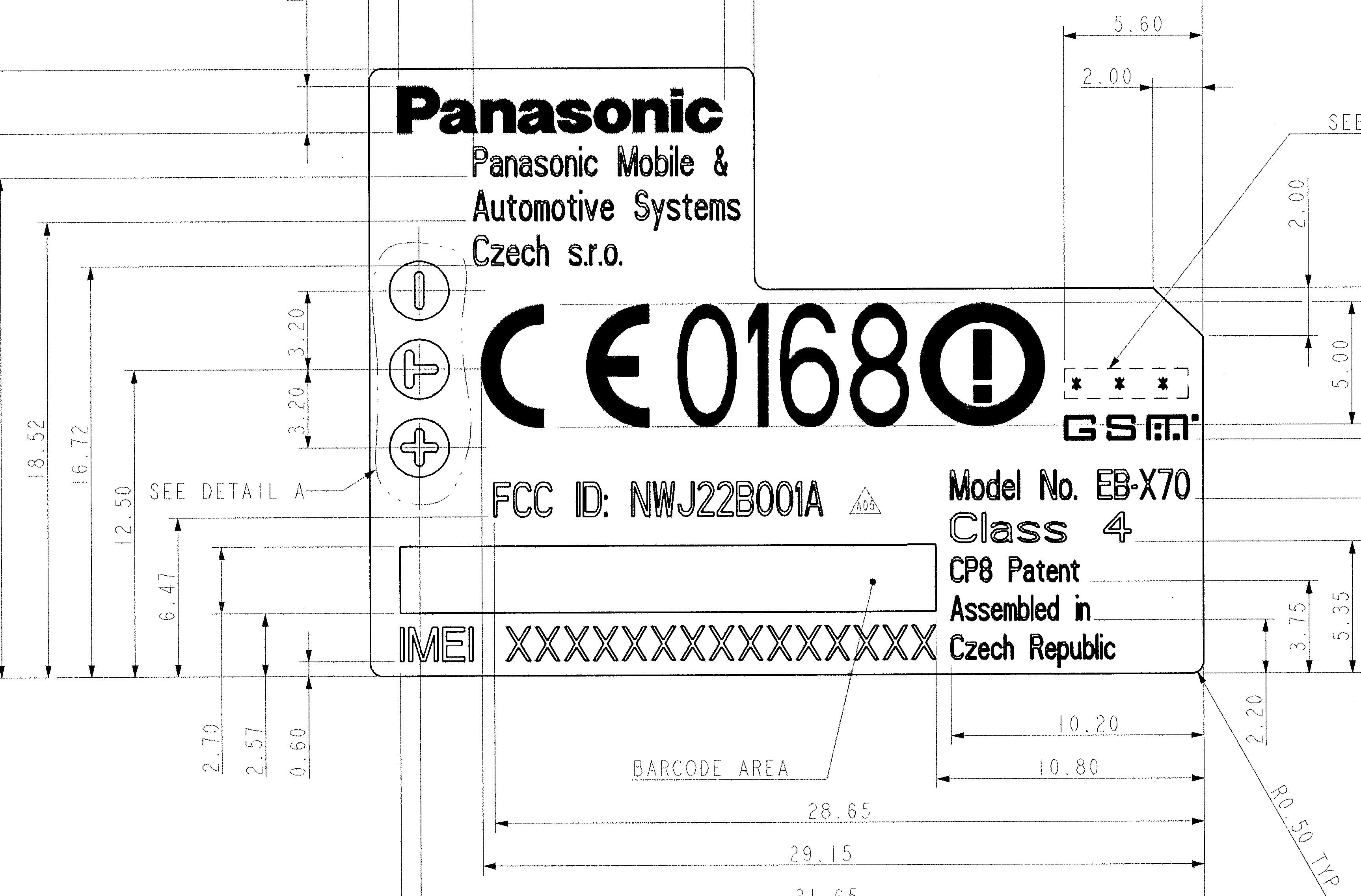

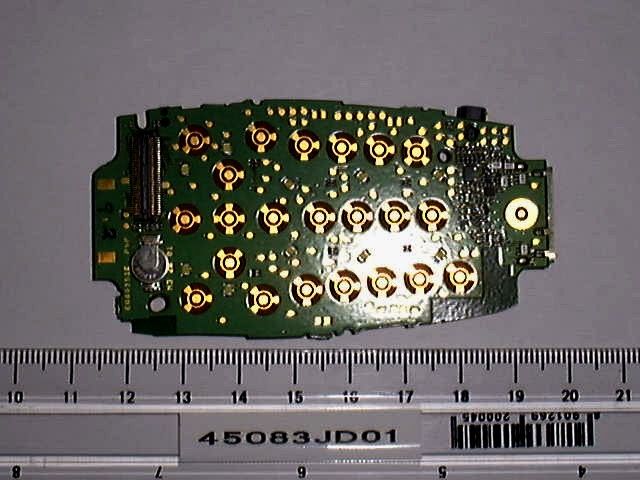

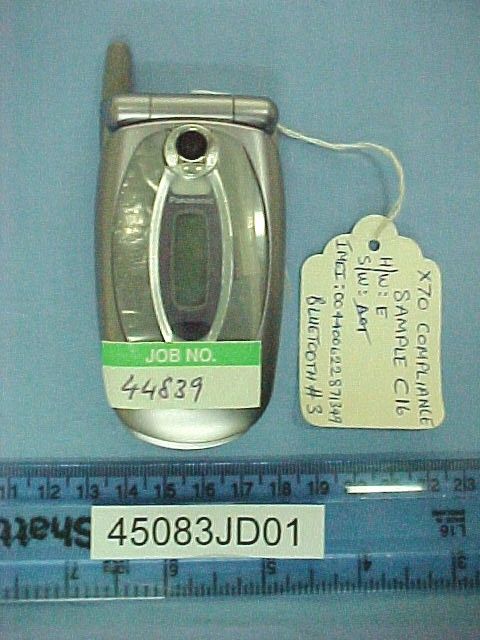

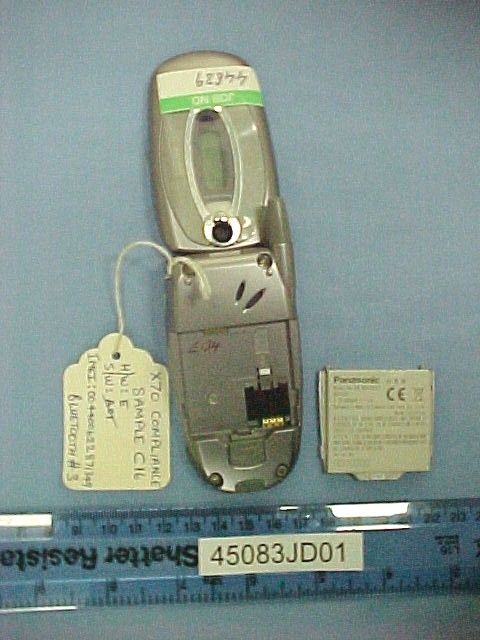

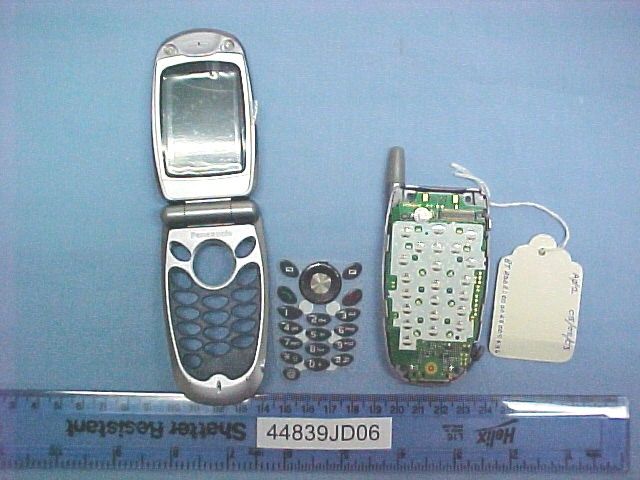

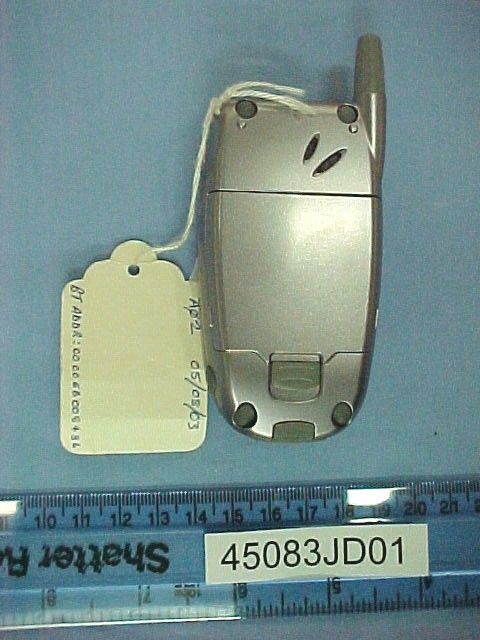

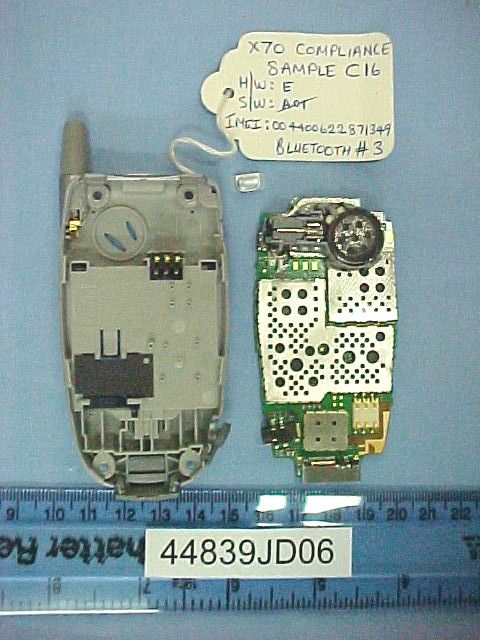

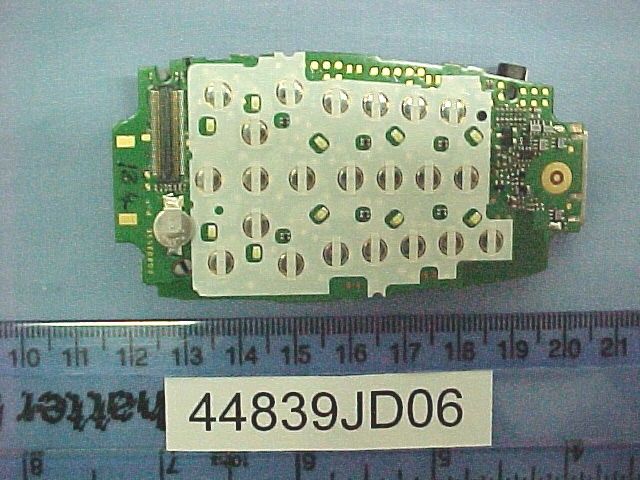

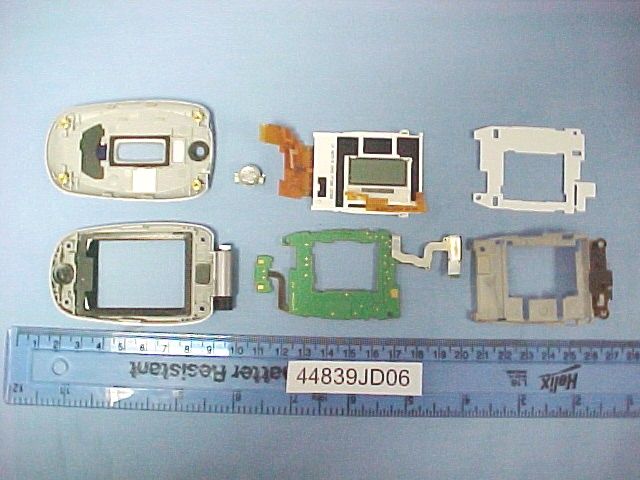

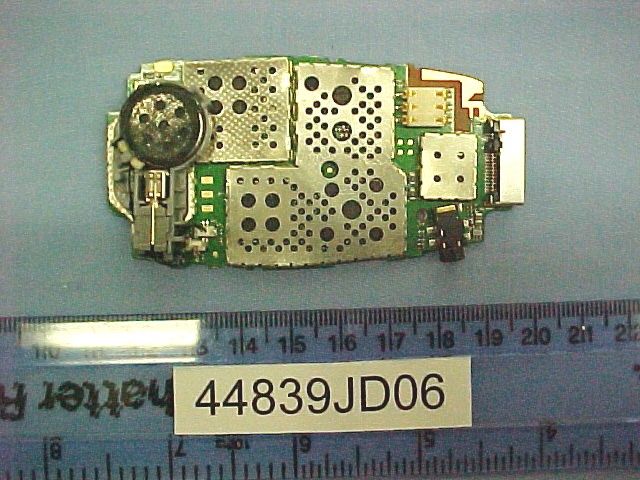

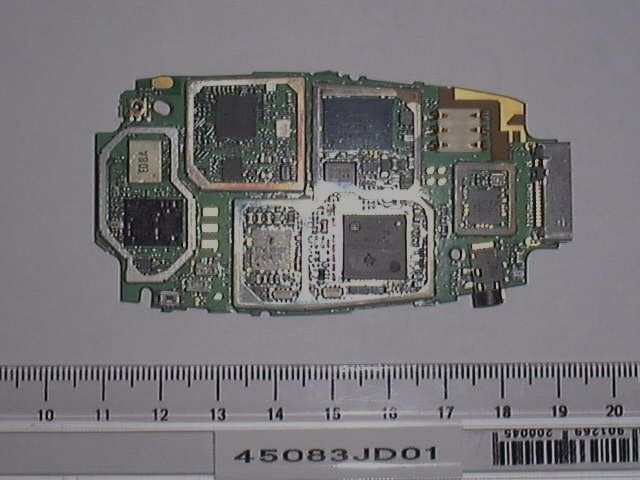

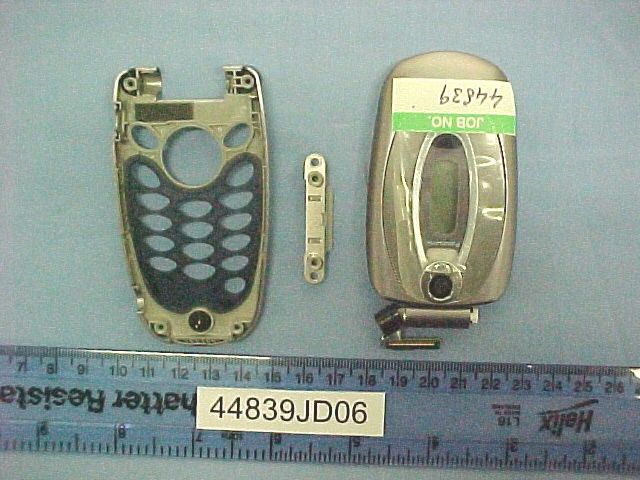

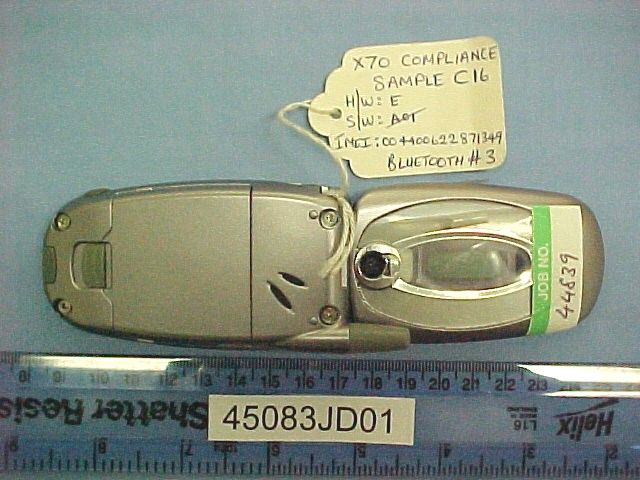

NWJ22B001AGSM Cellular Mobile Radio

3 Contents Contents Important information . . . . . . . 5 Overview of features . . . . . . . . 9 SIM and battery . . . . . . . . . . . . 10 Quick start . . . . . . . . . . . . . . . . 13 Your phone . . . . . . . . . . . . . . . . 17 Display icons . . . . . . . . . . . . . . 19 Menu structure . . . . . . . . . . . . . 21 Voice calls . . . . . . . . . . . . . . . . 23 Text entry . . . . . . . . . . . . . . . . . 30 Settings . . . . . . . . . . . . . . . . . . . 33 Contacts list . . . . . . . . . . . . . . . 51 Games . . . . . . . . . . . . . . . . . . . . 59 Browser . . . . . . . . . . . . . . . . . . 61 Camera . . . . . . . . . . . . . . . . . . . 66 Messaging. . . . . . . . . . . . . . . . . 72 Data folders . . . . . . . . . . . . . . . 90 Organiser . . . . . . . . . . . . . . . . . 101 Connect. . . . . . . . . . . . . . . . . . . 111 Accessories . . . . . . . . . . . . . . . . 116 Care and maintenance . . . . . . . 119 Troubleshooting . . . . . . . . . . . . 121 Glossary . . . . . . . . . . . . . . . . . . 124 X70DPK11B1.book Page 3 Thursday, September 18, 2003 5:12 PM 4 Contents Contents Specifications . . . . . . . . . . . . . . 126 EU warranty and licensing. . . . 128 Personal settings and notes . . . 136 Index . . . . . . . . . . . . . . . . . . . . 139 X70DPK11B1.book Page 4 Thursday, September 18, 2003 5:12 PM 5 Important information Important information Thank you for purchasing this Panasonic digital cellular phone. This phone is designed to operate on GSM networks – GSM900, GSM1800 and GSM1900. It also supports GPRS for packet data connections. Please ensure the battery is fully charged before use. We, Panasonic Mobile Communications Development of Europe Ltd., declare, that the EB-X70 conforms with the essential and other relevant requirements of the directive 1999/5/EC. A Declaration of Conformity to this effect can be found at http://www.panasonicmobile.com Safety considerations You should read and understand the following information as it provides details for operating your phone in a manner which is both safe to you and your environment, and conforms to any legal requirements regarding the use of cellular phones. A Fast Travel Charger (EB-CAX70UK or EB-CAX70EU) is supplied with the phone. Other recommended equipment for charging is the Car Charger (EB-CDX70). This equipment should only be charged with approved charging equipment, to ensure optimum performance and avoid damage to your phone. Other usage will invalidate any approval given to this apparatus and may be dangerous. Ensure the voltage rating of the Fast Travel Charger is compatible with the area of use when travelling abroad. Use of a battery pack other than that recommended by the manufacturer may result in a safety hazard. If you use a feature that keeps the key backlight on continuously for a long time, for example, Camera, Games, or Browser, you will reduce your battery life. To maintain longer battery life, set the key backlight off. See Setting the key backlight on page 34. Switch off your cellular phone when in an aircraft. The use of cellular phones in an aircraft may be dangerous to the operation of the aircraft, disrupt the cellular network and may be illegal. Failure to observe this instruction may lead to the suspension or denial of cellular phone services to the offender, or legal action or both. Do not incinerate or dispose of the battery as ordinary rubbish. The battery must be disposed of in accordance with local legislation and may be recycled. X70DPK11B1.book Page 5 Thursday, September 18, 2003 5:12 PM 6 Important information Important information This equipment should only be used with Panasonic approved accessories to ensure optimum performance and avoid damage to your phone. Panasonic is not responsible for damages caused by using non-Panasonic approved accessories. This Panasonic mobile phone is designed, manufactured and tested to ensure that it complies with the specifications covering RF exposure guidelines applicable at the time of manufacture, in accordance with EU, USA FCC, and Australian ACA regulations. Please refer to our website for latest information/standards compliance in your country/ region of use. http://www.panasonicmobile.com It is advised not to use the equipment at a refuelling point. Users are reminded to observe restrictions on the use of radio equipment in fuel depots, chemical plants or where blasting operations are in progress. Never expose the battery to extreme temperatures (in excess of 60°C). It is imperative that the driver exercises proper control of the vehicle at all times. Do not hold a phone while you are driving; find a safe place to stop first. Do not speak into a handsfree microphone if it will take your mind off the road. Always acquaint yourself thoroughly with restrictions concerning the use of cellular phones within the area you are driving and observe them at all times. Care must be taken when using the phone in close proximity to personal medical devices, such as pacemakers and hearing aids. Do not leave the camera facing direct sunlight, as this may impair its performance. For most efficient use hold the phone as you would any normal phone. To avoid deterioration of signal quality or antenna performance, do not touch or cup the antenna area while the phone is switched on. (See SAR on page 8). Unauthorised modifications or attachments may damage the phone and violate applicable regulations. The use of an unapproved modification or attachment may result in the invalidation of your guarantee – this does not affect your statutory rights. X70DPK11B1.book Page 6 Thursday, September 18, 2003 5:12 PM 7 Important information Important information This phone must be used in compliance with any applicable international or national law governing its use in specified applications and environments. This includes use in hospitals, aircraft, and whilst driving or refuelling a vehicle. It is recommended that you create a copy or backup as appropriate for any impo…

Text truncated - open the document above for the full version.

72 Messaging Messaging From the Messaging menu you can send and receive MMS, SMS and e- mail messages. The nine menus are as follows: MMS MMS stands for Multimedia Message Service. With MMS you can attach images and music to text messages. The recipient can play the images and music as a slide show. Settings Use Settings to set up MMS to suit your requirements. Settings 1MMS 2SMS 3e-mail Inbox 1MMS 2SMS 3e-mail Broadcasts 1 Receive 2 Message List 3 Topics 4 Languages Voice Mail 1 Voice Mailbox Create 1 MMS 2SMS 3e-mail e-mail 1 Send/Receive Data Folders 1 My Pictures 2 My Sounds 3My Themes 4 User 1 - 5 Outbox 1MMS 2SMS 3e-mail SMS Chat Settings Send Options Receive Options Player Mode Server ListFont SizeDisplay Restore Defaults MMS Menu > Messaging > Settings > MMS X70DPK11B1.book Page 72 Thursday, September 18, 2003 5:12 PM 73 Messaging Messaging Configuring MMS You must configure your MMS before you can send or receive MMS messages. You can create up to three server profiles on the phone. For Circuit Switch, select Set, then select Edit and set: zDigital Dial number zAnalog Dial number zCircuit Type. Select from Digital and Analog. zUser ID zUser Password For GPRS, select Set, then select Edit and set: zAccess Point Name zUser ID zUser Password zAuthentication. Select from Normal, Encrypted and None. Note: Your MMS settings may have been pre-configured by your service provider. MMS may not work if you change these settings. Server List <1> to <3> Server Auto Edit Profile Name Gateway IP Bearer Type Server URL Circuit Switch GPRS Menu > Messaging > Settings > MMS X70DPK11B1.book Page 73 Thursday, September 18, 2003 5:12 PM 74 Messaging Messaging Setting send options You set send options to determine what happens to messages that you send. Req. Deliv. Recpt. Decide whether or not you want confirmation that your message has been delivered. Select Yes or No. Req. Read Recpt. Decide whether or not you want confirmation that your message has been read. Select Yes or No. Send Own Addr. Choose whether or not to let the recipient see your address. You can only show your address if your service provider allows. Select Show or Hide. Lifetime. Set the time limit for the lifetime for sent messages. Select Maximum or Manual. If you select Manual, you need to enter the number of hours (1 - 99). Setting receive options When you have selected a message type, you can select how you want to deal with it. Setting the player mode Player Mode determines whether an audio attachment is played automatically, or manually. Select Player Mode. Select Automatic or Manual. Message typeOptions Auto ReceptionAuto Retrieve, Ask Anon. SenderAccept, Reject AdvertisementAccept, Reject Delivery RecptPermit, Reject Read ReceiptPermit, Reject Roaming RetrieveAsk, Pending, Off Send Options Req. Read Recpt Send Own Addr. Req. Deliv. Recpt Lifetime Receive options Auto Reception Anon. Sender AdvertisementDelivery Recpt Roaming Retrieve Read Receipt Menu > Messaging > Settings > MMS X70DPK11B1.book Page 74 Thursday, September 18, 2003 5:12 PM 75 Messaging Messaging Setting the font size You can set the font size to use in your messages. Select Font Size. Select from Large, Standard and Small. Setting what is displayed You can decide whether to display the subject or the address in your inbox and outbox. Select Display. Select Inbox or Outbox. Select Subject or Address. Restoring defaults To cancel all the options that you have set select RestoreDefaults. Creating an MMS message Use Create to create an MMS message. Select Create > MMS. Press Q. Select the item that you want to enter. When your message is complete, select Ok. Select Addr:. Select Edit to enter an address. Enter an address. Select Subj:. Select Edit to enter a subject. Enter a subject. Create OkPictureTextSoundPlaySlideOption MMS Camera Background CancelSlide TimeText Colour Menu > Messaging > Settings > MMS Menu > Messaging > Create X70DPK11B1.book Page 75 Thursday, September 18, 2003 5:12 PM 76 Messaging Messaging To send your message, press A or press Q and select Send. To save your message press Q and select Save. Your message is stored in the Outbox, so you can send it or edit it later. You can send a camera image, text, a picture from a data folder and/or a sound from a data folder. To send a camera image: Select Camera as your item in Creating an MMS message. Take a picture. Press A to return to the MMS message. To send a picture: Select Picture as your item in Creating an MMS message. Select a folder. Select the picture. To enter text: Select Text as your item in Creating an MMS message. Enter the text. Select Ok or Cancel. To attach an audio file: Select Sound as your item in Creating an MMS message. Select a folder. Select the audio file. User messages While entering text, you can enter one of the predefined user message in your MMS message: Select Menu > User Msg. A list of the user defined messages is displayed. Select the message you require. Press Q. To edit a user message, see Editing user messages on page 41. Menu > Messaging > Create X70DPK11B1.book Page 76 Thursday, September 18, 2003 5:12 PM 77 Messaging Messaging Retrieving received messages The messages you receive are stored in the Inbox. Select Inbox > MMS. If there are messages waiting, a number appears by Waiting. You need to retrieve these messages before you can play any audio files attached to them. Retrieving a message Select Waiting. Highlight a message. Press A to retrieve the message. When you have retrieved a message it is available in Receive. The number of retrieved messages appears by Receive. When you select a message from the Waiting menu, you can choose from: Read. Displays the message header. Press A to retrieve the message. Reject. Do not retrieve the selected message. Retrieve. Retrieves the selected message. Retrv All. Retrieves all waiting messages. Save Addr. Saves the address of the selected message. Call. Call the person who sent th…

Text truncated - open the document above for the full version.

Safety First Your new phone is a convenient and effective communications tool, but it can be hazardous when used improperly. To avoid harming yourself or anyone else, please review the following information before using your phone. Batteries Batteries can cause property damage, injury, or burns if the terminals are touched with a conductive material (for example, metal jewelry, keys, and so on). Therefore, use caution when handling a charged battery. Additional precautions and notes are listed below: • Never throw a battery into a fire; it may explode. • Fully recharge the battery if the battery is low or as soon as the low-battery alert beeps. • Do not drop the battery. • Do not bridge battery contacts together with metallic objects. • Do not remove the battery from the phone while the phone is powered on. Settings you have changed may revert to their previous settings. A recyclable lithium ion/polymer battery powers your phone. Please call 1-800-8-BATTERY for information on how to recycle the battery. Charging Devices Use only Genuine Panasonic charging accessories. Use of attachments not recommended by Panasonic or your wireless service provider may result in fire, electrical shock, or injury. Panasonic is not responsible for damage caused by using non-Panasonic accessories. • Do not expose charging adapters to moisture, water, or the weather. • Do not use an adapter with a damaged cord. When using a DC adapter in an automobile, a small amount of electricity flows through the adapter, even if the phone is turned off. Remove the plug from the cigarette lighter whenever the phone will be left in the vehicle for long periods of time. Caution:The cigarette lighter must have a 12V negative ground socket. Do not use the adapter in a vehicle that has a positive ground system. Safety First1 PRELIMINARY General • Do not use the phone in extreme temperature or humidity. The specified operating temperature range is -22°F to +140°F (-30°C to +60°C). • Do not expose the phone (particularly the display) to direct sunlight for extended periods of time. • Do not attempt to disassemble the phone. There are no user-serviceable parts inside. • Do not expose the phone to rain or spill liquids on it. • Do not carry the phone by holding the antenna. • Do not use any accessories other than those designed for use with your phone. • Use of attachments not recommended or sold by your wireless service provider may result in fire, electrical shock, or injury. • Panasonic cannot be held responsible for damages caused by using non-Panasonic accessories. Availability of Service This phone, like any wireless phone, operates using radio signals, wireless and landline networks, and user-programmed functions. Because of this, connection in all conditions cannot be guaranteed. Therefore, you should never rely solely on any wireless phone for essential communications (for example, medical emergencies). When operating in analog mode, the service area where you can place and receive calls will be smaller than with other phones. Emergency (911) Service If you need to make an emergency (911) call, power the phone on, dial 911, and press SEND. Emergency calls can be made regardless of lock setting. Note:When you purchase your phone, the 9 key is programmed as a Super Dial key to call the emergency number 911. However, you have to enable this key assignment before you can use it. Remember, to make or receive any call, the phone must be switched on and in a service area that has adequate signal strength. Emergency calls might not be possible on all wireless phone networks or when certain network service and/or phone features are in use. 2Safety First PRELIMINARY Safety Tips Following the suggestions in this section will help ensure safe and efficient operation of your Panasonic phone. This Model Phone Meets The Government’s Requirements For Exposure To Radio Waves. Your wireless phone is a radio transmitter and receiver. It is designed and manufactured not to exceed the emission limits for exposure to radiofrequency (RF) energy set by the Federal Communications Commission of the U.S. Government. These limits are part of comprehensive guidelines and establish permitted levels of RF energy for the general population. The guidelines are based on standards that were developed by independent scientific organizations through periodic and thorough evaluation of scientific studies. The standards include a substantial safety margin designed to assure the safety of all persons, regardless of age and health. The exposure standard for wireless mobile phones employs a unit of measurement known as the Specific Absorption Rate, or SAR. The SAR limit set by the FCC is 1.6W/kg. Tests for SAR are conducted using standard operating positions specified by the FCC with the phone transmitting at its highest certified power level in all tested frequency bands. Although the SAR is determined at the highest certified power level, the actual SAR level of the phone while operating can be well below the maximum value. This is because the phone is designed to operate at multiple power levels so as to use only the power required to reach the network. In general, the closer you are to a wireless base station antenna, the lower the power output. Before a phone model is available for sale to the public, it must be tested and certified to the FCC that it does not exceed the limit established by the government-adopted requirement for safe exposure. The tests are performed in positions and locations (e.g., at the ear and worn on the body) as required by the FCC for each model. The highest SAR value for this model phone when tested for use at the ear is 0.626 W/kg and when worn on the body, as described in this user guide, is 0.622 W/kg. (Body-worn measurements differ among phone models, depending upon available accessories and FCC requirements). While there may be differences between the SAR levels of various phones and at various positions, they all meet the gov…

Text truncated - open the document above for the full version.

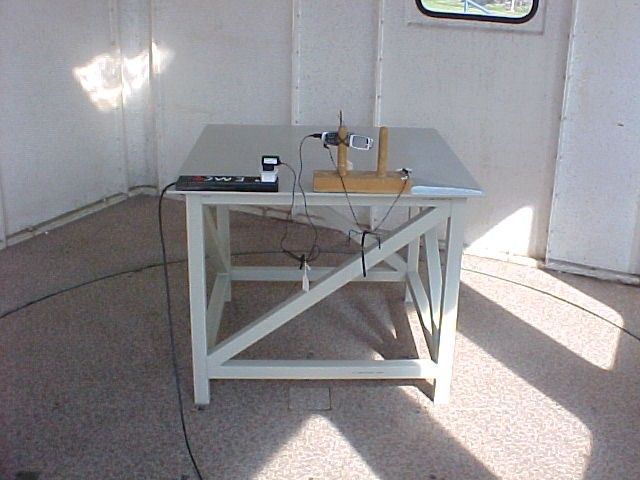

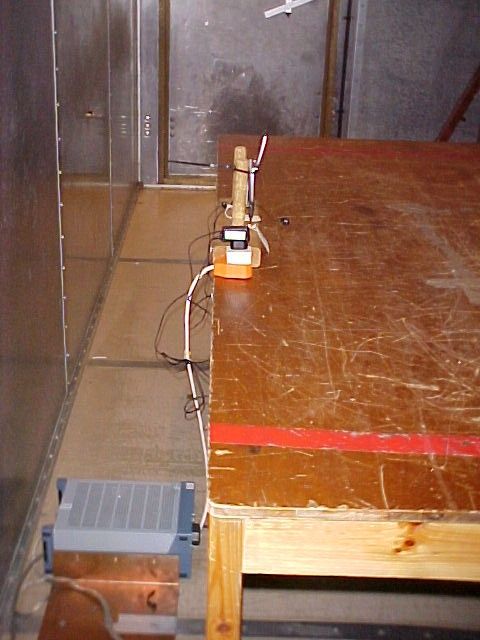

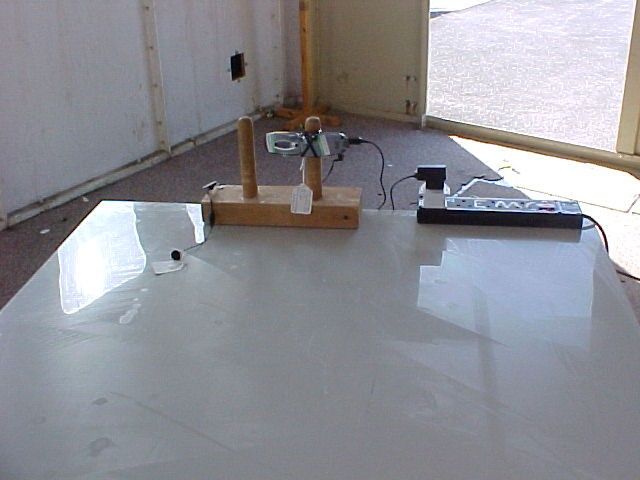

Panasonic Wireless Design Panasonic Mobile Communications Development of Europe Limited 2 Gables Way, Colthrop, Thatcham, Berkshire RG19 4ZB Tel: +44 (0) 1635 871466 Fax: +44 (0) 1635 871345 VAT Reg No. GB765338211 Web: www.panasonicmobile.com Registered in England No. 4188880 Panasonic Mobile Communications Development of Europe Limited X70 SAR SAMPLE MEASUREMENT DETAILS The mobile phone sample dispatched for SAR assessment to FCC guidelines was identified as follows: Model: X70 PMCDE Sample No. C25 IMEI No. 004400622870358 FCC ID: NWJ22B001A SAR Test Laboratory: IMST, Germany The EIRP of the above X70 SAR sample was measured in an anechoic chamber at Panasonic, Thatcham, U.K. prior to shipment to IMST. The following peak power measurements were made in the PCS 1900 MHz band: Band Channel Peak Power (dBm) 512 30.7 661 31.8 PCS 1900 MHz 810 31.4 The above measurements are representative of a correctly calibrated X70 To eliminate the possibility of damage to the sample in transit to IMST and because of the absence of an external antenna connector to allow comparative conducted power measurements to be made, an alternative method had to be devised to allow comparative power measurement to be made. This was achieved by preparing an antenna coupling coil device, which could be used to make power measurements before and after shipment. The following figure shows the device ‘attached’ to the X70 antenna. Fig 1. Panasonic Wireless Design Panasonic Mobile Communications Development of Europe Limited 2 Gables Way, Colthrop, Thatcham, Berkshire RG19 4ZB Tel: +44 (0) 1635 871466 Fax: +44 (0) 1635 871345 VAT Reg No. GB765338211 Web: www.panasonicmobile.com Registered in England No. 4188880 The output power of the phone was measured using the coupler at Panasonic before despatch to IMST. The results were as follows: Band Channel Measurement (dBm) PCS1900 512 14.0 661 15.0 810 15.0 Notes: - The above measurements were taken on an HP 8922 test set. The expected input was set such that there was no RF overload error. - The above measurements have been rounded to the nearest 0.5dBm. The coupler and above values were sent with the test sample to the testing laboratory, IMST to enable the comparative measurement to be made. IMST measured the power by the same method to confirm that the sample had been received without damage and was working correctly.

I Q I Q RF VCO Attenuator Single-band Couplers Triple band PA APC-IC Test point/ Switch Tx/Rx Switch Antenna ÷ 4 GSM ÷ 2 DCS/PCS 1/2 Buffer Amp 900 MHz 1800/1900 MHz SAW Block Diagram H3 filters Including Low pass filter in 1800 part RX PA ramp

Panasonic Document Number: Issue: X70-MDS-015A 0.8 Page 1 of 11 ©. Matsushita Mobile Communications Development of Europe Ltd. Panasonic Matsushita Mobile Communications Development of Europe Ltd. X70 Global RF Calibration Specification Date 15/7/03 Issue 0.8 Prepared by: M.Ireland Signature: Position: Assistant Chief Engineer Approved by: C. King Authorised by: P. Edmond Signature: Signature: Position: Manager Position: General Manager © Matsushita Mobile Communications Development of Europe Ltd. 2003 This Product Specification is copy right and issued on the strict understanding that it is not to be reproduced, copied, or disclosed to any third party, either in whole or part, without the prior written consent of Matsushita Communication Industrial UK Limited. The information contained in this Product Specification and all rights in any designs disclosed therein, are and remain the exclusive property of Matsushita Communication Industrial UK Limited. Summary of changes Change Note Number Date Change Note Number Date Change Note Number Date Panasonic Document Number: Issue: X70-MDS-015A 0.8 Page 2 of 11 ©. Matsushita Mobile Communications Development of Europe Ltd. CHANGE HISTORY Revision Modifications made By Date 0.1 Updated RSSI calibration banding Martin Greaves 18/6/03 0.2 Updated Tx cal levels and gradient. Added dac offsets across band P Quarmby 24/6/03 0.3 Cancelled 0.4 Update VCXO cal description P Quarmby 4/7/03 0.5 Further VCXO comments and DCS power window tightened P Quarmby 10/7/03 0.6 Update cal windows to factory request P Quarmby 14/7/03 0.7 Remove requirement to cal RX COMP values M Greaves 15/7/03 0.8 Correct Rxlev window (was –89.5 to –91.5) M Ireland 25/7/03 Panasonic Document Number: Issue: X70-MDS-015A 0.8 Page 3 of 11 ©. Matsushita Mobile Communications Development of Europe Ltd. CONTENTS 1) Introduction 2) VCXO frequency Calibration 3) Carrier Power Calibration 4) IQ Calibration 5) Receive Signal Strength Indication (RSSI) Calibration 6) Related Documents Panasonic Document Number: Issue: X70-MDS-015A 0.8 Page 4 of 11 ©. Matsushita Mobile Communications Development of Europe Ltd. 1) Introduction 1.1 Calibration Sequence The Calibration sequence should occur in the following order: 1. Carrier Power Calibration 2. VCXO frequency calibration 3. TX IQ Calibration 4. Receive Signal Strength Indication (RSSI) Calibration Since power cycling of the board may occur between these various stages, the trimming data must be stored, using “Save Trimming Data”. 1.2 General Conditions for Calibration Vbat =3.7V. RF load = 50ohms, return loss at phone end of RF connection better than 20dB. Shield frames and lids must be fitted before any RF calibration/recalibration. All keypad/backlight LED’s must be turned off during calibration. Factory temperature in the vicinity of the calibration stations must be 25C+5 -6C. RSSI calibration channels must be confirmed to be free from any local network interference. All power measurements must be taken on a power meter with an accuracy of better than 0.3 dB. This not only applies to calibration but also to verification and QC checks. 1.3 Abbreviations ADC Analogue to Digital Converter AFC Automatic Frequency Control AGC Automatic Gain Control APC Automatic Power Control ARFCN Absolute Radio Frequency Channel Number DAC Digital to Analogue Converter dB decibels dBc decibels relative to a carrier signal dBm decibels relative to 1 milliwatt GSM Global System for Mobile Communications HH Handheld LNA Low-Noise Amplifier MS Mobile Station PL Power Level RBW Resolution Bandwidth RSSI Received Signal Strength Indication RXLEV RSSI level reported by SS SS System Simulator Tx Transmitter VBW Video Bandwidth VCXO Voltage Controlled Crystal Oscillator Panasonic Document Number: Issue: X70-MDS-015A 0.8 Page 5 of 11 ©. Matsushita Mobile Communications Development of Europe Ltd. 2) VCXO Frequency Calibration 2.1 Purpose Tolerance in the manufacture of the 26MHz crystal blank and in the value of vital components in the VCXO circuit mean that the nominal AFC control voltage must be adjusted to give a calibrated setting for the circuit to operate at 26MHz exactly at nominal room temperature. The implication of this is that the calibration temperature must be 25C+5 -6C for frequency calibration and that the PCBs must have stabilised to this temperature in the factory. Since the VCXO frequency is slightly influenced by the RF shield can, calibration of frequency must be performed with the shield can wall sections and lids fitted. Note: Calibration of the 1.95V reference voltage output to the thermistor, thermistor ADC input and AFCDAC output voltage should all have been done as part of the baseband calibration. 2.3) Frequency Calibration This requires the AFCDAC to be varied and the FSYS frequency to be measured, but at final frequency. AFCDAC should be varied until TX freq error at final frequency is within 0.5ppm. For this to be valid the measurement equipment should be frequency locked to an external source that is absolutely accurate (eg Rubidium oscillator or GPS system). Note: Details of all the listed test commands may be found in the X70 Test Command Interface Specification. 1. Connect the phone’s RF output to a test set (HP8922 or HP8960). 2. Set the phone into TestSet Test mode. 3. Note: ensure that all keypad LED’s and LCD backlight are switched off. 4. Switch on AUXDAC (see note below) 5. Send command to read phone temperature “GET CRYSTAL TEMPERATURE IN DEGREES C” 6. If data returned from (4) is outside the range 19.4°C to 30.3°C then reject the phone. 7. Set the phone to transmit on PL15 on channel 810 PCS, with random data, normal bursts. 8. Adjust AFCDAC, using the command “Set Aux AFC Data” until TX frequency error is less than 0.5ppm (corresponds to <955Hz on ch 810). 9. Store Aux AFC Data value to “AFC_RAW_CAL_ADC”. 10. Send command to read voltage representing phone temperature, ie ADC voltage from thermistor DAC,”GET ADC DATA” from ADC “AD…

Text truncated - open the document above for the full version.

TTI-P-G 158 DASY Test-Report, Panasonic_ 6575_345c Page 1 of 37 Report Dosimetric Assessment of the Portable Device Panasonic X70 (FCC ID: NWJ22B001A) According to the FCC Requirements September 15, 2003 IMST GmbH Carl-Friedrich-Gauß-Str. 2 D-47475 Kamp-Lintfort Customer Panasonic (PMCDE) 2 Gables Way, Colthrop, Thatcham Berks-RG19 4ZB The test results only relate to the items tested. This report shall not be reproduced except in full without the written approval of the testing laboratory. dasy_report_fcc_supplement_c _3.2.doc/16.06.2003/CH DASY Test-Report, Panasonic_ 6575_345c Page 2 of 37 dasy_report_fcc_supplement_c _3.2.doc/16.06.2003/CH H Executive Summary The X70 is a new mobile phone (Portable Device) from Panasonic operating in the 900 MHz, 1800 MHz and 1900 MHz frequency range. The device has an helix antenna. The system concepts used are the GSM 900, GSM 1800 and PCS 1900 standards including Bluetooth and GPRS capability with 1 TX slot. The objective of the measurements done by IMST was the dosimetric assessment of one device in the PCS 1900 standard with open flip (to establish a call in the head position with closed flip is not possible). The examinations have been carried out with the dosimetric assessment system „DASY4“. The measurements were made according to the Supplement C to OET Bulletin 65 of the Federal Communications Commission (FCC) Guidelines [FCC 2001] for evaluating compliance of mobile and portable devices with FCC limits for human exposure (general population) to radiofrequency emissions. All measurements have been performed in accordance to the recommendations given by SPEAG (Fig. 13). The Panasonic X70 mobile phone (FCC ID: NWJ22B001A) is in compliance with the Federal Communications Commission (FCC) Guidelines [FCC 2001] for uncontrolled exposure. The phone was tested in the Body Worn configuration with the following accessories and combinations: • Carry case with and without headset prepared by: ........................................... reviewed by: .............................................. André van den Bosch Dipl.-Ing. Christoph Hennes test engineer quality assurance engineer IMST GmbH Carl-Friedrich-Gauß-Straße 2 D-47475 Kamp-Lintfort Tel. +49- 2842-981 373 Fax +49- 2842-981 399 email: [email protected] DASY Test-Report, Panasonic_ 6575_345c Page 3 of 37 dasy_report_fcc_supplement_c _3.2.doc/16.06.2003/CH H Table of Contents 1 SUBJECT OF INVESTIGATION ................................................................................................................... 4 2 THE IEEE STANDARD C95.1 AND THE FCC EXPOSURE CRITERIA................................................. 4 2.1 DISTINCTION BETWEEN EXPOSED POPULATION, DURATION OF EXPOSURE AND FREQUENCIES...................... 4 2.2 DISTINCTION BETWEEN MAXIMUM PERMISSIBLE EXPOSURE AND SAR LIMITS................................................ 5 2.3 SAR LIMIT................................................................................................................................................... 5 3 THE FCC MEASUREMENT PROCEDURE ................................................................................................ 6 3.1 GENERAL REQUIREMENTS............................................................................................................................ 6 3.2 DEVICE OPERATING NEXT TO A PERSON’S EAR............…
