NWJ10A008ASingle-Band PCS GSM Phone

Panasonic Matsushita Mobile Communications Development Corporation of U.S.A. FCC ID: NWJ10A008A 1225 Northbrook Parkway • Suite 2-400 • Suwanee, GA 30024 • Phone (770) 338-6000 • Fax (770) 338-6210 Date: 7.29.2002 Authorization & Evaluation Division. Federal Communications Commission Laboratory. 7435 Oakland Mills Road. Columbia, MD 21045. Subject: REQUEST FOR CONFIDENTIALITY Pursuant to sections 0.457 (d) (1) (ii) and 0.459 of the commission’s rules, the applicant hereby requests confidential treatment of some of the information accompanying this application for FCC ID: NWJ10A008A as outlined below: • Block Diagram • Schematics • Theory of operation and circuit descriptions • Users Manual This information contains trade secrets and proprietary information not customarily released to the public. The public disclosure of this information might be harmful to the applicant and provide unjust benefits to its competitors. In the case of the user manual, the manual contained is preliminary and a final version will be available to the TCB. The applicant understands that pursuant to rule 0.457d, disclosure of this application and all accompanying documentation will not be made before the date of the grant for this application. MMCD Panasonic Best Regards, Pieter C. Seidel Technical Group Leader Systems Test Phone: 770-338-6270 Fax: 770-338-6210

Panasonic Matsushita Mobile Communications Development Corporation of U.S.A. FCC ID: NWJ10A008A ATTESTATION STATEMENT Page 1 of 1 1225 Northbrook Parkway • Suite 2-400 • Suwanee, GA 30024 • Phone (770) 338-6000 • Fax (770) 338-6210 ATTESTATION STATEMENT OF CERTIFICATION The technical data supplied with this application, having been taken under my supervision is hereby duly certified. The following is a statement of my qualifications: • 9 years of System Test and Design experience in the field of RF communications systems. • 2 years experience in the field of testing analog and digital cellular systems. Name: Paul J. Schlagheck Signature: Date: 7/29/02 Position: System Test Engineer We hereby certify that the above application was prepared under our direction and that to the best of our knowledge and belief, the facts set forth in the application and accompanying technical data are true and correct: Name: Pieter C. Seidel Signature: Date: 7/29/02 Technical Group Leader of Hardware Verification

Panasonic Matsushita Mobile Communications Development Corporation of U.S.A. FCC ID: NWJ10A008A 1225 Northbrook Parkway • Suite 2-400 • Suwanee, GA 30024 • Phone (770) 338-6000 • Fax (770) 338-6210 Date: 7.29.2002 Authorization & Evaluation Division. Federal Communications Commission Laboratory. 7435 Oakland Mills Road. Columbia, MD 21045. Subject: Application for Type Acceptance of Transmitter with FCC ID: NWJ10A008A Gentlemen: Matsushita Mobile Communications Development Corporation of U.S.A. in Suwanee, Ga., herein submits application for type acceptance of the subject transmitter. This transmitter is intended for use in a Tri-Band GSM cellular telephone application with capabilities for clear communications with a maximum transmit power of 30.0 dBm or 1 W (Variable Power) down to as low as 0.0 dBm or 1.0 mW in PCS GSM Mode. The subject transmitter complies with Section 90.203 of the rules in that the operator cannot directly program transmit frequencies using only the unit's normally accessible external controls. Enclosed is a complete Type Acceptance Application. Contact me (770) 338-6270 if you require any additional information. Best Regards, Pieter C. Seidel Technical Group Leader Systems Test Phone: 770-338-6270 Fax: 770-338-6253

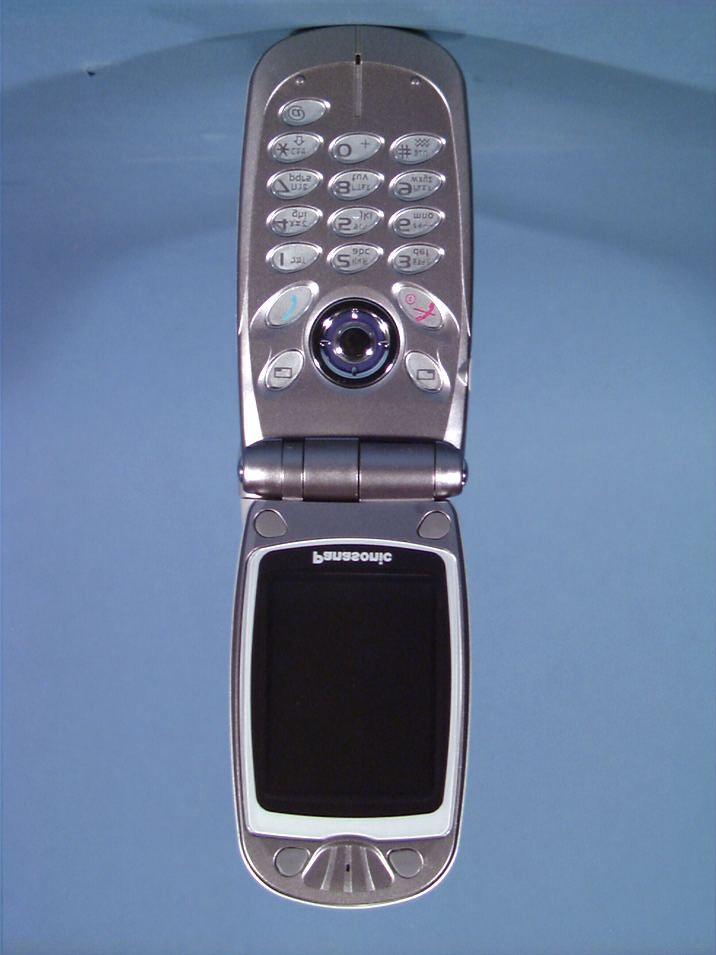

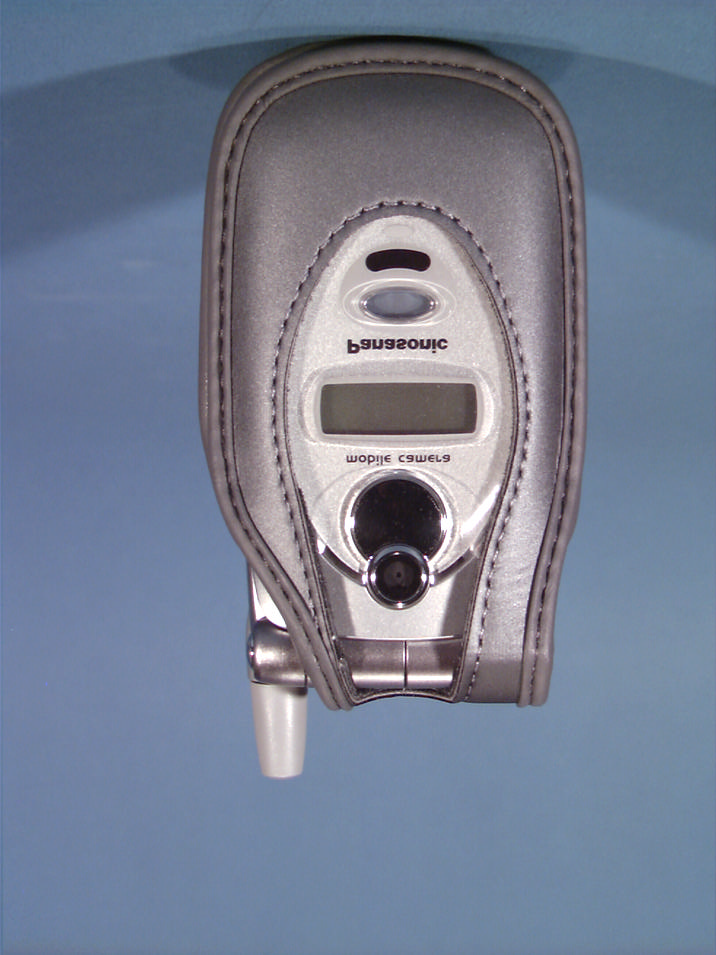

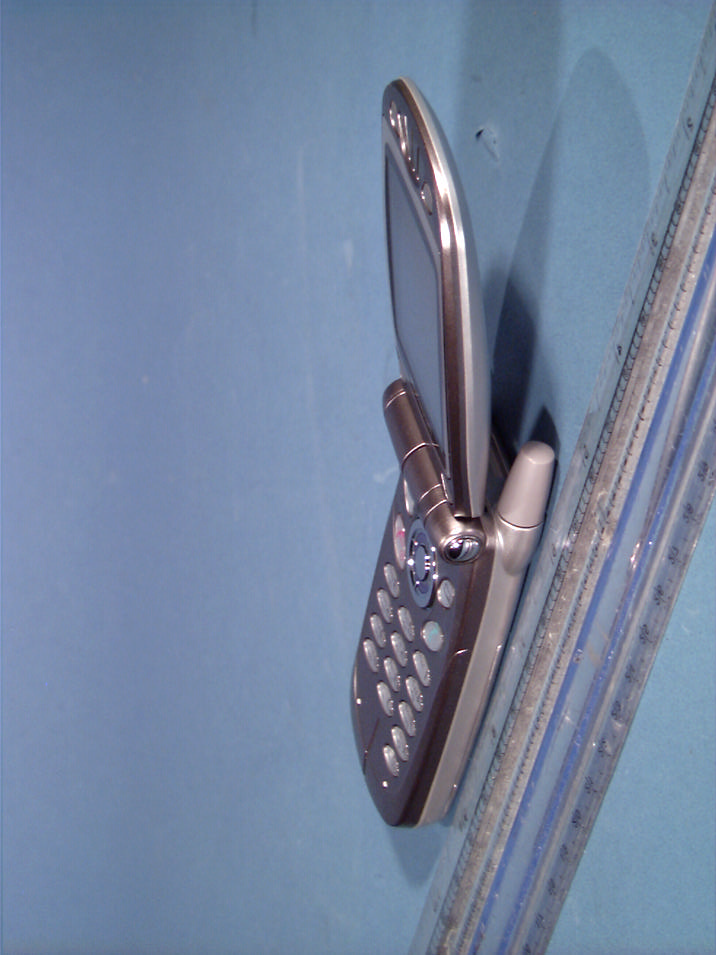

© 2002 PCTEST Lab MATSUSHITA FCC ID: NWJ10A008A Single-Mode PCS GSM Phone (Model: EB-GD87) © 2002 PCTEST Lab MATSUSHITA FCC ID: NWJ10A008A Single-Mode PCS GSM Phone (Model: EB-GD87) © 2002 PCTEST Lab MATSUSHITA FCC ID: NWJ10A008A Single-Mode PCS GSM Phone (Model: EB-GD87) © 2002 PCTEST Lab MATSUSHITA FCC ID: NWJ10A008A Single-Mode PCS GSM Phone (Model: EB-GD87) © 2002 PCTEST Lab MATSUSHITA FCC ID: NWJ10A008A Single-Mode PCS GSM Phone (Model: EB-GD87) © 2002 PCTEST Lab MATSUSHITA FCC ID: NWJ10A008A Single-Mode PCS GSM Phone (Model: EB-GD87) © 2002 PCTEST Lab MATSUSHITA FCC ID: NWJ10A008A Single-Mode PCS GSM Phone (Model: EB-GD87) © 2002 PCTEST Lab MATSUSHITA FCC ID: NWJ10A008A Single-Mode PCS GSM Phone (Model: EB-GD87) © 2002 PCTEST Lab MATSUSHITA FCC ID: NWJ10A008A Single-Mode PCS GSM Phone (Model: EB-GD87) © 2002 PCTEST Lab MATSUSHITA FCC ID: NWJ10A008A Single-Mode PCS GSM Phone (Model: EB-GD87)

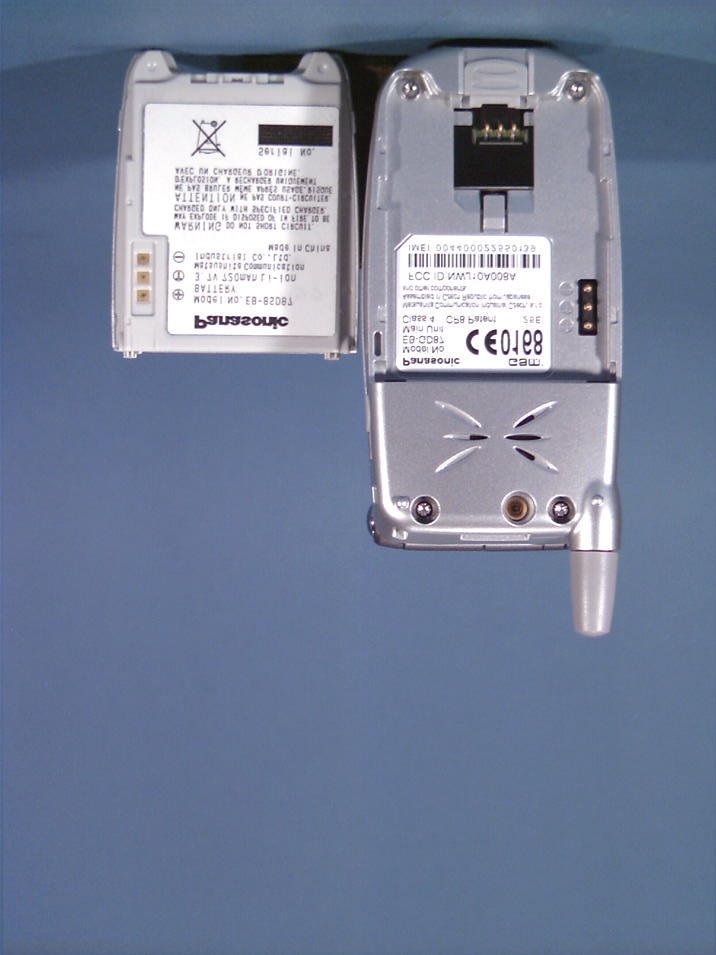

Panasonic Matsushita Mobile Communications Development Corporation of U.S.A. FCC ID: NWJ10A008A IDENTIFICATION LABEL Page 1 of 2 1225 Northbrook Parkway • Suite 2-400 • Suwanee, GA 30024 • Phone (770) 338-6000 • Fax (770) 338-6210 IDENTIFICATION LABEL -- Pursuant 2.983 (f) The label is a paper polyester film laminate with a pressure sensitive adhesive backing. The adhesive is a permanent type. Location of label on the back of the housing can be seen in the exhibit of External Photographs. Label Print is attached on the following page.

© 2002 PCTEST Lab MATSUSHITA FCC ID: NWJ10A008A Single-Mode PCS GSM Phone (Model: EB-GD87) © 2002 PCTEST Lab MATSUSHITA FCC ID: NWJ10A008A Single-Mode PCS GSM Phone (Model: EB-GD87) © 2002 PCTEST Lab MATSUSHITA FCC ID: NWJ10A008A Single-Mode PCS GSM Phone (Model: EB-GD87) © 2002 PCTEST Lab MATSUSHITA FCC ID: NWJ10A008A Single-Mode PCS GSM Phone (Model: EB-GD87) © 2002 PCTEST Lab MATSUSHITA FCC ID: NWJ10A008A Single-Mode PCS GSM Phone (Model: EB-GD87) © 2002 PCTEST Lab MATSUSHITA FCC ID: NWJ10A008A Single-Mode PCS GSM Phone (Model: EB-GD87) © 2002 PCTEST Lab MATSUSHITA FCC ID: NWJ10A008A Single-Mode PCS GSM Phone (Model: EB-GD87) © 2002 PCTEST Lab MATSUSHITA FCC ID: NWJ10A008A Single-Mode PCS GSM Phone (Model: EB-GD87) © 2002 PCTEST Lab MATSUSHITA FCC ID: NWJ10A008A Single-Mode PCS GSM Phone (Model: EB-GD87) © 2002 PCTEST Lab MATSUSHITA FCC ID: NWJ10A008A Single-Mode PCS GSM Phone (Model: EB-GD87) © 2002 PCTEST Lab MATSUSHITA FCC ID: NWJ10A008A Single-Mode PCS GSM Phone (Model: EB-GD87)

Panasonic Matsushita Communication Industrial Co., Ltd GD87 Calibration Specification Date 10 th .Jun.2002 3 rd . July.2002 Issue 0.1 For rev E2 0.2 Prepared by: Yuichi Kimura Approved by: Masamichi Horie Signature: Signature: Position: Senior Engineer Position: Project Leader Authorized by: Hironori Yajin Signature: Position: Manager © Matsushita Communication Industrial Co., This Product Specification is copy right and issued on the strict understanding that it is not to be reproduced, copied, or disclosed to any third party, either in whole or part, without the prior written consent of Matsushita Communication Industrial Co., Limited. The information contained in this Product Specification and all rights in any designs disclosed therein, are and remain the exclusive property of Matsushita Communication Industrial Co., Limited. Summary of changes Change Note Number Date Change Note Number Date Change Note Number Date Rev.0.1 10 th .Jun.2002 Table of Contents 1. INTRODUCTION.............................................................................................................. 3 2. SCOPE............................................................................................................................... 3 3. RELEVANT DOCUMENTS............................................................................................... 3 4. ABBREVIATIONS............................................................................................................. 3 5. RF PART............................................................................................................................ 3 5.1. TRANSMIT POWER OUTPUT LEVEL................................................................................ 3 5.1.1. Purpose.................................................................................................................. 3 5.1.2. Equipment and its condition................................................................................ 3 5.1.3. Initial Condition for units (MS)............................................................................ 3 5.1.4. Calibrating Channel.............................................................................................. 4 5.1.5. Calibration Limit................................................................................................... 5 5.1.6. Procedure............................................................................................................... 7 5.2. RSSI CALIBRATION....................................................................................................... 8 5.2.1. Purpose.................................................................................................................. 8 5.2.2. Equipment and its condition................................................................................ 8 5.2.3. Initial Condition for units (MS)............................................................................ 8 5.2.4. Channel separation of RSSI calibration.............................................................. 8 5.2.5. Procedure............................................................................................................... 9 6. CALIBRATION OF BASEBAND PART.......................................................................... 10 7. BATTERY VOLTAGE AD CALIBRATION..................................................................... 10 7.1. PURPOSE...................................................................................................................... 10 7.2. METHOD...................................................................................................................... 10 8. BATTERY TEMPERATURE AD CALIBRATION........................................................... 11 8.1. PURPOSE.......................................................................................................................11 8.2. METHOD.......................................................................................................................11 9. CHARGING VOLTAGE SET D/A CALIBRATION......................................................... 12 9.1. PURPOSE...................................................................................................................... 12 9.2. METHOD...................................................................................................................... 12 10. CHARGING CURRENT ADC CALIBRATION........................................................... 12 10.1. PURPOSE.................................................................................................................. 12 10.2. METHOD................................................................................................................... 13 11. FREQUENCY PRECISION CHECK OF 32.768KHZ OSCILLATOR........................13 11.1. PURPOSE.................................................................................................................. 13 11.2. METHOD................................................................................................................... 13 12. CAMERA WHITE BALANCE CALIBRATION........................................................... 13 12.1. PURPOSE.................................................................................................................. 13 12.2. METHOD................................................................................................................... 14 13. PARTS LIST................................................................................................................. 14 1. Introduction 2. Scope 3. Relevant Documents — Design Policy Review Documents — RF Control Interface Specification for GD87 — Test and Calibration Specification for GD87 — GSM 05.05, Radio transmission and reception — GSM 11.10,Mobile Station (MS) conformance specification 4. Abbreviations SG Signal Generator PL Power Level RSSI Received Signal Strength Indication AG…

Text truncated - open the document above for the full version.

PCTEST ENGINEERING LABORATORY, INC. 6660 — B Dobbin Road • Columbia, MD 21045 • USA Telephone 410.290.6652 / Fax 410.290.6654 http://www.pctestlab.com (email: [email protected]) CERTIFICATE OF COMPLIANCE (SAR EVALUATION) PCTEST SAR REPORT FCC CERTIFICATION Reviewed by: Quality Manager SAR Filename: SAR-220709360.NWJ Test Dates: July 8-12, 2002 PHONE Type: Single-Band PCS GSM FCC ID: NWJ10A008A Page 1 of 26 © 2002 PCTEST Engineering Laboratory, Inc APPLICANT NAME & ADDRESS: DATE & LOCATION OF TESTING: Matsushita Mobile Communications Dates of Tests: July 8-12, 2002 Development Corporation of USA Test Report S/N: SAR.220709360.NWJ 1225 Northbrook Parkway, Suite 2-400 Test Site: PCTEST Lab, Columbia MD Suwanee, GA 30024 Attn: Pieter C. Seidel, Sr. System Test Engineer FCC ID: NWJ10A008A APPLICANT: MATSUSHITA ELECTRIC INDUSTRIAL CO., LTD. EUT Type: Single-Band PCS GSM Phone Tx Frequency: 1850.2 — 1909.8 MHz (PCS GSM) Rx Frequency: 1930.2 — 1989.8 MHz (PCS GSM) Max. RF Output Power: 1.374 W EIRP PCS GSM (31.381 dBm) / 30.0 dBm Conducted Max. SAR Measurement: 0.982mW/g PCS GSM Head SAR; 0.364mW/g PCS GSM Body SAR Trade Name/Model(s): EB-GD87 FCC Classification: Licensed Portable Transmitter Held to Ear (PCE) FCC Rule Part(s): §2.1093; FCC/OET Bulletin 65 Supplement C [July 2001] Application Type: Certification Test Device Serial No.: identical prototype This wireless portable device has been shown to be capable of compliance for localized specific absorption rate (SAR) for uncontrolled environment/general population exposure limits specified in ANSI/IEEE Std. C95.1-1992 and had been tested in accordance with the measurement procedures specified in FCC/OET Bulletin 65 Supplement C (2001) and IEEE Std. 1528-200X (Draft 6.4, July 2001). I attest to the accuracy of data. All measurements reported herein were performed by me or were made under my supervision and are correct to the best of my knowledge and belief. I assume full responsibility for the completeness of these measurements and vouch for the qualifications of all persons taking them. PCTEST certifies that no party to this application has been denied the FCC benefits pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 862. 220627338.PG6 PCTEST SAR REPORT FCC CERTIFICATION Reviewed by: Quality Manager SAR Filename: SAR-220709360.NWJ Test Dates: July 8-12, 2002 PHONE Type: Single-Band PCS GSM FCC ID: NWJ10A008A Page 2 of 26 © 2002 PCTEST Engineering Laboratory, Inc TABLE OF CONTENTS ATTACHMENT A: COVER LETTER(S) ATTACHMENT B: ATTESTATION STATEMENT(S) ATTACHMENT C: SAR MEASUREMENT REPORT 1. INTRODUCTION ................................................................................................. 3 2. SAR MEASUREMENT SETUP .................................................................................. 4 3. DASY3 E-FIELD PROBE SYSTEM ............................................................................ 5 4. Probe Calibration Process ...................................................................................... 6 5. PHANTOM & EQUIVALENT TISSUES ................................................................... 7 6. TEST SYSTEM SPECIFICATIONS ............................................................................ 8 7. DOSIMETRIC ASSESSMENT & PHANTOM SPECS ................................................. 9 8. DEFINITION OF REFERENCE POINTS................................................................. 10 9. TEST CONFIGURATION POSITIONS.................................................................. 11 10. ANSI/IEEE C95.1 - 1992 RF EXPOSURE LIMITS.................................................. 14 11. MEASUREMENT UNCERTAINTIES ...................................................................... 15 12. SYSTEM VERIFICATION ...................................................................................... 16 13. SAR TEST DATA SUMMARY ................................................................................ 17 14. SAR DATA SUMMARY.................................................................................... 18-23 15. SAR TEST EQUIPMENT ........................................................................................ 24 16. CONCLUSION..................................................................................................... 25 17. REFERENCES ........................................................................................................ 26 ATTACHMENT D: TEST REPORT ATTACHMENT E: EIRP & RADIATED SPURIOUS DATA ATTACHMENT F: FCC ID LABEL / LOCATION ATTACHMENT G: TEST SETUP PHOTOGRAPHS ATTACHMENT H: EXTERNAL PHOTOGRAPHS ATTACHMENT I: INTERNAL PHOTOGRAPHS ATTACHMENT J: BLOCK DIAGRAM(S) ATTACHMENT K: SCHEMATIC DIAGRAM(S) ATTACHMENT L: OPERATIONAL / CIRCUIT DESCRIPTION ATTACHMENT M: PARTS LIST/TUNE UP PROCEDURE ATTACHMENT N: USER’S MANUAL ATTACHMENT O: SAR TEST DATA ATTACHMENT P: SAR TEST SETUP PHOTOGRAPHS ATTACHMENT Q: DIPOLE VALIDATION ATTACHMENT R: PROBE CALIBRATION PCTEST SAR REPORT FCC CERTIFICATION Reviewed by: Quality Manager SAR Filename: SAR-220709360.NWJ Test Dates: July 8-12, 2002 PHONE Type: Single-Band PCS GSM FCC ID: NWJ10A008A Page 3 of 26 © 2002 PCTEST Engineering Laboratory, Inc 1. INTRODUCTION / SAR DEFINITION The FCC has adopted the guidelines for evaluating the environmental effects of radiofrequency radiation in ET Docket 93-62 on Aug. 6, 1996 to protect the public and workers from the potential hazards of RF emissions due to FCC-regulated portable devices.[1] The safety limits used for the environmental evaluation measurements are based on the criteria published by the American National Standards Institute (ANSI) for localized specific absorption rate (SAR) in IEEE/ANSI C95.1-1992 Standard for Safety Levels with Respect to Human Exposure to Radio Frequency Electromagnetic Fields, 3 kHz to 300 GHz. (c) 1992 by the Institute of Electrical and Electronics Engineers, Inc., New York, New York 10017.[2] The measurement procedure described in I…

Text truncated - open the document above for the full version.

PANASONIC FCC ID: NWJ10A008A 1900 MHz PCS GSM Head SAR SAM Phantom; Right Hand Section; Probe:ET3DV6 - SN1677; ConvF(5.30,5.30,5.30) Med. Parameters 1900 MHz Brain: σ = 1.42 mho/m ε r = 41.1 ρ = 1.00 g/cm 3 ; Antenna Position -- Out; Crest Factor 8.0 SAR (1g): 0.982 mW/g, SAR (10g): 0.580 mW/g Panasonic TriMode GSM phone Model: EB-GD87 1900GSM Mode, Ch.512 [1850.2MHz]; Standard Battery; Ambient Temp. = 22.2°C / Meas. Tissue Temp. = 22.1°C Conducted Power = 30.0dBm; Right Head SAR, Cheek Touch position [Flip = open] Test Date -- 07/09/2002 [FCC/OET Bulletin 65 - Supplement C, July 2001] SAR Tot [mW/g] 9.60E-2 2.88E-1 4.80E-1 6.72E-1 8.64E-1 PCTEST Engineering Laboratory, Inc. PANASONIC FCC ID: NWJ10A008A 1900 MHz PCS GSM Head SAR SAM Phantom; Right Hand Section; Probe:ET3DV6 - SN1677; ConvF(5.30,5.30,5.30) Med. Parameters 1900 MHz Brain: σ = 1.42 mho/m ε r = 41.1 ρ = 1.00 g/cm 3 ; Antenna Position -- Out; Crest Factor 8.0 SAR (1g): 0.841 mW/g, SAR (10g): 0.517 mW/g Panasonic TriMode GSM phone Model: EB-GD87 1900GSM Mode, Ch.661 [1880.0MHz]; Standard Battery; Ambient Temp. = 22.2°C / Meas. Tissue Temp. = 22.1°C Conducted Power = 30.0dBm; Right Head SAR, Cheek/Touch position [Flip = open] Test Date -- 07/09/2002 [FCC/OET Bulletin 65 - Supplement C, July 2001] SAR Tot [mW/g] 7.66E-2 2.30E-1 3.83E-1 5.36E-1 6.89E-1 PCTEST Engineering Laboratory, Inc. PANASONIC FCC ID: NWJ10A008A 1900 MHz PCS GSM Head SAR SAM Phantom; Right Hand Section; Probe:ET3DV6 - SN1677; ConvF(5.30,5.30,5.30) Med. Parameters 1900 MHz Brain: σ = 1.42 mho/m ε r = 41.1 ρ = 1.00 g/cm 3 ; Antenna Position -- Out; Crest Factor 8.0 SAR (1g): 0.761 mW/g, SAR (10g): 0.463 mW/g Panasonic TriMode GSM phone Model: EB-GD87 1900GSM Mode, Ch.810 [1909.8MHz]; Standard Battery; Ambient Temp. = 22.2°C / Meas. Tissue Temp. = 22.1°C Conducted Power = 30.0dBm; Right Head SAR, Cheek/Touch position [Flip = open] Test Date -- 07/09/2002 [FCC/OET Bulletin 65 - Supplement C, July 2001] SAR Tot [mW/g] 6.97E-2 2.09E-1 3.49E-1 4.88E-1 6.27E-1 PCTEST Engineering Laboratory, Inc. PANASONIC FCC ID: NWJ10A008A 1900 MHz PCS GSM Head SAR SAM Phantom; Right Hand Section; Probe:ET3DV6 - SN1677; ConvF(5.30,5.30,5.30) Med. Parameters 1900 MHz Brain: σ = 1.42 mho/m ε r = 41.1 ρ = 1.00 g/cm 3 ; Antenna Position -- Out; Crest Factor 8.0 SAR (1g): 0.196 mW/g, SAR (10g): 0.114 mW/g Panasonic TriMode GSM phone Model: EB-GD87 1900GSM Mode, Ch.512 [1850.2MHz]; Standard Battery; Ambient Temp. = 22.2°C / Meas. Tissue Temp. = 22.1°C Conducted Power = 30.0dBm; Right Head SAR, Ear/15° Tilt position [Flip = open] Test Date -- 07/09/2002 [FCC/OET Bulletin 65 - Supplement C, July 2001] SAR Tot [mW/g] 1.77E-2 5.31E-2 8.85E-2 1.24E-1 1.59E-1 PCTEST Engineering Laboratory, Inc. PANASONIC FCC ID: NWJ10A008A 1900 MHz PCS GSM Head SAR SAM Phantom; Right Hand Section; Probe:ET3DV6 - SN1677; ConvF(5.30,5.30,5.30) Med. Parameters 1900 MHz Brain: σ = 1.42 mho/m ε r = 41.1 ρ = 1.00 g/cm 3 ; Antenna Position -- Out; Crest Factor 8.0 SAR (1g): 0.176 mW/g, SAR (10g): 0.105 mW/g Panasonic TriMode GSM phone Model: EB-GD87 1900GSM Mode, Ch.661 [1880.0MHz]; Standard Battery; Ambient Temp. = 22.2°C / Meas. Tissue Temp. = 22.1°C Conducted Power = 30.0dBm; Right Head SAR, Ear/15° Tilt position [Flip = open] Test Date -- 07/09/2002 [FCC/OET Bulletin 65 - Supplement C, July 2001] SAR Tot [mW/g] 1.70E-2 5.10E-2 8.50E-2 1.19E-1 1.53E-1 PCTEST Engineering Laboratory, Inc. PANASONIC FCC ID: NWJ10A008A 1900 MHz PCS GSM Head SAR SAM Phantom; Right Hand Section; Probe:ET3DV6 - SN1677; ConvF(5.30,5.30,5.30) Med. Parameters 1900 MHz Brain: σ = 1.42 mho/m ε r = 41.1 ρ = 1.00 g/cm 3 ; Antenna Position -- Out; Crest Factor 8.0 SAR (1g): 0.163 mW/g, SAR (10g): 0.0931 mW/g Panasonic TriMode GSM phone Model: EB-GD87 1900GSM Mode, Ch.810 [1909.8MHz]; Standard Battery; Ambient Temp. = 22.2°C / Meas. Tissue Temp. = 22.1°C Conducted Power = 30.0dBm; Right Head SAR, Ear/15° Tilt position [Flip = open] Test Date -- 07/09/2002 [FCC/OET Bulletin 65 - Supplement C, July 2001] SAR Tot [mW/g] 1.86E-2 5.58E-2 9.30E-2 1.30E-1 1.67E-1 PCTEST Engineering Laboratory, Inc. PANASONIC FCC ID: NWJ10A008A 1900 MHz PCS GSM Head SAR SAM Phantom; Left Hand Section; Probe:ET3DV6 - SN1677; ConvF(5.30,5.30,5.30) Med. Parameters 1900 MHz Brain: σ = 1.42 mho/m ε r = 41.1 ρ = 1.00 g/cm 3 ; Antenna Position -- Out; Crest Factor 8.0 SAR (1g): 0.749 mW/g, SAR (10g): 0.441 mW/g Panasonic TriMode GSM phone Model: EB-GD87 1900GSM Mode, Ch.512 [1850.2MHz]; Standard Battery; Ambient Temp. = 22.2°C / Meas. Tissue Temp. = 22.1°C Conducted Power = 30.0dBm; Left Head SAR, Cheek/Touch position [Flip = open] Test Date -- 07/09/2002 [FCC/OET Bulletin 65 - Supplement C, July 2001] SAR Tot [mW/g] 7.47E-2 2.24E-1 3.74E-1 5.23E-1 6.72E-1 PCTEST Engineering Laboratory, Inc. PANASONIC FCC ID: NWJ10A008A 1900 MHz PCS GSM Head SAR SAM Phantom; Left Hand Section; Probe:ET3DV6 - SN1677; ConvF(5.30,5.30,5.30) Med. Parameters 1900 MHz Brain: σ = 1.42 mho/m ε r = 41.1 ρ = 1.00 g/cm 3 ; Antenna Position -- Out; Crest Factor 8.0 SAR (1g): 0.644 mW/g, SAR (10g): 0.384 mW/g Panasonic TriMode GSM phone Model: EB-GD87 1900GSM Mode, Ch.661 [1880.0MHz]; Standard Battery; Ambient Temp. = 22.2°C / Meas. Tissue Temp. = 22.1°C Conducted Power = 30.0dBm; Left Head SAR, Cheek/Touch position [Flip = open] Test Date -- 07/09/2002 [FCC/OET Bulletin 65 - Supplement C, July 2001] SAR Tot [mW/g] 6.04E-2 1.81E-1 3.02E-1 4.23E-1 5.44E-1 PCTEST Engineering Laboratory, Inc. PANASONIC FCC ID: NWJ10A008A 1900 MHz PCS GSM Head SAR SAM Phantom; Left Hand Section; Probe:ET3DV6 - SN1677; ConvF(5.30,5.30,5.30) Med. Parameters 1900 MHz Brain: σ = 1.42 mho/m ε r = 41.1 ρ = 1.00 g/cm 3 ; Antenna Position -- Out; Crest Factor 8.0 SAR (1g): 0.628 mW/g, SAR (10g): 0.378 mW/g Panasonic TriMode GSM phone Model: EB-GD87 1900GSM Mode, Ch.810 [1909.6MHz]; Standard Battery; Ambient Temp. = 22.2°C / Meas. Tissue Temp. = 22.1°C Conducted Power = 30.0dBm; Left Head SAR, Cheek/Touch position [Flip = open] Test Date…

Text truncated - open the document above for the full version.

1900MHz Brain Dipole Validation SAM Phantom; Flat Section; Probe:ET3DV6 - SN1677; ConvF(5.30,5.30,5.30) Med. Parameters 1900 MHz Brain: σ = 1.42 mho/m ε r = 41.1 ρ = 1.00 g/cm 3 ; Antenna Position -- Out; Crest Factor 1.0 SAR (1g):10.1 mW/g, SAR (10g): 5.21 mW/g 1900MHz Brain Dipole Validation (D1900V2 S/N: 502) Frequency: 1900 MHz; Antenna Input Power: 250 [mW]; Ambient Temp. = 22.2°C / Meas. Tissue Temp. = 22.1°C PCTEST Brain Tissue Simulating Liquid [07/09/2002] SAR Tot [mW/g] 9.88E-1 2.97E+0 4.93E+0 6.93E+0 8.89E+0 PCTEST Engineering Laboratory, Inc.

© 2002 PCTEST Lab MATSUSHITA FCC ID: NWJ10A008A Single-Mode PCS GSM Phone (Model: EB-GD87) © 2002 PCTEST Lab MATSUSHITA FCC ID: NWJ10A008A Single-Mode PCS GSM Phone (Model: EB-GD87) © 2002 PCTEST Lab MATSUSHITA FCC ID: NWJ10A008A Single-Mode PCS GSM Phone (Model: EB-GD87) © 2002 PCTEST Lab MATSUSHITA FCC ID: NWJ10A008A Single-Mode PCS GSM Phone (Model: EB-GD87) © 2002 PCTEST Lab MATSUSHITA FCC ID: NWJ10A008A Single-Mode PCS GSM Phone (Model: EB-GD87) © 2002 PCTEST Lab MATSUSHITA FCC ID: NWJ10A008A Single-Mode PCS GSM Phone (Model: EB-GD87) © 2002 PCTEST Lab MATSUSHITA FCC ID: NWJ10A008A Single-Mode PCS GSM Phone (Model: EB-GD87) © 2002 PCTEST Lab MATSUSHITA FCC ID: NWJ10A008A Single-Mode PCS GSM Phone (Model: EB-GD87) © 2002 PCTEST Lab MATSUSHITA FCC ID: NWJ10A008A Single-Mode PCS GSM Phone (Model: EB-GD87) © 2002 PCTEST Lab MATSUSHITA FCC ID: NWJ10A008A Single-Mode PCS GSM Phone (Model: EB-GD87)

© 2002 PCTEST Lab MATSUSHITA FCC ID: NWJ10A008A Single-Mode PCS GSM Phone (Model: EB-GD87) © 2002 PCTEST Lab MATSUSHITA FCC ID: NWJ10A008A Single-Mode PCS GSM Phone (Model: EB-GD87) © 2002 PCTEST Lab MATSUSHITA FCC ID: NWJ10A008A Single-Mode PCS GSM Phone (Model: EB-GD87) © 2002 PCTEST Lab MATSUSHITA FCC ID: NWJ10A008A Single-Mode PCS GSM Phone (Model: EB-GD87) © 2002 PCTEST Lab MATSUSHITA FCC ID: NWJ10A008A Single-Mode PCS GSM Phone (Model: EB-GD87) © 2002 PCTEST Lab MATSUSHITA FCC ID: NWJ10A008A Single-Mode PCS GSM Phone (Model: EB-GD87) © 2002 PCTEST Lab MATSUSHITA FCC ID: NWJ10A008A Single-Mode PCS GSM Phone (Model: EB-GD87) © 2002 PCTEST Lab MATSUSHITA FCC ID: NWJ10A008A Single-Mode PCS GSM Phone (Model: EB-GD87) © 2002 PCTEST Lab MATSUSHITA FCC ID: NWJ10A008A Single-Mode PCS GSM Phone (Model: EB-GD87) © 2002 PCTEST Lab MATSUSHITA FCC ID: NWJ10A008A Single-Mode PCS GSM Phone (Model: EB-GD87) © 2002 PCTEST Lab MATSUSHITA FCC ID: NWJ10A008A Single-Mode PCS GSM Phone (Model: EB-GD87)

Panasonic Matsushita Mobile Communications Development Corporation of U.S.A. FCC ID: NWJ10A008A Conducted Test Report FCC ID: NWJ10A008A Test Standards- FCC Part 24 Conducted Test Report Page 1 of 20 1225 Northbrook Parkway • Suite 2-400 • Suwanee, GA 30024 • Phone (770) 338-6000 • Fax (770) 338-6210 Panasonic Matsushita Mobile Communications Development Corporation of U.S.A. FCC ID: NWJ10A008A Table of Contents RF Power Output............................................................................................................................................3 Conducted Occupied Bandwidth – 1900 MHz GSM.....................................................................................4 Data............................................................................................................................................................4 Worst Case Channel 810............................................................................................................................4 99% Occupied Bandwidth......................................................................................................................4 Conducted Spurious Emission – 1900 MHz GSM.........................................................................................5 Channel 512................................................................................................................................................5 9KHz -1.84 GHz.....................................................................................................................................5 1.84 GHz -1.85 GHz...............................................................................................................................6 1.86 GHz - 7.00 GHz..............................................................................................................................7 7.00 GHz - 20.00 GHz............................................................................................................................8 Channel 661................................................................................................................................................9 9KHz -1.876 GHz...................................................................................................................................9 1.876 GHz -1.87898 GHz.....................................................................................................................10 1.89 GHz - 7.00 GHz............................................................................................................................11 7.00 GHz - 20.00 GHz..........................................................................................................................12 Channel 810..............................................................................................................................................13 9KHz -1.90 GHz...................................................................................................................................13 1.90 GHz -1.90898 GHz.......................................................................................................................14 1.92 GHz - 7.00 GHz............................................................................................................................15 7.00 GHz - 20.00 GHz..........................................................................…

Text truncated - open the document above for the full version.
