AT&T Wireless Services Wireless Local Technologies Group PO Box 97059 Redmond, WA 98073-9759 Base FCC Regulatory Test Report FCC Type Acceptance Application 10991 Revision 1.0 06/24/99 Base FCC Regulatory Test Report -2 AT&T Proprietary (Restricted)AT&T Wireless Services Solely for authorized persons having a needFCC Type Acceptance Application AT&T Project PCS Informationto know pursuant to Company Instructions10991 Rev. 1.0 7/6/99 © 1995-1999 AT&T Wireless Services All rights reserved. The following are trade names, trademarks, or registered trademarks of their respective companies: Version History DateVersionSeq.Description 06/15/991.03Authors: Keith Peavler, Scott Prather, Brian McAdams For additional copies of this document, please contact: AT&T Wireless Services PO Box 97059 Redmond, WA 98073-9759 Telephone: 425-702-2841 Facsimile: 425-702-2576 Ask for Base FCC Regulatory Test Report FCC Type Acceptance Application or 10991. Chapter 1: Attestation Statements AT&T Wireless Services 1-3 FCC Type Acceptance Application 10991 Rev. 1.0 7/6/99 Chapter 1 Attestation Statements Base FCC Regulatory Test Report 1-4 AT&T Wireless Services FCC Type Acceptance Application 10991 Rev. 1.0 7/6/99 AT&T Wireless Services Wireless Local Technologies Group PO Box 97059 Redmond. W 98073-9759 425-702-2500 'DWH„ ̋-XQH ̋ÎËÒ ̋ω‰‰ )HGHUDO ̋&RPPXQLFDWLRQV ̋&RPPLVVLRQ $WWQÔ„ ̋3URGXFW ̋7\SH ̋$SSURYDO ̋'HSDUWPHQW ÊÈÍË ̋2DNODQG ̋0LOOV ̋5GÔ &ROXPELD ̋0' ̋ÎÏÌÈÁ 7R ̋:KRP ̋,W ̋0D\ ̋&RQFHUQ„ 7KLV ̋HTXLSPHQW ̋KDV ̋EHHQ ̋WHVWHG ̋LQ ̋DFFRUGDQFH ̋ZLWK ̋WKH ̋UHTXLUHPHQWV ̋FRQWDLQHG ̋LQ ̋WKH ̋DSSURSULDWH ̋&RPPLVVLRQ UHJXODWLRQVÔ ̋7R ̋WKH ̋EHVW ̋RI ̋RXU ̋NQRZOHGJHÒ ̋WKHVH ̋WHVWV ̋ZHUH ̋SHUIRUPHG ̋XVLQJ ̋PHDVXUHPHQW ̋SURFHGXUHV ̋FRQVLVWHQW ZLWK ̋LQGXVWU\ ̋RU ̋&RPPLVVLRQ ̋VWDQGDUGV ̋DQG ̋GHPRQVWUDWH ̋WKDW ̋WKH ̋HTXLSPHQW ̋FRPSOLHV ̋ZLWK ̋WKH ̋DSSURSULDWH ̋VWDQ GDUGVÔ ̋(DFK ̋XQLW ̋PDQXIDFWXUHGÒ ̋LPSRUWHG ̋RU ̋PDUNHWHG ̋DV ̋GHILQHG ̋LQ ̋WKH ̋&RPPLVVLRQˆV ̋UHJXODWLRQVÒ ̋ZLOO ̋FRQIRUP WR ̋WKH ̋VDPSOHıVÙ ̋WHVWHG ̋ZLWKLQ ̋WKH ̋YDULDWLRQ ̋WKDW ̋FDQ ̋EH ̋H[SHFWHG ̋GXH ̋WR ̋WKH ̋TXDQWLW\ ̋SURGXFHG ̋DQG ̋WHVWLQJ ̋RQ ̋D ̋VWD WLVWLFDO ̋ EDVLVÔ ̋ 7KH ̋ WHVW ̋ UHVXOWV ̋ DQG ̋ FRQFOXVLRQV ̋ DFFRPSDQLHG ̋ ZLWK ̋ WKLV ̋ 7\SH ̋ $FFHSWDQFH ̋ $SSOLFDWLRQ ̋ DQG ̋ WHVW UHSRUW ̋DUH ̋FHUWLILHG ̋WR ̋EH ̋WUXH ̋DQG ̋FRUUHFWÒ ̋KDYLQJ ̋EHHQ ̋WDNHQ ̋SHUVRQDOO\ ̋RU ̋XQGHU ̋WKH ̋VXSHUYLVLRQ ̋RI ̋WKH ̋XQGHU VLJQHG ̋LQGLYLGXDOVÔ Chapter 2: Block Diagrams AT&T Wireless Services 2-5 FCC Type Acceptance Application 10991 Rev. 1.0 7/6/99 Chapter 2 Block Diagrams Overview This section includes block diagrams. Contents 2.1Block Diagrams . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-6 2.2Clock Frequencies. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-10 Base FCC Regulatory Test Report 2-6 AT&T Proprietary (Restricted)AT&T Wireless Services Solely for authorized persons having a needFCC Type Acceptance Application AT&T Project PCS Informationto know pursuant to Company Instructions10991 Rev. 1.0 7/6/99 2.1 Block Diagrams Figure 2.1— Base Unit RF Front End Assembly Block Diagram Chapter 2: Block Diagrams AT&T Wireless Services AT&T Proprietary (Restricted) 2-7 FCC Type Acceptance ApplicationSolely for authorized persons having a need 10991 Rev. 1.0 3/9/99to know pursuant to Company Instructions AT&T Project PCS Information Figure 2.2— Base Unit Transmitter Block Diagram Base FCC Regulatory Test Report 2-8 AT&T Proprietary (Restricted)AT&T Wireless Services Solely for authorized persons having a needFCC Type Acceptance Application AT&T Project PCS Informationto know pursuant to Company Instructions10991 Rev. 1.0 7/6/99 Figure 2.3— Base Unit Receiver Block Diagram Chapter 2: Block Diagrams AT&T Wireless Services 2-9 FCC Type Acceptance Application 10991 Rev. 1.0 7/6/99 Figure 2.4— LO card Notes: LO-RF (1763-1823 MHz) ZF-LOH (163 MHz) ZF-LOL (83 MHz) Chapter 2: Block Diagrams AT&T Wireless Services AT&T Proprietary (Restricted) 2-10 FCC Type Acceptance ApplicationSolely for authorized persons having a need 10991 Rev. 1.0 3/9/99to know pursuant to Company Instructions AT&T Project PCS Information Figure 2.5 shows the 10 MHz clock inputs from the sync card and the 32 MHz clock input from the BBC.Figure 2.5— TRS Shelf Chapter 2: Block Diagrams AT&T Wireless Services AT&T Proprietary (Restricted) 2-11 FCC Type Acceptance ApplicationSolely for authorized persons having a need 10991 Rev. 1.0 3/9/99to know pursuant to Company Instructions AT&T Project PCS Information PWAN Base Digital Clock Block DiagramFigure 2.6— PWAN Base Digital Clock Block Diagram Base FCC Regulatory Test Report 2-12 AT&T Wireless Services FCC Type Acceptance Application 10991 Rev. 1.0 7/6/99 2.2Clock Frequencies 7DEOH514#&/2&.#)5(48(1&,(6 CardSignalQtyConductedDestination Pri. SYNC16.384 MHz TTL Square16BackplanePri. TSI Red. TSI NIF 1 NIF 2 NIF 3 NIF 4 NIF 5 NIF 6 NIF 7 NIF 8 NIF 9 NIF 10 Pri. ICP Red. ICP Spare ICP NMP Pri. SYNC8kHz FS TTL16BackplanePri. TSI Red. TSI NIF 1 NIF 2 NIF 3 NIF 4 NIF 5 NIF 6 NIF 7 Chapter 2: Block Diagrams AT&T Wireless Services 2-13 FCC Type Acceptance Application 10991 Rev. 1.0 7/6/99 NIF 8 NIF 9 NIF 10 Pri. ICP Red. ICP Spare ICP Pri. SYNC1.544 MHz TTL Square10BackplaneNIF 1 NIF 2 NIF 3 NIF 4 NIF 5 NIF 6 NIF 7 NIF 8 NIF 9 NIF 10 Pri. SYNC10 MHz Sinewave4 COAXXCVR 1 XCVR 2 XCVR 3 Ext. Ref Pri. SYNC32 MHz TTL Square3LVDS CabledBBC 1 BBC 2 BBC R Pri. SYNC250kHz TTL Square3LVDS CabledBBC 1 BBC 2 BBC R Pri. SYNC375 uS TTL3LVDS CabledBBC 1 7DEOH514#&/2&.#)5(48(1&,(6 CardSignalQtyConductedDestination Base FCC Regulatory Test Report 2-14 AT&T Wireless Services FCC Type Acceptance Application 10991 Rev. 1.0 7/6/99 BBC 2 BBC R Pri. SYNCPacket Count TTL3LVDS CabledBBC 1 BBC 2 BBC R Red. SYNC16.384 MHz TTL Square16BackplanePri. TSI Red. TSI NIF 1 NIF 2 NIF 3 NIF 4 NIF 5 NIF 6 NIF 7 NIF 8 NIF 9 NIF 10 Pri. ICP Red. ICP Spare ICP NMP Red. SYNC8kHz FS TTL16BackplanePri. TSI Red. TSI NIF 1 NIF 2 NIF 3 NIF 4 NIF 5 7DEOH…

Text truncated - open the document above for the full version.

Chapter 1: Attestation Statements AT&T Wireless Services 1-3 FCC Type Acceptance Application 10991 Rev. 1.0 7/7/99 Chapter 1 Attestation Statements Base FCC Regulatory Test Report 1-4 AT&T Wireless Services FCC Type Acceptance Application 10991 Rev. 1.0 7/7/99 AT&T Wireless Services Wireless Local Technologies Group PO Box 97059 Redmond. W 98073-9759 425-702-2500 'DWH„ ̋-XQH ̋ÎÍÒ ̋ω‰‰ )HGHUDO ̋&RPPXQLFDWLRQV ̋&RPPLVVLRQ $WWQÔ„ ̋3URGXFW ̋7\SH ̋$SSURYDO ̋'HSDUWPHQW ÊÈÍË ̋2DNODQG ̋0LOOV ̋5GÔ &ROXPELD ̋0' ̋ÎÏÌÈÁ 7R ̋:KRP ̋,W ̋0D\ ̋&RQFHUQ„ 7KLV ̋HTXLSPHQW ̋KDV ̋EHHQ ̋WHVWHG ̋LQ ̋DFFRUGDQFH ̋ZLWK ̋WKH ̋UHTXLUHPHQWV ̋FRQWDLQHG ̋LQ ̋WKH ̋DSSURSULDWH ̋&RPPLVVLRQ UHJXODWLRQVÔ ̋7R ̋WKH ̋EHVW ̋RI ̋RXU ̋NQRZOHGJHÒ ̋WKHVH ̋WHVWV ̋ZHUH ̋SHUIRUPHG ̋XVLQJ ̋PHDVXUHPHQW ̋SURFHGXUHV ̋FRQVLVWHQW ZLWK ̋LQGXVWU\ ̋RU ̋&RPPLVVLRQ ̋VWDQGDUGV ̋DQG ̋GHPRQVWUDWH ̋WKDW ̋WKH ̋HTXLSPHQW ̋FRPSOLHV ̋ZLWK ̋WKH ̋DSSURSULDWH ̋VWDQ GDUGVÔ ̋(DFK ̋XQLW ̋PDQXIDFWXUHGÒ ̋LPSRUWHG ̋RU ̋PDUNHWHG ̋DV ̋GHILQHG ̋LQ ̋WKH ̋&RPPLVVLRQˆV ̋UHJXODWLRQVÒ ̋ZLOO ̋FRQIRUP WR ̋WKH ̋VDPSOHıVÙ ̋WHVWHG ̋ZLWKLQ ̋WKH ̋YDULDWLRQ ̋WKDW ̋FDQ ̋EH ̋H[SHFWHG ̋GXH ̋WR ̋WKH ̋TXDQWLW\ ̋SURGXFHG ̋DQG ̋WHVWLQJ ̋RQ ̋D ̋VWD WLVWLFDO ̋ EDVLVÔ ̋ 7KH ̋ WHVW ̋ UHVXOWV ̋ DQG ̋ FRQFOXVLRQV ̋ DFFRPSDQLHG ̋ ZLWK ̋ WKLV ̋ 7\SH ̋ $FFHSWDQFH ̋ $SSOLFDWLRQ ̋ DQG ̋ WHVW UHSRUW ̋DUH ̋FHUWLILHG ̋WR ̋EH ̋WUXH ̋DQG ̋FRUUHFWÒ ̋KDYLQJ ̋EHHQ ̋WDNHQ ̋SHUVRQDOO\ ̋RU ̋XQGHU ̋WKH ̋VXSHUYLVLRQ ̋RI ̋WKH ̋XQGHU VLJQHG ̋LQGLYLGXDOVÔ

Chapter 9: RF Exposure Information AT&T Wireless Services 9-195 FCC Type Acceptance Application 10991 Rev. 1.0 7/6/99 Chapter 9 RF Exposure Information Overview This chapter contains information as to how the product was determined compliant with FCC Part 24 subsection 24.51 Contents 9.1RF Human Exposure—Typical Installation Site MPE . . . . . . . . . 9-192 Base FCC Regulatory Test Report 9-196 AT&T Wireless Services FCC Type Acceptance Application 10991 Rev. 1.0 7/6/99 9.1RF Human Exposure - FDTD Analysis and SAR Testing 9.1.1Applicable FCC Rules FCC Subpart 24.51 - Applications for Type Approval of transmitters operating within the PCS region must determine that the equipment complies with IEEE C95.1-1991, “IEEE Standards for Safety Levels with Respect to Human Exposure to Radio Frequency Electromagnetic Fields, 3 kHz to 300 GHz” as measured using methods specified in IEEE C95.3 - 1991, “Recommended Practice for the Measurement of Potentially Hazardous Electromagnetic Fields - RF and Microwave.” 9.1.2Typical Test Configuration This MPE analysis was completed for a worse case situation, with a typical roof top antenna (six feet high) PWAN Base Station installation. Characteristics used for this typical MPE are shown in Table 9.1. Each PWAN Base Station installed will include an MPE analysis with data and required paperwork being stored and filed with the FCC as per regulatory requirements. 9.1.3Typical MPE Test Results The PWAN Base Station meets the required FCC regulatory part 24 requirements as shown in the following figures. Figure 9.1 illustrates horizontal distance versus power density, while Figure 9.2 provides graphical data of horizontal distance versus uncontrolled MPE. As shown in Table 9.2, a typical PWAN Base installation meets FCC MPE requirements. Per regulations, all installations will include an MPE analysis with data being stored and filed appropriately. Chapter 9: RF Exposure Information AT&T Wireless Services 9-197 FCC Type Acceptance Application 10991 Rev. 1.0 7/6/99 Figure 9.1— Power Density vs. Horizontal Distance Figure 9.2— Uncontrolled MPE vs. Horizontal Distance ÌÔÌÏ ÌÔÏ Ï ÏÌ ÏÌÌ ÏÌÌÌ ÏÌÌÌÌ ÌÔÏÏÏÌÏÌÌÏÌÌÌÏÌÌÌÌ +R UL]R QWDO ̋' LVWD QFH ̋IURP ̋$ QWHQQDÒ ̋IW 3RZHU ̋' HQVLW\Ò ZÓFP Î ÏÌÌ ̄ ̋RI ̋&RQWUROOHG ̋/LP LW ÏÌÌ ̋ ̄ ̋RI ̋8QFRQWUROOHG ̋)&& ̋/LPLW Ë ̋ ̄ ̋RI ̋8QFRQWUROOHG ̋)&& ̋/LP LW ÎÌ ̋FP ̋ıÔÁËÁ ̋IWÙ 3UHGLFWHG ̋3RZHU ̋'HQVLW\ ÌÔÌÌÏ ÌÔÌÏ ÌÔÏ Ï ÏÌ ÏÌÌ ÏÌÌÌ ÌÔÏÏÏÌÏÌÌÏÌÌÌÏÌÌÌÌ +RUL]RQWDO ̋' LVWDQFH ̋)URP ̋$ QWHQQDÒ ̋IW ̄ ̋8QF R QWUR OOH G ̋0 3 ( ÏÌÌ ̄ ̋RI ̋&RQWUROOHG ̋/LPLW ÏÌÌ ̄ ̋RI ̋8QFRQWUROOHG ̋0 3( Ë ̋ ̄ ̋RI ̋8QFRQWUROOHG ̋0 3( ÎÌ ̋FP ̋ıÌÔÁËÁ ̋IWÙ 3UHGLFWHG ̋3RZHU ̋'HQVLW\ Base FCC Regulatory Test Report 9-198 AT&T Wireless Services FCC Type Acceptance Application 10991 Rev. 1.0 7/6/99 Figure 9.3— Initial Values used for MPE Figure 9.4— Typical MPE Results XQLWV9DOXH )UHTXHQF\0+]ωÈËÔË ̇ ̋RI ̋&KDQQHOV ̇Ï 0D[ ̋(53Ó&K:DWWVÎÔÌÈÊ 0D[ ̋3ZUÓ&K ̋,QWR ̋$QWÔ:DWWVÌÔÌ‰Ï %6 ̋+HLJKW ı&HQWHU ̋RI ̋5DGLDWRUÙ ̋IHHWÁ &DOFXODWLRQ ̋3RLQW IHHWÁ ̋ ̋ıDERYH ̋JURXQG ̋RU ̋ ̋URRI ̋VXUIDFHÙ $QWHQQD ̋0RGHO ̋1RÔ)5ÏÁÌÌ3 0D[ ̋$QW ̋*DLQG%GÏÍÔË 'RZQ ̋WLOWGHJUHHVÌ 0LVFHOODQHRXV ̋$WWÔG%Ì +HLJKW ̋RI ̋DSHUWXUHIHHWÈ $QW ̋+ ̋3ODQH Í ̋G% ̋%HDPZLGWK GHJUHHV‰Ì 'LVWDQFH ̋WR ̋$QW ERWWRP IHHWÎ :26" ̋<Ó1"Q 3RZHU ̋'HQVLW\#+RUL]Ô ̋'LVWÔ P :ÓFP Î ̄ ̋RI ̋OLP LWIH H W 0D[LPXP ̋3RZHU ̋'HQVLW\ ̋ ̋ÎÁÎÔÌÂÎÁÔÎÏÌÔÁÁ ÍÔÂÎ WLPHV ̋ORZHU ̋WKDQ ̋WKH ̋03( ̋OLPLW ̋IRU ̋XQFRQWUROOHG ̋HQYLURQPHQW &RPSRVLWH ̋3RZHU ̋ı(53Ù ̋ ̋ ÍÁÔÂË ̋:DWWV 6LWH ̋,'„ %DVH ̋;;6HFWRU„ $ 6LWH ̋1DPH„ 7\SLFDO ̋VLWH 6LWH ̋/RFDWLRQ„ 'DOODV ̋7;Ò ̋86$

Chapter 3: Cover Letters AT&T Wireless Services 3-25 FCC Type Acceptance Application 10991 Rev. 1.0 7/6/99 . Chapter 3 Cover Letters Overview This section describes functional product interaction with other products pending FCC approval. Contents 3.1 PWAN Base Station-—System Dependent Products . . . . . . . . . . .. 3-12 Base FCC Regulatory Test Report 3-26 AT&T Wireless Services FCC Type Acceptance Application .10991 Rev. 1.0 7/6/99 3.1PWAN Base Station—System Dependent Products This unit, the PWAN Base, comprises the second half of the PWAN System. Currently the Remote Unit has been tested and is undergoing FCC evaluation for Type Approval. The Remote Unit is located at remote residences and, in concert with the PWAN Base, completes the PWAN System. This PWAN Base Type Approval is for a Class A commercial product that will function in concert with the aforementioned Remote Unit to complete the PWAN System, providing wireless loop service.

AT&T Wireless Services Wireless Local Technologies Group PO Box 97059 Redmond, WA 98073-9759 Base FCC Regulatory Test Report FCC Type Acceptance Application 10991 Revision 1.0 07/07/99 Base FCC Regulatory Test Report -2 AT&T Proprietary (Restricted)AT&T Wireless Services Solely for authorized persons having a needFCC Type Acceptance Application AT&T Project PCS Informationto know pursuant to Company Instructions10991 Rev. 1.0 7/7/99 © 1995-1999 AT&T Wireless Services All rights reserved. The following are trade names, trademarks, or registered trademarks of their respective companies: Version History DateVersionSeq.Description 06/15/991.03Authors: Keith Peavler, Scott Prather, Brian McAdams For additional copies of this document, please contact: AT&T Wireless Services PO Box 97059 Redmond, WA 98073-9759 Telephone: 425-702-2841 Facsimile: 425-702-2576 Ask for Base FCC Regulatory Test Report FCC Type Acceptance Application or 10991.

AT&T Wireless Services, Inc. 1150 Connecticut Avenue, N.W., 4 th Floor Washington, DC 20036 September 2, 1999 Federal Communications Commission Product Equipment Approval Department 7435 Oakland Mills Road Columbia, MD 21046 In re:AT&T Wireless Services, Inc. Form 731 Confirmation Number EA95308 FCC ID: OF2FWBASE To Whom It May Concern: On August 31, 1999, AT&T Wireless Services, Inc. (“AWS”) submitted electronically, an FCC Form 731 application for equipment code PCB, Licensed Base Station For Part 24. At the time of filing AWS inadvertently duplicated the first 3 digits of the FCC ID number. AWS hereby respectfully requests that the FCC ID for its application (Confirmation number EA95308) be corrected to read “OF2FWBASE.” Should there be any questions please contact Lisa M. Volpe at 202-416-6519.

RESPONSE TO FCC QUESTIONS FCC Application Processing Branch Re:FCC ID OF2FWBASE Applicant:AT&T Wireless Services, Inc. Correspondence Reference Number:10275 731 Confirmation Number:EA95308 Date of Original E-Mail:10/20/1999 1. While you listed an output power of 50 W, measurements indicate a peak output of 13.8 W. Given the "1 dB" (20%) policy, I can grant a value of up to about 17 W, based on this measured value. Please address. The testing was completed at the antenna terminal on one sector of the Base. Therefore this is acceptable for each sector of the Base. We would like the grant to list the output power at approximately 43 dBm pk and 35 dBm avg (this meets our tested 7 dBm peak/avg ratio). 2. What is the actual tuning range of the EUT (low channel center frequency thru hi channel center frequency)? This is what is actually listed on the grant. Were the low and hi channels the ones tested for bandedge compliance? Yes, the high and low were tested for compliance. Each sector uses a 1 Mhz band.......the center frequency of the entire 5 Mhz band is 1948 Mhz (this is what we would like the grant to say).

To:Greg Czumak [email protected] FCC Application Processing Branch Re:FCC ID OF2FWBASE Applicant:AT&T Wireless Services, Inc. Correspondence Reference Number:10998 731 Confirmation Number:EA95308 Date of Original E-Mail:12/13/1999 1. As I stated in my last e-mail, having measured 13.8 W output power, I can grant up to 17 W under our policy. You state that you would like the grant to list 20 W (43 dBm). Measurement data does not support this value. Either a value between 13.8 and 17 W will be listed, or you must submit new test data to support your request of 20 W. Please address. Sorry about the confusion, please list at 42.3 dBm or 17 W. 2. You did not answer my second question completely. I asked what the actual tuning range of the EUT is, center frequency of the lowest available 1 MHz "sector" through the center frequency of the highest available 1 MHz "sector". This is the range that will be listed on the grant. To what "5 MHz band" do you refer in your response? Are you referring to Frequency Block D (1945-1950 MHz)? Yes, its Frequency Block D...with a center frequency tuning range of 1946 MHz - 1949 MHz. Thank you for your time and effort.

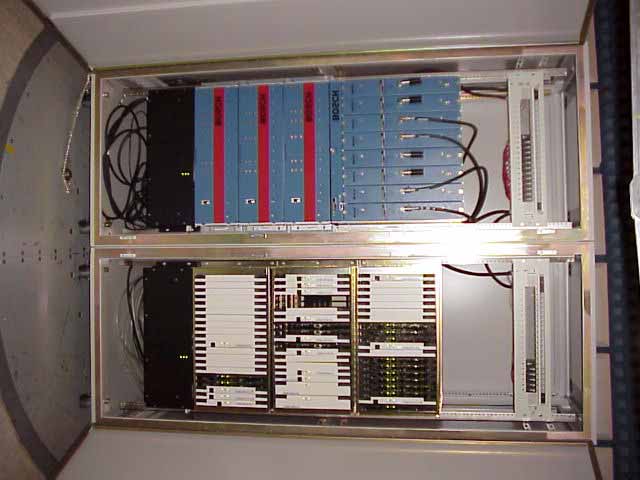

Chapter 4: External Photographs AT&T Wireless Services 4-27 FCC Type Acceptance Application 10991 Rev. 1.0 7/6/99 Chapter 4 External Photographs Overview This section contains external photographs of the PWAN Base Station. Contents 4.1External Photographs . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-28 Base FCC Regulatory Test Report 4-28 AT&T Wireless Services FCC Type Acceptance Application 10991 Rev. 1.0 7/6/99 4.1External Photographs The front view of the PWAN Base Station shows internal access via double doors. The double cabinet may be separated for various installation considerations with independent casters for additional mobility. Figure 4.1— Front corner view of the PWAN Base Station Chapter 4: External Photographs AT&T Wireless Services 4-29 FCC Type Acceptance Application 10991 Rev. 1.0 7/6/99 The back of the PWAN Base Cabinet contains airflow ventilation as shown in figure 4.2. Figure 4.2— Side view of the PWAN Base Cabinet Base FCC Regulatory Test Report 4-30 AT&T Wireless Services FCC Type Acceptance Application 10991 Rev. 1.0 7/6/99 The PWAN Base Station, as shown in figure 4.3, separates digital functionality to the left and the RF functionalities to the right for separation at various installations. Each cabinet is independently powered with circuit breaker protection and air-moving devices. Figure 4.3— Open doors front view of PWAN Base Station Chapter 4: External Photographs AT&T Wireless Services 4-31 FCC Type Acceptance Application 10991 Rev. 1.0 7/6/99 The interconnecting cabling between the digital and RF cabinets are shown in figure 4.4. Figure 4.4— Open panels—Back view of the PWAN Base Station

Chapter 5: ID Label/Location Information AT&T Wireless Services 5-33 FCC Type Acceptance Application 10991 Rev. 1.0 7/6/99 Chapter 5 ID Label/Location Information Overview This section contains FCC labelling information and location for the PWAN Base. Contents 5.1FCC Label Information. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-20 5.2Location Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-35 Base FCC Regulatory Test Report 5-34 AT&T Wireless Services FCC Type Acceptance Application 10991 Rev. 1.0 7/6/99 5.1ID Label Figure 5.1— Example FCC ID Label Chapter 5: ID Label/Location Information AT&T Wireless Services 5-35 FCC Type Acceptance Application 10991 Rev. 1.0 7/6/99 5.2Location Information Figure 5.2— FCC Compliance Label—Possible interior location Base FCC Regulatory Test Report 5-36 AT&T Wireless Services FCC Type Acceptance Application 10991 Rev. 1.0 7/6/99 Figure 5.3— FCC Compliance Label—Possible interior location Chapter 5: ID Label/Location Information AT&T Wireless Services 5-37 FCC Type Acceptance Application 10991 Rev. 1.0 7/6/99 Figure 5.4— FCC Compliance Label—Possible exterior location

Chapter 5:ID Label/Location Information AT&T Wireless Services5-33 FCC Type Acceptance Application 10991 Rev. 1.0 9/9/99 Chapter 5ID Label/Location Information Overview This section contains FCC labelling information and location for the PWAN Base. Contents 5.1FCC Label Information. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-20 5.2Location Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-35 Base FCC Regulatory Test Report 5-34AT&T Wireless Services FCC Type Acceptance Application 10991 Rev. 1.0 9/9/99 5.1ID Label Figure 5.1— Example FCC ID Label Chapter 5:ID Label/Location Information AT&T Wireless Services5-35 FCC Type Acceptance Application 10991 Rev. 1.0 9/9/99 5.2Location Information Figure 5.2— FCC Compliance Label—Possible interior location Base FCC Regulatory Test Report 5-36AT&T Wireless Services FCC Type Acceptance Application 10991 Rev. 1.0 9/9/99 Figure 5.3— FCC Compliance Label—Possible interior location Chapter 5:ID Label/Location Information AT&T Wireless Services5-37 FCC Type Acceptance Application 10991 Rev. 1.0 9/9/99 Figure 5.4— FCC Compliance Label—Possible exterior location Base FCC Regulatory Test Report 5-38AT&T Wireless Services FCC Type Acceptance Application 10991 Rev. 1.0 9/9/99

Chapter 11: Test Report AT&T Wireless Services 11-691 FCC Type Acceptance Application 10991 Rev. 1.0 7/8/99 Chapter 11 Test Report Overview This section includes the test report and data showing compliance with all applicable technical standards. Contents 11.1Test Methodology . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11-692 11.2RF Characterization Test Results . . . . . . . . . . . . . . . . . . . . . . . . 11-723 11.3Electromagnetic Compatibility Test Results. . . . . . . . . . . . . . . . 11-755 Base FCC Regulatory Test Report 11-692 AT&T Wireless Services FCC Type Acceptance Application 10991 Rev. 1.0 7/8/99 11.1 Test Methodology This section describes the test methodology used to validate the performance of the AT&T Wireless Services PWAN Base Station against the applicable requirements of FCC Part 2, 15, and Part 24. 11.1.1 Introduction The purpose of this chapter is to present the test methodology used to verify FCC regulatory compliance of the PWAN Base Station. Throughout this document, all depictions of test configurations utilize a common set of interfaces. These interfaces are described in detail in Chapter 7, “Operational Description” of this document. The name and purpose of each interface is summarized in Table 11.1— below: Table 11.1—PWAN Interface Definitions 11.1.2 Base Station Frequency Stability vs. Temperature 11.1.2.1—Applicable FCC Rules Parts FCC Subpart 2.995 - Measured over the temperature range of -30 to +50 C. Frequency measurements shall be made at the extremes and at intervals of not greater than 10 degrees C throughout the range. Only the frequency determining portions of the transmitter need be subjected to this test. FCC Subpart 24.236 - The frequency stability shall be sufficient to ensure that the fundamental emission stays within the authorized frequency block. Interface IDDescription T InterfaceTerminal interface to Remote Units A InterfaceAir interface between Remote Units and Base Station radio equipment P InterfaceInterface between Base Station radio equipment and Base Station control Csw InterfaceInterface that provides public switched telephone network (PSTN) connectivity for call processing Chapter 11: Test Report AT&T Wireless Services 11-693 FCC Type Acceptance Application 10991 Rev. 1.0 7/8/99 11.1.2.2—Overview The PWAN Base Station obtains its frequency stability from GPS- disciplined 10 MHz ovenized oscillators located on the station’s primary and redundant Synchronization Cards. Either Synchronization Card is capable of functioning in one of the following three operational modes: Oscillator operating in GPS Locked Mode: During normal operation, the frequency of the 10 MHz oscillator is disciplined by GPS to an accuracy of approximately ±0.005 PPM. Oscillator operating in GPS Holdover Mode: In the event that GPS signals are lost (due to an antenna or GPS receiver failure), the 10 MHz oscillator will utilize the most current correction data obtained from the on-board GPS receiver to maintain an accuracy of approximately ±0.02 PPM over a 24 hour period. Oscillator operating in GPS Free-Run mode: In the event that GPS is completely unobtainable, the 10 MHz oscillator will free-run with an accuracy of approximately. ±0.2 PPM. The 10 MHz disciplined oscillators on the primary and redundant Synchronization Cards serve as the main frequency-determining element in the Base Station. Any frequency error present in the 10 MHz output of the Synchronization Cards will create a corresponding frequency error in each transmitted OFDM tone at the Base Station operating frequency. The Base Station also contains its own low stability (approx. 5 PPM) 10 MHz reference oscillator. This internal oscillator is phase-locked to the active Synchronization Card for the purpose of minimizing the effects of reference oscillator phase noise. The Base Station software is designed to disable RF output power in the event that both of the Synchronization Cards fail (or are not present). As a result, the Base Station will not transmit while using the internal oscillator as its 10 MHz reference. 11.1.2.3—Test Methodology The Synchronization Card under test was placed into a Screening Systems, Inc. model QRS-410T thermal chamber (refer to Figure 11.1). A Hewlett/Packard 53132 frequency counter was used to monitor the Base FCC Regulatory Test Report 11-694 AT&T Wireless Services FCC Type Acceptance Application 10991 Rev. 1.0 7/8/99 output frequency of the DUT. A Hewlett-Packard 5071A cesium beam primary standard was utilized as a precision frequency reference for the 53132A frequency counter. The frequency counter resolution was set to 0.001 Hz. The frequency accuracy of the 10 MHz oscillator was tracked over the temperature range of -30 to +50 Celsius. During this test the thermal chamber “stair-stepped” from -40 to +60 degrees Celsius in temperature increments of 10 degrees Celsius. The thermal chamber’s sensing thermocouple was attached to the Synchronization Card about 10 cm from the ovenized oscillator to assure that the DUT was kept to within ±5 degrees Celsius of each pre-determined thermal step. The chamber held each thermal step for 15 minutes. The total run time was three hours per test. The frequency stability of the DUT was measured over temperature in each of the three operating modes. Figure 11.1Base Station Synchronization Card Frequency Stability vs. Temperature Test Configuration Chapter 11: Test Report AT&T Wireless Services 11-695 FCC Type Acceptance Application 10991 Rev. 1.0 7/8/99 11.1.3 Base Station Frequency Stability vs. Input Voltage 11.1.3.1—Applicable FCC Rules Parts FCC Subpart 2.995 - The frequency stability shall be measured with variation of primary supply voltage as follows: 1) Vary primary voltage from 85 to 115 percent of the nominal value for other than hand carried equipment. 3) The supply voltage shall be measured at the input to the cable provide with the equipment, or at the power supply terminals if cables are…

Text truncated - open the document above for the full version.

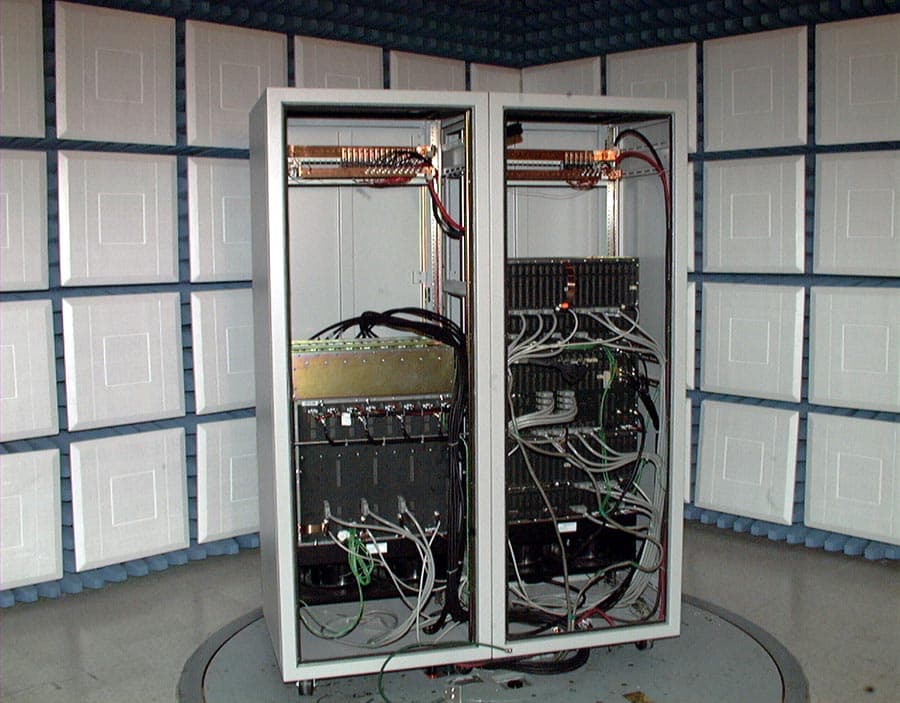

Chapter 12: Test Setup Photos AT&T Wireless Services 12-803 FCC Type Acceptance Application 10991 Rev. 1.0 7/6/99 Chapter 12 Test Setup Photos Overview This section contains test setup photos. Contents 12.1Radiated Emissions Test Setup . . . . . . . . . . . . . . . . . . . . . . . . . . 12-804 12.2 EUT Parts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12-776 12.3 EUT Test Configuration Photos . . . . . . . . . . . . . . . . . . . . . . . . . 12-777 12.4 Testing Facility and Location . . . . . . . . . . . . . . . . . . . . . . . . . . . 12-779 Base FCC Regulatory Test Report 12-804 AT&T Wireless Services FCC Type Acceptance Application 10991 Rev. 1.0 7/6/99 12.1 Radiated Emissions Test Setup Radiated emissions measurements shall be made over the frequency range specified by the regulatory agency. In this case, per FCC Part 15, subpart 15.207. Measurements shall be made at the EUT azimuth and antenna height such that the maximum radiated emissions level will be detected. This was accomplished using both an automated 360 degree turntable and 1 to 4 meter height antenna positioners. Sixteen azimuth cuts at 22.5 degrees and 1 to 4 meter antenna scans in both polarizations were utilized. The PWAN Base was setup in a typical field configuration, as shown in Figure 12.1—, consisting of the PWAN Base being in the center of the turntable. Proper interconnecting cable was utilized from the PWAN Base to the system power supply. All radiated emissions testing was completed in three configurations; 1.) 16 voice calls on the same time slot in the same sector. 2.) eight voice calls per sector. 3.) eight voice /high-speed data calls per sector. Testing was completed from 30 MHz to 26 GHz. When testing close to or over the fundamental frequency range, a notch filter tuned to the Remote Unit and PWAN Base Station fundamental frequencies was utilized to prevent receiver radio frequency overload and/or damage. To complete the calls, a test fixture tilizing a rack of sixteen (16) Remote Units (RU’s) with two telephones per RU was established. Figure 12.10 shows the RU Test rack used to load the Base. The rack was designed to hold up to 16 remote units together with all power, RF, and telco connections. This design was necessary in order to load the base with the maximum amount of calls on the same time slot and sector 16 remote units, two lines each for a total of 32 calls). Also shown are the 32 phones and spectrum analyzer used to monitor calls through the duration of FCC testing Chapter 12: Test Setup Photos AT&T Wireless Services 12-805 FCC Type Acceptance Application 10991 Rev. 1.0 7/6/99 Figure 12.1—Radiated Emissions Test Setup EMCO 2070 Antenna Positioner Shield Room Patch Panel Control Room Patch Panel HP8546A EMI Receiver Attenuation 20DB Control Room Patch Panel RU Rack 16 RU’s used to load base Control Room Patch Panel Computer Running HP85876 Radiated Emissions Software Used to setup phone calls to RU EMCO 3115 RG-214 14 ft. RG-214 6 ft. RG-214 33 ft. RU Shield Cable RG-214 Antenna: 30 MHz - 16 Hz Chase CBC 6111A 1 GHz - 18 GHz EMCO 3115 Double Ridge 8 GHz - 26 GHz HP 84125-80008 RU Shield Cable K&L Notch Filter (used for fundamental filtering) Used Only for Testing Above 1 GHz Base Station (EUT) ATTN 5 ESS 48 VDC Power NIF 1 of 32 Base FCC Regulatory Test Report 12-806 AT&T Wireless Services FCC Type Acceptance Application 10991 Rev. 1.0 7/6/99 12.2 EUT Parts Table 12.1 Network Components Card NameSerial NumberRevision Sync-P19999000501 Sync-R19999000561 TSI-P205023B TSI-R205015A NIF-195222B NIF-395223B NIF-695224B NMP105012C ICP-P75023C ICP-R75024C Table 12.2 Baseband Components Card NameSerial NumberRevision BBC15077C NS…

Text truncated - open the document above for the full version.
