OHRCP-TXHHCP/TX DUAL FREQUENCY R/C TRANSMITTER

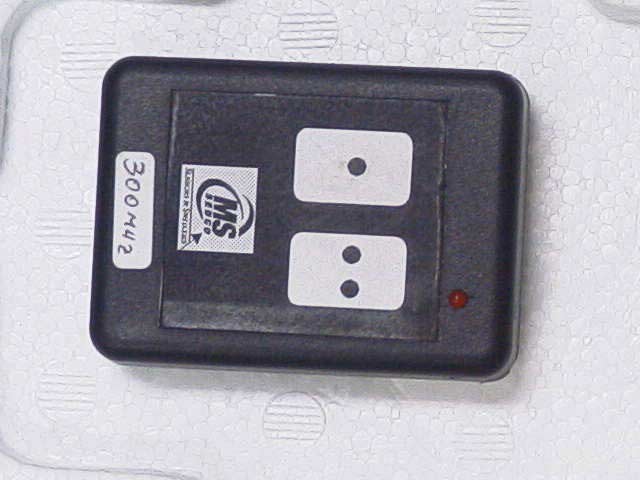

8701 Castle Park Drive n Indianapolis, Indiana 46256 Telephone: (800) 842-2545/(317) 842-2545 n www.mssedco.com n [email protected] Page 1 Section 1 General Description Section 2 . ! CP-TXHH Universal 300/390 MHz Handheld Transmitter The CP-TXHH radio transmitter is designed to provide reliable WIRELESS activation of any automatic door. It is part of the most extensive line of programmable wireless products available. The CP-TXHH radio transmitter is a universal unit which can operate in either the 300MHz or 390MHz systems. The CP-TXHH transmitter is housed in a lightweight, ergonomic handheld enclosure. Two screws allow access for easy battery replacement and programming/setup. Basic Operation 1) Remove the cover of the handheld enclosure by removing the two screws on the back side of the unit. 2) Program the transmitter by setting the 12 dip switches on the printed circuit board (PCB) to match the receiver. Only use the first 10 switches for the 300MHz system. Then, set the slide switch (SW2) to either 300MHz or 390MHz as shown below (fig. 1) 4) Pushbutton 1 will transmit the code on the dip switches, while pushbutton 2 will transmit the same code with dip switch #2 in the opposite position. 3) Reassemble the unit into the enclosure and tighten the two screws. CP-TX CP-TXHH Figure 1 WARNING: Any changes or modifications not expressly approved by MS Sedco could void the user’s authority to operate this equipment OPERATING INSTRUCTIONS CP-TXHH PCB 390 300 SW2 TYPE A23 BATTERY - + CP-TXHH ENCLOSURE

5 5 4 4 3 3 2 2 1 1 DD CC BB AA CP-TXHH BLOCK DIAGRAM 10-29-03 1 1 RGBJ A1 5V REG D2 TIME DELAY MODE SEL ECT JP1JP2JP3 MICROPROCESSOR IC1 12 POSITION DIP SWITCH (ID CODE) A0 SINGLE STAGE RF OSC. / AMP IC2 TX DATA CP-TXHH BLOCK DIAGRAM DRAWN BY REVISION SIZE TOLERANCES FILENAME 8701 CASTLE PARK DRIVE INDIANAPOLIS, IN 46256 800-842-2545(V), 800-849-3387(F) DATE SHEET __of__ DRAWING NO. http://www.mssedco.com 12V BATTERY+5V +5V +5V 300MHz SAW RES. 387MHz SAW RES. ANTENNA MANUAL USER SWITCH PTT Q2

8701 Castle Park Drive Indianapolis, Indiana 46256 Dwg. # DA TE: SCALE: TITLE: REV : 2:1 10-29-03 FCC LABEL---CP-TXHH A MS SEDCO MA TERIAL IS 0.003 THICK VINYL WITH SELF ADHESIVE BACKING PRINTING IS BLACK LETTERS ON WHITE BACKGROUND. 1.025 1.275 THIS DEVICE COMPLIES WITH P ART 15 OF THE FCC RULES. OPERA TION OF THIS DEVICE IS SUBJECT TO THE FOLLOWING TWO CONDITIONS: (1) THIS DEVICE MA Y NOT CAUSE HARMFUL INTERFERENCE AND (2) THIS DEVICE MUST ACCEPTANY INTERFERENCE RECEIVED, INCLUDING INTERFERENCETHA T MA Y CAUSE UNDESIRED OPERA TION. MODEL NO. CP-TXHH P A TENT PENDING FCC ID: OHRCP-TXHH

CP-TXHH CIRCUIT DESCRIPTION The CP-TXHH remote control transmitter basically consists of an RF oscillator section that is driven and controlled by a single chip microprocessor. (see block diagram) The RF oscillator / amp section is a simple one stage element composed of integrated circuit IC2 and SAW resonators CR2 & CR3. The operating frequencies are 300MHz and 387MHz. Microprocessor IC1, upon power up, reads a number of jumpers and switches to determine its operating frequency, function and what ID code data is to be sent. Once this has been determined, the single stage RF section is then AM modulated with the proper data. For the carrier operating frequency of 387MHz, the data is formatted such that a logical "1" is 10KHz and a logical "0" is 20KHz. For the operating carrier frequency of 300MHz, a logical "1" is just simply leaving the carrier on for 1.5mSec and turning it off for 0.5mSec. A logical "0" is reversed from this.

TIMCO ENGINEERING INC. 849 NW State Road 45 Newberry, Florida 32669 http://www.timcoengr.com 888.472.2424 F 352.472.2030 email: [email protected] APPLICANT: SEDCO INC. FCC ID: OHRCP-TXHH REPORT #: S\SEDCO_OHR\1553UT3\1553UT3TestReport.doc TITLE PAGE Test Report Product Name: CP/TX DUAL FREQUENCY REMOTE CONTROL TRANSMITTER FCC ID: OHRCP-TXHH Applicant: SEDCO INC. 8701 CASTLE PARK DRIVE INDIANAPOLIS, IN. 46256 Date Receipt: NOVEMBER 19, 2003 Date Tested: NOVEMBER 25, 2003 TIMCO ENGINEERING INC. 849 NW State Road 45 Newberry, Florida 32669 http://www.timcoengr.com 888.472.2424 F 352.472.2030 email: [email protected] APPLICANT: SEDCO INC. FCC ID: OHRCP-TXHH REPORT #: S\SEDCO_OHR\1553UT3\1553UT3TestReport.doc TABLE OF CONTENTS TABLE OF CONTENTS APPLICANT: SEDCO INC. FCC ID: OHRCP-TXHH TEST REPORT CONTAINING: PAGE 1.............TEST EQUIPMENT LIST PAGE 2.............TEST PROCEDURE PAGE 3-5...........RADIATION INTERFERENCE TEST DATA (300 MHz) PAGE 6-8...........RADIATION INTERFERENCE TEST DATA (387 MHz) PAGE 9.............CALCULATION OF DUTY CYCLE PAGE 10............DUTY CYCLE PLOT - SMALL PULSES PAGE 11............DUTY CYCLE PLOT - LARGE PULSES PAGE 12............DUTY CYCLE PLOT PAGE 13............OCCUPIED BANDWIDTH PAGE 14............OCCUPIED BANDWIDTH PLOT EXHIBIT ATTACHMENTS: EXHIBIT 1...........BLOCK DIAGRAM EXHIBIT 2...........SCHEMATIC EXHIBIT 3...........USERS MANUAL EXHIBIT 4...........LABEL SAMPLE EXHIBIT 5...........LABEL LOCATION EXHIBIT 6...........EXTERNAL PHOTOGRAPHS EXHIBIT 7...........INTERNAL PHOTOGRAPHS EXHIBIT 8...........CIRCUIT DESCRIPTION EXHIBIT 9...........TEST SET UP PHOTOGRAPH TIMCO ENGINEERING INC. 849 NW State Road 45 Newberry, Florida 32669 http://www.timcoengr.com 888.472.2424 F 352.472.2030 email: [email protected] APPLICANT: SEDCO INC. FCC ID: OHRCP-TXHH REPORT #: S\SEDCO_OHR\1553UT3\1553UT3TestReport.doc Page 1 of 14 EMC Equipment List Device Manufacturer Model Serial Number Cal/Char Date Due Date 3/10-Meter OATS TEI N/A N/A Listed 3/26/01 3/26/04 3-Meter OATS TEI N/A N/A Listed 1/13/03 1/13/06 Biconnical Antenna Eaton 94455-1 1057 CAL 3/18/03 3/18/05 Biconnical Antenna Eaton 94455-1 1096 CAL 10/1/01 10/1/03 Biconnical Antenna Electro- Metrics BIA-25 1171 CAL 4/26/01 4/26/03 Blue Tower Quasi-Peak Adapter HP 85650A 2811A01279 CAL 4/15/03 4/15/05 Blue Tower RF Preselector HP 85685A 2926A00983 CAL 4/15/03 4/15/05 Blue Tower Spectrum Analyzer HP 8568B 2928A04729 2848A18049 CAL 4/15/03 4/15/05 Double- Ridged Horn Antenna Electro- Metrics RGA-180 2319 CAL 2/17/03 2/17/05 LISN Electro- Metrics ANS-25/2 2604 CAL 10/9/01 10/9/03 LISN Electro- Metrics EM-7820 2682 CAL 3/12/03 3/12/05 Log-Periodic Antenna Eaton 96005 1243 CAL 5/8/03 5/8/05 TIMCO ENGINEERING INC. 849 NW State Road 45 Newberry, Florida 32669 http://www.timcoengr.com 888.472.2424 F 352.472.2030 email: [email protected] APPLICANT: SEDCO INC. FCC ID: OHRCP-TXHH REPORT #: S\SEDCO_OHR\1553UT3\1553UT3TestReport.doc Page 2 of 14 TEST PROCEDURE GENERAL: This report shall NOT be reproduced except in full without the written approval of TIMCO ENGINEERING, INC. RADIATION INTERFERENCE: The test procedure used was ANSI STANDARD C63.4-1992 using a HEWLETT PACKARD spectrum analyzer with a pre-selector. The bandwidth of the spectrum analyzer was 100 kHz with an appropriate sweep speed. The analyzer was calibrated in dB above a microvolt at the output of the antenna. The resolution bandwidth was 100KHz and the video bandwidth was 300KHz. The ambient temperature of the UUT was 68.3ºF with a humidity of 40%. FORMULA OF CONVERSION FACTORS: The Field Strength at 3m was established by adding the meter reading of the spectrum analyzer (which is set to read in units of dBuV) to the antenna correction factor supplied by the antenna manufacturer. The antenna correction factors are stated in terms of dB. The gain of the Pre-selector was accounted for in the Spectrum Analyzer Meter Reading. Example: Freq (MHz) METER READING + ACF = FS 33 20 dBuV + 10.36 dB = 30.36 dBuV/m @ 3m ANSI STANDARD C63.4-1992 10.1.7 MEASUREMENT PROCEDURES: The UUT was placed on a table 80 cm high and with dimensions of 1m by 1.5m. The UUT was placed in the center of the table. The table used for radiated measurements is capable of continuous rotation. The spectrum was scanned from 30 MHz to 10th harmonic of the fundamental. Peak readings were taken in three (3) orthogonal planes and the highest readings were converted to average readings based on the duration of "ON" time. When an emission was found, the table was rotated to produce the maximum signal strength. At this point, the antenna was raised and lowered from 1m to 4m. The antenna was placed in both the horizontal and vertical planes. Measurements were made by TIMCO ENGINEERING INC. at the registered open field test site located at 849 N.W. State Road 45, Newberry, Fl 32669. TIMCO ENGINEERING INC. 849 NW State Road 45 Newberry, Florida 32669 http://www.timcoengr.com 888.472.2424 F 352.472.2030 email: [email protected] APPLICANT: SEDCO INC. FCC ID: OHRCP-TXHH REPORT #: S\SEDCO_OHR\1553UT3\1553UT3TestReport.doc Page 3 of 14 APPLICANT: SEDCO INC. FCC ID: OHRCP-TXHH NAME OF TEST: RADIATION INTERFERENCE (300 MHZ) RULES PART NO.: 15.231 REQUIREMENTS: Fundamental Field Strength Field Strength of Frequency of Fundamental Harmonics and Spurious MHz dBuV Emissions (dBuV/m @ 3m) 40.66 to 40.70 67.04 47.04 70 to 130 61.94 41.94 130 to 174 61.94 to 71.48 41.94 to 51.48 174 to 260 71.48 51.48 260 to 470 71.48 to 81.94 51.48 to 61.94 470 and above 81.94 61.94 THE LIMIT FOR AVERAGE FIELD STRENGTH dBuV/m FOR THE FUNDAMENTAL FREQUENCY = 74.67 dBuV/m. NO FUNDAMENTAL IS ALLOWED IN THE RESTRICTED BANDS. THE LIMIT FOR AVERAGE FIELD STRENGTH dBuV/m FOR THE HARMONICS AND SPURIOUS FREQUENCIES = 54.67 dBuV/m. SPURIOUS IN THE RESTRICTED BANDS MUST BE LESS THAN 54dBuV/m OR 15.209. TEST DATA (X-AXIS): Emission Frequency MHz Meter Reading dBuV Ant. Polarity Coax Loss dB Correction Factor dB Duty Cycle Factor dB Field Strength dBuV/m …
