MicroStar blue Motion and Presence Sensor Installation Instructions FCC Compliance This device complies with part 15 of the FCC Rules Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. FCC Warning Statement Changes or modifications not expressly approved by MS Sedco could void the user's authority to operate the equipment. Product Description The microStar blue is the combination motion and presence sensor that provides superior activation and safety for automatic sliding doors in a single device. The microStar blue uses patented microwave technology to create two seamless zones within its detection pattern. The activation zone provides selectable unidirectional or bidirectional motion detection. The safety zone provides contiguous presence detection at the threshold and through it when the door is open. The microStar blue’s proprietary software will learn the movement of the door and then ignore it when opening and closing thus allowing the safety zone to provide protection through the threshold area of the door. Two relay outputs are standard. Relay output #1 is for the activation (motion) zone and Relay output #2 is for the threshold safety (presence) zone. Insert sensor component pictures here Installation Preparation Prior to installing this sensor verify you have the correct version microStar for the type of door it is being installed on. Match the color-coded microStar logo on the sensor cover to Chart A below. (A) microStar Applications Chart Sliding Folding Swinging Revolving Doors Doors Doors Doors microStar red X-safety microStar white X-approach X-approach microStar blue X-approach/safety microStar green X-approach/safety Warning w/symbol: Remember to follow these safety precautions: • Shut off power to the automatic door before wiring sensor. • Always ensure wiring is located clear of any moving door parts to avoid damage. • Always be aware of pedestrian traffic. Keep people clear of the work area when setting up or testing the door. • Comply with all applicable building codes and safety standards (ANSI A156.10). Sensor Mounting: 1. Remove the cover of the microStar by placing the blade of a small screwdriver in the notch in the right side of the cover as shown (B). Once the sensor is attached to the header always remove the cover in this same manner. (B) Cover Removal Diagram 2. Attach the mounting template as shown (C) flush with the bottom edge of the header. Drill 3 holes noted on template (1 wire passage hole, 2 screw pilot holes) (C) Mounting Template Diagram 3. Insert mounting screws partially into holes. Route the wire harness along sensor backplate as shown (D). Feed the stripped end of the wire harness through the wire passage hole. Install the microStar onto the mounting screws and tighten. (D) Wire Harness Diagram Sensor Wiring: With power OFF, connect sensor wiring to the operator control as shown (E). Two wiring options are available. The activation relay output and safety relay output wires of the microStar can be connected to the activation input of the operator control (safety will be on at all times) OR the microStar’s activation relay output can be connected to the activation input of the operator control and the microStar’s safety relay output can connect to the safety input of the operator control (safety will be off when door is closed). (E) Wiring Diagrams Wiring to operator control’s activation input only: Wiring to operator control’s activation and safety inputs: Warning w/symbol: DO NOT APPLY POWER TO THE SENSOR! Sensor Settings and Adjustments: All settings and adjustments can be made via the microStar main circuit board so there is no need for costly or confusing proprietary set up devices. (F) Main Circuit Board Diagram (with dip switches, adjustment pots, relays, antenna adjustments identified) (G) Dip Switch Settings Chart (Include drawing of dip switches) Dip Switch Positions: 0= Left; 1= Right Dip Default Switch Function Setting 1* Detection Direction 0=Bi-directional 1=Uni-directional 1 2 Motion Sensitivity 0=Less Sensitive 1=More Sensitive 1 3 Threshold Safety 0=OFF 1=ON 1 4 Fail Safe State 0=Enabled 1=Disabled 0 5** M-T-P** 0=OFF 1=ON 1 6* Direction 0=Depart Only 1=Approach Only 1 *Dip Switch #6 is not used when Dip Switch #1 is set to “0” *When Dip Switch #1 is set to “1” Be sure to select desired direction with Dip Switch #6 **MTP= Motion-To-Presence Feature: After initial detection the Activation Zone converts from motion only detection to presence detection providing a larger Safety Zone as shown (H) (H) Motion-To-Presence (M-T-P) Diagram (I) LED Glossary Sensor Initialization Mode: With threshold safety ON (Dip Switch #6=1) During the sensor initialization mode the activation (motion) zone of the detection pattern is created and adjusted to desired size. Warning w/symbol: Be sure to read this entire section before proceeding 1. Clear people and all temporary objects out of the detection pattern area. 2. Apply power to the sensor. 3. During the first 10 seconds after power is applied, the microStar is in its initialization mode. The sensor will not detect motion and the LED flashes GREEN. Press the LEARN button located on the PCB as shown (F) before the LED stops flashing. 4. After pressing LEARN button the LED will confirm by flashing ORANGE. Wait until LED turns solid GREEN before proceeding. 5. With LED solid GREEN, turn the Motion Range Pot to Maximum (factory setting) as shown (F). 6. Walk test the pattern for motion detection as shown (J) by walking slowly towards the door from several different angles. The LED will turn from solid Green to solid RED when the sensor detects you. (J) Activation Zone Walk Test If the pattern needs any adjustment, the pattern size is adjusted via the Motion Range Pot. Pattern position to the door is adjusted by physically moving …

Text truncated - open the document above for the full version.

8701 CASTLE PARK DRIVE * INDIANAPOLIS, IN 46256 * PH: 800-842-2545 * FAX: 800-849-3387 Federal Communications Commission Authorization and Evaluation Division Confidentiality Request regarding application for certification of FCC ID: OHRMICRO. Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules, we hereby request confidential treatment of information accompanying this application as outlined below: Block diagram, File: Microblk.PDF Circuit Description, File: Microckt.PDF Schematics, Files: Micro~1.PDF and Preamp.PDF The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these materials may be harmful to the applicant and provide unjustified benefits to its competitors. The applicant understands that pursuant to Section 0.457 of the Rules, disclosure of this application and all accompanying documentation will not be made before the date of the Grant for this application. Sincerely, William R. Gudgel President, MS Sedco

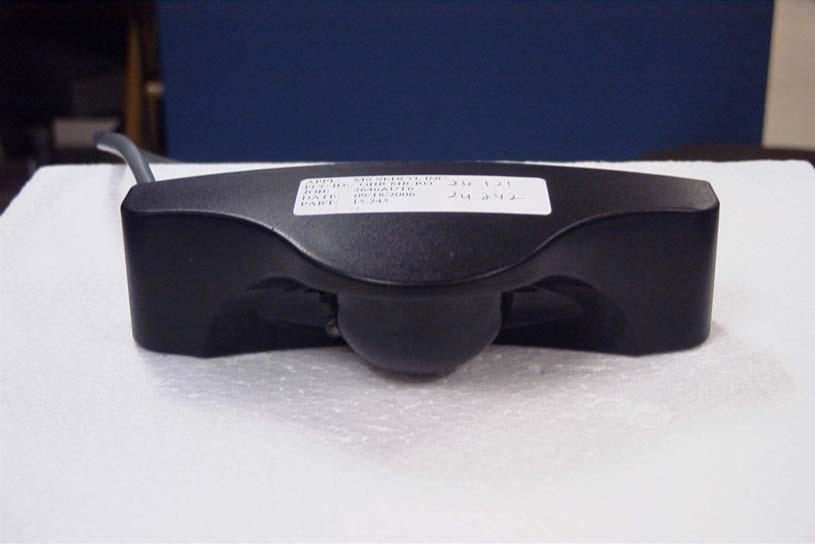

FCC ID: OHRMICRO, FILE: 2646AUT6 DUT EXTERNAL PHOTOS

FCC ID: OHRMICRO, FILE: 2646AUT6 Proposed FCC ID Label Location – Rear back of the device

8701 Castle Park Drive Indianapolis, Indiana 46256 Dwg. # DA TE: SCALE: TITLE: REV : 2:1 9-20-06 FCC LABEL---MicroStar B MS SEDCO MA TERIAL IS 0.003 THICK KIMDURA WITH SELF ADHESIVE BACKING (WITH NO LAMINA TION) PRINTING IS BLACK LETTERS ON GRA Y BACKGROUND. 0.0625 RADIUS CORNERS 1.750 1.000 THIS DEVICE COMPLIES WITH P AR T 15 OF THE FCC RULES AND WITH RS-210 OF INDUSTR Y CANADA. OPERA TION IS SUBJECT T O THE FOLLOWING TWO CONDITIONS: (1) THIS DEVICE MA Y NOT CAUSE HARMFUL INTERFERENCE AND (2) THIS DEVICE MUST ACCEPT ANY INTERFERENCE RECEIVED, INCLUDING INTERFERENCE THA T MA Y CAUSE UNDESIRED OPERA TION. MODEL: MICROST AR MOTION SENSOR WIRING: Black & Red--------12-24V AC or DC Yellow-------Relay COM Green--------Relay N.O.Wht-----------Relay N.C. SER NO. FCC ID: OHRMICRO CANADA: ???MICRO

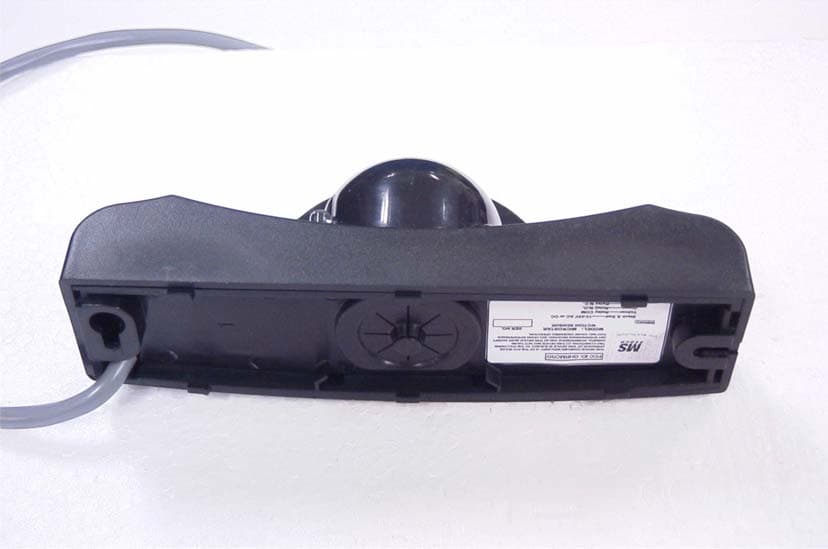

FCC ID: OHRMICRO, FILE#: 2646AUT6 DUT INTERNAL PHOTOS

Page 1 MS SEDCO MICRO-STAR / SMARTWALK MAIN PCB ASSY B.O.M./ ASSEMBLY # 31A121-ENG REV.E 6/1/06 ITEM # REF # PART DESCRIPTION MFG. PART # MFG MS SEDCO PART# 1 IC1 IC, 12V SWITCHING REG, 14 PIN SOIC LM2574HVM-ADJ NATIONAL TBD 2 IC2 IC, VOLTAGE REG, 5V, TO252 LM78M05CDT NATIONAL, FSC TBD 3 IC3 IC, OPAMP, 14 PIN SOIC TLC2274AID TEXAS INST TBD 4 IC4 IC, PROGRAMMED. CONTROLLER, XXXX.OBJ 28PIN SOIC Master file # --- xxxxxTBD ARROW 75Z015-999 5 IC5 TRANSMISSION GATE NC7SZ384 6 IC6 TRANSMISSION GATE NC7SZ384 7 IC7 TRANSMISSION GATE NC7SZ384 8 IC8 NOT USED NOT USED NOT USED NOT USED 9 C1 220uF 50V ELECT LOW ESR TOL M AXIAL 227CKS050M ILLINOIS CAPACITOR TBD 10 C2 220uF 16V ELECT LOW ESR TOL M AXIAL ???? ILLINOIS CAPACITOR TBD 11 C3 10uF 50V ELECT LOW ESR TOL M AXIAL 106CKS050M ILLINOIS CAPACITOR TBD 12 C4 1uF Film 25V , PKG 1206, 10% ECP-U1E105KB5 PANASONIC TBD 13 C5 0.1uF 50V 10% CER X7R, PKG 0805 ECJ-2YB1H104K PANASONIC TBD 14 C7 0.1uF 50V 10% CER X7R, PKG 0805 ECJ-2YB1H104K PANASONIC TBD 15 C12 0.1uF 50V 10% CER X7R, PKG 0805 ECJ-2YB1H104K PANASONIC TBD 16 C15 0.1uF 50V 10% CER X7R, PKG 0805 ECJ-2YB1H104K PANASONIC TBD 17 C13 0.1uF 50V 10% CER X7R, PKG 0805 ECJ-2YB1H104K PANASONIC TBD 18 C6 470pF 50V 5% CER NPO, PKG 0805 ECJ-2VC1H471J PANASONIC TBD 19 C8 470pF 50V 5% CER NPO, PKG 0805 ECJ-2VC1H471J PANASONIC TBD 20 C9 1uF 16V 10% CER X7R, PKG 1206 12062R105K7BB0D YAGEO TBD 21 C10 8200pF 50V 5% CER NPO, PKG 1206 ECJ-3FC1H822J PANASONIC TBD 22 C11 100uF 16V 10% TANT, PKG C (EIA) TAJD107K016R AVX TBD 23 D1 BRIDGE RECTIFIER MINI PIV100V 0.5A SMD MD2S-W RECTRON TBD 24 D2 RECTIFIER, SUPERFAST SMD, 200V,1A, PKG SMA ES1D-13 DIODES INC TBD 25 D3 LED BICOLOR RED/GRN REFL CLR, PKG SMD AA2734SRSGC KINGBRIGHT TBD 26 D4 LED ORANGE, SMD 0805 AA1112H-TR STANLEY ELECTRIC TBD 27 D5 DIODE, SWITCHING, PIV 75V, 500 Mw, PKG MELF LL4148-GS08 / LL4148-13 VISHAY / DIODES INC TBD 28 D6 DIODE, SWITCHING, PIV 75V, 500 Mw, PKG MELF LL4148-GS08 / LL4148-13 VISHAY / DIODES INC TBD 29 D7 MONOLITHIC DUAL SWITCHING DIODE, COMMON ANODE BAW56LT1 ON SEMI TBD 30 RL1 6V RELAY, 3A, SPST, PC MOUNT G5V-1, 6V OMRON TBD 31 RL2 6V RELAY, 3A, SPST, PC MOUNT G5V-1, 6V OMRON TBD 32 L2 330uH COIL 6000-331k / RL187-331K JW MILLER / ISI 72A008 33 P1 HEADER, POLORIZED, STRAIGHT, 8 PIN 22-04-1081 MOLEX TBD 34 P2 CONN, HEADER,PH,TOP,4 POS, 2MM B4B-PH-K-S JST SALES TBD 35 P3 NOT USED NOT USED NOT USED NOT USED 36 P4 CONN, HEADER,PH,TOP,7 POS, 2MM B7B-PH-K-S JST SALES TBD 37 Q1 TRANSISTOR W/ BIAS R, NPN, 50V,100mA, SOT23 MMUN2211LT1 ON SEMI TBD 38 Q2 TRANSISTOR W/ BIAS R, NPN, 50V,100mA, SOT23 MMUN2211LT1 ON SEMI TBD 39 Q3 TRANSISTOR W/ BIAS R, NPN, 50V,100mA, SOT23 MMUN2211LT1 ON SEMI TBD 40 Q4 TRANSISTOR W/ BIAS R, NPN, 50V,100mA, SOT23 MMUN2211LT1 ON SEMI TBD 41 Q5 TRANSISTOR W/ BIAS R, NPN, 50V,100mA, SOT24 MMUN2211LT1 ON SEMI TBD 42 RN3 RESISTOR ARRAY, 100K, 8PIN, 4 RESISTOR, PKG SMD 744C083104JTR CTS TBD Page 2 43 RN4 RESISTOR ARRAY, 1 MEG, 8PIN, 4 RESISTOR, PKG SMD 744C083105JTR CTS TBD 44 RN5 RESISTOR ARRAY, 2.2K, 8PIN, 4 RESISTOR, PKG SMD 744C083222JTR CTS TBD 45 R1 RESISTOR, 127 OHMS, 1%, PKG 0805 ERJ-6ENF1270V PANASONIC TBD 46 R2 RESISTOR, 127 OHMS, 1%, PKG 0805 ERJ-6ENF1270V PANASONIC TBD 47 R3 RESISTOR, 10K OHMS, 5%, PKG 0805 ERJ-6ENF1270V PANASONIC TBD 48 R4 RESISTOR, 470K OHMS, 1%, PKG 0805 TBD 49 R6 RESISTOR, 10K OHMS, 5%, PKG 0805 ERJ-6ENF1270V PANASONIC TBD 50 R7 RESISTOR, 100K OHMS, 5%, PKG 0805 TBD 51 R8 RESISTOR, 1.0K OHMS, 5%, PKG 0805 TBD 52 R29 RESISTOR, 10K OHMS, 5%, PKG 0805 ERJ-6GEYJ103V PANASONIC TBD 53 R19 RESISTOR, 10K OHMS, 5%, PKG 0805 ERJ-6GEYJ103V PANASONIC TBD 54 R15 RESISTOR, 1.00K OHMS, 1%, PKG 1206 ERJ-8ENF1001V PANASONIC TBD 55 R16 RESISTOR, 4.87K OHMS, 1%, PKG 1206 56 R20 RESISTOR, 1.00K OHMS, 1%, PKG 0805 TBD 57 R21 RESISTOR, 470 OHMS, 5%, PKG 0805 ERJ-6GEYJ471V PANASONIC TBD 58 R26 RESISTOR, 100 OHMS, 5%, PKG 1206 ERJ-8GEYJ101V PANASONIC TBD 59 R27 RESISTOR, 210 OHMS, 1%, PKG 0805 TBD 60 R28 RESISTOR, 210 OHMS, 1%, PKG 0805 TBD 61 R29 RESISTOR, 10K OHMS, 5%, PKG 0805 ERJ-6ENF1270V PANASONIC TBD 61 SW1 SWITCH, SIP, VERTICLE, 6 POS, .698" X .500" SP06 C&K DIV. ITT TBD 62 SW2 TACT SWITCH, 6.0 X 4.3MM 180G TL3302AF180QG E-SWITCH 62 VR1 POTENTIOMETER, 5K, 1T SEAL, VERTICLE 72XR5K / 3386X-1-502 BI TECH / BOURNS TBD 63 VR2 POTENTIOMETER, PC MOUNT, 5K,10% 72XR5K / 3386X-1-502 BI TECH / BOURNS TBD 64 VR3 POTENTIOMETER, 50K,4MM SQ CERMET, 20%, SMD 3314G-503E BOURNS TBD 65 VR4 POTENTIOMETER, 50K,4MM SQ CERMET, 20%, SMD 3314G-503E BOURNS TBD 66 VR5 POTENTIOMETER, 50K,4MM SQ CERMET, 20%, SMD 3314G-503E BOURNS TBD 67 VR6 POTENTIOMETER, 5K, 1T SEAL, VERTICLE 72XR5K / 3386X-1-502 BI TECH / BOURNS TBD 67 ZNR1 TRANSIENT / SURGE ABSORBER ERZ-V05D101 PANASONIC 74 E006 68 ZNR2 TRANSIENT / SURGE ABSORBER ERZ-V05D101 PANASONIC 74 E006 69 CR1 4 MHZ CER RESONATOR W / CAPS MURATA# CST-4.000MGW or Equiv 78B005 70 PCB1 MAIN PCB, FR4, DS,SMOBC, 0.062"T, 1 OZ CU 44A226 REV. A Cunnigham 44A226 REV. A 71 Misc POWER CABLE ASSEMBLY REVISION A 60H049

MS SEDCO MICRO-STAR/ SMARTWALK PRE-AMP PCB ASSY B.O.M./ ASSEMBLY # 31A122-ENG Rev.A NO. REF # PART DESCRIPTION MFG. PART # MFG MS SEDCO PART# 1 C1 4.70uF 16V 20% TANT, PKG 3216 TAJA475K16RNJ AVX S71D104A475 2 C2 4.70uF 16V 20% TANT, PKG 3216 TAJA475K16RNJ AVX S71D104A475 3 C3 4.70uF 16V 20% TANT, PKG 3216 TAJA475K16RNJ AVX S71D104A475 4 C4 820pF 50V 5% CER NPO, PKG 0805 NMC08055A821JATMA AVX S71B203A821 5 C5 820pF 50V 5% CER NPO, PKG 0805 NMC08055A821JATMA AVX S71B203A825 6 J1 Wiring Harness, Pre Amplifier assy, Micro Star.(Old p/n -- J1) PACE 60H048 RFQ-PHK-0324-111-TV-20-JM 7 R1 RESISTOR, 27.4K OHMS, 1%, PKG 0805 ERJ-6ENF2742V PANASONIC TBD 8 R7 RESISTOR, 27.4K OHMS, 1%, PKG 0805 ERJ-6ENF2742V PANASONIC TBD 9 R2 RESISTOR, 402 OHMS, 1%, PKG 0805 ERJ-6ENF4020V PANASONIC TBD 10 R8 RESISTOR, 402 OHMS, 1%, PKG 0805 ERJ-6ENF4020V PANASONIC TBD 11 R3 RESISTOR, 499K OHMS, 1%, PKG 0805 ERJ-6ENF4993V PANASONIC TBD 12 R5 RESISTOR, 499K OHMS, 1%, PKG 0805 ERJ-6ENF4993V PANASONIC TBD 13 R9 RESISTOR, 499K OHMS, 1%, PKG 0805 ERJ-6ENF4993V PANASONIC TBD 14 R11 RESISTOR, 499K OHMS, 1%, PKG 0805 ERJ-6ENF4993V PANASONIC TBD 15 R4 RESISTOR, 274K OHMS, 1%, PKG 0805 ERJ-6ENF2743V PANASONIC TBD 16 R10 RESISTOR, 274K OHMS, 1%, PKG 0805 ERJ-6ENF2743V PANASONIC TBD 17 R6 RESISTOR, 2.74K OHMS, 1%, PKG 0805 ERJ-6ENF2743V PANASONIC TBD 18 R12 RESISTOR, 2.74K OHMS, 1%, PKG 0805 ERJ-6ENF2743V PANASONIC TBD 19 R13 RESISTOR, 1.00K OHMS, 1%, PKG 0805 ERJ-6ENF1001V PANASONIC TBD 20 R14 RESISTOR, 1.00K OHMS, 1%, PKG 0805 ERJ-6ENF1001V PANASONIC TBD 21 U1 IC, DUAL OPAMP, 8 PIN SOIC TLC2272AID TEXAS INST TBD 22 PCB PRE-AMP PCB, FR4, DS,SMOBC, .031" T, 1 OZ CU 44A224 REV. X PACE 44A224 REV. X 23 TRANSCEIVER MA86843-M17B MACOM 48A015-B, C & D

FCC PART 15.245 FIELD DISTURBANCE SENSOR TEST REPORT APPLICANT MS SEDCO, INC. ADDRESS 8701 CASTLE PARK DRIVE INDIANAPOLIS, IN 46256 USA FCC ID OHRMICRO MODEL NUMBER MICRO PRODUCT DESCRIPTION MOTION SENSOR DATE SAMPLE RECEIVED September 21, 2006 DATE TESTED September 22, 2006 TESTED BY Joe Scoglio APPROVED BY Mario de Aranzeta C.E.T. TIMCO REPORT NO. 2646AUT6TestReport TEST RESULTS PASS FAIL THE ATTACHED REPORT SHALL NOT BE REPRODUCED EXCEPT IN FULL WITHOUT THE WRITTEN APPROVAL OF TIMCO ENGINEERING, INC. 849 NW STATE ROAD 45 NEWBERRY, FL 32669 USA PH: 888.472.2424 OR 352.472.5500 FAX: 352.472.2030 EMAIL: [email protected] HTTP: //WWW.TIMCOENGR.COM Certificate # 0955-01 APPLICANT: ROOT Inc. FCC ID: NN4RZ2009 REPORT: V:\M\MS_SEDCO\2646AUT6\2646AUT6TestReport.doc Page 2 of 11 TABLE OF CONTENTS STATEMENT OF COMPLIANCE.................................................................................. 3 REPORT SUMMARY................................................................................................... 4 TEST ENVIRONMENT ................................................................................................ 4 TEST SYSTEM ........................................................................................................... 4 EQUIPMENT UNDER TEST ........................................................................................ 5 TEST EQUIPMENT LIST............................................................................................. 6 TEST PROCEDURE ................................................................................................... 7 POWER LINE CONDUCTED INTERFERENCE............................................................. 8 OCCUPIED BANDWIDTH ......................................................................................... 10 FIELD STRENGTH OF SPURIOUS EMISSIONS......................................................... 11 APPLICANT: MS Sedco Inc. FCC ID: OHRMICRO REPORT: V:\M\MS_SEDCO\2646AUT6\2646AUT6TestReport.doc Page 3 of 11 STATEMENT OF COMPLIANCE Certificate 0955-01 This equipment has been tested in accordance with the standards identified in the referenced test report. To the best of my knowledge and belief, these tests were performed using the measurement procedures described in this report and demonstrate that the equipment complies with the appropriate standards. I attest that the necessary measurements were made by me or under my supervision, at Timco Engineering, Inc. located at 849 N.W. State Road 45, Newberry, Florida 32669 USA. Authorized by: Mario de Aranzeta Signature: Function: Engineer Date: October 9, 2006 Tested by: Joe Scoglio Signature: on file Date: September 26, 2006 APPLICANT: MS Sedco Inc. FCC ID: OHRMICRO REPORT: V:\M\MS_SEDCO\2646AUT6\2646AUT6TestReport.doc Page 4 of 11 REPORT SUMMARY Purpose of Report: The tests were performed on a sample of the equipment to demonstrate the compliance with FCC Part 15 Subpart C. Applicable Standard(s): FCC Part 15.245, ANSI C63.4: 2003 Test Result: The test results relate only to the items tested. Related Report(s): Digital Interface Portion verified – 2646CUT6TestReport – Pt 15.109 TEST ENVIRONMENT Test Facilities: All measurements were made at one or more of the test sites of TIMCO ENGINEERING INC. located at 849 N.W. State Road 45, Newberry, FL 32669. The test site information is on file with FCC. Test Conditions: Temperature - 78°F, Relative humidity -55% Deviation to the procedures: No deviation TEST SYSTEM Description of certified system: Stand alone field sensor Support Equipment: Description: N/A Manufacturer: N/A FCC ID or M/N: N/A Test Exercise: The EUT was set in continuous transmit mode of operation. Modification: No modification was made to show the equipment in compliance with applicable requirements. APPLICANT: MS Sedco Inc. FCC ID: OHRMICRO REPORT: V:\M\MS_SEDCO\2646AUT6\2646AUT6TestReport.doc Page 5 of 11 EQUIPMENT UNDER TEST Manufacturer: MS SEDCO, INC. FCC ID: OHRMICRO Model Number: MICRO Serial Number: N/A Product Description: Field Disturbance Sensor Operating Frequency: 24 GHz Max. Output power: None Type of Modulation: None Emission Designator(s): None Power Supply: DC power supply Test Item: Pre-Production Type of Equipment: fixed Antenna Spec: Integrated Antenna Connector: none APPLICANT: MS Sedco Inc. FCC ID: OHRMICRO REPORT: V:\M\MS_SEDCO\2646AUT6\2646AUT6TestReport.doc Page 6 of 11 TEST EQUIPMENT LIST Device Manufacturer Model Serial Number Cal/Char Date Due Date 3/10-Meter OATS TEI N/A N/A Listed 3/27/04 3/26/07 3-Meter OATS TEI N/A N/A Listed 1/11/06 1/10/09 Biconnical Antenna Eaton 94455-1 1057 CAL 12/12/05 12/12/07 Biconnical Antenna Electro- Metrics BIA-25 1171 CAL 4/29/05 4/29/07 Analyzer Tan Tower Preamplifier HP 8449B-H02 3008A00372 CAL 12/8/05 12/8/07 Analyzer Tan Tower Quasi-Peak Adapter HP 85650A 3303A01690 CAL 12/8/05 12/8/07 Analyzer Tan Tower RF Preselector HP 85685A 3221A01400 CAL 12/7/05 12/7/07 Analyzer Tan Tower Spectrum Analyzer HP 8566B Opt 462 3138A07786 3144A20661 CAL 12/7/05 12/7/07 LISN Electro- Metrics EM-7820 2682 CAL 4/28/05 4/28/07 Log-Periodic Antenna Eaton 96005 1243 CAL 12/14/05 12/14/07 Antenna: Double- Ridged Horn/ETS Horn 2 ETS-Lindgren 3117 00041534 CAL 11/17/04 11/17/06 APPLICANT: MS Sedco Inc. FCC ID: OHRMICRO REPORT: V:\M\MS_SEDCO\2646AUT6\2646AUT6TestReport.doc Page 7 of 11 TEST PROCEDURE Power Line Conducted Interference: The procedure used was ANSI STANDARD C63.4-2003 using a 50uH LISN. The spectrum was scanned from .15 to 30 MHz. The bandwidth of the spectrum analyzer was 10 kHz with an appropriate sweep speed. Radiation Interference: The test procedure used was ANSI STANDARD C63.4-2003 using an Agilent spectrum receiver with pre-selector. The bandwidth (RBW) of the spectrum receiver was 100 kHz up to 1 GHz and 1 MHz above 1 GHz with an appropriate sweep speed. The VBW was always greater than or equal to the RBW. The analyzer was calibrated in dB above a microvolt at the output of the antenna. APPL…
