OHRWALKPedestrian Sensor

MicroStar blue Motion and Presence Sensor Installation Instructions FCC Compliance This device complies with part 15 of the FCC Rules Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. FCC Warning Statement Changes or modifications not expressly approved by MS Sedco could void the user's authority to operate the equipment. Product Description The microStar blue is the combination motion and presence sensor that provides superior activation and safety for automatic sliding doors in a single device. The microStar blue uses patented microwave technology to create two seamless zones within its detection pattern. The activation zone provides selectable unidirectional or bidirectional motion detection. The safety zone provides contiguous presence detection at the threshold and through it when the door is open. The microStar blue’s proprietary software will learn the movement of the door and then ignore it when opening and closing thus allowing the safety zone to provide protection through the threshold area of the door. Two relay outputs are standard. Relay output #1 is for the activation (motion) zone and Relay output #2 is for the threshold safety (presence) zone. Insert sensor component pictures here Installation Preparation Prior to installing this sensor verify you have the correct version microStar for the type of door it is being installed on. Match the color-coded microStar logo on the sensor cover to Chart A below. (A) microStar Applications Chart Sliding Folding Swinging Revolving Doors Doors Doors Doors microStar red X-safety microStar white X-approach X-approach microStar blue X-approach/safety microStar green X-approach/safety Warning w/symbol: Remember to follow these safety precautions: • Shut off power to the automatic door before wiring sensor. • Always ensure wiring is located clear of any moving door parts to avoid damage. • Always be aware of pedestrian traffic. Keep people clear of the work area when setting up or testing the door. • Comply with all applicable building codes and safety standards (ANSI A156.10). Sensor Mounting: 1. Remove the cover of the microStar by placing the blade of a small screwdriver in the notch in the right side of the cover as shown (B). Once the sensor is attached to the header always remove the cover in this same manner. (B) Cover Removal Diagram 2. Attach the mounting template as shown (C) flush with the bottom edge of the header. Drill 3 holes noted on template (1 wire passage hole, 2 screw pilot holes) (C) Mounting Template Diagram 3. Insert mounting screws partially into holes. Route the wire harness along sensor backplate as shown (D). Feed the stripped end of the wire harness through the wire passage hole. Install the microStar onto the mounting screws and tighten. (D) Wire Harness Diagram Sensor Wiring: With power OFF, connect sensor wiring to the operator control as shown (E). Two wiring options are available. The activation relay output and safety relay output wires of the microStar can be connected to the activation input of the operator control (safety will be on at all times) OR the microStar’s activation relay output can be connected to the activation input of the operator control and the microStar’s safety relay output can connect to the safety input of the operator control (safety will be off when door is closed). (E) Wiring Diagrams Wiring to operator control’s activation input only: Wiring to operator control’s activation and safety inputs: Warning w/symbol: DO NOT APPLY POWER TO THE SENSOR! Sensor Settings and Adjustments: All settings and adjustments can be made via the microStar main circuit board so there is no need for costly or confusing proprietary set up devices. (F) Main Circuit Board Diagram (with dip switches, adjustment pots, relays, antenna adjustments identified) (G) Dip Switch Settings Chart (Include drawing of dip switches) Dip Switch Positions: 0= Left; 1= Right Dip Default Switch Function Setting 1* Detection Direction 0=Bi-directional 1=Uni-directional 1 2 Motion Sensitivity 0=Less Sensitive 1=More Sensitive 1 3 Threshold Safety 0=OFF 1=ON 1 4 Fail Safe State 0=Enabled 1=Disabled 0 5** M-T-P** 0=OFF 1=ON 1 6* Direction 0=Depart Only 1=Approach Only 1 *Dip Switch #6 is not used when Dip Switch #1 is set to “0” *When Dip Switch #1 is set to “1” Be sure to select desired direction with Dip Switch #6 **MTP= Motion-To-Presence Feature: After initial detection the Activation Zone converts from motion only detection to presence detection providing a larger Safety Zone as shown (H) (H) Motion-To-Presence (M-T-P) Diagram (I) LED Glossary Sensor Initialization Mode: With threshold safety ON (Dip Switch #6=1) During the sensor initialization mode the activation (motion) zone of the detection pattern is created and adjusted to desired size. Warning w/symbol: Be sure to read this entire section before proceeding 1. Clear people and all temporary objects out of the detection pattern area. 2. Apply power to the sensor. 3. During the first 10 seconds after power is applied, the microStar is in its initialization mode. The sensor will not detect motion and the LED flashes GREEN. Press the LEARN button located on the PCB as shown (F) before the LED stops flashing. 4. After pressing LEARN button the LED will confirm by flashing ORANGE. Wait until LED turns solid GREEN before proceeding. 5. With LED solid GREEN, turn the Motion Range Pot to Maximum (factory setting) as shown (F). 6. Walk test the pattern for motion detection as shown (J) by walking slowly towards the door from several different angles. The LED will turn from solid Green to solid RED when the sensor detects you. (J) Activation Zone Walk Test If the pattern needs any adjustment, the pattern size is adjusted via the Motion Range Pot. Pattern position to the door is adjusted by physically moving …

Text truncated - open the document above for the full version.

8701 CASTLE PARK DRIVE * INDIANAPOLIS, IN 46256 * PH: 800-842-2545 * FAX: 800-849-3387 Federal Communications Commission Authorization and Evaluation Division Confidentiality Request regarding application for certification of FCC ID: OHRWALK. Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules, we hereby request confidential treatment of information accompanying this application as outlined below: Block diagram, File: Microblk.PDF Circuit Description, File: Microckt.PDF Schematics, Files: Micro~1.PDF and Preamp.PDF The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these materials may be harmful to the applicant and provide unjustified benefits to its competitors. The applicant understands that pursuant to Section 0.457 of the Rules, disclosure of this application and all accompanying documentation will not be made before the date of the Grant for this application. Sincerely, William R. Gudgel President, MS Sedco

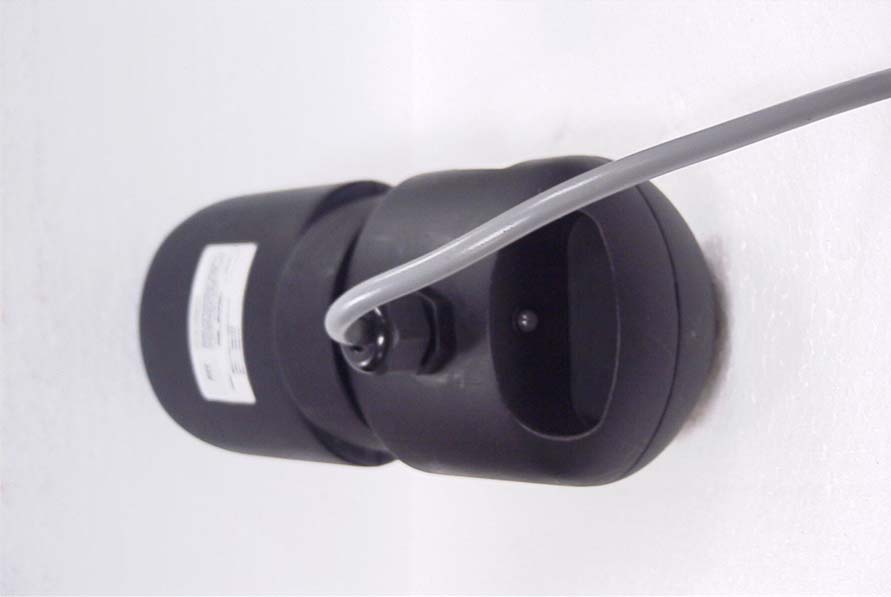

FCC ID: OHRWALK, FILE #: 2647AUT6 DUT EXTERNAL PHOTOS

FCC ID: OHRWALK, FILE #: 2647AUT6 Proposed FCC ID Location – Front of DUT

8701 Castle Park Drive Indianapolis, Indiana 46256 Dwg. # DA TE: SCALE: TITLE: REV : 2:1 9-20-06 FCC LABEL---MicroStar B MS SEDCO MA TERIAL IS 0.003 THICK KIMDURA WITH SELF ADHESIVE BACKING (WITH NO LAMINA TION) PRINTING IS BLACK LETTERS ON GRA Y BACKGROUND. 0.0625 RADIUS CORNERS 1.750 1.000 THIS DEVICE COMPLIES WITH P AR T 15 OF THE FCC RULES AND WITH RS-210 OF INDUSTR Y CANADA. OPERA TION IS SUBJECT T O THE FOLLOWING TWO CONDITIONS: (1) THIS DEVICE MA Y NOT CAUSE HARMFUL INTERFERENCE AND (2) THIS DEVICE MUST ACCEPT ANY INTERFERENCE RECEIVED, INCLUDING INTERFERENCE THA T MA Y CAUSE UNDESIRED OPERA TION. MODEL: SMARTW ALK XP PEDESTRIAN SENSOR WIRING: Black & Red--------12-24V AC or DC Yellow-------Relay COM Green--------Relay N.O.Wht-----------Relay N.C. SER NO. FCC ID: OHR WALK CANADA: ???W ALK

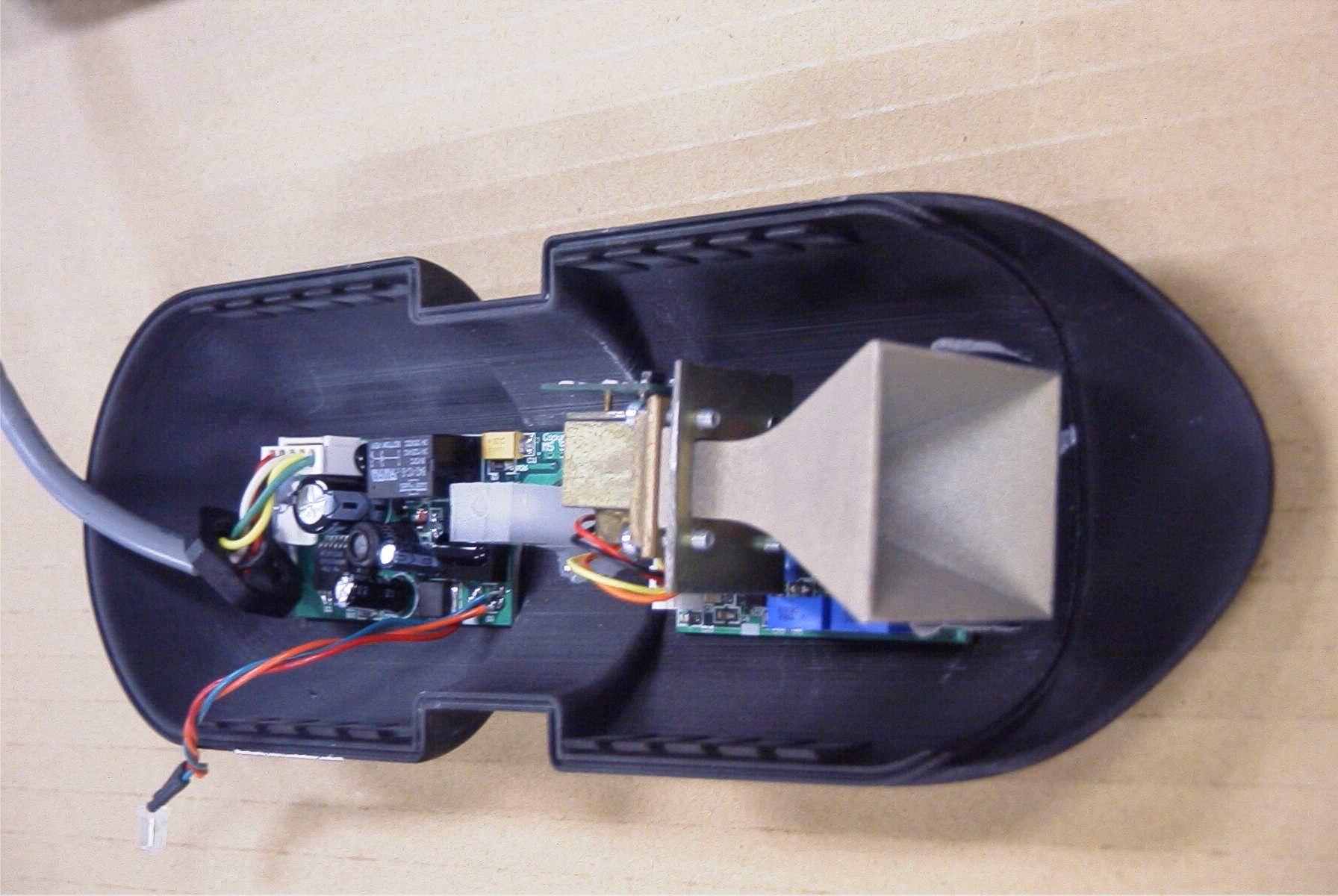

FCC ID: OHRWALK, FILE #: 2647AUT6 DUT INTERNAL PHOTOS

FCC Ref: OET 34120 Timco Ref: 2647AUT6 Antenna: Integral Antenna Type: Pyramidal Horn Antenna Gain: 17dB

FCC PART 15.245 FIELD DISTURBANCE SENSOR TEST REPORT APPLICANT MS SEDCO, INC. ADDRESS 8701 CASTLE PARK DRIVE INDIANAPOLIS, IN 46256 USA FCC ID OHRWALK MODEL NUMBER Smartwalk XP PRODUCT DESCRIPTION Pedestrian Sensor DATE SAMPLE RECEIVED September 21, 2006 DATE TESTED September 22, 2006 TESTED BY Joe Scoglio APPROVED BY Mario de Aranzeta C.E.T. TIMCO REPORT NO. 2647AUT6TestReport TEST RESULTS PASS FAIL THE ATTACHED REPORT SHALL NOT BE REPRODUCED EXCEPT IN FULL WITHOUT THE WRITTEN APPROVAL OF TIMCO ENGINEERING, INC. 849 NW STATE ROAD 45 NEWBERRY, FL 32669 USA PH: 888.472.2424 OR 352.472.5500 FAX: 352.472.2030 EMAIL: [email protected] HTTP: //WWW.TIMCOENGR.COM Certificate # 0955-01 APPLICANT: ROOT Inc. FCC ID: NN4RZ2009 REPORT: V:\M\MS_SEDCO\2647AUT6\Extra2647AUT6\2647AUT6TestReport.doc Page 2 of 11 TABLE OF CONTENTS STATEMENT OF COMPLIANCE.................................................................................. 3 REPORT SUMMARY................................................................................................... 4 TEST ENVIRONMENT ................................................................................................ 4 TEST SYSTEM ........................................................................................................... 4 EQUIPMENT UNDER TEST ........................................................................................ 5 TEST EQUIPMENT LIST............................................................................................. 6 TEST PROCEDURE ................................................................................................... 7 POWER LINE CONDUCTED INTERFERENCE............................................................. 8 OCCUPIED BANDWIDTH ......................................................................................... 10 FIELD STRENGTH OF SPURIOUS EMISSIONS......................................................... 11 APPLICANT: MS Sedco Inc. FCC ID: OHRWALK REPORT: V:\M\MS_SEDCO\2647AUT6\Extra2647AUT6\2647AUT6TestReport.doc Page 3 of 11 STATEMENT OF COMPLIANCE Certificate # 0955-01 This equipment has been tested in accordance with the standards identified in the referenced test report. To the best of my knowledge and belief, these tests were performed using the measurement procedures described in this report and demonstrate that the equipment complies with the appropriate standards. I attest that the necessary measurements were made by me or under my supervision, at Timco Engineering, Inc. located at 849 N.W. State Road 45, Newberry, Florida 32669 USA. Authorized by: Mario de Aranzeta Signature: Function: Engineer Date: October 9, 2006 Tested by: Joe Scoglio Signature: on file Date: September 26, 2006 APPLICANT: MS Sedco Inc. FCC ID: OHRWALK REPORT: V:\M\MS_SEDCO\2647AUT6\Extra2647AUT6\2647AUT6TestReport.doc Page 4 of 11 REPORT SUMMARY Purpose of Report: The tests were performed on a sample of the equipment to demonstrate the compliance with FCC Part 15 Subpart C. Applicable Standard(s): FCC Part 15.245, ANSI C63.4: 2003 Test Result: The test results relate only to the items tested. Related Report(s): Digital Interface emission verified. 2647CUT6 – Pt 15.109 TEST ENVIRONMENT Test Facilities: All measurements were made at one or more of the test sites of TIMCO ENGINEERING INC. located at 849 N.W. State Road 45, Newberry, FL 32669. The test site information is on file with FCC. Test Conditions: Temperature - 78°F, Relative humidity -55% Deviation to the procedures: There was no deviation TEST SYSTEM Description of certified system: Stand alone field sensor Support Equipment: Description: N/A Manufacturer: N/A FCC ID or M/N: N/A Cable: All cables are shielded or provided by the equipment makers Test Exercise: The EUT was set in continuous transmit mode of operation. Modification: No modification was made to show the equipment in compliance with applicable requirements. APPLICANT: MS Sedco Inc. FCC ID: OHRWALK REPORT: V:\M\MS_SEDCO\2647AUT6\Extra2647AUT6\2647AUT6TestReport.doc Page 5 of 11 EQUIPMENT UNDER TEST Manufacturer: MS SEDCO, INC. FCC ID: OHRWALK Model Number: Smartwalk XP Serial Number: N/A Product Description: Pedestrian Sensor (Field Disturbance Sensor) Operating Frequency: 24105 ~ 24125 MHz Max. Output power: None Type of Modulation: None Emission Designator(s): None Power Supply: DC Power Supply Test Item: Pre-Production Type of Equipment: Fixed Antenna Spec: Integral Antenna Connector: None APPLICANT: MS Sedco Inc. FCC ID: OHRWALK REPORT: V:\M\MS_SEDCO\2647AUT6\Extra2647AUT6\2647AUT6TestReport.doc Page 6 of 11 TEST EQUIPMENT LIST Device Manufacturer Model Serial Number Cal/Char Date Due Date 3/10-Meter OATS TEI N/A N/A Listed 3/27/04 3/26/07 3-Meter OATS TEI N/A N/A Listed 1/11/06 1/10/09 Biconnical Antenna Eaton 94455-1 1057 CAL 12/12/05 12/12/07 Biconnical Antenna Eaton 94455-1 1096 CAL 8/17/04 out for cal Biconnical Antenna Electro- Metrics BIA-25 1171 CAL 4/29/05 4/29/07 Analyzer Tan Tower Preamplifier HP 8449B-H02 3008A00372 CAL 12/8/05 12/8/07 Analyzer Tan Tower Quasi-Peak Adapter HP 85650A 3303A01690 CAL 12/8/05 12/8/07 Analyzer Tan Tower RF Preselector HP 85685A 3221A01400 CAL 12/7/05 12/7/07 Analyzer Tan Tower Spectrum Analyzer HP 8566B Opt 462 3138A07786 3144A20661 CAL 12/7/05 12/7/07 LISN Electro- Metrics ANS-25/2 2604 CAL 8/27/04 out for cal LISN Electro- Metrics EM-7820 2682 CAL 4/28/05 4/28/07 Log-Periodic Antenna Eaton 96005 1243 CAL 12/14/05 12/14/07 APPLICANT: MS Sedco Inc. FCC ID: OHRWALK REPORT: V:\M\MS_SEDCO\2647AUT6\Extra2647AUT6\2647AUT6TestReport.doc Page 7 of 11 TEST PROCEDURE Power Line Conducted Interference: The procedure used was ANSI standard C63.4-2003 using a 50uH LISN. The spectrum was scanned from .15 to 30 MHz. The bandwidth of the spectrum analyzer was 10 kHz with an appropriate sweep speed. Radiation Interference: The test procedure used was ANSI STANDARD C63.4-2003 using an Agilent spectrum receiver with preselector. The bandwidth (RBW) of the spectrum re…

Text truncated - open the document above for the full version.

FCC ID: OHRWALK, FILE 2647AUT6 RADIATED EMISSION TEST SETUP PHOTO CONDUCTED EMISSION TEST SETUP PHOTO
