EUM3006 Integrated Outdoor Modem Installation Guide APCD-LM048-1.3 : APCD-LM048-1.3ii Copyright © 2006 by WaveRider Communications Inc. You may copy and/or print as many copies of this manual as you wish, as long as the software license agreement and this copyright statement are included. Release 1.3, May 2006 The following are trademarks or registered trademarks of their respective companies or organi- zations: Windows XP/Microsoft Windows 2000/Microsoft iiiAPCD-LM048-1.3 Software License Agreement This is a legal agreement between you (either an individual or an entity) and WaveRider Communica- tions Inc. for the use of WaveRider computer software, hereinafter the “LICENSED SOFTWARE”. By using the LICENSED SOFTWARE installed in this product, you acknowledge that you have read this license agreement, understand it, and agree to be bound by its terms. You further agree that it is the full and complete agreement between you and WaveRider Communications Inc., superseding all prior written or verbal agreements of any kind related to the LICENSED SOFTWARE. If you do not understand or do not agree to the terms of this agreement, you will cease using the LICENSED SOFTWARE immediately. 1. GRANT OF LICENSE—This License Agreement permits you to use one copy of the LICENSED SOFTWARE. 2. COPYRIGHT—The LICENSED SOFTWARE is owned by WaveRider Communications Inc. and is protected by copyright laws and international treaty provisions; therefore, you must treat the LICENSED SOFTWARE like any other copyrighted material (e.g., a book or magazine). 3. LIMITS OF FEATURE AVAILABILITY—The LICENSED SOFTWARE is sold with limitations as to certain feature availability and use. These limits are governed by the terms of the purchase agreement. Any actions resulting in the exceeding of these limits is not permitted, and can result in unpredictable performance. 4. OTHER RESTRICTIONS—You may not rent or lease the LICENSED SOFTWARE. You may not reverse engineer, decompile, or disassemble the LICENSED SOFTWARE. 5. LIMITED WARRANTY—The LICENSED SOFTWARE is provided “as is” without any warranty of any kind, either expressed or implied, including, but not limited to, the implied warranties of merchantability and fitness for a particular purpose. The entire risk as to the quality and performance of the LICENSED SOFTWARE is with you, the licensee. If the LICENSED SOFTWARE is defective, you assume the risk and liability for the entire cost of all necessary repair, service, or correction. Some states/jurisdictions do not allow the exclusion of implied warranties, so the above exclusion may not apply to you. This warranty gives you specific legal rights, and you may have other rights, which vary from state/jurisdiction to state/ jurisdiction. WaveRider Communications Inc. does not warrant that the functions contained in the LICENSED SOFTWARE will meet your requirements, or that the operation of the LICENSED SOFTWARE will be error-free or uninterrupted. 6. NO OTHER WARRANTIES—To the maximum extent permitted by applicable law, WaveRider Communications Inc. disclaims all other warranties, either express or implied, including, but not limited to, the implied warranties of merchantability and fitness for a particular purpose, with regard to the LICENSED SOFTWARE and the accompanying written materials. 7. NO LIABILITY FOR CONSEQUENTIAL DAMAGES—To the maximum extent permitted by applicable law, in no event shall WaveRider Communications Inc. or its suppliers be liable for any damages whatsoever (including, without limitation, damages for loss of business profits, business interruption, loss of business information, or any other pecuniary loss) arising from the use of or inability to use the LICENSED SOFTWARE, even if WaveRider Communications Inc. has been advised of the possibility of such damages, or for any claim by any other party. Because some states/jurisdictions do not allow the exclusion or limitation of liability for consequential or incidental damages, the above limitation may not apply to you. In no event will WaveRider’s liability exceed the amount paid for the LICENSED SOFTWARE. : APCD-LM048-1.3iv Warranty In the following warranty text, “WaveRider®” shall mean WaveRider Communications Inc. This WaveRider product is warranted against defects in material and workmanship for a period of one (1) year from the date of purchase. During this warranty period WaveRider will, at its option, either repair or replace products that prove to be defective. For warranty service or repair, the product must be returned to a service facility designated by WaveRider. Authorization to return products must be obtained prior to shipment. The WaveR- ider RMA number must be on the shipping documentation so that the service facility will accept the product. The buyer shall pay all shipping charges to WaveRider and WaveRider shall pay shipping charges to return the product to the buyer within Canada or the USA. For all other countries, the buyer shall pay shipping charges as well as duties and taxes incurred in shipping products to or from WaveRider. WaveRider warrants that the firmware designed by it for use with the unit will execute its pro- gramming instructions when properly installed on the unit. WaveRider does not warrant that the operation of the unit or firmware will be uninterrupted or error-free. Limitation of Warranty The foregoing warranty shall not apply to defects resulting from improper or inadequate mainte- nance by the buyer, buyer-supplied interfacing, unauthorized modification or misuse, operation outside the environmental specifications for the product, or improper site preparation or mainte- nance. No other warranty is expressed or implied. WaveRider specifically disclaims the implied warranties of merchantability and fitness for any particular purpose. No Liability for Consequential Damages To the maximum extent permitted by applicable law, in no event shall WaveRider or its suppliers be liable for any damages whatsoever (in…

Text truncated - open the document above for the full version.

WaveRider Communications (Canada) Inc. Suite 4, 6110 - 1A Street SW, Calgary, Alberta T2H 0G3 Tel/FAX: 403•253•5366 web: www.waverider.com EUM3006/E3K6 Block Diagrams The following are the block diagrams for the RF and digital sections of the Circuit Card Assembly inside the EUM3006/E3K6. The blocks shown are as follows: Top level RF section Ethernet PHY Microprocessor/MAC memory Microprocessor/MAC Baseband processor interface 1 Block Diagrams 1.1 Top Level Block Diagram Figure 1.1 – Top Level Block Diagram Page 2 Printed: 28-Apr-06 4:28 PM WaveRider Communications (Canada) Inc. Suite 4, 6110 - 1A Street SW, Calgary, Alberta T2H 0G3 Tel/FAX: 403•253•5366 web: www.waverider.com 1.2 RF Section Figure 1.2 – RF Section Block Diagram Page 3 Printed: 28-Apr-06 4:28 PM WaveRider Communications (Canada) Inc. Suite 4, 6110 - 1A Street SW, Calgary, Alberta T2H 0G3 Tel/FAX: 403•253•5366 web: www.waverider.com 1.3 Digital Section 1.3.1 Ethernet PHY ETHERNET PHY BLOCK ICS ICS1893AF TP_TXP TP_TXN MDIO MDC TP_CT RXD3 TP_RXP RXD2 TP_RXN RXD1 RXD0 RXDV RXCLK RXER REF IN REF OUT TXCLK 10TCSR TXEN TXD0 TXD1 TXD2 TXD3 COL 100TCSR CRS RESET_N P2LI P1CL P3TD P0AC P4RD RESET_ETH TXD0 2 IDATA- ODATA+ ODATA- IDATA+ MDIO RXD3 2 TPA TPB 25MHz 2 k Ω 1% 3.3V MDC RXD2 RXD0 RXD1 RX_DV RX _CLK RX _ER TX _CLK TX _EN TXD1 TXD2 TXD3 COL CRS 1.54 k Ω 1% Pull-downPull-down Pull-down Link LED Pull-up Pull-up 100pF Activity LED 5.3.1 Ethernet PHY Block Diagram Page 4 Printed: 28-Apr-06 4:28 PM WaveRider Communications (Canada) Inc. Suite 4, 6110 - 1A Street SW, Calgary, Alberta T2H 0G3 Tel/FAX: 403•253•5366 web: www.waverider.com 1.3.2 Microprocessor/MAC Memory (FLASH,SDRAM) 5.3.2 Microprocessor/MAC Memory Block Diagram Page 5 Printed: 28-Apr-06 4:28 PM WaveRider Communications (Canada) Inc. Suite 4, 6110 - 1A Street SW, Calgary, Alberta T2H 0G3 Tel/FAX: 403•253•5366 web: www.waverider.com 1.3.3 Microprocessor/MAC To RF 32 11 RX_DV MDI MDC RSSI LED 3.3V SEL[1] PAPE RADIO_PE RX_PE GPIO[5] TX_PE SYNTH_DATA SYNTH_CLK SEL[0] PAPE UART_RTS GPIO[4] GPIO[2] UART_CTS GPIO[3] GPIO[1] GPIO[0] 4 To Ethernet To Memory 2.5V RXD3 MDO RXD2 RXD1 RXD0 RX_CLK RX _ER TX_CLK TX _EN TXD0 TXD1 TXD2 TXD3 COL CRS RESET _ETH JTAGSerial 4 12 BBTXPE PE1 PE2 CAL _EN RFSW M _SD_IF_RF M_SCLK_IF_RF M_LE_RF M_LE_IF RX_CLK RX _DATA MD_RDY TX _CLK TX _DATA TX _RDY CCA BB _RX_PE BB _TX_PE /RESET BB _CLK BB _DATA R/nW /CS_BBP To BBP Buffer MDIO Reset 3.3V 22MHz MDIO 5.3.3 Microprocessor/MAC Interface Block Diagram Page 6 Printed: 28-Apr-06 4:28 PM WaveRider Communications (Canada) Inc. Suite 4, 6110 - 1A Street SW, Calgary, Alberta T2H 0G3 Tel/FAX: 403•253•5366 web: www.waverider.com 1.3.4 BBP Interface BBP BLOCK TO RF IFDET TXI+/- TXQ+/- VREF RXI+/- RXQ+/- TXIFAGC RFIFAGC 2 2 2 2 3.3V 11MHz HFA3861B RX_CLK RX_DATA MD_RDY TX_CLK TX_DATA TX_RDY CCA BB_RX_PE BB_TX_PE /RESET BB_DATA BB_CL K R/nW /CS_BBP To MICRO /MAC ÷4 44MHz ÷2 22MHz ANTSEL RXRFAGC 5.3.4 BBP Interface Block Diagram

WaveRider Communications (Canada) Inc. Suite 4, 6110 - 1A Street SW, Calgary, Alberta T2H 0G3 Tel/FAX: 403•253•5366 web: www.waverider.com 28 April 2006 Stuart Beck, Director of Certification, Nemko Canada Inc., 303 River Road, Ottawa, Ontario K1V 1H2 and Equipment Authorization Division Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 Dear Stuart, Reference: WaveRider EUM3006 Model E3K6 (FCC ID OOX-E3K6) Request for Confidentiality WaveRider Communications request that the following information regarding the submission of this application be withheld from public inspection, in accordance with CRF 0.457 and 0.459: • Circuit schematics (file: EUM3006A_Schematic.pdf) • Bill of materials (file: EUM3006A_BOM.xls) The reasons for which confidentiality has been requested are: • This product serves a unique and competitive niche in the wireless market. • This information is considered to be proprietary in nature. • This information is considered to be commercially and competitively sensitive. Lawrence Gordon, Senior Technical Design Lead, WaveRider Communications (Canada) Inc. Suite 4, 6110 - 1A St. SW, Calgary, Alta, T2H 0G3 Tel/FAX: (403) 253-5366, Tel: (403) 616-5668(cell)

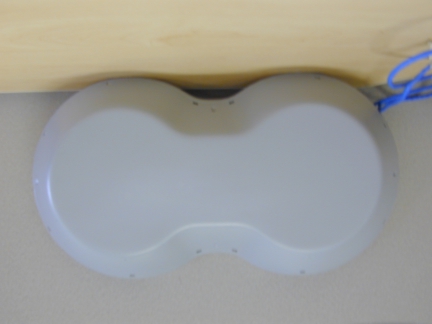

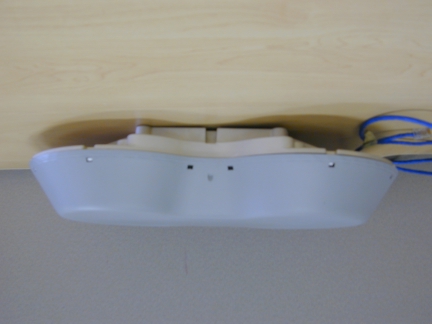

Murandi Communications Ltd. Innovative Radio Frequency Solutions Murandi Communications Ltd. Suite 300, 6715 - 8th St. NE, Calgary, Alberta, Canada, T2E 7H7 Tel: (403) 777-9988email [email protected] Fax: (403) 777-9989www.murandi.com EUM3006 External photos Front view of EUM3006: Page 2Printed: 11/22/04 12:54 PM Murandi Communications Ltd. Suite 300, 6715 - 8th St. NE, Calgary, Alberta, Canada, T2E 7H7 Tel: (403) 777-9988Fax: (403) 777-9989 Rear view of EUM3006: Page 3Printed: 11/22/04 12:54 PM Murandi Communications Ltd. Suite 300, 6715 - 8th St. NE, Calgary, Alberta, Canada, T2E 7H7 Tel: (403) 777-9988Fax: (403) 777-9989 Side view of EUM3006:

WaveRider Communications (Canada) Inc. Suite 4, 6110 - 1A Street SW, Calgary, Alberta T2H 0G3 Tel/FAX: 403•253•5366 web: www.waverider.com 1 May 2006 To Whom It May Concern: Reference: FCC ID "OOX-E3K6" and IC “3225B-E3K6” Labeling The label shown below is prominently displayed on the outside of the EUM3006 Model E3K6 modem. The label below is approximately 50% larger than the actual label. EUM3006 E3K6/HCA4 EUM3006HBA4A50620234 PRODUCT: MOD/VER: FCC ID: OOX-E3K6 IC: 3225B-E3K6 Made in Canada / Fabrique au Canada This device complies with Part 15 of the FCC rules. Operation is subject to the following conditions: 1) This device may not cause harmful interferance and 2) This device must accept any interference received, including interference that may cause undesired operation. WWW.WAVERIDER.COM COMMUNICATIONS (CANADA) INC. CUS EUM3006HAA1A501E10234 The label is composed of: MATERIAL - Thermal Transfer Matte Silver Polyester Label Material: 3M P/N 3M7872 ADHESIVE - Acrylic Adhesive: 3M P/N: #350 LINER - #55 Densified Kraft WaveRider Communications (Canada) Inc. Suite 4, 6110 - 1A Street SW, Calgary, Alberta T2H 0G3 Tel/FAX: 403•253•5366 web: www.waverider.com The location of the label on the EUM3006 is shown in the following picture. Your Truly, Lawrence Gordon, Senior Technical Design Lead, WaveRider Communications Inc. Suite 4, 6110 - 1A St. SW, Calgary, Alta, T2H 0G3 Tel/FAX: (403) 253-5366, Tel: (403) 616-5668(cell)

Murandi Communications Ltd. Innovative Radio Frequency Solutions Murandi Communications Ltd. Suite 300, 6715 - 8th St. NE, Calgary, Alberta, Canada, T2E 7H7 Tel: (403) 777-9988email [email protected] Fax: (403) 777-9989www.murandi.com EUM3006 Antenna Photos The following is the top of the antenna assembly: Page 2Printed: 11/18/04 5:04 PM Murandi Communications Ltd. Suite 300, 6715 - 8th St. NE, Calgary, Alberta, Canada, T2E 7H7 Tel: (403) 777-9988Fax: (403) 777-9989 The following is a close-up of the top right hand side of the antenna assembly: Page 3Printed: 11/18/04 5:04 PM Murandi Communications Ltd. Suite 300, 6715 - 8th St. NE, Calgary, Alberta, Canada, T2E 7H7 Tel: (403) 777-9988Fax: (403) 777-9989 The following is the bottom of the antenna assembly: Page 4Printed: 11/18/04 5:04 PM Murandi Communications Ltd. Suite 300, 6715 - 8th St. NE, Calgary, Alberta, Canada, T2E 7H7 Tel: (403) 777-9988Fax: (403) 777-9989

EUM3006 Modem (EUM3006A PCB) Photos Top Side with shield on Top side under shield detail Bottom side with shield on Bottom side, shield off, radio detail.

WaveRider Communications (Canada) Inc. Suite 4, 6110 - 1A Street SW, Calgary, Alberta T2H 0G3 Tel/FAX: 403•253•5366 web: www.waverider.com EUM3006/E3K6 Functional Overview The EUM3006 is a 900MHz radio module intended to provide connectivity between an end-user’s computer and an Internet Service Provider. It is a single PCB wireless solution based on the Intersil PRISM II Direct Sequence Chip Set. The EUM3006/E3K6 is functionally identical to the EUM3006 (previously certified with FCC ID: OOX-EUM3006, IC ID: 3225B-EUM3006). The EUM3006 is intended for mounting outdoors. Overall functionality The EUM3006 consists of two main sections; the digital and the RF section. Block diagrams for both sections can be found in the document “E3K6 Block Diagrams”. The digital section contains the following functionality: 1. I/O 2. Ethernet PHY 3. Microprocessor/MAC 4. Memory 5. Power Regulation The radio module’s RF section contains the following functionality: 1. Baseband Processor 2. Modulator/Demodulator (with IF synthesizer) 3. RF Synthesizer 4. Up Converter 5. Power Amplifier 6. Low Noise Amplifier (LNA) 7. Down Converter 8. RF VCO 9. IF VCO 10. Reference Oscillator 11. Antenna (RF) Interface During transmission, data obtained by the Microprocessor from the I/O ports, is transferred to the MAC. The MAC reformats the data and places it on the Baseband Processor TX data line. This data is modulated using CCK modulation and then spread using a defined PN code such that the data is sent at a rate of 2.75Mbit/s. The data is preceded by a header that uses DPSK modulation. Two signals are generated, the In-Phase (I) and Quadrature (Q) components. The I & Q signals are sent to the Modulator/Demodulator where they are first filtered and then modulated with the IF frequency (70 MHz). The IF oscillator generates a 140 MHz signal which is divided by two inside the Modulator/Demodulator and used to modulate the I & Q signals. The final IF signal of 70 MHz is then sent to the Up converter. The Up converter will shift this signal to the RF frequency for the channel programmed in the synthesizer, for operation within the 902-928 MHz ISM band. In the final stage, this signal is amplified to produce RF power as measured at the output of the antenna port. In receive mode, the radio signal is amplified by the LNA, and then sent to the Down converter. The Down converter converts this signal from the 902-928 MHz range to the IF frequency, 70 MHz. The Modulator/Demodulator then converts the signal to baseband and splits the signal into its I & Q components, before sending it to the Baseband Processor. Finally, the Baseband Processor despreads and demodulates the data contained in the CCK format, and places it on the RX data line to the MAC. Page 2 Printed: 28-Apr-06 4:29 PM WaveRider Communications (Canada) Inc. Suite 4, 6110 - 1A Street SW, Calgary, Alberta T2H 0G3 Tel/FAX: 403•253•5366 web: www.waverider.com The MAC modifies the data, then transfers it to the Microprocessor which reformats the information and sends it out the I/O ports. The RF and IF Local Oscillator signals are generated using the synthesizers and voltage controlled oscillators. The RF synthesizer is programmed with the desired RF channel frequency plus the IF frequency. The IF synthesizer in the Modulator/Demodulator is programmed with 140MHz. The baseband processor and the synthesizer are driven from a common 44 MHz oscillator to control the timing of these chips. Example (for Channel 1 operation): RF IF LO 905 MHz + 70 MHz = 975 MHz Output Power Each EUM3006 is calibrated at 905, 915 and 925 MHz during manufacturing to output the power at the antenna connector. The maximum time the transmitter is on is 5.1 msec after which it is in receive mode for at least 0.9 msec, so that the max. duty cycle is 5.1/6.0 = 85%. This duty cycle is not under the control of the user, but is inherent in the Dynamic Polled MAC used to control access to the channel. Antennas The EUM3006 has only one integrated antenna that is part of this certification. There is no other possibility for antennas with the EUM3006 product. There are two criteria on the max. EIRP for a Part 15 transmitter in the 902-928 MHz range: 1) Maximum of 36 dBm EIRP and 2) Max. of 0.603 mW/cm 2 for radiation exposure. By convention, a min. distance of 20 cm has been used for indoor antennas. Applying this distance to the radiation exposure limits the EIRP to 34.8 dBm. The min. separation distance required for an EIRP of 36 dBm is 22.9 cm. The EUM3006 uses an integated antennas and is intended to be mounted outdoors in a permanent fixed location, where we require installers to provide at least 30 cm separation between people and the antenna. Power Supply The EUM3006 is powered from an AC/DC power supply, the AULT P147RB. This power supply has been tested with the EUM3006 as well as having its own FCC Class B acceptance.

Murandi Communications Ltd. Innovative Radio Frequency Solutions Murandi Communications Ltd. Suite 300, 6715 - 8th St. NE, Calgary, Alberta, Canada, T2E 7H7 Tel: (403) 777-9988Fax: (403) 777-9989 Confidential and Proprietary Technical Specifications for the EUM3006 Antenna Rev 1 – July/04 1. Table of Contents 1.Table of Contents .................................................................................................................. 1 2.Reference Documents .........................................................................................................1 3.Technical Specifications........................................................................................................ 2 3.1Physical ............................................................................................................................. 2 3.2Electrical Performance ......................................................................................................2 3.3Environmental.................................................................................................................... 2 3.4Other Requirements ..........................................................................................................3 3.4.1General....................................................................................................................... 3 4.Interface Specifications ......................................................................................................... 3 4.1RF Port .............................................................................................................................. 3 4.2Diversity Connector ........................................................................................................... 3 5.Radiation Plots ...................................................................................................................... 4 5.1Vertical Polarization........................................................................................................... 4 5.2Horizontal Polarization....................................................................................................... 5 2. Reference Documents 1. Technical Specifications for the EUM3006 Wireless Modem – Rev 1 – Oct/04 Technical SpecificationsPage 2Printed: 11/23/04 2:48 PM Murandi Communications Ltd. Suite 300, 6715 - 8th St. NE, Calgary, Alberta, Canada, T2E 7H7 Tel: (403) 777-9988Fax: (403) 777-9989 Confidential and Proprietary 3. Technical Specifications 3.1 Physical SubjectSpecificationsRef.Comments Housing and MountIntegrated with EUM3006 and mounted in a single enclosure. Board Material Layer 1 Layer 2 RF Signal Core0.030” ± 0.003” RF Signal/Ground • Outer layers 1 ounce copper (0.0014”) with plating (0.00014”, total 0.00154”). • Total thickness: 0.030” + 2x0.00154” = 0.0331” • Dielectric constant 3.33 ± 0.05 at 1GHz (RO4233) • Loss Tangent 0.0026 max 3.2 Electrical Performance SubjectSpecificationsRef.Comments Frequency Range902 – 928 MHz Peak Gain • 10.2 dBi (vertical polarization) • 9.2 dBi (horizontal polarization) • Beam width 30 degrees min on E and H planes Power handling • +27 dBm min. VSWR • 2:1 max. over operating frequency of the radio Back/Front ratio • 10 dB min. Diversity • Polarization diversity • 2us switching time max. 3.3 Environmental SubjectSpecificationsRef.Comments Operating Temperature -40 to 50 C (Outdoor) Storage Temperature-40 C to 70 C Operating Relative Humidity 0 to 95% non condensing at 50 ° C ESD15kV air 8kV contact for 1/30ns pulse Pulse is 1ns rise, 30ns decay to 50% of peak. Technical SpecificationsPage 3Printed: 11/23/04 2:48 PM Murandi Communications Ltd. Suite 300, 6715 - 8th St. NE, Calgary, Alberta, Canada, T2E 7H7 Tel: (403) 777-9988Fax: (403) 777-9989 Confidential and Proprietary SubjectSpecificationsRef.Comments Lightning protection400W for 8/20us pulseProtect against secondary lightning surges 3.4 Other Requirements 3.4.1 General SubjectSpecificationsRef.Comments MTBFAt least 26,000 hours1 Service Life3 years1 4. Interface Specifications 4.1 RF Port PinNameDescription 1Signal (bi-directional) RF Input/Output • 50 ohm (VSWR 2:1 min) • 902 – 928MHz • Input power 27 dBm max 2Gnd (RF ground) Reference ground for signal 4.2 Diversity Connector PinNameDescription 1DIVA • 0V -> vertical polarization • 3.3V -> horizontal polarization • Current 100uA max. used in conjunction with DIVB 2DIVB • 0V -> horizontal polarization • 3.3V -> vertical polarization • Current 100uA max. used in conjunction with DIVA Technical SpecificationsPage 4Printed: 11/23/04 2:48 PM Murandi Communications Ltd. Suite 300, 6715 - 8th St. NE, Calgary, Alberta, Canada, T2E 7H7 Tel: (403) 777-9988Fax: (403) 777-9989 Confidential and Proprietary 5. Radiation Plots 5.1 Vertical Polarization Vertical Polarization Polar Plot for Theta = 90 -35 -30 -25 -20 -15 -10 -5 0 5 10 15 0 15 30 45 60 75 90 105 120 135 150 165 180 195 210 225 240 255 270 285 300 315 330 345 Max 10.1 at 90Min -31.25 at 225 3dB beam-width from 73 to 118 (45) Vertical Polarization Polar Plot for Phi = 90 -30 -25 -20 -15 -10 -5 0 5 10 15 0 15 30 45 60 75 90 105 120 135 150 165 180 195 210 225 240 255 270 285 300 315 330 345 Max 10.1 at 90Min -29.96 at 345 3dB beam-width from 55 to 123 (68) Technical SpecificationsPage 5Printed: 11/23/04 2:48 PM Murandi Communications Ltd. Suite 300, 6715 - 8th St. NE, Calgary, Alberta, Canada, T2E 7H7 Tel: (403) 777-9988Fax: (403) 777-9989 Confidential and Proprietary 5.2 Horizontal Polarization Horizontal Polarization Polar Plot for Theta = 90 -30 -25 -20 -15 -10 -5 0 5 10 0 15 30 45 60 75 90 105 120 135 150 165 180 195 210 225 240 255 270 285 300 315 330 345 Max 9.2 at 90Min -28.2 at 285 3dB beam-width from 74 to 112 (38) Horizontal Polarization Polar Plot for Phi = 90 -15 -10 -5 0 5 10 0 15 30 45 60 75 90 105 120 135 150 165 180 195 210 225 240 255 270 285 300 315 330 345 Max 9.2 at 90Min -13.79 at 315 3dB beam-width from 51 to 138 (87)

This report shall not be reproduced, except in full, without prior written approval of MPB Technologies Inc. Page 1 of 43 Test Report Prepared By: Electronics Test Centre 27 East Lake Hill Airdrie, Alberta Canada T4A 2K3 [email protected] http://www.etc-mpb.com/ Telephone: (403) 912-0037 Facsimile: (403) 912-0083 MPBT Report Number m01e3595-1 Release 3 Date: 10 May 2006 Emissions Testing of the WaveRider EUM3006A in accordance with FCC Part 15.247 (2004) Spread Spectrum Operation 902 – 928 & 2400 – 2483.5 & 5725 – 5850 MHz. Test Personnel: T. Nguyen, H. Shahryar, D. Raynes, I. Romanov Prepared for: WaveRider Communications Ltd. 6110 – 1A Street N.E. Suite # 4 Calgary, Alberta Canada T2H 0G3 Telephone: 1-403-253-5366 Facsimile: 1-403-253-5366 [email protected] Laboratory Supervisor Electronics Test Centre (Airdrie) Authorized Signatory Test Sample: WaveRider EUM3006A FCC Part 15.247 (2004) Report Number m01e3595-1 Release 3 This report shall not be reproduced, except in full, without prior written approval of MPB Technologies Inc. Page 2 of 43 TABLE OF CONTENTS 1.0 INTRODUCTION 1.1 S COPE 1.2 A PPLICANT 1.3 T EST SAMPLE DESCRIPTION 1.4 G ENERAL TEST CONDITIONS AND ASSUMPTIONS 1.5 S COPE OF TESTING 1.5.1 VARIATIONS IN TEST METHODS 1.5.2 T EST SAMPLE MODIFICATIONS 2.0 M EASUREMENT UNCERTAINTY 3.0 T EST RESULTS 3.1 CONDUCTED EMISSIONS AT AC LINES 3.1.1 R ECEIVE MODE (PART 15.107) 3.1.2 T RANSMIT MODE (PART 15.207) 3.2 C ONDUCTED EMISSIONS MEASURED AT ANTENNA PORT (PART 15.247 & 15.31) 3.3 RADIATED EMISSIONS INCLUDING RESTRICTED BANDS OF OPERATION 3.3.1 R ECEIVE MODE (PART 15.109) 3.3.2 T RANSMIT MODE (PART 2.1053, 15.205, 15.209 & 15.247) 3.4 F REQUENCY STABILITY (PART 2.1055) 4.0 T EST FACILITY 4.1 LOCATION 4.2 GROUNDING PLAN 4.3 P OWER 4.4 EMISSIONS PROFILE 4.5 TEST CONFIGURATION 5.0 T EST EQUIPMENT APPENDIX A: Test Sample Description: WaveRider EUM3006A Test Sample: WaveRider EUM3006A FCC Part 15.247 (2004) Report Number m01e3595-1 Release 3 This report shall not be reproduced, except in full, without prior written approval of MPB Technologies Inc. Page 3 of 43 1.0 INTRODUCTION 1.1 SCOPE The purpose of this report is to present the findings and results of compliance testing performed in accordance with CFR Title 47 FCC Part 15.247 (2004), Spread Spectrum Operation 902 - 928 & 2400 - 2483.5 & 5725 – 5850 MHz. All test procedures, limits, and results defined in this document apply to the WaveRider Communications Ltd. Waverider EUM3006A unit, referred to herein as the Equipment Under Test (EUT). The results contained in this report relate only to the item tested. This report does not imply product endorsement by NVLAP or the Canadian or US governments. 1.2 APPLICANT This test report has been prepared for WaveRider Communications Ltd., located in Calgary, Alberta, Canada. 1.3 TEST SAMPLE DESCRIPTION The test sample provided for testing was a WaveRider EUM3006A: Product Type: Wireless Ethernet Modem Model Number: Waverider EUM3006A Serial Number: N/A Cables: Ethernet/Power Power Requirements: 120 VAC, 50/60 Hz Peripheral Equipment: Personal Computer More detailed information is provided by WaveRider Communications Ltd. in Appendix A. 1.4 GENERAL TEST CONDITIONS AND ASSUMPTIONS The EUT was set up and exercised using the configurations, modes of operation and arrangements defined in this report only. All inputs and outputs to and from other equipment associated with the EUT were adequately simulated. Where relevant, the EUT was only tested using the monitoring methods and test criteria defined in this report. Environmental conditions are recorded for each test. Test Sample: WaveRider EUM3006A FCC Part 15.247 (2004) Report Number m01e3595-1 Release 3 This report shall not be reproduced, except in full, without prior written approval of MPB Technologies Inc. Page 4 of 43 1.5 SCOPE OF TESTING Testing was performed in accordance with FCC Part 15 Subpart C (2004), and ANSI C63.4 (2004). 1.5.1 V ARIATIONS IN TEST METHODS There were no variations from the test procedures outlined above. 1.5.2 T EST SAMPLE CONFIGURATION & MODIFICATIONS The EUT met the requirements without modification. 2.0 MEASUREMENT UNCERTAINTY For Radiated E-Field Emissions and Conducted Emissions, the uncertainties in the measurements were calculated using the methods outlined in the NAMAS document, NIS81: May 1984. Frequency = ± 1 kHz Amplitude (RE) = ± 4.01 dB Amplitude (CE) = ± 3.25 dB Test Sample: WaveRider EUM3006A FCC Part 15.247 (2004) Report Number m01e3595-1 Release 3 This report shall not be reproduced, except in full, without prior written approval of MPB Technologies Inc. Page 5 of 43 3.0 TEST RESULTS STATEMENT OF COMPLIANCE The client equipment referred to in this report was found to comply with the requirements as stated below. The EUT was subjected to the following tests. Compliance status is reported as PASS or FAIL. Test conditions that are not applicable to the EUT are marked n/a. If testing was not performed at this time, the appropriate field is marked n/t. The following table summarizes the test results in terms of the specification and class or level applied, the unique test sample identification, the EUT modification state, and configuration as applicable. TEST CASE TEST TYPE SPECIFICATION TEST SAMPLE MOD. STATE CONFIGURATION RESULT § 3.1 Conducted Emissions at AC lines FCC Part 15.107 and 15.207 WaveRider EUM3006A nil See § 1.5.2 PASS § 3.2 Conducted Emissions at Antenna Port FCC Part 15.247 WaveRider EUM3006A nil See § 1.5.2 PASS § 3.3.1 Radiated Emissions (Rx Mode) FCC Part 15.109 WaveRider EUM3006A nil See § 1.5.2 PASS § 3.3.2 Radiated Emissions (Tx Mode) FCC Parts 2.1053, 15.205, 15.209 & 15.247 WaveRider EUM3006A nil See § 1.5.2 PASS Test Sample: WaveR…
