OS3DGL01USB Dongle

Oplink Communications 1 / 3 DGL1130 User Guide I. Product Introduction DGL1130 is a kind of 433MHz wireless signal transceiver, using for receiving and transmitting control signal from its matched devices, matched devices are products which can transfer control signal remotely, such as alarm systems, door openers, remote switches etc. System Structure Oplink Communications 2 / 3 II. Installation & Workflow DGL1130 has an USB port, it is plug and play and no installation or configuration work needed. Please plug the USB port to the computer or other recognizable devices and it will start to work. 1) When the sensor, which should be matching its system, is triggered, the DGL1130 will receive a 433MHz hex string signal. 2) DGL1130 will transmit the signal to the host device (like a matching Router or AP). The signal will be processed by a software client and transferred to alert information to end user 3) And at the same time, DGL1130 will send out a 433MHz hex string control signal to the Siren. The siren will receive the control signal and start to work. 4) End user could stop the siren through software client. III. User Instruction Please plug the USB port to the computer or other recognizable devices and power on. Cautions： 1) LED Indicator LED light will be permanently on in blue once it is powered up. LED light will glint once per frame when transmitting wireless signal succeeds. No special LED indication for receiving wireless signals. 2) Signal Emission This product does not transmit signal periodically, and, will transmit control signal to the alarm system only when sensors are triggered. FCC Statement This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Warning: Changes or modifications to this unit not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. Oplink Communications 3 / 3 NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:  Reorient or relocate the receiving antenna.  Increase the separation between the equipment and receiver.  Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.  Consult the dealer or an experienced radio/TV technician for help.

DATE: 2012-9-17 FCC DECLARATION OF CONFORMITY (DoC) Trade Name(s): 433MHz USB Dongle Model Number(s): DGL1130 Our device above has been tested and found to be compliant with the FCC Part 15 Class B limits as a computer peripheral. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Details of test lab and documentation Test Lab Name: Bureau Veritas Consumer Products Services (H.K.) Ltd., Taoyuan Branch FCC Test Site Accreditation Number (as seen on FCC website): 460141 Test report number and issue date: FD120808C26 R1 Sep. 10, 2012 Declaring Party : Zhuhai FTZ Oplink Communications, Inc. Name:Lizhi Li Name, Title, Signature

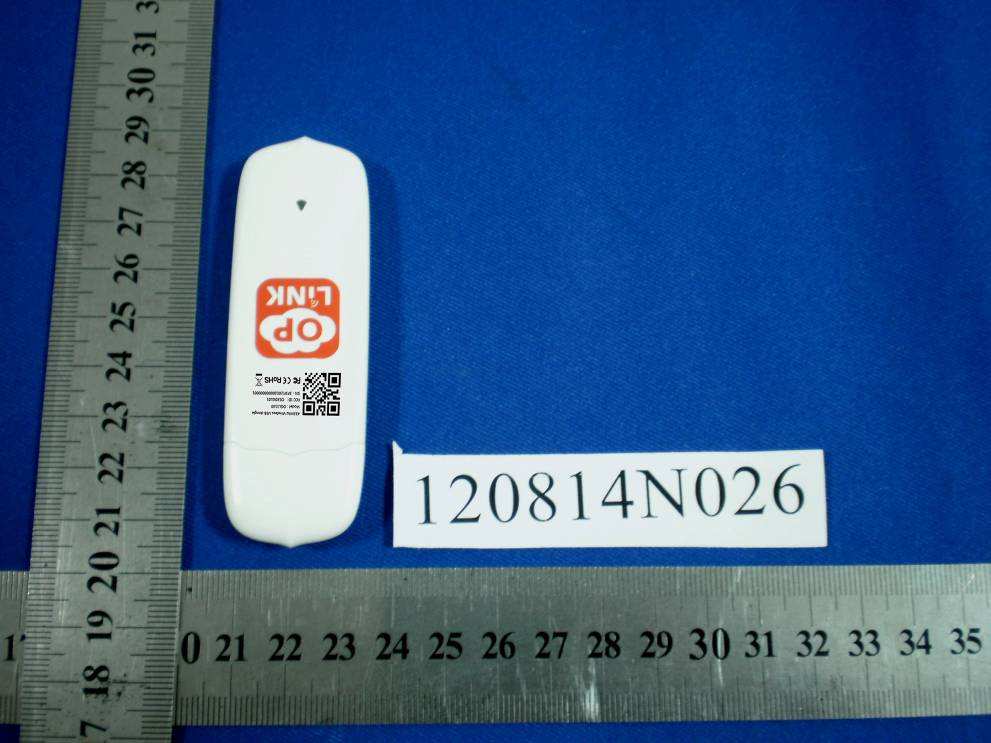

Bureau Veritas Shenzhen Co., Ltd. Dongguan Branch No. 34, Chenwulu Section, Guantai Rd., Houjie Town, Dongguan City, Guangdong 523942, China Tel.: +86 769 8593 5656 Fax: +86 769 8593 1080 Email: [email protected] Page 1 of 1 Report Version 1 Reference No.: 120814N026 PHOTOGRAPHS OF THE EUT

Bureau Veritas Shenzhen Co., Ltd. Dongguan Branch No. 34, Chenwulu Section, Guantai Rd., Houjie Town, Dongguan City, Guangdong 523942, China Tel.: +86 769 8593 5656 Fax: +86 769 8593 1080 Email: [email protected] Page 1 of 2 Report Version 1 Reference No.: 120814N026 PHOTOGRAPHS OF THE EUT Bureau Veritas Shenzhen Co., Ltd. Dongguan Branch No. 34, Chenwulu Section, Guantai Rd., Houjie Town, Dongguan City, Guangdong 523942, China Tel.: +86 769 8593 5656 Fax: +86 769 8593 1080 Email: [email protected] Page 2 of 2 Report Version 1 Reference No.: 120814N026

Bureau Veritas Shenzhen Co., Ltd. Dongguan Branch No. 34, Chenwulu Section, Guantai Rd., Houjie Town, Dongguan City, Guangdong 523942, China Tel: +86 769 8593 5656 Fax: +86 769 8593 1080 Email: [email protected] Page 1 of 30 Report Version 1 Test Report No.: FC120814N026 TEST REPORT Applicant: Zhuhai FTZ Oplink Communications, Inc. Address: #29, #30 Lianfeng Avenue, Free Trade Zone, Zhuhai City, Guangdong Province, China 591030 Manufacturer or Supplier Prime Foundation Inc. Address No.19, Baoying Nan Road Guangzhou Free Trade Zone,Guangzhou,P.R.China510730 Product: 433MHz wireless USB dongle Brand Name: Oplink Model: DGL1130 Additional Model & Model Difference: NA Date of tests: Aug. 27, 2012~ Aug. 31, 2012 the tests have been carried out according to the requirements of the following standards: FCC Part 15, Subpart C (Section 15.231) )) ) CONCLUSION: The submitted sample was found to COMPLY with the test requirement Prepared by Kent Liu Project Engineer / EMC Department Approved by Sam Tung Manager / EMC Department Date: Aug.31, 2012 This report is for your exclusive use. Any copying or replication of this report to or for any other person or entity, or use of our name or trademark, is permitted only with our prior written permission. This report sets forth our findings solely with respect to the test samples identified herein. The results set forth in this report are not indicative or representative of the quality or characteristics of the lot from which a test sample was taken or any similar or identical product unless specifically and expressly noted. Our report includes all of the tests requested by you and the results thereof based upon the information that you provided to us. You have 60 days from date of issuance of this report to notify us of any material error or omission caused by our negligence, provided, however, that such notice shall be in writing and shall specifically address the issue you wish to raise. A failure to raise such issue within the prescribed time shall constitute your unqualified acceptance of the completeness of this report, the tests conducted and the correctness of the report contents. Unless specific mention, the uncertainty of measurement has been explicitly taken into account to declare the compliance or non-compliance to the specification Bureau Veritas Shenzhen Co., Ltd. Dongguan Branch No. 34, Chenwulu Section, Guantai Rd., Houjie Town, Dongguan City, Guangdong 523942, China Tel: +86 769 8593 5656 Fax: +86 769 8593 1080 Email: [email protected] Page 2 of 30 Report Version 1 Test Report No.: FC120814N026 TABLE OF CONTENTS RELEASE CONTROL RECORD ............................................................................................................ 4 1 SUMMARY OF TEST RESULTS ..................................................................................................... 5 2 MEASUREMENT UNCERTAINTY................................................................................................... 5 3 GENERAL INFORMATION .............................................................................................................. 6 3.1 GENERAL DESCRIPTION OF EUT....................................................................................... 6 3.2 DESCRIPTION OF TEST MODES......................................................................................... 6 3.3 TEST MODE APPLICABILITY AND TESTED CHANNEL DETAIL ........................................ 6 3.4 GENERAL DESCRIPTION OF APPLIED STANDARDS ........................................................ 9 3.5 DESCRIPTION OF SUPPORT UNITS ................................................................................... 9 4. TEST TYPES AND RESULTS ....................................................................................................... 10 4.1 CONDUCTED EMISSION MEASUREMENT ....................................................................... 10 4.1.1 LIMITS OF CONDUCTED EMISSION MEASUREMENT ............................................... 10 4.1.2 TEST INSTRUMENTS..................................................................................................... 10 4.1.3 TEST PROCEDURES ......................................................................................................11 4.1.4 DEVIATION FROM TEST STANDARD ............................................................................11 4.1.5 TEST SETUP................................................................................................................... 12 4.1.6 EUT OPERATING CONDITIONS .................................................................................... 12 4.1.7 TEST RESULTS .............................................................................................................. 13 4.2 RADIATED EMISSION MEASUREMENT ............................................................................ 15 4.2.1 LIMITS OF RADIATED EMISSION MEASUREMENT .................................................... 15 4.2.2 TEST INSTRUMENTS .................................................................................................... 16 4.2.3 TEST PROCEDURES..................................................................................................... 17 4.2.4 DEVIATION FROM TEST STANDARD ........................................................................... 17 4.2.5 TEST SETUP .................................................................................................................. 18 4.2.6 EUT OPERATING CONDITIONS.................................................................................... 18 4.2.7 TEST RESULTS .............................................................................................................. 19 4.3 20dB BANDWIDTH MEASUREMENT ................................................................................. 23 4.3.1 LIMITS OF 20dB BANDWIDTH MEASUREMENT.......................................…

Text truncated - open the document above for the full version.

Bureau Veritas Shenzhen Co., Ltd. Dongguan Branch No. 34, Chenwulu Section, Guantai Rd., Houjie Town, Dongguan City, Guangdong 523942, China Tel.: +86 769 8593 5656 Fax: +86 769 8593 1080 Email: [email protected] Page 1 of 2 Report Version 1 Reference No.: 120814N026 1 SET-UP FOR RADIATED EMISSION TEST <Frequency Range 30MHz~1GHz> <Frequency Range above1GHz> Bureau Veritas Shenzhen Co., Ltd. Dongguan Branch No. 34, Chenwulu Section, Guantai Rd., Houjie Town, Dongguan City, Guangdong 523942, China Tel.: +86 769 8593 5656 Fax: +86 769 8593 1080 Email: [email protected] Page 2 of 2 Report Version 1 Reference No.: 120814N026 2 SETUP FOR CONDUCTED EMISSION TEST
