OS3WLS01Water Leak Sensor

Operation 1. Put the detector at place where you want, within the flood sensor detection range when where is leaking all over the place, and both the two probes detect water at the same time, the sensor will be triggered and send signal to your receiver. 2. Normal operation, the LED will not light. 3. If the cover of sensor is removed, the tamper switch will send signal according the Status/Signal table, and the LED will go flash once. Federal Communications Commission Statement This equipment has been followed to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instruction, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try and correct the interferene by one of the following measures: - Reorient or relocate the receiving antenna, - Increase the separation between the equipment and receiver, - Connect the equipment into and outlet on a circuit different from that to which the receiver is connected. - Consult the dealer or an experienced radio/TV technician for help. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undersired operation. FCC Caution: Any changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate this equipment. Limited Warranty OPLINK Guarantees that every flood sensor is free from physical defects in material and workmanship under normal use for one year from the date of purchase. If the product proves defective during this one-year warranty period, OPLINK will replace it free of charge. OPLINK does not issue any refunds. This warranty is extended to the original end user purchase only and is not transferable. This warranty does not apply to : (1) damage to units caused by accident, dropping or abuse in handling, or any negligent use; (2) units which have been subject to unauthorized repair, taken apart, or otherwise modified; (3) units not used in accordance with instruction; (4) damages exceeding the cost of the product; (5) transit damage, initial installation costs, removal cost, or reinstallation cost. For information on addional devices, plesae visit us at www.oplink.com -3- Installation & Operation Manual WLS1300 Water Leak Sensor (Flood Sensor) Introduction Thanks for choosing the OPLINK flood sensor of the home security device. This sensor sends signal when it detects water. We can put it under the refrigerator, and the sensor will triggered when the refrigerator leaking and both the two probes of detector detect water at the same time. You can also set the detector at anywhere leaks; with this sensor you can avoid loss before the calamity and the flood. Product Description and Specification Specification: Package Content: Frequency: 433.92MHz Operating Range: Up to 100 feet line of sight Operating Temp.: -15°C~ 60°C (5°F ~140°F) 1pc 1pc 1pcs 2pc 2pc 2pc WLS1300 sensor CR123A Battery Installation & Operation manual Adhesive tape for main unit Screws for bracket of main unit Screws for sensor Status/ Signal (Alarm report) Alarm Type Water Leak Alarm 1111 0010 1001 000X Water Leak Release 1111 0010 1010 000X Temper Alarm 1111 0010 1001 010X Low Battery Alarm 1111 0010 1001 001X Heart Beat 1111 0010 1001 011X -1- Installation 1. Fix the detector on position you want, using the screws to fix it on the wall or floor. 2. Unscrew the screw fastening the rear cover and slide the rear cover down and Insert a CR123A battery into the battery compartment and LED will start to flashing, which means the sensor has send alarm report signal. 3. Slide back the rear cover and screw fastening with the front cover, the LED should go off. 4. Put the main part at higher place for better RF range, and then use the adhesive tape to fix the main part on the wall. -2-

Specification of Antenna Model No： WLS1300 Antenna Type： Helical Antenna Length Closed： N/A Length Open： 20mm Diameter： 45mm No. of element： N/A Antenna Gain： -10 dBm Total Resistance： 1.5Ω Temperature： -20°C ~ 70°C

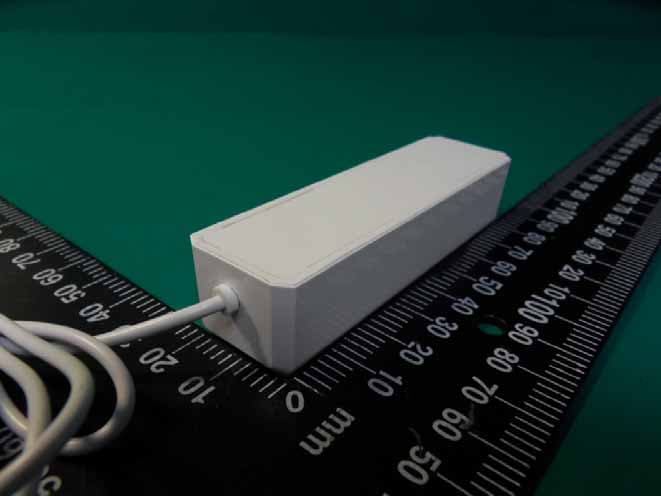

Compliance Certification Services Inc. Report No.T140403N11 Date of Issue: April 11, 2014 Page A1 / 4 External Photo (WLS1300) Compliance Certification Services Inc. Report No.T140403N11 Date of Issue: April 11, 2014 Page A2 / 4

WLS1300 diagram Label location Label location FCC ID：OS3WLS01

Compliance Certification Services Inc. Report No.T140403N11 Date of Issue: April 11, 2014 Page A3 / 4 Internal Photo (WLS1300) Compliance Certification Services Inc. Report No.T140403N11 Date of Issue: April 11, 2014 Page A4 / 4

WLS1300 WATER LEAK SENSOR Operational Description The WLS1300 WATER LEAK SENSOR transmitter is a low powered, fixed unit for remote controlling the home security feature. See the function descriptions in attached. A 3VDC battery powers the transmitter. It is designed to operate on a single fixed frequency at 433.92MHz ± 150 kHz. See the attached block diagram and schematic. There are two triggers the integrated circuit (U1) that produces the digital control signals and will modulate the carrier signal (ASK). SAW Resonator generates the carrier signal / amplifier circuit comprised of X1 and transmitter IC (U2). The modulated output of the RF stage is coupled to the helical antenna. The Antenna is attached on helical antenna permanently around 20 mm. The transmitter is manually operated by the external cable switch (SW3) and COVER switch (SW1A) pushed momentarily within 0.2 second and will automatically deactivate send signal to receiver. This feature is incorporated by the U1 internally. All tuning and verification are performed by the manufacture and there are user can make no adjustments.

Compliance Certification Services Inc. FCC ID: OS3WLS01 Report No.: T140403N11-RP1 Note: This report shall not be reproduced except in full, without the written approval of Compliance Certification Services Inc. This document may be altered or revised by Compliance Certification Services Inc. personnel only, and shall be noted in the revision section of the document. Page 1/ 34 FCC 47 CFR PART 15 SUBPART C: 2012 ANSI C63.4: 2009 TEST REPORT For Water Leak Sensor Model : WLS1300 Brand : Oplink Issued to Zhuhai FTZ Oplink Communications, Inc. # 29#30 Lianfeng Avenue, Free Trade Zone, Zhuhai City , G uangdong Province, China 591030 Issued by Compliance Certification Services Inc. Tainan Lab. No.8,Jiucengling, Xinhua Dist., Tainan City 712, Taiwan (R.O.C.) TEL: (06) 580-2201 FAX: (06) 580-2202 Issued Date: April 21, 2014 Compliance Certification Services Inc. FCC ID: OS3WLS01 Report No.: T140403N11-RP1 Page 2/34 REVISION HISTORY Rev. Issue Date Revisions Effect Page Revised By 00 April 21, 2014 Initial Issue ALL Sunny Chang Compliance Certification Services Inc. FCC ID: OS3WLS01 Report No.: T140403N11-RP1 Page 3/ 34 TABLE OF CONTENTS 1. TEST RESULT CERTIFICATION .....................................................................................2 2. EUT DESCRIPTION..........................................................................................................2 3. TEST METHODOLOGY....................................................................................................2 3.1 EUT CONFIGURATION .................................................................................................2 3.2 EUT EXERCISE .............................................................................................................2 3.3 GENERAL TEST PROCEDURES ..................................................................................2 3.4 FCC PART 15.205 RESTRICTED BANDS OF OPERATIONS ......................................2 3.5 DESCRIPTION OF TEST MODES .................................................................................2 4. INSTRUMENT CALIBRATION .........................................................................................2 4.1 MEASURING INSTRUMENT CALIBRATION.................................................................2 4.2 MEASUREMENT EQUIPMENT USED...........................................................................2 4.3 MEASUREMENT UNCERTAINTY .................................................................................2 5. FACILITIES AND ACCREDITATIONS .............................................................................2 5.1 FACILITIES ....................................................................................................................2 5.2 EQUIPMENT ..................................................................................................................2 5.3 TABLE OF ACCREDITATIONS AND LISTINGS ............................................................2 5.4 TABLE OF ACCREDITATIONS AND LISTINGS ............................................................2 6. SETUP OF EQUIPMENT UNDER TEST ..........................................................................2 6.1 SETUP CONFIGURATION OF EUT ..............................................................................2 6.2 SUPPORT EQUIPMENT ................................................................................................2 7. FCC PART 15.231 REQUIREMENTS ..............................................................................2 7.1 20 DB BANDWIDTH .......................................................................................................2 7.2 LIMIT OF TRANSMISSION TIME...................................................................................2 7.3 DUTY CYCLE.................................................................................................................2 7.4 CENTRAL FREQUNCY..................................................................................................2 7.5 RADIATED EMISSIONS.................................................................................................2 7.6 POWERLINE CONDUCTED EMISSIONS .....................................................................2 8. APPENDIX 1 PHOTOGRAPHS OF TEST SETUP...........................................................2 Compliance Certification Services Inc. FCC ID: OS3WLS01 Report No.: T140403N11-RP1 Page 4/ 34 1. TEST RESULT CERTIFICATION Product: Water Leak Sensor Model: WLS1300 Brand Name: Oplink Applicant: Zhuhai FTZ Oplink Communications, Inc. #29#30 Lianfeng Avenue, Free Trade Zone, Zhuhai City, Guangdong Province, China 591030 Manufacturer: Vision Automobile Electronics Industrial Co., Ltd. No. 78, Gongye 3rd Rd., Technology Industrial Park, Tainan 70955, Taiwan Tested: April 7, 2014 – April 16, 2014 APPLICABLE STANDARDS STANDARD TEST RESULT FCC 47 CFR Part 15 Subpart C: 2012 ANSI C63.4 : 2009 No non-compliance noted We hereby certify that: The above equipment was tested by Compliance Certification Services Inc. The test data, data evaluation, test procedures, and equipment configurations shown in this report were made in accordance with the procedures given in ANSI C63.4: 2009 and the energy emitted by the sample EUT tested as described in this report is in compliance with conducted and radiated emission limits of FCC Rules Part 15.207, 15.209 and Part 15.231(a). The test results of this report relate only to the tested sample identified in this report. Approved by: Reviewed by: Jeter Wu Assistant Manager Eric Huang Assistant Section Manager Compliance Certification Services Inc. FCC ID: OS3WLS01 Report No.: T140403N11-RP1 Page 5/ 34 2. EUT DESCRIPTION Product Water Leak Sensor Model Number WLS1300 Brand Name Oplink Received Date April 03, 2014 Frequency Range 433.92 MHz 150 kHz Number of Channels 1 Channel Type of Modulation ASK Power Supply Powered from battery, 3Vdc Antenna Type Helical antenna Gain: -10 dBi Temper…

Text truncated - open the document above for the full version.

Compliance Certification Services Inc. FCC ID: OS3WLS01 Report No.: T140403N11-RP1 Page 32/ 34 8. APPENDIX 1 PHOTOGRAPHS OF TEST SETUP RADIATED EMISSION SETUP PHOTO X-axis Compliance Certification Services Inc. FCC ID: OS3WLS01 Report No.: T140403N11-RP1 Page 33/ 34 Compliance Certification Services Inc. FCC ID: OS3WLS01 Report No.: T140403N11-RP1 Page 34/ 34 RADIATED EMISSION SETUP
