OS3IPC04Wireless IP Camera

Federal Communication Commission Interference State ment This equipment has been tested and found to comply with the limits for a Class B digital device, pursu ant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful in terference in a residential installation. This equ ipment generates, uses and can radiate radio freque ncy energy and, if not installed and used in accordance with the instructions, may cause harmful interfere nce to radio communications. However, there is no guarantee that interference will not occur in a par ticular installation. If this equipment does cause harmful interference to radio or television recept ion, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the in terference by one or more of the following measures :
Reorient or relocate the receiving antenna.
Increase the separation between the equipment and r eceiver.
Connect the equipment into an outlet on a circuit d ifferent from that to which the receiver is connect ed.
Consult the dealer or an experienced radio/TV techn ician for help. FCC Caution: Any changes or modifications not expre ssly approved by the party responsible for complian ce could void the user's authority to operate this equipment. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditio ns: (1) This device may not cause harmful interfere nce, and (2) this device must accept any interference receiv ed, including interference that may cause undesired operation. This device and its antenna(s) must not be co-locat ed or operating in conjunction with any other anten na or transmitter. IMPORTANT NOTE: FCC Radiation Exposure Statement: This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated wit h minimum distance 20cm between the radiator & your body. Country Code selection feature to be disabled for p roducts marketed to the US/CANADA

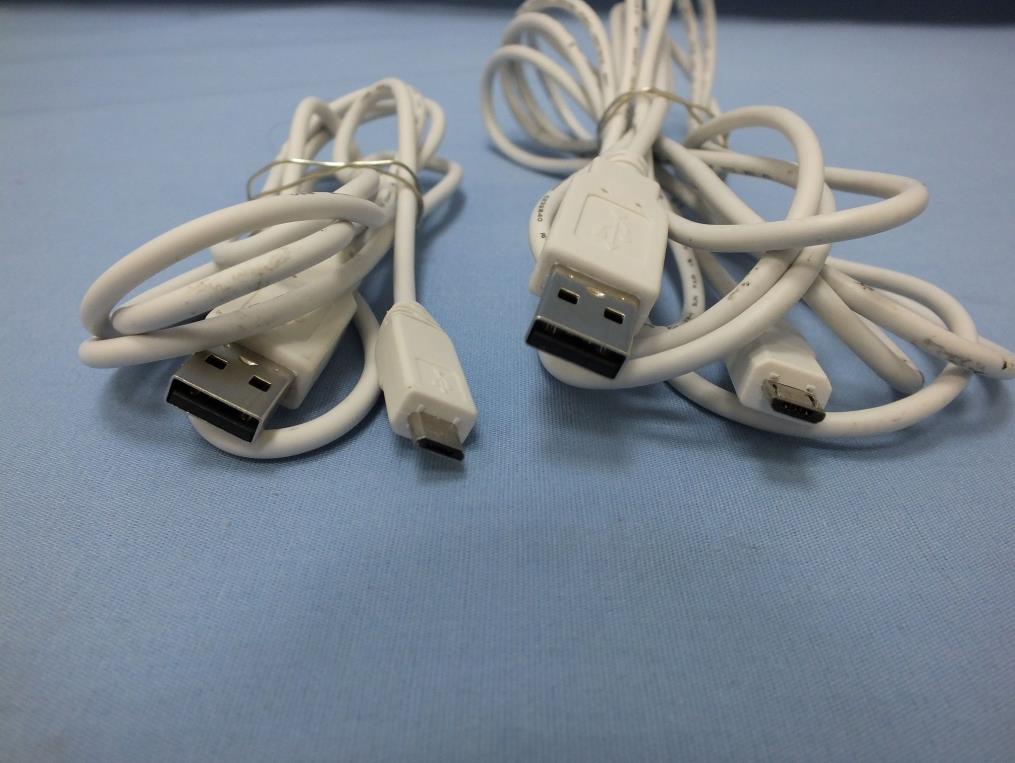

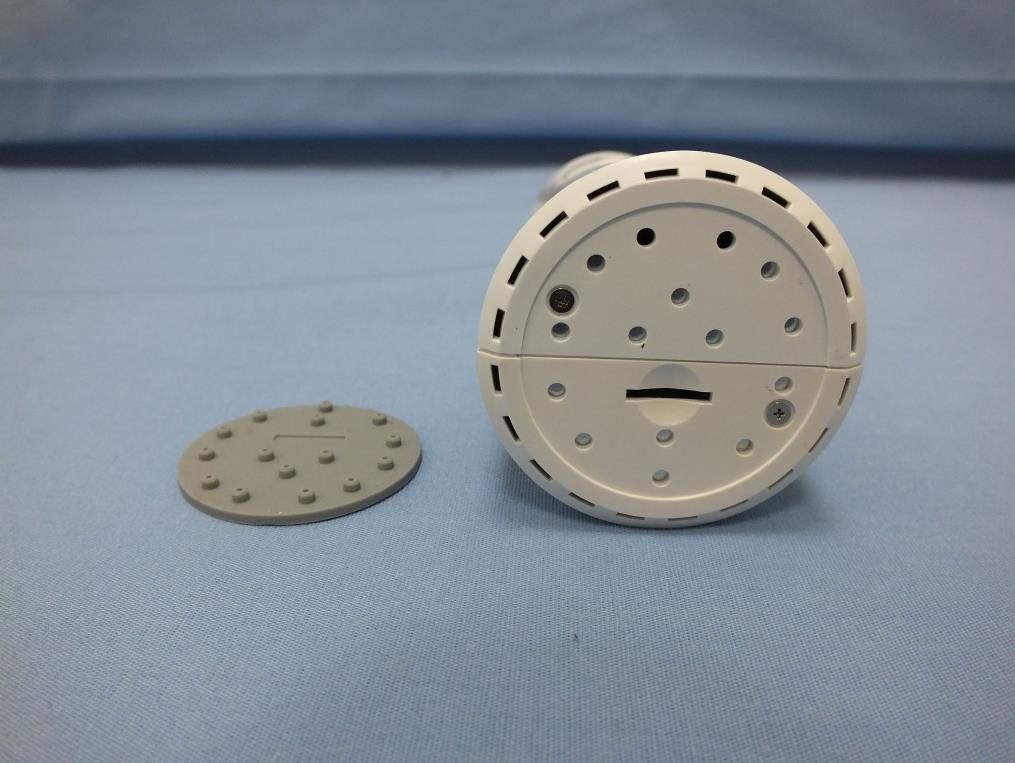

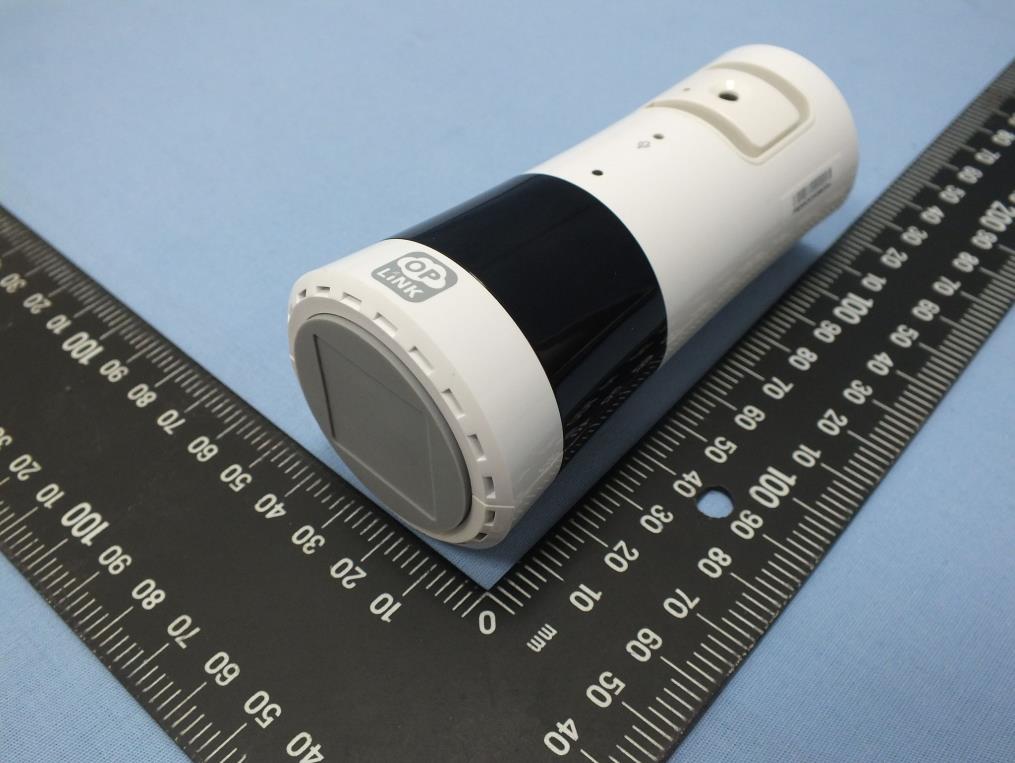

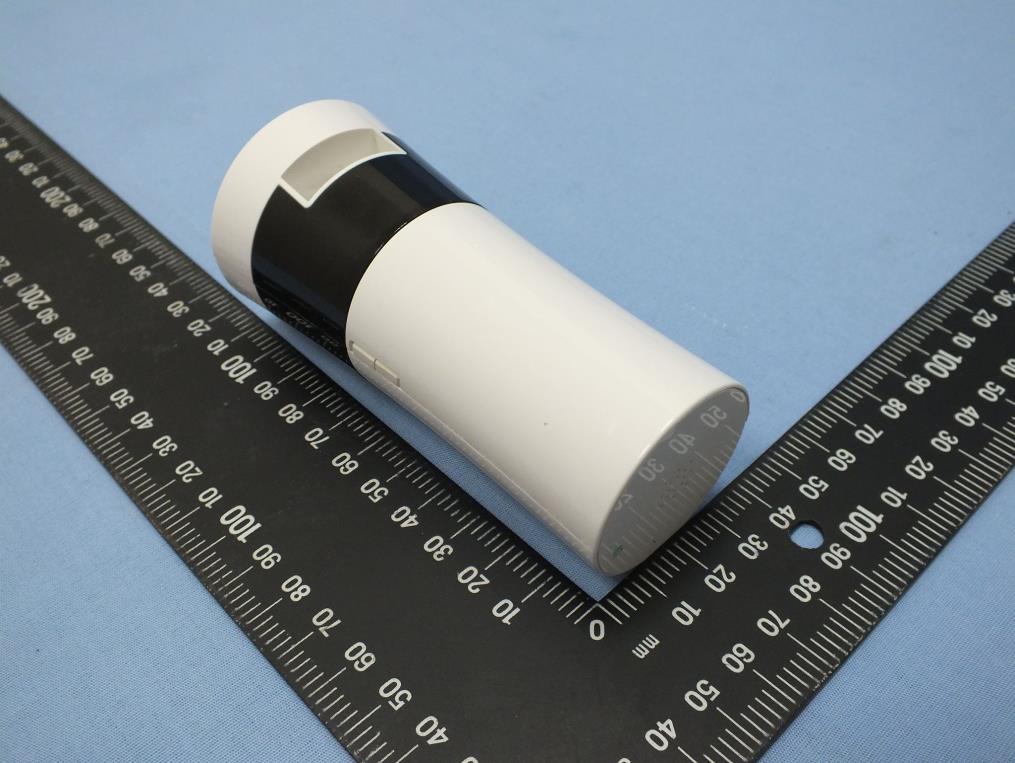

Project No.: EP422801 Page No. : 1 of 19 Photographs of EUT Project No.: EP422801 Page No. : 2 of 19 Project No.: EP422801 Page No. : 3 of 19 Project No.: EP422801 Page No. : 4 of 19 Project No.: EP422801 Page No. : 5 of 19 Project No.: EP422801 Page No. : 6 of 19

MODEL NAME: IPC1203 FCC ID: OS3IPC04 Ver: 001 SN: 19100000A1B2C3D4E5F6 35X35mm 材質、顏色:白色PET QR Code13X13mm XXXX-XXXXXXX XXX-XXXXXX

Project No.: EP422801 Page No. : 7 of 19 Project No.: EP422801 Page No. : 8 of 19 Project No.: EP422801 Page No. : 9 of 19 Project No.: EP422801 Page No. : 10 of 19 Project No.: EP422801 Page No. : 11 of 19 Project No.: EP422801 Page No. : 12 of 19 Project No.: EP422801 Page No. : 13 of 19 Project No.: EP422801 Page No. : 14 of 19 Project No.: EP422801 Page No. : 15 of 19 Project No.: EP422801 Page No. : 16 of 19 Project No.: EP422801 Page No. : 17 of 19 Project No.: EP422801 Page No. : 18 of 19 Project No.: EP422801 Page No. : 19 of 19

Report No.: FA422801 Page : 1 of 5 Report Version: Rev. 01 FCC RF Exposure Report FCC ID : OS3IPC04 Equipment : Wireless IP Camera Model No. : IPC1203 Brand Name : OPLINK Applicant : Zhuhai FTZ Oplink Communications, Inc. Address : #29, #30 Lianfeng Avenue, Free Trade Zone, Zhuhai City, Guangdong Province, 519030, China Standard : 47 CFR FCC Part 2.1091 Received Date : Feb. 28, 2014 Tested Date : Mar. 03 ~ Mar. 07, 2014 We, International Certification Corp., would like to declare that the tested sample has been evaluated and in compliance with the requirement of the above standards. The test results contained in this report refer exclusively to the product. It may be duplicated completely for legal use with the approval of the applicant. It shall not be reproduced except in full without the written approval of our laboratory. Approved & Reviewed by: Gary Chang / Manager Ty: XXX Report No.: FA422801 Page : 2 of 5 Report Version: Rev. 01 Table of Contents 1 MPE EVALUATION OF MOBILE DEVICES ......................................................................................... 4 1.1 LIMITS FOR GENERAL POPULATION/UNCONTROLLED EXPOSURE............................................. 4 1.2 MPE EVALUATION FORMULA ............................................................................................................. 4 1.3 MPE EVALUATION RESULTS .............................................................................................................. 4 2 TEST LABORATORY INFORMATION ................................................................................................. 5 Report No.: FA422801 Page : 3 of 5 Report Version: Rev. 01 Release Record Report No. Version Description Issued Date FA422801 Rev. 01 Initial issue May 09, 2014 Report No.: FA422801 Page : 4 of 5 Report Version: Rev. 01 1 MPE EVALUATION OF MOBILE DEVICES Human exposure to RF emissions from mobile devices (47 CFR §2.1091) may be evaluated based on the MPE limits adopted by the FCC for electric and magnetic field strength and/or power density, as appropriate, since exposures are assumed to occur at distances of 20 cm or more from persons. 1.1 LIMITS FOR GENERAL POPULATION/UNCONTROLLED EXPOSURE Frequency Range (MHz) Power Density (mW /cm 2 ) Averaging Time (minutes) 300~1500 F/1500 30 1500~100000 1.0 30 1.2 MPE EVALUATION FORMULA Pd = 2 **4RPi Pt Where Pd= Power density in mW/cm 2 Pt= EIRP in mW Pi= 3.1416 R= Measurement distance 1.3 MPE EVALUATION RESULTS Frequency Range (MHz) Maximum Conducted Power (dBm) Antenna Gain (dBi) Distance (cm) Power Density (mW/cm 2 ) Limit (mW/cm 2 ) 2412~2462 22.39 2.56 20 0.062 1 Report No.: FA422801 Page : 5 of 5 Report Version: Rev. 01 2 Test laboratory information Established in 2012, ICC provides foremost EMC & RF Testing and advisory consultation services by our skilled engineers and technicians. Our services employ a wide variety of advanced edge test equipment and one of the widest certification extents in the business. International Certification Corp, it is our definitive objective is to institute long term, trust-based associations with our clients. The expectation we set up with our clients is based on outstanding service, practical expertise and devotion to a certified value structure. Our passion is to grant our clients with best EMC / RF services by oriented knowledgeable and accommodating staff. Our Test sites are located at Linkou District and Kwei Shan Hsiang. Location map can be found on our website http://www.icertifi.com.tw. Linkou Kwei Shan Tel: 886-2-2601-1640 Tel: 886-3-271-8666 No. 30-2, Ding Fwu Tsuen, Lin Kou District, New Taipei City, Taiwan, R.O.C. No. 3-1, Lane 6, Wen San 3rd St., Kwei Shan Hsiang, Tao Yuan Hsien 333, Taiwan, R.O.C. If you have any suggestion, please feel free to contact us as below information Tel: 886-3-271-8666 Fax: 886-3-318-0155 Email: [email protected] ══END══

Report No.: FR422801 Page : 1 of 63 Report Version: Rev. 01 FCC Test Report FCC ID : OS3IPC04 Equipment : Wireless IP Camera Model No. : IPC1203 Brand Name : OPLINK Applicant : Zhuhai FTZ Oplink Communications, Inc. Address : #29, #30 Lianfeng Avenue, Free Trade Zone, Zhuhai City, Guangdong Province, 519030, China Standard : 47 CFR FCC Part 15.247 Received Date : Feb. 28, 2014 Tested Date : Mar. 03 ~ Mar. 07, 2014 We, International Certification Corp., would like to declare that the tested sample has been evaluated and in compliance with the requirement of the above standards. The test results contained in this report refer exclusively to the product. It may be duplicated completely for legal use with the approval of the applicant. It shall not be reproduced except in full without the written approval of our laboratory. Approved & Reviewed by: Gary Chang / Manager Ty: XXX Report No.: FR422801 Page : 2 of 63 Report Version: Rev. 01 Table of Contents 1 GENERAL DESCRIPTION .................................................................................................................... 5 1.1 Information .............................................................................................................................................. 5 1.2 Local Support Equipment List ................................................................................................................ 8 1.3 Test Setup Chart .................................................................................................................................... 8 1.4 The Equipment List ................................................................................................................................ 9 1.5 Test Standards ..................................................................................................................................... 10 1.6 Measurement Uncertainty .................................................................................................................... 10 2 TEST CONFIGURATION ..................................................................................................................... 11 2.1 Testing Condition ................................................................................................................................. 11 2.2 The Worst Test Modes and Channel Details ....................................................................................... 11 3 TRANSMITTER TEST RESULTS ........................................................................................................ 12 3.1 Conducted Emissions ........................................................................................................................... 12 3.2 6dB and Occupied Bandwidth .............................................................................................................. 15 3.3 RF Output Power .................................................................................................................................. 18 3.4 Power Spectral Density ........................................................................................................................ 20 3.5 Unwanted Emissions into Restricted Frequency Bands ...................................................................... 22 3.6 Emissions in non-restricted frequency bands ...................................................................................... 50 4 TEST LABORATORY INFORMATION ............................................................................................... 63 Report No.: FR422801 Page : 3 of 63 Report Version: Rev. 01 Release Record Report No. Version Description Issued Date FR422801 Rev. 01 Initial issue May 09, 2014 Report No.: FR422801 Page : 4 of 63 Report Version: Rev. 01 Summary of Test Results FCC Rules Test Items Measured Result 15.207 Conducted Emissions [dBuV]: 0.154MHz 46.92 (Margin -8.86dB) - AV Pass 15.247(d) 15.209 Radiated Emissions [dBuV/m at 3m]: 4874.00MHz 52.99 (Margin -1.01dB) - AV Pass 15.247(b)(3) Fundamental Emission Output Power Power [dBm]: 11b: 24.03 11g: 27.31 HT20: 27.09 HT40: 26.80 Pass 15.247(a)(2) 6dB Bandwidth Meet the requirement of limit Pass 15.247(e) Power Spectral Density Meet the requirement of limit Pass 15.203 Antenna Requirement Meet the requirement of limit Pass Report No.: FR422801 Page : 5 of 63 Report Version: Rev. 01 1 General Description 1.1 Information 1.1.1 Specification of the Equipment under Test (EUT) RF General Information Frequency Range (MHz) IEEE Std. 802.11 Ch. Freq. (MHz) Channel Number Transmit Chains (N TX ) Data Rate / MCS 2400-2483.5 b 2412-2462 1-11 [11] 2 1-11 Mbps 2400-2483.5 g 2412-2462 1-11 [11] 2 6-54 Mbps 2400-2483.5 n (HT20) 2412-2462 1-11 [11] 2 MCS 0-15 2400-2483.5 n (HT40) 2422-2452 3-9 [7] 2 MCS 0-15 Note 1: RF output power specifies that Maximum Peak Conducted Output Power. Note 2: 802.11b uses a combination of DSSS-DBPSK, DQPSK, CCK modulation. Note 3: 802.11g/n uses a combination of OFDM-BPSK, QPSK, 16QAM, 64QAM modulation. 1.1.2 Antenna Details Ant. No. Type Gain (dBi) Connector Remark 1 Printed 2.56 --- --- 1.1.3 Power Supply Type of Equipment under Test (EUT) Power Supply Type 5Vdc from adapter 1.1.4 Accessories Accessories No. Equipment Description 1 AC Adapter Brand Name: ENERTRONIX Model Name: EXA1301UA R01 Power Rating: I/P: 100-240Vac, 50-60Hz, 0.3A O/P: 5Vdc, 2A 2 USB cable 1 1.5m shielded w/o core 3 USB cable 2 3m shielded w/o core Note: USB cables are for charging use in adapter mode only. Report No.: FR422801 Page : 6 of 63 Report Version: Rev. 01 1.1.5 Channel List Frequency band (MHz) 2400~2483.5 802.11 b / g / n HT20 802.11n HT40 Channel Frequency(MHz) Channel Frequency(MHz) 1 2412 3 2422 2 2417 4 2427 3 2422 5 2432 4 2427 6 2437 5 2432 7 2442 6 2437 8 2447 7 2442 9 2452 8 2447 --- --- 9 2452 --- --- 10 2457 --- --- 11 2462 --- --- 1.1.6 Test Tool and Duty Cycle Test Tool MT7620QA, Version: 1.0.6.0 Duty Cycle and Duty Factor Mode …
