OS3DWM01Door/Window Sensor

Oplink Communications 1 / 3 DWM1300 User Guide I. Product Introduction DWM1300 is a 433MHz wireless Door/Window sensor, the sensor monitors the status of the door/window, and sends signal to the host devise when illegal intruder is detected. System Structure Oplink Communications 2 / 3 II. Installation (1) Determine the location of the Door/Window Sensor, which should be placed: • Indoors and away from direct sunlight. • At the most vulnerable door or window near key entry/exit points • Away from extreme temperature sources and large metal objects (2) Installation and Operation： • Unscrew the screw fastening the back cover of the transmitter. Slide the rear cover down. • Insert the battery noting the polarity (AAA battery*2) and close the cover. • Using adhesive tape to affix the rear cover on the fixed edge of door / window. • Fix the Magnet to door/window by adhesive tape; locate the Magnet close to the transmitter. It is advised that the distance between these two devices should be within 10mm. It is both ok for the Magnet to be right or left to the transmitter. *Note: if your door or window do not allow you to properly place the large part of the sensor on the frame, it is ok to place the smaller portion of the sensor on the frame to make the placing work more easily. This is an acceptable approach to sense placement, although it should be only used when necessary. III. User Instruction & Workflow (1) Opening the door/window to separate the magnet from the sensor will send signal to the system, and the LED will flash. (2) The DWM1300 sensor is equipped with tamper switch. If the cover of sensor is removed, the sensor will send an alert signal to the system, and the LED will flash. (3) If door/window sensor is in low battery status, it will report a message to the system, and the LED will flash.Please change the battery. Oplink Communications 3 / 3 FCC Statement This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation. Warning: Changes or modifications to this unit not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:  Reorient or relocate the receiving antenna.  Increase the separation between the equipment and receiver.  Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.  Consult the dealer or an experienced radio/TV technician for help.

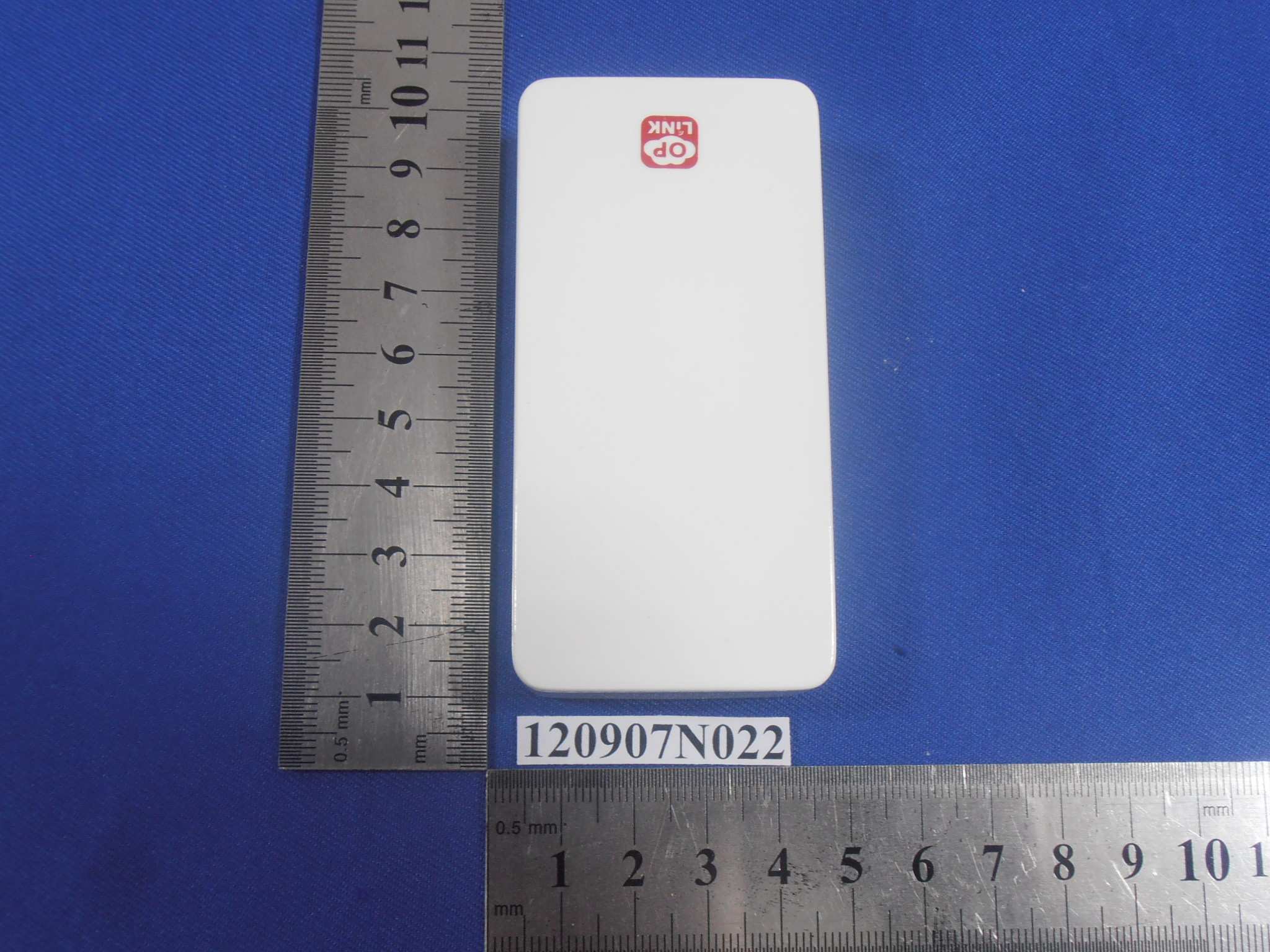

Bureau Veritas Shenzhen Co., Ltd. Dongguan Branch No. 34, Chenwulu Section, Guantai Rd., Houjie Town, Dongguan City, Guangdong 523942, China Tel.: +86 769 8593 5656 Fax: +86 769 8593 1080 Email: [email protected] Page 1 of 4 Report Version 1 Reference No.: 120907N022 PHOTOGRAPHS OF THE EUT Bureau Veritas Shenzhen Co., Ltd. Dongguan Branch No. 34, Chenwulu Section, Guantai Rd., Houjie Town, Dongguan City, Guangdong 523942, China Tel.: +86 769 8593 5656 Fax: +86 769 8593 1080 Email: [email protected] Page 2 of 4 Report Version 1 Reference No.: 120907N022 Bureau Veritas Shenzhen Co., Ltd. Dongguan Branch No. 34, Chenwulu Section, Guantai Rd., Houjie Town, Dongguan City, Guangdong 523942, China Tel.: +86 769 8593 5656 Fax: +86 769 8593 1080 Email: [email protected] Page 3 of 4 Report Version 1 Reference No.: 120907N022 Bureau Veritas Shenzhen Co., Ltd. Dongguan Branch No. 34, Chenwulu Section, Guantai Rd., Houjie Town, Dongguan City, Guangdong 523942, China Tel.: +86 769 8593 5656 Fax: +86 769 8593 1080 Email: [email protected] Page 4 of 4 Report Version 1 Reference No.: 120907N022

Size:25mm*10mm

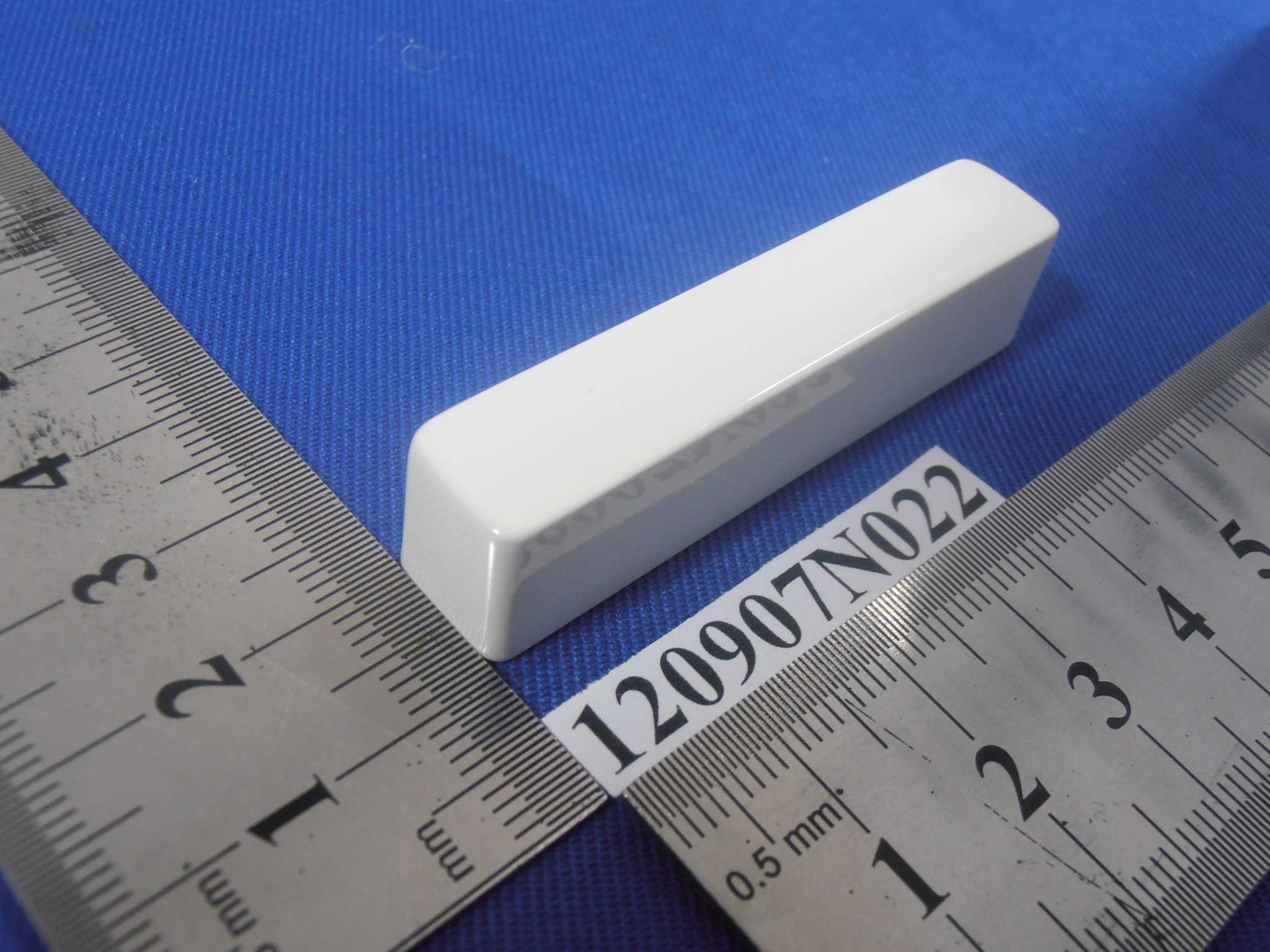

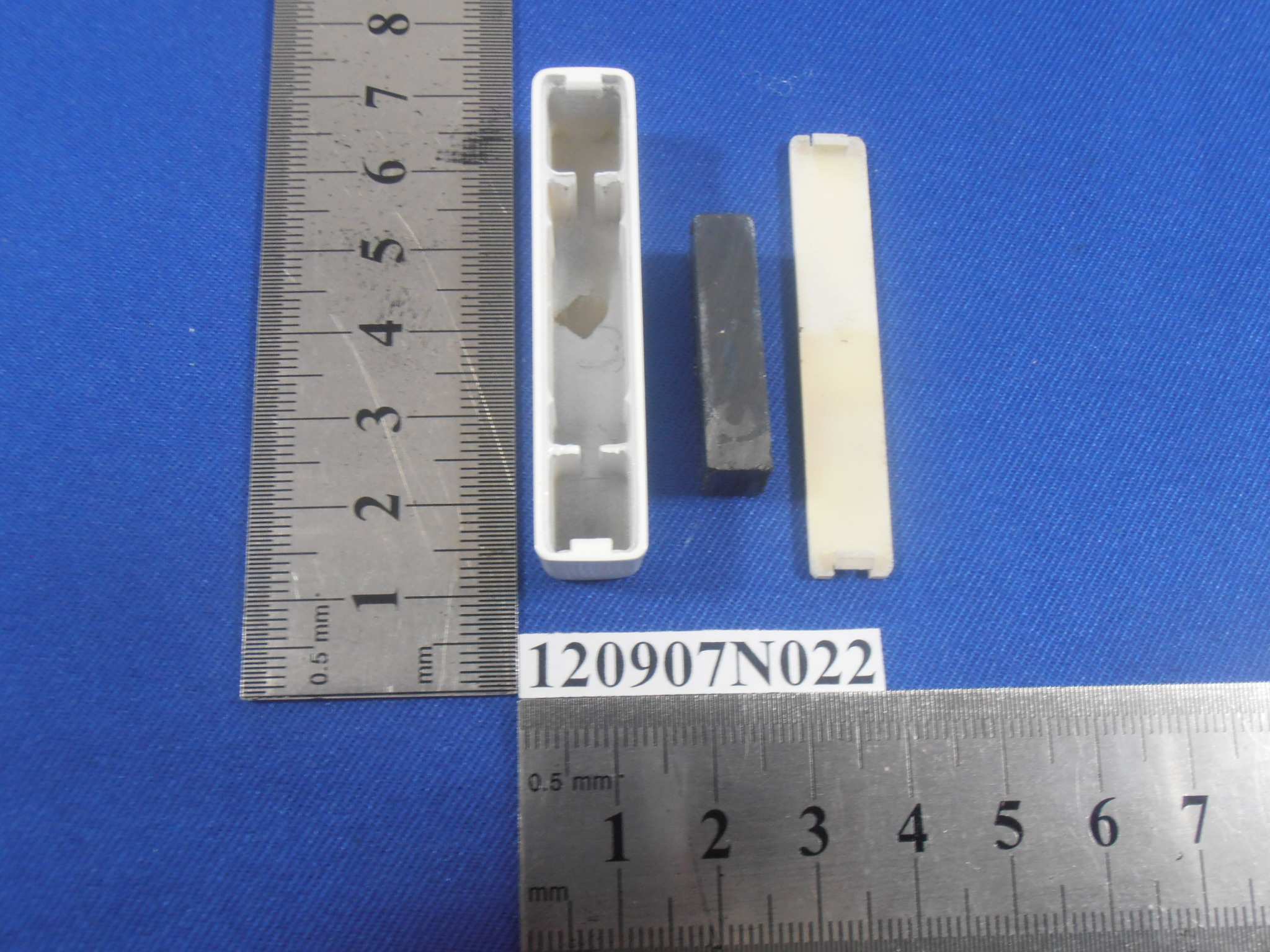

Bureau Veritas Shenzhen Co., Ltd. Dongguan Branch No. 34, Chenwulu Section, Guantai Rd., Houjie Town, Dongguan City, Guangdong 523942, China Tel.: +86 769 8593 5656 Fax: +86 769 8593 1080 Email: [email protected] Page 1 of 2 Report Version 1 Reference No.: 120907N022 PHOTOGRAPHS OF THE EUT Bureau Veritas Shenzhen Co., Ltd. Dongguan Branch No. 34, Chenwulu Section, Guantai Rd., Houjie Town, Dongguan City, Guangdong 523942, China Tel.: +86 769 8593 5656 Fax: +86 769 8593 1080 Email: [email protected] Page 2 of 2 Report Version 1 Reference No.: 120907N022 ANT

Bureau Veritas Shenzhen Co., Ltd. Dongguan Branch No. 34, Chenwulu Section, Guantai Rd., Houjie Town, Dongguan City, Guangdong 523942, China Tel: +86 769 8593 5656 Fax: +86 769 8593 1080 Email: [email protected] Page 1 of 26 Report Version 1 Test Report No.: FC120907N022 TEST REPORT Applicant Zhuhai FTZ Oplink Communications, Inc. Address: #29, #30 Lianfeng Ave, Free Trade Zone, Zhuhai, Guangdong, China 519030 Manufacturer or Supplier Smart Electronic Industrial (Dong Guan) Co., Ltd. Address Qing Long Road, Long Jian Tian-Cun, Huang Jiang-Zhen, Dong Guan, Guang Dong, China Product: Door/Windows magnet sensor Brand Name: N/A Model: DWM1300 Additional Model & Model Difference: NA Date of tests: Sep. 11, 2012~ Sep. 13, 2012 the tests have been carried out according to the requirements of the following standards: FCC Part 15, Subpart C (Section 15.231) CONCLUSION: The submitted sample was found to COMPLY with the test requirement Prepared by Glyn He Project Engineer / EMC Department Approved by Sam Tung Manager / EMC Department Date: Sep. 13, 2012 This report is for your exclusive use. Any copying or replication of this report to or for any other person or entity, or use of our name or trademark, is permitted only with our prior written permission. This report sets forth our findings solely with respect to the test samples identified herein. The results set forth in this report are not indicative or representative of the quality or characteristics of the lot from which a test sample was taken or any similar or identical product unless specifically and expressly noted. Our report includes all of the tests requested by you and the results thereof based upon the information that you provided to us. You have 60 days from date of issuance of this report to notify us of any material error or omission caused by our negligence, provided, however, that such notice shall be in writing and shall specifically address the issue you wish to raise. A failure to raise such issue within the prescribed time shall constitute your unqualified acceptance of the completeness of this report, the tests conducted and the correctness of the report contents. Unless specific mention, the uncertainty of measurement has been explicitly taken into account to declare the compliance or non-compliance to the specification Bureau Veritas Shenzhen Co., Ltd. Dongguan Branch No. 34, Chenwulu Section, Guantai Rd., Houjie Town, Dongguan City, Guangdong 523942, China Tel: +86 769 8593 5656 Fax: +86 769 8593 1080 Email: [email protected] Page 2 of 26 Report Version 1 Test Report No.: FC120907N022 TABLE OF CONTENTS RELEASE CONTROL RECORD ............................................................................................................ 4 1 SUMMARY OF TEST RESULTS ..................................................................................................... 5 2 MEASUREMENT UNCERTAINTY .................................................................................................. 5 3 GENERAL INFORMATION .............................................................................................................. 6 3.1 GENERAL DESCRIPTION OF EUT........................................................................................... 6 3.2 DESCRIPTION OF TEST MODES............................................................................................. 6 3.3 TEST MODE APPLICABILITY AND TESTED CHANNEL DETAIL ............................................ 7 3.4 GENERAL DESCRIPTION OF APPLIED STANDARDS............................................................ 9 3.5 DESCRIPTION OF SUPPORT UNITS....................................................................................... 9 4. TEST TYPES AND RESULTS ....................................................................................................... 10 4.1 RADIATED EMISSION MEASUREMENT ................................................................................ 10 4.1.1 LIMITS OF RADIATED EMISSION MEASUREMENT..................................................... 10 4.1.2 TEST INSTRUMENTS......................................................................................................11 4.1.3 TEST PROCEDURES ..................................................................................................... 12 4.1.4 DEVIATION FROM TEST STANDARD ........................................................................... 12 4.1.5 TEST SETUP................................................................................................................... 13 4.1.6 EUT OPERATING CONDITIONS .................................................................................... 13 4.1.7 TEST RESULTS .............................................................................................................. 14 4.2 20dB BANDWIDTH MEASUREMENT ..................................................................................... 19 4.2.1 LIMITS OF 20dB BANDWIDTH MEASUREMENT.......................................................... 19 4.2.2 TEST INSTRUMENTS..................................................................................................... 19 4.2.3 TEST PROCEDURE........................................................................................................ 20 4.2.4 DEVIATION FROM TEST STANDARD ........................................................................... 20 4.2.5 TEST SETUP................................................................................................................... 20 4.2.6 EUT OPERATING CONDITIONS .................................................................................... 20 4.2.7 TEST RESULTS .............................................................................................................. 21 4.3 DEACTIVATION TEST ............................................................................................................. 22 4.3.1 LIMITS…

Text truncated - open the document above for the full version.

1 Set-up for radiated emission test <Frequency Range 30MHz~1GHz> <Frequency Range above1GHz>
