OS3DWM02Wireless Door / Window Magnetic Sensor

Federal Communications Commission Statement This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instruction, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try and correct the interferene by one of the following measures: Reorient or relocate the receiving antenna, Increase the separation between the equipment and receiver, Connect the equipment into and outlet on a circuit different from that to which the receiver is connected. Consult the dealer or an experienced radio/TV technician for help. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undersired operation. FCC Caution: Any changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate this equipment. Limited Warranty Oplink Guarantees that every wireless door/window sensor is free from physical defects in material and workmanship under normal usage for one year from the date of purchase. If the product proves defective during this one-year warranty period, Oplink will replace it free of charge. Oplink does not issue any refunds. This warranty is extended to the original end user purchase only and is not transferable. This warranty does not apply to : (1) damage to units caused by accident, dropping or abuse in handling, or any negligent usage; (2) units which have been repaired, taken apart, or modified by an unauthorized personnel; (3) units not used in accordance with instruction; (4) damages exceeding the cost of the product; (5) transit damage, initial installation costs, removal cost, or reinstallation cost. For information on addional devices, plesae visit us at www.oplink.com DWM1301 V0 1000823 6B1H-21003 -3- Installation & Operation Manual DWM1301 Wireless Door/ Window Magnetic Sensor Introduction Thanks for choosing the Oplink wireless door/window sensor of the home security device. This sensor monitors door/window when door or window is opened and closed. Product Description and Specification *** For indoor use only*** Specification: Package Content: Protocol: 433.92Mhz Operating Range: Up to 200 feet line of sight Operating Temp.: -15°C~ 60°C (5°F ~140°F) Battery: Panasonic CR123A * 1PC 1pc 1pc 1pc 2pcs 1pc 4pcs 1pc Dwm1301 sensor Bracket for Contact Magnet Magnet Adhesive tape for Magnet / sensor CR123A Lithium Battery Screws for bracket/ sensor Installation & Operation manual Installation 1. Unscrew the screw fastening the rear cover. 2. Slide the rear cover down. 3. Using the screws or adhesive tape to affix the rear cover on the frame along the opening edge of door / window. 4. Before insert the battery, put home security controller into learning mode. Once put on CR123A battery into the battery compartment and LED will flash 5 times, and HD 2102 door/window sensor will automotive included into system. 5. Slide back the rear cover and screw fastening with the front cove. 6. Fix the Magnet by using the adhesive tape or fixing screws, locate the Magnet close to the DWM1301 sensor the distance between these two devices should be in 1.9cm. -1- 7. External Switch: If your window needs two sensors for fully monitoring. You could use an external switch to connect with the DWM1301 for extending detection. The DWM1301 has 2 normally closed contact terminals. These can be used for additional external switch wired contacts. The external switch will send an alarm report by opening the window/door. Operation 1. Opening the door/window to separate the magnet from the sensor will send signal to the controller, and the LED will flash 5 times 2. Normal operation, the LED will not light. 3. The DWM1301 sensor equipped with tamper switch. If the cover of sensor is removed, the door sensor will report a zone tamper to the controller, and the LED will flash 5 times. 4. If door/window sensor is in low battery status, it will report a message to controller, and LED will flash slow. Please change the battery. -2-

RF_160, Issue 03 Declaration of Authorization We Name: Zhuhai FTZ Oplink Communications, Inc. Address: #30 Lianfeng Avenue, Free Trade Zone, City: huhai City, Country: Guangdong Province, China 591030 Declare that: Name Representative of agent: Daphne Liang Agent Company name: Compliance Certification Services Inc. Address: No.8, Jiucengling, Xinhua Dist., City: Tainan City 712, Country Taiwan, R.O.C is authorized to apply for Certification of the following product(s): Product description: Wireless Door / Window Magnetic Sensor Type designation: DWM1301 Trademark: Oplink on our behalf. Date:2012-09-11 Signature: ... ............................ Name/Title: Lizhi Li / QA Engineer Company Name: Zhuhai FTZ Oplink Communications, Inc. Notes: (1): Required for FCC application (2): For FCC it must be the Grantee Code “owner” or the authorized agent.

FCC, Request for non-disclosure Date: 16-Jul-10 RF_501, Issue 6 Page 1 of 1 Company Name: Zhuhai FTZ Oplink Communications, Inc. Address : #30 Lianfeng Avenue, Free Trade Zone, City: Zhuhai City, Country: Guangdong Province, China 591030 To: Telefication B.V., Dept. FCC TCB Edisonstraat 12A 6902 PK ZEVENAAR The Netherlands Subject: Request for confidentiality FCC ID: OS3DWM02 Reference number: ###### Dear FCC TCB, 1. Long-Term Confidentiality Pursuant to 47 CFR Section 0.459(a) & (b), we hereby requests non-disclosure and confidential treatment of the following materials submitted in support of FCC certification application: Bill(s) of Material Block Diagrams Operational Description Schematic Diagrams Tune-up Procedure Above materials contain secrets, proprietary and technical information, which would customarily be guarded from competitors under 47 CFR, section 0.457(d)(2). Disclosure or publication or any portion of this company confidential material to other parties could cause substantial competitive harm and provide unjustified benefits for competitors. 2. Short-Term Confidentiality (STC) Pursuant to Public Notice DA 04-1705 of the Commission’s policy, in order to comply with the marketing regulations in 47 CFR §2.803 and the importation rules in 47 CFR §2.1204, a pplicant hereby requests Short-Term Confidential treatment of the following materials (note 1): Internal Photos User’s Manual Test Set-up Photos External Photos Justification: Planned Release Date STC: (notes 2, 3, 4, 5) Date: 2012-09-11 Name and signature of applicant: Lizhi Li Notes: 1) A document or type of document can only have ONE type of confidentiality! 2) Short-Term confidentiality is in principle for 45 days from date of grant; it can be extended max 3 times (total time 180 days max.)! 3) FCC must be informed when marketing begins earlier. 4) Release takes place automatically thus extension must be requested in time. Telefication does not remind you of this! 5) Request for extension or for release must be received by Telefication at least 7 days before date of actual marketing or before expiration of the STC period

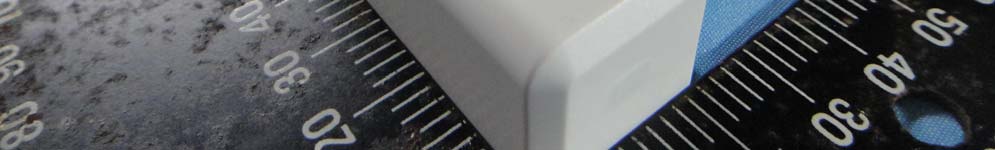

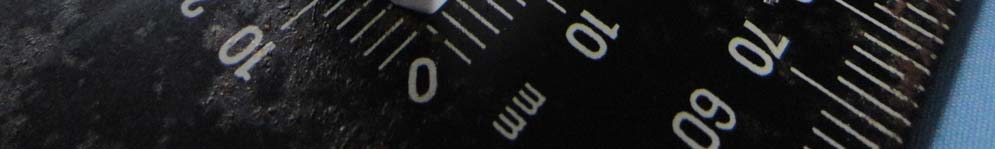

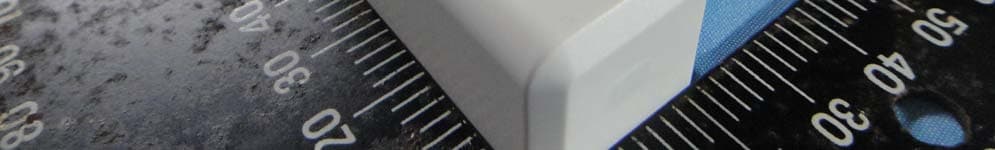

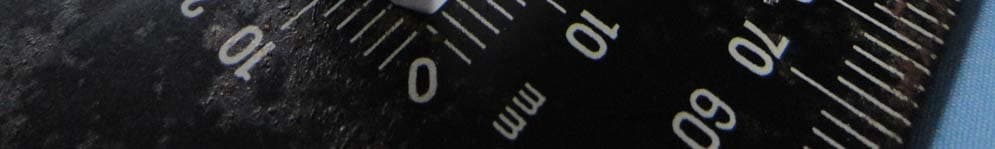

Compliance Certification Services Inc. Report No.：T120820N02 Date of Issue: August 31, 2012 Page A1 / 5 External Photo (DWM1301)

Diagram Label location FCC ID：OS3DWM02

Compliance Certification Services Inc. Report No.：T120820N02 Date of Issue: August 31, 2012 Page A2 / 5 Internal Photo (DWM1301) Compliance Certification Services Inc. Report No.：T120820N02 Date of Issue: August 31, 2012 Page A3 / 5 Compliance Certification Services Inc. Report No.：T120820N02 Date of Issue: August 31, 2012 Page A4 / 5 Compliance Certification Services Inc. Report No.：T120820N02 Date of Issue: August 31, 2012 Page A5 / 5

Compliance Certification Services Inc. FCC ID: OS3DWM02 Report No.: T120820N02-RP1 Note: This report shall not be reproduced except in full, without the written approval of Compliance Certification Services Inc. This document may be altered or revised by Compliance Certification Services Inc. personnel only, and shall be noted in the revision section of the document. Page 1/ 28 FCC 47 CFR PART 15 SUBPART C ANSI C63.4: 2003 TEST REPORT For Wireless Door / Window Magnetic Sensor Model : DWM1301 Brand : Oplink Issued to Zhuhai FTZ Oplink Communications, Inc. #30 Lianfeng Avenue, Free Trade Zone, Zhuhai City, Guangdong Province, China 591030 Issued by Compliance Certification Services Inc. Tainan Lab. No.8,Jiucengling, Xinhua Dist., Tainan City 712, Taiwan (R.O.C.) TEL: (06) 580-2201 FAX: (06) 580-2202 Issued Date: August 31, 2012 Compliance Certification Services Inc. FCC ID: OS3DWM02 Report No.: T120820N02-RP1 Page 2/32 REVISION HISTORY Rev. Issue Date Revisions Effect Page Revised By 00 August 31, 2012 Initial Issue ALL Sunny Chang Compliance Certification Services Inc. FCC ID: OS3DWM02 Report No.: T120820N02-RP1 Page 3/ 28 TABLE OF CONTENTS 1. TEST RESULT CERTIFICATION .........................................................................4 2. EUT DESCRIPTION..............................................................................................5 3. TEST METHODOLOGY........................................................................................6 3.1 EUT CONFIGURATION ................................................................................6 3.2 EUT EXERCISE ............................................................................................6 3.3 GENERAL TEST PROCEDURES .................................................................6 3.4 FCC PART 15.205 RESTRICTED BANDS OF OPERATIONS .....................7 3.5 DESCRIPTION OF TEST MODES................................................................7 4. INSTRUMENT CALIBRATION .............................................................................8 4.1 MEASURING INSTRUMENT CALIBRATION ...............................................8 4.2 MEASUREMENT EQUIPMENT USED .........................................................8 4.3 MEASUREMENT UNCERTAINTY ................................................................9 5. FACILITIES AND ACCREDITATIONS ...............................................................10 5.1 FACILITIES .................................................................................................10 5.2 EQUIPMENT ...............................................................................................10 5.3 TABLE OF ACCREDITATIONS AND LISTINGS.........................................10 5.4 TABLE OF ACCREDITATIONS AND LISTINGS.........................................10 6. SETUP OF EQUIPMENT UNDER TEST ............................................................11 6.1 SETUP CONFIGURATION OF EUT ...........................................................11 6.2 SUPPORT EQUIPMENT .............................................................................11 7. FCC PART 15.231 REQUIREMENTS ................................................................12 7.1 20 DB BANDWIDTH....................................................................................12 7.2 LIMIT OF TRANSMISSION TIME................................................................14 7.3 DUTY CYCLE..............................................................................................16 7.4 RADIATED EMISSIONS .............................................................................19 7.5 POWERLINE CONDUCTED EMISSIONS ..................................................25 8. APPENDIX 1 PHOTOGRAPHS OF TEST SETUP .............................................26 Compliance Certification Services Inc. FCC ID: OS3DWM02 Report No.: T120820N02-RP1 Page 4/ 28 1. TEST RESULT CERTIFICATION Product: Wireless Door / Window Magnetic Sensor Model: DWM1301 Brand Name: Oplink Applicant: Zhuhai FTZ Oplink Communications, Inc. #30 Lianfeng Avenue, Free Trade Zone, Zhuhai City, Guangdong Province, China 591030 Manufacturer: Vision Automobile Electronics Industrial Co., Ltd. No. 17, Alley 92, Lane 189, Sec. 1, An Chung Rd., Tainan Tested: August 21 ~ August 22, 2012 APPLICABLE STANDARDS STANDARD TEST RESULT FCC 47 CFR Part 15 Subpart C ANSI C63.4 : 2003 No non-compliance noted We hereby certify that: The above equipment was tested by Compliance Certification Services Inc. The test data, data evaluation, test procedures, and equipment configurations shown in this report were made in accordance with the procedures given in ANSI C63.4: 2003 and the energy emitted by the sample EUT tested as described in this report is in compliance with conducted and radiated emission limits of FCC Rules Part 15.207, 15.209 and Part 15.231(a). The test results of this report relate only to the tested sample identified in this report. Approved by: Reviewed by: Jeter Wu Assistant Manager Eric Huang Assistant Section Manager Compliance Certification Services Inc. FCC ID: OS3DWM02 Report No.: T120820N02-RP1 Page 5/ 28 2. EUT DESCRIPTION Product Wireless Door / Window Magnetic Sensor Model Number DWM1301 Brand Name Oplink Received Date August 17, 2012 Operating Frequency 433.90MHz Operating Range 433.92MHz ± 150kHz Number of Channels 1 Channel Type of Modulation ASK Power Supply Powered from battery , 3Vdc Antenna Type Helical antenna Gain: -10 dBi Temperature Range -15°C ~ +60°C Remark: 1. Client consigns only one model sample to test (Model Number: DWM1301). Therefore, the testing Lab. just guarantees the unit, which has been tested. 2. This submittal(s) (test report) is intended for FCC ID: OS3DWM02 filing to comply with Section 15.207, 15.209 and 15.231(a) of the FCC Part 15, Subpart C Rules. 3. For more details, please refer to the User’s manual of the EUT. Compliance Certification Services Inc. FCC ID: OS3DWM02 Report No.: T120820N02-RP1 P…
