MJPEG Wireless IP Camera With Night Vision Advanced Installation Guide Version 1.0 PREFACE Thank you for purchasing the IPC1200, a powerful and high-quality image network camera. The camera can be installed as a standalone system within your application environment easily and quickly, and - 1 - supports remote management function so that you can access and control it using a Web browser on your PC. This Advanced Installation Guide provides you with the instructions and illustrations on how to use your camera, which includes: Chapter 1 Introduction to Your Camera describes the features of the camera. You will also know the components and functions of the camera. Chapter 2 Hardware Installation helps you install the camera according to your application environment. You can use this camera at home, at work, at any where you want. Chapter 3 Accessing the Camera lets you start using your camera without problem. The camera can be set up easily and work within your network environment instantly. Chapter 4 Configuring the Camera guides you through the configuration of the camera using the web browser on your PC. Chapter 5 Appendix provides the specification of the camera and some useful information for using your camera. NOTE The illustrations and configuration values in this guide are for reference only. The actual settings depend on your practical application of the camera. Contents Preface .......................................................................................... 0 Chapter 1 Introduction To Your Camera ....................................... 2 1.1 Checking the Package Contents ...................................... 2 1.2 Getting to Know Your Camera ......................................... 3 1.3 Features and Benefits ...................................................... 6 - 2 - 1.4 System Requirement ........................................................ 7 Chapter 2 Hardware Installation .................................................... 8 2.1 Installing the Camera Stand ............................................. 8 2.2 Connecting the Camera to LAN/WLAN ............................ 9 2.3 Applications of the Camera ............................................ 10 Chapter 3 Accessing the Camera ............................................... 11 3.1 Using IPFinder ............................................................... 11 3.2 Accessing to the Camera ............................................... 12 3.3 Configuring the IP Address of the PC ............................ 15 Chapter 4 Configuring the Camera ............................................. 16 4.1 Using the Web Configuration ......................................... 16 4.2 Using Smart Wizard ....................................................... 17 4.3 Basic Setup .................................................................... 20 4.4 Network Settings ............................................................ 23 4.5 Setting up Video & Audio ............................................... 32 4.6 Event Server Configuration ............................................ 34 4.7 Motion Detect ................................................................. 37 4.8 Event Config ................................................................... 38 4.9 Tools ............................................................................... 41 4.10 Information ..................................................................... 43 Chapter 5 Appendix .................................................................... 44 A.1 Specification ................................................................... 44 A.2 Glossary of Terms .......................................................... 46 CHAPTER 1 INTRODUCTION TO YOUR CAMERA 1.1 Checking the Package Contents Check the items contained in the package carefully. You should have the following: 5 One IPC1200. - 3 - 5 One AC Power Adapter. 5 One Camera Stand. 5 One Ethernet Cable (RJ-45 type). 5 One Installation CD-ROM. 5 One Quick Installation Guide. NOTE Once any item contained is damaged or missing, contact the authorized dealer of your locale. 1.2 Getting to Know Your Camera - 4 - Front View Lens Assembly Power LED indicates the camera is powered on with the steady amber light. Link LED indicates the camera’s network connectivity with the flashing green light. Internal Microphone allows the camera to receive sound and voice. - 5 - * For more information of the WPS button, refer to the instruction of the Web Configuration, Network >> Wireless >> WPS Setting. Rear View Screw Hole is used to connect the camera stand. Reset Buttonwill restart the camera when it is pressed quickly; when it is long pressed for five seconds, the camera will resume the factory default settings. DC Power Connector is used to connect the AC power adapter, in order to supply power to the camera. Ethernet Cable Connector is used to connect the network cable, which supports the NWay protocol so that the camera can detect the network speed automatically. WPS Button* (for wireless model) is used to protect your wireless network and for easy wireless connection setu p. - 6 - 1.3 Features and Benefits „ MJPEG codec Supported The camera provides you with VGA images by the MJPEG codec technology, allowing you to adjust image size and quality, and bit rate according to the networking environment. „ 1-way Audio Capability The built-in microphone of the camera provides on-the-spot audio via the Internet, allowing you to monitor the on-site voice. „ Remote Control Supported By using a standard Web browser or the bundled UltraView Pro software application, the administrator can easily change the configuration of the camera via Intranet or Internet. In addition, the camera can be upgraded remotely when a new firmware is available. The users are also allowed to monitor the image and take snapshots via the network. „ Multiple Platforms Supported The camera supports multiple network protocols, including TCP…

Text truncated - open the document above for the full version.

CERPASS TECHNOLOGY CORP. Report No.: TEFI1210128 Cerpass Technology Corp. Issued Date : Oct. 19, 2012 Tel:886-2-2655-8100 Fax:886-2-2655-8200 Page No. : A1 of A10 FCC ID : OS3IPC01 Appendix A. Photographs of EUT CERPASS TECHNOLOGY CORP. Report No.: TEFI1210128 Cerpass Technology Corp. Issued Date : Oct. 19, 2012 Tel:886-2-2655-8100 Fax:886-2-2655-8200 Page No. : A2 of A10 FCC ID : OS3IPC01

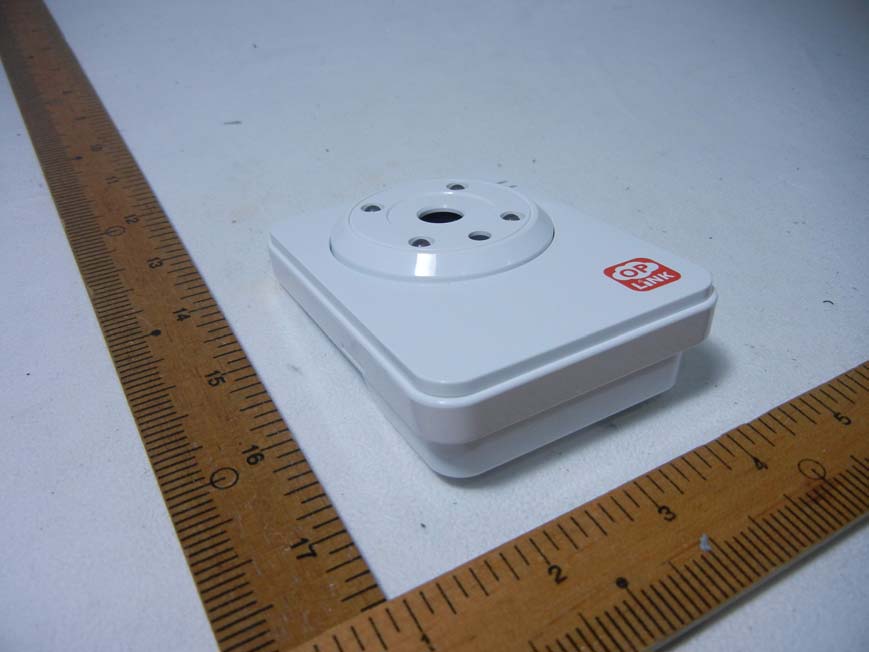

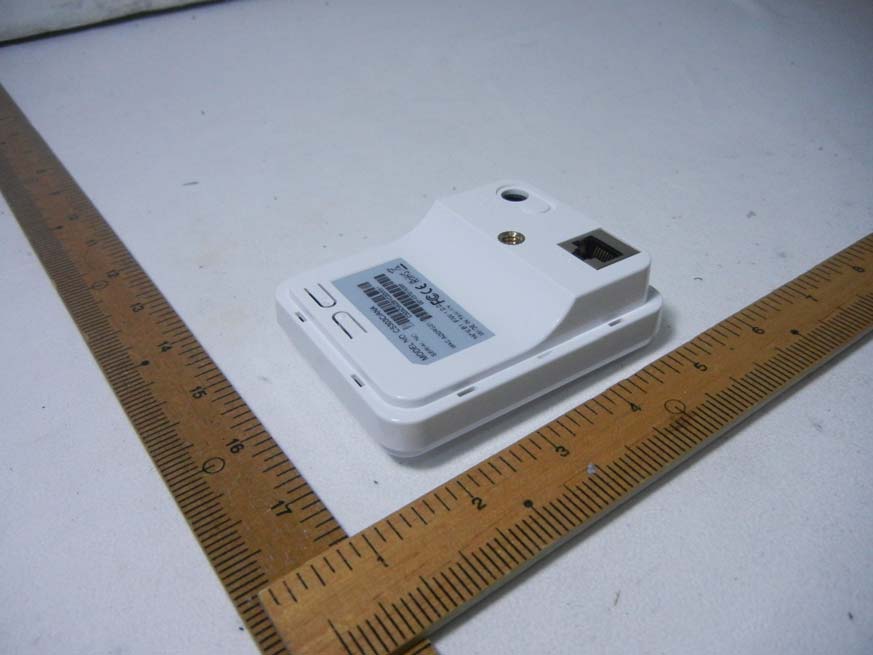

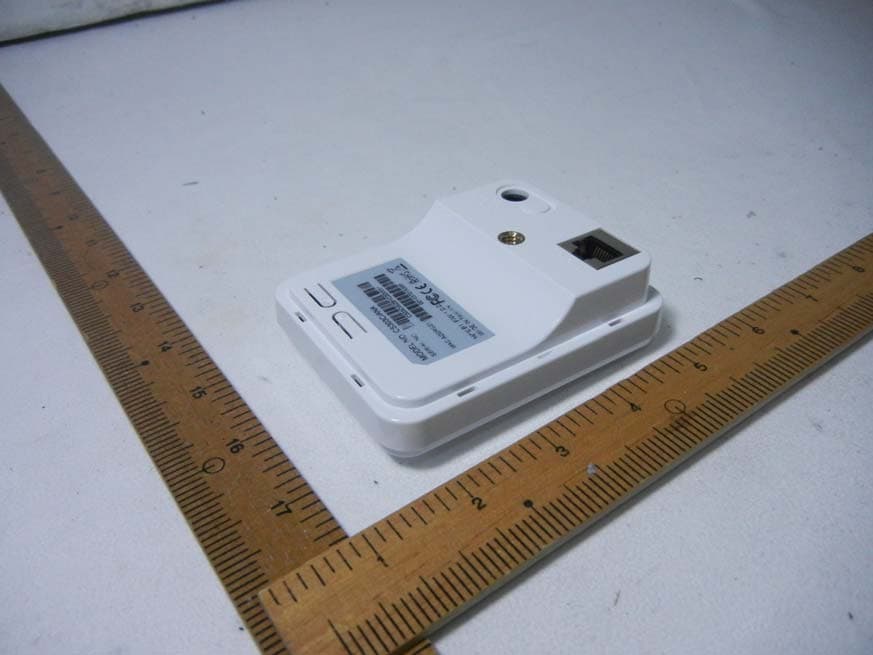

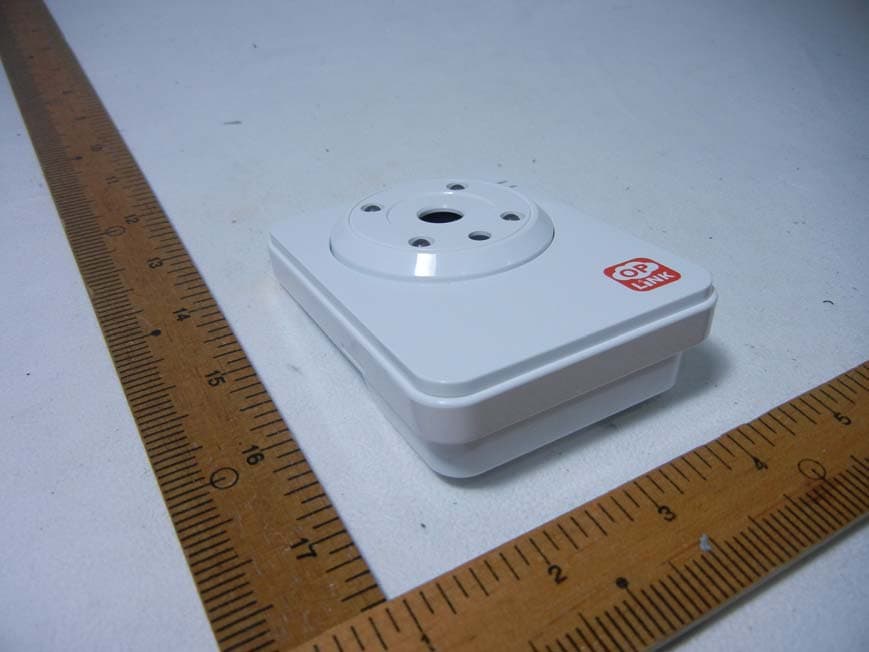

Label location

CERPASS TECHNOLOGY CORP. Report No.: TEFI1210128 Cerpass Technology Corp. Issued Date : Oct. 19, 2012 Tel:886-2-2655-8100 Fax:886-2-2655-8200 Page No. : A3 of A10 FCC ID : OS3IPC01 CERPASS TECHNOLOGY CORP. Report No.: TEFI1210128 Cerpass Technology Corp. Issued Date : Oct. 19, 2012 Tel:886-2-2655-8100 Fax:886-2-2655-8200 Page No. : A4 of A10 FCC ID : OS3IPC01 CERPASS TECHNOLOGY CORP. Report No.: TEFI1210128 Cerpass Technology Corp. Issued Date : Oct. 19, 2012 Tel:886-2-2655-8100 Fax:886-2-2655-8200 Page No. : A5 of A10 FCC ID : OS3IPC01

FCC ID: OS3IPC01 Report No.: RF121019C04 Operational Description This device is a MJPEG Wireless IP Camera with Night Vision, which operates in 2.4GHz band; the maximum data rate could be up to 135Mbps which OFDM technique. If the signal to noise radio is too poor which could not support 135Mbps, the 11Mbps data rate with DSSS technique will be applied. The transmitter of the EUT is powered by 5Vdc from power adapter. The antenna is PCB antenna. For more detailed instruction, please take a look at the user’s manual.

CERPASS TECHNOLOGY CORP. Report No.: TEFI1210128 Cerpass Technology Corp. Issued date : Oct. 19, 2012 Tel: 886-2-2655-8100 Fax: 886-2-2655-8200 Page No. : 1 of 3 FCC ID : OS3IPC01 Radio Frequency Exposure LIMIT According to §15.247(i), systems operating under the provisions of this section shall be operated in a manner that ensures that the public is not exposed to radio frequency energy levels in excess of the Commission's guidelines. See § 1.1307(b)(1) of this chapter. EUT Specification EUT MJPEG Wireless IP Camera with Night Vision Frequency band (Operating) WLAN: 2.412GHz ~ 2.462GHz WLAN: 5.725GHz ~ 5.850GHz Bluetooth: 2.402GHz ~ 2.480 GHz Device category Portable (<20cm separation) Mobile (>20cm separation) Exposure classification Occupational/Controlled exposure (S = 5mW/cm 2 ) General Population/Uncontrolled exposure (S=1mW/cm 2 ) Antenna diversity Single antenna Multiple antennas Tx diversity Rx diversity Tx/Rx diversity Max. output power 802.11b: 18.42 dBm (69.5 mW) 802.11g: 14.22 dBm (26.4 mW) 802.11n (20MHz): 13.46 dBm (22.2 mW) 802.11n (40MHz): 13.32 dBm (21.5 mW) Antenna gain (Max) 3.9 dBi Evaluation applied MPE Evaluation* SAR Evaluation N/A Remark: 1. The maximum output power is 18.42 dBm (69.5 mW) at 2412 MHz (withnumeric 2.0 antenna gain.) 2. DTS device is not subject to routine RF evaluation; MPE estimate is used to justify the compliance. 3. For mobile or fixed location transmitters, no SAR consideration applied. The maximum power density is 1.0 mW/cm 2 even if the calculation indicates that the power density would be larger. CERPASS TECHNOLOGY CORP. Report No.: TEFI1210128 Cerpass Technology Corp. Issued date : Oct. 19, 2012 Tel: 886-2-2655-8100 Fax: 886-2-2655-8200 Page No. : 2 of 3 FCC ID : OS3IPC01 TEST RESULTS No non-compliance noted. Calculation Given d GP E ×× = 30 & 3770 2 E S= Where E = Field strength in Volts / meter P = Power in Watts G = Numeric antenna gain d = Distance in meters S = Power density in milliwatts / square centimeter Combining equations and re-arranging the terms to express the distance as a function of the remaining variables yields: 2 3770 30 d GP S ×× = Changing to units of mW and cm, using: P (mW) = P (W) / 1000 and d (cm) = d(m) / 100 Yields () () 2 2 0796.0 100/3770 1000/30 d GP d GP S × ×= × ×× = Equation 1 Where d = Distance in cm P = Power in mW G = Numeric antenna gain S = Power density in mW / cm 2 CERPASS TECHNOLOGY CORP. Report No.: TEFI1210128 Cerpass Technology Corp. Issued date : Oct. 19, 2012 Tel: 886-2-2655-8100 Fax: 886-2-2655-8200 Page No. : 3 of 3 FCC ID : OS3IPC01 Maximum Permissible Exposure Modulation Mode Frequency band (MHz) Max. Conducted output power(dBm) Antenna gain (dBi) Distance (cm) Power density (mW/cm2) Limit (mW/cm2) 802.11b 2412-2462 18.42 3.9 20 0.034 1 802.11g 2412-2462 14.22 3.9 20 0.013 1 802.11n (20MHz) 2412-2462 13.46 3.9 20 0.011 1 802.11n (40MHz) 2422-2452 13.32 3.9 20 0.010 1 NOTE: Total (Chain0+Chain1) , the formula of calculated the MPE is: CPD1 / LPD1 + CPD2 / LPD2 + ......etc. < 1 CPD = Calculation power density LPD = Limit of power density

CERPASS TECHNOLOGY CORP. Report No.: TEFI1210128 Cerpass Technology Corp. Issued date : Oct. 19, 2012 Tel:886-2-2655-8100 Fax:886-2-2655-8200 Page No. : 1 of 188 FCC ID : OS3IPC01 FCC TEST REPORT According to FCC Rules and Regulations Part 15 Subpart C Applicant : Zhuhai FTZ Oplink Communications, Inc. Address : #29, #30 Lianfeng Avenue, Free Trade Zone, Zhuhai City, Guangdong Province, 519030 China Equipment : MJPEG Wireless IP Camera with Night Vision Model No. : IPC1200 FCC ID : OS3IPC01 Trade Name : OPLINK ‚ The test result refers exclusively to the test presented test model / sample., ‚ Without written approval of Cerpass Technology Corp., the test report shall not be reproduced except in full. ‚ The EUT is also considered as a kind of computer peripheral, because the connection to computer is necessary for typical use. It has been verified to comply with the requirements of FCC Part 15, Subpart B, Class B (DoC). The test report has been issued separately. CERPASS TECHNOLOGY CORP. Report No.: TEFI1210128 Cerpass Technology Corp. Issued date : Oct. 19, 2012 Tel:886-2-2655-8100 Fax:886-2-2655-8200 Page No. : 2 of 188 FCC ID : OS3IPC01 Contents 1. Report of Measurements and Examinations .................................................................................... 6 1.1 List of Measurements and Examinations ................................................................................... 6 2. Test Configuration of Equipment under Test ................................................................................... 7 2.1 Feature of Equipment under Test ............................................................................................... 7 2.2 Carrier Frequency of Channels .................................................................................................. 8 2.3 Test Mode and Test Software ..................................................................................................... 9 2.4 Description of Test System ......................................................................................................... 9 2.5 General Information of Test ...................................................................................................... 10 2.6 Measurement Uncertainty ........................................................................................................ 10 3. Antenna Requirements ..................................................................................................................... 11 3.1 Standard Applicable ................................................................................................................. 11 3.2 Antenna Construction and Directional Gain ............................................................................. 11 4. Test of Conducted Emission ............................................................................................................ 12 4.1 Test Limit .................................................................................................................................. 12 4.2 Test Procedures ....................................................................................................................... 12 4.3 Typical Test Setup .................................................................................................................... 13 4.4 Measurement Equipment ......................................................................................................... 13 4.5 Test Result and Data ................................................................................................................ 14 4.6 Test Photographs ..................................................................................................................... 32 5. Test of Radiated Emission ............................................................................................................... 33 5.1 Test Limit .................................................................................................................................. 33 5.2 Test Procedures ....................................................................................................................... 33 5.3 Typical Test Setup .................................................................................................................... 34 5.4 Measurement Equipment ......................................................................................................... 34 5.5 Test Result and Data (9kHz ~ 30MHz) ..................................................................................... 35 5.6 Test Result and Data ................................................................................................................ 35 5.7 Test Photographs (30MHz~1000MHz) ................................................................................... 143 5.8 Test Photographs (1000MHz~25000MHz) ............................................................................. 144 6. 6dB Bandwidth Measurement Data ............................................................................................... 145 6.1 Test Limit ................................................................................................................................ 145 6.2 Test Procedures ..................................................................................................................... 145 6.3 Test Setup Layout .................................................................................................................. 145 6.4 Measurement Equipment ....................................................................................................... 145 6.5 Test Result and Data .............................................................................................................. 145 7. Maximum Peak and Average Output Power ................................................................................. 152 7.1 Test Limit .......…

Text truncated - open the document above for the full version.

CERPASS TECHNOLOGY CORP. Report No.: TEFI1210128 Cerpass Technology Corp. Issued date : Oct. 19, 2012 Tel:886-2-2655-8100 Fax:886-2-2655-8200 Page No. : 62 of 188 FCC ID : OS3IPC01 Power : AC 120V Pol/Phase : VERTICAL Test Mode 1 : 802.11n HT40, CH3 Temperature: 25 °C Adapter : DVE \ DSC-6PFA-05 FUS 050100 Humidity : 67 % CERPASS TECHNOLOGY CORP. Report No.: TEFI1210128 Cerpass Technology Corp. Issued date : Oct. 19, 2012 Tel:886-2-2655-8100 Fax:886-2-2655-8200 Page No. : 63 of 188 FCC ID : OS3IPC01 Power : AC 120V Pol/Phase : HORIZONTAL Test Mode 1 : 802.11n HT40, CH3 Temperature: 25 °C Adapter : DVE \ DSC-6PFA-05 FUS 050100 Humidity : 67 % CERPASS TECHNOLOGY CORP. Report No.: TEFI1210128 Cerpass Technology Corp. Issued date : Oct. 19, 2012 Tel:886-2-2655-8100 Fax:886-2-2655-8200 Page No. : 64 of 188 FCC ID : OS3IPC01 Power : AC 120V Pol/Phase : HORIZONTAL Test Mode 1 : 802.11n HT40, CH3 Temperature: 25 °C Adapter : DVE \ DSC-6PFA-05 FUS 050100 Humidity : 67 % CERPASS TECHNOLOGY CORP. Report No.: TEFI1210128 Cerpass Technology Corp. Issued date : Oct. 19, 2012 Tel:886-2-2655-8100 Fax:886-2-2655-8200 Page No. : 65 of 188 FCC ID : OS3IPC01 Power : AC 120V Pol/Phase : VERTICAL Test Mode 1 : 802.11n HT40, CH3 Temperature: 25 °C Adapter : DVE \ DSC-6PFA-05 FUS 050100 Humidity : 67 % CERPASS TECHNOLOGY CORP. Report No.: TEFI1210128 Cerpass Technology Corp. Issued date : Oct. 19, 2012 Tel:886-2-2655-8100 Fax:886-2-2655-8200 Page No. : 66 of 188 FCC ID : OS3IPC01 Power : AC 120V Pol/Phase : HORIZONTAL Test Mode 1 : 802.11n HT40, CH3 Temperature: 25 °C Adapter : DVE \ DSC-6PFA-05 FUS 050100 Humidity : 67 % CERPASS TECHNOLOGY CORP. Report No.: TEFI1210128 Cerpass Technology Corp. Issued date : Oct. 19, 2012 Tel:886-2-2655-8100 Fax:886-2-2655-8200 Page No. : 67 of 188 FCC ID : OS3IPC01 Power : AC 120V Pol/Phase : VERTICAL Test Mode 1 : 802.11n HT40, CH6 Temperature: 25 °C Adapter : DVE \ DSC-6PFA-05 FUS 050100 Humidity : 67 % CERPASS TECHNOLOGY CORP. Report No.: TEFI1210128 Cerpass Technology Corp. Issued date : Oct. 19, 2012 Tel:886-2-2655-8100 Fax:886-2-2655-8200 Page No. : 68 of 188 FCC ID : OS3IPC01 Power : AC 120V Pol/Phase : HORIZONTAL Test Mode 1 : 802.11n HT40, CH6 Temperature: 25 °C Adapter : DVE \ DSC-6PFA-05 FUS 050100 Humidity : 67 % CERPASS TECHNOLOGY CORP. Report No.: TEFI1210128 Cerpass Technology Corp. Issued date : Oct. 19, 2012 Tel:886-2-2655-8100 Fax:886-2-2655-8200 Page No. : 69 of 188 FCC ID : OS3IPC01 Power : AC 120V Pol/Phase : VERTICAL Test Mode 1 : 802.11n HT40, CH9 Temperature: 25 °C Adapter : DVE \ DSC-6PFA-05 FUS 050100 Humidity : 67 % CERPASS TECHNOLOGY CORP. Report No.: TEFI1210128 Cerpass Technology Corp. Issued date : Oct. 19, 2012 Tel:886-2-2655-8100 Fax:886-2-2655-8200 Page No. : 70 of 188 FCC ID : OS3IPC01 Power : AC 120V Pol/Phase : HORIZONTAL Test Mode 1 : 802.11n HT40, CH9 Temperature: 25 °C Adapter : DVE \ DSC-6PFA-05 FUS 050100 Humidity : 67 % CERPASS TECHNOLOGY CORP. Report No.: TEFI1210128 Cerpass Technology Corp. Issued date : Oct. 19, 2012 Tel:886-2-2655-8100 Fax:886-2-2655-8200 Page No. : 71 of 188 FCC ID : OS3IPC01 Power : AC 120V Pol/Phase : VERTICAL Test Mode 2 : 802.11g, CH1 Temperature: 25 °C Adapter : AMIGO \ AMS47-0501200FU Humidity : 67 % CERPASS TECHNOLOGY CORP. Report No.: TEFI1210128 Cerpass Technology Corp. Issued date : Oct. 19, 2012 Tel:886-2-2655-8100 Fax:886-2-2655-8200 Page No. : 72 of 188 FCC ID : OS3IPC01 Power : AC 120V Pol/Phase : VERTICAL Test Mode 2 : 802.11g, CH1 Temperature : 25 °C Adapter : AMIGO \ AMS47-0501200FU Humidity : 67 % CERPASS TECHNOLOGY CORP. Report No.: TEFI1210128 Cerpass Technology Corp. Issued date : Oct. 19, 2012 Tel:886-2-2655-8100 Fax:886-2-2655-8200 Page No. : 73 of 188 FCC ID : OS3IPC01 Power : AC 120V Pol/Phase : HORIZONTAL Test Mode 2 : 802.11g, CH1 Temperature : 25 °C Adapter : AMIGO \ AMS47-0501200FU Humidity : 67 % CERPASS TECHNOLOGY CORP. Report No.: TEFI1210128 Cerpass Technology Corp. Issued date : Oct. 19, 2012 Tel:886-2-2655-8100 Fax:886-2-2655-8200 Page No. : 74 of 188 FCC ID : OS3IPC01 Power : AC 120V Pol/Phase : HORIZONTAL Test Mode 2 : 802.11g, CH1 Temperature: 25 °C Adapter : AMIGO \ AMS47-0501200FU Humidity : 67 % CERPASS TECHNOLOGY CORP. Report No.: TEFI1210128 Cerpass Technology Corp. Issued date : Oct. 19, 2012 Tel:886-2-2655-8100 Fax:886-2-2655-8200 Page No. : 75 of 188 FCC ID : OS3IPC01 Power : AC 120V Pol/Phase : VERTICAL Test Mode 2 : 802.11b, CH1 Temperature : 25 °C Adapter : AMIGO \ AMS47-0501200FU Humidity : 67 % CERPASS TECHNOLOGY CORP. Report No.: TEFI1210128 Cerpass Technology Corp. Issued date : Oct. 19, 2012 Tel:886-2-2655-8100 Fax:886-2-2655-8200 Page No. : 76 of 188 FCC ID : OS3IPC01 Power : AC 120V Pol/Phase : HORIZONTAL Test Mode 2 : 802.11b, CH1 Temperature: 25 °C Adapter : AMIGO \ AMS47-0501200FU Humidity : 67 % CERPASS TECHNOLOGY CORP. Report No.: TEFI1210128 Cerpass Technology Corp. Issued date : Oct. 19, 2012 Tel:886-2-2655-8100 Fax:886-2-2655-8200 Page No. : 77 of 188 FCC ID : OS3IPC01 Power : AC 120V Pol/Phase : VERTICAL Test Mode 2 : 802.11b, CH6 Temperature : 25 °C Adapter : AMIGO \ AMS47-0501200FU Humidity : 67 % CERPASS TECHNOLOGY CORP. Report No.: TEFI1210128 Cerpass Technology Corp. Issued date : Oct. 19, 2012 Tel:886-2-2655-8100 Fax:886-2-2655-8200 Page No. : 78 of 188 FCC ID : OS3IPC01 Power : AC 120V Pol/Phase : HORIZONTAL Test Mode 2 : 802.11b, CH6 Temperature: 25 °C Adapter : AMIGO \ AMS47-0501200FU Humidity : 67 % CERPASS TECHNOLOGY CORP. Report No.: TEFI1210128 Cerpass Technology Corp. Issued date : Oct. 19, 2012 Tel:886-2-2655-8100 Fax:886-2-2655-8200 Page No. : 79 of 188 FCC ID : OS3IPC01 Power : AC 120V Pol/Phase : VERTICAL Test Mode 2 : 802.11b, CH11 Temperature: 25 °C Adapter : AMIGO \ AMS47-0501200FU Humidity : 67 % CERPASS TECHNOLOGY CORP. Report No.: TEFI1210128 Cerpass Technology Corp. Issued date : Oct. 19, 2012 Tel:886-2-2655-8100 Fax:886-2-2655-8200 Page No. : 80 of 188 FCC ID : OS3IPC01 Power : AC 120V Pol/Phase : HORIZONTAL Test Mode 2 : 8…

Text truncated - open the document above for the full version.

CERPASS TECHNOLOGY CORP. Report No.: TEFI1210128 Cerpass Technology Corp. Issued date : Oct. 19, 2012 Tel:886-2-2655-8100 Fax:886-2-2655-8200 Page No. : 145 of 188 FCC ID : OS3IPC01 6. 6dB Bandwidth Measurement Data 6.1 Test Limit The minimum of 6dB Bandwidth Measurement is 0.5 MHz. 6.2 Test Procedures a. The transmitter output was connected to the spectrum analyzer. b. Set RBW of spectrum analyzer to 1~5% of the emission bandwidth and VBW ≥ 3x RBW. c. The 6 dB bandwidth is defined as the total spectrum the power of which is higher than peak power minus 6 dB. d. The 6dB Bandwidth was measured and recorded. 6.3 Test Setup Layout 6.4 Measurement Equipment Instrument/Ancillary Manufacturer Model No.Serial No.Calibration Date Valid Date Spectrum Analyzer R&S FSP40 100219 2011/11/24 2012/11/23 6.5 Test Result and Data Test Date: Jun. 28, 2012 Temperature: 24 Atmospheric pressure: 1020 hPa Humidity: 65% Modulation Standard Channel Frequency (MHz) 6dB Bandwidth (MHz) 802.11b (11Mbps) 01 2412 11.1 06 2437 11.1 11 2462 11.1 802.11g (54Mbps) 01 2412 16.7 06 2437 16.8 11 2462 16.8 802.11n HT20 (65Mbps) 01 2412 18.2 06 2437 18.2 11 2462 18.1 802.11n HT40 (135Mbps) 03 2422 36.4 06 2437 36.4 09 2452 36.4 CERPASS TECHNOLOGY CORP. Report No.: TEFI1210128 Cerpass Technology Corp. Issued date : Oct. 19, 2012 Tel:886-2-2655-8100 Fax:886-2-2655-8200 Page No. : 146 of 188 FCC ID : OS3IPC01 Modulation Standard: 802.11b (11Mbps) Channel: 01 Modulation Standard: 802.11b (11Mbps) Channel: 06 CERPASS TECHNOLOGY CORP. Report No.: TEFI1210128 Cerpass Technology Corp. Issued date : Oct. 19, 2012 Tel:886-2-2655-8100 Fax:886-2-2655-8200 Page No. : 147 of 188 FCC ID : OS3IPC01 Modulation Standard: 802.11b (11Mbps) Channel: 11 Modulation Standard: 802.11g (54Mbps) Channel: 01 CERPASS TECHNOLOGY CORP. Report No.: TEFI1210128 Cerpass Technology Corp. Issued date : Oct. 19, 2012 Tel:886-2-2655-8100 Fax:886-2-2655-8200 Page No. : 148 of 188 FCC ID : OS3IPC01 Modulation Standard: 802.11g (54Mbps) Channel: 06 Modulation Standard: 802.11g (54Mbps) Channel: 11 CERPASS TECHNOLOGY CORP. Report No.: TEFI1210128 Cerpass Technology Corp. Issued date : Oct. 19, 2012 Tel:886-2-2655-8100 Fax:886-2-2655-8200 Page No. : 149 of 188 FCC ID : OS3IPC01 Modulation Standard: 802.11n HT20 (65Mbps) Channel: 01 Modulation Standard: 802.11n HT20 (65Mbps) Channel: 06 CERPASS TECHNOLOGY CORP. Report No.: TEFI1210128 Cerpass Technology Corp. Issued date : Oct. 19, 2012 Tel:886-2-2655-8100 Fax:886-2-2655-8200 Page No. : 150 of 188 FCC ID : OS3IPC01 Modulation Standard: 802.11n HT20 (65Mbps) Channel: 11 Modulation Standard: 802.11n HT40 (135Mbps) Channel: 03 CERPASS TECHNOLOGY CORP. Report No.: TEFI1210128 Cerpass Technology Corp. Issued date : Oct. 19, 2012 Tel:886-2-2655-8100 Fax:886-2-2655-8200 Page No. : 151 of 188 FCC ID : OS3IPC01 Modulation Standard: 802.11n HT40 (135Mbps) Channel: 06 Modulation Standard: 802.11n HT40 (135Mbps) Channel: 09 CERPASS TECHNOLOGY CORP. Report No.: TEFI1210128 Cerpass Technology Corp. Issued date : Oct. 19, 2012 Tel:886-2-2655-8100 Fax:886-2-2655-8200 Page No. : 152 of 188 FCC ID : OS3IPC01 7. Maximum Peak and Average Output Power 7.1 Test Limit The Maximum Peak Output Power Measurement is 30dBm. 7.2 Test Procedures a. The transmitter output was connected to the spectrum analyzer. b. Set RBW of spectrum analyzer to 1MHz and VBW to 3MHz. c. Set detector mode to peak (for peak output power) or set detector mode to RMS (for average output power).Trace averaging in power averaging (RMS) mode must be performed over a minimum of 100 traces. d. Use the spectrum analyzer’s integrated band power measurement function with band limits set equal to the EBW band edges. e. The maximum peak and average output power was measured and recorded. 7.3 Test Setup Layout 7.4 Measurement Equipment Instrument/Ancillary Manufacturer Model No.Serial No.Calibration Date Valid Date Spectrum Analyzer R&S FSP40 100219 2011/11/24 2012/11/23 CERPASS TECHNOLOGY CORP. Report No.: TEFI1210128 Cerpass Technology Corp. Issued date : Oct. 19, 2012 Tel:886-2-2655-8100 Fax:886-2-2655-8200 Page No. : 153 of 188 FCC ID : OS3IPC01 7.5 Test Result and Data Test Date: Jun. 28, 2012 Temperature: 24 Atmospheric pressure: 1020 hPa Humidity: 65% Modulation Standard Channel Frequency (MHz) Peak Power Output (dBm) Power Output (mW) Peak Average Peak Average 802.11b (11Mbps) 01 2412 18.15 14.06 65.3 25.5 06 2437 18.37 14.30 68.7 26.9 11 2462 18.42 14.19 69.5 26.2 802.11g (54Mbps) 01 2412 14.09 8.38 25.6 6.9 06 2437 14.22 8.47 26.4 7.0 11 2462 14.07 8.32 25.5 6.8 Modulation Standard Channel Frequency (MHz) Peak Power Output (dBm) Power Output (mW) Peak Average Peak Average 802.11n HT20 (65Mbps) 01 2412 13.37 7.77 21.7 6.0 06 2437 13.46 7.96 22.2 6.3 11 2462 13.26 7.75 21.2 6.0 802.11n HT40 (135Mbps) 03 2422 13.32 7.61 21.5 5.8 06 2437 13.25 7.58 21.1 5.7 09 2452 13.21 7.79 20.9 6.0 CERPASS TECHNOLOGY CORP. Report No.: TEFI1210128 Cerpass Technology Corp. Issued date : Oct. 19, 2012 Tel:886-2-2655-8100 Fax:886-2-2655-8200 Page No. : 154 of 188 FCC ID : OS3IPC01 Modulation Standard: 802.11b (54Mbps), Peak Power Output Channel: 01 Modulation Standard: 802.11b (11Mbps), Peak Power Output Channel: 06 CERPASS TECHNOLOGY CORP. Report No.: TEFI1210128 Cerpass Technology Corp. Issued date : Oct. 19, 2012 Tel:886-2-2655-8100 Fax:886-2-2655-8200 Page No. : 155 of 188 FCC ID : OS3IPC01 Modulation Standard: 802.11b (11Mbps), Peak Power Output Channel: 11 Modulation Standard: 802.11g (54Mbps), Peak Power Output Channel: 01 CERPASS TECHNOLOGY CORP. Report No.: TEFI1210128 Cerpass Technology Corp. Issued date : Oct. 19, 2012 Tel:886-2-2655-8100 Fax:886-2-2655-8200 Page No. : 156 of 188 FCC ID : OS3IPC01 Modulation Standard: 802.11g (54Mbps), Peak Power Output Channel: 06 Modulation Standard: 802.11g (54Mbps), Peak Power Output Channel: 11 CERPASS TECHNOLOGY CORP. Report No.: TEFI1210128 Cerpass Technology Corp. Issued date : Oct. 19, 2012 Tel:886-2-2655-8100 Fax:886-2-2655-8200 Page No.…

Text truncated - open the document above for the full version.

CERPASS TECHNOLOGY CORP. Report No.: TEFI1210128 Cerpass Technology Corp. Issued date : Oct. 19, 2012 Tel:886-2-2655-8100 Fax:886-2-2655-8200 Page No. : 32 of 188 FCC ID : OS3IPC01 4.6 Test Photographs Front View Rear View CERPASS TECHNOLOGY CORP. Report No.: TEFI1210128 Cerpass Technology Corp. Issued date : Oct. 19, 2012 Tel:886-2-2655-8100 Fax:886-2-2655-8200 Page No. : 143 of 188 FCC ID : OS3IPC01 5.7 Test Photographs (30MHz~1000MHz) Front View Rear View CERPASS TECHNOLOGY CORP. Report No.: TEFI1210128 Cerpass Technology Corp. Issued date : Oct. 19, 2012 Tel:886-2-2655-8100 Fax:886-2-2655-8200 Page No. : 144 of 188 FCC ID : OS3IPC01 5.8 Test Photographs (1000MHz~25000MHz) Front View Rear View
