OS3WPS01WiFi Smart Plug

105X148.5mm

Zhuhai FTZ Oplink Communications, Inc. WiFi Smart Plug FCC ID:OS3WPS01 EUT External Photos Photo 1 General Appearance (Front & Side View) Photo 2 General Appearance (Back & Side View)

Zhuhai FTZ Oplink Communications, Inc. WiFi Smart Plug FCC ID:OS3WPS01 FCC ID Label Location z Label Placement Location (Back View of EUT) z FCC ID Label Format FCC ID Label Placement Location

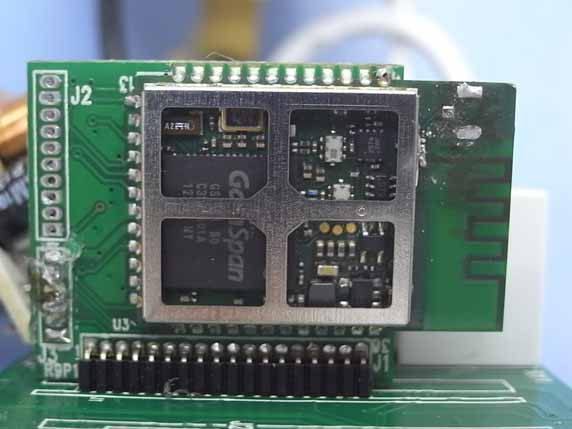

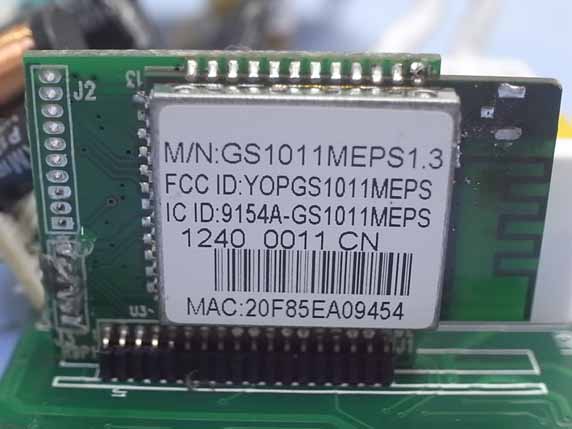

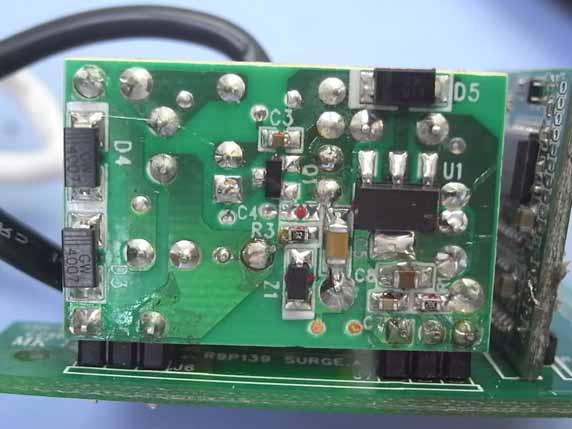

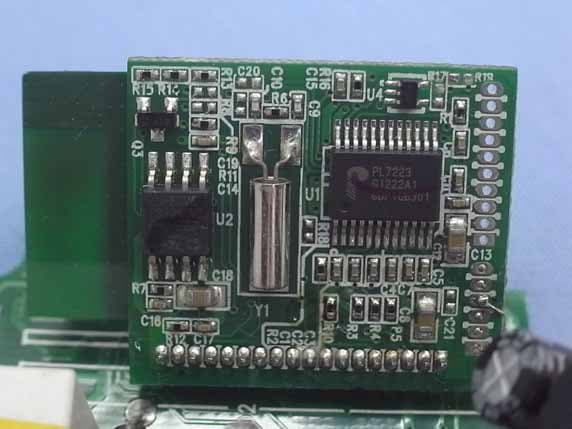

Zhuhai FTZ Oplink Communications, Inc. WiFi Smart Plug FCC ID:OS3WPS01 EUT Internal Photos Photo 3 Internal View (Removed Covers) Photo 4 Internal View (Removed Main Board) Zhuhai FTZ Oplink Communications, Inc. WiFi Smart Plug FCC ID:OS3WPS01 Photo 5 Internal View (Main Board, Front View) Photo 6 Internal View (Main Board, Back View) Zhuhai FTZ Oplink Communications, Inc. WiFi Smart Plug FCC ID:OS3WPS01 Photo 7 Internal View (Power Board, Front View) Photo 8 Internal View (Power Board, Back View) Zhuhai FTZ Oplink Communications, Inc. WiFi Smart Plug FCC ID:OS3WPS01 Photo 9 Internal View (Wi-Fi Module) Photo 10 Internal View (Wi-Fi Module, Front View) Zhuhai FTZ Oplink Communications, Inc. WiFi Smart Plug FCC ID:OS3WPS01 Photo 11 Internal View (Wi-Fi Module, Back View)

Declaration of Compliance FCC ID: OS3WPS01 Product Name: WiFi Smart Plug Model No: WPS1201 1. According to FCC CFR 47 §1.1310, the criteria listed in the following table shall be used to evaluate the environmental impact of human exposure to radio frequency (RF) radiation as specified in 1.1307(b). Table 1 Limits for Maximum Permissible Exposure 2. MPE Calculation Based on safety distance 20cm, the antenna gain is -1.13dBi, and the power output is 74.82mW, the power density is 0.0115mW/cm^2 RF Exposure Calculations: S = (P * G) / (4* * r^2) or r = (P * G) / (4 * * S) Where S = Power Density in mW/cm^2 P = 18.74dBm =74.82mW G = -1.13dBi = 0.771 Numerical r = 20cm S = 74.82*0.771 / 4** 20^2 =57.686/5026.548= 0.0115mW/cm^2 Sincerely Yours, ____________________________________ Mr. Lizhi Li Engineer Zhuhai FTZ Oplink Communication, Inc.

FCC ID: OS3WPS01 Page 1 of 39 AUDIX Technology Corporation Report No. EM-F1020779 APPLICATION FOR CERTIFICATION On Behalf of Zhuhai FTZ Oplink Communications, Inc. WiFi Smart Plug Model No. : WPS1201 FCC ID : OS3WPS01 Prepared for : Zhuhai FTZ Oplink Communications, Inc. #29, #30 Lianfeng Avenue, Free Trade Zone, Zhuhai City, Guangdong Province, 519030 China Prepared by : AUDIX Technology Corporation EMC Department No. 53-11, Dingfu, Linkou Dist., New Taipei City 244, Taiwan Tel : (02) 2609-9301, 2609-2133 Fax: (02) 2609-9303 File Number C1M1309239 Report Number EM-F1020779 Date of Test Oct. 16 ~ 18, 2013 Date of Report Oct. 21, 2013 FCC ID: OS3WPS01 Page 2 of 39 AUDIX Technology Corporation Report No. EM-F1020779 TABLE OF CONTENTS Description Page TEST REPORT CERTIFICATION ................................................................................................ 4 1. GENERAL INFORMATION .................................................................................................. 5 1.1. Description of Device (EUT)........................................................................................................... 5 1.2. Data Rate Relative to Output Power................................................................................................ 6 1.3. Test Configuration for Each Test Item ............................................................................................ 6 1.4. Tested Supporting System Details ................................................................................................... 6 1.5. Description of Test Facility ............................................................................................................. 7 1.6. Measurement Uncertainty................................................................................................................ 7 2. CONDUCTED EMISSION MEASUREMET........................................................................ 8 2.1. Test Equipment ................................................................................................................................ 8 2.2. Block Diagram of Test Setup........................................................................................................... 8 2.3. Powerline Conducted Emission Limit §15.207, Class B]................................................................ 8 2.4. Operating Condition of EUT ........................................................................................................... 9 2.5. Test Procedure ................................................................................................................................. 9 2.6. Conducted Emission Measurement Results..................................................................................... 9 3. RADIATED EMISSION MEASUREMENT ....................................................................... 12 3.1. Test Equipment .............................................................................................................................. 12 3.2. Test Setup ...................................................................................................................................... 12 3.3. Radiated Emission Limits (§15.209) .............................................................................................14 3.4. Operating Condition of EUT ......................................................................................................... 14 3.5. Test Procedure ............................................................................................................................... 15 3.6. Test Results.................................................................................................................................... 16 4. 6dB BANDWIDTH MEASUREMENT ................................................................................ 25 4.1. Test Equipment .............................................................................................................................. 25 4.2. Block Diagram of Test Setup......................................................................................................... 25 4.3. Specification Limits [§15.247(a)(2)] ............................................................................................. 25 4.4. Operating Condition of EUT ......................................................................................................... 25 4.5. Test Procedure ............................................................................................................................... 25 4.6. Test Results.................................................................................................................................... 26 5. MAXIMUM PEAK OUTPUT POWER MEASUREMENT .............................................. 28 5.1. Test Equipment .............................................................................................................................. 28 5.2. Block Diagram of Test Setup......................................................................................................... 28 5.3. Specification Limits (§15.247(b)-(3))............................................................................................ 28 5.4. Operating Condition of EUT ......................................................................................................... 28 5.5. Test Procedure ............................................................................................................................... 28 5.6. Test Results.................................................................................................................................... 29 6. EMISSION LIMITATIONS MEASUREMENT ................................................................. 30 7. BAND EDGES MEASUREMENT........................................................................................ 31 7.1. Test Equipment ........…

Text truncated - open the document above for the full version.

FCC ID: OS3WPS01 Page 37 of 39 AUDIX Technology Corporation Report No. EM-F1020779 10. PHOTOGRAPHS 10.1.Photos of Conducted Disturbance Measurement FRONT VIEW OF CONDUCTED MEASUREMENT BACK VIEW OF CONDUCTED MEASUREMENT FCC ID: OS3WPS01 Page 38 of 39 AUDIX Technology Corporation Report No. EM-F1020779 10.2.Photos of Radiated Measurement at Semi-Anechoic Chamber 10.2.1.Frequency Range 30MHz-1GHz 10.2.2. Frequency Range Above 1GHz FCC ID: OS3WPS01 Page 39 of 39 AUDIX Technology Corporation Report No. EM-F1020779 10.3.Photo of Section RF Conducted Measurement
