OS3OPU02OPU2

User Manual –OPU2120 OPU2120 User Manual Version 1.01 Apr, 2013 User Manual –OPU2120 I. Product Introduction OPU2120 is a WIFI & 433MHZ RF integrated access controller, using for receiving and transmitting data from its matched devices. Matched devices are products which can transfer control signal remotely, such as alarm systems, door openers, remote switches etc. System Structure User Manual –OPU2120 II. OPU2120 Port &Indication User Manual –OPU2120 III. Installation & Workflow OPU2120 is plug & activate, and no installation or configuration work is needed. Please connect it to the router and power up ,it will start to work. 1. Power up the OPU2120 and connect to a Router by Ethernet cable. Setup Indication 2. Observe the LED indicator. a. Solid Green Light :Power On b. Solid Green Light :Upper Link Connection (Ethernet ) c. Solid Green Light: Downlink Connection (RF433) d. Solid Green Light: Security System Armed Cautions: LED light will be permanently on in blue once it is powered up. This product does not transmit signal periodically, and, will transmit control signal to the alarm system only when sensors are triggered. 3. Download APP to activate the matched devices. User Manual –OPU2120 IV. RF Function Description 1. WIFI a. The matching WIFI devices such as IP Cam will send data through WIFI signal to OPU2120. b. The signal will be processed by a software client and transferred to video data. c. End user could watch the video through the software client. 2. 433MHz Function a. When the 433MHz sensor, which should be matching its system, is triggered, the OPU2120 will receive a 433MHz hex string signal. b. The signal will be processed by a software client and transferred to alert information to end user c. And at the same time, OPU2120 will send out a 433MHz hex string control signal to the Siren. The siren will receive the control signal and start to work. d. End user could stop the siren through software client. User Manual –OPU2120 V. Reference Specification System Processor RT5350F System Flash 4 MB System RAM 32 MB Wireless WIFI，RF433MHz Accessory Power Adapter Adapter Output Power 5V /1.5A Operating Environment WorkingTemp:0°C~40°C Humidity:10%~90%RH non-condensing Storage Temp: -40°C~70°C Humidity:5%~90%RH Function WIFI to LAN Router RF433MHz Transceiver WIFI Wireless Frequency 2.4～2.4835GHz Transmit Speed 150Mbps(Max) Wireless standard IEEE802.11b/g/n Channel 11 Bandwidth 20M/40M Modulate Technology DSSS TX Power 12.68dBm Antenna Exernal,2.5dBi Wireless Security WPA2-PSK RF433MHz Wireless Frequency 433.92MHz Transceiver Mode Half-duplex Modulate Type ASK Sensitivity ≤-108dBm Antenna External,2dBi Output Power to Antenna 0dBm(Max) Frequency offset range for receiver ±162KHz Frequency offset range for transmitter ±58KHz Data Rate Transmit: 33kbit/s Receive: 3.1kbit/s LED and Button User Manual –OPU2120 LED Lights Green Power On Solid Green Light Upper Link Connection (Ethernet ) Solid Green Light Downlink Connection (RF433) Solid Green Light Security System Armed Solid Green Light Buzzer Indication 1 short beep for arm system 2 continuous short beep for disarm system Continuous low short beep when either upperlink or downlink connection is out of function Button Reset Button Port LAN One 10/100Mbps LAN/WAN interchangeable Port ,IEEE 802.3 / IEEE 802.3u USB Port 1x internal USB, 1x external USB, 1x USB flash Power Port DC a, 5.5mm diameter, 2.1mm inner diameter Antenna 2.4GHz ANT (Ǿ10*110mm,2.5dBi) 433MHz ANT (Ǿ10*110mm, 2dBi) Housing Material ABS+PMMA (V0) Dimension 159.1*120*35.5mm User Manual –OPU2120 FCC Statement This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Warning: Changes or modifications to this unit not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:  Reorient or relocate the receiving antenna.  Increase the separation between the equipment and receiver.  Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.  Consult the dealer or an experienced radio/TV technician for help. *RF warning for Mobile device: This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with User Manual –OPU2120 minimum distance 20cm between the radiator & your body.

Date:2013-2-27 FCC ID: OS3OPU02 Subject: Ad Hoc Mode Function Declaration To Whom it may concern, This device is acting as slave and operating in the 2.4 GHz (2412 – 2462 MHz) band. Ad Hoc function is supported but not able to operate on non-US frequencies. Please contact the one signed below or the authorized agent for this filing. Thank you. Regards, Yours sincerely, Signatory Client’s signature Client’s name / title : Lizhi Li / Engineer Contact information / address : #29, #30 Lianfeng Avenue, Free Trade Zone, Zhuhai City, Guangdong Province, China 519030

Federal Communications Commission Authorization and Evaluation Division 1435 Oakland Mills Road Columbia, MD 21046 Date: SUBJECT: FCC Application for ( FCCID: OS3OPU02) To Whom It May Concern: We, the undersigned, hereby attest to the fact that we will apply the Declaration of Conformity procedure to the class B computer peripheral portion of this composite device. We understand that devices subject to the DoC procedure are required to be tested to show compliance with the FCC technical regulations by a recognized accredited testing laboratory. The testing laboratory must be accredited by a Commission approved accreditation body or designated under the terms of a government-to-government Mutual Recognition Agreement (MRA). A listing of those accredited testing laboratories that have been recognized by the Commission is published on the FCC Webpage: https://apps.fcc.gov/oetcf/eas/reports/TestFirmSearch.cfm Select the "accredited" option to search for FCC recognized accredited test firms. Test facilities located in countries, where the U.S. does not have an operational Telcom MRA are not recognized by the FCC to test for the DoC procedure. Regards, Signatory Client’s signature Client’s name / title : Lizhi Li / Engineer Contact information / address : #29, #30 Lianfeng Avenue, Free Trade Zone, Zhuhai City, Guangdong Province, China 519030

OPU2 FCC Difference Declaration Difference 1： Original：LPC11U24FBD48/401 (HW V1.02) Substitute：LPC11U14FBD48/201(HW V1.01) Difference：Memory updated，LPC11U24FBD48/401is 8KB，LPC11U14FBD48/201 is 6KB. EUT Function Difference：No Difference 2： Original：(HW V1.01) JP2：Samtec USB-A-S-F-B-TH U5：Murata DLW21SN900SQ2L C39：Venkel C0402X7R160-104KSnE C34：TDK C3216X5R1A476M L5、L7：Murata BLM21PG600SN1D R461：Venkel CR0402-16W-1501FSnT Q8：Fairchild MMBT3904LT1 Substitute：No jointing (HW V1.02) Difference: USB port circuit is prepared, no jointing EUT Function Difference：No Difference 3： Original：(HW V1.01) JP6：SAMTEC TSW-105-07-F-S Substitute：No jointing (HW V1.02) Difference：JTAG is prepared, no jointing EUT Function Difference：No Difference 4： Shielding Case Material Difference Original：aluminium (HW V1.01) Substitute：zinc (HW V1.02) Difference：No, only change for the convenience of mass production EUT Function Difference：No Difference comparison

SCS-F18: Project and Product Certification Representative Authorization Letter Page 1 of 2 Rev 3.0 775 Montague Expressway Milpitas, CA 95035 Tel: 408-526-1188 Fax: 408-526-1088 Email: [email protected] Project and Product Certification Representative Authorization Letter Reason for Amendment (current / obsolete) Revision History Approved Date From To Initial Release (obsolete) 1.0 1.0 Nov-14-2006 Revised wording (obsolete) 1.0 2.0 Sept–25-2007 Updated company template (current) 2.0 3.0 Jan-31-2012 SCS-F18: Project and Product Certification Representative Authorization Letter Page 2 of 2 Rev 3.0 2013/02/27 To: SIEMIC, INC. 775 Montague Expressway, Milpitas, CA 95035 USA Dear Sir/Madam, Re: Project and Product Certification Representative Authorization Letter We, _____ Zhuhai FTZ Oplink Communications, Inc._____hereby authorize SIEMIC, INC. to act as a Certification Body for certifying for the following project(s): Product： OPU2 Trade Name： OPLINK Model Name： OPU2120 FCC ID OS3OPU02 We affirm that between SIEMIC and ___ Zhuhai FTZ Oplink Communications, Inc. ___, any difference in understanding, including test plan, measurement methods, applicable standards and relevant procedures and processes have been resolved prior to commencement of testing activities. Sincerely, Client’s signature Client’s name / title : Lizhi Li / Engineer Contact information / address : #29, #30 Lianfeng Avenue, Free Trade Zone, Zhuhai City, Guangdong Province, China 519030

SCS-F19: Confidentiality Request Letter Page 1 of 2 Rev 3.0 775 Montague Expressway Milpitas, CA 95035 Tel: 408-526-1188 Fax: 408-526-1088 Email: [email protected] Confidentiality Request Letter Reason for Amendment (current / obsolete) Revision History Approved Date From To Initial Release (obsolete) 1.0 1.0 Nov-14-2006 Adding CFR 2.459 (obsolete) 1.0 2.0 August – 11 - 2008 Updated company template & Added text box (current) 2.0 3.0 Jan-31-2012 SCS-F19: Confidentiality Request Letter Page 2 of 2 Rev 3.0 2013/02/27 To: Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD Subject: Permanent Confidentiality Request for FCC ID: OS3OPU02 We hereby request confidential treatment of information accompanying this application as outlined below: - Block Diagram - Schematics - Operational Description The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these materials may be harmful to the applicant and provide unjustified benefits to its competitors. The applicant understands that pursuant to Section 0.457 & 0.459 of the Rules, disclosure of this application and all accompanying documentation will not be made before the date of the Grant for this application. Sincerely, Client’s signature Client’s name / title : Lizhi Li / Engineer Contact information / address : #29, #30 Lianfeng Avenue, Free Trade Zone, Zhuhai City, Guangdong Province, China 519030

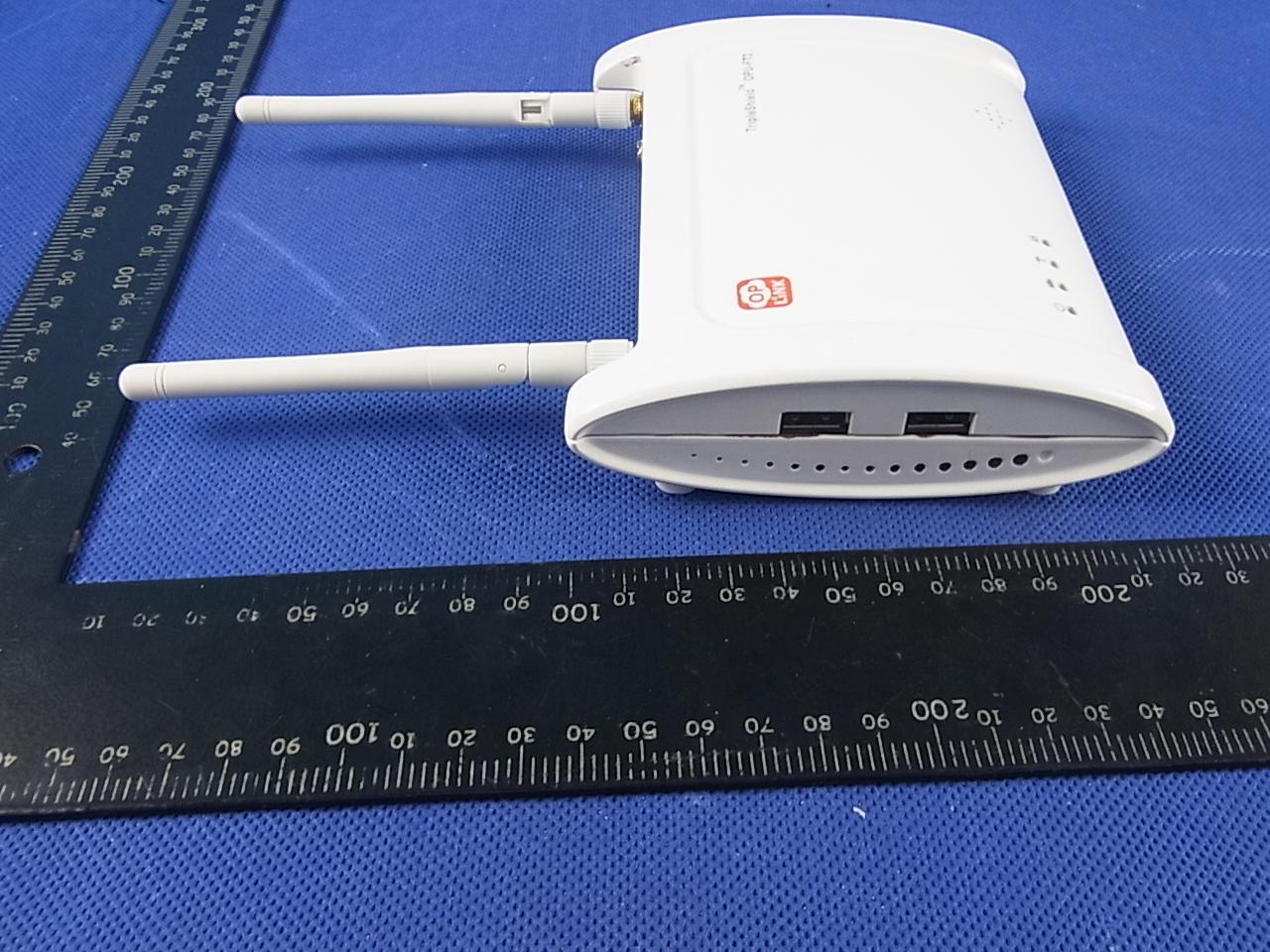

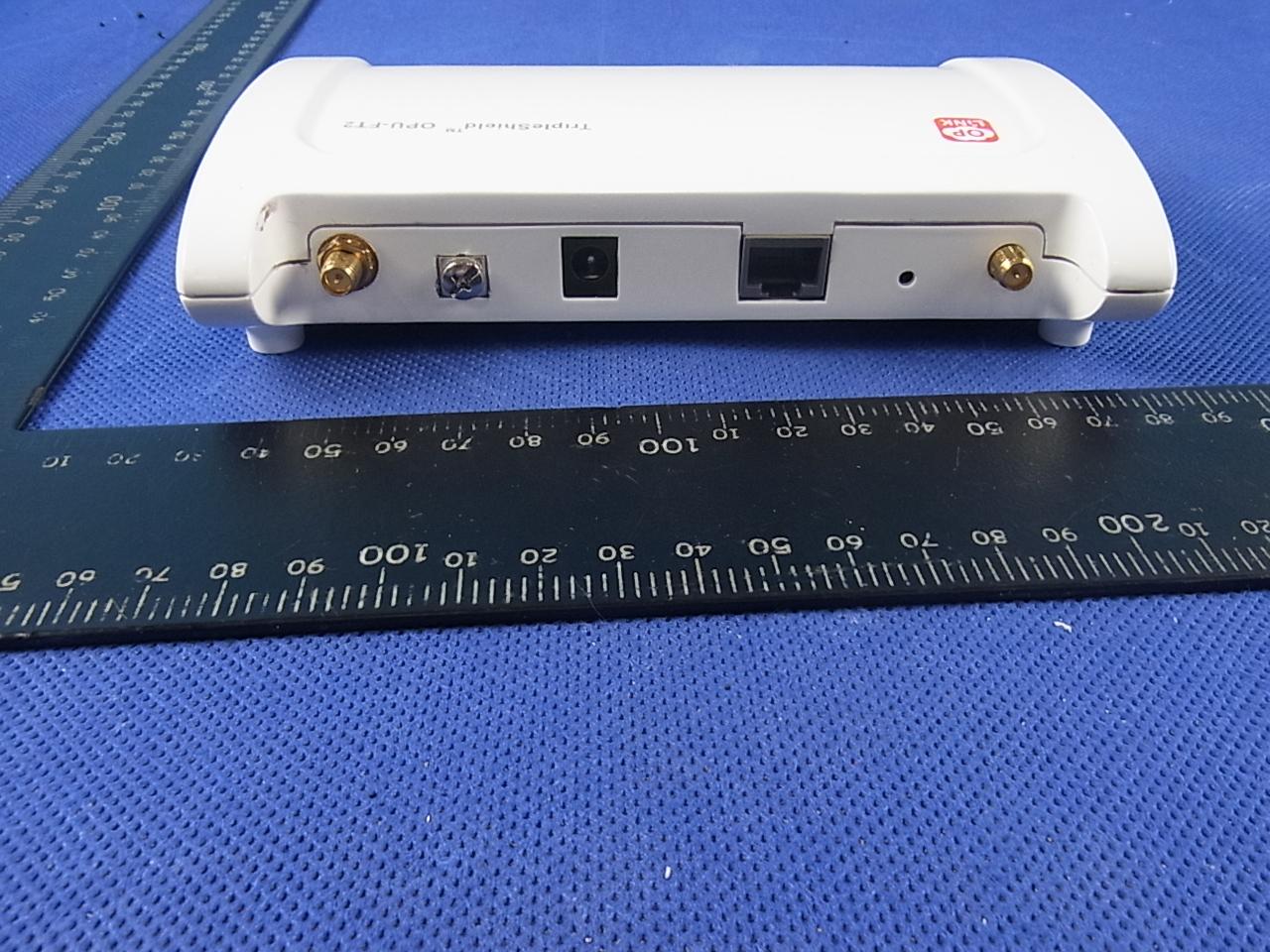

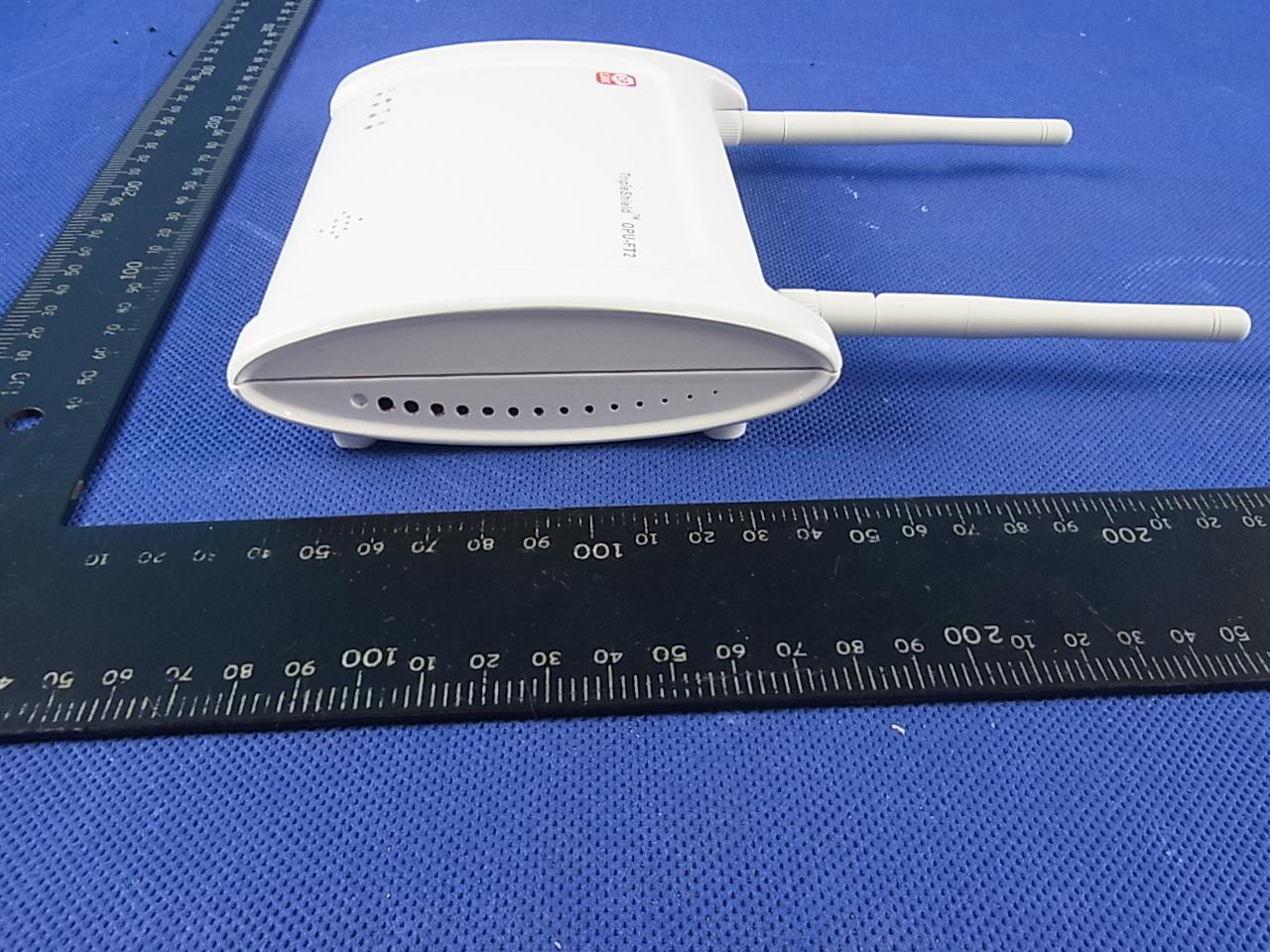

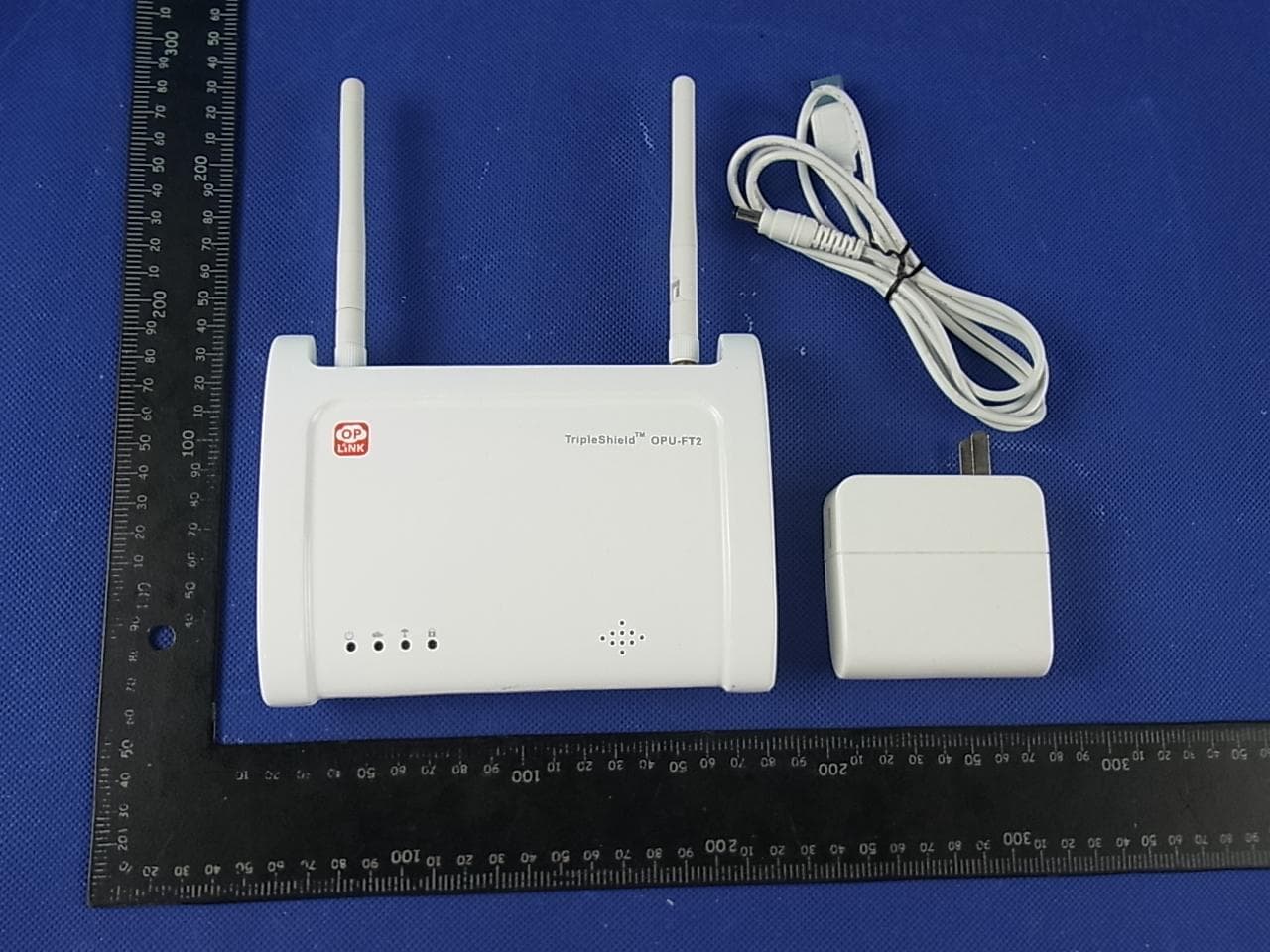

APPENDIX-PHOTOGRAPHS OF EUT CONSTRUCTIONAL DETAILS Photo 1 Photo 2 Photo 3 Photo 4 Photo 5 Photo 6 Photo 7 Photo 8

W*h=5.5*4.2cm

Photo 9 Photo 10 Photo 11 Photo 12 Photo 13 Photo 14 Photo 15 Photo 16 Photo 17 Photo 18 Photo 19 Photo 20 Photo 21 Photo 22 Photo 23 Photo 24 Photo 25 Photo 26

FCC ID: OS3OPU02 RF EXPOSURE TEST Applied procedures / limit These devices are not exempted from compliance does not exceed the Commission’s RF exposure guidelines.Unless a device operates at substantially low power levels,with a low gain antenna(s),supporting information is generally needed to establish the various potential operating configurations and exposure conditions of a transmitter and its antenna(s) in order to determine compliance with the RF exposure guidelines. In order to demonstrate compliance with MPE requirement(see Section 2.1091),the following information is typically needed: Calculation that estimates the minimum separation distance(20 cm or more)between an antenna and persons required to satisfy power density limits defined for free space. Antenna installation and device operating instructions for installers(professional/unskilled users),and the parties responsible for ensuring compliance with the RF exposure requirement Any caution statements and/or warming labels that are necessary in order to comply with the exposure limits Any other RF exposure related issues that may affect MPE compliance. FCC 1.1310: The criteria listed in the following table shall be used to evaluate the environmental impact of human exposure to radio-frequency(RF) radiation as specified in 1.1307(b). (A) Limits for Occupational / Controlled Exposure Frequency Range (MHz) Electric Field Strength (E) (V/m) Magnetic Field Strength (H) (A/m) Power Density (S) (mW/ cm 2 ) Averaging Time |E| 2 ,|H| 2 or S (minutes) 0.3-3.0 614 1.63 (100)* 6 3.0-30 1842 / f 4.89 / f (900 / f)* 6 30-300 61.4 0.163 1.0 6 300-1500 F/300 6 1500-100,000 5 6 (B) Limits for General Population / Uncontrolled Exposure Frequency Range (MHz) Electric Field Strength (E) (V/m) Magnetic Field Strength (H) (A/m) Power Density (S) (mW/ cm 2 ) Averaging Time |E| 2 ,|H| 2 or S (minutes) 0.3-1.34 614 1.63 (100)* 30 1.34-30 824/f 2.19/f (180/f)* 30 30-300 27.5 0.073 0.2 30 300-1500 F/1500 30 1500-100,000 1.0 30 Note: f = frequency in MHz ; *Plane-wave equivalent power density FCC ID: OS3OPU02 MPE CALCULATION METHOD Calculation Method of RF Safety Distance: P :power input to the antenna in Mw EIRP :Equivalent(effective) isotropic radiated power. S :power density mW/ cm 2 G ;numeric gain of antenna relative to isotropic radiator R :distance to centre of radiation in cm FCC radio frequency exposure limits may be exceeded at distances closer than r cm from the antenna of this device EIRP=10 ( Antenna Gain+Peak Output Power/10) Note: 1. s=1.0 mW /cm 2 for limits for General Population/Uncontrolled Exposures. 2. The time averaged power over 30 minutes will be equaled Output Power. 3. The Power Density at a distance of 20cm calculated from the formula is far below the limit of 1MW/ cm 2 FCC ID: OS3OPU02 TEST RESULTS EUT： OPU2 Model Name ： OPU2120 Temperature： 25 °C Relative Humidity： 60% Pressure： 1012 hPa Test Voltage ： DC 5V from Adapter AC 120V/60Hz Test Mode ： TX Mode NOTE: For mobile or fixed location transmitters, the maximum power density is 1.0mW/cm 2 even if the calculation indicates that the power density would be larger output power (MAX) (dBm) Output power to antenna (mW) Antenna Gain (numeric) Power Density (S) (mW/ cm 2 ) Limit of Power Density (S) (mW/ cm 2 ) Result 12.68 18.54 2.5(1.78dbi) 0.0066 1 Pass

FCC RADIO TEST REPORT FCC ID: OS3OPU02 Product： OPU2 Trade Name： OPLINK Model Name： OPU2120 Serial Model： N/A Report No.： NTEK- 2013NT0323058F2 Prepared for Zhuhai FTZ Oplink Communications, Inc. #29, #30 Lianfeng Avenue, Free Trade Zone, Zhuhai City, Guangdong Province, China 519030 Prepared by Shenzhen NTEK Testing Technology Co., Ltd. 1/F, Building E, Fenda Science Park, Sanwei Community,Xixiang Street Bao’an District, Shenzhen P.R. China Tel.: +86-0755-61156588 Fax.: +86-0755-61156599 Website:www.ntek.org.cn Page 2 of 29 Report No.: NTEK- 2013NT0323058F2 ` TEST RESULT CERTIFICATION Applicant’s name ................. : Zhuhai FTZ Oplink Communications, Inc. Address ................................. : #29, #30 Lianfeng Avenue, Free Trade Zone, Zhuhai City, Guangdong Province, China 519030 Manufacture's Name ............ : Prime Foundation Inc. Address ................................. : No.19 Baoying Nan Road, Guangzhou Free Trade Zone , Guangzhou,P.R. China510730 Product description Product name............................ : OPU2 Model and/or type reference : OPU2120 Serial Model： N/A Rating(s) ................................ : DC 5V Standards ............................. : FCC Part15.231 Test procedure ............................... : ANSI C63.4-2003 This device described above has been tested by NTEK, and the test results show that the equipment under test (EUT) is in compliance with the FCC requirements. And it is applicable only to the tested sample identified in the report. This report shall not be reproduced except in full, without the written approval of NTEK, this document may be altered or revised by NTEK, personal only, and shall be noted in the revision of the document. Date of Test ........................................... : Date (s) of performance of tests ............. : 10 Mar. 2013 ~22 Mar. 2013 Date of Issue .......................................... : 22 Mar. 2013 Test Result.............................................. : Pass Testing Engineer : (Apple Huang) Technical Manager : (Tom Zhang) Authorized Signatory : (Bovey Yang) Page 3 of 29 Report No.: NTEK- 2013NT0323058F2 ` Table of Contents Page 1 . SUMMARY OF TEST RESULTS 4 1.1 TEST FACILITY 5 1.2 MEASUREMENT UNCERTAINTY 5 2 . GENERAL INFORMATION 6 2.1 GENERAL DESCRIPTION OF EUT 6 2.2 DESCRIPTION OF TEST MODES 7 2.3 BLOCK DIGRAM SHOWING THE CONFIGURATION OF SYSTEM TESTED 8 2.4 DESCRIPTION OF SUPPORT UNITS(CONDUCTED MODE) 9 2.5 EQUIPMENTS LIST FOR ALL TEST ITEMS 10 3 . ANTENNA REQUIREMENT 11 3.1 STANDARD REQUIREMENT 11 3.2 EUT ANTENNA 11 3.3 CONDUCTED EMISSION MEASUREMENT 12 3.3.1 POWER LINE CONDUCTED EMISSION LIMITS 12 3.3.2 TEST PROCEDURE 13 3.3.3 DEVIATION FROM TEST STANDARD 13 3.3.4 TEST SETUP 13 3.2.5 TEST RESULT 14 3.4 RADIATED EMISSION MEASUREMENT 16 3.4.1 RADIATED EMISSION LIMITS 16 3.4.2 TEST PROCEDURE 17 3.4.3 DEVIATION FROM TEST STANDARD 17 3.4.4 TEST SETUP 18 3.4.5 TEST RESULTS (BLOW 30MHZ) 20 3.4.6 TEST RESULTS (BETWEEN 30 – 1000 MHZ) 21 4 . BANDWIDTH TEST 24 4.1 TEST PROCEDURE 24 4.2 DEVIATION FROM STANDARD 24 4.3 TEST SETUP 24 4.4 TEST RESULTS 25 5 . TRANSMITTER TIMEOUT 26 5.1 REQUIREMENTS 26 6 . EUT TEST PHOTO 28 APPENDIX-PHOTOGRAPHS OF EUT CONSTRUCTIONAL DETAILS Page 4 of 29 Report No.: NTEK- 2013NT0323058F2 ` 1. SUMMARY OF TEST RESULTS Test procedures according to the technical standards: FCC Part15, Subpart C (15.231) Standard Section Test Item Judgment Remark 15.207 Conducted Emission Pass Note(1) 15.203 Antenna Requirement Pass 15.231 Radiated Spurious Emission Pass 15.231 Occupied Bandwidth Pass 15.231 Transmitter Timeout Pass NOTE: (1) ” N/A” denotes test is not applicable in this Test Report. Page 5 of 29 Report No.: NTEK- 2013NT0323058F2 ` 1.1 TEST FACILITY NTEK Testing Technology Co., Ltd Add. : 1/F, Building E, Fenda Science Park, Sanwei Community, Xixiang Street, Bao’an District, Shenzhen P.R. China. FCC Registration No.:238937; IC Registration No.:9270A-1 CNAS Registration No.:L5516 1.2 MEASUREMENT UNCERTAINTY The reported uncertainty of measurement y ± U，where expended uncertainty U is based on a standard uncertainty multiplied by a coverage factor of k=2，providing a level of confidence of approximately 95 %。 No. Item Uncertainty 1 Conducted Emission Test ±1.38dB 2 RF power,conducted ±0.16dB 3 Spurious emissions,conducted ±0.21dB 4 All emissions,radiated(<1G) ±4.68dB 5 All emissions,radiated(>1G) ±4.89dB 6 Temperature ±0.5°C 7 Humidity ±2% Page 6 of 29 Report No.: NTEK- 2013NT0323058F2 ` 2. GENERAL INFORMATION 2.1 GENERAL DESCRIPTION OF EUT Equipment OPU2 Trade Name OPLINK Model Name OPU2120 Serial Model N/A Model Difference N/A Product Description The EUT is a OPU2 Product Type Low Power Communication Device Transmitter Operation Frequency: 433.92MHz Modulation Type: ASK Number Of Channel 1CH. Antenna Designation: External antenna Antenna Gain(Peak) 2dBi Output Power: 71.24 dBuV/m (AV Max.) More details of EUT technical specification, please refer to the User's Manual. Channel List N/A Adapter Model: M-908 INPUT:100~240V, 50/60Hz OUTPUT:AC MODE 1.5A, BATTERY MODE 1.5A Battery N/A Hard version 1.01&1.02 Software vertion N/A Note: 1. For a more detailed features description, please refer to the manufacturer’s specifications or the User's Manual. 2. Table for Filed Antenna Ant . Brand Model Name Antenna Type Connector Gain (dBi) NOTE 1 N/A N/A External Antenna N/A 2 Antenna Page 7 of 29 Report No.: NTEK- 2013NT0323058F2 ` 2.2 DESCRIPTION OF TEST MODES To investigate the maximum EMI emission characteristics generates from EUT, the test system was pre-scanning tested base on the consideration of following EUT operation mode or test configuration mode which possible have effect on EMI emission level. Each of these EUT operation mode(s) or test configuration mode(s) mentioned above was evaluated respectively. Pretest Mode Description Mode 1 TX For Conducted Emission Final Test Mode Description Mode 1 TX For Radiated Emission Final Test Mode Description Mode 1 TX Note: (1) The EUT use ne…
