P2G2PXIDoor Lock

INSTALLATION INSTRUCTIONSSCHLAGE COBRA SPM-2PXI FORM 5701701-13-2003PAGE 8 How to use the SPC-2PX Safe School Cobra Lock: The lock is programmed by computer. While only toggle proximity credentials should be used, any authorized credential will function as a toggle credential when presented. Normal Use: Authorized credentials will toggle the door unlocked or locked. Each time a credential is present- ed to the inside or outside reader the lock will reverse its condition and the GREEN LED on the inside and outside will flash rapidly for five seconds. EMERGENCY LOCKDOWN MODE: To enter emergency Lockdown Mode the door must be closed and an authorized credential must be presented. During the five second period that the GREEN LED is flashing the panic button must be pushed. The RED LED on the inside will flash slowly for several seconds. The LEDs on the outside will be extinguished so as to not draw attention to the door. As soon as the panic but- ton is pushed the lock will go into lockdown - even if it is toggled unlocked it will lock immediate- ly. If an authorized normal, toggle, or one-time credential is presented to either the interior or exterior reader during Lockdown Mode, the interior and exterior RED LEDs will flash nine times rapidly to assure that the lock is still in Lockdown Mode. If the panic button on the inside is pressed while in Lockdown Mode the interior RED LED will flash slowly for six seconds. TO CLEAR EMERGENCY LOCKDOWN MODE: 1. Opening the door will cancel Lockdown Mode but leave the door locked until it is toggled open. 2. Entering a Pass-Thru/Superuser credential or a Lockout Credential followed by a normal use credential will unlock the lock for five seconds but return it to the locked condition. Lockdown Mode will be cancelled if the door is opened unless the panic button is pressed again (with the door closed). Important! Door must be closed to enter any prox credential or for pushing the button to be effective. It must also be closed in order to program the lock. Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment.

INSTALLATION INSTRUCTIONSSCHLAGE COBRA SPC-2PXI FORM 5701601-13-2003PAGE 8 How to use the SPC-2PX Safe School Cobra Lock: The lock is programmed by computer. While only toggle proximity credentials should be used, any credential will function as a toggle credential when presented. Normal Use: Authorized credentials will toggle the door unlocked or locked. Each time a credential is present- ed to the inside or outside reader the lock will reverse its condition and the YELLOW LED on the inside and outside will flash rapidly for five seconds. EMERGENCY LOCKDOWN MODE: To enter emergency Lockdown Mode the door must be closed and an authorized credential must be presented. During the five second period that the YELLOW LED is flashing the panic button must be pushed. The RED LED on the inside will flash slowly for several seconds. The LEDs on the outside will be extinguished so as to not draw attention to the door. As soon as the panic but- ton is pushed the lock will go into lockdown - even if it is toggled unlocked it will lock immediate- ly. If an authorized normal, toggle, or one-time credential is presented to either the interior or exterior reader during Lockdown Mode, the interior and exterior RED LEDs will flash nine times rapidly to assure that the lock is still in Lockdown Mode. If the panic button on the inside is pressed while in Lockdown Mode the interior RED LED will flash slowly for six seconds. TO CLEAR EMERGENCY LOCKDOWN MODE: 1. Opening the door will cancel Lockdown Mode but leave the door locked until it is toggled open. 2. Entering a Pass-Thru/Superuser credential or a Lockout Credential followed by a normal use credential will unlock the lock for five seconds but return it to the locked condition. Lockdown Mode will be cancelled if the door is opened unless the panic button is pressed again (with the door closed). Important! Door must be closed to enter any prox credential or for pushing the button to be effective. It must also be closed in order to program the lock. Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment.

575 BIRCH STREET PO BOX 9337 FORESTVILLE, CT 06011-9337 Main # (860) 584-9158 FAX (860) 585-8629 January 13, 2003 Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 Gentlemen: This letter is to comply with 47 CFR 0.457(d)(2) pertaining to confidential material. Ingersoll-Rand/Locknetics requests that the following documents regarding this submission for FCC ID P2G2PXI be kept confidential: 1. Schematic 2. Block Diagram 3. Circuit Description The material above contains technical data, which would customarily be guarded from competitors. We are requesting confidentiality with regards to the preceding documents. Sincerely, Adam O'Day Electronics Engineer LOCKNETICS 575 Birch Street Forestville, CT 06010

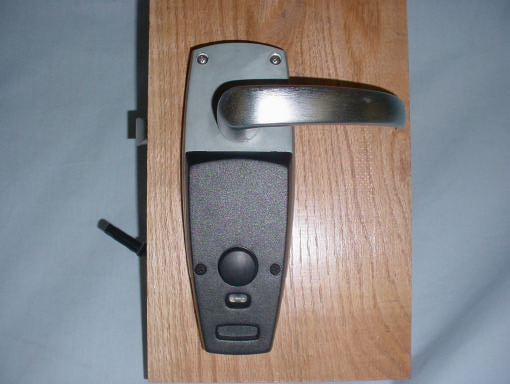

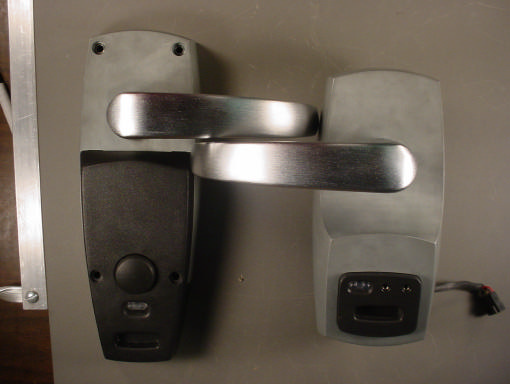

REPORT: EC0966-1 FCC ID: P2G2PXI EXHIBIT: External Photographs MODEL: SPC-2PXI Page 1 of 2 _____________________________________________________________ Curtis-Straus LLC •• 527 Great Road •• Littleton, MA •• TEL (978) 486-8880 •• FAX (978) 486-8828 REPORT: EC0966-1 FCC ID: P2G2PXI EXHIBIT: External Photographs MODEL: SPC-2PXI Page 2 of 2 _____________________________________________________________ Curtis-Straus LLC •• 527 Great Road •• Littleton, MA •• TEL (978) 486-8880 •• FAX (978) 486-8828

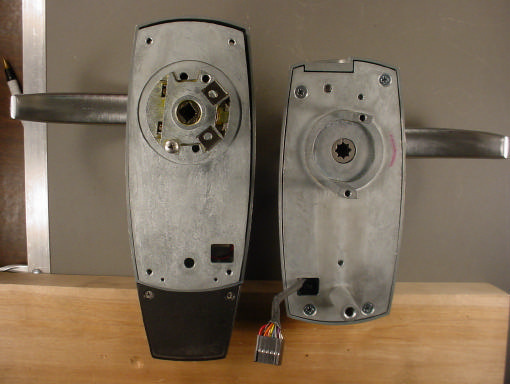

REPORT: EC0966-1 FCC ID: P2G2PXI EXHIBIT: Internal Photographs MODEL: SPC-2PXI Page 1 of 6 _____________________________________________________________ Curtis-Straus LLC •• 527 Great Road •• Littleton, MA •• TEL (978) 486-8880 •• FAX (978) 486-8828 REPORT: EC0966-1 FCC ID: P2G2PXI EXHIBIT: Internal Photographs MODEL: SPC-2PXI Page 2 of 6 _____________________________________________________________ Curtis-Straus LLC •• 527 Great Road •• Littleton, MA •• TEL (978) 486-8880 •• FAX (978) 486-8828 REPORT: EC0966-1 FCC ID: P2G2PXI EXHIBIT: Internal Photographs MODEL: SPC-2PXI Page 3 of 6 _____________________________________________________________ Curtis-Straus LLC •• 527 Great Road •• Littleton, MA •• TEL (978) 486-8880 •• FAX (978) 486-8828 REPORT: EC0966-1 FCC ID: P2G2PXI EXHIBIT: Internal Photographs MODEL: SPC-2PXI Page 4 of 6 _____________________________________________________________ Curtis-Straus LLC •• 527 Great Road •• Littleton, MA •• TEL (978) 486-8880 •• FAX (978) 486-8828 REPORT: EC0966-1 FCC ID: P2G2PXI EXHIBIT: Internal Photographs MODEL: SPC-2PXI Page 5 of 6 _____________________________________________________________ Curtis-Straus LLC •• 527 Great Road •• Littleton, MA •• TEL (978) 486-8880 •• FAX (978) 486-8828 REPORT: EC0966-1 FCC ID: P2G2PXI EXHIBIT: Internal Photographs MODEL: SPC-2PXI Page 6 of 6 _____________________________________________________________ Curtis-Straus LLC •• 527 Great Road •• Littleton, MA •• TEL (978) 486-8880 •• FAX (978) 486-8828

Curtis-Straus LLC is accredited by the American Association for Laboratory Accreditation for the specific scope of accreditation under Certificate Number 1627-01. This report may contain data which is not covered by the A2LA accreditation. _____________________________________________________________ Curtis-Straus LLC •• 527 Great Road •• Littleton, MA •• TEL (978) 486-8880 •• FAX (978) 486-8828 Test Report Report No EC0966-1 Client Locknetics Security Engineering 575 Birch Street Forestville, CT 06010 Phone 860-314-5248 Fax 860-585-8629 FRN 0005178298 Models SPC-2PXI, SPM-2PXI, SPMA-2PXI FCC ID P2G2PXI Equipment Type Low Power Communication Device Transmitter Equipment Code DXX Results As detailed within this report Prepared by _____________________ Evan Gould – Test Engineer Authorized by __________________________ Michael Buchholz – EMC Manager Issue Date __1/23/03___ Conditions of issue This Test Report is issued subject to the conditions stated in ‘terms and conditions’ section of this report. REPORT: EC0966-1 FCC ID: P2G2PXI Page 2 of 9 _____________________________________________________________ Curtis-Straus LLC •• 527 Great Road •• Littleton, MA •• TEL (978) 486-8880 •• FAX (978) 486-8828 Table Of Contents EUT Configuration......................................................................................................3 Summary.........................................................................................................................4 Test Methodology........................................................................................................4 Statement of Conformity..........................................................................................5 Fundamental Frequency Measurement............................................................6 Test Equipment Used................................................................................................7 Terms And Conditions..............................................................................................8 REPORT: EC0966-1 FCC ID: P2G2PXI Page 3 of 9 _____________________________________________________________ Curtis-Straus LLC •• 527 Great Road •• Littleton, MA •• TEL (978) 486-8880 •• FAX (978) 486-8828 EUT Configuration EUT Configuration Work Order:C0966 Company:Locknetics Security Engineering Company Address:575 Birch Street Forestville, CT 06010 Contact:Adam O'Day Person Present:Adam O'Day MNSN EUT:SPC-2PXI- EUT Description:Software managed cylindrical locking system Support Equipment:MNSN none EUT Cables:QtyShielded?LengthFerrites none Unpopulated EUT Ports:QtyReason none Software / Operating Mode Description: Max hold plots were taken as the credential was waved in front of the EUT, which activates the transmitter circuit. REPORT: EC0966-1 FCC ID: P2G2PXI Page 4 of 9 _____________________________________________________________ Curtis-Straus LLC •• 527 Great Road •• Littleton, MA •• TEL (978) 486-8880 •• FAX (978) 486-8828 Summary This report is an application for Certification of a Transmitter operating pursuant to 47 CFR 15.209. The models covered by this report are: SPC-2PXI Cylindrical locking system SPM-2PXI Mortise locking system (Latchbolt) SPMA-2PXI Mortise locking system (Autobolt) The model tested was the SPC-2PXI. The only difference between the models is the type of locking mechanism used. This report is designed to demonstrate the compliance of this device with the requirements outlined in 47 CFR Part 15 using the methods outlined in 47 CFR Part 2. Test Methodology Radiated emissions testing is performed according to the procedures specified in ANSI C63.4 (2000). Frequency range investigated: 9kHz – 1GHz Measurement distance: 3 Meters Maximization: EUT rotated around vertical axis REPORT: EC0966-1 FCC ID: P2G2PXI Page 5 of 9 _____________________________________________________________ Curtis-Straus LLC •• 527 Great Road •• Littleton, MA •• TEL (978) 486-8880 •• FAX (978) 486-8828 Statement of Conformity The Locknetics SPC-2PXI has been found to conform with the following parts of the 47 CFR as detailed below: Part 2 Part 15 Comments 15.15(b) The product contains no user accessible controls that increase transmission power above allowable levels. 2.925 15.19 The label is shown in the label exhibit. 15.21 Information to the user is shown in the instruction manual exhibit. 15.27 No special accessories are required for compliance. 15.203 The antenna is not accessible to the user and therefore cannot be easily removed. 15.205 15.209 The fundamental is not in a Restricted band and the spurious and harmonic emissions in the Restricted bands comply with the general emission limits of 15.209. 15.207 The unit is battery powered without the capability of being recharged or operated from the AC mains. REPORT: EC0966-1 FCC ID: P2G2PXI Page 6 of 9 _____________________________________________________________ Curtis-Straus LLC •• 527 Great Road •• Littleton, MA •• TEL (978) 486-8880 •• FAX (978) 486-8828 Fundamental Frequency Measurement LIMITS Frequency (MHz) Limit (μV/m) Measurement Distance (meters) 0.009-0.49 2400/F(kHz) 300 0.49-1.705 24000/F(kHz) 30 1.705-30 30 30 30-88 100 3 88-216 150 3 216-960 200 3 Above 960 500 3 [47 CFR 15.209] MEASUREMENTS Fundamental and Harmonics (9kHz-1GHz) Curtis-Straus LLC Date:11-Dec-02Engineer:Evan GouldWork Order:C0966 Company:LockneticsEUT:SPC-2PXIFundamental Frequency:125kHz Test Site:"T"Cable:65 ft RG8A/UPre-amp:Black Antennas:Small Loop (9kHz-30MHz)Filter/Attenuator:N/AAnalyzer:Orange Green-White (30MHz-1GHz) Measurement Distance:3 metersResolution BW:9kHz Detector Type:PeakVideo BW:1MHz Notes:No spurious emissions were detected. AntennaPreampAntennaCableFilter/AttenuatorDistanceAdjusted 47 CFR 15.209 PolarizationFrequencyReadingFactorFactorFactorFactorFactorReadingLimitMarginResult (0° / 90°)(MHz)(dBμV)(dB)(dB/m)(dB)(dB)(dB)(dBμV/m)(dBμV/m)(dB)(Pass/Fail) 0deg 0.12522.821.662.70.00.080.0-16.125.6-41.7Pass noise floor 0.2511.021.…

Text truncated - open the document above for the full version.

REPORT: EC0966-1 FCC ID: P2G2PXI EXHIBIT: Setup Photograph MODEL: SPC-2PXI Page 1 of 1 _____________________________________________________________ Curtis-Straus LLC •• 527 Great Road •• Littleton, MA •• TEL (978) 486-8880 •• FAX (978) 486-8828
