Form 57032 Rev. A 01-05-2004 VIP 5100 OPEN ARCHITECTURE CYLINDRICAL LOCK INSTALLATION MANUAL 5100 CYLINDRICAL LOCKSET - STANDARD The VIP 5100 series lock is a microprocessor controlled, electromechanical locking system. It is an open architecture product designed to interface with 3rd party panels ecompassing all the features of the lock, reader, door status* and egress (rex/request to exit) indication in one fire-rated piece of hardware. The 5100 employs a heavy-duty mechanical design tested and complying with ANSI/BHMA grade 1 standards for performance and reliability. It is pow- ered by 12 or 24 volts DC with only four wires required - two for power and two for commu- nications. The lock communicates with a PIB (panel interface board) which communicates with the panel as if it were separate components of an access control system. Operationally, the outside lever is normally locked and the inside lever always retracts the bolt to allow egress. Electronic access control is achieved by entering an”Access Credential” (magnetic stripe card or Prox fob or card). The panel controls the lock through the PIB. *Cylindrical model requires separate door status switch (included) to be installed in the door and frame and connected to the VIP lock. Please refer to all instruction manuals involved in the installation before you begin. Functions : VIP 5196-FSA: Cylindrical, Fail Safe (unlocked) VIP 5196-FSE: Cylindrical, Fail Secure (locked) Models : MG:Magnetic stripe card reader PX:HID Prox card reader S tandardMonitoringSwitches: DSM:Provides door status via data link to panel interface KSM:Provides mechanical key use events via data link to panel interface REX:Provides indication of inside lever use for request to exit input via data link to panel interface Options : T3:Track 3 card reader (data must be ABA track 2 format) - MG only EXT:exterior use option - MG only (PX model has this standard) KD:Keyed Different, includes Schlage Everest cylinder KA:Keyed Alike, includes Schlage Everest cylinder LC:Less Cylinder SLB:2-3/4” backset, 1/2” latch bolt OLB:2-3/8” backset, 1/2” latch bolt ELB:2-3/4” backset, 3/4” latch bolt BEFORE YOU BEGIN: Standard units are shipped from the factory to fit 1-3/4” doors. Verify the door thickness. If the door is not 1-3/4” thick, verify that the door thickness option was ordered or consult factory. PRE-INSTALLATION CHECK: AN OPEN ARCHITECTURE SYSTEM REQUIRES AT LEAST THREE COMPO- NENTS - A PANEL INTERFACE BOARD (PIB), AN ACCESS CONTROL PANEL (BY OTHERS) TO WHICH THE PIB IS CONNECTED AND THE VIP LOCK. SEE DOCUMENTATION FOR THE ACCESS CONTROL PANEL/SOFTWARE THIS LOCK WILL BE USED WITH FOR ANY PRE-INSTALLATION TESTING REQUIRE- MENTS AND REMEDIES. REFER TO THE WIRING INFORMATION INCLUDED WITH THE PIB FOR MORE INFORMATION. PIB PXMG DoorThicknessKits: Available in 1/8” increments from 1-3/8” to 2-1/2” This device complies with part 15 of the FCC rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including any interference that may cause undesired operation. Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. Form 57032 Rev. A 01-05-20042 VIP 5100 OPEN ARCHITECTURE CYLINDRICAL LOCK INSTALLATION MANUAL WIRE RACEWAY REQUIRED: It is best to have the wire race way prepared at the door and frame manufacturer. If this has not been done there are two suggested preparation methods for making wire paths for the FSE and FSA models in the field. Select method A or B; depending on the door and frame circumstances, one may be better than the other. Consult door manufacturer with any ques- tions regarding agency listings with respect to fire integrity. METHOD A: 1. Prep door and frame according to standard template. 2. Determine location of standard 1 inch wire harness through hole and mark centerline of hole on hinge side of door. 3. Using appropriate drilling jig and drill bits, drill 3/8” or 1/2” wire race from edge of hinge side into standard wire harness through hole. 4. Install electric hinge or door cord and run wires. METHOD B: 1. Prep door and frame according to standard template. 2. Using a 1” drill bit, continue the 1” latch hole through retractor hole to a depth of 5”. This will allow room for the wiring to pass around the retractor. 3. Using appropriate drilling jig and drill bits, drill 3/8” or 1/2” wire race from the latch hole through the door toward the hinge side. It is not necessary to continue drilling the hole through the hinge side. 4. Measure up 3 inches from the center of the 2 1/8” retractor hole and drill a 1 inch through hole on center as shown below. 5. Using a 3/8 inch drill bit, place the tip of the drill into the 1” wire hole drilled in step 3 and aim at the angles shown. Drill down and toward the hinge side to intersect the 1” latch hole (where it was continued in step 2. 4. Install electric hinge or door cord and run wires. Note: this method offers the advantage of not having holes exiting the door edges. If a door cord is used the door cord wire hole can be cross drilled into the long wire race. WIRE RACE WIRE RACE STANDARD WIRE HARNESS THROUGH HOLE METHOD B: METHOD A: FSE & FSA HARD WIRED MODELS REQUIRE WIRING TO BE RUN TO THE LOCK PREP FROM THE HINGE SIDE. BELOW IS A SUGGESTED METHOD TO DO THIS. A DOOR CORD OR ELECTRIC HINGE OR POWER TRANSFER DEVICE IS USED TO ROUTE WIRING FROM FRAME TO DOOR. NOTE THAT WHEN USING AN ELECTRIC HINGE IT IS RECOM- MENDED THAT THE POWER WIRES BE DOUBLED OR TRIPLED UP (ON BOTH THE POSITIVE AND GROUND LEGS) TO AVOID SIGNIFICANT VOLT- AGE DROP THROUGH THE THIN WIRES IN THE HINGE. Form 57032 Rev. A 01-05-20043 VIP 5100 OPEN ARCHITECTURE CYLINDRICAL LOCK INSTALLATION MANUAL 1. PREP DOOR AND FRAME: A. Determine door hand and correct backset. B. Mark the horizontal and vertical centerlines for the lockset, latch and stri…

Text truncated - open the document above for the full version.

575 BIRCH STREET PO BOX 9337 FORESTVILLE, CT 06011-9337 Main # (860) 584-9158 FAX (860) 585-8629 January 28, 2004 Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 Gentlemen: This letter is to comply with 47 CFR 0.457(d)(2) pertaining to confidential material. Ingersoll-Rand/Locknetics requests that the following documents regarding this submission for FCC ID P2GVIP be kept confidential: 1.Schematic 2.Block Diagram 3.Circuit Description The material above contains technical data, which would customarily be guarded from competitors. We are requesting confidentiality with regards to the preceding documents. Sincerely, Adam O'Day Electronics Engineer LOCKNETICS 575 Birch Street Forestville, CT 06010

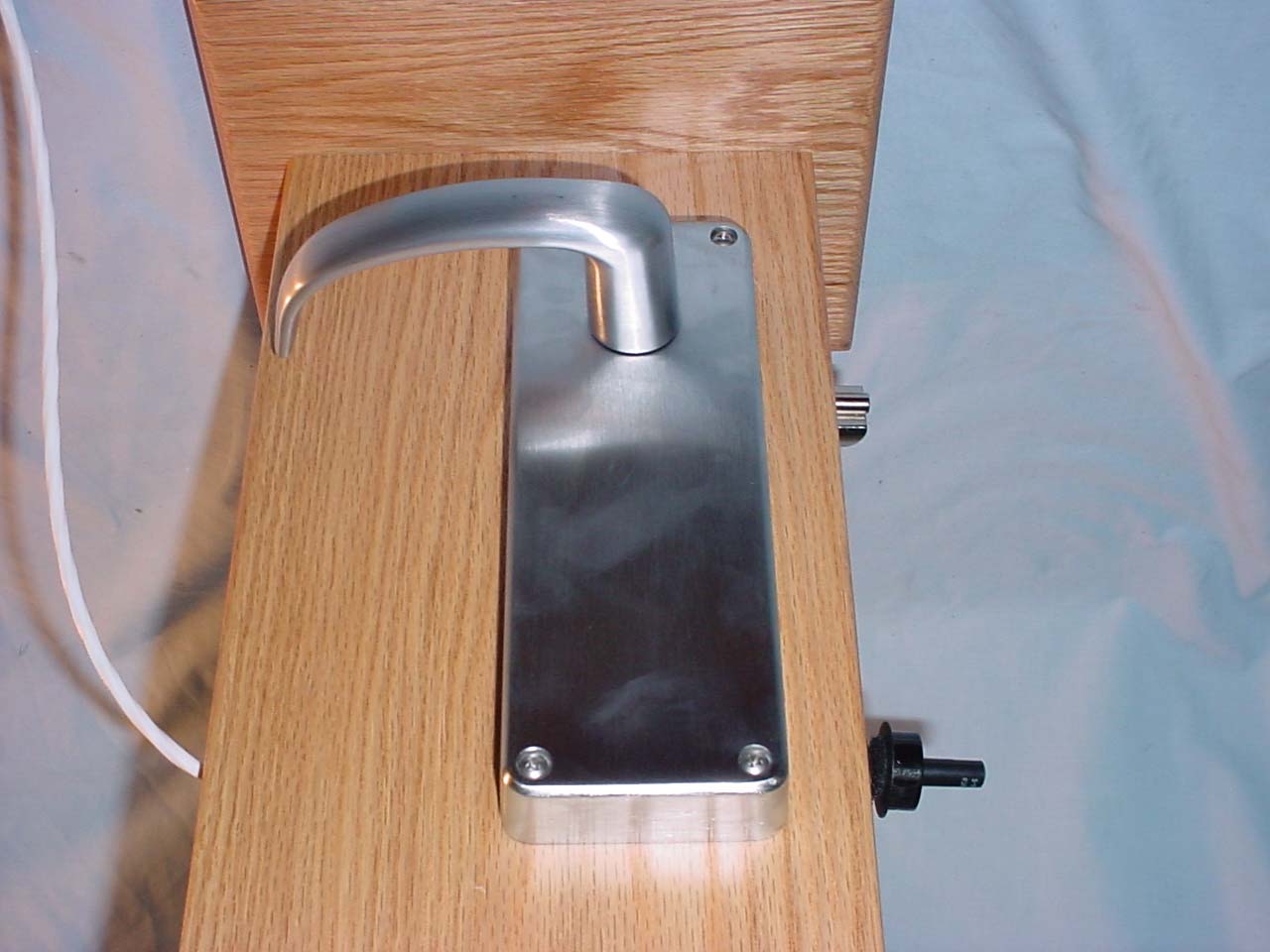

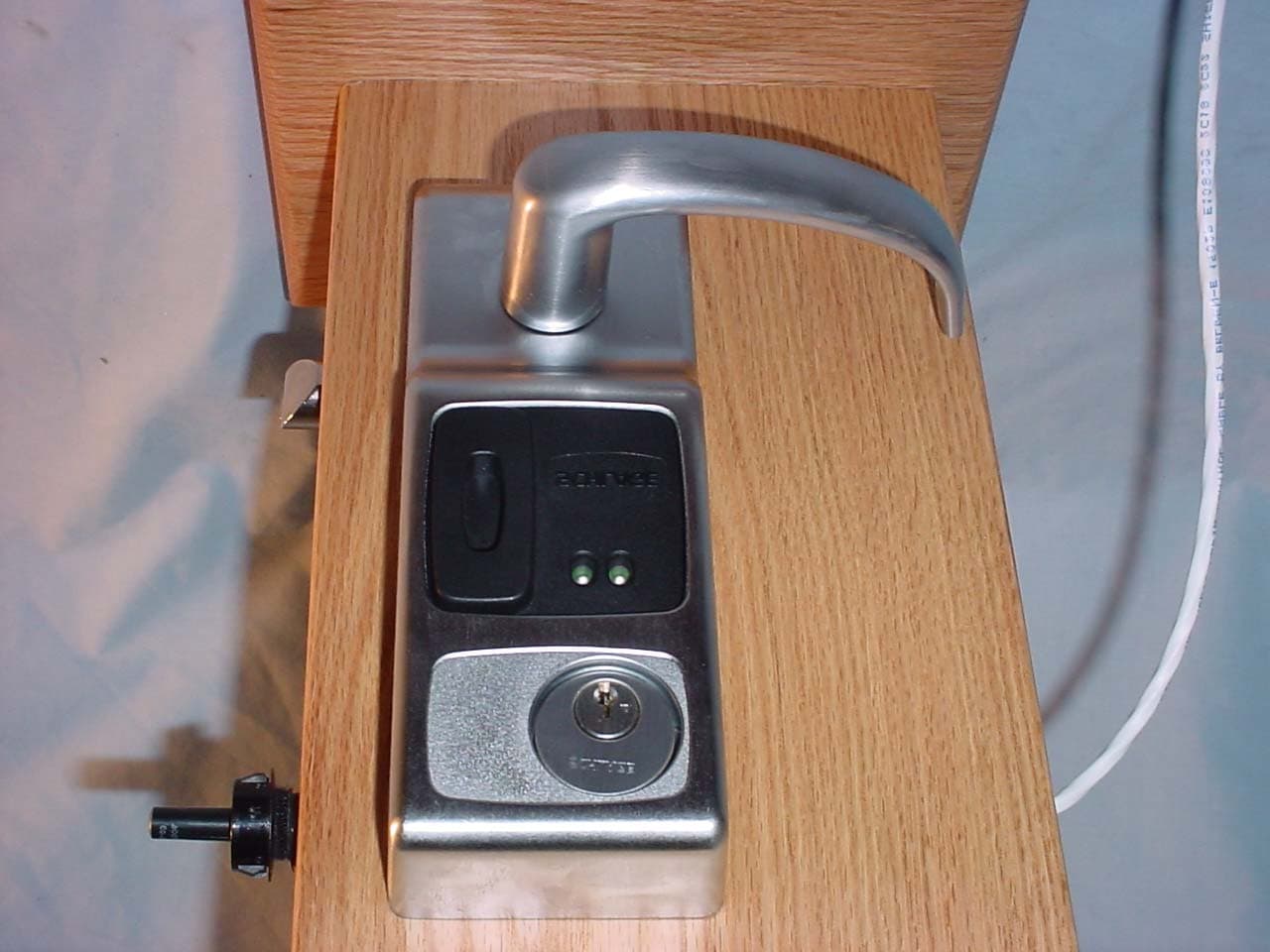

REPORT: EE0040-1 FCC ID: P2GVIP EXHIBIT: External Photos MODEL: VIP5596 _____________________________________________________________ _____________________________________________________________ Curtis-Straus LLC • 527 Great Road • Littleton, MA • TEL (978) 486-8880 • FAX (978) 486-8828 Page 1 of 2 REPORT: EE0040-1 FCC ID: P2GVIP EXHIBIT: External Photos MODEL: VIP5596 _____________________________________________________________ _____________________________________________________________ Curtis-Straus LLC • 527 Great Road • Littleton, MA • TEL (978) 486-8880 • FAX (978) 486-8828 Page 2 of 2

REPORT: EE0040-1 FCC ID: P2GVIP EXHIBIT: Label Placement MODEL: VIP5596 _____________________________________________________________ _____________________________________________________________ Curtis-Straus LLC • 527 Great Road • Littleton, MA • TEL (978) 486-8880 • FAX (978) 486-8828 Page 1 of 1

REPORT: EE0040-1 FCC ID: P2GVIP EXHIBIT: Internal Photos MODEL: VIP5596 _____________________________________________________________ _____________________________________________________________ Curtis-Straus LLC • 527 Great Road • Littleton, MA • TEL (978) 486-8880 • FAX (978) 486-8828 Page 1 of 6 REPORT: EE0040-1 FCC ID: P2GVIP EXHIBIT: Internal Photos MODEL: VIP5596 _____________________________________________________________ _____________________________________________________________ Curtis-Straus LLC • 527 Great Road • Littleton, MA • TEL (978) 486-8880 • FAX (978) 486-8828 Page 2 of 6 REPORT: EE0040-1 FCC ID: P2GVIP EXHIBIT: Internal Photos MODEL: VIP5596 _____________________________________________________________ _____________________________________________________________ Curtis-Straus LLC • 527 Great Road • Littleton, MA • TEL (978) 486-8880 • FAX (978) 486-8828 Page 3 of 6 REPORT: EE0040-1 FCC ID: P2GVIP EXHIBIT: Internal Photos MODEL: VIP5596 _____________________________________________________________ _____________________________________________________________ Curtis-Straus LLC • 527 Great Road • Littleton, MA • TEL (978) 486-8880 • FAX (978) 486-8828 Page 4 of 6 REPORT: EE0040-1 FCC ID: P2GVIP EXHIBIT: Internal Photos MODEL: VIP5596 _____________________________________________________________ _____________________________________________________________ Curtis-Straus LLC • 527 Great Road • Littleton, MA • TEL (978) 486-8880 • FAX (978) 486-8828 Page 5 of 6 REPORT: EE0040-1 FCC ID: P2GVIP EXHIBIT: Internal Photos MODEL: VIP5596 _____________________________________________________________ _____________________________________________________________ Curtis-Straus LLC • 527 Great Road • Littleton, MA • TEL (978) 486-8880 • FAX (978) 486-8828 Page 6 of 6

Test Report Report No EE0040-1 Client Locknetics Security Engineering 575 Birch Street Forestville, CT 06010 Phone (860) 314-5248 Fax (860) 314-2452 FRN 0005178298 Models VIP5100 and VIP5500 Series FCC ID P2GVIP Equipment Type Low Power Communication Device Transmitter Equipment Code DXX Results As detailed within this report Prepared by _____________________ Evan Gould – Test Engineer Authorized by __________________________ Michael Buchholz – EMC Manager Issue Date 2/2/04 Conditions of issue This Test Report is issued subject to the conditions stated in ‘terms and conditions’ section of this report. Curtis-Straus LLC is accredited by the American Association for Laboratory Accreditation for the specific scope of accreditation under Certificate Number 1627-01. This report may contain data which is not covered by the A2LA accreditation. _____________________________________________________________ Curtis-Straus LLC • 527 Great Road • Littleton, MA • TEL (978) 486-8880 • FAX (978) 486-8828 REPORT: EE0040-1 FCC ID: P2GVIP _____________________________________________________________ Table Of Contents Summary..............................................................................................................3 Test Methodology.................................................................................................3 EUT Configuration................................................................................................4 Statement of Conformity.......................................................................................5 Fundamental and Harmonic Emissions................................................................6 AC Line Conducted Emission Measurements.......................................................7 Voltage Variation...................................................................................................8 Test Equipment Used...........................................................................................9 Terms And Conditions........................................................................................10 A2LA Accreditation.............................................................................................12 _____________________________________________________________ Curtis-Straus LLC • 527 Great Road • Littleton, MA • TEL (978) 486-8880 • FAX (978) 486-8828 Page 2 of 14 REPORT: EE0040-1 FCC ID: P2GVIP _____________________________________________________________ Summary This report is an application for certification of transmitters operating pursuant to 47 CFR 15.209. The products are the VIP5100 and VIP5500 Series locks. The specific product tested was the VIP5596. The 5100’s are cylindrical locks, and the 5500’s are mortise locks. The model variations within these groups are summarized in the accompanying manual exhibit. Test Methodology Radiated emissions testing is performed according to the procedures specified in ANSI C63.4 (2002). Receiving loop antenna was rotated in order to maximize radiated emission measurements. Frequency range investigated: 9kHz – 1GHz Measurement distance: 9kHz – 30MHz 1m 30MHz – 1000MHz 3m AC Line conducted emissions testing was performed with a 50Ω/50μH LISN. _____________________________________________________________ Curtis-Straus LLC • 527 Great Road • Littleton, MA • TEL (978) 486-8880 • FAX (978) 486-8828 Page 3 of 14 REPORT: EE0040-1 FCC ID: P2GVIP _____________________________________________________________ EUT Configuration EUT Configuration Work Order: E0040 Company: Locknetics Security Engineering Company Address: 575 Birch Street Forestville, CT 06010 Contact: Adam O'Day Person Present: Adam O'Day MNSNFCC ID EUT: VIP5596-P2GVIP EUT Max Fre quency: 4MHz Support Equipment: MNSNFCC ID Panel Interface BoardPIB-- Keri System PanelPXL-500/PXL-510-- RadioShack 12VDC adaptor273-1779-- EUT Cables: QtyShielded?LengthFerrites RS485/DC cable1Yes1mNo Unpopulated EUT Ports: QtyReason none Software / Operating Mode Description: Operating normally; locked; oscillators are running _____________________________________________________________ Curtis-Straus LLC • 527 Great Road • Littleton, MA • TEL (978) 486-8880 • FAX (978) 486-8828 Page 4 of 14 REPORT: EE0040-1 FCC ID: P2GVIP _____________________________________________________________ Statement of Conformity The VIP5596 has been found to conform with the following parts of the 47 CFR as detailed below: Part 2 Part 15 Comments 15.15(b) The product contains no user accessible controls that increase transmission power above allowable levels. 2.925 15.19 The label is shown in the label exhibit. 15.21 Information to the user is shown in the instruction manual exhibit. 15.27 No special accessories are required for compliance. 15.203 The antenna is not accessible to the user and therefore cannot be easily removed. (The antenna and its connector are underneath the PCB assembly which is in turn professionally installed in the door lock enclosure.) 15.205 15.209 The fundamental is not in a Restricted band and the spurious and harmonic emissions in the Restricted bands comply with the general emission limits of 15.209. 15.207 The unit meets the AC line conducted emissions requirements of 15.207. _____________________________________________________________ Curtis-Straus LLC • 527 Great Road • Littleton, MA • TEL (978) 486-8880 • FAX (978) 486-8828 Page 5 of 14 REPORT: EE0040-1 FCC ID: P2GVIP _____________________________________________________________ Fundamental and Harmonic Emissions LIMITS Frequency (MHz) Field strength (microvolts/meter) Measurement distance (meters) 0.009-0.490 2400/F(kHz) 300 0.490-1.705 24000/F(kHz) 30 1.705-30.0 30 30 30-88 100 3 88-216 150 3 216-960 200 3 Above 960 500 3 [15.209(a)] MEASUREMENTS Fundamental and Harmonics (9kHz-30MHz) Curtis-Straus LLC Date: 19-Jan-04 Engineer: Evan Gould Work Order: E0040 Company: Locknetics EUT: VIP5596 and PIB Fundamental Frequency: 125kHz Test Site: "T" Cable: 65 ft RG8…

Text truncated - open the document above for the full version.
