『This manual was prepared for the certification test.』 Product Specifications Item 365Plus Exterior Unit 58mm(W)×113mm(H)×16.8mm(D) Interior Unit 70.4mm(W)×163.8mm(H)×38mm(D) Size Card 85.5mm(W)×54.0mm(H)×0.9mm(D) Voltage 4 AA Alkaline 1.5V Batteries (LR6) (6V) Emergency Power Source 9V Battery(6LF22) (Separately sold ) Battery Life 10 Months (based on an average of 6 uses per day) Support Card Standard ISO14443A (Mifare® ), ISO 15693 Exterior/Interior Parts Touchscreen Card Reader External Power Port Restart Button Network Module Slot [REG] Button [SET] Button [OPEN/CLOSE] Button Magnetic Sensor Thumbturn Lever “You could register the Master card and user PIN code/card after changing default Master PIN code and user PIN code.” Basic Functions 1. Initialization 1.1 User Initialization All registered User data(user PIN Code/Card) will be deleted, and Super User PIN Code is set to ‘5678’. The Master data and Paring information aren’t delete. ① Press the [REG] button. ②Press the [*] button af ter pressing the [4] button. ③Press the [*] button af ter pressing the [3] button. ④Enter a Ma ster PIN Code or Super User PIN Code, and pres s the [*] button. 1.2 Master Initialization(Reset to Factory Default) All registered Master/User data will be deleted, and Master PIN Code is set to ‘1234’, User PIN Code is set to ‘5678’. Also Paring information is deleted. ① Press the [REG] button. ②Press the [*] button af ter pressing the [4] button. ③Press the [*] button af ter pressing the [1] button. ④Enter a Ma ster PIN Code, and press the [*] button. 2. Changing the Master PIN Code ①Press the [REG] button. ②Press the [*] button af ter pressing the [1] button. ③Press the [*] button af ter pressing the [2] button. ④Enter the cu rrent Master PIN Code, and press the [*] button.(default ‘1234’) ⑤Enter the ne w Master PIN Code, and press the [*] button.(4~10digits ) 3. Registering a Master Card You can register up to 9 Master Cards. ①Press the [REG] button. ②Press the [*] button af ter pressing the [1] button. ③Press the [*] button af ter pressing the [1] button. ④Enter the Ma ster PIN Code, and pres s the [*] button. ⑤Press the [*] button. Then ID Number is displayed. (242~250 ) ⑥Place the Card on the Ca rd Reader . ⑦Press the [*] button for the addtional registration or press the [REG ] button to quit. 4. Deleting a Master Card ①Press the [REG] button. ②Press the [*] button af ter pressing the [1] button. ③Press the [*] button af ter pressing the [3] button. ④Enter the Ma ster PIN Code, and pres s the [*] button. ⑤Enter the ID Numb er(242~250) and press the [*] button. Or place the card to be deleted. ⑥Enter anoth er ID Number or pres s the [REG] button to quit. 5. Changing the User PIN Code ①Press the [REG] button. ②Press the [*] button af ter pressing the [2] button. ③Press the [*] button af ter pressing the [2] button. ④Enter the cu rrent User PIN Code , and press the [*] button. ⑤Enter the ne w User PIN Code, and press the [*] button.(4~10digits ) 6. Registering a User PIN Code/Card You can register up to 240 User Data(PIN Code/Card). ①Press the [REG] button. ②Press the [*] button af ter pressing the [2] button. ③Press the [*] button af ter pressing the [1] button. ④Enter the Sup er User PIN Code , and press the [*] button. ⑤Press the [*] button. Then ID Number is displayed. (1~240 ) ⑥Enter a ne w User PIN Code and press [*] button. Or place the Card on the Card Reader . ⑦Press the [*] button for the addtional registration or press the [REG ] button to quit. 7. Deleting a User PIN Code/Card ①Press the [REG] button. ②Press the [*] button af ter pressing the [2] button. ③Press the [*] button af ter pressing the [3] button. ④Enter the Sup er User PIN Code , and press the [*] button. ⑤Enter the ID Numb er(1~240) and press the [*] button. Or place the card to be de leted. ⑥Enter anoth er ID Number or pres s the [REG] button to quit. 8. Pairing/Unparing with a Home Controller 8.1 Pair to a Home Controller After pairing with a home controller, you can use User Card.(Registration/Enterance) ① Press the [REG] button. ②Press the [*] button af ter pressing the [3] button. ③Press the [*] button af ter pressing the [1] button. 8.2 Check the Completion of Paring This is to check if “Pair to a Home Controller” is successfully completed. ① Press the [REG] button. ②Press the [*] button after pressing the [3] button. ③Press the [*] button af ter pressing the [2] button. 8.3 Unpair from a Home Controller After unpairing the door lock from a home controller, it will no longer be remotely-controlled via the home controller. And you couldn’t use User Card. ① Press the [REG] button. ②Press the [*] button af ter pressing the [3] button. ③Press the [*] button af ter pressing the [3] button. 9. Opening the Door with a PIN Code/Card ①Touch the [Touchscreen]. ②Enter the PIN Code a nd press the [*] button. Or place the Card on the Card Reader . ③The doo r opens whithin one second . Addtional Function 10. Privacy Mode Functions Press and hold the [OPEN/CLOSE] button for more than five seconds, if five beeps deactivate the Keypad. As it is set from the inside, provides a secure lock for the convenience of the occupant(s). Privacy mode disables remote control capabilities. 11. Setting the Security Function Function that allows alarm to be rung in case the door lock is manipulated from the inside. And it makes difficultly to open through Thumbturn Lever. ①Touch the [Touchscre en]. ②Press the [#] button for 3 seco nd s. ③Enter the PIN Code and press the [*] button. 12. Lockout Mode When more than 5 failed authentication attempts with unregistered PIN Code/Cards occur, the alarm sound is generated, and the lock is deactivated for 3 minutes. 13. Intrusion Detection Function When the Interior Unit is forcibly detached while the door is locked, it is detected by the magnetic sensor, the alarm sounds. The Intrution Detection function is a basic function and cannot be disabled. 14. Addtional Function Mode \ SET Volume Setting Locking Mode R…
Text truncated - open the document above for the full version.
Rev 11/20/07 125, Olympic-ro 35-gil, Songpa-gu, Seoul, Korea Tel No : +82-2-6155-5105 Fax No : +82-2-6155-0374 Federal Communications Commission Authorization and Evaluation Division Confidentiality Request regarding application for certification of FCC ID: P4Y365PLUS Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules, we hereby request confidential treatment of information accompanying this application as outlined below: Exhibit Type File Name Block Diagram Schematics Parts List Operational description Block Diagram(365plus).pdf Schematics(365plus).pdf Part List(365plus).pdf Operational Description(365plus).pdf The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these materials may be harmful to the applicant and provide unjustified benefits to its competitors. The applicant understands that pursuant to Section 0.457 of the Rules, disclosure of this application and all accompanying documentation will not be made before the date of the Grant for this application. Pursuant to DA04-1705 June 15, 2004 of the Commission’s public notice, we also request temporary confidential treatment of information accompanying this application as outlined below: Exhibit Type File Name - - Sincerely, Myoung Kue Lee / Manager Samsung SDS Co., Ltd.

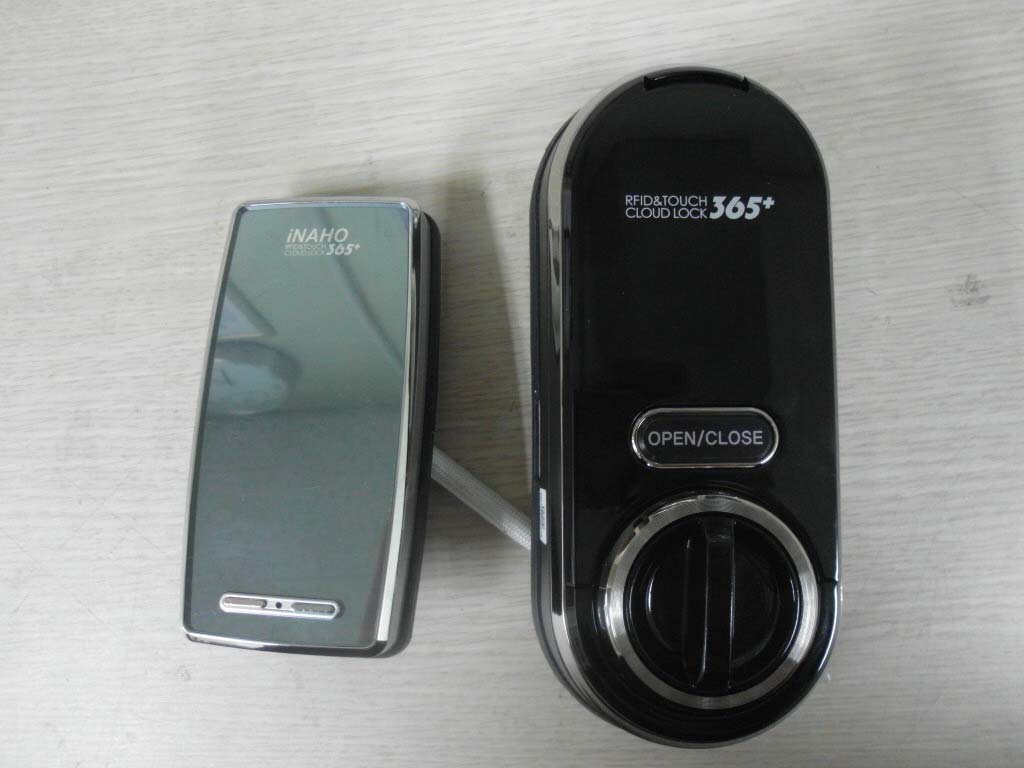

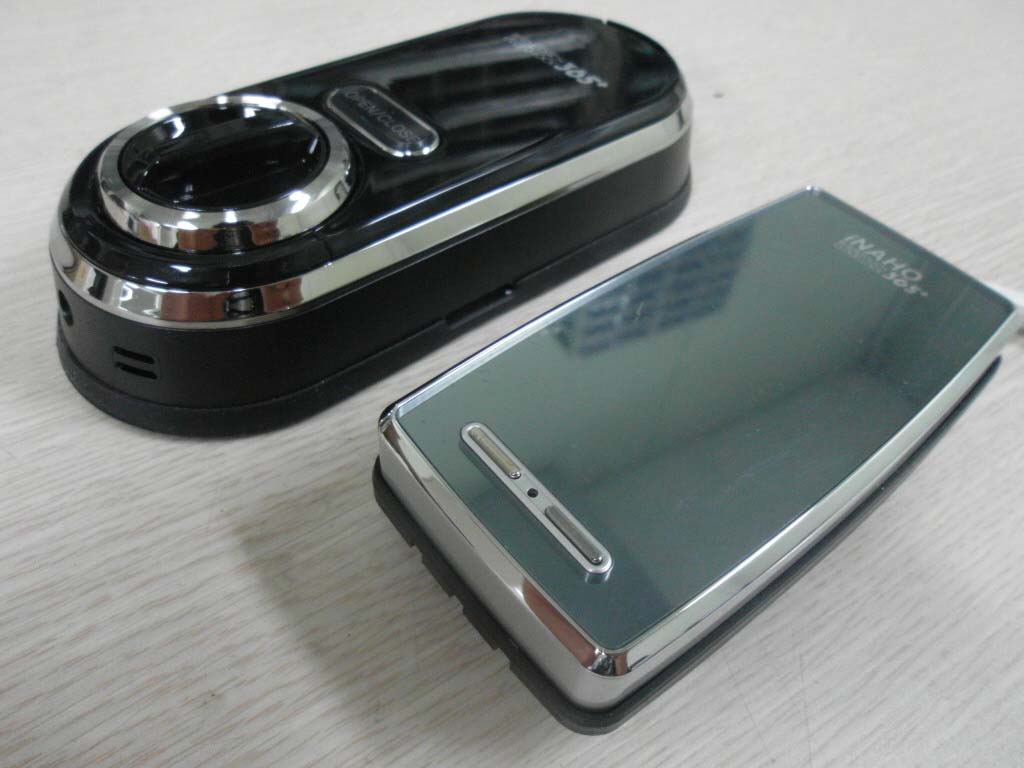

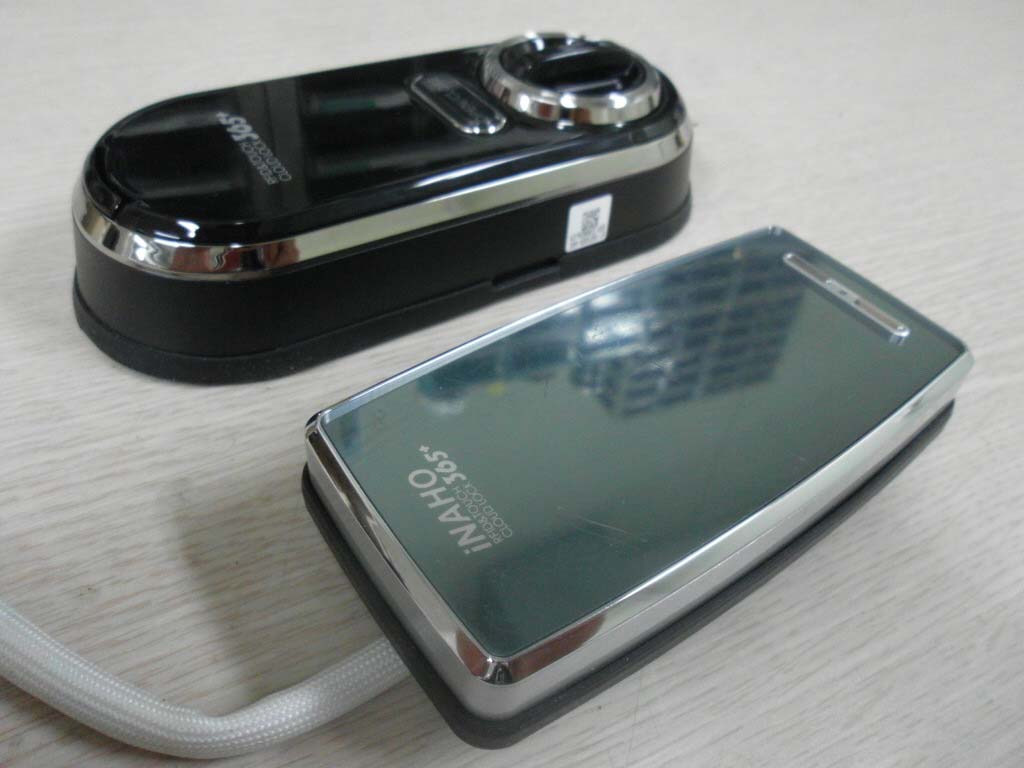

CTK Co., Ltd. (Ho-dong), 113, Yejik-ro, Cheoin-gu, Yongin-si, Gyeonggi-do, 449-100, Korea Tel: +82-31-339-9970 Fax: +82-31-624-9501 www.e-ctk.com EUT External Photographs CTK Co., Ltd. (Ho-dong), 113, Yejik-ro, Cheoin-gu, Yongin-si, Gyeonggi-do, 449-100, Korea Tel: +82-31-339-9970 Fax: +82-31-624-9501 www.e-ctk.com
CTK Co., Ltd. (Ho-dong), 113, Yejik-ro, Cheoin-gu, Yongin-si, Gyeonggi-do, 449-100, Korea Tel: +82-31-339-9970 Fax: +82-31-624-9501 www.e-ctk.com Label Photographs
CTK Co., Ltd. (Ho-dong), 113, Yejik-ro, Cheoin-gu, Yongin-si, Gyeonggi-do, 449-100, Korea Tel: +82-31-339-9970 Fax: +82-31-624-9501 www.e-ctk.com EUT Internal Photographs CTK Co., Ltd. (Ho-dong), 113, Yejik-ro, Cheoin-gu, Yongin-si, Gyeonggi-do, 449-100, Korea Tel: +82-31-339-9970 Fax: +82-31-624-9501 www.e-ctk.com CTK Co., Ltd. (Ho-dong), 113, Yejik-ro, Cheoin-gu, Yongin-si, Gyeonggi-do, 449-100, Korea Tel: +82-31-339-9970 Fax: +82-31-624-9501 www.e-ctk.com CTK Co., Ltd. (Ho-dong), 113, Yejik-ro, Cheoin-gu, Yongin-si, Gyeonggi-do, 449-100, Korea Tel: +82-31-339-9970 Fax: +82-31-624-9501 www.e-ctk.com CTK Co., Ltd. (Ho-dong), 113, Yejik-ro, Cheoin-gu, Yongin-si, Gyeonggi-do, 449-100, Korea Tel: +82-31-339-9970 Fax: +82-31-624-9501 www.e-ctk.com
1. Main PCB 1.1 Main PCB Top 1.2 Main PCB Bottom 2. Key PCB 2.1 Key PCB Top2.2 Key PCB Bottom 3. ANT PCB 3.1 ANTPCB Top3.2 ANT PCB Bottom 5. Zigbee PCB 5.1 Zigbee PCB Top 5.2 Zigbee PCB Bottom
LSZB-2.4GD5 승인원, GC47-00023A (리소텍) 1.1.1 PART LIST SPECIFICATIONS(Antenna) 1.1.1.1 Specification A. Electrical Characteristics S.W.R.( Tested in PC ) S.W.R.( Tested in PC ) Typical Antenna Gain Typical Antenna Gain Radiation Pattern Radiation Pattern Impedance Impedance Polarization Polarization B. Material Material of Radiator Material of Radiator C. Environmental Operation Temperature Operation Temperature Storage Temperature Storage Temperature 1.1.1.2 안테나 형상 및 매칭 회로 안테나 형상 매칭 회로 LSZB-2.4GD5 승인원, GC47-00023A (리소텍) 1.1.1.3 S11 1.1.1.4 VSWR 1.1.1.5 Smith Chart LSZB-2.4GD5 승인원, GC47-00023A (리소텍) 1.1.1.6 3D Result Summary 1.1.1.7 방사 패 LSZB-2.4GD5 승인원, GC47-00023A (리소텍) 1.1.1.8 Antenna Dimension
CTK Co., Ltd. (Ho-dong), 113, Yejik-ro, Cheoin-gu, Yongin-si, Gyeonggi-do, 449-100, Korea Tel: +82-31-339-9970 Fax: +82-31-624-9501 www.e-ctk.com Page 1 of 2 RF EXPOSURE EVALUATION Applicant : Samsung SDS Co., Ltd. Applicant Address : 125, Olympic-ro 35-gil, Songpa-gu, Seoul, Korea Kind of Product : Digital door lock Basic Model name : 365plus Variant Model name : - Antenna type : Wire antenna Gain : 3.14 dBi Frequency Range : 2405 – 2480 MHz Number of channels : 16 CTK Co., Ltd. (Ho-dong), 113, Yejik-ro, Cheoin-gu, Yongin-si, Gyeonggi-do, 449-100, Korea Tel: +82-31-339-9970 Fax: +82-31-624-9501 www.e-ctk.com Page 2 of 2 ** MPE Calculations ** The EUT will only be used with a separation of 20 centimeters or greater between the antenna and the body of the user. The MPE calculation for this exposure is shown below. The peak radiated output power (EIRP) is calculated as follows: EIRP = P + G EIRP = 13.68 + 3.14 = 14.50 dBm Where, P = Power input to the antenna (mW) G = Power gain of the antenna (dBi) The numeric gain(G) of the antenna with a gain specified in dB is determined by: G = Log -1 (dB antenna gain / 10) G = Log -1 (3.14 / 10) G = 2.061 Power density at the specific separation: S = PG/(4R 2 π) S = (13.68 * 2.061)/(4 * 20 2 * π) S =0.0056 mW/cm 2 Where, S = Maximum power density (mW/cm 2 ) P = Power input to the antenna (mW) G = Numeric power gain of the antenna R = Distance to the center of the radiation of the antenna (20cm = limit for MPE) The Maximum permissible exposure (MPE) for the general population is 1 mW/cm 2 . The power density at 20cm does not exceed the 1 mW/cm 2 limit. Estimated safe separation: R = √(PG / 4π) R = √(13.68 * 2.061 / 4π) R = 1.50 cm Where, P = Power input to the antenna (mW) G = Numeric power gain of the antenna R = Distance to the center of the radiation of the antenna (20cm = limit for MPE)
