P4YSHN-WDD510Digital door lock

Samsung SDS Co., Ltd.

Click to zoom

Application Details

Equipment Class: DTS - Digital Transmission System
Date of Grant: Oct 05, 2014
Application Purpose: Original Equipment
Date of Application: Oct 05, 2014
Equipment Note: Digital door lock
Frequency Range: 2405.00000000 - 2480.00000000
Company: Samsung SDS Co., Ltd.
Country: South Korea

Documents & Files

Select a file to view

Document Text

Text extracted from the exhibit documents filed with the FCC. Open a document above to read the original.

Users Manual

Please review all included documentation and use the product as intended. Safety precautions must be followed to avoid personal injury or property damage. Samsung Smart Door Lock User Guide SHN-WDD510 Smart Door Lock SHN-WDD510 | Table of Contents Congratulations on the purchase of your Samsung Smart Door Lock! Your lock has a touch sensitive number display pad and optionally a 13.56MHz Card reader. Up to 100 users can be registered to gain access with unique Codes or Access Cards (supports ISO14443A type). The touchscreen makes it convenient to enter the code and the Randomizer function helps prevent lockpicking using fingerprint traces on the touchscreen. Other convenient functions such as Automatic Locking / Sound Setting, etc. provide advanced security and peace of mind.You can unlock the door using video intercom’s monitor after connecting a Samsung video intercom. (Refer to page 9 for connection diagram to a video intercom). | Helpful Tips | Introduction Do not attempt to repair the product yourself. Change your codes regularly to ensure the security of your codes. Minimize the lock’s exposure to moisture including wet hands and direct contact with liquids. Do not exert excessive force or use sharp instrument on the touchscreen. Insert the batteries according to correct polarity. When the low-battery warning sounds, replace all batteries immediately. Do not mix old batteries with new batteries. Use soft, dry cloth to clean the lock and avoid cleaning with water, alcohol or other chemicals. Introduction & Helpful Tips �� 2 Installation �� 3 Components & Tools �� 3 Door Preparation �� 4-5 Preparing the parts �� 6 Installing Lock �� 7 Setting of Right-Handed / Left Handed �� 10 Programming �� 11 Programming Features & Definitions �� 11-14 Changing the Master PIN Code �� 14 Managing User Pin Code/ Card�� 15-16 Register Network Module �� 17 Basic Lock Operation Overview �� 18 Privacy Mode Functions �� 18 Programming Through Menu Mode Using Master Code �� 19 Miscellaneous �� 20 Miscellaneous Information �� 20 Troubleshooting �� 21-22 User Registration Table �� 23 Product Specifications �� …

Text truncated - open the document above for the full version.

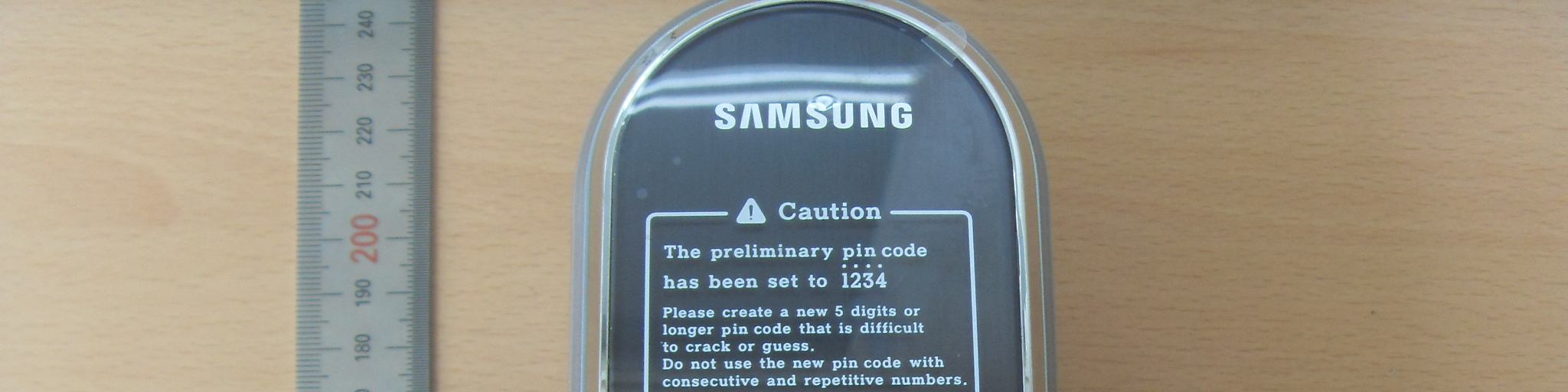

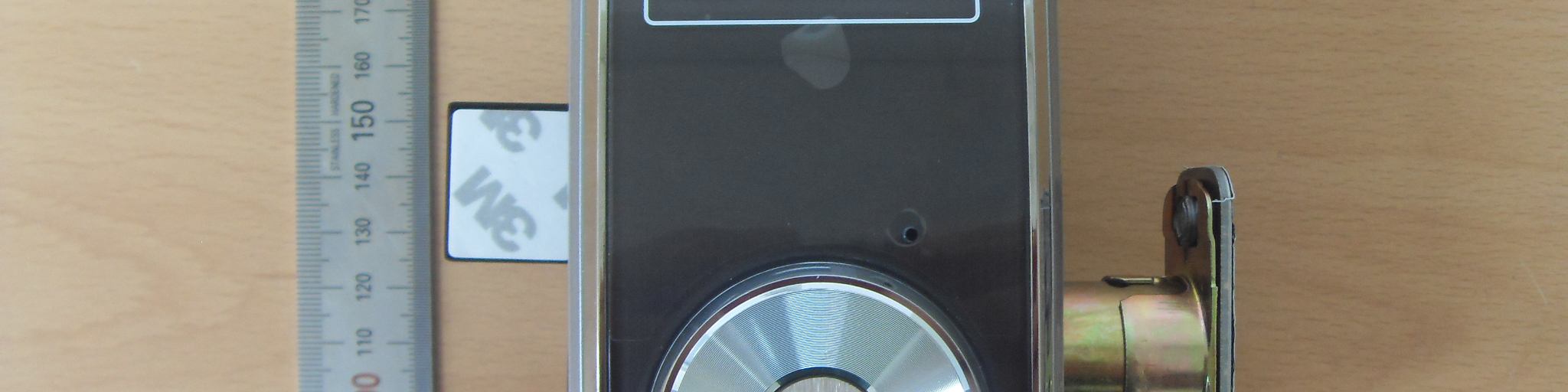

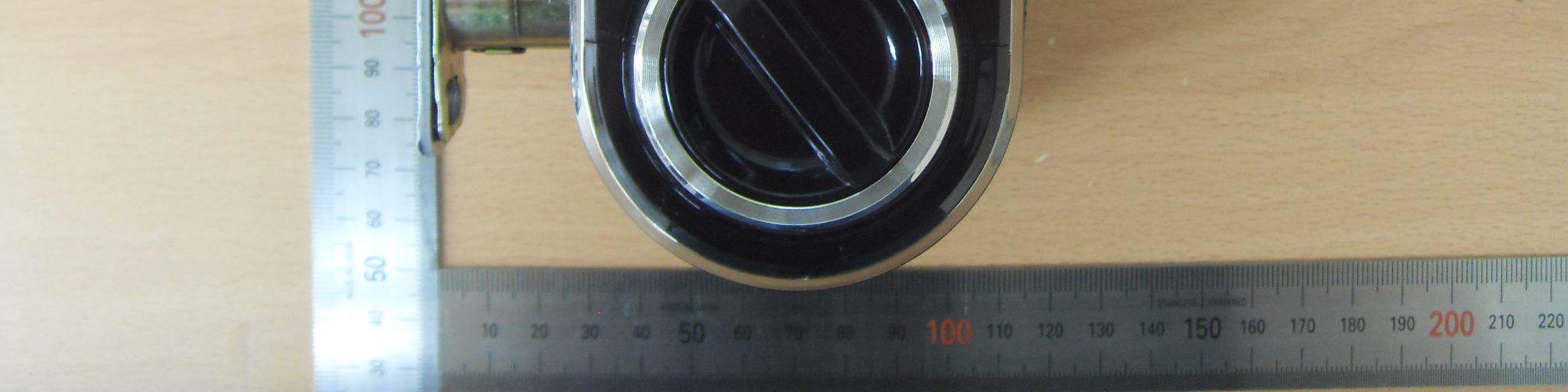

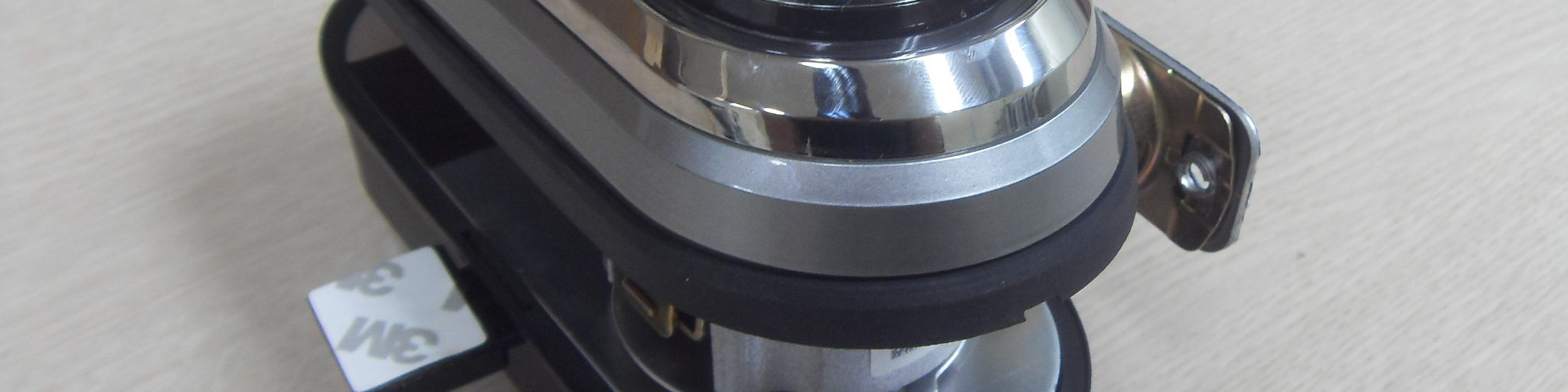

External Photos

CTK Co., Ltd. (Ho-dong), 113, Yejik-ro, Cheoin-gu, Yongin-si, Gyeonggi-do, Korea Tel: +82-31-339-9970 Fax: +82-31-624-9501 www.e-ctk.com EUT External Photographs CTK Co., Ltd. (Ho-dong), 113, Yejik-ro, Cheoin-gu, Yongin-si, Gyeonggi-do, Korea Tel: +82-31-339-9970 Fax: +82-31-624-9501 www.e-ctk.com

ID Label/Location Info

CTK Co., Ltd. (Ho-dong), 113, Yejik-ro, Cheoin-gu, Yongin-si, Gyeonggi-do, Korea Tel: +82-31-339-9970 Fax: +82-31-624-9501 www.e-ctk.com Label Photographs

Internal Photos

1. MainPCB 1.1 MainPCBTop 1.2 MainPCBBottom 2. KeyPCB 2.1 KeyPCBTop 2.2 KeyPCBBottom 3. TAMPERPCB 3.1 TAMPERPCBTop 3.2 TAMPERPCBBottom 4. ANTPCB 5. ZigbeePCB 5.1 ZigbeePCBTop 5.2 ZigbeePCBBottom

Internal Photos

CTK Co., Ltd. (Ho-dong), 113, Yejik-ro, Cheoin-gu, Yongin-si, Gyeonggi-do, Korea Tel: +82-31-339-9970 Fax: +82-31-624-9501 www.e-ctk.com EUT Internal Photographs CTK Co., Ltd. (Ho-dong), 113, Yejik-ro, Cheoin-gu, Yongin-si, Gyeonggi-do, Korea Tel: +82-31-339-9970 Fax: +82-31-624-9501 www.e-ctk.com CTK Co., Ltd. (Ho-dong), 113, Yejik-ro, Cheoin-gu, Yongin-si, Gyeonggi-do, Korea Tel: +82-31-339-9970 Fax: +82-31-624-9501 www.e-ctk.com CTK Co., Ltd. (Ho-dong), 113, Yejik-ro, Cheoin-gu, Yongin-si, Gyeonggi-do, Korea Tel: +82-31-339-9970 Fax: +82-31-624-9501 www.e-ctk.com CTK Co., Ltd. (Ho-dong), 113, Yejik-ro, Cheoin-gu, Yongin-si, Gyeonggi-do, Korea Tel: +82-31-339-9970 Fax: +82-31-624-9501 www.e-ctk.com CTK Co., Ltd. (Ho-dong), 113, Yejik-ro, Cheoin-gu, Yongin-si, Gyeonggi-do, Korea Tel: +82-31-339-9970 Fax: +82-31-624-9501 www.e-ctk.com RFID Antenna Zigbee Antenna

RF Exposure Info

CTK Co., Ltd. (Ho-dong), 113, Yejik-ro, Cheoin-gu, Yongin-si, Gyeonggi-do, Korea Tel: +82-31-339-9970 Fax: +82-31-624-9501 www.e-ctk.com Page 1 of 2 RF EXPOSURE EVALUATION Applicant Samsung SDS Co., Ltd. Applicant Address 125, Olympic-ro 35-gil, Songpa-gu, Seoul, Korea FCC ID P4YSHN-WDD510 Kind of Product Digital door lock Equipment model name SHN-WDD510K/EN RF power 18.16 dBm Peak Conducted Antenna type Wire antenna Antenna Gain 3.14 dBi Frequency Range 2405 MHz - 2480 MHz Number of channels 16 CH CTK Co., Ltd. (Ho-dong), 113, Yejik-ro, Cheoin-gu, Yongin-si, Gyeonggi-do, Korea Tel: +82-31-339-9970 Fax: +82-31-624-9501 www.e-ctk.com Page 2 of 2 ** MPE Calculations ** The EUT will only be used with a separation of 20 centimeters or greater between the antenna and the body of the user. The MPE calculation for this exposure is shown below. The peak radiated output power (EIRP) is calculated as follows: EIRP = P + G Where, P = Power input to the antenna (mW) G = Power gain of the antenna (dBi) EIRP = 18.16 + 3.14 = 21.30 dBm The numeric gain(G) of the antenna with a gain specified in dB is determined by: G = Log -1 (dB antenna gain / 10) G = Log -1 (3.14 / 10) G = 2.06 Power density at the specific separation: S = PG/(4R 2 π) Where, S = Maximum power density (mW/cm 2 ) P = Power input to the antenna (mW) G = Numeric power gain of the antenna R = Distance to the center of the radiation of the antenna (20cm = limit for MPE) S = (65.46 * 2.06)/(4 * 20 2 * π) S =0.0269 mW/cm 2 The Maximum permissible exposure (MPE) for the general population is 1 mW/cm 2 . The power density at 20cm does not exceed the 1 mW/cm 2 limit. Estimated safe separation: R = √(PG / 4π) Where, P = Power input to the antenna (mW) G = Numeric power gain of the antenna R = Distance to the center of the radiation of the antenna (20cm = limit for MPE) R = √(65.46 * 2.06 / 4π) R = 3.28 cm

Test Report

CTK Co., Ltd. (Ho-dong), 113, Yejik-ro, Cheoin-gu, Yongin-si, Gyeonggi-do, Korea Tel: +82-31-339-9970 Fax: +82-31-624-9501 www.e-ctk.com Test Report No.: CTK-2014-01104 Date: 2014-09-30 Page 1 of 40 This Report shall not be reproduced except in full without the written approval of CTK Form No.: CTK-RF-EF-Part15 Subpart C(Rev.2) TEST REPORT For FCC Test Report No. : CTK-2014-01104 Date of Issue : 2014-09-30 FCC ID : P4YSHN-WDD510 Model/Type No. : SHN-WDD510K/EN Kind of Product : Digital door lock Applicant : Samsung SDS Co., Ltd. Applicant Address : 125, Olympic-ro 35-gil, Songpa-gu, Seoul, Korea Manufacturer : Meta Networks Co. Ltd. Manufacturer Address : 55, Galmachi-ro 281beon-gil, Jungwon-gu, Seongnam-si, Gyeonggi-do Contact Person : Yu Seungkwan / Advisory Engineer Telephone : +82-6155-5105 Received Date : 2014-09-04 Test period : Start : 2014-09-04 End : 2014-09-30 Test Results : In Compliance Not in Compliance The test results presented in this report relate only to the object tested. Tested by Reviewed by Young-taek Lee Test Engineer Young-Joon, Park Technical Manager Date: 2014-09-30 Date: 2014-09-30 CTK Co., Ltd. (Ho-dong), 113, Yejik-ro, Cheoin-gu, Yongin-si, Gyeonggi-do, Korea Tel: +82-31-339-9970 Fax: +82-31-624-9501 www.e-ctk.com Test Report No.: CTK-2014-01104 Date: 2014-09-30 Page 2 of 40 This Report shall not be reproduced except in full without the written approval of CTK Form No.: CTK-RF-EF-Part15 Subpart C(Rev.2) REPORT REVISION HISTORY Date Revision Page No 2014-09-30 Issued (CTK-2014-01104) All This report shall not be reproduced except in full, without the written approval of CTK Co., Ltd. This document may be altered or revised by CTK Co., Ltd. personnel only, and shall be noted in the revision section of the document. Any alteration of this document not carried out by CTK Co., Ltd. will constitute fraud and shall nullify the document. CTK Co., Ltd. (Ho-dong), 113, Yejik-ro, Cheoin-gu, Yongin-si, Gyeonggi-do, Korea Tel: +82-31-339-9970 Fax: +82-31-624-9501 www.e-ctk.com Test Report No.: CTK-2014-01104 Date: 2014-09-30 Page 3 of 40 This Report shall not be reproduced except in full without the written approval of CTK Form No.: CTK-RF-EF-Part15 Subpart C(Rev.2) TABLE OF CONTENTS REPORT REVISION HISTORY ........................................................................................... 2 1.0 General Product Description ................................................................................ 4 1.1 Tested Frequency ............................................................................................... 4 1.2 Tested Mode ...................................................................................................... 4 1.3 Model Differences .............................................................................................. 4 1.4 Duty Cycle ........................................................................................................ 5 1.5 Device Modifications ........................................................................................... 5 1.6 Peripheral Devices ............................................................................................. 5 1.7 Calibration Details of Equipment Used for Measurement ......................................... 6 1.8 Test Facility ....................................................................................................... 6 1.9 Laboratory Accreditations and Listings .................................................................. 6 2.0 Summary of tests .............................................................................................. 7 2.1 Technical Characteristic Test ...................................................................................... 8 2.1.1 6 dB Bandwidth ........................................................................................... 8 2.1.2 Maximum peak Conducted Output Power ...................................................... 12 2.1.3 Power Spectral Density ............................................................................... 16 2.1.4 Band - edge .............................................................................................. 20 2.1.5 Field Strength of Emissions ......................................................................... 25 2.1.6 AC Conducted Emissions ............................................................................. 37 APPENDIX A – Test Equipment Used For Tests ................................................................. 40 CTK Co., Ltd. (Ho-dong), 113, Yejik-ro, Cheoin-gu, Yongin-si, Gyeonggi-do, Korea Tel: +82-31-339-9970 Fax: +82-31-624-9501 www.e-ctk.com Test Report No.: CTK-2014-01104 Date: 2014-09-30 Page 4 of 40 This Report shall not be reproduced except in full without the written approval of CTK Form No.: CTK-RF-EF-Part15 Subpart C(Rev.2) 1.0 General Product Description Equipment model name SHN-WDD510K/EN Serial number Prototype EUT condition Pre-production, not damaged Frequency Range 2405 MHz - 2480 MHz RF output power 18.16 dBm Number of channels 16 Transfer Rate 250 Kbps Type of Modulation DSSS Channel Spacing 5 MHz Duty cycle TX power 1.0 Power Source 6 Vdc (4 AA Alkaline 1.5 V Batteries (LR6)) Antenna Type Wire antenna Gain : 3.14 dBi 1.1 Tested Frequency Channel CH11 CH15 CH19 CH20 CH25 CH26 Frequency (MHz) 2405 2425 2445 2450 2475 2480 1.2 Tested Mode Channel CH11 CH15 CH19 CH20 CH25 CH26 TX Power factor (dBm) -4 -4 -4 -4 -4 -f TX Power Mode l p => 1 1 : Boost-mode, PA-External 1.3 Model Differences Not applicable CTK Co., Ltd. (Ho-dong), 113, Yejik-ro, Cheoin-gu, Yongin-si, Gyeonggi-do, Korea Tel: +82-31-339-9970 Fax: +82-31-624-9501 www.e-ctk.com Test Report No.: CTK-2014-01104 Date: 2014-09-30 Page 5 of 40 This Report shall not be reproduced except in full without the written approval of CTK Form No.: CTK-RF-EF-Part15 Subpart C(Rev.2) 1.4 Duty Cycle Duty Cycle : 100% 1.5 Device Modifications The following modifications were necess…

Text truncated - open the document above for the full version.

Test Setup Photos

CTK Co., Ltd. 386-1, Ho-dong, Cheoin-gu, Yongin-si, Gyeonggi-do, 449-100, Korea Tel: +82-31-339-9970 Fax: +82-31-339-9855 www.e-ctk.com Test Setup Photos and Configuration Radiated Electric Field Emissions (9 kHz ~ 30 MHz) (30 MHz ~ 1000 MHz) CTK Co., Ltd. 386-1, Ho-dong, Cheoin-gu, Yongin-si, Gyeonggi-do, 449-100, Korea Tel: +82-31-339-9970 Fax: +82-31-339-9855 www.e-ctk.com (above 1 GHz) Frequency Stability

Contact Information

Applicant

Myoung Kue Lee(Advisory Engineer)

[email protected]82-2-6484-0557Fax: 82-2-6484-0688

Test Firm

CTK Co., Ltd.Young-Joon Park

[email protected]82-31-339-9871Fax: 82-31-624-9501

Technical Specifications

#	Rule Parts	Frequency Range	Power Output
1	15C	2.40 GHz - 2.48 GHz	65.00 mW

Confidentiality

Long Term

Grant Notes

Power listed is conducted. The antenna(s) used for this transmitter must be installed to provide a separation distance of at least 20 cm from all persons and must not transmit simultaneously with any other antenna or transmitter, except in accordance with FCC multi-transmitter product procedures. Users and installers must be provided with antenna installation instructions and transmitter operating conditions for satisfying RF exposure compliance.
